KIA RIO 2021 Features and Functions Guide
Manufacturer: KIA, Model Year: 2021, Model line: RIO, Model: KIA RIO 2021Pages: 42, PDF Size: 4.25 MB
Page 31 of 42
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER29
SEATING
SEATING
Front Seat Headrest Adjustment†96-Way Adjustable Driver’s Seat†15
Pull lever A to slide Seat forward/backward.
Pull/press lever B up/down one or more times to adjust Seat height.
Pull lever C to adjust Seatback Recline.
To raise headrest: Pull headrest up.
To lower headrest: Press lock D, then press the headrest down.
When adjusting seat forward or backward, ensure seat clicks or locks into place before driving the vehicle.
QUICK TIP
For easy adjustments, hold a headrest post with one hand while using the other hand to pull the headrest from underneath.
QUICK TIP
REMINDERS:
• Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head support in an accident
• Button may be hard to see if headrest is in its lowest position
Do not attempt to adjust the seat while the vehicle is moving. This could result in loss of control of the vehicle.
For illustrative purposes only. Your actual display, buttons and/or features may vary.
D
A
A
B
B
C
C
Page 32 of 42
*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER30RIO FEATURES & FUNCTIONS GUIDE
SEATING
SEATING
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Rear Occupant Alert (ROA) with Door Monitoring VideoCheck rear seats
: Alarm OffOK
Rear Occupant Alert (ROA) with Door Monitoring
The Rear Occupant Alert (ROA) with Door Monitoring can help alert the driver when a
rear passenger may be left in the vehicle. The alert will be a message on the Instrument
Cluster stating to “Check rear seats” D and a chime will sound.
The factory default is set to OFF. To turn the system ON or OFF, go to User Settings in the
Instrument cluster or Vehicle Settings*, on the audio head unit select Convenience, then
Rear Occupant Alert and check /uncheck the box.
REMINDER: Always be sure to check the passenger areas before leaving the vehicle.
D
ROA is not a substitute for one’s attention. Always check the vehicle’s interior before exiting.
See section 4 in the Owner’s Manual for more information.
Images are for illustrative purposes only and may not reflect actual feature or operation.
Folding Rear Seatback†15
To F o l d :
1.
Ensure the rear seat belt is out of way of the Seatback folding A
(4-door model)
Insert the metal seat belt tab into the holder A (5-door model)
2. Adjust the Front Seatback to the upright position and lower the
rear headrest to the lowest position
3. Pull on the Rear Seatback lock release lever C, then fold the seat
toward the front
To U n f o l d :
1. Pull the lock release lever C and lift the Seatback backward until it
clicks firmly in place
2. Return the rear seat belt to the proper position
REMINDERS:
•
Before unfolding Seatback, ensure the metal seat belt tab is placed into the holder (5-door model)
•Always make sure the seatback is locked in place when unfolded
• It may be necessary to adjust the front seatbacks to fully lower rear seats
• Ensure seat is locked by pressing down on Seatback and ensuring red line is NOT visible on bottom of Folder Lever
QUICK TIPS
A
B
C
(4-door model)
Page 33 of 42
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER31
OTHER KEY FEATURES
OTHER KEY FEATURES
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Engine Start/Stop Button Video
Key Fob Video
A Press to lock All Doors
B Press to unlock Driver’s Door. Press twice in 4 seconds
to unlock All Doors
C Press and hold to open Trunk. Then lift by the handle
REMINDER: Trunk lid will partially open. To fully open, lift up manually. The Trunk unlocks when the Smart Key fob is within close proximity to the vehicle.
D Press and hold more than 1 second for Panic Alarm.
To turn off Alarm, press any button
E Press to release Mechanical Key (on reverse side of fob)
F Mechanical Key
Driver’s Door Lock/Unlock button H:
•
Press button once to unlock Driver’s Door
•Press again within 4 seconds to unlock All Doors
Mechanical Key: Use to unlock /lock Driver’s Door:
1. Pull out door handle
2. Remove door handle keyhole cover with Mechanical Key by pressing
up into slot as shown I
3. Insert Mechanical Key J and turn right to Unlock Driver’s Door
4. Turn twice within 4 seconds to Unlock All Doors
5. Insert Mechanical Key and turn left to Lock All Doors
6. Return keyhole cover to its original position
Note: Use to unlock trunk, lock glove box* and to turn Child Protector Rear-Door Locks.
( Type B handle shown)
Smart Key*†9
•If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the Engine Start /Stop button (Lock button side closest) and press to start engine
•The Smart Key’s signal can be blocked by the normal operation of a cell phone or smartphone. To help prevent this, store each device separately
QUICK TIPS
REMINDER: Remote button configuration may vary depending on vehicle options.
For illustrative purposes only. Your actual display, buttons and/or features may vary. See section 4 in the Owner’s Manual for more information.
H
I
J
HOLD
A
B
C
D
E
F
Page 34 of 42
*IF EQUIPPED32RIO FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
OTHER KEY FEATURES
LockUnlock
( With folding key shown)
( Type A )
HOLD
Remote Keyless Entry (Folding Key)*
A Press the release button to unfold the key
B Press to lock all Doors. If pressed again
within 4 seconds the hazard lights will
blink and the horn will sound.
C Press to unlock Driver’s Door.
Press twice in 4 seconds to unlock
all Doors and Trunk /Liftgate*
D Press for more than 1 second to
automatically open Trunk /Liftgate*
E Press and hold for approximately one
second for Panic Alarm. To turn OFF
Alarm, press any button
REMINDER: Remote button configuration may vary depending on vehicle options.
Door Locks / Double-Turn Unlock All
•Turn counterclockwise once to unlock Driver’s Door
•Turn counterclockwise again within 4 seconds to
unlock all Doors
•Turn clockwise once to lock all Doors
Fuel Cap / Malfunction Indicator
(Check Engine Light)
To install the fuel cap, turn the fuel cap clockwise
for ONE CLICK to prevent Malfunction Indicator
from illuminating. Close and lightly push the Fuel
Filler Lid to ensure it’s securely closed. REMINDERS:
• The Fuel Filler Door Release lever is located on the lower part of the driver’s door sill
• It is normal operation when tightening to hear one click and then, when Fuel Cap is released, it clicks
For illustrative purposes only. Your actual display, buttons and/or features may vary.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
One Click Fuel Cap Video
B
A
Page 35 of 42
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER33
OTHER KEY FEATURES
OTHER KEY FEATURES
(Lever located on the driver’s floor near door sill; Image shown is 4-door model)
B
(Lever located under Driver’s Panel buttons)
(Latch located inside hood)
REMINDERS:
•Sunvisor may not shield all direct light
•
The Sunvisor may impair visibility if not adjusted properly. Do not operate the vehicle if Sunvisor is impairing your visibility
•
Be aware of seating position when adjusting or swinging Sunvisor around to or from the front or side windows
Hood Release Lever and Latch
Opening the Hood:
1. Pull the Hood Release Lever A
to unlatch the Hood
In the front of the vehicle, lift the
Hood slightly, push the secondary
Latch B to the left inside of the
hood’s center and lift the Hood
2. Pull out the support rod from the
Hood and set into place to hold
the Hood open
Fuel Door Release Lever
Pull the lever C upwards to release the
fuel door.
REMINDER: Open the Hood only after turning the engine off, on a flat surface, with the gear shift in P (Park) position and setting the parking brake.
Closing the Hood:
Lower the Hood by pressing the front center of the Hood. Then, press
down to securely lock in place.
REMINDER: While lowering and closing, keep hands away from under the Hood.
Tr u n k* Release Lever
(4-door model)
Pull the lever D upwards to open the
trunk lid.
Sunvisor†2 0
Use the Sunvisor to shield direct light through the front or side
windows. Slide the Sunvisor out and adjust as needed.
For illustrative purposes only. Your actual display, buttons and/or features may vary.
D
C
A
Page 36 of 42
*IF EQUIPPED 34RIO FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
OTHER KEY FEATURES
For illustrative purposes only. Your actual display, buttons and/or features may vary.

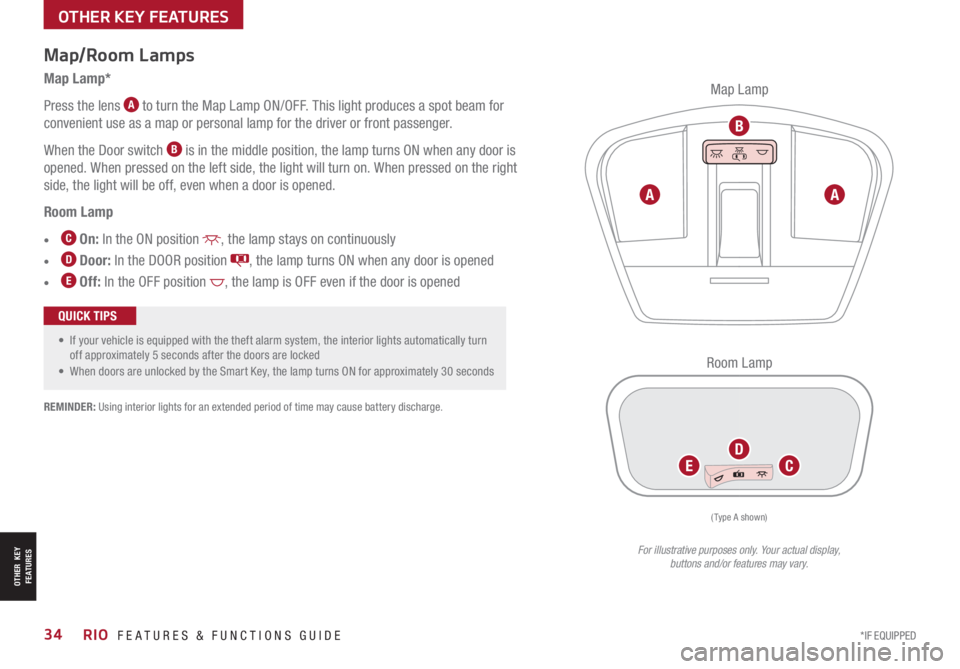

Map/Room Lamps
Map Lamp*
Press the lens A to turn the Map Lamp ON/OFF. This light produces a spot beam for
convenient use as a map or personal lamp for the driver or front passenger.
When the Door switch B is in the middle position, the lamp turns ON when any door is
opened. When pressed on the left side, the light will turn on. When pressed on the right
side, the light will be off, even when a door is opened.
Room Lamp
•C On: In the ON position , the lamp stays on continuously
•D Door: In the DOOR position , the lamp turns ON when any door is opened
•E Off: In the OFF position , the lamp is OFF even if the door is opened
REMINDER: Using interior lights for an extended period of time may cause battery discharge.
(Type A shown)
Map Lamp
Room Lamp
• If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 5 seconds after the doors are locked
• When doors are unlocked by the Smart Key, the lamp turns ON for approximately 30 seconds
QUICK TIPS
EC
D
AA
B
Page 37 of 42
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED35
OTHER KEY FEATURES
OTHER KEY FEATURES
(Image displays on the audio control unit screens)

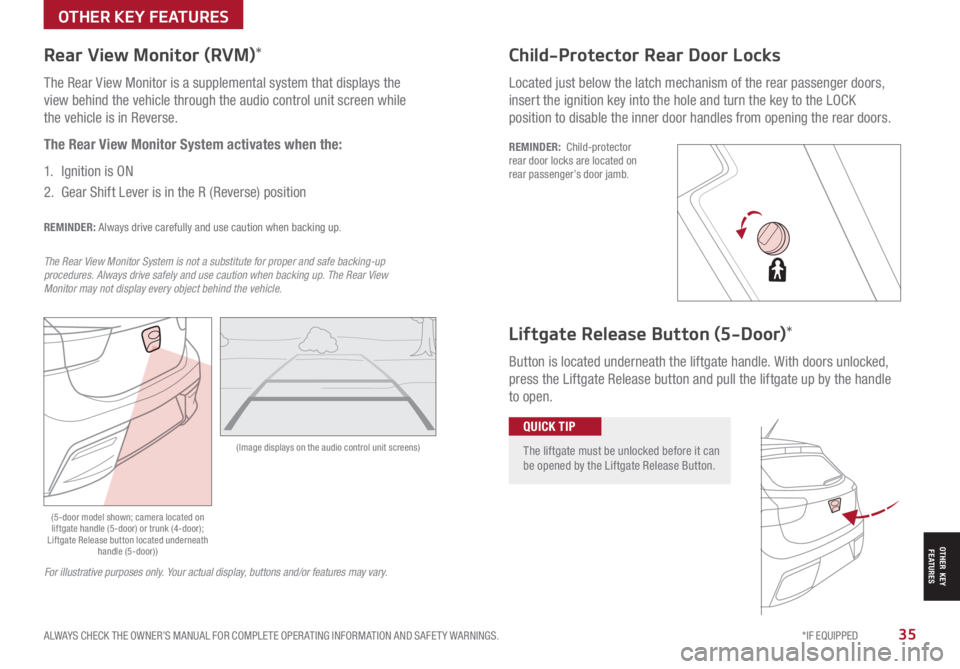

Rear View Monitor (RVM)*
The Rear View Monitor is a supplemental system that displays the
view behind the vehicle through the audio control unit screen while
the vehicle is in Reverse.
The Rear View Monitor System activates when the:
1. Ignition is ON
2.
Gear Shift Lever is in the R (Reverse) position
REMINDER: Always drive carefully and use caution when backing up.
The Rear View Monitor System is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. The Rear View Monitor may not display every object behind the vehicle.
(5-door model shown; camera located on liftgate handle (5-door) or trunk (4-door); Liftgate Release button located underneath handle (5-door))
Child-Protector Rear Door Locks
Located just below the latch mechanism of the rear passenger doors,
insert the ignition key into the hole and turn the key to the LOCK
position to disable the inner door handles from opening the rear doors.
REMINDER: Child-protector rear door locks are located on rear passenger’s door jamb.
Liftgate Release Button (5-Door)*
Button is located underneath the liftgate handle. With doors unlocked,
press the Liftgate Release button and pull the liftgate up by the handle
to open.
The liftgate must be unlocked before it can be opened by the Liftgate Release Button.
QUICK TIP
For illustrative purposes only. Your actual display, buttons and/or features may vary.
Page 38 of 42
*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER36RIO FEATURES & FUNCTIONS GUIDE
PRESS
Occupant Detection System (ODS)†13 /
Passenger Airbag†2 Off Indicator
ODS is designed to detect the presence of the front
passenger and adjusts or turns off airbag deployment
accordingly.
Depending on the situation
and type of accident, the
system may:
•Deploy airbag (Adult)
•Not deploy the airbag (Unoccupied)
If the system determines that the airbag should not be
deployed, the “PASSENGER AIR BAG OFF” light will
illuminate.
REMINDER: Do not allow an adult passenger to ride in the front seat when the Passenger Airbag Indicator is illuminated OFF because the airbag will not deploy in the event of a crash. The driver must instruct the passenger to reposition her/himself in the seat.
For more information on the Occupant Detection System / Passenger Airbag Off Indicator, please refer to the Owner’s Manual.
Seat Belts†17
To properly fasten your safety belts:
1.
Insert the belt tongue plate A into the buckle B until it clicks
2.
Position the lap portion of the belt across your lap as LOW ON THE HIPS as possible C. Adjust the belt to a SNUG FIT by pulling up on the shoulder portion D
Seat Belt Retractor Locks
Retractor locks allow lap/shoulder seat belts to remain unlocked during normal vehicle
operation for freedom of movement and increased comfort.
During a STRONG STOP, SUDDEN TURN OR CERTAIN COLLISIONS, seat belt retractors
will automatically lock the belts to reduce the risk of injury.
REMINDER: For maximum protection, always wear your seat belt.
The Seat Belt warning chime operates for driver’s seat only.
QUICK TIP
For illustrative purposes only. Your actual display, buttons and/or features may vary.
D
C
A
B
SAFETYFEATURES
SAFETY FEATURES
Page 39 of 42
Sales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
LEGAL DISCLAIMERS
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\
ving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.
1. UVO link: Purchase/lease of certain 2020 and newer Kia vehicles with UVO link includes a complimentary 1-year subscription starting from new vehicle retail sale/lease date as recorded by the dealer. After your complimentary 1-year UVO link subscription expires, continued access to the full suite of UVO link available on your Kia will require a paid subscription at the then current subscription rate or your use of certain UVO link features may immediately terminate. Use of UVO is subject to agreement to the UVO Privacy Policy (available at https://owners.kia.com/us/en/privacy-policy.html.html) and Terms of Service (available at https://owners.kia.com/us/en/terms-of-service.html.html). UVO link is transferable to subsequent owner during the original UVO link service term. Only use UVO link when safe to do so. Kia Access with UVO link App is available from the Apple® App Store® or Google Play™. Kia Motors America, Inc. reserves the right to change or discontinue UVO link at any time without prior notification or incurring any future obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. UVO link features may vary by model, model year, and trim level. Features, specifications, and fees are subject to change. For more on details and limitations, visit https://owners.kia.com or your authorized Kia dealer. Apple and App Store are registered trademarks of Apple Inc. Google and logos are trademarks of Google, LLC.
2. Airbags: For maximum protection, always wear your seat belt.
3. Android Auto™: Vehicle user interface is a product of Google and its terms and privacy statements apply. Requires the Android Auto app on Google Play and an Android compatible smartphone running Android™ 5.0 Lollipop or higher. Data plan rates apply. Android Auto is a trademark of Google LLC.
4. Apple CarPlay®: Apple® and Apple CarPlay® are trademarks of Apple, Inc., registered in the U.S. and other countries. Apple CarPlay® runs on your smartphone cellular data service. Normal data rates will apply.
5. Bluetooth® Wireless Technology: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG Inc., and any use of such marks by Kia is pursuant to license. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.
6. Driver Assist Features – Lane Keeping Assist, Lane Following Assist (LFA), Rear View Monitor (RVM), Forward Collision-Avoidance Assist (FCA): These features are not substitutes for safe driving, and may not detect all objects in front of the vehicle. Always drive safely and use caution.
7. Driver Attention Warning (DAW): Driver Attention Warning is not a substitute for safe driving and may not detect all instances of driver fatigue or inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.
8. Electronic Stability Control (ESC) / Traction Control System (TCS) / Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.
9. Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.
10. Google Play™ Store is a trademark of Google, Inc. ©2020 Google Inc. All rights reserved. Google and the Google Logo are registered trademarks of Google Inc.
11. iPhone®: iPhone is a registered trademark of Apple Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.
12. Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
13. Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.
14. Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.
15. Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.
16. Seat belts: For maximum protection, always wear your seatbelt.
17. SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current r\
ates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported\
securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. ©2020 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.
18. Sportmatic® is a registered trademark of Kia Motors America.
19. Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls wh\
ile driving.
20. Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.
21. Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.
22. Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.
Page 40 of 42
RIO
CUSTOMER DELIVERY CHECKLIST
KEY FEATURE WALKTHROUGHDURING DELIVERY Sales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
*if equipped
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff & explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up
Bluetooth
® Wireless
Technology*
– p a g e s 18 -19
Demonstrate operation
Standard Audio System*
– page 22
For further operational information, refer to
the Car Multimedia System User’s Manual
Standard Audio System Value
with UVO link*
– page 24
For further operational information, refer to
the Car Multimedia System User’s Manual Kia Access with UVO link App Download – page 23 Kia Access with UVO link App Features Guide – page 23
Multimedia USB Ports – page 25 Digital Clock – page 25 Folding Rear Seatback – page 30 Passenger Airbag Off Indicator – page 36
Sunvisor – page 33 Tire Pressure Monitoring System ( TPMS) – page 5
Demonstrate the following with the customer:
Rear View Monitor (RVM) – page 35
Android Auto
™ / Apple CarPlay
®
Setup – page 20 UVO link Activation / UVO Assistance* – page 21
OK
RES+
SET-
SETUP
N AV
MAP
MEDIA SEEK
RADIO
TRACK
POWERPUSH
VOL ENTER
TUNE
FILE
SETUP
MEDIA SEEK
RADIO TRACK
POWERPUSHVOL FILE
TUNEENTER
SETUP
N AV
MAP
MEDIA SEEK
RADIO
TRACK
POWERPUSH
VOL ENTER
TUNE
FILE
SETUP
MEDIA SEEK
RADIO TRACK
POWERPUSHVOL FILE
TUNEENTER
