28*IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE

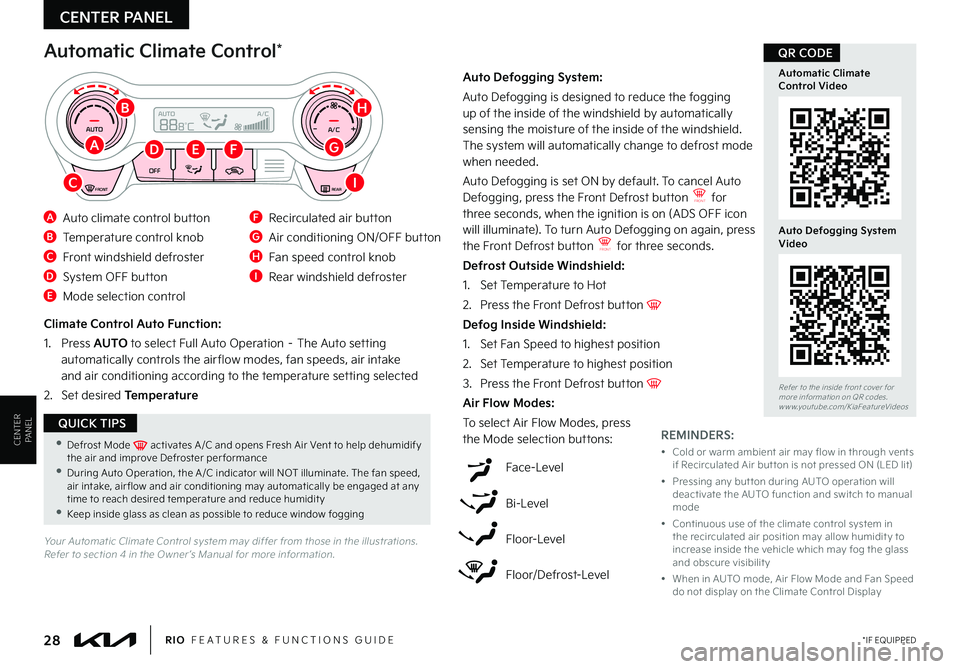

Automatic Climate Control*
Auto Defogging System:
Auto Defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield . The system will automatically change to defrost mode when needed .
Auto Defogging is set ON by default . To cancel Auto Defogging, press the Front Defrost button FRONT for three seconds, when the ignition is on (ADS OFF icon will illuminate) . To turn Auto Defogging on again, press the Front Defrost button FRONT for three seconds .
Defrost Outside Windshield:
1 . Set Temperature to Hot
2 .
Press the Front Defrost button
Defog Inside Windshield:
1 . Set Fan Speed to highest position
2 . Set Temperature to highest position
3 . Press the Front Defrost button
Air Flow Modes:
To select Air Flow Modes, press the Mode selection buttons:
Climate Control Auto Function:
1 . Press AUTO to select Full Auto Operation – The Auto setting automatically controls the air flow modes, fan speeds, air intake and air conditioning according to the temperature setting selected
2 . Set desired Temperature
REMINDERS:
• Cold or warm ambient air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
• Pressing any but ton during AUTO operation will deactivate the AUTO function and switch to manual mode
• Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
• When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Your Automatic Climate Control system may differ from those in the illustrations . Refer to section 4 in the Owner ’s Manual for more information .
FRONTREAR
A/C
A/C
AUTO
OFF
AUTO+
-8 88°C
A Auto climate control button
B Temperature control knob
C Front windshield defroster
D System OFF button
E Mode selection control
F Recirculated air button
G Air conditioning ON/OFF button
H Fan speed control knob
I Rear windshield defroster
A
B
G
CI
H
FDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Automatic ClimateControl Video
Auto Defogging System Video
QR CODE
•Defrost Mode activates A /C and opens Fresh Air Vent to help dehumidify the air and improve Defroster per formance •During Auto Operation, the A /C indicator will NOT illuminate . The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidit y •Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
CENTER PANEL
CENTER PANEL

29*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
A Temperature control
B Fan speed control
C Recirculated/Fresh Air button
D Mode selection control
E Air conditioning ON/OFF button
F Rear windshield defroster button
Manual Climate Control*
Defrost Outside Windshield:
1 . Set Fan Speed to the highest position
2 . Set Temperature to Hot
3 . Select Front Defrost mode
Defog Inside Windshield:
1 . Set Fan Speed to desired position
2 . Set Temperature to desired position
3 . Select Front Defrost mode
REMINDERS:
• Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
• Warm air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit) . Outside air temperature may not be warm depending on outside temperature
REARA/C
MAX
A/C
１ 2
0 3
4
(Type A shown)
Air Flow Modes
To select Air Flow modes, rotate the mode selection knob D:
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Defrost-Level (front)
Your Manual Climate Control system may differ from those in the illustrations . Refer to section 4 in the Owner ’s Manual for more information .
A
B
C
F
D
E
•To help achieve desired / maintain desired temperature, select Floor-Level for heating and Face-Level for cooling •Defrost Mode activates A /C and opens Fresh Air Vent •MA X A /C Mode automatically engages Recirculated Air •Keep inside glass as clean as possible to reduce window fogging
QUICK TIPSCENTER PANEL
