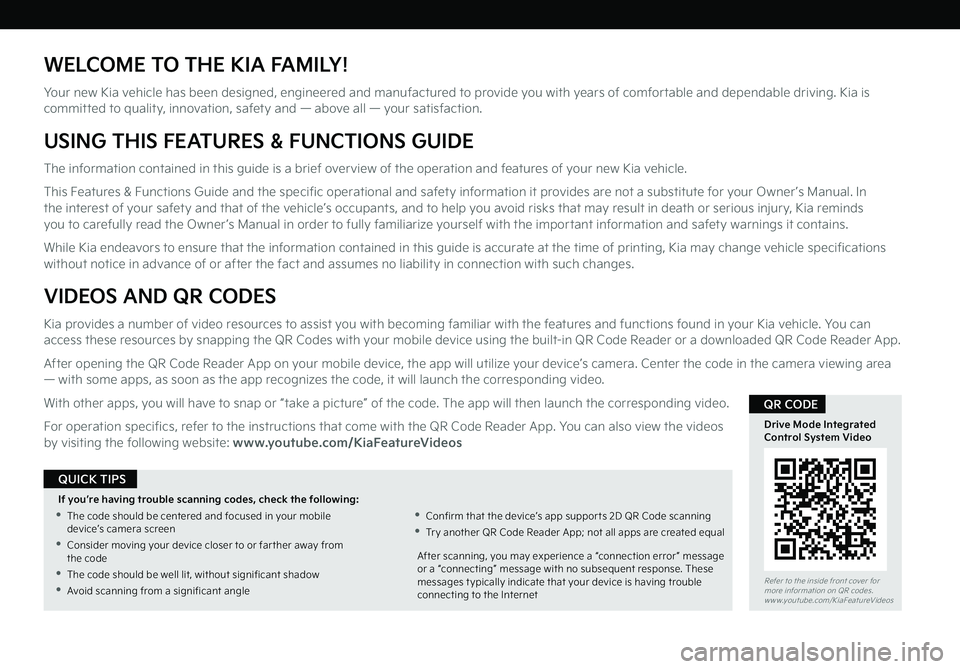

WELCOME TO THE KIA FAMILY!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable driving. Kia is committed to quality, innovation, safety and — above all — your satisfaction.
USING THIS FEATURES & FUNCTIONS GUIDE
The information contained in this guide is a brief overview of the operation and features of your new Kia vehicle.
This Features & Functions Guide and the specific operational and safety information it provides are not a substitute for your Owner’s Manual. In the interest of your safety and that of the vehicle’s occupants, and to help you avoid risks that may result in death or serious injury, Kia reminds you to carefully read the Owner’s Manual in order to fully familiarize yourself with the important information and safety warnings it contains.
While Kia endeavors to ensure that the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance of or after the fact and assumes no liability in connection with such changes.
VIDEOS AND QR CODES
Kia provides a number of video resources to assist you with becoming familiar with the features and functions found in your Kia vehicle. You can access these resources by snapping the QR Codes with your mobile device using the built-in QR Code Reader or a downloaded QR Code Reader App.
After opening the QR Code Reader App on your mobile device, the app will utilize your device’s camera. Center the code in the camera viewing area — with some apps, as soon as the app recognizes the code, it will launch the corresponding video.
With other apps, you will have to snap or “take a picture” of the code. The app will then launch the corresponding video.
For operation specifics, refer to the instructions that come with the QR Code Reader App. You can also view the videos by visiting the following website: www.youtube.com/KiaFeatureVideos
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Drive Mode Integrated Control System Video
QR CODE
If you’re having trouble scanning codes, check the following:
•
The code should be centered and focused in your mobile device’s camera screen
•
Consider moving your device closer to or far ther away from the code
•
The code should be well lit, without significant shadow
•Avoid scanning from a significant angle
•
Confirm that the device’s app suppor ts 2D QR Code scanning
•
Tr y another QR Code Reader App; not all apps are created equal
After scanning, you may experience a “connection error ” message or a “connecting” message with no subsequent response. These messages t ypically indicate that your device is having trouble connecting to the Internet
QUICK TIPS
Page 3 of 46
11†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
GETTING STARTED
As you get to know your new Kia, you can explore this booklet to better understand
how to operate its many features and systems. You can find the complete Table of
Contents on the next two pages, but first, be sure to review the following to better
understand some of your Kia’s most used features:
1 Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2 Fuel Door Release Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3 6-Way Adjustable Driver’s Seat* / Front Seat Headrest Adjustment . . . . . . . 31
4 Folding Rear Seatback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5 Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6 Cruise Control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Normal Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . Back Cover
8 User Settings (Type B) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07
9 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
10 UVO link Activation* / UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . 23
11 Standard Audio System - Value with UVO link* . . . . . . . . . . . . . . . . . . . 26
12 Kia Access with UVO link App Download . . . . . . . . . . . . . . . . . . . . . . 25
13 Kia Access with UVO link App Features Guide . . . . . . . . . . . . . . . . . . . 25
14 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . . . . . . . . . . . . . . . 22
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
www .kia .com Consumer Affairs – Roadside Assistance†1 1: 1-800-333-4KIA (800-333-4542)
Always check the Owner ’s Manual for complete operating information and safet y warnings .
Page 4 of 46
2*IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES . . . . . . . . .Inside Cover
INSTRUMENT CLUSTER
Instrument Cluster Overview . . . . . . . . . . . . . . . . . . 03
Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . 04
Tire Pressure Monitoring System (TPMS) . . . . . . . 05
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
Instant Fuel Consumption Mode . . . . . . . . . . . . . . . 05
VEHICLE SETTINGS
Trip Mode/Trip Computer . . . . . . . . . . . . . . . . . . . . . 06
LCD Instrument Cluster Modes . . . . . . . . . . . . . . . . 06
User Settings (Type B) . . . . . . . . . . . . . . . . . . . . . . . . . 07
Service Interval Mode (Type A) . . . . . . . . . . . . . . . . 07
ADVANCED DRIVER ASSISTANCE
SYSTEMS (ADAS)
Lane Keeping Assist (LK A)* . . . . . . . . . . . . . . . . . . . .08
Forward Collision-Avoidance Assist (FCA)* . . . . . 10
Driver Attention Warning (DAW)* . . . . . . . . . . . . . . 11
Lane Following Assist (LFA)* . . . . . . . . . . . . . . . . . . . 12
Cruise Control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Rear View Monitor (RVM)* . . . . . . . . . . . . . . . . . . . . . 13
Rear Occupant Alert (ROA)
with Door Monitoring* . . . . . . . . . . . . . . . . . . . . . . . 14
DRIVER’S PANEL
Instrument Cluster Control . . . . . . . . . . . . . . . . . . . . 15
Electronic Stability Control (ESC) . . . . . . . . . . . . . . . 15
Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . . . . 15
Power Windows, Window Lock
& Central Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . 16
Auto Door Lock/Unlock . . . . . . . . . . . . . . . . . . . . . . . . 16
Power/Heated Outside Mirrors . . . . . . . . . . . . . . . . . 16
Engine Start/Stop Button . . . . . . . . . . . . . . . . . . . . . . 16
STEERING WHEEL CONTROLS
Headlights & High Beams . . . . . . . . . . . . . . . . . . . . . . 17
Turn Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . 18
Rear Wiper & Washer (5-Door Only)* . . . . . . . . . . . 18
Tilt Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
AUDIO CONTROLS
Bluetooth® Wireless Technology . . . . . . . . . . . . . . . .20
Audio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1
Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . 22
UVO link Activation* / UVO Assistance* . . . . . . . . . 23
Standard Audio System* . . . . . . . . . . . . . . . . . . . . . . . 24
Kia Access with UVO link App Download . . . . . . . 25
Kia Access with UVO link App Features Guide . . 25
Standard Audio System - Value with UVO link* . . 26
CENTER PANEL
Multimedia USB Port, Power Outlets*
& USB Charger Port* . . . . . . . . . . . . . . . . . . . . . . . 27
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Automatic Climate Control* . . . . . . . . . . . . . . . . . . . . 28
Manual Climate Control* . . . . . . . . . . . . . . . . . . . . . . . 29
Automatic Gear Shift with Manual Mode . . . . . . . 30
SEATING
6-Way Adjustable Driver ’s Seat . . . . . . . . . . . . . . . . . 31
Front Seat Headrest Adjustment . . . . . . . . . . . . . . . 31
Folding Rear Seatback . . . . . . . . . . . . . . . . . . . . . . . . . 32
OTHER KEY FEATURES
Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Remote Keyless Entry (Folding Key)* . . . . . . . . . . . 34
Door Locks / Double-Turn Unlock All . . . . . . . . . . . 34
Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . . . 34
Fuel Door Release Lever . . . . . . . . . . . . . . . . . . . . . . . 34
Hood Release Lever and Latch . . . . . . . . . . . . . . . . . 35
Trunk Release Lever (4-Door)* . . . . . . . . . . . . . . . . . 35
Liftgate Release Button (5-Door)* . . . . . . . . . . . . . . 35
Smart Power Trunk* . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Child-Protector Rear Door Locks . . . . . . . . . . . . . . . 38
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
SAFETY FEATURES
Occupant Detection System (ODS) /
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 39
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
MAINTENANCE SCHEDULE . . . . .Back Cover
LEGAL DISCLAIMERS . . Inside Back Cover
Page 5 of 46
INSTRUMENT CLUSTER
3*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
INSTRUMENTCLUSTER

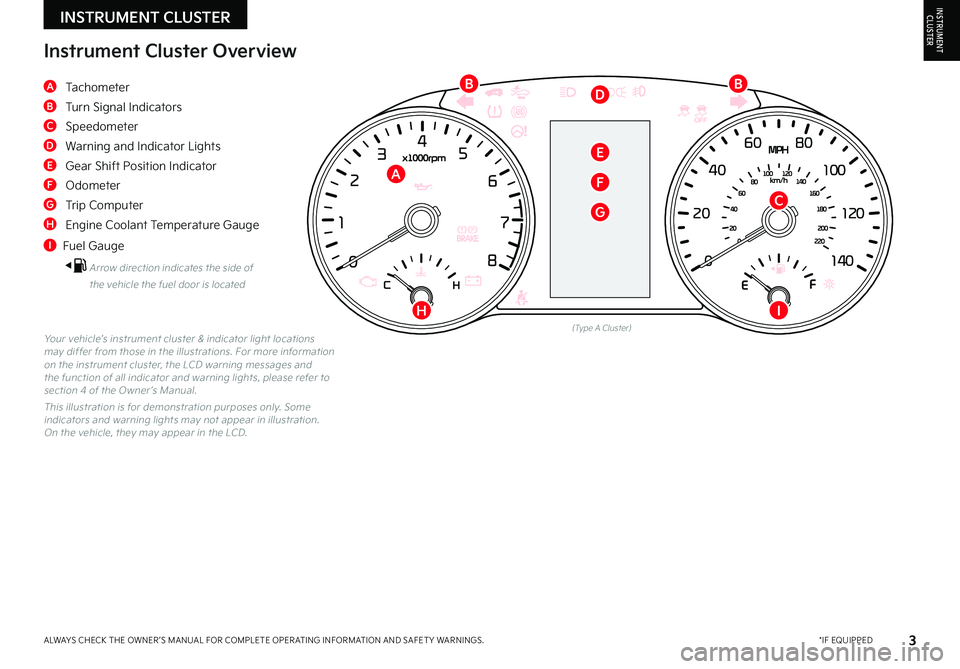

(Type A Cluster)Yo u r vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . For more information on the instrument cluster, the LCD warning messages and the function of all indicator and warning lights, please refer to section 4 of the Owner ’s Manual .
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in illustration . On the vehicle, they may appear in the LCD .
A Tachometer
B Turn Signal Indicators
C Speedometer
D Warning and Indicator Lights
E Gear Shift Position Indicator
F Odometer
G Trip Computer
H Engine Coolant Temperature Gauge
I
Fuel Gauge
Arrow direction indicates the side of
the vehicle the fuel door is located
Instrument Cluster Overview
A
BB
GC
IH
F
E
D
Page 6 of 46
INSTRUMENT CLUSTER
4*IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
INSTRUMENTCLUSTER
Door Ajar Warning Indicator
Electronic Brake Force Distribution (EBD) System Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
Washer Fluid Warning Indicator*
Master Warning Indicator*
Icy Road Warning Indicator*
Trunk (liftgate) Open Warning Light*
Immobilizer Indicator*
Engine Oil Pressure Warning Indicator
Airbag Warning Indicator
Malfunction Indicator Lamp (MIL)
Seat Belt Warning Indicator
Electric Power Steering (EPS) System Warning Indicator*
Charging System Warning Indicator
Light On Indicator
High Beam Indicator Light
High Beam Assist Indicator Light
LED Headlamp Warning Light*
Cruise Control Indicator*
Cruise SET Indicator*
Electronic Stabilit y Control (ESC) Indicator*
Electronic Stabilit y Control (ESC) OFF Indicator*
Low Fuel Level Warning Indicator
Low Tire Pressure Indicator
Engine Coolant Temperature Warning Indicator
Anti-lock Braking System (ABS) Warning Indicator*
Parking Brake & Brake Fluid Warning Indicator
(Type B cluster)*
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . For more information on the instrument cluster, the LCD warning messages and the function of all indicator and warning lights, please refer to section 4 of the Owner ’s Manual .
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in illustration . On the vehicle, they may appear in the LCD .
Indicators & Warning Lights
AUTO
Page 7 of 46
INSTRUMENT CLUSTER
5†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
INSTRUMENTCLUSTER
The TPMS indicator functions as both Low Tire Pressure Light and TPMS Malfunction Indicator . The indicator will illuminate if it detects one or more tires is significantlyunderinflated, the vehicle has a spare tire installed without TPMS or the outside temperature becomes significantly lower .
Inflate tire(s) to specifications using an accurate digital tire pressure gauge to turn the Low Tire Pressure Light off . See front driver ’s door jamb for PSI specifications . The Low Tire Pressure Position Indicator* A is displayed on the LCD screen in the instrument cluster when the tire(s) is underinflated .
When there is a problem with the TPMS, the TPMS Malfunction Indicator will blink for approximately one minute and then illuminate – see dealer for service .
REMINDERS:
• Check the recommended tire pressure label located on the left side of the driver ’s door jamb, visible when the door is opened
• Consult your dealer for ser vice if the Low Tire Pressure Light remains illuminated after inflating your tire(s)
• Personal electronic devices (such as laptops, wireless chargers, remote star t systems, etc .) may inter fere with the TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate
Refer to section 6 in the Owner ’s Manual for more information .
Low Pressure
Tire Pressure Monitoring System (TPMS)†1 8
Fuel Economy
There are several factors that contribute to your vehicle’s fuel economy, such as maintenance of your vehicle, driving style, environmental conditions, vehicle weight and vehicle aerodynamics . Below are some tips on how to help improve fuel economy:
•Keep your vehicle in good condition with regular maintenance
•Don’t let the engine idle longer than necessary
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicle
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
Instant Fuel
Consumption Mode*
Press the Mode button B to cycle to Trip Computer
mode . Then scroll C up/down to TRIP mode, and
scroll to Instant Fuel Economy . The screen displays the calculated fuel consumption during the past few seconds .
REMINDERS:
• Not to be used in calculating or as a reference for AVER AGE fuel economy
• If the vehicle speed exceeds 1 mph (1 .6 km/h) after being refueled with more than 1 .6 gallons (6 liters), the average fuel economy will be cleared to zero (----)
Refer to section 4 in the Owner ’s Manual for more information or snap the QR Code above to view a video .
OKRES+
SET
-
CANCEL
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Tire Pressure Monitoring System Video
Fuel Economy Video
QR CODE
A
B
C
•Even with TPMS, tire pressure should be checked manually at least once a month . Only adjust tire pressure on “cold tires” that have been sit ting sit ting for 3 hours or more, and tires that are not hot in temperature from direct sunlight or heat
•For proper maintenance and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
•In winter or cold weather, the TPMS light may illuminate if the tire pressure was adjusted to the recommended tire inflation pressure during warm weather
QUICK TIPS
Page 8 of 46
6*IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
VEHICLESETTINGS
VEHICLE SETTINGS
OKRES+
SET
-
CANCEL(Type B shown; located on the right side of the Steering Wheel)
Your vehicle’s steering wheel but tons may differ from those in the illustrations . Refer to section 4 in the Owner ’s Manual for more information .
Trip Modes / Trip Computer
The Trip Computer is a driver information system that displays information related to driving on the display when the Engine Start/Stop button is in the ON position .
To cycle through the LCD Instrument Cluster modes A, press the Mode button B .
To select and enter the Trip Computer mode , press the Move button C up/down and then press Set/Reset (OK) C to enter . To cycle through and select the different screens (Fuel Economy, Trip A , Trip B), press the Move button C up/down again and then press the OK button C . When displaying the TRIP A or TRIP B screens, press and hold the OK button C to reset the Tripmeter to zero .
Press the OK button C to go back to the previous mode/item .
REMINDERS:
• Appearance of Trip Computer / Tripmeter display may differ, as equipped
• All stored driving information (except Odometer and Range / Distance to Empt y) is reset if the bat ter y is disconnected
(Type B cluster)
FUEL ECONOMY• Average Fuel Economy• Instant Fuel Economy
ACCUMULATED INFO• Tripmeter• Average Fuel Economy• Timer
DRIVE INFO• Tripmeter• Average Fuel Economy• Timer
LCD Instrument Cluster Modes
Press the Mode button B to cycle through the different LCD Instrument Cluster Modes:
Trip Computer Mode: Displays driving information for tripmeter, fuel economy, drive info, drive mode, etc .
Information Mode*: Displays the speedometer, engine temperature, TPMS
User Settings Mode: Change settings of the Driver Assistance, doors, lights, sound other features
Master Warning Mode: Informs on low tire pressure
warnings and other systems
Driving Assist Mode: Displays information on Lane Safety and Driver Attention Warning* .
Driving while distracted is dangerous and should be avoided . Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving .
Refer to section 4 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Instrument Cluster’s LCD Display Video
QR CODE
A
B
C
Page 9 of 46
7*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
VEHICLESETTINGS
VEHICLE SETTINGS
When service is required, the following screens will be displayed:
•Rotate Tire
•Change Engine Oil
To enter Service Interval Mode, press the Mode button A and scroll to User Settings . Then scroll to Service Interval using the Move button B .
To reset or deactivate the Maintenance system reminder, press the Move button B for more than one second . Then toggle to the preference and select by pressing the Move button B .
Service Interval Setting (Type B Steering Wheel)
When in User Settings mode, press the Mode button A to scroll to Service Interval and select by pressing the OK button B .
When in the Service Interval mode, scroll to the menu item and press the OK button B to enter:
•Engine Oil
•Tire
Scroll to your selection and press the OK button B to set .
(Type B cluster)
(Type B shown; located on the right side of the Steering Wheel)
For more information on the User Set tings mode, please refer to your Owner ’s Manual .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Driving while distracted is dangerous and should be avoided . Do not at tempt to change vehicle system set tings while driving .
Driving Assistance*:
•Warning Timing*
•Driver Attention Warning*
•Forward Safety*
•Lane Safety*
•Parking Safety*
Lights:
•One Touch Turn Signal
•Headlight Delay
•High Beam Assist (HBA)*
Door:
•Automatically Lock
•Automatically Unlock
•Two Press Unlock*
•Horn Feed Back*
•Smart Trunk*
Language*:
•To select the language
Convenience:
•Rear Occupant Alert*
•Wiper/Light Display*
•Icy road warning*
Service Interval:
•Enable Service Interval
•Adjust Interval
•Reset
Theme Selection*:
•Select the theme for the Instrument Cluster
Other:
•Fuel Economy Auto Reset
•Speed Unit
•Fuel Economy Unit
•Temperature Unit
Reset:
•Reset menus in User Settings
User Settings* (Type B Cluster)
To enter the User Settings mode in the LCD Instrument Cluster modes, press the Mode button A when the vehicle is at a standstill, gear shift is in Park, and with the ignition ON, select User Settings .
You can navigate the selections on the display by toggling the Move/OK button B . Select the item by pressing the OK (Set/Reset) button B .
User Settings Menu:
Service Interval Mode* (Type A Cluster)
MPG030
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
BackTire Rotation
OFF9000 km
10000 kmBack OFF7500 mi
15000 mi Engine Oil
Set Tire Service Set Oil Service
Notify Later
Maintenance Reset OFF Notify Later
Maintenance Reset OFF
Rotate Tire
Change Engine Oil
Set Alarm
Set Alarm
RESETRESET
Change Engine Oil
Set Alarm
RESET
Set Oil ServiceNotify Later
Maintenance Reset OFF
Back
OFF7500 mi
15000 mi Engine Oil
MPG0
30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
BackTire Rotation
OFF9000 km
10000 kmBack OFF7500 mi
15000 mi Engine Oil
Set Tire Service Set Oil Service
Notify Later
Maintenance Reset OFF Notify Later
Maintenance Reset OFF
Rotate Tire
Change Engine Oil
Set Alarm
Set Alarm
RESETRESET
Change Engine Oil
Set Alarm
RESET
Set Oil ServiceNotify Later
Maintenance Reset OFF
Back
OFF7500 mi
15000 mi Engine Oil
MPG0
30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
BackTire Rotation
OFF9000 km
10000 kmBack OFF7500 mi
15000 mi Engine Oil
Set Tire Service Set Oil Service
Notify Later
Maintenance Reset OFF Notify Later
Maintenance Reset OFF
Rotate Tire
Change Engine Oil
Set Alarm
Set Alarm
RESETRESET
Change Engine Oil
Set Alarm
RESET
Set Oil ServiceNotify Later
Maintenance Reset OFF
BackOFF
7500 mi
15000 mi
Engine OilOKRES+
SET-
CANCEL
A
B
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
QR CODE
Page 10 of 46
Lane Keeping Assist (LKA)*†4
Lane Keeping Assist (LK A) is designed to detect the lane markers on the road with a front view camera on the windshield, and may assist the driver ’s steering to potentially help keep the vehicle in the lane . When turned on, the instrument cluster indicator will initially illuminate white . It will remain white when the vehicle is traveling slower than 40 mph or when the system does not detect the lane markers . When the system detects the lane markers and can assist the steering, the LK A icon will illuminate green .
If the LK A detects that you are moving outside of your lane, the system may give an audible warning and display Lane Departure Warning on the instrument cluster . If the vehicle continues to move outside of the lane, LK A may provide steering inputs, trying to prevent the vehicle from moving outside its lane .
To activate LK A , press the Lane Safety/LK A button* A on the Steering Wheel .
There are three available modes:
•Off – The LK A system turns off
•Standard LKA – Guides driver to keep vehicle within lanes and provides steering inputs when vehicle is about to deviate from the lane
•
Lane Departure Warning – Alerts driver when the system detects the vehicle leaving the lane . In this mode the system will not provide steering inputs
LK A will operate under the following conditions:
•The vehicle speed exceeds approximately 40 mph
•
LK A recognizes both sides of the lane markers the vehicle is traveling in
•
The vehicle is between the lane markers
When the front-view camera does not detect the lane traveled in, the lanes are not illuminated
Refer to section 5 in the Owner ’s Manual for more information .
When the front-view camera detects the lane traveled in, both lanes are illuminated
When the front-view camera detects the vehicle moving outside of the lane traveled in, a vehicle crossing lane indicator will blink, either on the left or right lane (as shown in both images above)
(Located on right side of steering wheel)
8†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
LANE KEEPING ASSISTLANE KEEPING ASSISTLANE KEEPING ASSISTLANE KEEPING ASSIST
OKRES+
SET
-
CANCELA
