brake light KIA RIO 2022 Features and Functions Guide

INSTRUMENT CLUSTER
4*IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
INSTRUMENTCLUSTER
Door Ajar Warning Indicator
Electronic Brake Force Distribution (EBD) System Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
Washer Fluid Warning Indicator*
Master Warning Indicator*
Icy Road Warning Indicator*
Trunk (liftgate) Open Warning Light*
Immobilizer Indicator*
Engine Oil Pressure Warning Indicator
Airbag Warning Indicator
Malfunction Indicator Lamp (MIL)
Seat Belt Warning Indicator
Electric Power Steering (EPS) System Warning Indicator*
Charging System Warning Indicator
Light On Indicator
High Beam Indicator Light
High Beam Assist Indicator Light
LED Headlamp Warning Light*
Cruise Control Indicator*
Cruise SET Indicator*
Electronic Stabilit y Control (ESC) Indicator*
Electronic Stabilit y Control (ESC) OFF Indicator*
Low Fuel Level Warning Indicator
Low Tire Pressure Indicator
Engine Coolant Temperature Warning Indicator
Anti-lock Braking System (ABS) Warning Indicator*
Parking Brake & Brake Fluid Warning Indicator
(Type B cluster)*
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . For more information on the instrument cluster, the LCD warning messages and the function of all indicator and warning lights, please refer to section 4 of the Owner ’s Manual .
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in illustration . On the vehicle, they may appear in the LCD .
Indicators & Warning Lights
AUTO

Instrument Cluster Control
Press switch A up or down to adjust display brightness of the instrument panel illumination .
REMINDER: The Instrument Cluster Control does not adjust brightness on the audio control unit screen . Use setup to adjust brightness on the audio control unit screen .
The ESC system is designed to help stabilize the vehicle during certain cornering maneuvers . It is a good idea to keep the ESC turned ON for daily driving whenever possible .
Press the ESC OFF button B to disable Traction Control in ESC (ESC OFF indicator will illuminate) .
To turn both the Traction Control and Stability Control off, press and hold the ESC OFF button B (ESC OFF indicator will illuminate, and an alert sounds) .
REMINDERS:
• ESC is active by default at vehicle star tup . When ignition is cycled, ESC will turn ON again
• The ESC Indicator Light in the instrument cluster will be lit momentarily whenever the ESC is active
For more information on Electronic Stabilit y Control (ESC) and its specific features and operation, please refer to section 4 in your Owner ’s Manual .
For illustrative purposes only . Your actual display, but tons and/or features may var y Refer to section 4 in the Owner ’s Manual for more information .
Refer to section 5 in the Owner ’s Manual for more information .
Hill-Start Assist Control (HAC)†6
HAC helps to prevent the vehicle from rolling backwards when accelerating from a stop while on a steep incline .
The HAC automatically activates whether the ESC is OFF or ON but does NOT activate when the ESC has malfunctioned .
(But tons located on left side of Driver ’s Panel)
AB
Electronic Stability Control (ESC)†6
REMINDERS:
• The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position
• HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
• In the event of HAC system malfunctions, see an authorized Kia dealer for ser vice
•When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation
•HAC provides a 2-second delay before the vehicle may star t rolling backwards
QUICK TIPS
15†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
DRIVER'S PANEL
DRIVER’SPANEL

16†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
DRIVER'S PANEL
DRIVER’SPANEL
Power Windows, Window Lock
& Central Door Lock
A Pull/Press to operate Driver ’s Window Auto Up/Down*
B Press to Unlock/Lock All Doors
C Press the Power Window Lock button* to disable the Rear Passenger Window switches
Refer to section 4 in the Owner ’s Manual for more information .
Automatic Door
Lock/Unlock*
Auto Door Lock/Unlock will engage when the gear shift is moved into or out of the P (Park) position . Refer to the User Settings in the LCD Instrument Cluster modes on how to turn Auto Door Lock/Unlock ON/OFF .
Refer to section 4 in the Owner ’s Manual for more information .
Power/Heated
Outside Mirrors
To adjust outside mirror positions, press the switch D left or right to select mirror, then press the arrows E to adjust .
Mirror heaters are activated when Rear Defroster is turned on .
Refer to section 4 in the Owner ’s Manual for more information .
LR
M I R R O R
'PS
JMMVTUSBUJWF
QVSQPTFT
POMZ
:PVS
BDUVBM
EJTQMBZ

CVU UPOT
BOEPS
GFBUVSFT
NBZ
WBS Z

Engine Start/Stop Button*†7
To start the engine:
1 . Depress the brake pedal
2 .
Press the Engine Start/Stop button while
gear shift is in P (Park) or N (Neutral)
To turn the engine OFF: Press the Engine Start/Stop button .
To use the Engine Start/Stop button, you must have the Smart Key fob inside the vehicle .
Refer to section 5 in the Owner ’s Manual for more information .
To use electrical accessories:
•ACC position
– When in the OFF position and without depressing the brake pedal, press the Engine Star t/Stop but ton once (amber light)
•ON position
– When already in the ACC position (amber light) and without depressing the brake pedal, press the Engine Star t/Stop but ton (red light)
– When in the OFF position and without depressing the brake pedal, press the Engine Star t/Stop but ton t wice (red light)
•Keeping the vehicle in the ACC or ON position for extended periods of time without turning the engine on may discharge the vehicle’s bat ter y .
QUICK TIPS
Press but ton again to stop Auto Up/Down function .
QUICK TIP
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Engine Start/Stop Button Video
QR CODE
A
B
C
D
E
REMINDERS:
• In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the Engine Star t/Stop but ton for more than 2 seconds or 3 times successively within 3 seconds
• If Smar t Key fob bat ter y is dead, you can still star t the engine by pressing the Engine Star t/Stop but ton with the Lock-but ton end of the Smar t Key . The Smar t Key must contact the Engine Star t/Stop but ton directly, at a right angle

35†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
OTHER KEY FEATURES
OTHER KEY FEATURES
(Lever located on the driver ’s floor near door sill; Image shown is 4-door model)
(Lever located under Driver ’s Panel but tons)
(Latch located inside hood)

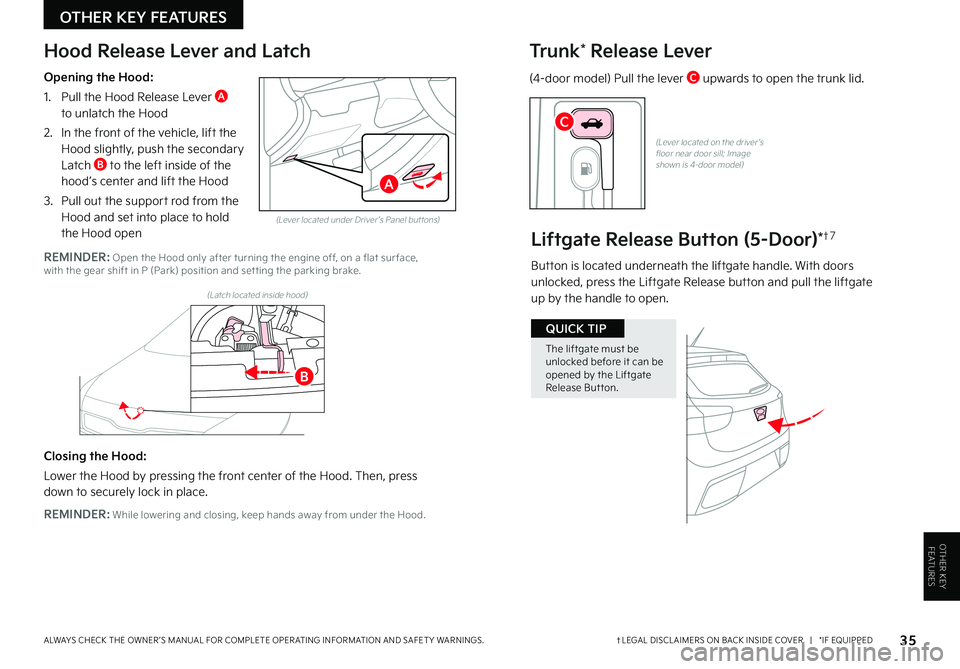

Hood Release Lever and Latch
Opening the Hood:
1 . Pull the Hood Release Lever A to unlatch the Hood
2 . In the front of the vehicle, lift the Hood slightly, push the secondary Latch B to the left inside of the hood’s center and lift the Hood
3 . Pull out the support rod from the Hood and set into place to hold the Hood open
REMINDER: Open the Hood only after turning the engine off, on a flat sur face, with the gear shift in P (Park) position and set ting the parking brake .
Closing the Hood:
Lower the Hood by pressing the front center of the Hood . Then, press down to securely lock in place .
REMINDER: While lowering and closing, keep hands away from under the Hood .
Tr u n k* Release Lever
(4-door model) Pull the lever C upwards to open the trunk lid .
A
B
C
Liftgate Release Button (5-Door)*†7
Button is located underneath the liftgate handle . With doors unlocked, press the Liftgate Release button and pull the liftgate up by the handle to open .
The liftgate must be unlocked before it can be opened by the Liftgate Release But ton .
QUICK TIP
