KIA RIO HATCHBACK 2014 Owners Manual

771
Maintenance

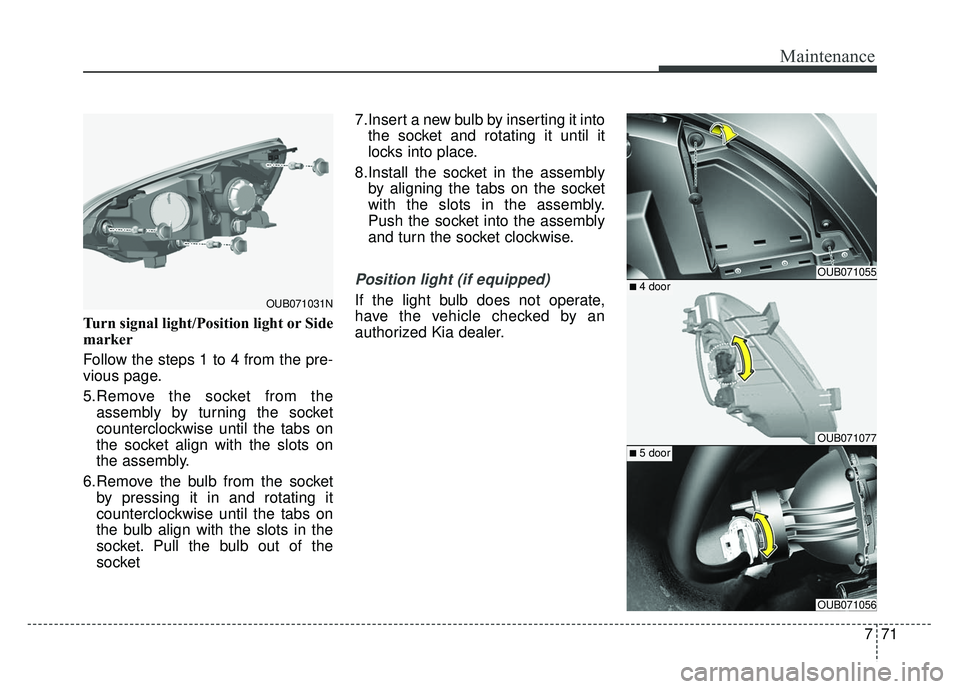

Turn signal light/Position light or Side
marker
Follow the steps 1 to 4 from the pre-
vious page.
5.Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket 7.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
8.Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
Position light (if equipped)
If the light bulb does not operate,
have the vehicle checked by an
authorized Kia dealer.OUB071031N
OUB071055
OUB071077
OUB071056
■ 4 door
■ 5 door

Maintenance
72
7
Front fog light bulbs (if equipped)
1.Remove the under cover by rotat-
ing the screws.
2.Reach your hand into the back of the front bumper.
3.Disconnect the power connector from the socket.
4.Remove the bulb-socket from the housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the housing.
5.Install the new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the hous-
ing. Push the socket into the hous-
ing and turn the socket clockwise.
6 Connect the power connector to the socket.
Side repeater light bulb
replacement (if equipped)
Type A
If the light LED is not operating, have
the vehicle checked by an authorized
Kia dealer.
Ty p e B
1.Remove the light assembly fromthe vehicle by prying the lens and
pulling the assembly out.
2.Disconnect the bulb electrical con- nector.
3.Separate the socket and the lens parts by turning the socket coun-
terclockwise until the tabs on the
socket align with the slots on the
lens part.
4.Remove the bulb by pulling it straight out.
5.Insert a new bulb in the socket.
6.Reassemble the socket and the lens part.
OUB071034OUB071057

773
Maintenance
7.Connect the bulb electrical con-nector.
8.Reinstall the light assembly to the body of the vehicle.

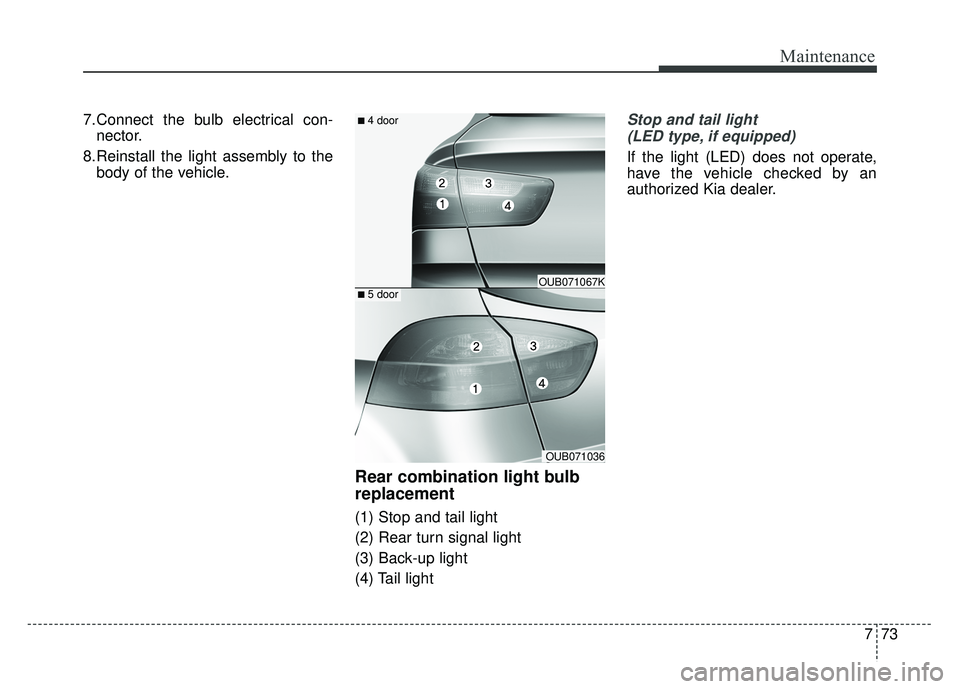

Rear combination light bulb
replacement
(1) Stop and tail light
(2) Rear turn signal light
(3) Back-up light
(4) Tail light
Stop and tail light
(LED type, if equipped)
If the light (LED) does not operate,
have the vehicle checked by an
authorized Kia dealer.
OUB071036
■ 4 door
■ 5 doorOUB071067K

Maintenance
74
7

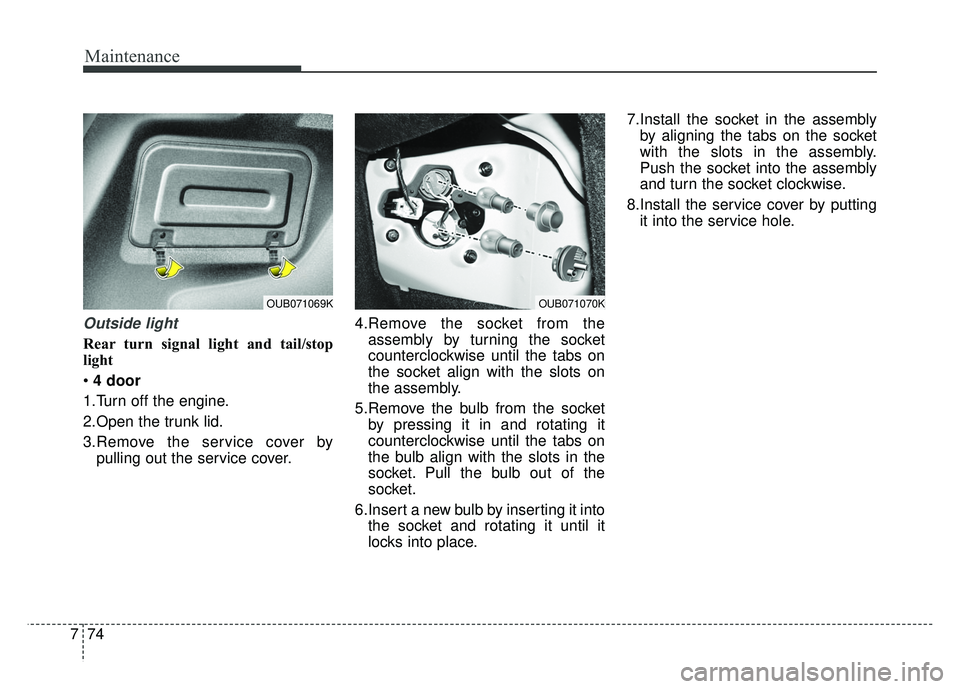

Outside light
Rear turn signal light and tail/stop
light
4 door
1.Turn off the engine.
2.Open the trunk lid.
3.Remove the service cover by pulling out the service cover. 4.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place. 7.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8.Install the service cover by putting it into the service hole.
OUB071070KOUB071069K

775
Maintenance
5 door
1.Turn off the engine.
2.Open the tailgate.
3.Loosen the light assembly retain- ing screws with a cross-tip screw-
driver.
4.Remove the rear combination light assembly from the body of the
vehicle. 5.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
7.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place. 8.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9.Reinstall the light assembly to the body of the vehicle.
OUB071038OUB071037

Maintenance
76
7

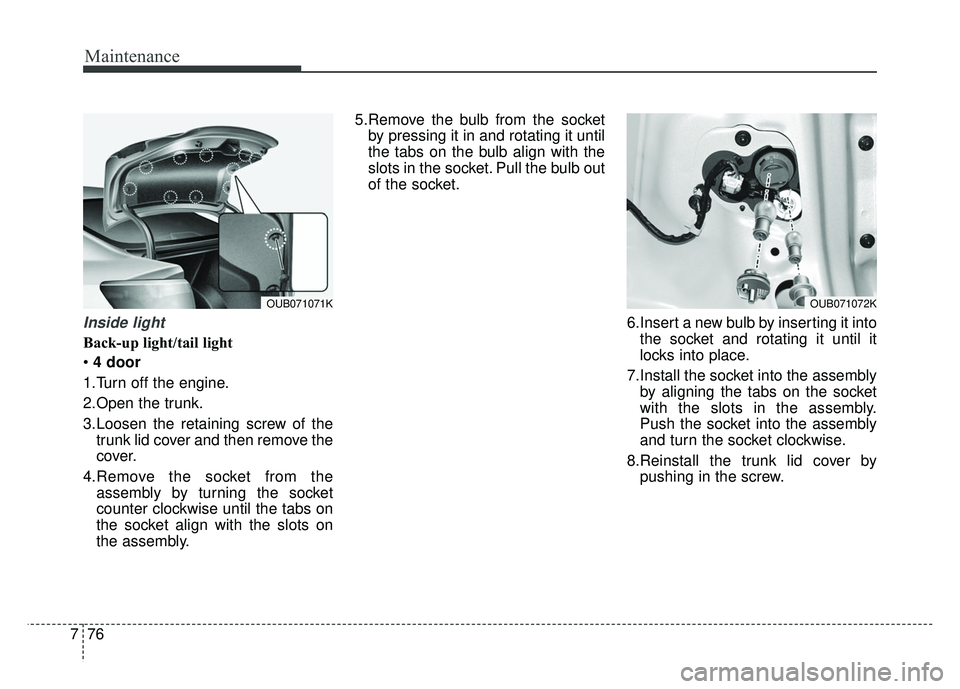

Inside light
Back-up light/tail light
4 door
1.Turn off the engine.
2.Open the trunk.
3.Loosen the retaining screw of the trunk lid cover and then remove the
cover.
4.Remove the socket from the assembly by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the assembly. 5.Remove the bulb from the socket
by pressing it in and rotating it until
the tabs on the bulb align with the
slots in the socket. Pull the bulb out
of the socket.
6.Insert a new bulb by inserting it intothe socket and rotating it until it
locks into place.
7.Install the socket into the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8.Reinstall the trunk lid cover by pushing in the screw.
OUB071072KOUB071071K

777
Maintenance

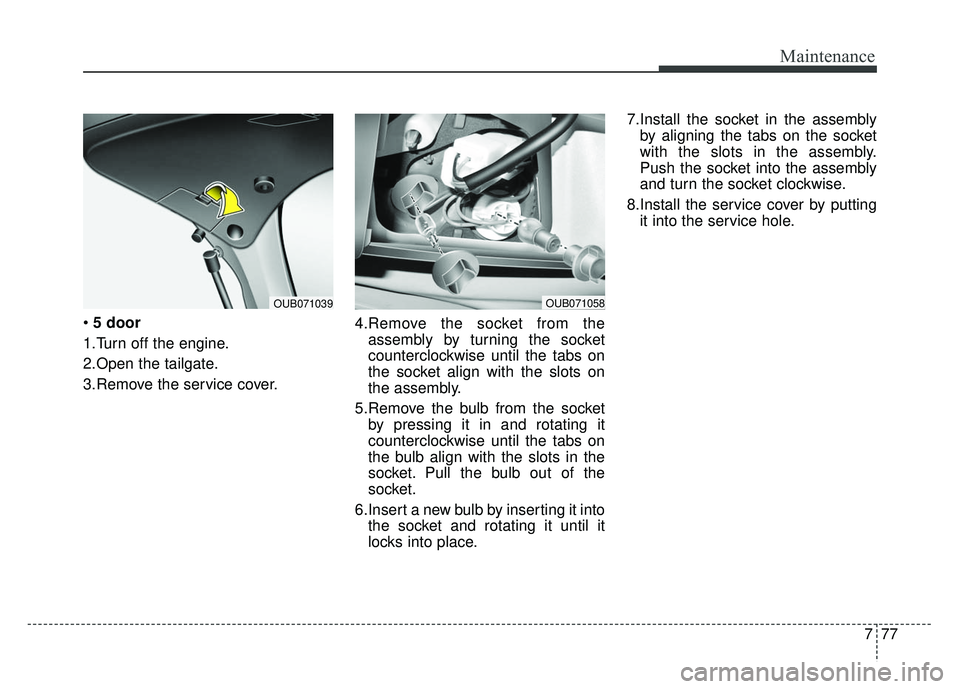

5 door
1.Turn off the engine.
2.Open the tailgate.
3.Remove the service cover. 4.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place. 7.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8.Install the service cover by putting it into the service hole.
OUB071058OUB071039

Maintenance
78
7

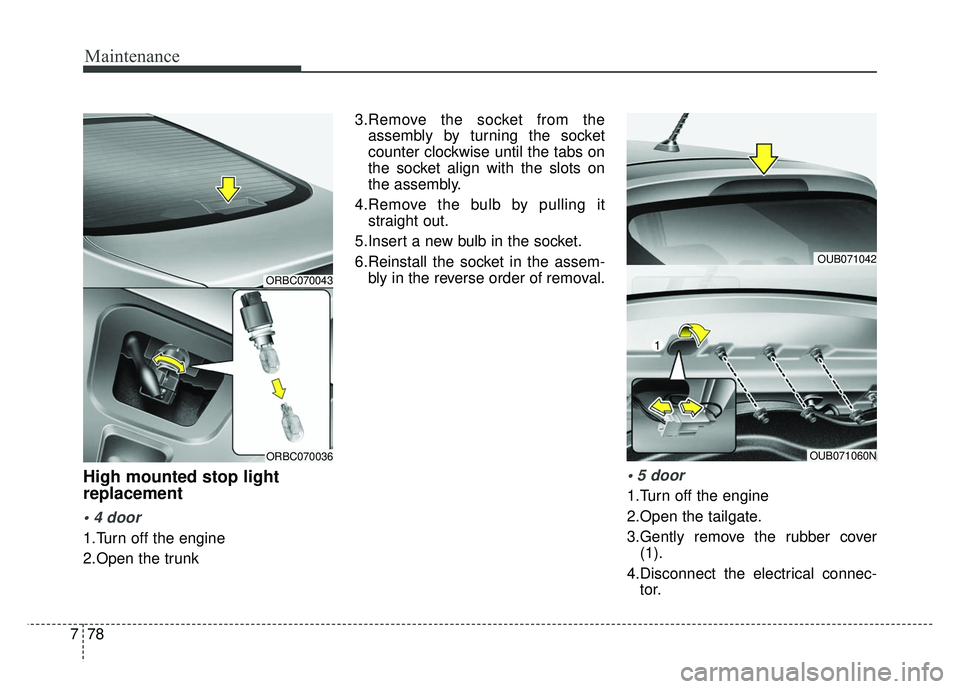

High mounted stop light
replacement

1.Turn off the engine
2.Open the trunk 3.Remove the socket from the
assembly by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb by pulling it straight out.
5.Insert a new bulb in the socket.
6.Reinstall the socket in the assem- bly in the reverse order of removal.

1.Turn off the engine
2.Open the tailgate.
3.Gently remove the rubber cover(1).
4.Disconnect the electrical connec- tor.
OUB071060N
OUB071042
ORBC070043
ORBC070036

779
Maintenance

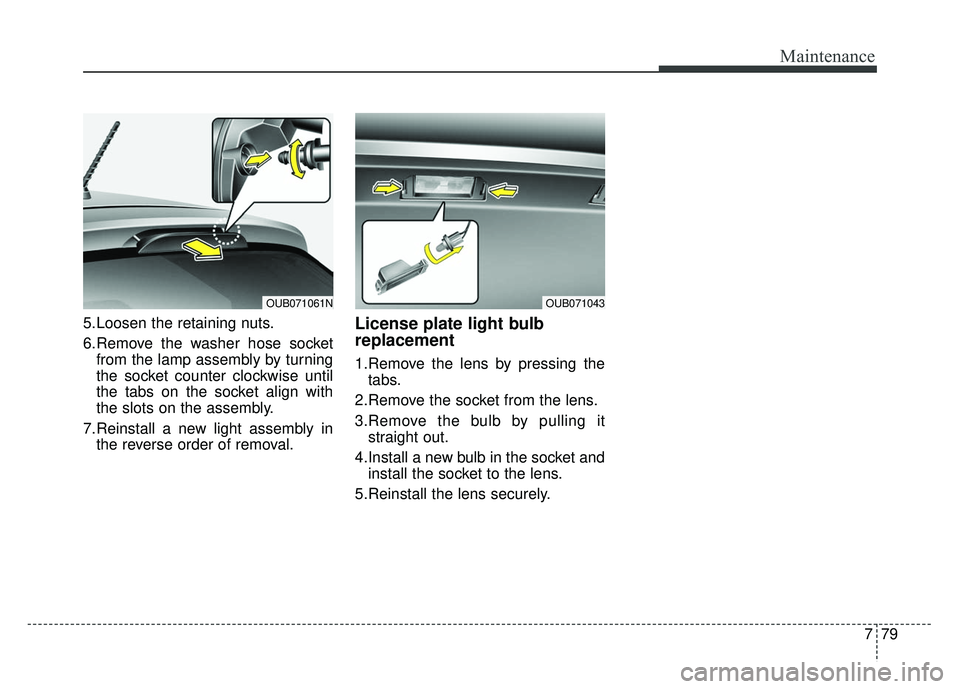

5.Loosen the retaining nuts.
6.Remove the washer hose socketfrom the lamp assembly by turning
the socket counter clockwise until
the tabs on the socket align with
the slots on the assembly.
7.Reinstall a new light assembly in the reverse order of removal.License plate light bulb
replacement
1.Remove the lens by pressing thetabs.
2.Remove the socket from the lens.
3.Remove the bulb by pulling it straight out.
4.Install a new bulb in the socket and install the socket to the lens.
5.Reinstall the lens securely.
OUB071043OUB071061N

Maintenance
80
7

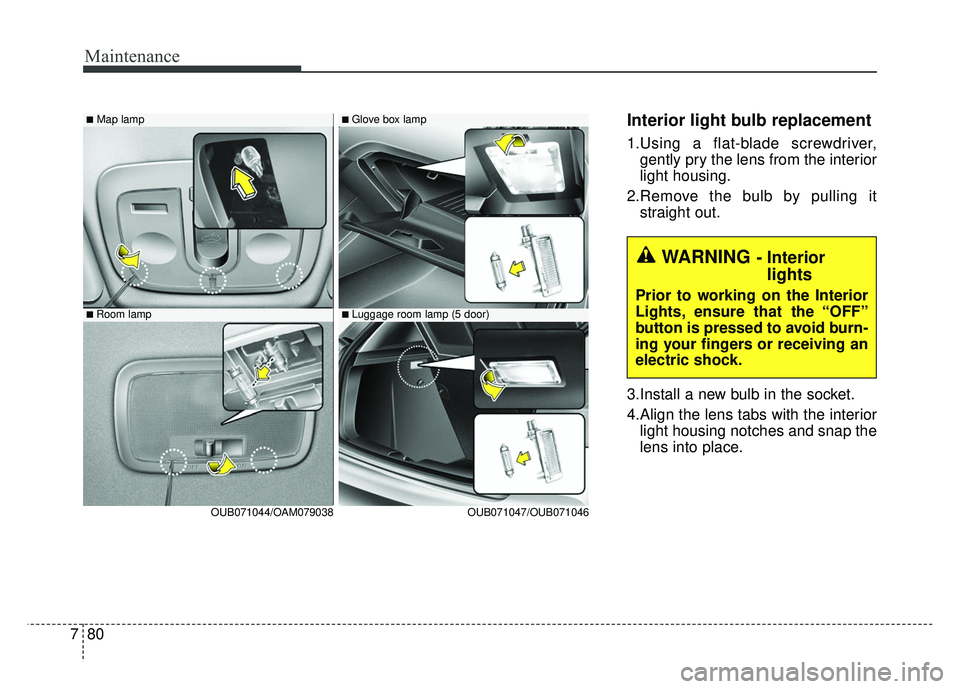

Interior light bulb replacement
1.Using a flat-blade screwdriver,
gently pry the lens from the interior
light housing.
2.Remove the bulb by pulling it straight out.
3.Install a new bulb in the socket.
4.Align the lens tabs with the interior light housing notches and snap the
lens into place.
WARNING - Interiorlights
Prior to working on the Interior
Lights, ensure that the “OFF”
button is pressed to avoid burn-
ing your fingers or receiving an
electric shock.
■Map lamp
■ Room lamp
OUB071044/OAM079038
■ Glove box lamp
■ Luggage room lamp (5 door) OUB071047/OUB071046
