Features of your vehicle
64
Even though you press the button,
the doors will not lock and the chime
will sound for 3 seconds if any of the
following occurs:
The smart key is in the vehicle.
The ignition switch is in the ACC orON position.
Any door except the trunk (or tail- gate) is opened.

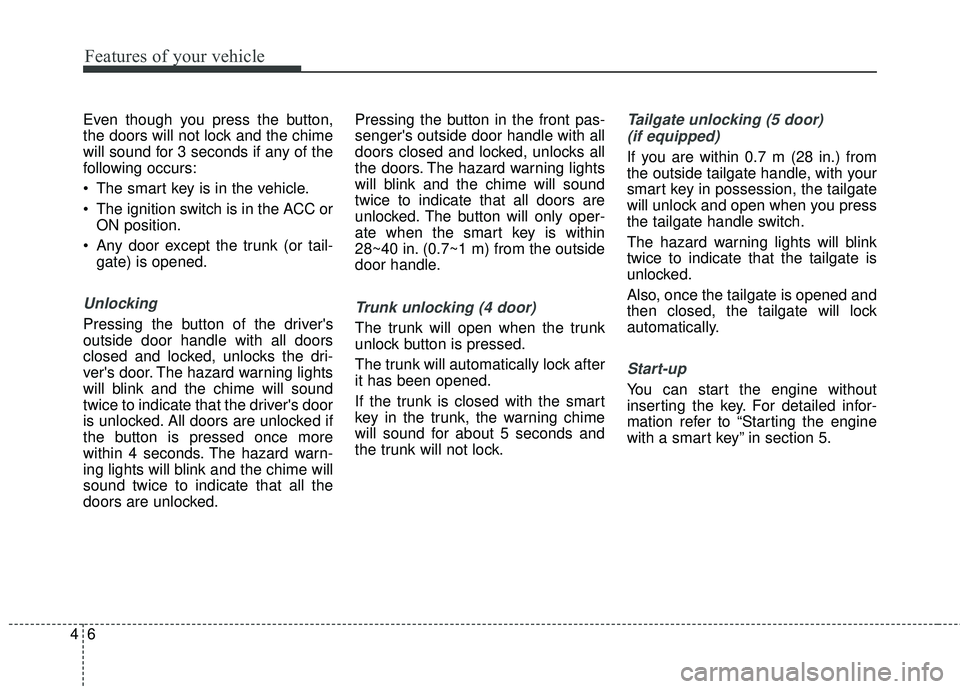

Unlocking
Pressing the button of the driver's
outside door handle with all doors
closed and locked, unlocks the dri-
ver's door. The hazard warning lights
will blink and the chime will sound
twice to indicate that the driver's door
is unlocked. All doors are unlocked if
the button is pressed once more
within 4 seconds. The hazard warn-
ing lights will blink and the chime will
sound twice to indicate that all the
doors are unlocked. Pressing the button in the front pas-
senger's outside door handle with all
doors closed and locked, unlocks all
the doors. The hazard warning lights
will blink and the chime will sound
twice to indicate that all doors are
unlocked. The button will only oper-
ate when the smart key is within
28~40 in. (0.7~1 m) from the outside
door handle.
Trunk unlocking (4 door)
The trunk will open when the trunk
unlock button is pressed.
The trunk will automatically lock after
it has been opened.
If the trunk is closed with the smart
key in the trunk, the warning chime
will sound for about 5 seconds and
the trunk will not lock.
Tailgate unlocking (5 door)
(if equipped)
If you are within 0.7 m (28 in.) from
the outside tailgate handle, with your
smart key in possession, the tailgate
will unlock and open when you press
the tailgate handle switch.
The hazard warning lights will blink
twice to indicate that the tailgate is
unlocked.
Also, once the tailgate is opened and
then closed, the tailgate will lock
automatically.
Start-up
You can start the engine without
inserting the key. For detailed infor-
mation refer to “Starting the engine
with a smart key” in section 5.

Features of your vehicle
84
Remote keyless entry system
operations
Lock (1)
All the doors will locked if the lock
button is pressed. If all the doors
(and trunk or tailgate) are closed, the
hazard warning lights will blink once
to indicate that all the doors (and
trunk or tailgate) have locked.
Also, if the lock button is pressed
once more within 4 seconds, the
hazard warning lights will blink and
the chime will sound once to confirm
that the door is locked.
However, if any door remains open,
the hazard warning lights (and/or the
chime) will not operate. But if all
doors are closed after the lock button
is pressed, the hazard warning lights
will blink once.
Unlock (2)
The driver's door will unlocked if the
unlock button is pressed once. The
hazard warning lights will blink (for
smart key, the chime also sounds)
twice to indicate that the driver's door
is unlocked.
All doors will unlocked if the unlock
button is pressed once more within 4
seconds. The hazard warning lights
will blink (for smart key, the chime
also sounds) twice again to indicate
that all doors are unlocked. After
pressing this button, the doors will
lock automatically unless you open
any door within 30 seconds.
✽ ✽

NOTICE
If the keyless entry system is inoper-
ative due to exposure to water or liq-
uids, it will not be covered by your
manufacturer's vehicle warranty.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
■Type B OYDECO2003CN
■Type A
OYDDCO2004

49
Features of your vehicle
Trunk (tailgate) open (3) (if equipped)
The trunk (tailgate) will open when
the button is pressed for more than 1
second
Once the trunk (tailgate) is opened
and then closed, the trunk (tailgate)
will lock automatically.
Alarm (4)
The horn will sound and the hazard
warning lights will flash for about 30
seconds when this button is pressed
for more than 0.5 seconds. To stop
the horn and lights, press any button
on the transmitter.
Transmitter precautions
The transmitter (or smart key) will not
work if any of following occurs:
The ignition key is in the ignition switch.
You exceed the operating distance limit (about 90 feet [30 m]).
The battery in the transmitter (or smart key) is weak.
Other vehicles or objects may be blocking the signal.
The weather is extremely cold.
The transmitter (or smart key) is close to a radio transmitter such as
a radio station or an airport which
can interfere with normal operation
of the transmitter.
When the transmitter (or smart key)
does not work properly, open and
close the door with the ignition key. If
you have a problem with the trans-
mitter (or smart key), contact an
authorized Kia dealer. (Continued)(Continued)
If the transmitter is in close proxim-
ity to your cell phone or smart
phone, the signal from the trans-
mitter could be blocked by normal
operation of your cell phone or
smart phone. This is especially
important when the phone is active
such as making calls, receiving
calls, text messaging, and/or send-
ing/receiving emails. Avoid placing
the transmitter and your cell phone
or smart phone in the same pants
or jacket pocket and maintain ade-
quate distance between the two
devices.

413
Features of your vehicle
This system is designed to provide

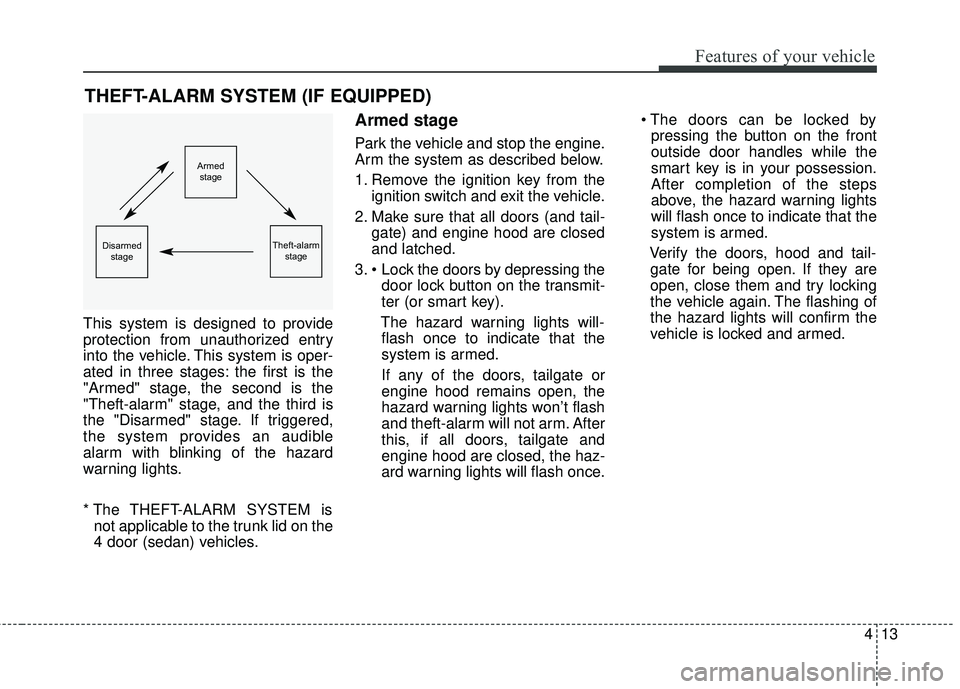

protection from unauthorized entry
into the vehicle. This system is oper-
ated in three stages: the first is the
"Armed" stage, the second is the
"Theft-alarm" stage, and the third is
the "Disarmed" stage. If triggered,
the system provides an audible
alarm with blinking of the hazard
warning lights.
* The THEFT-ALARM SYSTEM isnot applicable to the trunk lid on the
4 door (sedan) vehicles.
Armed stage
Park the vehicle and stop the engine.
Arm the system as described below.
1. Remove the ignition key from the ignition switch and exit the vehicle.
2. Make sure that all doors (and tail- gate) and engine hood are closed
and latched.
3. door lock button on the transmit-
ter (or smart key).
The hazard warning lights will- flash once to indicate that the
system is armed.
If any of the doors, tailgate or
engine hood remains open, the
hazard warning lights won’t flash
and theft-alarm will not arm. After
this, if all doors, tailgate and
engine hood are closed, the haz-
ard warning lights will flash once.
pressing the button on the front
outside door handles while the
smart key is in your possession.
After completion of the steps
above, the hazard warning lights
will flash once to indicate that the
system is armed.
Verify the doors, hood and tail- gate for being open. If they are
open, close them and try locking
the vehicle again. The flashing of
the hazard lights will confirm the
vehicle is locked and armed.
THEFT-ALARM SYSTEM (IF EQUIPPED)
Armed
stage
Theft-alarm stageDisarmedstage

421
Features of your vehicle

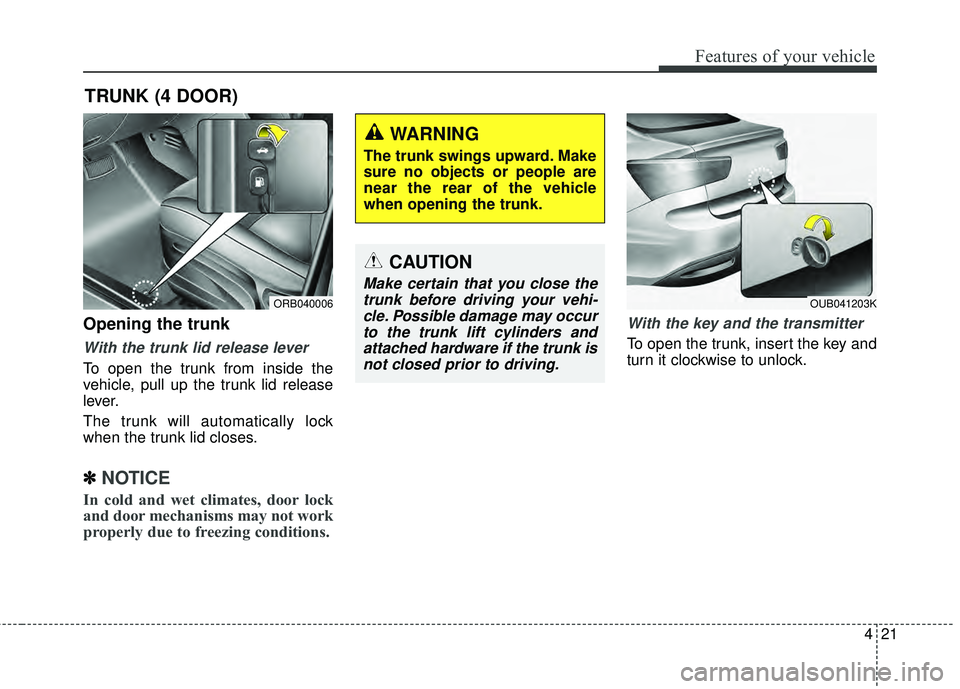

Opening the trunk
With the trunk lid release lever
To open the trunk from inside the
vehicle, pull up the trunk lid release
lever.
The trunk will automatically lock
when the trunk lid closes.
✽ ✽

NOTICE
In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
With the key and the transmitter
To open the trunk, insert the key and
turn it clockwise to unlock.
TRUNK (4 DOOR)
ORB040006
CAUTION
Make certain that you close the
trunk before driving your vehi-cle. Possible damage may occurto the trunk lift cylinders andattached hardware if the trunk isnot closed prior to driving.
WARNING
The trunk swings upward. Make
sure no objects or people are
near the rear of the vehicle
when opening the trunk.
OUB041203K
