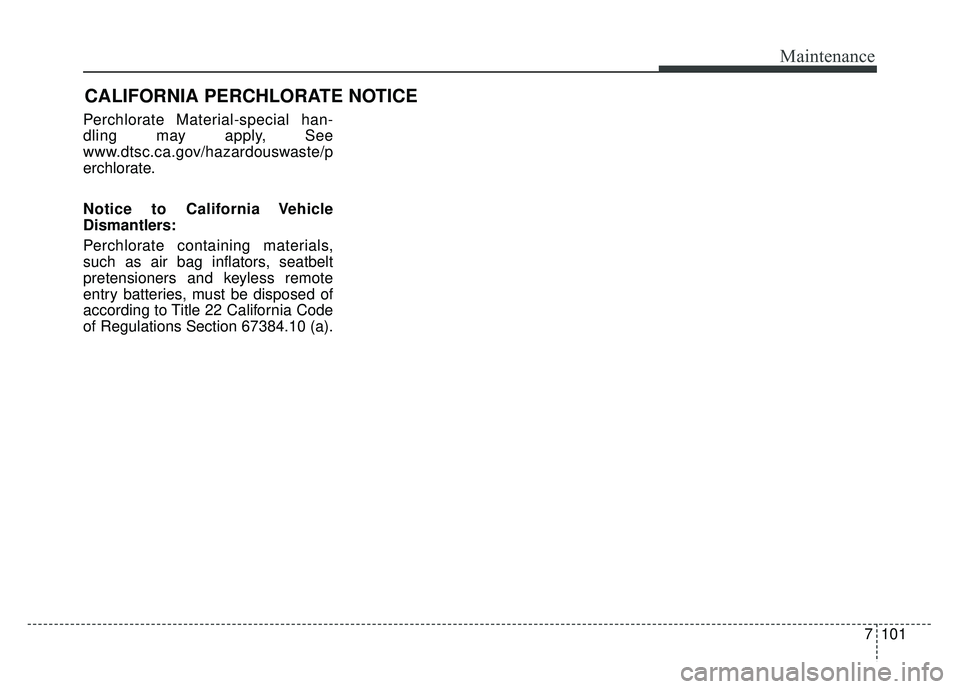

CALIFORNIA PERCHLORATE NOTICE
Perchlorate Material-special han-
dling may apply, See
www.dtsc.ca.gov/hazardouswaste/p
erchlorate.
Notice to California Vehicle
Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Section 67384.10 (a).

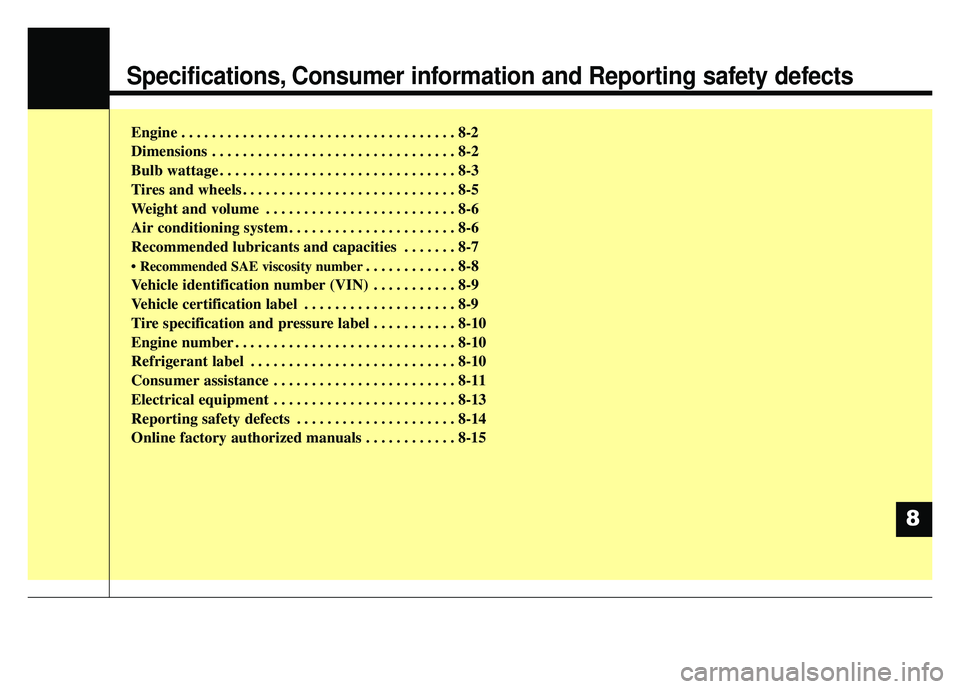

Specifications, Consumer information and Reporting safety defects
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Weight and volume . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Air conditioning system. . . . . . . . . . . . . . . . . . . . . . 8-6
Recommended lubricants and capacities . . . . . . . 8-7
• Recommended SAE viscosity number. . . . . . . . . . . . 8-8
Vehicle identification number (VIN) . . . . . . . . . . . 8-9
Vehicle certification label . . . . . . . . . . . . . . . . . . . . 8-9
Tire specification and pressure label . . . . . . . . . . . 8-10
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Consumer assistance . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Electrical equipment . . . . . . . . . . . . . . . . . . . . . . . . 8-13
Reporting safety defects . . . . . . . . . . . . . . . . . . . . . 8-14
Online factory authorized manuals . . . . . . . . . . . . 8-15
8

Specifications, Consumer information, Reporting safety defects
28

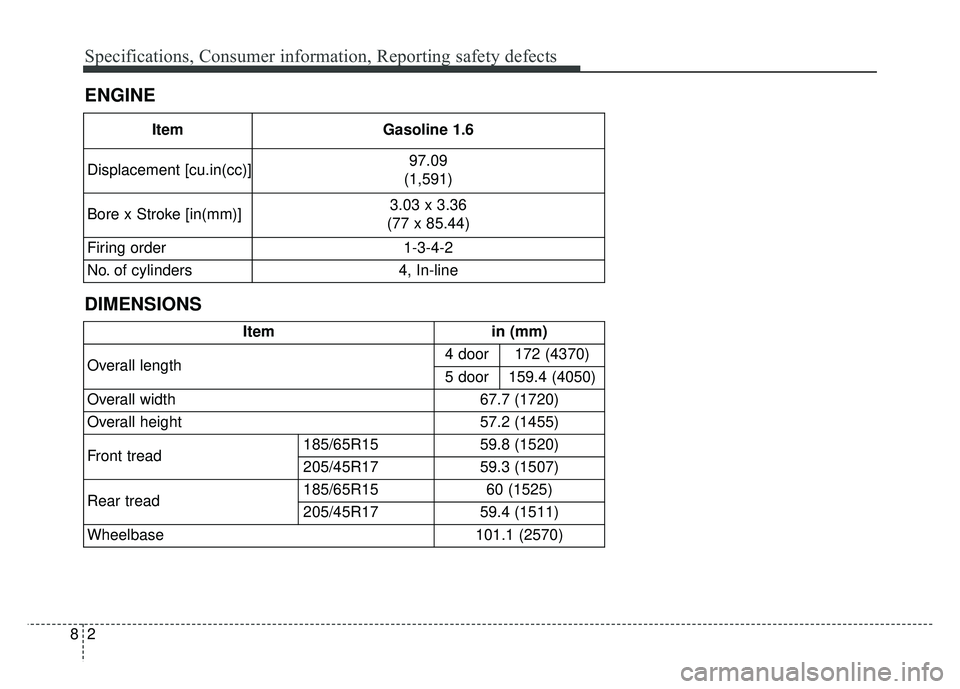

ENGINE
DIMENSIONS
ItemGasoline 1.6
Displacement [cu.in(cc)] 97.09
(1,591)
Bore x Stroke [in(mm)] 3.03 x 3.36
(77 x 85.44)
Firing order 1-3-4-2
No. of cylinders 4, In-line
Itemin (mm)
Overall length 4 door 172 (4370)
5 door 159.4 (4050)
Overall width
67.7 (1720)
Overall height57.2 (1455)
Front tread185/65R1559.8 (1520)
205/45R1759.3 (1507)
Rear tread185/65R15 60 (1525)
205/45R1759.4 (1511)
Wheelbase 101.1 (2570)

83
Specifications, Consumer information, Reporting safety defects

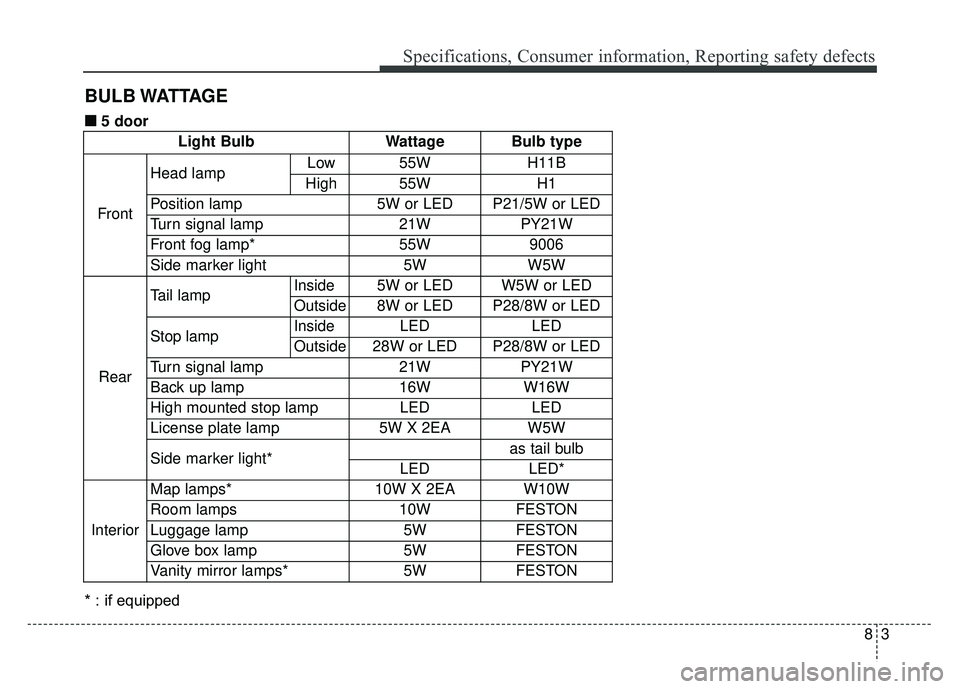

BULB WATTAGE
Light BulbWattageBulb type
Front
Head lamp Low55WH11B
High55WH1
Position lamp5W or LEDP21/5W or LED
Turn signal lamp21WPY21W
Front fog lamp*55W9006
Side marker light5WW5W
Rear
Tail lampInside5W or LEDW5W or LED
Outside8W or LEDP28/8W or LED
Stop lampInsideLEDLED
Outside28W or LEDP28/8W or LED
Turn signal lamp21WPY21W
Back up lamp16WW16W
High mounted stop lampLEDLED
License plate lamp5W X 2EAW5W
Side marker light*as tail bulb
LEDLED*
Interior
Map lamps*10W X 2EAW10W
Room lamps10WFESTON
Luggage lamp5WFESTON
Glove box lamp5WFESTON
Vanity mirror lamps*5WFESTON
* : if equipped■
■

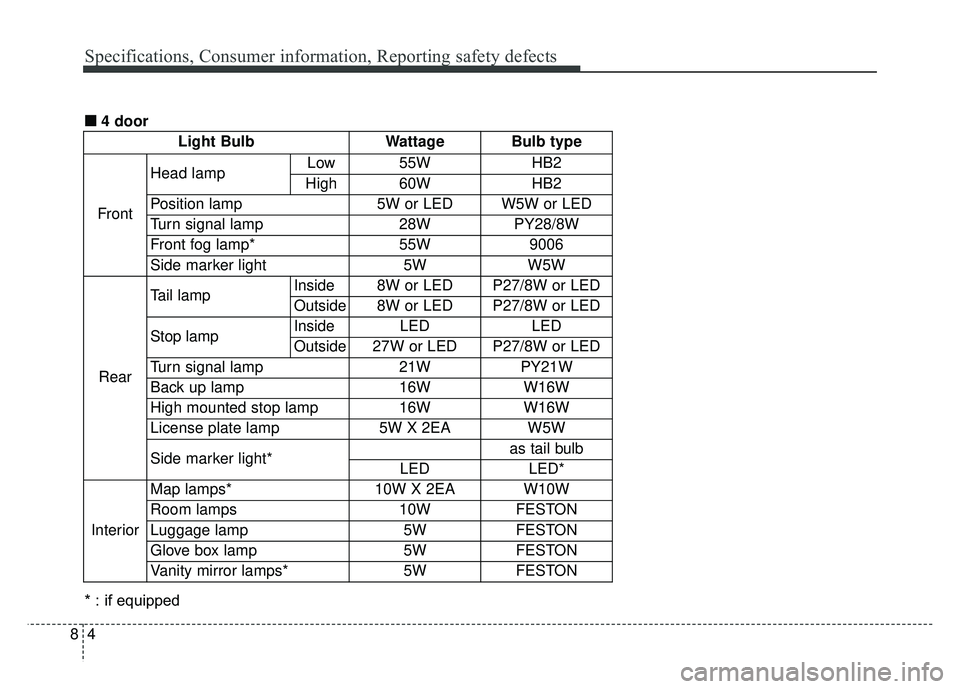

5 door

Specifications, Consumer information, Reporting safety defects
48
Light BulbWattageBulb type
Front
Head lamp Low55WHB2
High60WHB2
Position lamp5W or LEDW5W or LED
Turn signal lamp28WPY28/8W
Front fog lamp*55W9006
Side marker light5WW5W
Rear
Tail lampInside8W or LEDP27/8W or LED
Outside8W or LEDP27/8W or LED
Stop lampInsideLEDLED
Outside27W or LEDP27/8W or LED
Turn signal lamp21WPY21W
Back up lamp16WW16W
High mounted stop lamp16WW16W
License plate lamp5W X 2EAW5W
Side marker light*as tail bulb
LEDLED*
Interior
Map lamps*10W X 2EAW10W
Room lamps10WFESTON
Luggage lamp5WFESTON
Glove box lamp5WFESTON
Vanity mirror lamps*5WFESTON
* : if equipped■
■

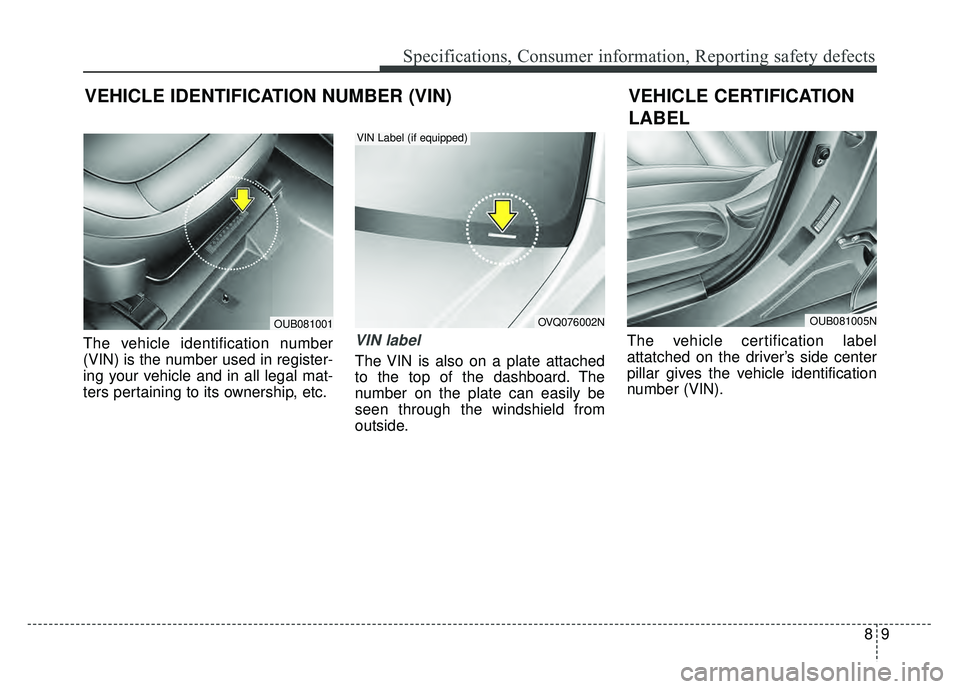

4 door

85
Specifications, Consumer information, Reporting safety defects

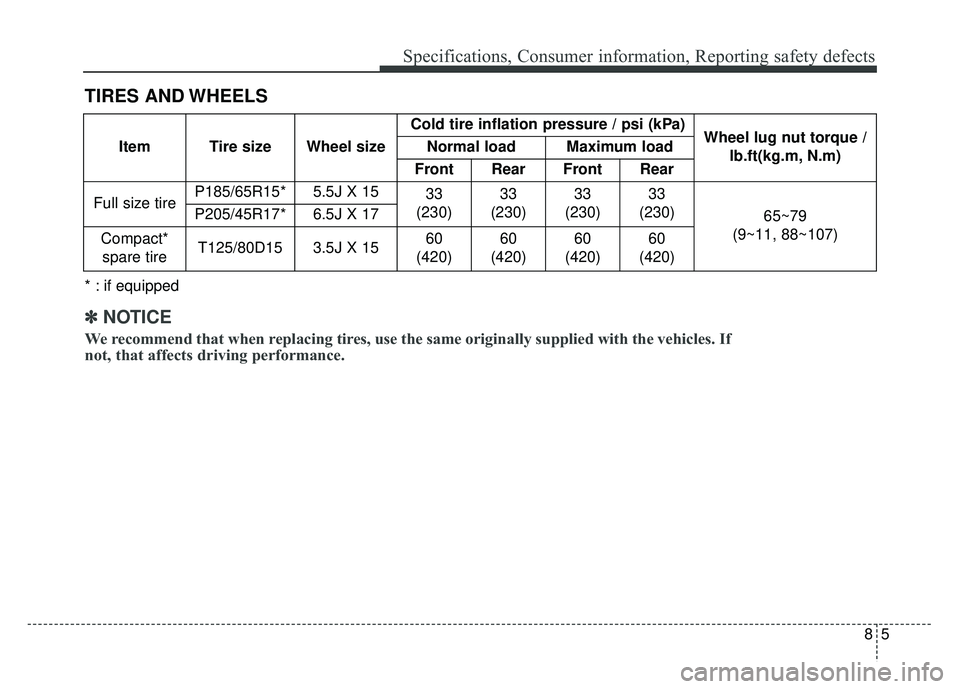

TIRES AND WHEELS
Item Tire size Wheel sizeCold tire inflation pressure / psi (kPa)
Wheel lug nut torque /
lb.ft(kg.m, N.m)
Normal load Maximum load
Front Rear Front Rear
Full size tire
P185/65R15* 5.5J X 15 33
(230) 33
(230) 33
(230) 33
(230) 65~79
(9~11, 88~107)
P205/45R17* 6.5J X 17
Compact* spare tire
T125/80D15 3.5J X 15 60
(420) 60
(420) 60
(420) 60
(420)
* : if equipped
✽
✽

NOTICE
We recommend that when replacing tires, use the same originally supplied with the vehicles. If
not, that affects driving performance.

Specifications, Consumer information, Reporting safety defects
68

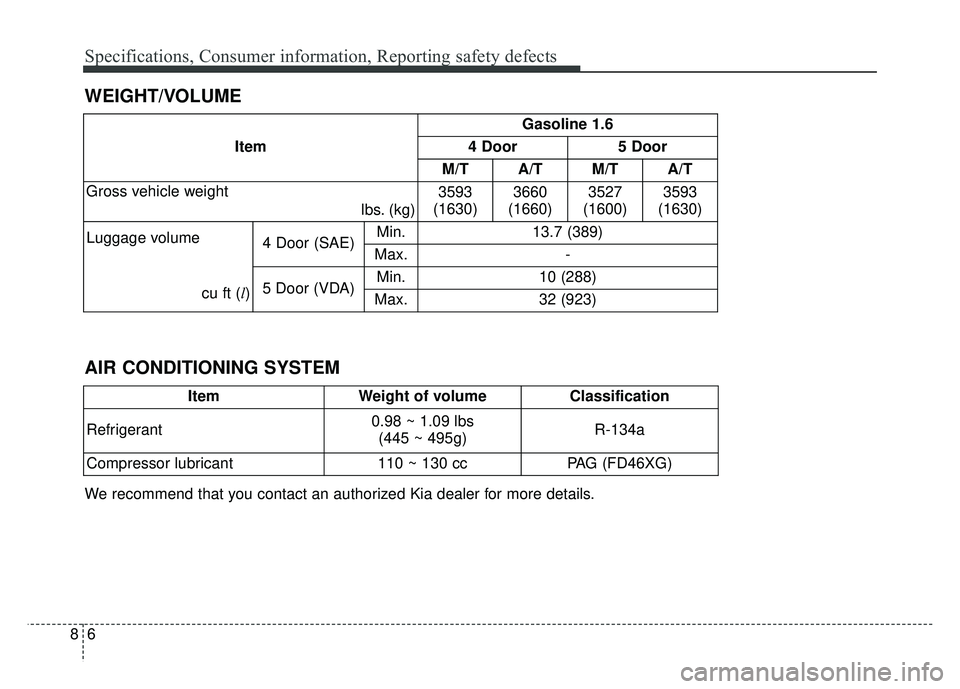

WEIGHT/VOLUME
ItemGasoline 1.6
4 Door 5 Door
M/T A/T M/T A/T
Gross vehicle weight lbs. (kg)3593
(1630) 3660
(1660) 3527
(1600) 3593
(1630)
Luggage volume
cu ft (l)4 Door (SAE)
Min.13.7 (389)
Max.-
5 Door (VDA)
Min.10 (288)
Max.32 (923)
AIR CONDITIONING SYSTEM
ItemWeight of volume Classification
Refrigerant
0.98 ~ 1.09 lbs (445 ~ 495g) R-134a
Compressor lubricant
110 ~ 130 cc PAG (FD46XG)
We recommend that you contact an authorized Kia dealer for more details.

87
Specifications, Consumer information, Reporting safety defects

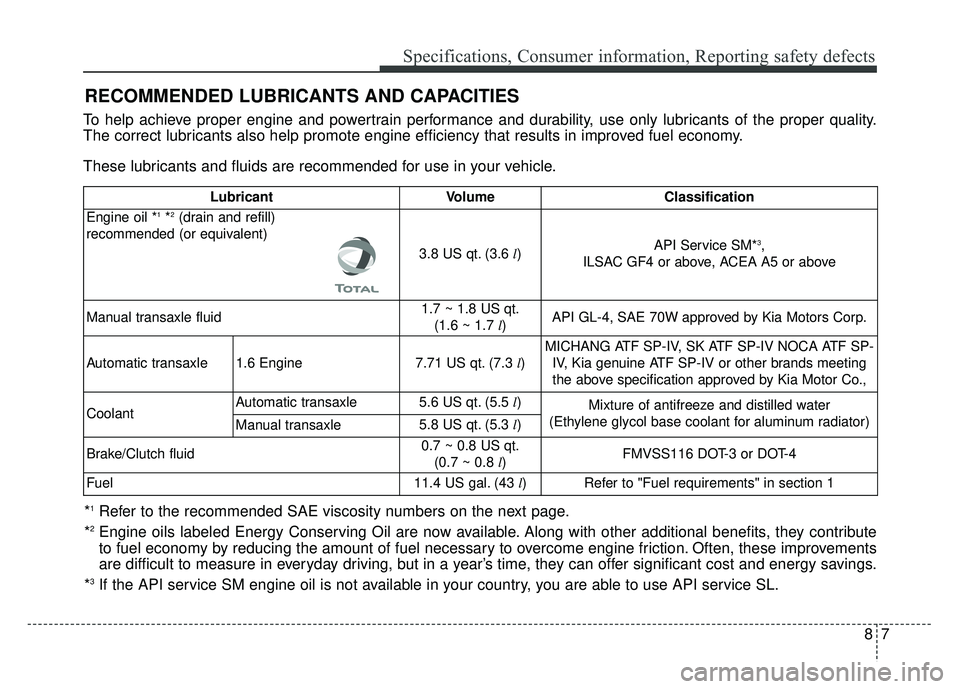

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute
to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements
are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
Lubricant Volume Classification
Engine oil *
1*2(drain and refill)
recommended (or equivalent)
3.8 US qt. (3.6 l) API Service SM*
3,
ILSAC GF4 or above, ACEA A5 or above
Manual transaxle fluid 1.7 ~ 1.8 US qt.
(1.6 ~ 1.7 l) API GL-4, SAE 70W approved by Kia Motors Corp.
Automatic transaxle 1.6 Engine 7.71 US qt. (7.3
l)MICHANG ATF SP-IV, SK ATF SP-IV NOCA ATF SP-
IV, Kia genuine ATF SP-IV or other brands meetingthe above specification approved by Kia Motor Co.,
Coolant Automatic transaxle
5.6 US qt. (5.5 l)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
Manual transaxle 5.8 US qt. (5.3
l)
Brake/Clutch fluid 0.7 ~ 0.8 US qt.
(0.7 ~ 0.8 l) FMVSS116 DOT-3 or DOT-4
Fuel 11.4 US gal. (43 l)
Refer to "Fuel requirements" in section 1

Specifications, Consumer information, Reporting safety defects
88

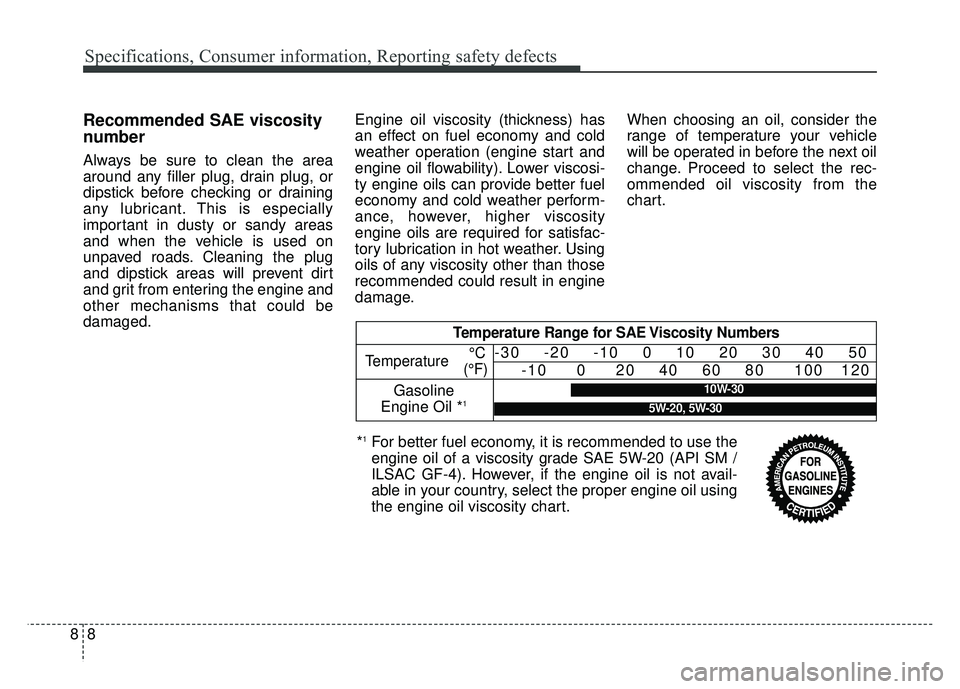

Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine and
other mechanisms that could be
damaged.Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operation (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage.
When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *1
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
*1For better fuel economy, it is recommended to use the
engine oil of a viscosity grade SAE 5W-20 (API SM /
ILSAC GF-4). However, if the engine oil is not avail-
able in your country, select the proper engine oil using
the engine oil viscosity chart.
10W-30
5W-20, 5W-30

89
Specifications, Consumer information, Reporting safety defects
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.VIN label
The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label
attatched on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE CERTIFICATION
LABEL
OVQ076002N
VIN Label (if equipped)
VEHICLE IDENTIFICATION NUMBER (VIN)
OUB081001OUB081005N
