KIA RIO HATCHBACK 2018 Owners Manual

8111
Maintenance

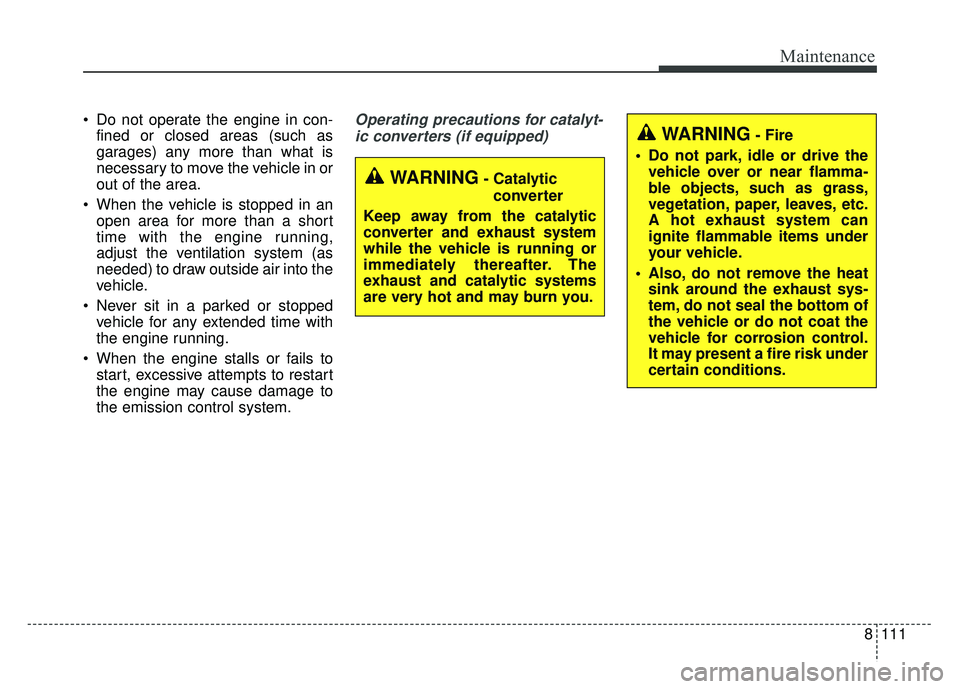

Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for catalyt-
ic converters (if equipped)
WARNING- Catalytic converter
Keep away from the catalytic
converter and exhaust system
while the vehicle is running or
immediately thereafter. The
exhaust and catalytic systems
are very hot and may burn you.
WARNING- Fire
Do not park, idle or drive the vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Also, do not remove the heat sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.

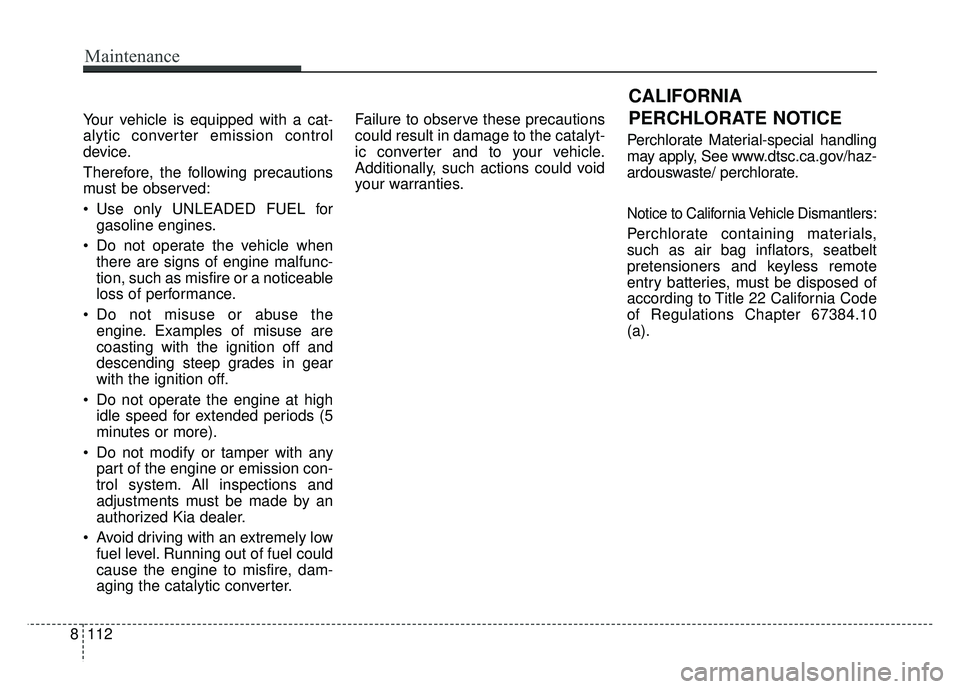

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/ perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Chapter 67384.10
(a).
CALIFORNIA
PERCHLORATE NOTICE
8112
Maintenance

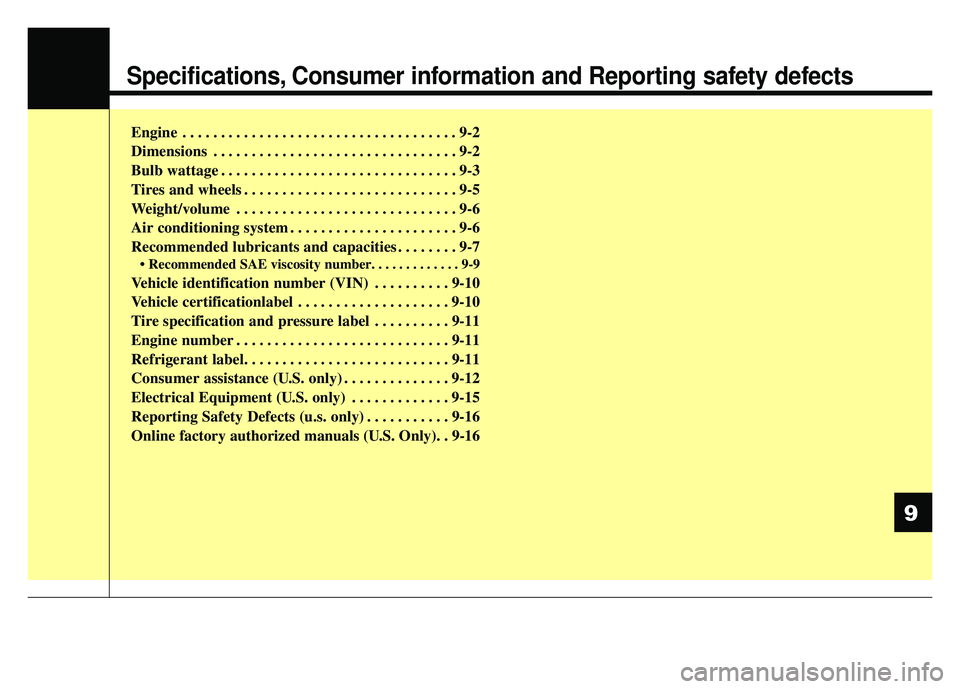

Specifications, Consumer information and Reporting safety defects
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
9-2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
Weight/volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 9-6
Recommended lubricants and capacities . . . . . . . . 9-7
• Recommended SAE viscosity number. . . . . . . . . . . . . 9-9
Vehicle identification number (VIN) . . . . . . . . . . 9-10
Vehicle certificationlabel . . . . . . . . . . . . . . . . . . . . 9-10
Tire specification and pressure label . . . . . . . . . . 9-11
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Consumer assistance (U.S. only) . . . . . . . . . . . . . . 9-12
Electrical Equipment (U.S. only) . . . . . . . . . . . . . 9-15
Reporting Safety Defects (u.s. only) . . . . . . . . . . . 9-16
Online factory authorized manuals (U.S. Only). . 9-16
9

Specifications, Consumer information, Reporting safety defects
29

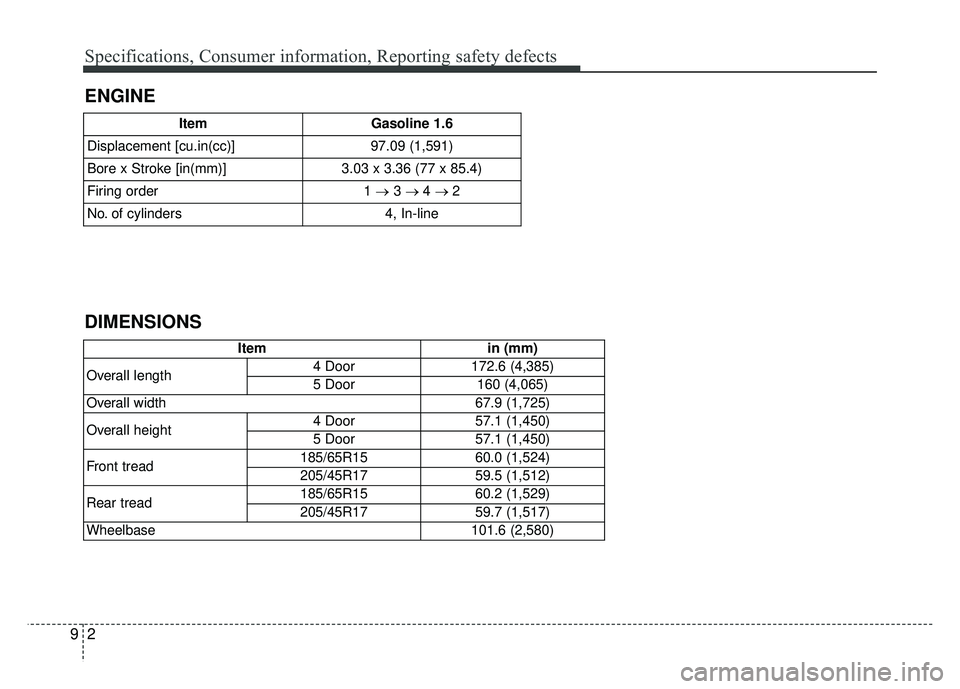

ENGINE
ItemGasoline 1.6
Displacement [cu.in(cc)] 97.09 (1,591)
Bore x Stroke [in(mm)] 3.03 x 3.36 (77 x 85.4)
Firing order 1
→ 3 → 4 → 2
No. of cylinders 4, In-line
DIMENSIONS
Itemin (mm)
Overall length
4 Door 172.6 (4,385)
5 Door160 (4,065)
Overall width 67.9 (1,725)
Overall height
4 Door 57.1 (1,450)
5 Door57.1 (1,450)
Front tread
185/65R15 60.0 (1,524)
205/45R1759.5 (1,512)
Rear tread185/65R1560.2 (1,529)
205/45R1759.7 (1,517)
Wheelbase101.6 (2,580)

93
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattage(W)Bulb type
Front Headlamps
LOW(STD) Standard
55WHB2LL
HIGH(STD) Option * 60WHB2LL
LOW(OPT) Standard 60W9005HL+
HIGH(OPT) Option * 60W9005HL+
Front turn signal lamps STD28WPY28/8W
Front turn signal lamps OPT21WPY21W
Front position lamps STD
8WPY28/8W
OPT 0.5W * 12 LED
Front fog lamps 51WHB4
Side Marker Lamp (ONLY NAS) STD
5WW5W
OPT 0.5W * 2 LED
Rear Rear Stop/Tail lamps (outside)
STD21W/5W
P21/5WLL
Rear tail lamps (Inside) 5WPY21/5WLL
Rear Stop/Tail lamps (outside) OPT1W LED
Rear tail lamps (Inside) 0.2WLED
Side Marker Lamp (ONLY NAS) STD
5WW5W
OPT 0.2W * 3 LED
Rear turn signal lamps 21WPY21W LL
Back-up lamps 16WW16W
High mounted stop lamp* 5W * 4W5W LL
License plate lamps 5W * 2W5W LL
* If equipped
(Continued)

Specifications, Consumer information, Reporting safety defects
49

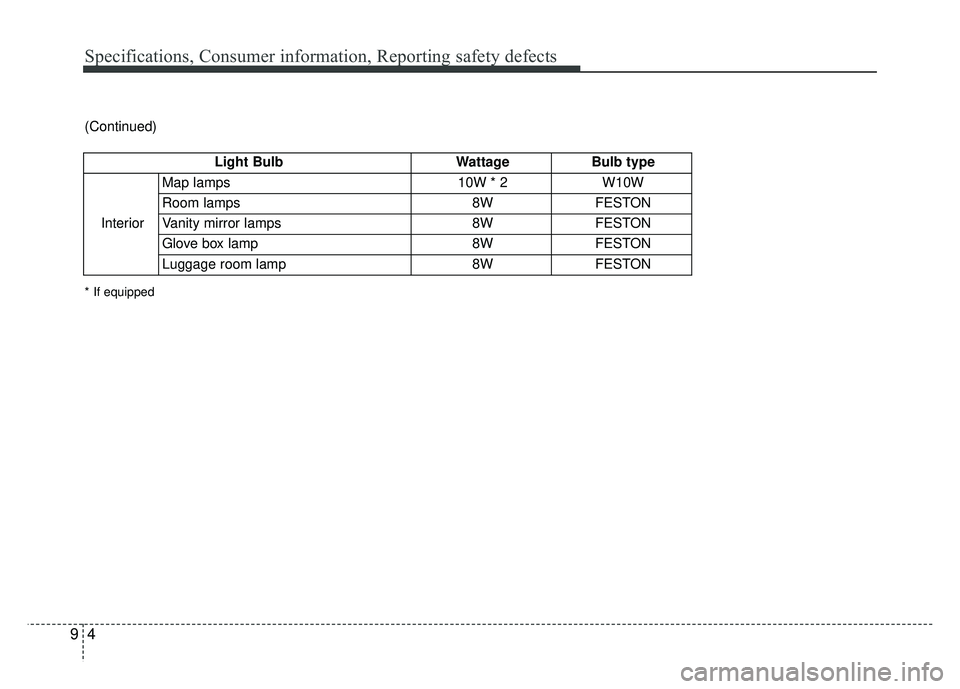

Light BulbWattageBulb type
Interior Map lamps
10W * 2W10W
Room lamps 8WFESTON
Vanity mirror lamps 8WFESTON
Glove box lamp 8WFESTON
Luggage room lamp 8WFESTON
(Continued)
* If equipped

95
Specifications, Consumer information, Reporting safety defects

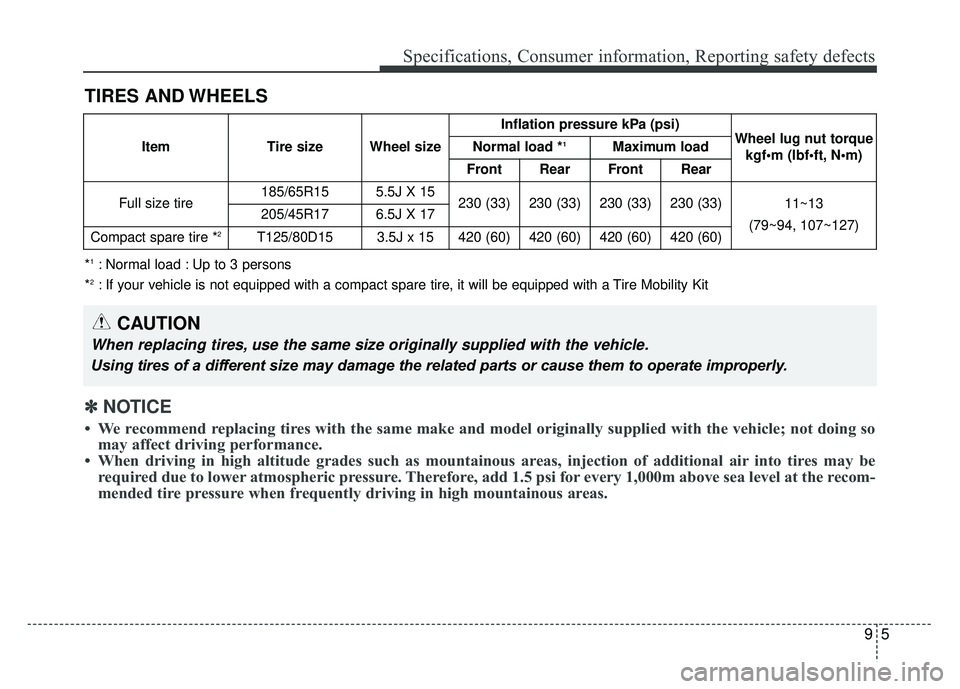

TIRES AND WHEELS
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size may damage the related parts or cause them to operate improp\
erly.
*1: Normal load : Up to 3 persons
*
2: If your vehicle is not equipped with a compact spare tire, it will be equipped with a Tire Mobility Kit Item Tire size Wheel size
Inflation pressure kPa (psi)
Wheel lug nut torque

Normal load *
1Maximum load
Front Rear Front Rear
Full size tire 185/65R15 5.5J X 15
230 (33) 230 (33) 230 (33) 230 (33) 11~13
(79~94, 107~127)
205/45R17 6.5J X 17
Compact spare tire *
2T125/80D15 3.5J x 15 420 (60) 420 (60) 420 (60) 420 (60)
✽
✽ NOTICE
• We recommend replacing tires with the same make and model originally supplied with the vehicle; no\
t doing so
may affect driving performance.
• When driving in high altitude grades such as mountainous areas, injection of additional air into tires may be required due to lower atmospheric pressure. Therefore, add 1.5 psi for every 1,000m above sea level at the recom-
mended tire pressure when frequently driving in high mountainous areas.

Specifications, Consumer information, Reporting safety defects
69

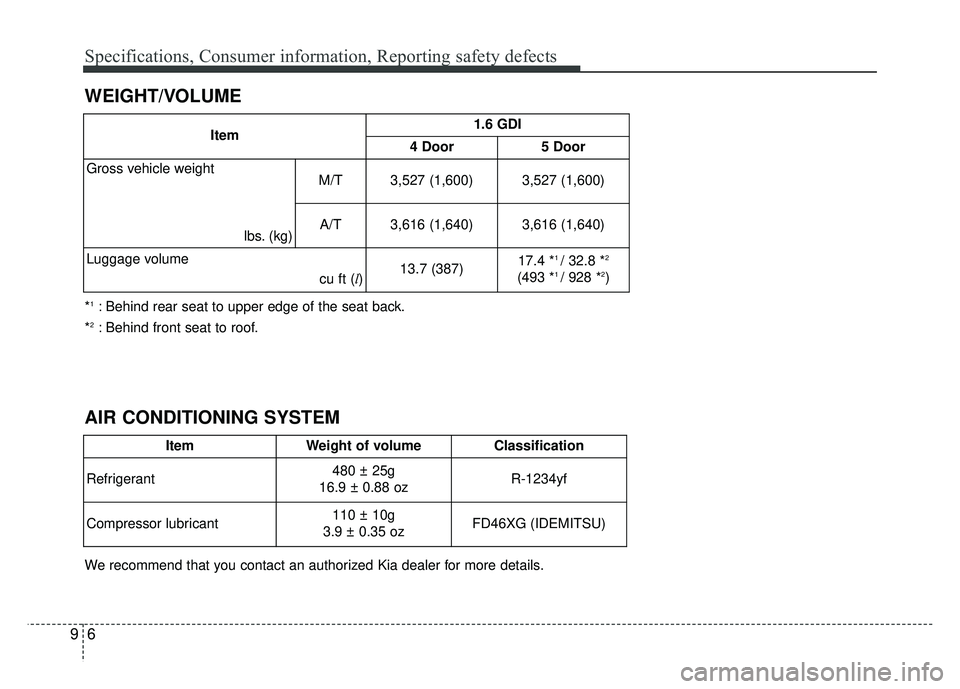

WEIGHT/VOLUME
Item1.6 GDI
4 Door5 Door
Gross vehicle weight
lbs. (kg)M/T 3,527 (1,600)
3,527 (1,600)
A/T 3,616 (1,640)
3,616 (1,640)
Luggage volume cu ft (l)
13.7 (387)17.4 *1 / 32.8 *2
(493 *1 / 928 *2)
ItemWeight of volumeClassification
Refrigerant
480 ± 25g
16.9 ± 0.88 oz R-1234yf
Compressor lubricant
110 ± 10g
3.9 ± 0.35 oz FD46XG (IDEMITSU)
We recommend that you contact an authorized Kia dealer for more details. *
1: Behind rear seat to upper edge of the seat back.
*
2: Behind front seat to roof.
AIR CONDITIONING SYSTEM

97
Specifications, Consumer information, Reporting safety defects

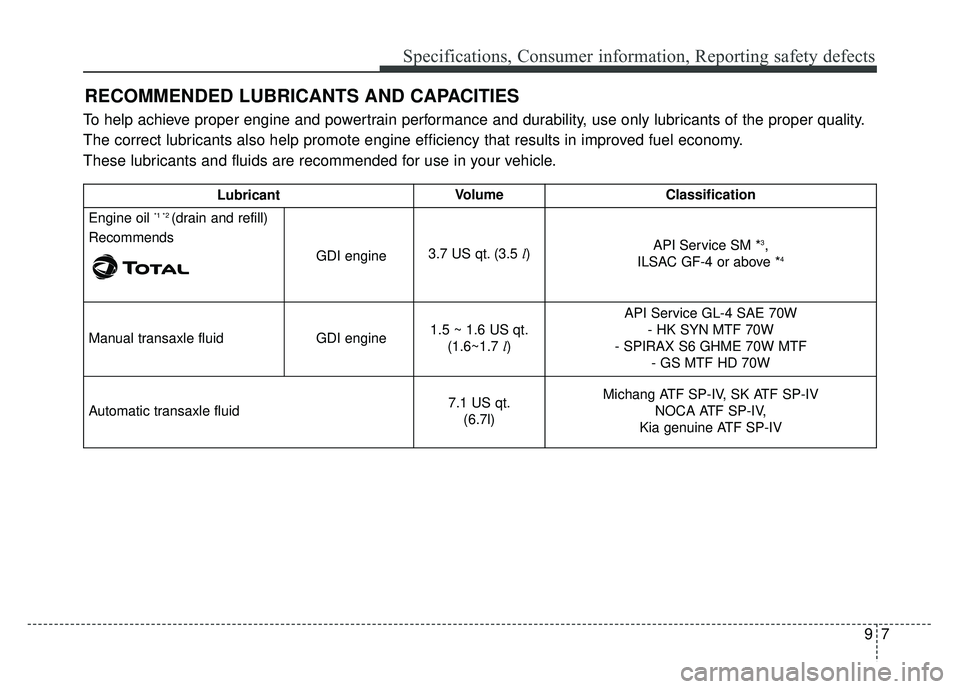

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Recommends
GDI engine3.7 US qt. (3.5 l)API Service SM *3,
ILSAC GF-4 or above *4
Manual transaxle fluidGDI engine1.5 ~ 1.6 US qt. (1.6~1.7 l)
API Service GL-4 SAE 70W
- HK SYN MTF 70W
- SPIRAX S6 GHME 70W MTF - GS MTF HD 70W
Automatic transaxle fluid7.1 US qt.(6.7l)Michang ATF SP-IV, SK ATF SP-IV NOCA ATF SP-IV,
Kia genuine ATF SP-IV

Specifications, Consumer information, Reporting safety defects
89
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
*4If the ILSAC GF-4 engine oil is not available in your country, you are able to use ILSAC GF-4 or above grade; therefore, you can
use ILSAC GF-5 or above.

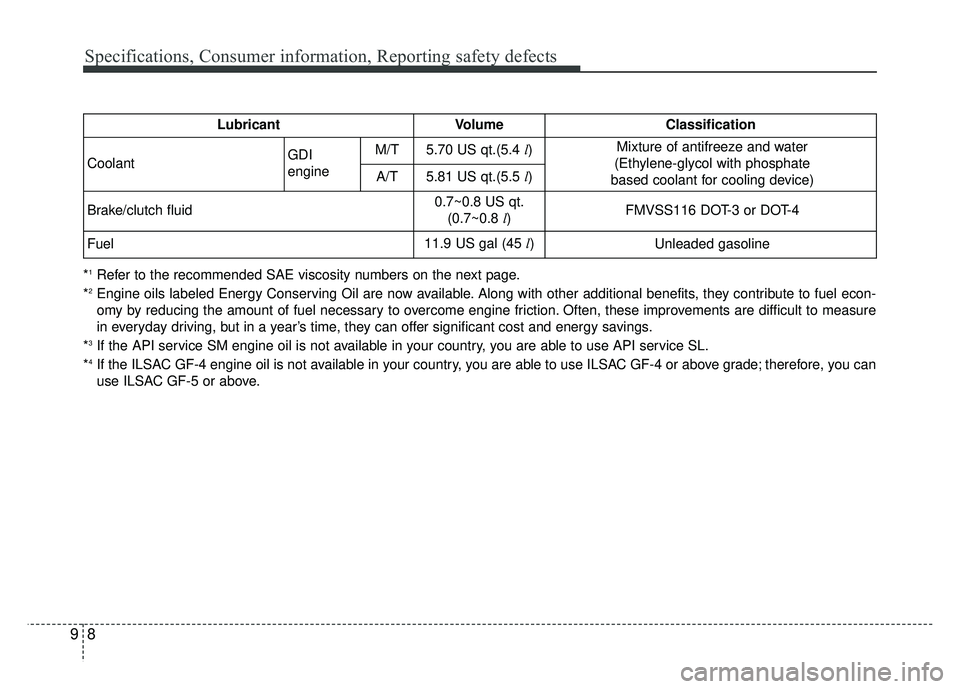

LubricantVolumeClassification
Coolant GDI
engineM/T5.70 US qt.(5.4 l)Mixture of antifreeze and water
(Ethylene-glycol with phosphate
based coolant for cooling device)
A/T5.81 US qt.(5.5 l)
Brake/clutch fluid0.7~0.8 US qt. (0.7~0.8 l)FMVSS116 DOT-3 or DOT-4
Fuel11.9 US gal (45 l)Unleaded gasoline
