hood release KIA Rondo 2010 2.G Owner's Manual

Your vehicle at a glance
22
INTERIOR OVERVIEW
B010000AUN-EU
1. Door lock/unlock button ......................4-9
2. Inner door handle ..............................4-10
3. Outside rearview mirror control switch ................................................4-30
4. Central door lock switch ....................4-10
5. Power window lock button.................4-17
6. Power window switches ....................4-15
7. Fuse box ............................................7-45
8. Instrument panel illumination control knob ..................................................4-33
9. ESC OFF button* ..............................5-19
10. Front windshield deicer button* ......4-60
11. Hood release lever ..........................4-18
12. Steering wheel ................................4-27
13. Steering wheel tilt lever...................4-28
14. Seat...................................................3-2
* : if equipped
OUN009001N

Features of your vehicle
18
4
D090100AUN

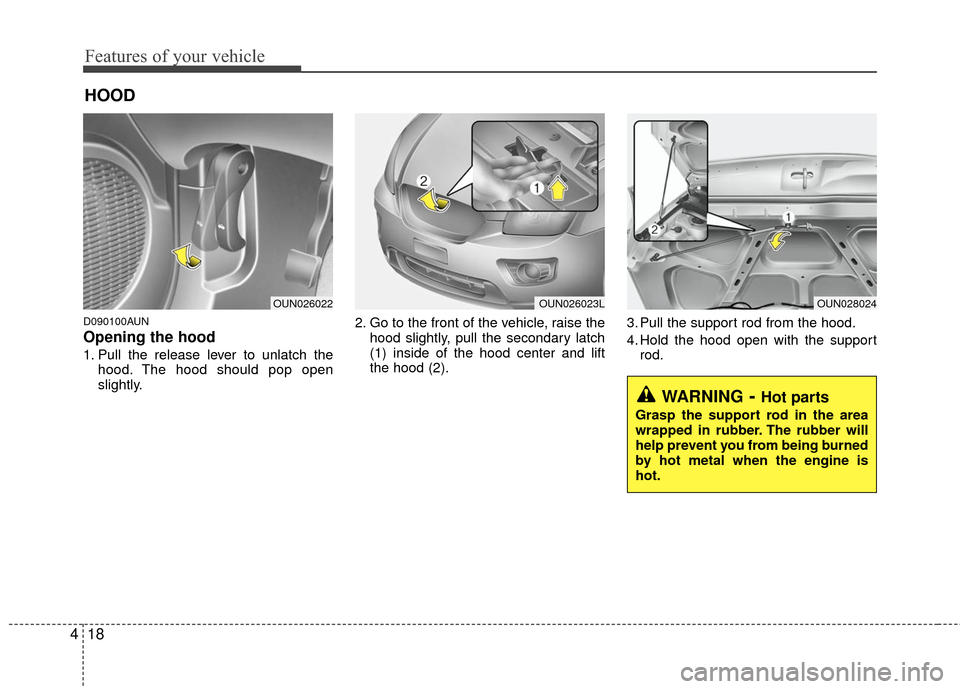

Opening the hood
1. Pull the release lever to unlatch the
hood. The hood should pop open
slightly. 2. Go to the front of the vehicle, raise the
hood slightly, pull the secondary latch
(1) inside of the hood center and lift
the hood (2). 3. Pull the support rod from the hood.
4. Hold the hood open with the support
rod.
HOOD
OUN026022
WARNING- Hot parts
Grasp the support rod in the area
wrapped in rubber. The rubber will
help prevent you from being burned
by hot metal when the engine is
hot.
OUN026023LOUN028024
