Page 471 of 564

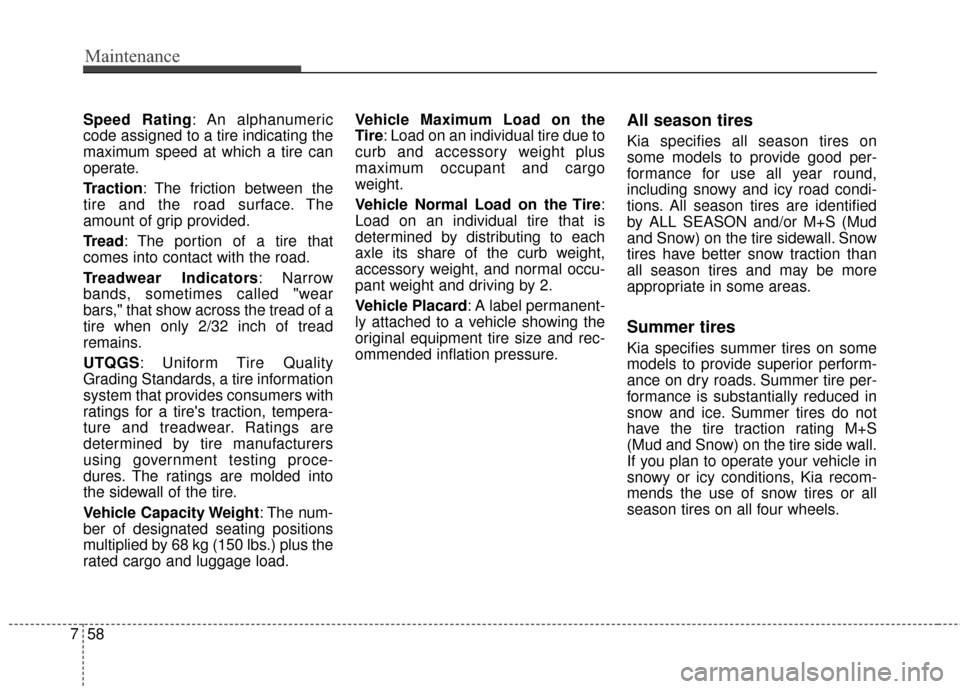

KIA Rondo 2015 3.G Owners Manual Maintenance
58
7
Speed Rating: An alphanumeric
code assigned to a tire indicating the
maximum speed at which a tire can
operate.
Traction: The friction between the
tire and the road surface. The
amoun

Page 472 of 564

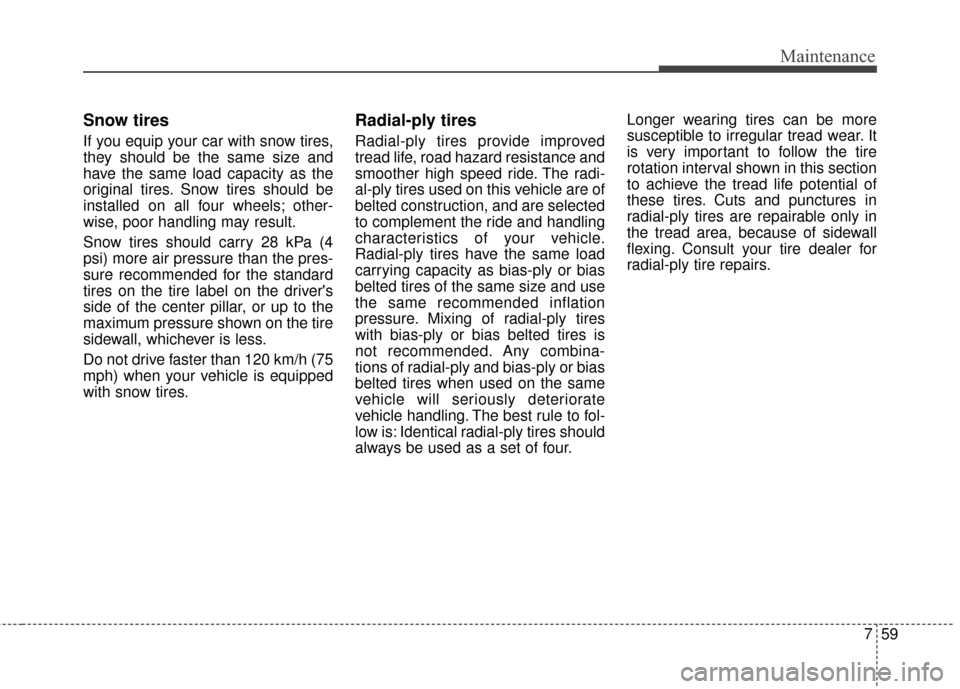

KIA Rondo 2015 3.G Owners Manual 759
Maintenance
Snow tires
If you equip your car with snow tires,
they should be the same size and
have the same load capacity as the
original tires. Snow tires should be
installed on all four wheels;

Page 473 of 564

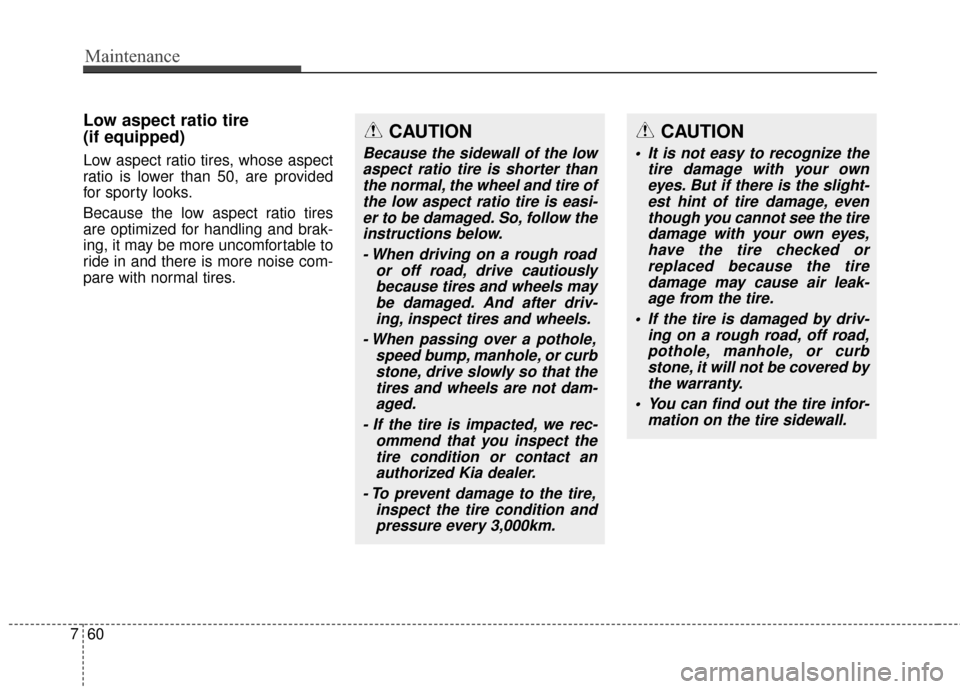

KIA Rondo 2015 3.G Owners Manual Maintenance
60
7
Low aspect ratio tire
(if equipped)
Low aspect ratio tires, whose aspect
ratio is lower than 50, are provided
for sporty looks.
Because the low aspect ratio tires
are optimized for ha

Page 474 of 564

KIA Rondo 2015 3.G Owners Manual 761
Maintenance
FUSES
A vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 3 (or 4) fuse panels,
one located in the driver’s side panel
bolster

Page 475 of 564

KIA Rondo 2015 3.G Owners Manual Maintenance
62
7
Instrument panel fuse replace-
ment
1. Turn the ignition switch and all other switches off.
2. Open the fuse panel cover. 3. Pull the suspected fuse straight
out. Use the removal tool

Page 476 of 564

KIA Rondo 2015 3.G Owners Manual 763
Maintenance
If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse block in
the engine compartment. If a fuse is
blown, it must be replaced.Fuse switch
A

Page 477 of 564

KIA Rondo 2015 3.G Owners Manual Maintenance
64
7
Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery
cable.
3. Remove the nuts shown in the pic- ture above.

Page 478 of 564

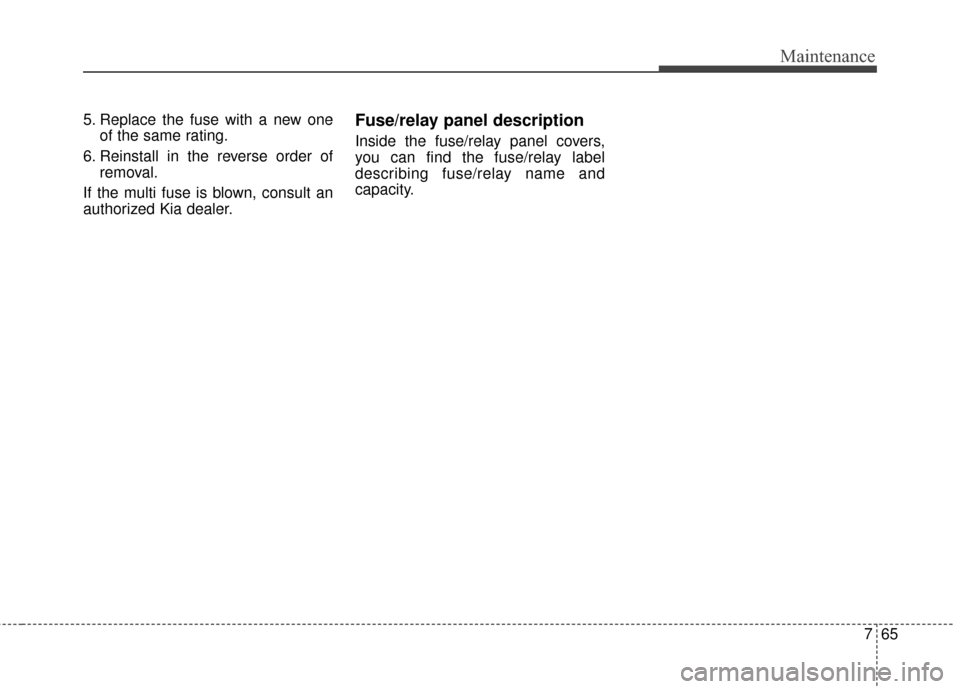

KIA Rondo 2015 3.G Owners Manual 765
Maintenance
5. Replace the fuse with a new oneof the same rating.
6. Reinstall in the reverse order of removal.
If the multi fuse is blown, consult an
authorized Kia dealer.Fuse/relay panel descri

Page 479 of 564

KIA Rondo 2015 3.G Owners Manual Maintenance
66
7

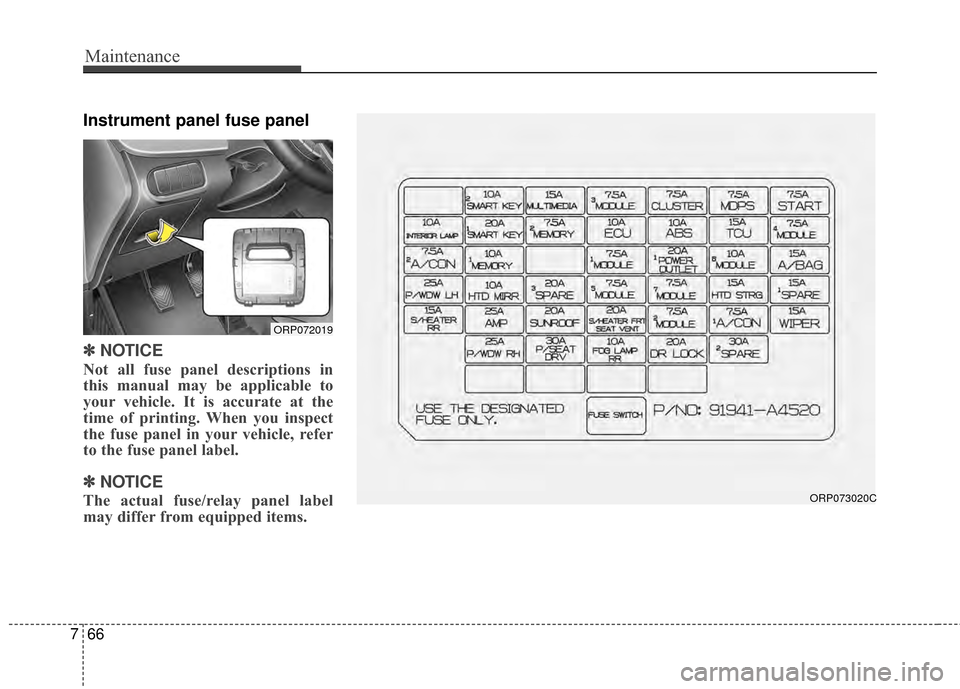

Instrument panel fuse panel
✽
✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
t

Page 480 of 564

KIA Rondo 2015 3.G Owners Manual 767
Maintenance
Engine compartment fuse
panel✽ ✽ NOTICE
The actual fuse/relay panel label
may differ from equipped items.
OGD071023
ORP072022N
