Page 481 of 564

KIA Rondo 2015 3.G Owners Manual Maintenance
68
7

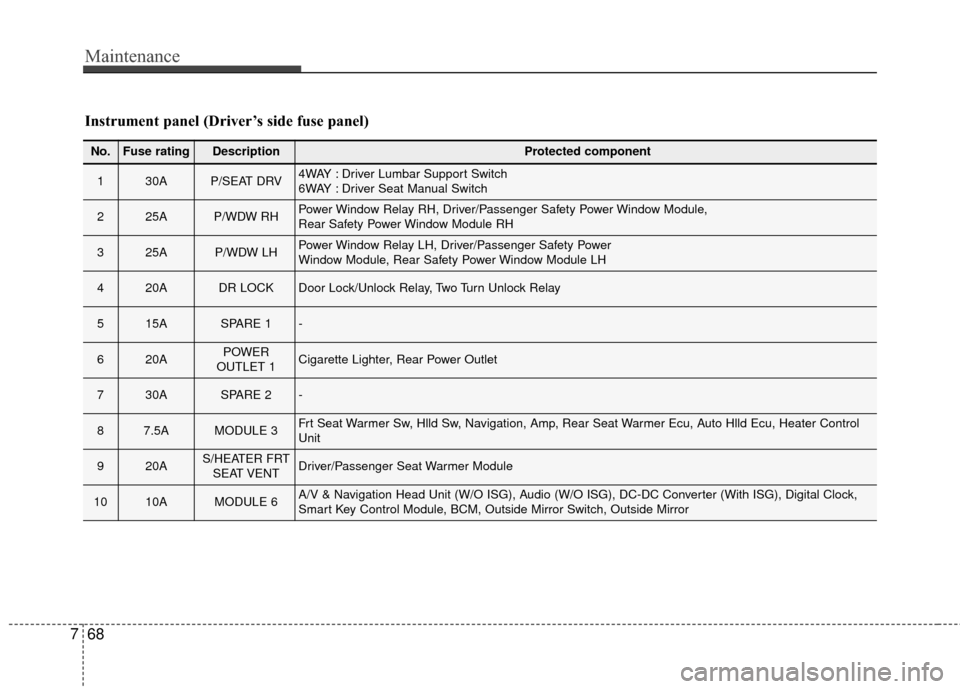

Instrument panel (Driver’s side fuse panel)
No.Fuse ratingDescriptionProtected component
130AP/SEAT DRV4WAY : Driver Lumbar Support Switch
6WAY : Driver Seat Manual Switch
225AP/WDW

Page 482 of 564

KIA Rondo 2015 3.G Owners Manual 769
Maintenance
No.Fuse ratingDescriptionProtected component
117.5AA/CON1Cluster Ionizer, A/C Control Module, Blower Relay, PTC Relay
127.5AMODULE 5Head Lamp Washer Relay, Portable Lamp, Passenger Sea

Page 483 of 564

KIA Rondo 2015 3.G Owners Manual Maintenance
70
7
No.Fuse ratingDescriptionProtected component
217.5AMEMORY 2Rf Receiver
2210AMEMORY 1Instrument Cluster,  Tire Pressure Monitoring Module, BCM, A/C Control Module, Digital Clock, Data

Page 484 of 564

KIA Rondo 2015 3.G Owners Manual 771
Maintenance
No.Fuse ratingDescriptionProtected component
317.5AMODULE 4Body Control Module
327.5AMODULE 7Body Control Module, Smart Key Control Module
3315ATCUM/T : F35 (B/UP LAMP), A/T : Transa

Page 485 of 564

KIA Rondo 2015 3.G Owners Manual Maintenance
72
7
Fuse Fuse ratingDescriptionProtected component
MULTI
FUSE
80AMDPSMDPS Unit
60AIP_B+1Inner Fuse Panel, S/Heater RR, Smart Key 1, 2, P/WDW LH/RH, IPS-1/Arisu-1 (H/Lamp Low RH,
H/Lamp Hi

Page 486 of 564

KIA Rondo 2015 3.G Owners Manual 773
Maintenance
FuseFuse ratingDescriptionProtected component
FUSE
30AEPB_2Electric Parking Brake Module
50AC/FANC/FAN LO RELAY, C/FAN HI RELAY, C/FAN MOTOR
15ADEICERDEICER RELAY
15ASTOP LAMPSSEM,STO

Page 487 of 564

KIA Rondo 2015 3.G Owners Manual Maintenance
74
7
Relay NameType
COOLING FAN LOW RELAYH/C MICRO
COOLING FAN HIGH RELAY3725
BLOWER RELAYH/C MICRO
REAR DEFOGGER RELAYH/C MICRO
B/START (IG1) RELAYH/C MICRO
B/START (IG2) RELAYH/C MICRO
S

Page 488 of 564

KIA Rondo 2015 3.G Owners Manual 775
Maintenance

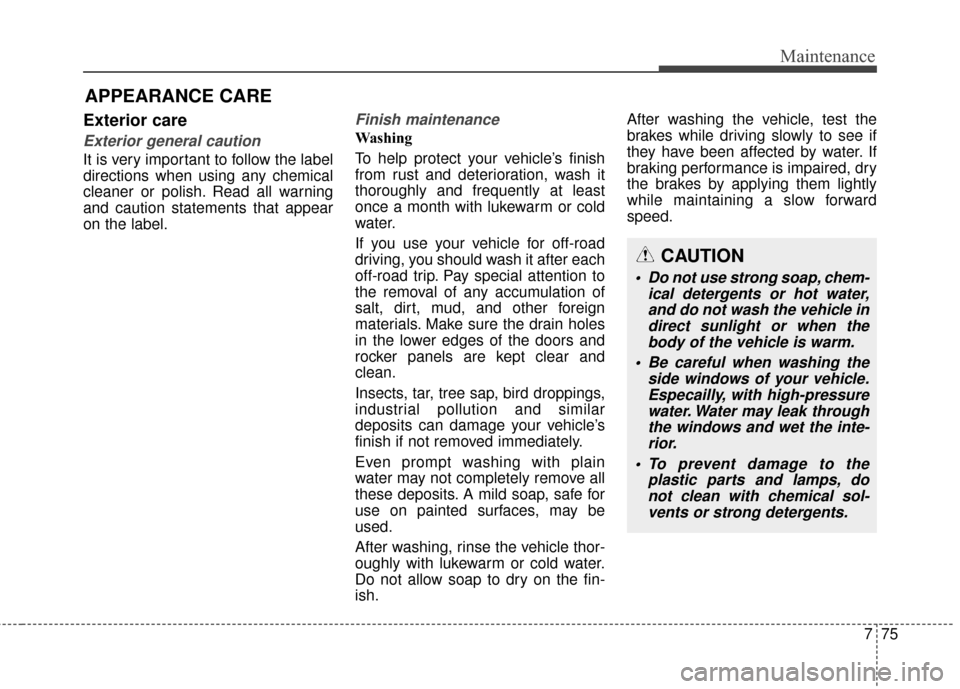

APPEARANCE CARE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution stat

Page 489 of 564

KIA Rondo 2015 3.G Owners Manual Maintenance
76
7

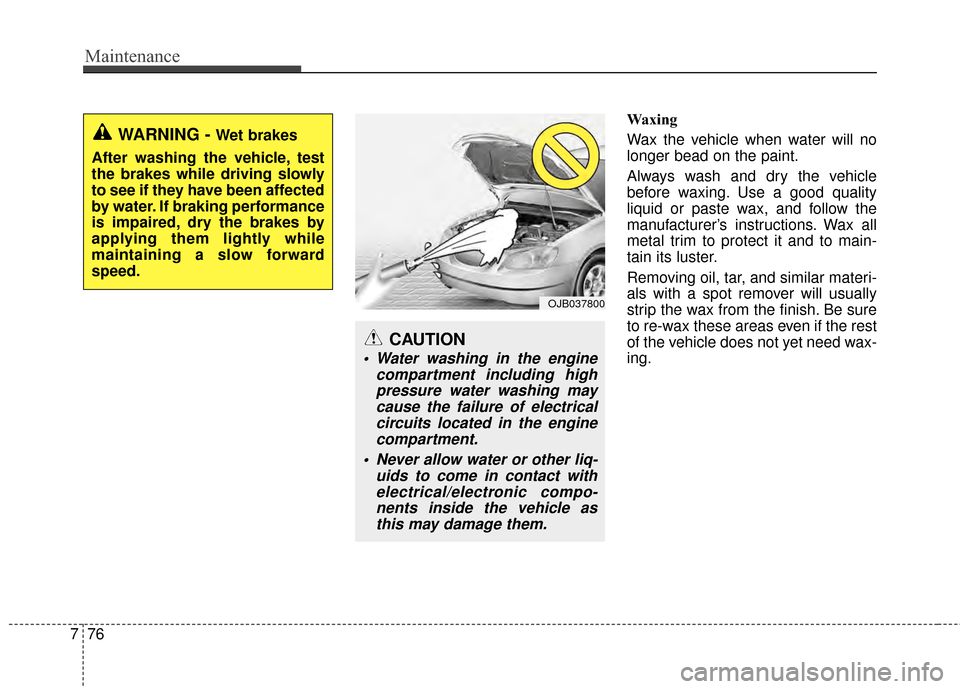

Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle
before waxing. Use a good quality
liquid or paste wax, and follow the
manufacturerâ

Page 490 of 564

KIA Rondo 2015 3.G Owners Manual 777
Maintenance

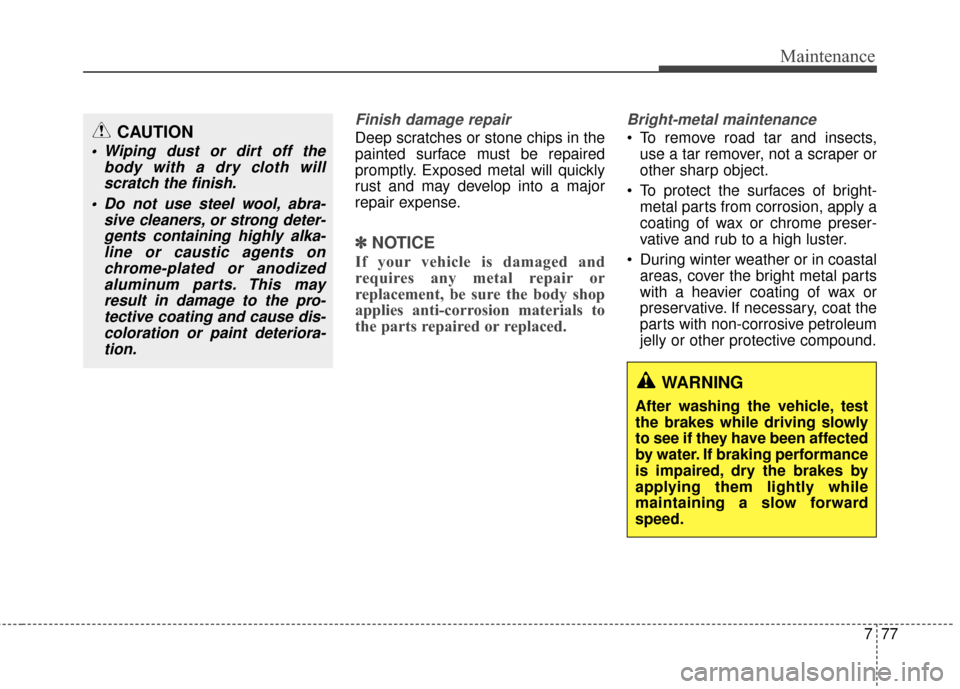

Finish damage repair
Deep scratches or stone chips in the
painted surface must be repaired
promptly. Exposed metal will quickly
rust and may develop into a major
repair expense.
✽ â
