KIA Rondo 2017 3.G Owner's Manual

871
Maintenance

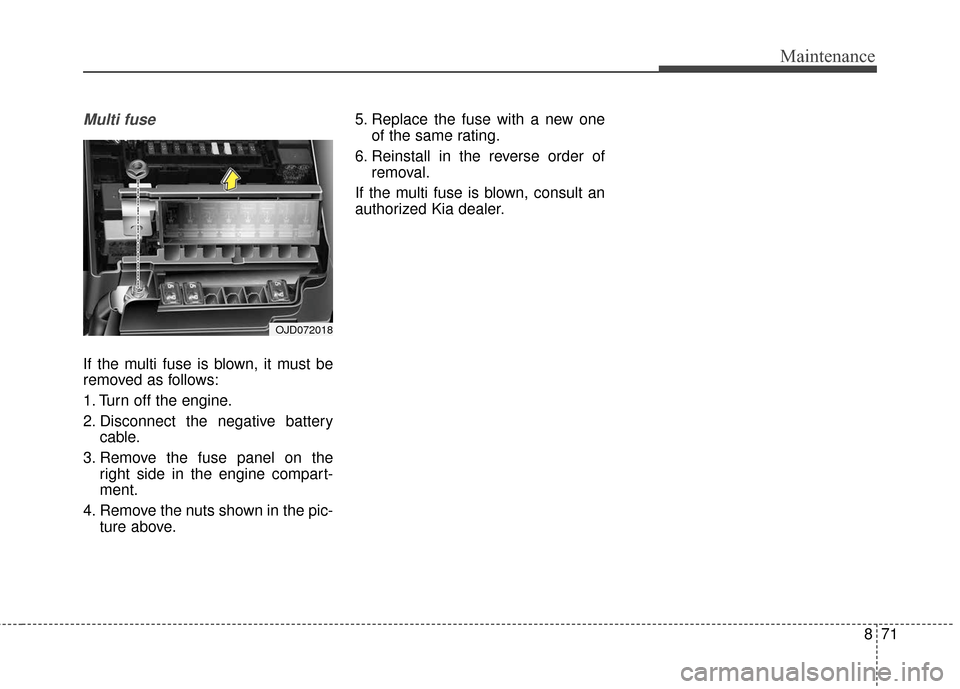

Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative batterycable.
3. Remove the fuse panel on the right side in the engine compart-
ment.
4. Remove the nuts shown in the pic- ture above. 5. Replace the fuse with a new one
of the same rating.
6. Reinstall in the reverse order of removal.
If the multi fuse is blown, consult an
authorized Kia dealer.
OJD072018

Maintenance
72
8
Instrument panel fuse panel
✽ ✽
NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
✽ ✽NOTICE
The actual fuse/relay panel label
may differ depending on equip-
ment/options.
ORP072019
ORP076085N
Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

873
Maintenance
Engine compartment fuse panel
✽ ✽NOTICE
The actual fuse/relay panel label
may differ depending on equip-
ment/options.
OGD071023
ORP076086N

Maintenance
74
8
Instrument panel (Driver’s side fuse panel)
No.Fuse ratingDescriptionProtected component
110APDM 2Start/Stop Button Switch, Immobilizer Module
215AMULTI MEDIADC-DC Converter (Audio), A/V & Navigation Head Unit, Audio
37.5AMODULE 3
Seat Warmer Control Module, Rear Seat Warmer Module, Passenger Seat Warmer Module, DC-DC
Converter (AMP), Auto Head Lamp Leveling Device Module, Rain Sensor, Head Lamp Leveling Device
Actuator LH/RH, A/C Control Module, Electro Chromic Mirror, Head Lamp Leveling Device Switch, A/V
Navigation Head Unit
47.5ACLUSTERInstrument Cluster, DC-DC Converter (Audio)
57.5AMDPSMDPS Unit
67.5ASTARTICM Relay Box (B/Alarm Relay), Ignition Lock Switch
[A/T - Transaxle Range Switch], [M/T - E/R Junction Block
(RLY. 10), ECM/PCM, Smart Key Control Module]
710AINTERIOR
LAMPDriver/Passenger Power Outside Mirror, Driver/Passenger Foot Lamp, Ignition Key ILL. & Door Warning
Switch, Overhead Console Lamp, Room Lamp, Vanity Lamp LH/RH, Rear Personal Lamp LH/RH,
Luggage Lamp, Portable Lamp
820APDMSmart Key Control Module
97.5AMEMORY 2RF Receiver
1010AECUSmart Key Control Module, Immobilizer Module,
Vehicle Speed Sensor, ECM/PCM, Air Flow Sensor (D4FD), Glow Relay Unit
1110AABSABS/ESC Control Module

875
Maintenance
No.Fuse ratingDescriptionProtected component
1215ATCUTCM (D4FD), Transaxle Range Switch (A/T, DCT), E/R Junction Block (Fuse - F27) (M/T)
137.5AMODULE 4BCM
147.5AA/CON SWA/C Control Module
1510AMEMORY 1Instrument Cluster, Auto Light & Photo Sensor, Tire Pressure Monitoring Module, Ultrasonic Instrusion
Protection Sensor, A/C Control Module, Data Link Connector, Siren Control Module, Clock, BCM
167.5AMODULE 1
Smart Parking Assist Control Module, Stop Lamp Switch, Tire Pressure Monitoring Module, Clutch Sensor
(M/T), Front Parking Assist Sensor (Center)/(Side) LH/RH, Front Parking Assist Sensor (In)/(Out) LH/RH,
Rear Parking Assist Sensor Center LH/RH, Crash Pad Switch, Rear Parking Assist Sensor (In)/(Out)
LH/RH, Sport Mode Switch, Parking Assist Buzzer, Multipurpose Check Connector, Electric Parking Brake
Module, Lane Departure Warning Module, Blind Spot Detection Radar LH/RH
1720APOWER
OUTLET 1Rear Power Outlet, Cigarette Lighter, Front Power Outlet
1810AMODULE 6A/V & Navigation Head Unit, DC-DC Converter (Audio/AMP), Audio, Clock, Smart Key Control Module,
BCM, E/R Junction Block (RLY. 7), AMP, Power Outside Mirror Switch
1915AA/BAGSBR Control Module, Seat Belt Reminder IND.,Instrument Cluster Door Lock & PAB On/Off IND., SRS
Control Module, A/C Control Module
2025AP/WDW LHRear Safety Power Window Module LH, Driver/Passenger Safety Power Window Module, Power Window
LH Relay
2110AHTD MIRRA/C Control Module, ECM/PCM, Driver/Passenger Power Outside Mirror
227.5AMODULE 5Portable Lamp, Rear Seat Warmer Module, Panorama Sunroof Assembly, Driver/Passenger CCS Control
Module, Seat Warmer Control Module, Passenger Seat Warmer Module, E/R Junction Block (RLY. 8)
237.5AMODULE 7BCM, Smart Key Control Module

Maintenance
76
8
No.Fuse ratingDescriptionProtected component
2415AHTD STRGSteering Wheel Heater
2515AS/HEATER RRRear Seat Warmer Module
2625AAMPDC-DC Converter (AMP), AMP
2720ASUNROOFPanorama Sunroof Assembly
2820AS/HEATER
FRTDriver/Passenger CCS Control Module, Seat Warmer Control Module, Passenger Seat Warmer Module
297.5AMODULE 2ICM Relay Box (Turn Signal Lamp Sound Relay, Folding/Unfolding Relay), Key Solenoid, Sport Mode
Switch, Console Switch LH/RH, Rear Power Window Switch LH/RH
307.5AA/CONDiesel Block (RLY. 2, RLY. 3), E/R Junction Block (RLY. 2), A/C Control Module, Cluster Ionizer
3115AWIPERRear Wiper Motor, ICM Relay Box (Rear Wiper Relay), Multifunction Switch
3225AP/WDW RHRear Safety Power Window Module RH, Driver/Passenger Safety Power Window Module, Power Window
RH Relay
3330AP/SEAT DRVDriver Seat Manual Switch
3410AFOG LAMP RRICM Relay Box (Rear Fog Lamp Relay)
3520ADR LOCKTail Gate Open Relay, Door Lock/Unlock Relay, ICM Relay Box (Dead Lock Relay)

877
Maintenance
Fuse Fuse ratingDescriptionProtected component
MULTIFUSE
80AMDPSMDPS Unit
60AB+1Smart Junction Block (IPS 1, IPS 2, IPS 3, IPS 4, Fuse - F2/F9/F22/F29/F36)
40AIG2RLY. 10 (Start Relay), Ignition Switch (W/O Button Start), RLY. 3 (PDM 3 (IG2) Relay, With Button Start)
40AABS 1ABS/ESC Control Module
40ARR HTDRLY. 6 (Rear Defogger Relay)
40ABLOWERRLY. 2 (Blower Relay)
40AABS 2ABS/ESC Control Module, Multipurpose Check Connector
60AB+2Smart Junction Block (IPS 5, IPS 6, IPS 7, IPS 8, Fuse - F31/F37/F38)
FUSE
50AB+4E/R Junction Block (Fuse - F29/F30/F31)
30AEPB 1Electric Parking Brake Module
50AC/FANRLY. 1 (C/Fan 1 Relay), RLY. 5 (C/Fan 2 Relay)
30AEPB 2Electric Parking Brake Module
Engine compartment main fuse panel

Maintenance
78
8
FuseFuse ratingDescriptionProtected component
FUSE
20AH/LP WASHERRLY. 8 (Head Lamp Washer Relay)
10ABRAKE SWITCHStop Lamp Switch, Smart Key Control Module
30APOWER OUTLET 2RLY. 7 (Power Outlet Relay)
15AFUEL PUMPRLY. 12 (Fuel Pump Relay)
15ADEICERRLY. 4 (Deicer Relay)
15ASTOP LAMPStop Signal Electronic Module
50AB+3Smart Junction Block (Leak Current Autocut Device, Fuse - F30/F32/F33/F39)
40AIG1RLY. 9 (PDM 1 (ACC) Relay), RLY. 11 (PDM 2 (IG 1) Relay), Ignition Switch
40AECU 5EMS Block (Fuse - F32/F33/F34, Engine Control Relay)
10AB/UP LPMT - Back-Up Lamp Switch,
A/T - Rear Combination Lamp (In) LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit,
Audio, Instrument Cluster
25AWIPER (LH)Front Wiper Motor LH
25AWIPER (RH)Front Wiper Motor RH
15AECU 4ECM/PCM

879
Maintenance
FuseFuse ratingDescriptionProtected component
FUSE
15AHORNHorn Relay
15AECU 3PCM (A/T), ECM (M/T)
10AB/ALARMB/Alarm Horn Relay, Horn Relay
10AINJECTORG4NA : Injector #1/#2/#3/#4
10AECU 2G4FD : PCM (A/T), ECM (M/T)
G4NC : PCM (A/T), ECM (M/T)
20AIGN COIL 1Ignition Coil #1/#2/#3/#4, Condenser
10ASENSOR 2G4FD : Oil Control Valve #1/ #2, Oil Level Sensor, E/R Junction Block (RLY. 1, RLY. 5)
G4NA/G4NC : Oil Control Valve #1/ #2, Camshaft Position Sensor (Intake/Exhaust),Oil Level Sensor (G4NC), E/R Junction Block (RLY. 1, RLY. 5)
20AECU 1PCM (A/T), ECM (M/T)
10ASENSOR 1Oxygen Sensor (Up/Down), Variable Intake Solenoid Valve, Purge Control Solenoid Valve

Maintenance
80
8
Relay NameType
C/FAN 1 RELAYPlug Micro
BLOWER RELAYPlug Micro
PDM3 (IG2) RelayPlug Micro
Deicer RelayPlug Micro
C/Fan 2 RelayPlug Micro
RR HTD RelayPlug Micro
Power Outlet RelayPlug Micro
H/Lamp Washer RelayPlug Micro
PDM1 (ACC) RELAYPlug Micro
START RELAYPlug Micro
PDM2 (IG1) RelayPlug Micro
Fuel Pump RelayPlug Micro
Engine Control RelayPCB
B/Alarm Horn RelayPCB
Horn RelayPCB
