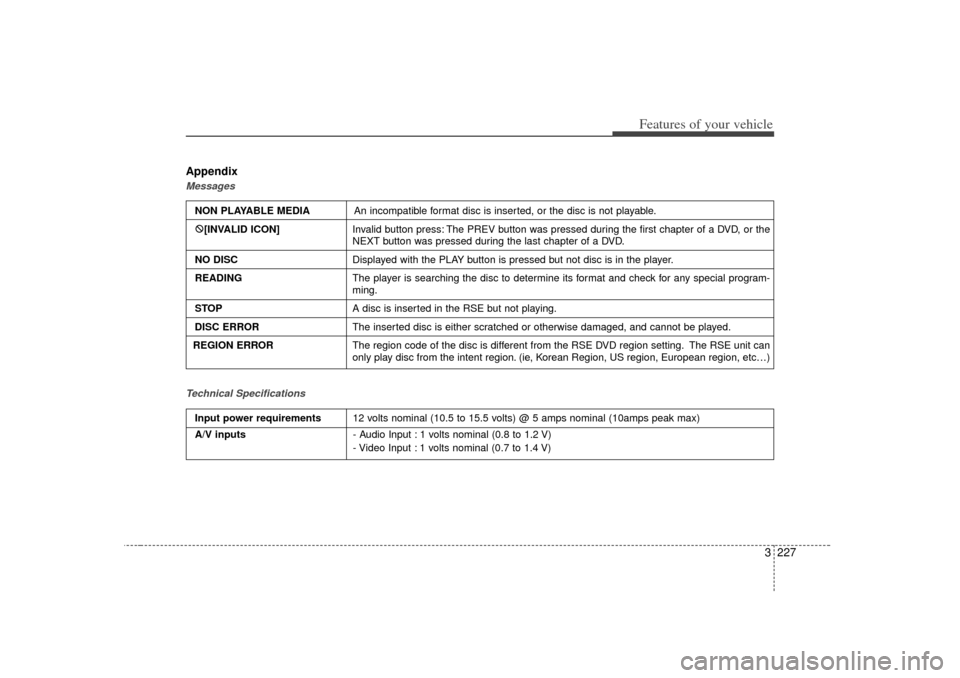

technical specifications KIA Sedona 2006 1.G Owner's Manual

3 227
Features of your vehicle
AppendixMessagesTechnical SpecificationsNON PLAYABLE MEDIA An incompatible format disc is inserted, or the disc is not playable.
: [INVALID ICON] Invalid button press: The PREV button was pressed during the first chapter of a DVD, or the
NEXT button was pressed during the last chapter of a DVD.
NO DISC Displayed with the PLAY button is pressed but not disc is in the player.
READING The player is searching the disc to determine its format and check for any special program-
ming.
STOP A disc is inserted in the RSE but not playing.
DISC ERROR The inserted disc is either scratched or otherwise damaged, and cannot be played.
REGION ERROR The region code of the disc is different from the RSE DVD region setting. The RSE unit can
only play disc from the intent region. (ie, Korean Region, US region, European region, etc…) Input power requirements12 volts nominal (10.5 to 15.5 volts) @ 5 amps nominal (10amps peak max)
A/V inputs - Audio Input : 1 volts nominal (0.8 to 1.2 V)
- Video Input : 1 volts nominal (0.7 to 1.4 V)
