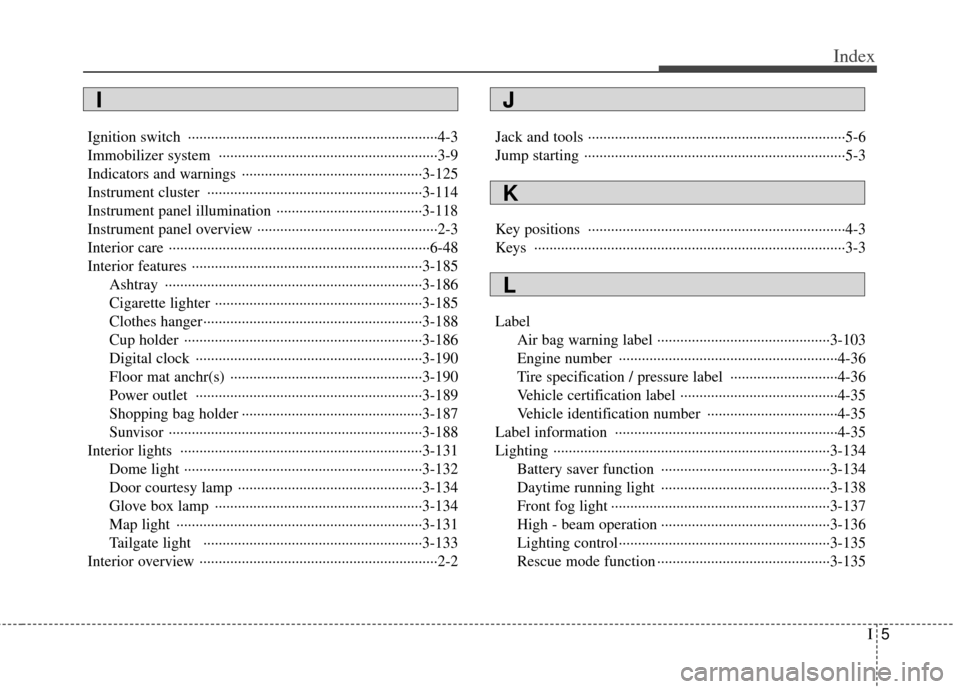

Page 8 of 370
I5
Index
Ignition switch ··················\
··················\
··················\
···········4-3
Immobilizer system ··················\
··················\
··················\
···3-9
Indicators and warnings ··················\
··················\
···········3-125
Instrument cluster ··················\
··················\
··················\
··3-114
Instrument panel illumination ··················\
··················\
··3-118
Instrument panel overview ··················\
··················\
···········2-3
Interior care ··················\
··················\
··················\
··············6-48
Interior features ··················\
··················\
··················\
······3-185Ashtray ················\
··················\
··················\
···············3-186
Cigarette lighter ··················\
··················\
··················\
3-185
Clothes hanger··················\
··················\
··················\
···3-188
Cup holder ··················\
··················\
··················\
········3-186
Digital clock ··················\
··················\
··················\
·····3-190
Floor mat anchr(s) ··················\
··················\
··············3-190
Power outlet ··················\
··················\
··················\
·····3-189
Shopping bag holder ··················\
··················\
···········3-187
Sunvisor ·················\
··················\
··················\
·············3-188
Interior lights ··················\
··················\
··················\
·········3-131 Dome light ··················\
··················\
··················\
········3-132
Door courtesy lamp ··················\
··················\
············3-134
Glove box lamp ··················\
··················\
··················\
3-134
Map light ··················\
··················\
··················\
··········3-131
Tailgate light ··················\
··················\
··················\
···3-133
Interior overview ··················\
··················\
··················\
········2-2 Jack and tools ··················\
··················\
··················\
·············5-6
Jump starting ··················\
··················\
··················\
··············5-3
Key positions ··················\
··················\
··················\
·············4-3
Keys ··················\
··················\
··················\
··················\
·········3-3
Label
Air bag warning label ··················\
··················\
·········3-103
Engine number ··················\
··················\
··················\
···4-36
Tire specification / pressure label ··················\
··········4-36
Vehicle certification label ··················\
··················\
·····4-35
Vehicle identification number ··················\
················4-35
Label information ··················\
··················\
··················\
····4-35
Lighting ················\
··················\
··················\
··················\
··3-134 Battery saver function ··················\
··················\
········3-134
Daytime running light ··················\
··················\
········3-138
Front fog light ··················\
··················\
··················\
···3-137
High - beam operation ··················\
··················\
········3-136
Lighting control··················\
··················\
··················\
·3-135
Rescue mode function ··················\
··················\
·········3-135
K
J
L
I

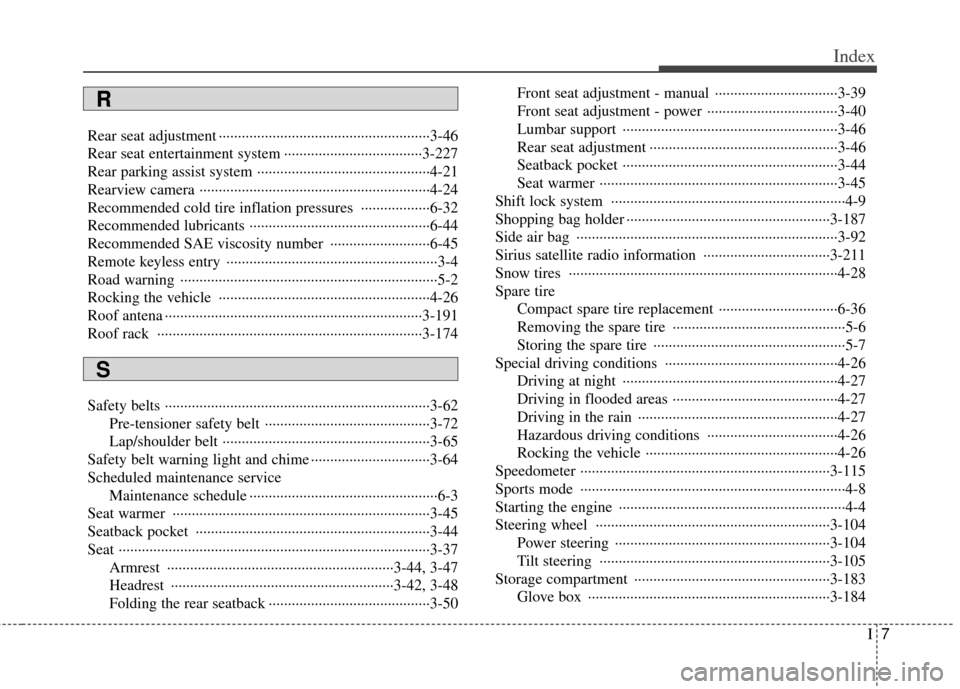

Page 10 of 370
I7
Index
Rear seat adjustment ··················\
··················\
··················\
·3-46
Rear seat entertainment system ··················\
··················\
3-227
Rear parking assist system ··················\
··················\
·········4-21
Rearview camera ··················\
··················\
··················\
······4-24
Recommended cold tire inflation pressures ··················\
6-32
Recommended lubricants ··················\
··················\
···········6-44
Recommended SAE viscosity number ··················\
········6-45
Remote keyless entry ··················\
··················\
··················\
·3-4
Road warning ··················\
··················\
··················\
·············5-2
Rocking the vehicle ··················\
··················\
··················\
·4-26
Roof antena ··················\
··················\
··················\
·············3-191
Roof rack ··················\
··················\
··················\
···············3-174
Safety belts ··················\
··················\
··················\
···············3-62Pre-tensioner safety belt ··················\
··················\
·······3-72
Lap/shoulder belt ··················\
··················\
··················\
3-65
Safety belt warning light and chime ··················\
·············3-64
Scheduled maintenance service Maintenance schedule ··················\
··················\
·············6-3
Seat warmer ··················\
··················\
··················\
·············3-45
Seatback pocket ··················\
··················\
··················\
·······3-44
Seat ·················\
··················\
··················\
··················\
··········3-37 Armrest ················\
··················\
··················\
·······3-44, 3-47
Headrest ················\
··················\
··················\
······3-42, 3-48
Folding the rear seatback ··················\
··················\
······3-50 Front seat adjustment - manual ··················\
··············3-39
Front seat adjustment - power ··················\
················3-40
Lumbar support ··················\
··················\
··················\
··3-46
Rear seat adjustment ··················\
··················\
·············3-46
Seatback pocket ··················\
··················\
··················\
··3-44
Seat warmer ··················\
··················\
··················\
········3-45
Shift lock system ··················\
··················\
··················\
·······4-9
Shopping bag holder ··················\
··················\
·················3-18\
7
Side air bag ··················\
··················\
··················\
··············3-92
Sirius satellite radio information ··················\
···············3-211
Snow tires ··················\
··················\
··················\
················4-28
Spare tire Compact spare tire replacement ··················\
·············6-36
Removing the spare tire ··················\
··················\
·········5-6
Storing the spare tire ··················\
··················\
··············5-7
Special driving conditions ··················\
··················\
·········4-26 Driving at night ··················\
··················\
··················\
··4-27
Driving in flooded areas ··················\
··················\
·······4-27
Driving in the rain ··················\
··················\
················4-27
Hazardous driving conditions ··················\
················4-26
Rocking the vehicle ··················\
··················\
··············4-26
Speedometer ···············\
··················\
··················\
··············3-115
Sports mode ··················\
··················\
··················\
···············4-8
Starting the engine ··················\
··················\
··················\
·····4-4
Steering wheel ··················\
··················\
··················\
·······3-104 Power steering ··················\
··················\
··················\
··3-104
Tilt steering ··················\
··················\
··················\
······3-105
Storage compartment ··················\
··················\
···············3-183 Glove box ··················\
··················\
··················\
·········3-184
R
S

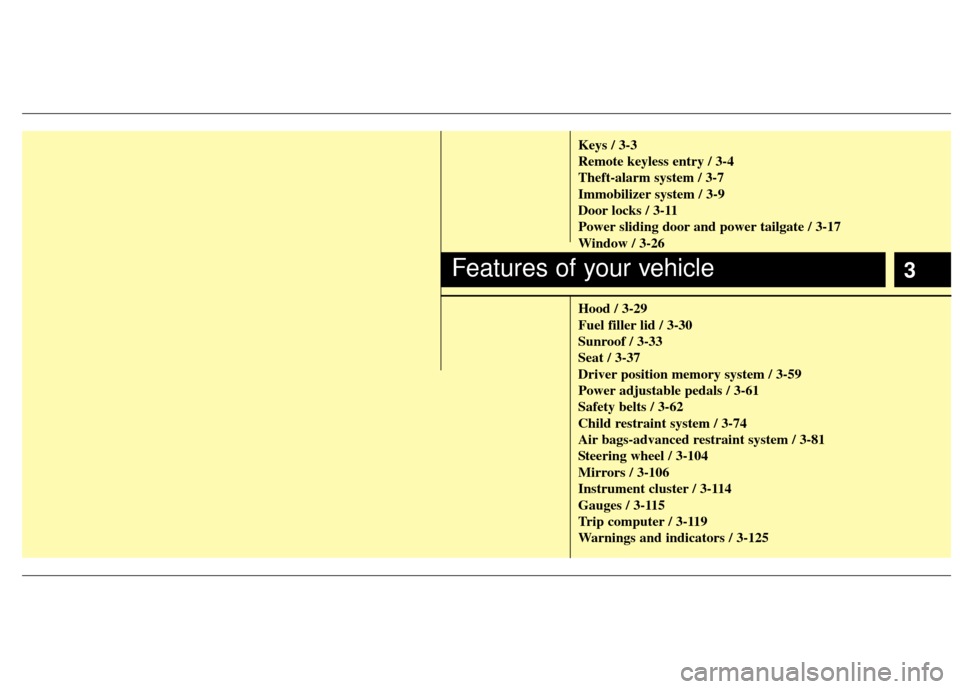

Page 18 of 370
3
Keys / 3-3
Remote keyless entry / 3-4

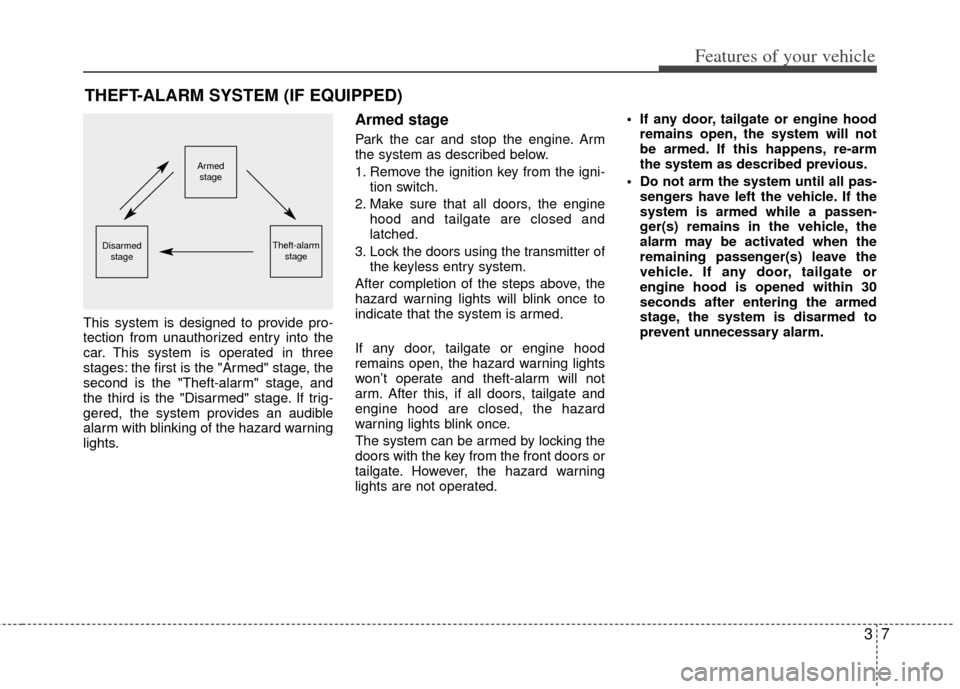

Theft-alarm system / 3-7

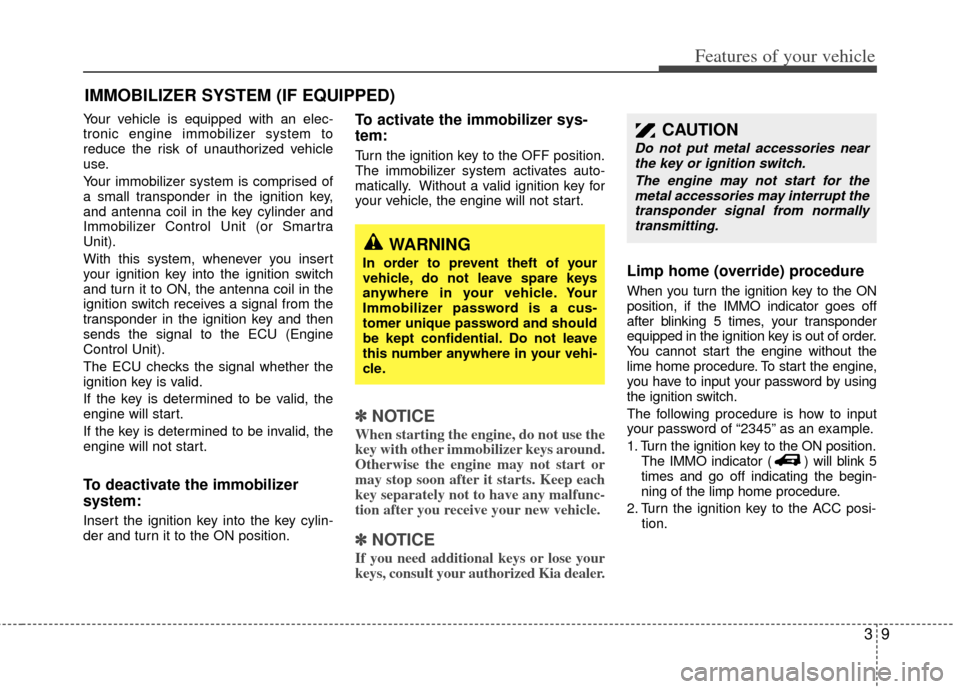

Immobilizer system / 3-9
Door locks / 3-11
Power sliding door and power tailgate / 3-17
Window / 3-26
Hood / 3-29
Fuel filler lid / 3-30
Sunroof / 3-33
Seat / 3-37
Driver position memory system / 3-59
Power adjustable pedals / 3-61
Safety belts / 3-62
Child restraint system / 3-74
Air bags-advanced restraint system / 3-81
Steering wheel / 3-104
Mirrors / 3-106
Instrument cluster / 3-114
Gauges / 3-115
Trip computer / 3-119
Warnings and indicators / 3-125
Features of your vehicle
Page 20 of 370
33
Features of your vehicle
The key code number is stamped on the
plate attached to the key set. Should you
lose your keys, this number will enable
an authorized Kia Dealer to duplicate the
keys easily. Remove the plate and store it
in a safe place. Also, record the code
number and keep it in a safe and handy
place, but not in the vehicle.
Key operations
Master key
Used to start the engine, lock and unlock
the doors, lock and unlock the glove box
and center console storage (if equipped).
KEYS
WARNING- Ignition key
Leaving children unattended in a
vehicle with the ignition key is dan-
gerous even if the key is not in the
ignition. Children copy adults and
they could place the key in the igni-
tion. The ignition key would enable
children to operate power windows
or other controls, or even make the
vehicle move, which could result in
serious bodily injury or even death.
Never leave the keys in your vehicle
with unsupervised children.
1VQA2001
WARNING
Use only Kia original parts for the
ignition key in your vehicle. If an
aftermarket key is used, the ignition
switch may not return to ON after
START. If this happens, the starter
will continue to operate causing
damage to the starter motor and
possible fire due to excessive cur-
rent in the wiring.

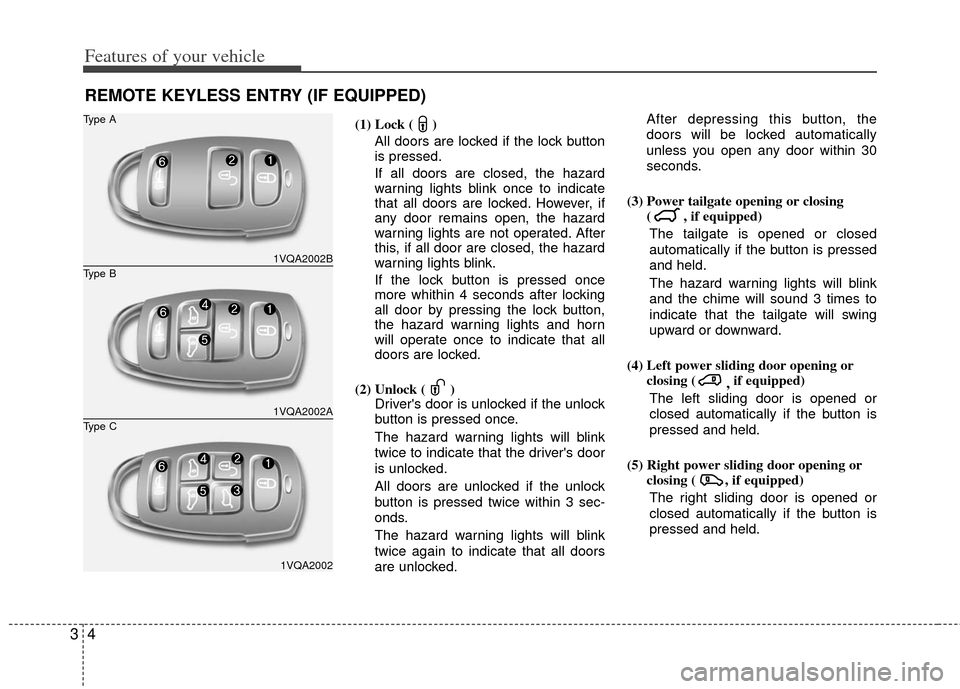

Page 21 of 370
Features of your vehicle
43
(1) Lock ( )All doors are locked if the lock button
is pressed.
If all doors are closed, the hazard
warning lights blink once to indicate
that all doors are locked. However, if
any door remains open, the hazard
warning lights are not operated. After
this, if all door are closed, the hazard
warning lights blink.
If the lock button is pressed once
more whithin 4 seconds after locking
all door by pressing the lock button,
the hazard warning lights and horn
will operate once to indicate that all
doors are locked.
(2) Unlock ( ) Driver's door is unlocked if the unlock
button is pressed once.
The hazard warning lights will blink
twice to indicate that the driver's door
is unlocked.
All doors are unlocked if the unlock
button is pressed twice within 3 sec-
onds.
The hazard warning lights will blink
twice again to indicate that all doors
are unlocked. After depressing this button, the
doors will be locked automatically
unless you open any door within 30
seconds.
(3) Power tailgate opening or closing ( , if equipped)
The tailgate is opened or closed
automatically if the button is pressed
and held.
The hazard warning lights will blink
and the chime will sound 3 times to
indicate that the tailgate will swing
upward or downward.
(4) Left power sliding door opening or closing ( , if equipped)
The left sliding door is opened or
closed automatically if the button is
pressed and held.
(5) Right power sliding door opening or closing ( , if equipped)
The right sliding door is opened or
closed automatically if the button is
pressed and held.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
1VQA2002B
1VQA2002A
1VQA2002
Type B Type A
Type C

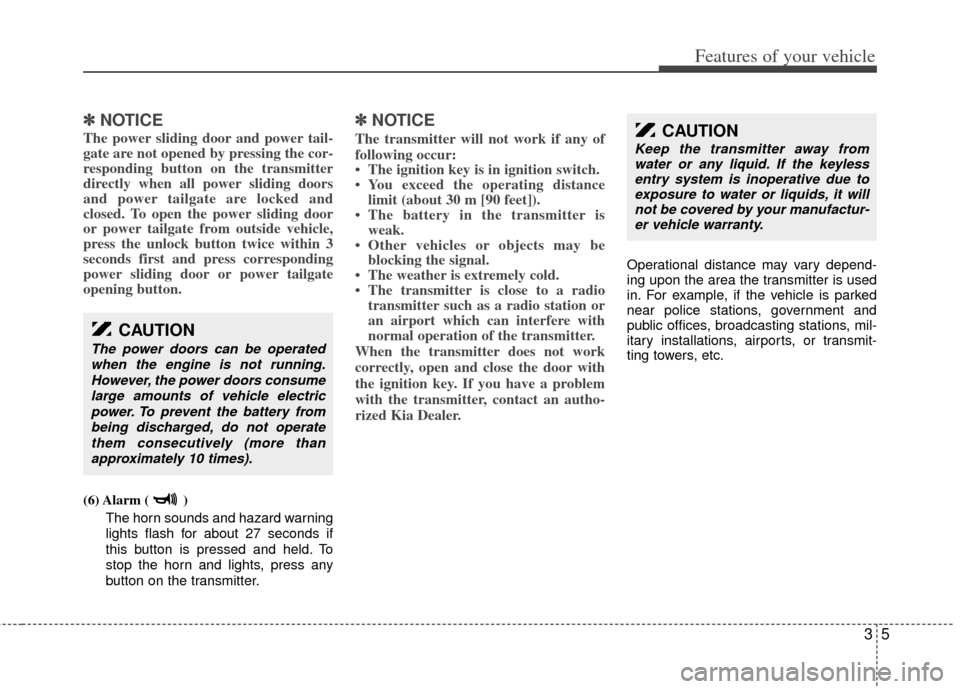

Page 22 of 370
35
Features of your vehicle
✽
✽NOTICE
The power sliding door and power tail-
gate are not opened by pressing the cor-
responding button on the transmitter
directly when all power sliding doors
and power tailgate are locked and
closed. To open the power sliding door
or power tailgate from outside vehicle,
press the unlock button twice within 3
seconds first and press corresponding
power sliding door or power tailgate
opening button.
(6) Alarm ( )
The horn sounds and hazard warning
lights flash for about 27 seconds if
this button is pressed and held. To
stop the horn and lights, press any
button on the transmitter.
✽ ✽NOTICE
The transmitter will not work if any of
following occur:
• The ignition key is in ignition switch.
• You exceed the operating distance
limit (about 30 m [90 feet]).
• The battery in the transmitter is weak.
• Other vehicles or objects may be blocking the signal.
• The weather is extremely cold.
• The transmitter is close to a radio transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work
correctly, open and close the door with
the ignition key. If you have a problem
with the transmitter, contact an autho-
rized Kia Dealer.
Operational distance may vary depend-
ing upon the area the transmitter is used
in. For example, if the vehicle is parked
near police stations, government and
public offices, broadcasting stations, mil-
itary installations, airports, or transmit-
ting towers, etc.
CAUTION
The power doors can be operated
when the engine is not running.However, the power doors consumelarge amounts of vehicle electricpower. To prevent the battery frombeing discharged, do not operatethem consecutively (more thanapproximately 10 times).
CAUTION
Keep the transmitter away fromwater or any liquid. If the keylessentry system is inoperative due to exposure to water or liquids, it willnot be covered by your manufactur- er vehicle warranty.

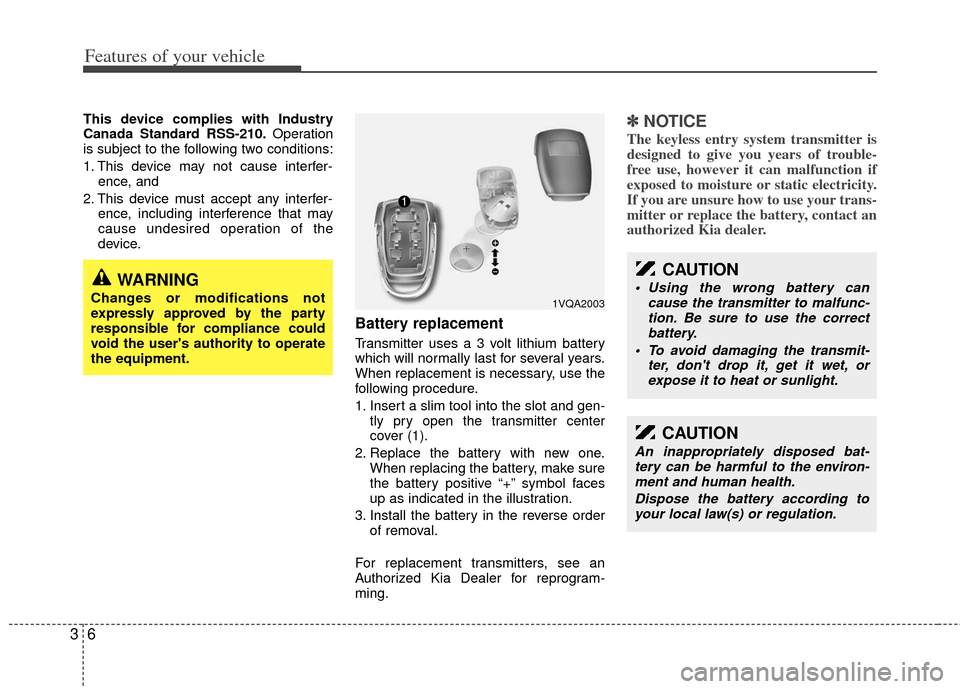

Page 23 of 370
Features of your vehicle
63
This device complies with Industry
Canada Standard RSS-210.Operation
is subject to the following two conditions:
1. This device may not cause interfer- ence, and
2. This device must accept any interfer- ence, including interference that may
cause undesired operation of the
device.
Battery replacement
Transmitter uses a 3 volt lithium battery
which will normally last for several years.
When replacement is necessary, use the
following procedure.
1. Insert a slim tool into the slot and gen-tly pry open the transmitter center
cover (1).
2. Replace the battery with new one. When replacing the battery, make sure
the battery positive “+” symbol faces
up as indicated in the illustration.
3. Install the battery in the reverse order of removal.
For replacement transmitters, see an
Authorized Kia Dealer for reprogram-
ming.
✽ ✽ NOTICE
The keyless entry system transmitter is
designed to give you years of trouble-
free use, however it can malfunction if
exposed to moisture or static electricity.
If you are unsure how to use your trans-
mitter or replace the battery, contact an
authorized Kia dealer.
CAUTION
• Using the wrong battery can
cause the transmitter to malfunc-tion. Be sure to use the correct battery.
To avoid damaging the transmit- ter, don't drop it, get it wet, orexpose it to heat or sunlight.WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.1VQA2003
CAUTION
An inappropriately disposed bat-tery can be harmful to the environ-ment and human health.
Dispose the battery according toyour local law(s) or regulation.
Page 24 of 370
37
Features of your vehicle
This system is designed to provide pro-
tection from unauthorized entry into the
car. This system is operated in three
stages: the first is the "Armed" stage, the
second is the "Theft-alarm" stage, and
the third is the "Disarmed" stage. If trig-
gered, the system provides an audible
alarm with blinking of the hazard warning
lights.
Armed stage
Park the car and stop the engine. Arm
the system as described below.
1. Remove the ignition key from the igni-tion switch.
2. Make sure that all doors, the engine hood and tailgate are closed and
latched.
3. Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the
hazard warning lights will blink once to
indicate that the system is armed.
If any door, tailgate or engine hood
remains open, the hazard warning lights
won’t operate and theft-alarm will not
arm. After this, if all doors, tailgate and
engine hood are closed, the hazard
warning lights blink once.
The system can be armed by locking the
doors with the key from the front doors or
tailgate. However, the hazard warning
lights are not operated. If any door, tailgate or engine hood
remains open, the system will not
be armed. If this happens, re-arm
the system as described previous.
Do not arm the system until all pas- sengers have left the vehicle. If the
system is armed while a passen-
ger(s) remains in the vehicle, the
alarm may be activated when the
remaining passenger(s) leave the
vehicle. If any door, tailgate or
engine hood is opened within 30
seconds after entering the armed
stage, the system is disarmed to
prevent unnecessary alarm.
THEFT-ALARM SYSTEM (IF EQUIPPED)
Armed
stage
Theft-alarm stageDisarmedstage
Page 25 of 370
Features of your vehicle
83

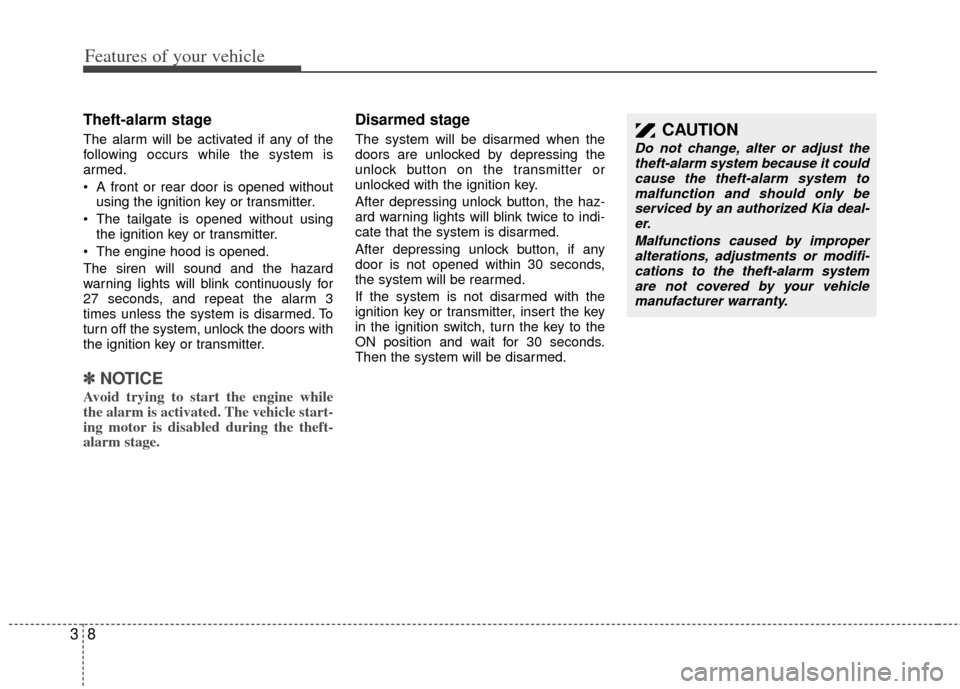

Theft-alarm stage
The alarm will be activated if any of the
following occurs while the system is
armed.
A front or rear door is opened withoutusing the ignition key or transmitter.
The tailgate is opened without using the ignition key or transmitter.
The engine hood is opened.
The siren will sound and the hazard
warning lights will blink continuously for
27 seconds, and repeat the alarm 3
times unless the system is disarmed. To
turn off the system, unlock the doors with
the ignition key or transmitter.
✽ ✽ NOTICE
Avoid trying to start the engine while
the alarm is activated. The vehicle start-
ing motor is disabled during the theft-
alarm stage.
Disarmed stage
The system will be disarmed when the
doors are unlocked by depressing the
unlock button on the transmitter or
unlocked with the ignition key.
After depressing unlock button, the haz-
ard warning lights will blink twice to indi-
cate that the system is disarmed.
After depressing unlock button, if any
door is not opened within 30 seconds,
the system will be rearmed.
If the system is not disarmed with the
ignition key or transmitter, insert the key
in the ignition switch, turn the key to the
ON position and wait for 30 seconds.
Then the system will be disarmed.CAUTION
Do not change, alter or adjust the
theft-alarm system because it couldcause the theft-alarm system to malfunction and should only beserviced by an authorized Kia deal- er.
Malfunctions caused by improperalterations, adjustments or modifi-cations to the theft-alarm systemare not covered by your vehiclemanufacturer warranty.
Page 26 of 370
39
Features of your vehicle
Your vehicle is equipped with an elec-
tronic engine immobilizer system to
reduce the risk of unauthorized vehicle
use.
Your immobilizer system is comprised of
a small transponder in the ignition key,
and antenna coil in the key cylinder and
Immobilizer Control Unit (or Smartra
Unit).
With this system, whenever you insert
your ignition key into the ignition switch
and turn it to ON, the antenna coil in the
ignition switch receives a signal from the
transponder in the ignition key and then
sends the signal to the ECU (Engine
Control Unit).
The ECU checks the signal whether the
ignition key is valid.
If the key is determined to be valid, the
engine will start.
If the key is determined to be invalid, the
engine will not start.
To deactivate the immobilizer
system:
Insert the ignition key into the key cylin-
der and turn it to the ON position.
To activate the immobilizer sys-
tem:
Turn the ignition key to the OFF position.
The immobilizer system activates auto-
matically. Without a valid ignition key for
your vehicle, the engine will not start.
✽ ✽NOTICE
When starting the engine, do not use the
key with other immobilizer keys around.
Otherwise the engine may not start or
may stop soon after it starts. Keep each
key separately not to have any malfunc-
tion after you receive your new vehicle.
✽ ✽NOTICE
If you need additional keys or lose your
keys, consult your authorized Kia dealer.
Limp home (override) procedure
When you turn the ignition key to the ON
position, if the IMMO indicator goes off
after blinking 5 times, your transponder
equipped in the ignition key is out of order.
You cannot start the engine without the
lime home procedure. To start the engine,
you have to input your password by using
the ignition switch.
The following procedure is how to input
your password of “2345” as an example.
1. Turn the ignition key to the ON position.
The IMMO indicator ( ) will blink 5
times and go off indicating the begin-
ning of the limp home procedure.
2. Turn the ignition key to the ACC posi- tion.
IMMOBILIZER SYSTEM (IF EQUIPPED)
CAUTION
Do not put metal accessories nearthe key or ignition switch.
The engine may not start for themetal accessories may interrupt thetransponder signal from normally transmitting.
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
Immobilizer password is a cus-
tomer unique password and should
be kept confidential. Do not leave
this number anywhere in your vehi-
cle.
