KIA Sedona 2015 3.G Owners Manual

Safety features of your vehicle
76
3

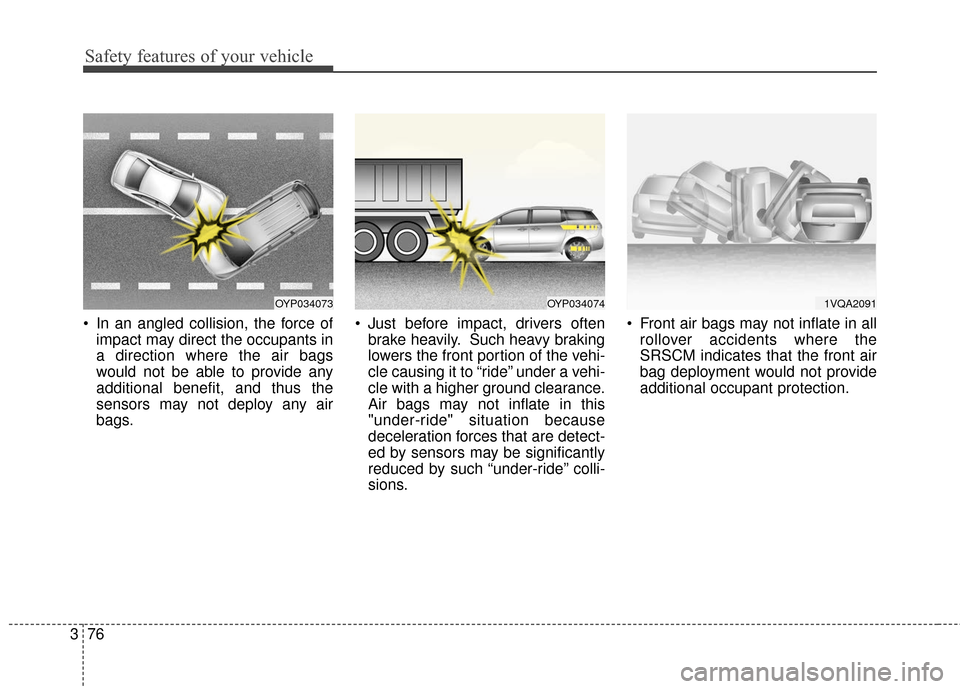

In an angled collision, the force of
impact may direct the occupants in
a direction where the air bags
would not be able to provide any
additional benefit, and thus the
sensors may not deploy any air
bags. Just before impact, drivers often
brake heavily. Such heavy braking
lowers the front portion of the vehi-
cle causing it to “ride” under a vehi-
cle with a higher ground clearance.
Air bags may not inflate in this
"under-ride" situation because
deceleration forces that are detect-
ed by sensors may be significantly
reduced by such “under-ride” colli-
sions. Front air bags may not inflate in all
rollover accidents where the
SRSCM indicates that the front air
bag deployment would not provide
additional occupant protection.
OYP0340741VQA2091OYP034073

377
Safety features of your vehicle

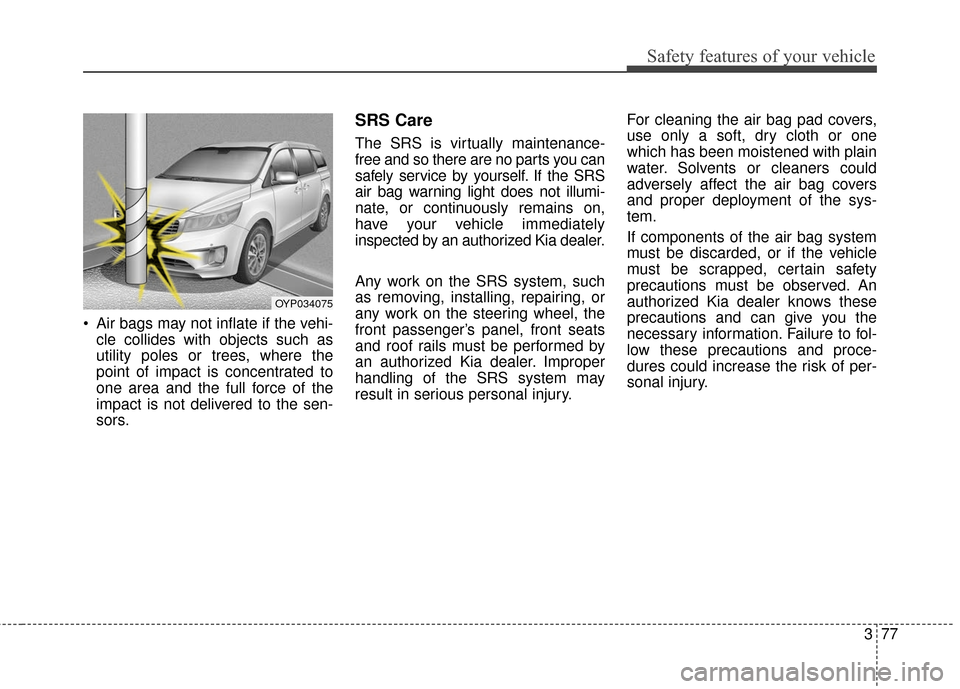

Air bags may not inflate if the vehi-cle collides with objects such as
utility poles or trees, where the
point of impact is concentrated to
one area and the full force of the
impact is not delivered to the sen-
sors.
SRS Care
The SRS is virtually maintenance-
free and so there are no parts you can
safely service by yourself. If the SRS
air bag warning light does not illumi-
nate, or continuously remains on,
have your vehicle immediately
inspected by an authorized Kia dealer.
Any work on the SRS system, such
as removing, installing, repairing, or
any work on the steering wheel, the
front passenger’s panel, front seats
and roof rails must be performed by
an authorized Kia dealer. Improper
handling of the SRS system may
result in serious personal injury. For cleaning the air bag pad covers,
use only a soft, dry cloth or one
which has been moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the sys-
tem.
If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed. An
authorized Kia dealer knows these
precautions and can give you the
necessary information. Failure to fol-
low these precautions and proce-
dures could increase the risk of per-
sonal injury.
OYP034075

Safety features of your vehicle
78
3

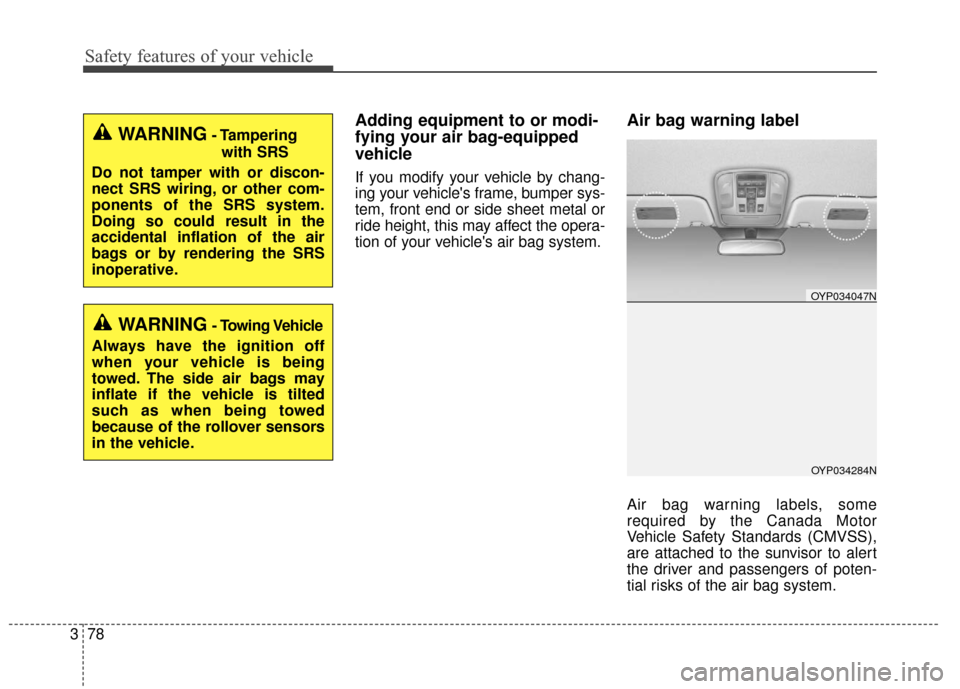

Adding equipment to or modi-
fying your air bag-equipped
vehicle
If you modify your vehicle by chang-
ing your vehicle's frame, bumper sys-
tem, front end or side sheet metal or
ride height, this may affect the opera-
tion of your vehicle's air bag system.
Air bag warning label
Air bag warning labels, some
required by the Canada Motor
Vehicle Safety Standards (CMVSS),
are attached to the sunvisor to alert
the driver and passengers of poten-
tial risks of the air bag system.
WARNING- Tampering
with SRS
Do not tamper with or discon-
nect SRS wiring, or other com-
ponents of the SRS system.
Doing so could result in the
accidental inflation of the air
bags or by rendering the SRS
inoperative.
WARNING- Towing Vehicle
Always have the ignition off
when your vehicle is being
towed. The side air bags may
inflate if the vehicle is tilted
such as when being towed
because of the rollover sensors
in the vehicle.
OYP034284N
OYP034047N

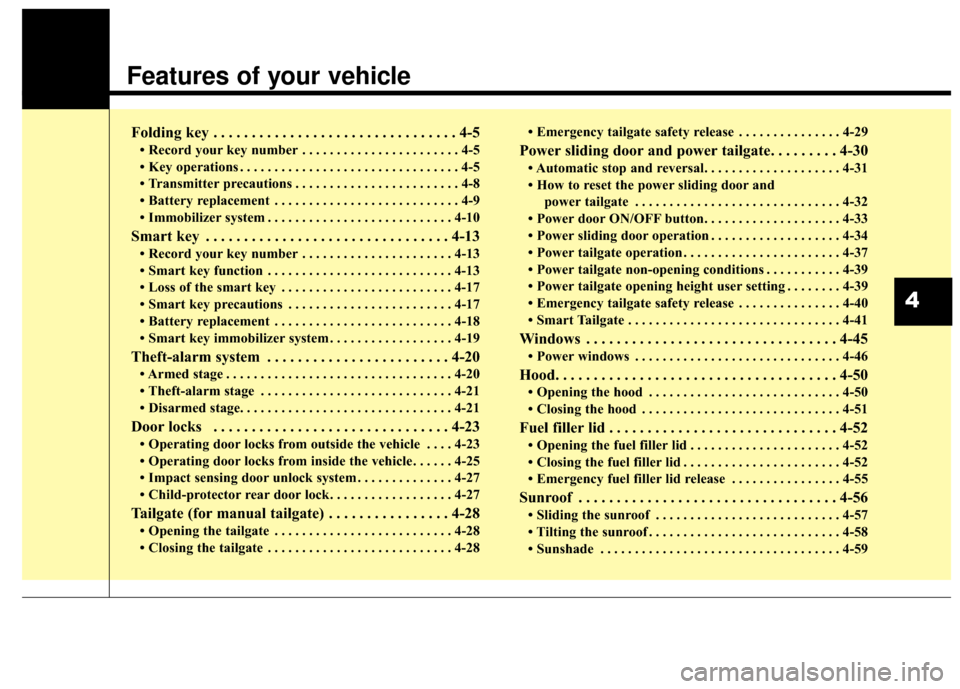

Features of your vehicle
Folding key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
• Record your key number . . . . . . . . . . . . . . . . . . . . . . . 4-5
• Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
• Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-8
• Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
• Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
• Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-13
• Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
• Loss of the smart key . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
• Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-17
• Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
• Smart key immobilizer system . . . . . . . . . . . . . . . . . . 4-19
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . 4-20
• Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
• Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
• Disarmed stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
• Operating door locks from outside the vehicle . . . . 4-23
• Operating door locks from inside the vehicle . . . . . . 4-25
• Impact sensing door unlock system . . . . . . . . . . . . . . 4-27
• Child-protector rear door lock. . . . . . . . . . . . . . . . . . 4-27
Tailgate (for manual tailgate) . . . . . . . . . . . . . . . . 4-28
• Opening the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
• Closing the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28• Emergency tailgate safety release . . . . . . . . . . . . . . . 4-29
Power sliding door and power tailgate. . . . . . . . . 4-30
• Automatic stop and reversal. . . . . . . . . . . . . . . . . . . . 4-31
• How to reset the power sliding door and
power tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
• Power door ON/OFF button. . . . . . . . . . . . . . . . . . . . 4-33
• Power sliding door operation . . . . . . . . . . . . . . . . . . . 4-34
• Power tailgate operation . . . . . . . . . . . . . . . . . . . . . . . 4-37
• Power tailgate non-opening conditions . . . . . . . . . . . 4-39
• Power tailgate opening height user setting . . . . . . . . 4-39
• Emergency tailgate safety release . . . . . . . . . . . . . . . 4-40
• Smart Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
• Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-50
• Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-50
• Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
• Opening the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . 4-52
• Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . 4-52
• Emergency fuel filler lid release . . . . . . . . . . . . . . . . 4-55
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-56\
• Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-57
• Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
• Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
59
4

• Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-59
• Rear sunroof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60
• Sunroof open warning. . . . . . . . . . . . . . . . . . . . . . . . . 4-60
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61
• Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61
• Electric power steering . . . . . . . . . . . . . . . . . . . . . . . . 4-61
• Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . 4-62
• Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-63
• Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-64
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65\
• Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-65
• Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-71
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 4-76
• Instrument cluster control . . . . . . . . . . . . . . . . . . . . . 4-77
• LCD display control . . . . . . . . . . . . . . . . . . . . . . . . . . 4-77
• Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-78
• Transaxle shift indicator . . . . . . . . . . . . . . . . . . . . . . . 4-81
LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-82
• LCD modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
4-82
• Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-83
• User settings mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-85
• Turn by turn mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-89
• SCC/LDWS mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-89
• A/V mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
89
• Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
• Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
96
• Trip A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-97
• Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
• Digital speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
• One time driving information mode . . . . . . . . . . . . 4-100
Warning and indicator lights . . . . . . . . . . . . . . . 4-101
• Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-101
• Indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Rear parking assist system . . . . . . . . . . . . . . . . . 4-112
• Operation of the rear parking assist system . . . . . . 4-112
• Non-operational conditions of rear parking assist system . . . . . . . . . . . . . . . . . . . 4-113
• Rear parking assist system precautions . . . . . . . . . 4-114
• Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Parking assist system . . . . . . . . . . . . . . . . . . . . . . 4-116
• Operation of the parking assist system . . . . . . . . . . 4-116
• Non-operational conditions of parking assist system. . 4-118
• Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
Rearview camera . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
360° camera monitoring system . . . . . . . . . . . . . 4-121
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122
• Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . 4-122
• Headlight escort function . . . . . . . . . . . . . . . . . . . . . 4-122
• Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . 4-122
4

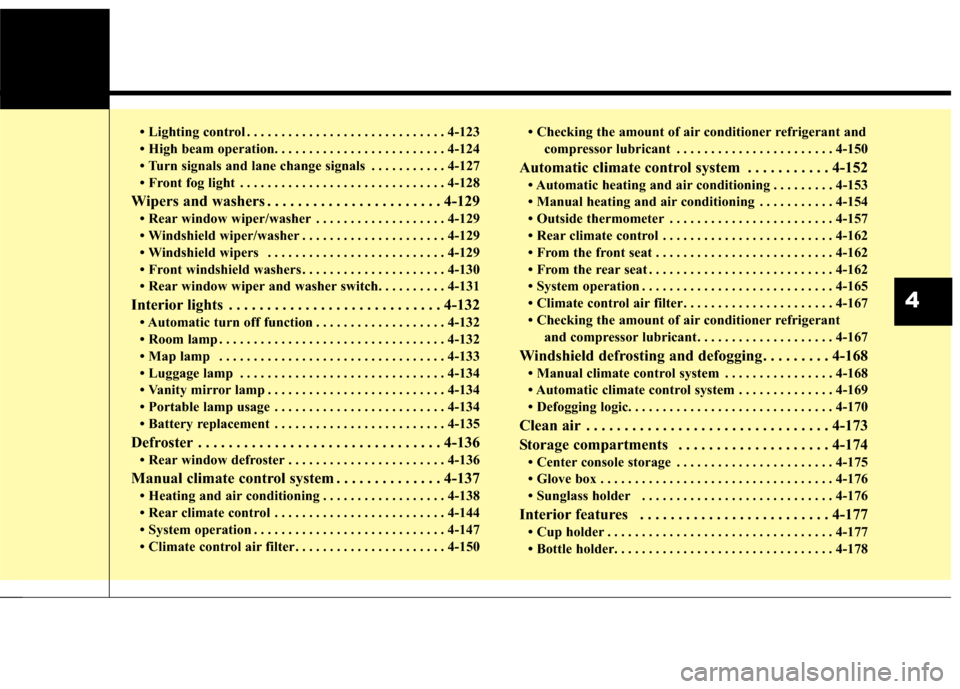

• Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-123
• High beam operation. . . . . . . . . . . . . . . . . . . . . . . . . 4-124
• Turn signals and lane change signals . . . . . . . . . . . 4-127
• Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . 4-129
• Rear window wiper/washer . . . . . . . . . . . . . . . . . . . 4-129
• Windshield wiper/washer . . . . . . . . . . . . . . . . . . . . . 4-129
• Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-129
• Front windshield washers . . . . . . . . . . . . . . . . . . . . . 4-130
• Rear window wiper and washer switch. . . . . . . . . . 4-131
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-132
• Automatic turn off function . . . . . . . . . . . . . . . . . . . 4-132
• Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-132
• Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-133
• Luggage lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-134
• Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-134
• Portable lamp usage . . . . . . . . . . . . . . . . . . . . . . . . . 4-134
• Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-135
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
• Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 4-136
Manual climate control system . . . . . . . . . . . . . . 4-137
• Heating and air conditioning . . . . . . . . . . . . . . . . . . 4-138
• Rear climate control . . . . . . . . . . . . . . . . . . . . . . . . . 4-144
• System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-147
• Climate control air filter. . . . . . . . . . . . . . . . . . . . . . 4-150• Checking the amount of air conditioner refrigerant and
compressor lubricant . . . . . . . . . . . . . . . . . . . . . . . 4-150
Automatic climate control system . . . . . . . . . . . 4-152
• Automatic heating and air conditioning . . . . . . . . . 4-153
• Manual heating and air conditioning . . . . . . . . . . . 4-154
• Outside thermometer . . . . . . . . . . . . . . . . . . . . . . . . 4-157
• Rear climate control . . . . . . . . . . . . . . . . . . . . . . . . . 4-162
• From the front seat . . . . . . . . . . . . . . . . . . . . . . . . . . 4-162
• From the rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-162
• System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
• Climate control air filter. . . . . . . . . . . . . . . . . . . . . . 4-167
• Checking the amount of air conditioner refrigerantand compressor lubricant. . . . . . . . . . . . . . . . . . . . 4-167
Windshield defrosting and defogging . . . . . . . . . 4-168
• Manual climate control system . . . . . . . . . . . . . . . . 4-168
• Automatic climate control system . . . . . . . . . . . . . . 4-169
• Defogging logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-170
Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-173
Storage compartments . . . . . . . . . . . . . . . . . . . . 4-174
• Center console storage . . . . . . . . . . . . . . . . . . . . . . . 4-175
• Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17\
6
• Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-176
Interior features . . . . . . . . . . . . . . . . . . . . . . . . . 4-177
• Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-177
• Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
178
4

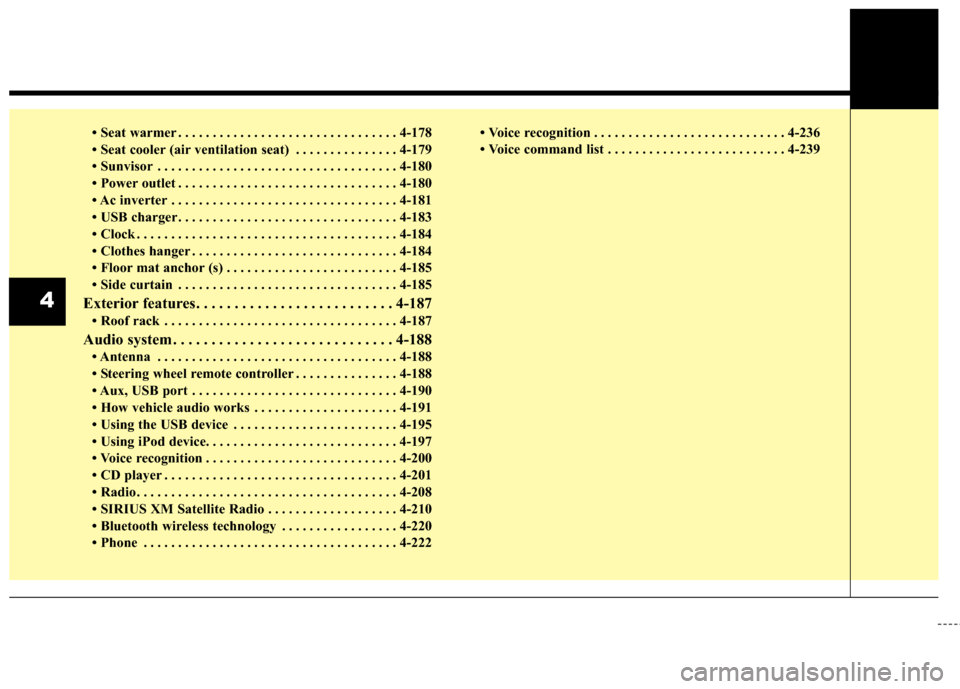

• Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-178
• Seat cooler (air ventilation seat) . . . . . . . . . . . . . . . 4-179
• Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
180
• Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-180
• Ac inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-181
• USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-183
• Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-184
• Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-184
• Floor mat anchor (s) . . . . . . . . . . . . . . . . . . . . . . . . . 4-185
• Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-185
Exterior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-187
• Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18\
7
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-188
• Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
188
• Steering wheel remote controller . . . . . . . . . . . . . . . 4-188
• Aux, USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-190
• How vehicle audio works . . . . . . . . . . . . . . . . . . . . . 4-191
• Using the USB device . . . . . . . . . . . . . . . . . . . . . . . . 4-195
• Using iPod device. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-197
• Voice recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-200
• CD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20\
1
• Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-208
• SIRIUS XM Satellite Radio . . . . . . . . . . . . . . . . . . . 4-210
• Bluetooth wireless technology . . . . . . . . . . . . . . . . . 4-220
• Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-222• Voice recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-236
• Voice command list . . . . . . . . . . . . . . . . . . . . . . . . . . 4-239
4

45
Features of your vehicle
Record your key number
The key code num-
ber is stamped on
the key code tag
attached to the key
set. Should you
lose your keys, this number will
enable an authorized Kia dealer to
duplicate the keys easily. Remove
the key code tag and store it in a safe
place. Also, record the key code
number and keep it in a safe
place.(not in the vehicle)
Key operations
• Used to start the engine.
Used to lock and unlock the doors.
Used to lock and unlock the glove box. To unfold the key, press the release
button then the key will unfold auto-
matically. To fold the key, fold the
key manually while pressing the
release button.
FOLDING KEY
CAUTION
Do not fold the key withoutpressing the release button.This may damage the key.
WARNING - Aftermarket
key
Use only Kia original parts for
the ignition key in your vehicle.
If an aftermarket key is used,
the ignition switch may not
return to ON after START. If this
happens, the starter will contin-
ue to operate causing damage
to the starter motor and possi-
ble fire due to excessive current
in the wiring.
OYP044168N
OXMA043331
■
Type A
■ Type B

Features of your vehicle
64
Door Lock (1)1. Close all doors, engine hood andtailgate.
2. Press the lock button(1).
3. All doors and tailgate will lock. The hazard warning lights will blink
once.
4. If the lock button is pressed once more within 4 seconds, the hazard
warning lights will blink and the
horn will sound once.
5. Make sure that doors are locked by checking the door lock button inside
or pulling the outside door handle.
OYP044170NOYP044169K
■
Type A
■ Type B
WARNING- Ignition key
(smart key)
Never leave the keys in your
vehicle with unsupervised chil-
dren. Leaving children unat-
tended in a vehicle with a man-
ual ignition key or a smart key
is dangerous. Children copy
adults and they could place the
key in the ignition switch or
press the start button. The key
would enable children to oper-
ate power windows or other
controls, or even make the vehi-
cle move, which could result in
serious bodily injury or death.
result in serious bodily injury or
death.

47
Features of your vehicle

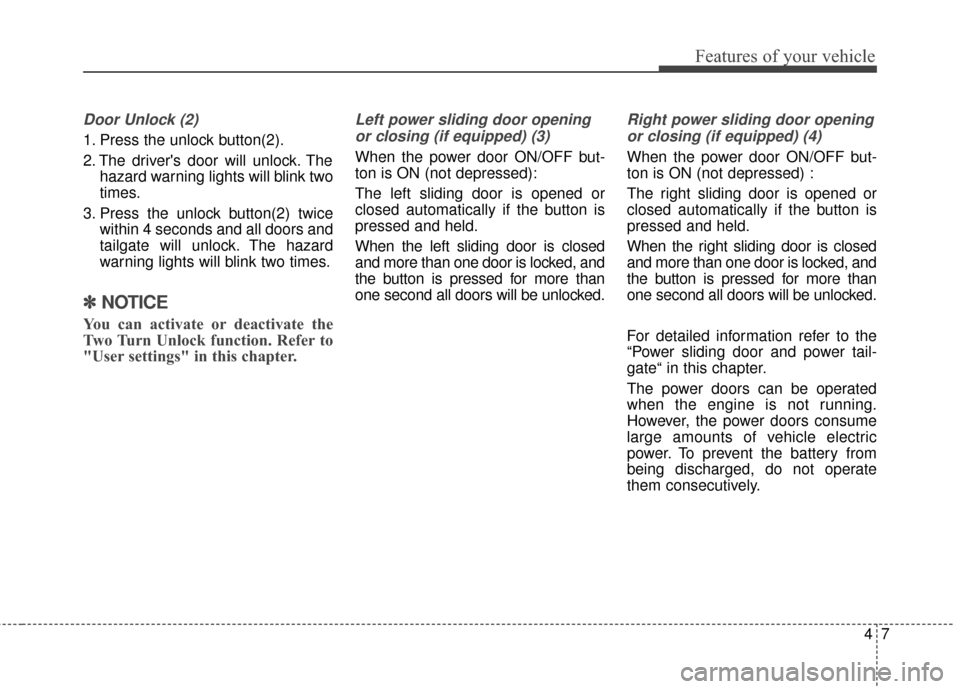

Door Unlock (2)
1. Press the unlock button(2).
2. The driver's door will unlock. Thehazard warning lights will blink two
times.
3. Press the unlock button(2) twice within 4 seconds and all doors and
tailgate will unlock. The hazard
warning lights will blink two times.
✽ ✽NOTICE
You can activate or deactivate the
Two Turn Unlock function. Refer to
"User settings" in this chapter.
Left power sliding door opening
or closing (if equipped) (3)
When the power door ON/OFF but-
ton is ON (not depressed):
The left sliding door is opened or
closed automatically if the button is
pressed and held.
When the left sliding door is closed
and more than one door is locked, and
the button is pressed for more than
one second all doors will be unlocked.
Right power sliding door openingor closing (if equipped) (4)
When the power door ON/OFF but-
ton is ON (not depressed) :
The right sliding door is opened or
closed automatically if the button is
pressed and held.
When the right sliding door is closed
and more than one door is locked, and
the button is pressed for more than
one second all doors will be unlocked.
For detailed information refer to the
“Power sliding door and power tail-
gate“ in this chapter.
The power doors can be operated
when the engine is not running.
However, the power doors consume
large amounts of vehicle electric
power. To prevent the battery from
being discharged, do not operate
them consecutively.
