KIA Sedona 2015 3.G Owner's Manual

Features of your vehicle
28
4

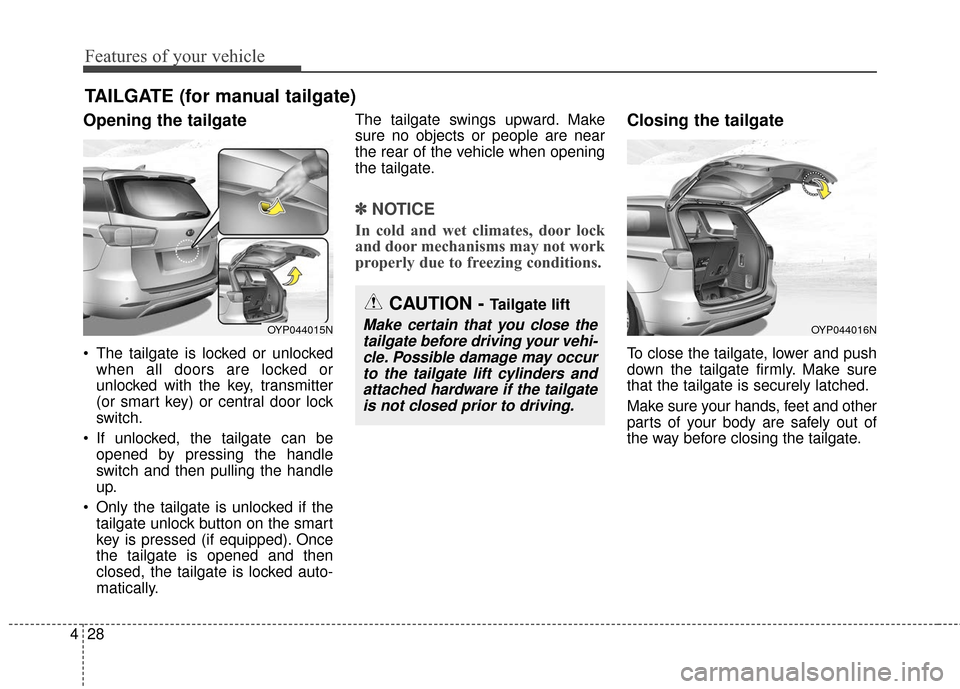

Opening the tailgate
The tailgate is locked or unlocked
when all doors are locked or
unlocked with the key, transmitter
(or smart key) or central door lock
switch.
If unlocked, the tailgate can be opened by pressing the handle
switch and then pulling the handle
up.
Only the tailgate is unlocked if the tailgate unlock button on the smart
key is pressed (if equipped). Once
the tailgate is opened and then
closed, the tailgate is locked auto-
matically. The tailgate swings upward. Make
sure no objects or people are near
the rear of the vehicle when opening
the tailgate.
✽ ✽
NOTICE
In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
Closing the tailgate
To close the tailgate, lower and push
down the tailgate firmly. Make sure
that the tailgate is securely latched.
Make sure your hands, feet and other
parts of your body are safely out of
the way before closing the tailgate.
TAILGATE (for manual tailgate)
CAUTION - Tailgate lift
Make certain that you close the
tailgate before driving your vehi-cle. Possible damage may occurto the tailgate lift cylinders andattached hardware if the tailgateis not closed prior to driving.OYP044015NOYP044016N

429
Features of your vehicle

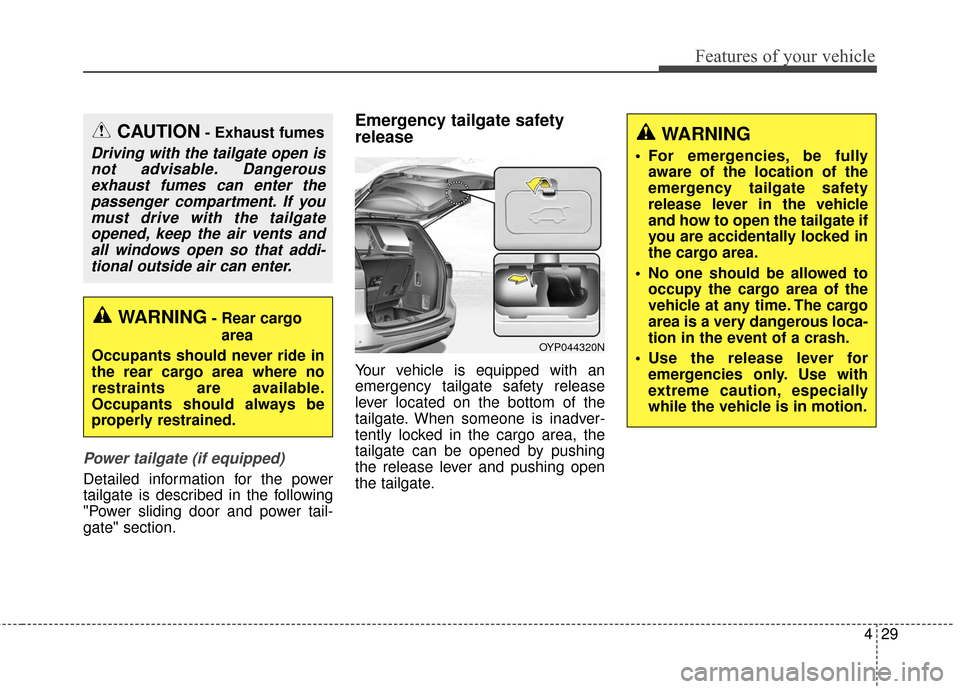

Power tailgate (if equipped)
Detailed information for the power
tailgate is described in the following
"Power sliding door and power tail-
gate" section.
Emergency tailgate safety
release
Your vehicle is equipped with an
emergency tailgate safety release
lever located on the bottom of the
tailgate. When someone is inadver-
tently locked in the cargo area, the
tailgate can be opened by pushing
the release lever and pushing open
the tailgate.
WARNING- Rear cargoarea
Occupants should never ride in
the rear cargo area where no
restraints are available.
Occupants should always be
properly restrained.
CAUTION- Exhaust fumes
Driving with the tailgate open is not advisable. Dangerousexhaust fumes can enter thepassenger compartment. If youmust drive with the tailgateopened, keep the air vents andall windows open so that addi-tional outside air can enter.
WARNING
For emergencies, be fully aware of the location of the
emergency tailgate safety
release lever in the vehicle
and how to open the tailgate if
you are accidentally locked in
the cargo area.
No one should be allowed to occupy the cargo area of the
vehicle at any time. The cargo
area is a very dangerous loca-
tion in the event of a crash.
Use the release lever for emergencies only. Use with
extreme caution, especially
while the vehicle is in motion.
OYP044320N

Features of your vehicle
30
4
POWER SLIDING DOOR AND POWER TAILGATE (IF EQUIPPED)
(1) Left power sliding door control
button
(2) Right power sliding door control button
(3) Power tailgate control button*
(4) Power door ON/OFF button
*: if equipped
The power sliding doors and power
tailgate can be opened and closed
automatically with the folding key or
smart key, the main control buttons
on the overhead console or the sub
control buttons on the center pillar
trim and the tailgate.
When the power door ON/OFF but-
ton is OFF (depressed), the power
sliding door and power tailgate can
be opened and closed manually by
pulling the door handles from inside
or outside vehicle.
✽ ✽ NOTICE
If the power sliding door is open
approximately 6 hours, the ECU will
enter Sleep mode to conserve battery
power and the door might not close
automatically. Close the door or tail-
gate manually and then operate the
door with the power operating system.
✽ ✽NOTICE
In cold and wet climates, power slid-
ing doors and tailgate may not work
properly due to freezing conditions.
OYP044017K
OYP044018K
OYP044027N
On the center pillar trim
On the tailgate
On the overhead console
WARNING - Unattended
children/pets
Never leave children or animals
unattended in your vehicle.
Children or animals might oper-
ate the power sliding door or
power tailgate that could result
in injury to themselves or oth-
ers or damage to the vehicle.

431
Features of your vehicle
✽

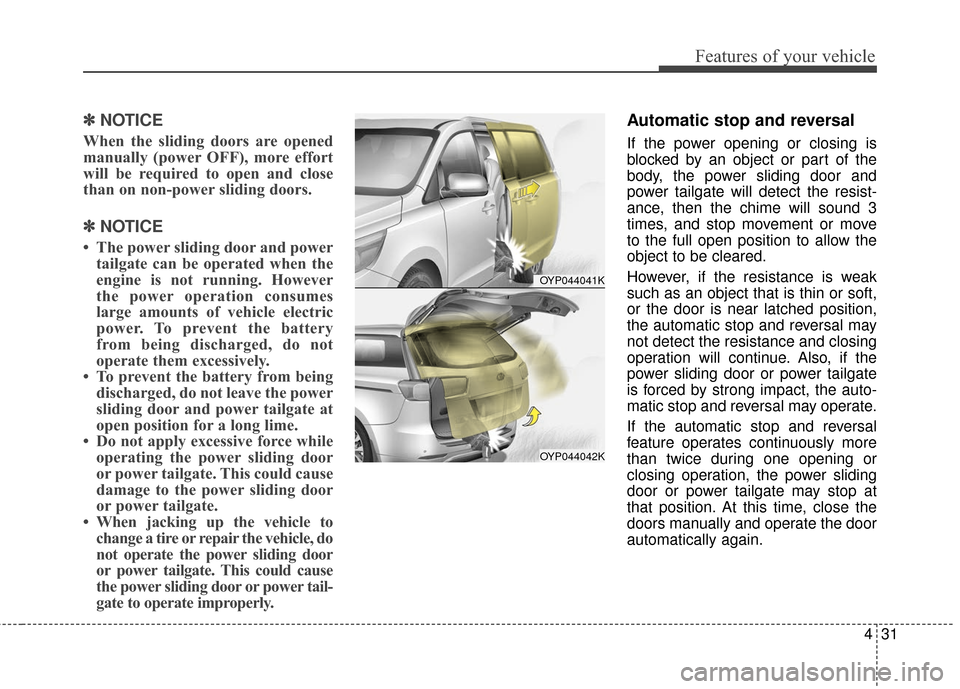

✽NOTICE
When the sliding doors are opened
manually (power OFF), more effort
will be required to open and close
than on non-power sliding doors.
✽ ✽NOTICE
• The power sliding door and power
tailgate can be operated when the
engine is not running. However
the power operation consumes
large amounts of vehicle electric
power. To prevent the battery
from being discharged, do not
operate them excessively.
• To prevent the battery from being discharged, do not leave the power
sliding door and power tailgate at
open position for a long lime.
• Do not apply excessive force while operating the power sliding door
or power tailgate. This could cause
damage to the power sliding door
or power tailgate.
• When jacking up the vehicle to change a tire or repair the vehicle, do
not operate the power sliding door
or power tailgate. This could cause
the power sliding door or power tail-
gate to operate improperly.
Automatic stop and reversal
If the power opening or closing is
blocked by an object or part of the
body, the power sliding door and
power tailgate will detect the resist-
ance, then the chime will sound 3
times, and stop movement or move
to the full open position to allow the
object to be cleared.
However, if the resistance is weak
such as an object that is thin or soft,
or the door is near latched position,
the automatic stop and reversal may
not detect the resistance and closing
operation will continue. Also, if the
power sliding door or power tailgate
is forced by strong impact, the auto-
matic stop and reversal may operate.
If the automatic stop and reversal
feature operates continuously more
than twice during one opening or
closing operation, the power sliding
door or power tailgate may stop at
that position. At this time, close the
doors manually and operate the door
automatically again.
OYP044041K
OYP044042K

Features of your vehicle
32
4

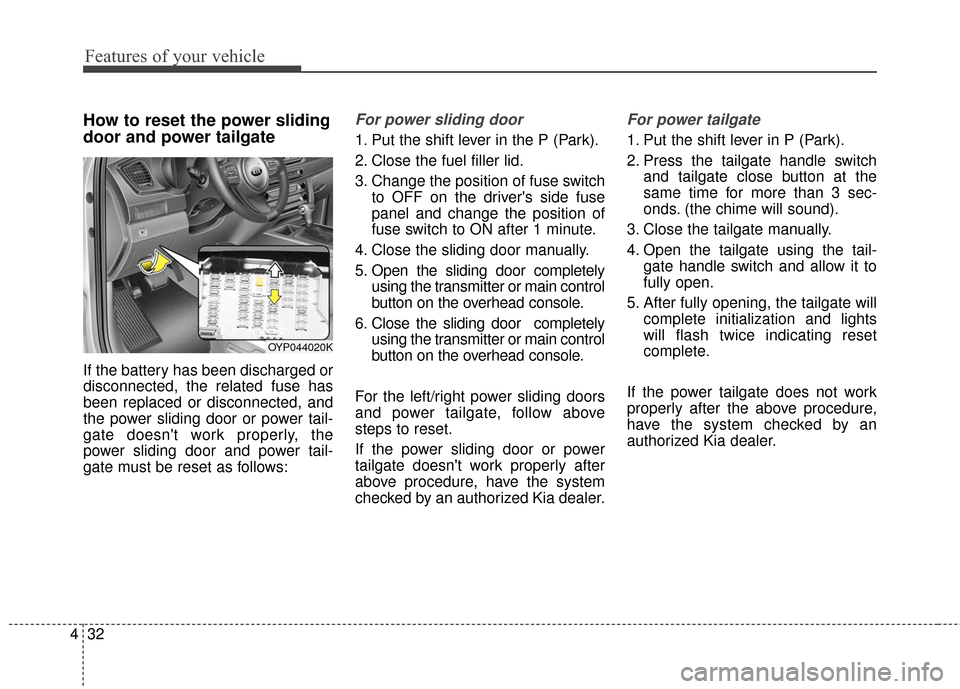

How to reset the power sliding
door and power tailgate
If the battery has been discharged or
disconnected, the related fuse has
been replaced or disconnected, and
the power sliding door or power tail-
gate doesn't work properly, the
power sliding door and power tail-
gate must be reset as follows:
For power sliding door
1. Put the shift lever in the P (Park).
2. Close the fuel filler lid.
3. Change the position of fuse switch
to OFF on the driver's side fuse
panel and change the position of
fuse switch to ON after 1 minute.
4. Close the sliding door manually.
5. Open the sliding door completely using the transmitter or main control
button on the overhead console.
6. Close the sliding door completely using the transmitter or main control
button on the overhead console.
For the left/right power sliding doors
and power tailgate, follow above
steps to reset.
If the power sliding door or power
tailgate doesn't work properly after
above procedure, have the system
checked by an authorized Kia dealer.
For power tailgate
1. Put the shift lever in P (Park).
2. Press the tailgate handle switch and tailgate close button at the
same time for more than 3 sec-
onds. (the chime will sound).
3. Close the tailgate manually.
4. Open the tailgate using the tail- gate handle switch and allow it to
fully open.
5. After fully opening, the tailgate will complete initialization and lights
will flash twice indicating reset
complete.
If the power tailgate does not work
properly after the above procedure,
have the system checked by an
authorized Kia dealer.
OYP044020K

433
Features of your vehicle

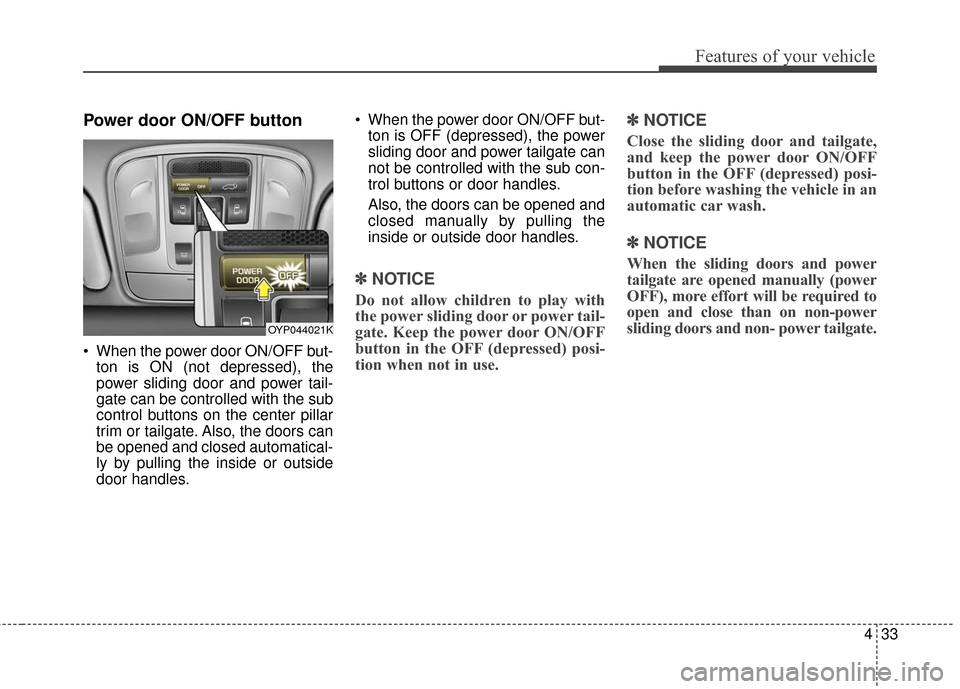

Power door ON/OFF button
When the power door ON/OFF but-ton is ON (not depressed), the
power sliding door and power tail-
gate can be controlled with the sub
control buttons on the center pillar
trim or tailgate. Also, the doors can
be opened and closed automatical-
ly by pulling the inside or outside
door handles. When the power door ON/OFF but-
ton is OFF (depressed), the power
sliding door and power tailgate can
not be controlled with the sub con-
trol buttons or door handles.
Also, the doors can be opened and
closed manually by pulling the
inside or outside door handles.
✽ ✽ NOTICE
Do not allow children to play with
the power sliding door or power tail-
gate. Keep the power door ON/OFF
button in the OFF (depressed) posi-
tion when not in use.
✽ ✽NOTICE
Close the sliding door and tailgate,
and keep the power door ON/OFF
button in the OFF (depressed) posi-
tion before washing the vehicle in an
automatic car wash.
✽ ✽NOTICE
When the sliding doors and power
tailgate are opened manually (power
OFF), more effort will be required to
open and close than on non-power
sliding doors and non- power tailgate.
OYP044021K

Features of your vehicle
34
4

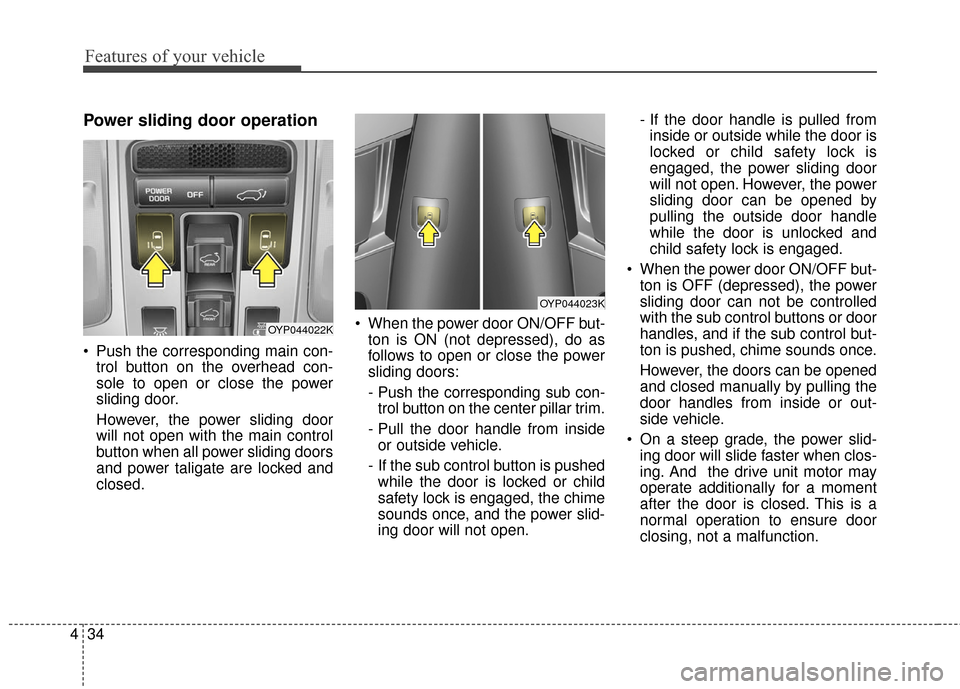

Power sliding door operation
Push the corresponding main con-
trol button on the overhead con-
sole to open or close the power
sliding door.
However, the power sliding door
will not open with the main control
button when all power sliding doors
and power taligate are locked and
closed. When the power door ON/OFF but-
ton is ON (not depressed), do as
follows to open or close the power
sliding doors:
- Push the corresponding sub con-trol button on the center pillar trim.
- Pull the door handle from inside or outside vehicle.
- If the sub control button is pushed while the door is locked or child
safety lock is engaged, the chime
sounds once, and the power slid-
ing door will not open. - If the door handle is pulled from
inside or outside while the door is
locked or child safety lock is
engaged, the power sliding door
will not open. However, the power
sliding door can be opened by
pulling the outside door handle
while the door is unlocked and
child safety lock is engaged.
When the power door ON/OFF but- ton is OFF (depressed), the power
sliding door can not be controlled
with the sub control buttons or door
handles, and if the sub control but-
ton is pushed, chime sounds once.
However, the doors can be opened
and closed manually by pulling the
door handles from inside or out-
side vehicle.
On a steep grade, the power slid- ing door will slide faster when clos-
ing. And the drive unit motor may
operate additionally for a moment
after the door is closed. This is a
normal operation to ensure door
closing, not a malfunction.
OYP044022K
OYP044023K

435
Features of your vehicle

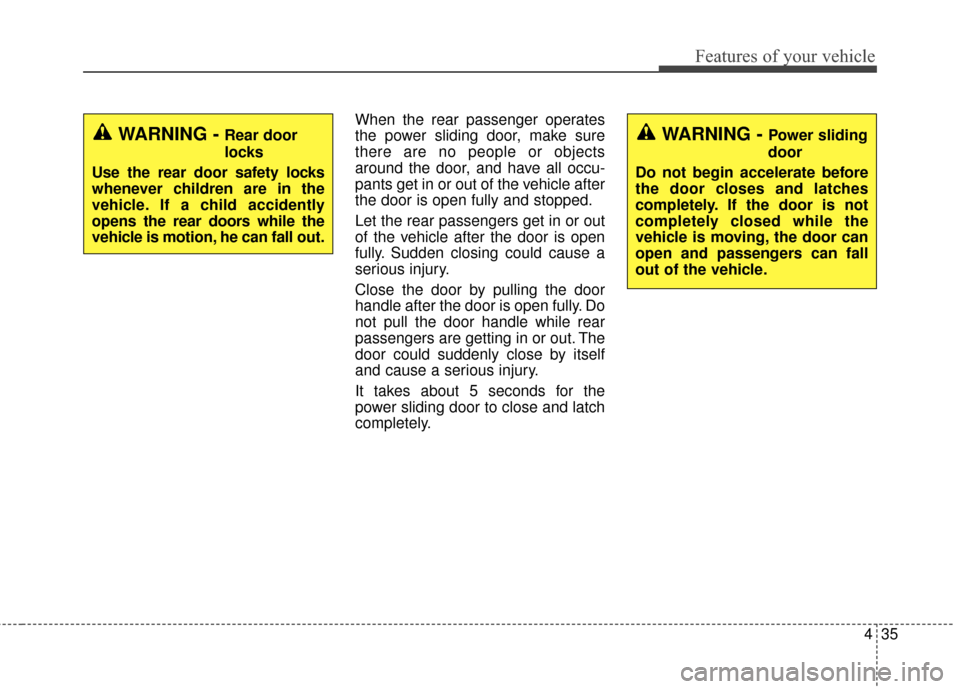

When the rear passenger operates
the power sliding door, make sure
there are no people or objects
around the door, and have all occu-
pants get in or out of the vehicle after
the door is open fully and stopped.
Let the rear passengers get in or out
of the vehicle after the door is open
fully. Sudden closing could cause a
serious injury.
Close the door by pulling the door
handle after the door is open fully. Do
not pull the door handle while rear
passengers are getting in or out. The
door could suddenly close by itself
and cause a serious injury.
It takes about 5 seconds for the
power sliding door to close and latch
completely.
WARNING - Rear door
locks
Use the rear door safety locks
whenever children are in the
vehicle. If a child accidently
opens the rear doors while the
vehicle is motion, he can fall out.WARNING - Power sliding
door
Do not begin accelerate before
the door closes and latches
completely. If the door is not
completely closed while the
vehicle is moving, the door can
open and passengers can fall
out of the vehicle.

Features of your vehicle
36
4

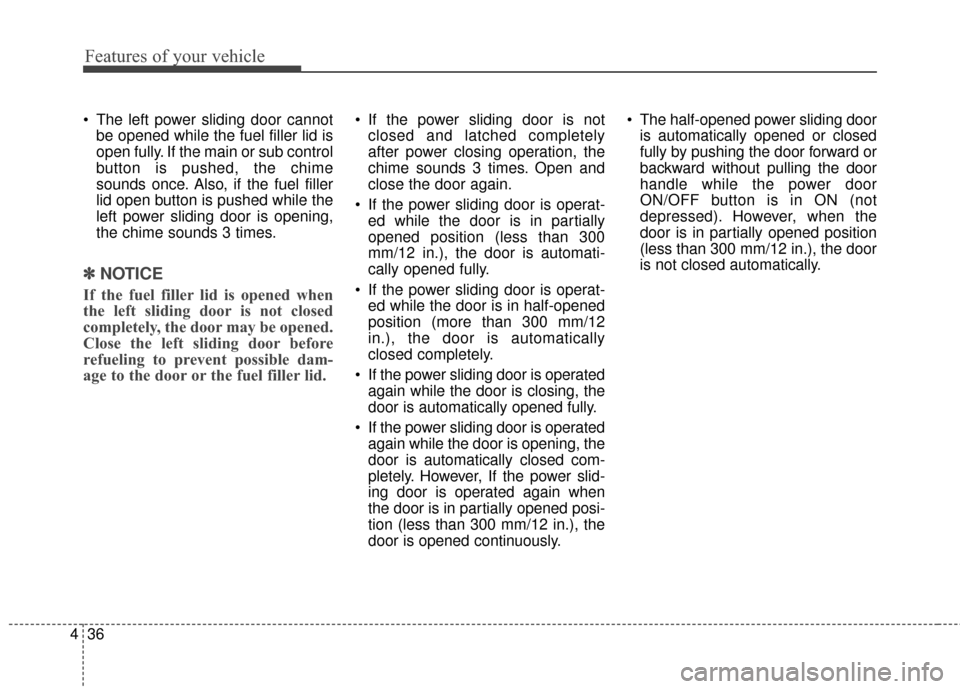

The left power sliding door cannot
be opened while the fuel filler lid is
open fully. If the main or sub control
button is pushed, the chime
sounds once. Also, if the fuel filler
lid open button is pushed while the
left power sliding door is opening,
the chime sounds 3 times.
✽ ✽ NOTICE
If the fuel filler lid is opened when
the left sliding door is not closed
completely, the door may be opened.
Close the left sliding door before
refueling to prevent possible dam-
age to the door or the fuel filler lid.
If the power sliding door is not
closed and latched completely
after power closing operation, the
chime sounds 3 times. Open and
close the door again.
If the power sliding door is operat- ed while the door is in partially
opened position (less than 300
mm/12 in.), the door is automati-
cally opened fully.
If the power sliding door is operat- ed while the door is in half-opened
position (more than 300 mm/12
in.), the door is automatically
closed completely.
If the power sliding door is operated again while the door is closing, the
door is automatically opened fully.
If the power sliding door is operated again while the door is opening, the
door is automatically closed com-
pletely. However, If the power slid-
ing door is operated again when
the door is in partially opened posi-
tion (less than 300 mm/12 in.), the
door is opened continuously. The half-opened power sliding door
is automatically opened or closed
fully by pushing the door forward or
backward without pulling the door
handle while the power door
ON/OFF button is in ON (not
depressed). However, when the
door is in partially opened position
(less than 300 mm/12 in.), the door
is not closed automatically.

437
Features of your vehicle

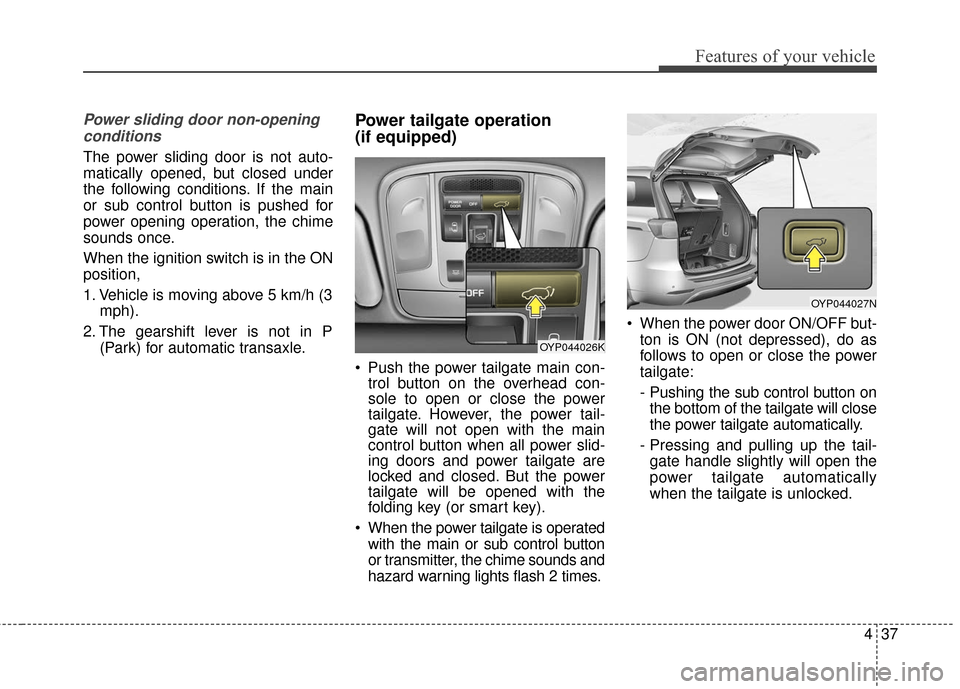

Power sliding door non-openingconditions
The power sliding door is not auto-
matically opened, but closed under
the following conditions. If the main
or sub control button is pushed for
power opening operation, the chime
sounds once.
When the ignition switch is in the ON
position,
1. Vehicle is moving above 5 km/h (3 mph).
2. The gearshift lever is not in P (Park) for automatic transaxle.
Power tailgate operation
(if equipped)
Push the power tailgate main con-trol button on the overhead con-
sole to open or close the power
tailgate. However, the power tail-
gate will not open with the main
control button when all power slid-
ing doors and power tailgate are
locked and closed. But the power
tailgate will be opened with the
folding key (or smart key).
When the power tailgate is operated with the main or sub control button
or transmitter, the chime sounds and
hazard warning lights flash 2 times. When the power door ON/OFF but-
ton is ON (not depressed), do as
follows to open or close the power
tailgate:
- Pushing the sub control button onthe bottom of the tailgate will close
the power tailgate automatically.
- Pressing and pulling up the tail- gate handle slightly will open the
power tailgate automatically
when the tailgate is unlocked.
OYP044026K
OYP044027N
