VIDEOS & QR CODES . . . . . . . . . . . . . . . . . . 02
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . 03Indicators & Warning Lights . . . . . . . . . . . . . . . . 04Tire Pressure Monitoring System (TPMS) . . . . . . . . . 05Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . 05LCD Instrument Cluster Modes . . . . . . . . . . . . . . 06Trip Computer / Tripmeter . . . . . . . . . . . . . . . . . 06User Settings . . . . . . . . . . . . . . . . . . . . . . . . 07Service Mode . . . . . . . . . . . . . . . . . . . . . . . . 07Drive Mode Integrated Control System* . . . . . . . . . . 08Active ECO System* . . . . . . . . . . . . . . . . . . . . 08
DRIVER’S PANELElectronic Stability Control (ESC) . . . . . . . . . . . . . . 09Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . 09Instrument Panel Dimmer . . . . . . . . . . . . . . . . . 09AC Inverter* . . . . . . . . . . . . . . . . . . . . . . . . . 09Blind Spot Detection (BSD) System* . . . . . . . . . . . . 10Lane Departure Warning System (LDWS)* . . . . . . . . . 11Forward Collision Warning System (FCWS)* . . . . . . . . 11Power Windows, Window Lock & Central Door Lock . . . . 12Power Folding Outside Mirrors* . . . . . . . . . . . . . . 12Heated Outside Mirrors* . . . . . . . . . . . . . . . . . . 12Automatic Door Lock /Unlock . . . . . . . . . . . . . . . 12Fuel Door Release Button . . . . . . . . . . . . . . . . . 12Reverse Parking Aid Function* . . . . . . . . . . . . . . . 13Engine Start/Stop Button . . . . . . . . . . . . . . . . . . 13
STEERING WHEEL CONTROLSTilt/ Telescoping Steering Wheel . . . . . . . . . . . . . . 14Headlights & High Beams . . . . . . . . . . . . . . . . . . 14Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . 15Windshield/Rear Wipers & Washers* . . . . . . . . . . . . 15Bluetooth® Wireless Technology . . . . . . . . . . . . . . 16Audio Controls . . . . . . . . . . . . . . . . . . . . . . . 18Standard Cruise Control . . . . . . . . . . . . . . . . . . 18Smart Cruise Control System (SCC)* . . . . . . . . . . . . 19
AUDIO SYSTEMStandard Audio System* . . . . . . . . . . . . . . . . . . 20UVO eServices System* . . . . . . . . . . . . . . . . . . 21UVO eServices with Premium Navigation* . . . . . . . . . 22
CENTER PANELSurround View Monitor (SVM)* . . . . . . . . . . . . . . . 23Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . 24Aux/USB/iPod® Port, AC Inverter* and Power Outlets . . . . 24Automatic Gear Shift with Sportmatic® Shifting . . . . . . 25Automatic Climate Control* . . . . . . . . . . . . . . . . . 26Manual Climate Control* . . . . . . . . . . . . . . . . . . 28Heated Steering Wheel* . . . . . . . . . . . . . . . . . . 29Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . 29
S E AT I N GFront Seat Headrest Adjustment . . . . . . . . . . . . . . 30Driver Position Memory System* . . . . . . . . . . . . . . 30Power Adjustable Driver's Seat* . . . . . . . . . . . . . . 31Manual Adjustable Driver's Seat* . . . . . . . . . . . . . . 312nd-Row Seat . . . . . . . . . . . . . . . . . . . . . . . 322nd-Row Slide-N-Stow Seat* . . . . . . . . . . . . . . . 322nd-Row First-Class Lounge Seating* . . . . . . . . . . . 332nd-Row Tumble (Center) Seat* . . . . . . . . . . . . . . 343rd-Row Seat - Folding and Stowing . . . . . . . . . . . . 35
OTHER KEY FEATURESRemote Keyless Entry (Folding Key)* . . . . . . . . . . . . 36Double-Turn Lock /Unlock All . . . . . . . . . . . . . . . . 36Power Sliding Doors . . . . . . . . . . . . . . . . . . . . 36Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . 37HomeLink® with Auto-Dimming Rearview Mirror* . . . . . 38Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . 39Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . 39Sunroof Operation* . . . . . . . . . . . . . . . . . . . . . 40Parking Assist System* . . . . . . . . . . . . . . . . . . . 40Back-Up Warning System (Rear Parking Assist System)* . 41Rear-Camera Display* . . . . . . . . . . . . . . . . . . . 41Power Liftgate (Tailgate)* . . . . . . . . . . . . . . . . . . 42Hood Release Lever and Latch . . . . . . . . . . . . . . . 43 Fuel Cap / Malfunction Indicator (Check Engine Light) . . . 43Child Safety Locks . . . . . . . . . . . . . . . . . . . . . 43
SAFETY FEATURESOccupant Detection System (ODS) /Passenger Airbag Off Indicator . . . . . . . . . . . . . . . 44Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . 44Seat Belt Retractor Locks . . . . . . . . . . . . . . . . . 44
NORMAL MAINTENANCE SCHEDULE . . . . . 45
LEGAL DISCLAIMERS (See Back Inside Cover Page)
ESSENTIAL FEATURES
SEDONA FE ATURES & FUNCTIONS GUIDE
Air Conditioning / Automatic Climate Control* . . . . . .26
Audio System – Standard Audio System* . . . . . . . . 20
Audio System – UVO eServices System* . . . . . . . . 21
Audio System – UVO eServices / Premium Navigation* . 22
Aux/USB/iPod® Port, AC Inverter* and Power Outlets . .24
Bluetooth® Wireless Technology . . . . . . . . . . . . .16
Cruise Control . . . . . . . . . . . . . . . . . . . . . . 18
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . 24
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 44
Service Mode . . . . . . . . . . . . . . . . . . . . . . . 07
Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . 37
Tire Pressure Monitoring System (TPMS) . . . . . . . . 05
Trip Computer / Tripmeter . . . . . . . . . . . . . . . . 06
User Settings . . . . . . . . . . . . . . . . . . . . . . . 07
Windshield/Rear Wipers & Washers* . . . . . . . . . . . 15
*IF EQUIPPED
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.

4
Indicators & Warning Lights
REMINDERS:
• Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations
• For more information on the instrument cluster and the function of all indicator and warning lights, please refer to the Owner’s Manual

ECOMINDER® Indicator
Malfunction Indicator Lamp (MIL)
Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator
Engine Oil Pressure Warning Light
Master Warning Light
Parking Brake & Brake Fluid Warning Light
Front Fog Light Indicator*
Light ON Indicator Light
Washer Fluid Warning Light*
High Beam Indicator
High Beam Assist Indicator*
Seat Belt Warning Light
Airbag Warning Light
Charging System Warning Light
Electronic Power Steering (EPS) Warning Light*
Immobilizer Indicator Light*
Anti-Lock Braking System (ABS) Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light
KE Y OUT Indicator*
Electronic Stability Control (ESC) Indicator Light
Electronic Stability Control (ESC) OFF Indicator Light
Low Fuel Level Warning Light
Cruise Indicator Light*
Cruise SET Indicator
Door Ajar Warning Light*
Liftgate (Tailgate) Open Warning Light*
Sunroof Open Warning Light*
COMFORT Mode Indicator Light*
(Type C Cluster)
SEDONA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
INSTRUMENT CLUSTER

8
Active ECO System Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www.KuTechVideos.com/yp13/2016
REMINDER: When Active ECO button is ON, and ignition is cycled, the system defaults in the ON position
For more information on Active ECO, refer to your Owner’s Manual or contact your local dealership.
(Located below Gear Shift)(Located on Center Panel below Gear Shift)* (Located in Instrument Cluster)
To help improve your fuel economy: •Drive at a moderate speed, accelerating smoothly and at a moderate rate •Keep tires inflated to the recommended pressure •Be sure the wheels are properly aligned
QUICK TIPS
A
DC
B
Active ECO System*
The Active ECO system helps improve fuel economy by
controlling several vehicle components . When activated,
it optimizes drivetrain operations such as engine power
and transmission to help improve fuel economy .
To turn ON, press the ACTIVE ECO button [C] . The button
light will turn on, and the green ECO indicator light [D]
in the instrument cluster will illuminate, indicating that
Active ECO is operating .
The Active ECO system will remain on even when the
ignition is cycled .
To turn the Active ECO system OFF, press the ACTIVE
ECO button [C] again .C
C
D
Drive Mode Integrated Control System*
The Drive Mode may be selected depending on driver’s
preferences and road conditions .
To cycle through the different Drive Modes [A], press the
DRIVE MODE button [B] . The Instrument Cluster will display
COMFORT or ECO when selected . When in Normal mode, it
will not display in the Instrument Cluster .
B
A
REMINDERS:
• The system is turned ON and in Normal mode when ignition is in the ON position
• When ECO mode is selected, the indicator will display and system remains on, even when ignition is cycled
Your vehicle’s steering wheel buttons may differ from those in the illustrations. See your Owner’s Manual for more details.
SEDONA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
INSTRUMENT CLUSTER

9
Hill-Start Assist Control (HAC)
HAC helps prevent the vehicle from rolling backwards when accelerating
from a stop while on a steep incline . The HAC automatically activates
whether the ESC is OFF or ON but does NOT activate when the ESC
has malfunctioned .
REMINDER: The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position .

•HAC provides a 2-second delay before the vehicle may start rolling backwards •When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation .
QUICK TIPS
(Button panel located left of Steering Wheel)
(Outlet located on back of Center Console and the Luggage Zone*)
ABC
Instrument Panel Dimmer
With parking lights/headlights ON, press button [B] (+) or (-) to adjust the
brightness of the instrument panel illumination .
REMINDER: The Instrument Panel Dimmer does not adjust brightness on the Standard Audio System/UVO eServices System/UVO eServices with Premium Navigation System* screens . Use the system setup menu to adjust brightness on the screen .
B
AC Inverter*
The AC Inverter supplies 115V/100W electrical power to operate accessories
or equipment . Press AC Inverter button [C] to activate .C
Electronic Stability Control (ESC)
The ESC system is designed to help stabilize the vehicle during cornering
maneuvers . It is a good idea to keep the ESC turned on for daily driving
whenever possible .
Press ESC OFF button [A] to turn Traction Control OFF/ON .
To turn OFF both the Traction Control and Stability Control, press and hold
for more than 3 seconds . Press again to turn ON .
REMINDERS:
•ESC is turned ON by default at vehicle start-up . If vehicle power is cycled, ESC will turn ON again
• The ESC Indicator Light [~] in the instrument cluster will illuminate whenever the ESC is in operation
For more information on Electronic Stability Control (ESC) and its specific features and operations, please refer to your Owner’s Manual.
A
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
DRIVER'S PANEL

10
Blind Spot Detection (BSD) System*
The BSD system uses radar sensors to help alert the driver before changing
lanes . The light on the BSD button [A] will illuminate when turned ON . The
outside rearview mirror warning lights will also illuminate for 3 seconds .
The system will become active when the vehicle is traveling more than 9 mph
and will alert the driver if another vehicle is detected by the radar sensor .
Blind Spot Detection / Lane Change Assist
1st-stage alert: When another vehicle is detected within the BSD System
boundary [B], a yellow indicator will illuminate on the outside rearview mirrors .
2nd-stage alert: When 1st-stage alert is on and the driver activates a turn
signal, a flashing yellow indicator will illuminate on the outside rearview mirrors
and the system will sound an alert .
RCTA (Rear Cross Traffic Alert)
If the RCTA system sensors detect approaching vehicles from the left or right
side [C], the system will sound an audible alert, the warning indicators on the
outside rearview mirror will illuminate and a message will appear on the LCD
screen, when these conditions are met:
•The gear shift is in Reverse
•The vehicles moves in reverse
•The vehicle is moving less than 6 mph
•The RCTA can be set to on/off in User Settings from the LCD Instrument
Cluster modes .
REMINDERS:
• When the BSD is ON and the vehicle power is cycled to OFF then ON again, the BSD system returns to ON
• The RCTA feature can be turned OFF/ON in User Settings . When vehicle power is cycled, the RCTA will remain in the previous state
For more information on the above systems, please refer to the Owner’s Manual.
Blind Spot Detection System w/ RCTA Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www.KuTechVideos.com/yp13/2016
AD
B
C
A
B
C
(Button panel located left of Steering Wheel)
SEDONA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
DRIVER'S PANEL

12
(Button located left of Steering Wheel)
Power Windows, Window Lock & Central Door Lock
[A] Pull/Press to operate Front Windows Auto Up/Down*
[B] Press to Unlock /Lock All Doors
[C] Press to disable Rear Passenger Windows
REMINDER: When pressed [C], window controls for the Rear Passenger Windows are disabled .
Power Folding Outside Mirrors*
Press the L or R buttons [D] to select the mirror to adjust .
Press button arrows [E] left /right or up/down to adjust mirror position .
Toggle button [F] left /right to unfold/fold the outside rearview mirrors .
Toggle button [F] to center to automatically fold/unfold mirrors when:
•The Smart Key Lock /Unlock buttons are pressed
•The door outside handle button is pressed
REMINDERS:
• When mirror button [f ] is in the center, press the Lock button on the Smart Key to automatically fold the mirrors
•To lock position of mirrors, toggle switch to the neutral (center) position
Heated Outside Mirrors*
Mirror heaters are controlled with Rear Defroster .
Automatic Door Lock/Unlock
Auto Door Lock /Unlock will engage when the gear shift is moved
in to or out of the P (Park) position .
Fuel Door Release Button
Press the Fuel Door Release
button to release the fuel door .
(Button/switch panel located on Driver's Door )
The mirrors will automatically unfold when the Smart Key* is within close proximity to the vehicle .
QUICK TIP
ABC
D
D
E
FA
B
C
D
E
F
F
F
C
SEDONA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
DRIVER'S PANEL

45

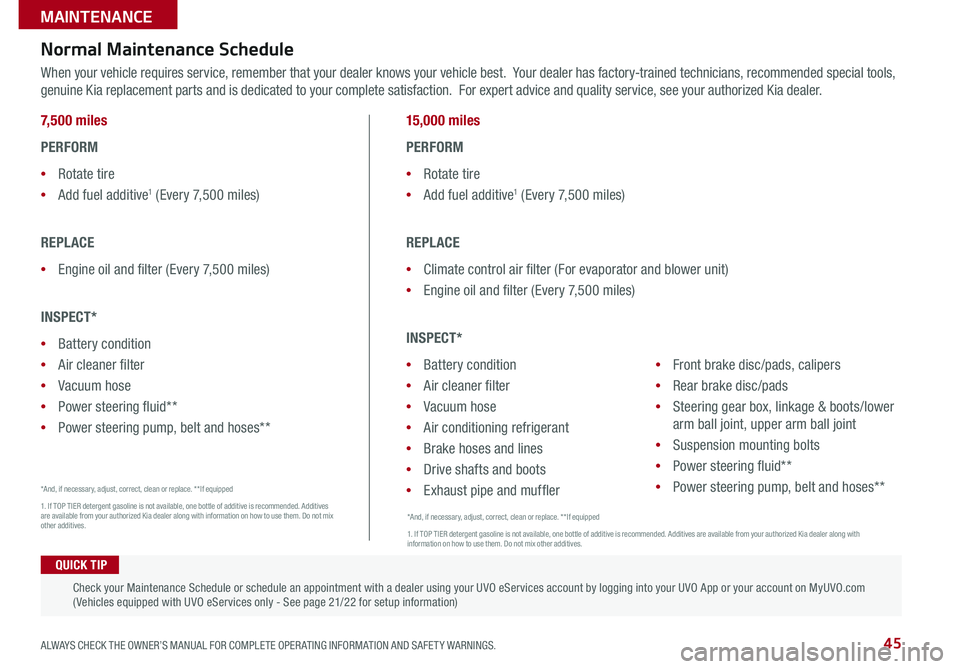

Normal Maintenance Schedule
When your vehicle requires service, remember that your dealer knows your vehicle best . Your dealer has factory-trained technicians, recommended special tools,
genuine Kia replacement parts and is dedicated to your complete satisfaction . For expert advice and quality service, see your authorized Kia dealer .
7,500 miles
PERFORM
•Rotate tire
•Add fuel additive1 (Every 7,500 miles)
REPLACE
•Engine oil and filter (Every 7,500 miles)
INSPECT*
•Battery condition
•Air cleaner filter
•Vacuum hose
•Power steering fluid**
•Power steering pump, belt and hoses**
15,000 miles
PERFORM
•Rotate tire
•Add fuel additive1 (Every 7,500 miles)
REPLACE
•Climate control air filter (For evaporator and blower unit)
•Engine oil and filter (Every 7,500 miles)
INSPECT*
•Battery condition
•Air cleaner filter
•Vacuum hose
•Air conditioning refrigerant
•Brake hoses and lines
•Drive shafts and boots
•Exhaust pipe and muffler
•Front brake disc/pads, calipers
•Rear brake disc/pads
•Steering gear box, linkage & boots/lower
arm ball joint, upper arm ball joint
•Suspension mounting bolts
•Power steering fluid**
•Power steering pump, belt and hoses**
*And, if necessary, adjust, correct, clean or replace . * *If equipped
1 . If TOP TIER detergent gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .
QUICK TIP
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO eServices account by logging into your UVO App or your account on MyUVO . com ( Vehicles equipped with UVO eServices only - See page 21/22 for setup information)
*And, if necessary, adjust, correct, clean or replace . * *If equipped
1 . If TOP TIER detergent gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
MAINTENANCE

46
Normal Maintenance Schedule (Continued)
22,500 miles
PERFORM
•Rotate tire
•Add fuel additive1 (Every 7,500 miles)
REPLACE
•Engine oil and filter (Every 7,500 miles)
INSPECT*
•Battery condition
•Air cleaner filter
•Vacuum hose
•Power steering fluid**
•Power steering pump, belt and hoses**
30,000 miles
PERFORM
•Rotate tire
•Add fuel additive1 (Every 7,500 miles)
REPLACE
•Climate control air filter (For evaporator and blower unit)
•Air cleaner filter
•Engine oil and filter (Every 7,500 miles)
INSPECT*
•Battery condition
•Vacuum hose
•Air conditioning refrigerant
•Brake hoses and lines
•Drive shafts and boots
•Exhaust system
•Front brake disc/pads, calipers
•Rear brake disc/pads
•Steering gear box, linkage & boots/
lower arm ball joint, upper arm ball joint
•Suspension mounting bolts
•Brake fluid
•Fuel filter2
•Fuel lines, fuel hoses and connections
•Fuel tank air filter2
•Parking brake
•Vapor hose and fuel filler cap
•Power steering fluid**
•Power steering pump, belt and hoses**
*And, if necessary, adjust, correct, clean or replace . **If equipped
1 . If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .
*And, if necessary, adjust, correct, clean or replace . * *If equipped
1 . If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives . 2 . Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality . If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized Kia dealer for details .
SEDONA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
MAINTENANCE

47
Normal Maintenance Schedule (Continued)
37,500 miles
PERFORM
•Rotate tire
•Add fuel additive1 (Every 7,500 miles)
REPLACE
•Engine oil and filter (Every 7,500 miles)
INSPECT*
•Battery condition
•Air cleaner filter
•Vacuum hose
•Power steering fluid**
•Power steering pump, belt and hoses**
45,000 miles
PERFORM
•Rotate tire
•Fuel additive1 (Every 7,500 miles)
REPLACE
•Climate control air filter (For evaporator and blower unit)
•Engine oil and filter (Every 7,500 miles)
INSPECT*
•Battery condition
•Air cleaner filter
•Vacuum hose
•Air conditioning refrigerant
•Brake hoses and lines
•Drive shafts and boots
•Exhaust system
•Front brake disc/pads, calipers
•Rear brake disc/pads
•Steering gear box, linkage &
boots/lower arm ball joint, upper
arm ball joint
•Suspension mounting bolts
•Power steering fluid**
•Power steering pump,
belt and hoses**
*And, if necessary, adjust, correct, clean or replace . * *If equipped
1 . If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .
*And, if necessary, adjust, correct, clean or replace . * *If equipped
1 . If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
MAINTENANCE

48
52,500 miles
PERFORM
•Rotate tire
•Add fuel additive1 (Every 7,500 miles)
REPLACE
•Engine oil and filter (Every 7,500 miles)
INSPECT*
•Battery condition
•Air cleaner filter
•Vacuum hose
•Power steering fluid**
•Power steering pump, belt and hoses**
60,000 miles
PERFORM
•Rotate tire
•Add fuel additive1 (Every 7,500 miles)
REPLACE
•Climate control air filter (For evaporator and blower unit)
•Air cleaner filter
•Engine oil and filter (Every 7,500 miles)
INSPECT*
•Battery condition
•Vacuum hose
•Air conditioning refrigerant
•Brake hoses and lines
•Drive shafts and boots
•Exhaust system
•Front brake disc/pads, calipers
•Rear brake disc/pads
•Steering gear box, linkage & boots/lower arm
ball joint, upper arm ball joint
•Suspension mounting bolts
•Brake fluid
•Fuel filter3
•Fuel lines, fuel hoses and connections
•Fuel tank air filter2
•Parking brake
•Valve clearance3
•Vapor hose and fuel filler cap
•Drive belts4 (First, 60,000 miles after that,
every 15,000 miles)
•Power steering fluid**
•Power steering pump, belt and hoses**
Normal Maintenance Schedule (Continued)
*And, if necessary, adjust, correct, clean or replace . * *If equipped 1 . If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives . 2 . Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality . If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized Kia dealer for details . 3 . Inspect for excessive tappet noise and/or engine vibration and adjust if necessary . 4 . The drive belt should be replaced when cracks occur or tension is reduced excessively .
*And, if necessary, adjust, correct, clean or replace . **If equipped
1 . If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .
SEDONA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
MAINTENANCE
