Head Unit
NameDescription
0003000300330032003A002800350012
000300390032002F When power is off, press to turn power on
When power is on, press and hold (over 0.8 seconds) to turn
power off
When power is on, press shortly (under 0.8 seconds) to turn Audio off
Turn left/right to control volume
003500240027002C0032Converts to FM/AM/SiriusXM™ mode
Each time the key is pressed, the mode is changed in order of FM 0003
044F0003 AM 0003044F0003
SiriusXM™ 0003044F0003
FM
003000280027002C0024Converts to MEDIA mode
If the media is not connected or the CD player is not available
for Model, MEDIA mode will not be activated.
003800390032Displays the UVO mode
0033002B003200310028Takes user to phone screen
When key is pressed shortly. (under 0.8 seconds)
FM/AM mode: plays previous/next frequency
SiriusXM™ mode: plays the previous/next channel
MEDIA (Disc/USB/iPod/My Music) mode: changes the track, file or chapter (except USB Image and AUX)
When key is pressed and held. (over 0.8 seconds)
FM/AM mode: continuously changes the frequency until the key is released
SiriusXM™ mode: continuously changes the channel until the key is released and plays the current channel
MEDIA (Disc/USB/iPod/My Music) mode: rewinds or fastforwards the track or file (except USB Image, Bluetooth Audio and AUX)
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 6 of 92
3
NameDescription
003000240033
00390032002C00260028Displays the map for the current position
00310024Takes you to the menu screen where you can find your destina-
tion and set the route.
002C003100290032Displays the information mode
00360028003700380033Displays the Setup mode
0037003800310028 FM/AM mode: changes the frequency
SiriusXM™ mode: changes the channel
MEDIA (Disc/USB/iPod/My Music) mode: changes the track,
file or title (except USB Image, Bluetooth Audio and AUX)
Press to insert or eject disc
00350028003600280037 Resets the system settings. (Preset radio channels and other
data will not be deleted.)
SD Card insert slot
0424
The actual feature in the vehicle may differ from the illustration.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 7 of 92
4
Steering Wheel Remote Controller
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
NameDescription
When pressed shortly. (under 0.8 seconds)
Activates voice recognition
When pressed and held. (over 0.8 seconds)
Ends voice recognition
Activates Siri Eyes Free
0030003200270028
Each time this key is pressed, mode is changed in order of FM
044F AM 044F
SiriusXM™ 044F
Disc 044F0003
USB Music or iPod 044F
AUX 044F
Bluetooth Audio 044F
My Music
If the media is not connected, corresponding modes will be dis- abled
Press and hold the key (over 0.8 seconds) to turn the Audio system on/off
When power is off, press the key to turn power back on
000E
0010Controls the volume
0003
0003
When keys are pressed shortly. (under 0.8 seconds)
FM/AM mode: searches broadcast frequencies saved to Presets
SiriusXM™ mode: searches broadcast channels saved to Presets
MEDIA(Disc/USB/iPod/My Music) mode: changes the track, file or chapter (except USB Image, AUX)
When keys are pressed and held. (over 0.8 seconds)
FM/AM Mode: Automatically searches broadcast frequencies
SiriusXM™ mode: automatically searches broadcast channels
MEDIA(Disc/USB/iPod/My Music) mode: Quickly looks up songs (excluding USB images, AUX, and Bluetooth audio files)
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 17 of 92
14
HD Radio™ Mode Display Controls
NameDescription
HD Radio™
Reception
&Channel
buttons Displays main HD Radio™ channels and used to directly select
the currently available channels.
HD Radio technology allows AM and FM radio stations to
transmit audio and data using a digital signal. The HD Radio
format allows stations to simultaneously broadcast one or
more different programs in addition to the program being
transmitted on the station’s analog channel. When the HD
Radio soft button on the screen is ON (red indicator on the
HD Radio button is illuminated), HD Radio reception will
become active whenever a broadcast channel sends an
HD Radio signal and when the vehicle is in areas where the
signal reception is strong. If multiple HD Radio programs are
available, a soft button for each channel will appear on the
screen allowing you to select from HD1, HD2, etc.
HD Channel
Number Analog station and corresponding HD Radio channel number
saved in the preset list.
Broadcast
Info Displays detailed information about the current broadcast (the
details of the information shown are different depending on
whether the Info button is selected)
HD Radio
When the HD Radio soft button is ON (the red indicator on
the HD Radio button is illuminated), HD Radio signals will be
received.
002B00270003003500440047004C0052043000030037
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 30 of 92
27
Features Description
Back Button Move to home/previous
mode screen
i
Information
key, 0037003800310028
is not supported.
NOTICE
If only cable connected to the AUX
without an exter
nal device, the mode
changed to AUX, but noise may occur.
When an external device is not being
used, remove the connector jack.
When the external device power is
connected to the po w
er jack, playing
the external device may output noise.
In such cases, disconnect the power
connection before use.
0424 The actual feature in the vehicle
may differ from the illustration.
00240038003B
Connecting an
External Device
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will
be restored.
AUX mode can be used only when
an external audio player (cam-
corder, car VCR, etc.) has been
connected.
The AUX volume can also be controlled separately through the
connected device.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 31 of 92
28
Bluetooth® Audio Mode Display Controls
0025004F005800480057005200520057004B00710003002400580047004C0052
FeaturesDescription
Mode
Displays the current operating mode
Phone Name Displays name of connected phone
Artist InfoName of current artist
TitleName of current song
Previous File If play time is less than 3 seconds, moves to the previous file
If play time is more than 3 seconds, plays the current file
from the beginning
This function may differ depending on the model of mobile phone.
Play/Pause Plays/Pauses Bluetooth Audio
Next FileMoves to the next file
RepeatRepeats the current file This function may differ depending on the model of mobile
phone.
Shuffle Plays files in random order This function may differ depending on the model of mobile
phone.
Connections Moves to the Bluetooth Settings screen. You can pair a new
device or change/delete paired device(s)
SEEK/TRACK Plays the previous/next file
TUNE
00030037003800310028 is not supported.
i Information
Artist info and Title may not be supported by mobile phone.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 47 of 92
44
Radio Commands
CommandOperation
052CRadioPlays the most recent radio channels from FM, AM, and
SiriusXM™.
052CFM
Plays FM radio.
052CFM
<87.5~107.9>Tunes to FM
e.g.) FM 87.5: FM eighty seven point five
052CSiriusXM Plays SiriusXM™ radio.
052CSiriusXM
Channel
<0~999>Tunes to SiriusXM™ Channel
ing to what you say.
e.g.) SiriusXM Channel 23: SiriusXM Channel twenty three
052CAM
Plays AM radio.
052CAM <530~1710>Tunes to AM
e.g.) AM 530: AM five thirty
052APreset <1~18> Tunes to your preset stations (1 to 18).
052AChannel
<0~999>In SiriusXM™ Radio mode, turns on the
Media Commands
* Check the followings before you use media commands.
1. If no media is connected or if no playable files exist at the time when you use these
commands, a voice message will tell you that this is not available at present.
2. If you say the name of the media that is currently playing again, then that media will continue playing. e.g.) Saying “USB” while USB content is playing.
Command Operation
052CMusic Continues the last media you played.
052CCD CD Plays the content of the CD currently inserted.
052CiPodPlays the iPod currently connected. This will work the same when
an iPhone is connected. If a USB is connected, then it will be
played instead of the iPod.
052CUSB
Plays the music on the USB currently connected.
If an iPod is connected, then the iPod will be played instead of the USB.
052CBluetooth
AudioPlays the music on the Bluetooth phone currently connected.This may not be supported depending on the Bluetooth connection status.
052CAUX Plays external devices that are currently connected.
052CMy Music Plays My Music files stored in the system.
052CPandora
RadioPlays Pandora Radio that is currently connected. Pandora Radio
operates according to the iPod® that is currently connected.
0039
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 48 of 92
45

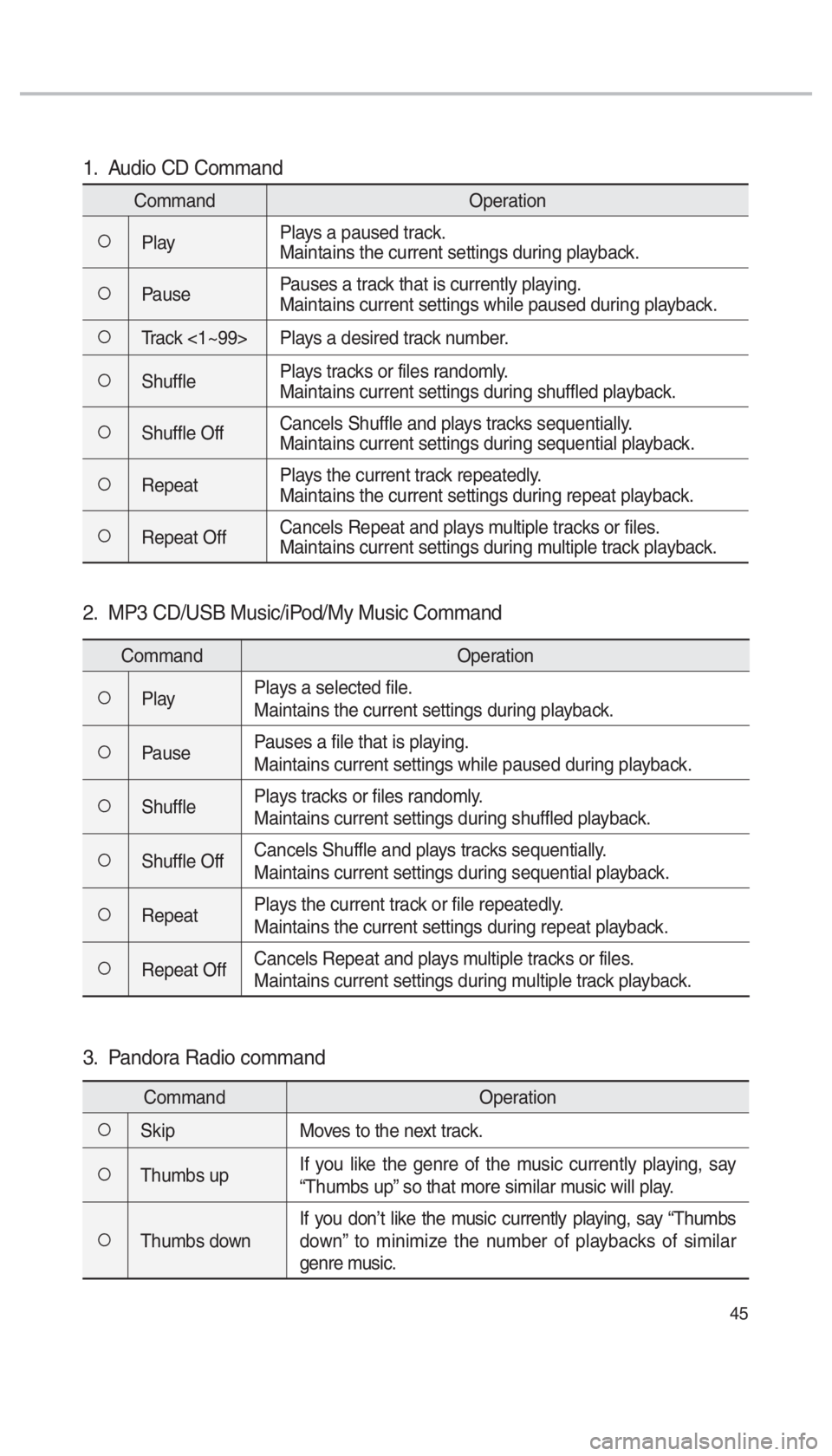

1. Audio CD Command
CommandOperation
052APlayPlays a paused track.
Maintains the current settings during playback.
052APausePauses a track that is currently playing.
Maintains current settings while paused during playback.
052ATrack <1~99> Plays a desired track number.
052AShufflePlays tracks or files randomly.
Maintains current settings during shuffled playback.
052AShuffle OffCancels Shuffle and plays tracks sequentially.
Maintains current settings during sequential playback.
052ARepeatPlays the current track repeatedly.
Maintains the current settings during repeat playback.
052ARepeat OffCancels Repeat and plays multiple tracks or files.
Maintains current settings during multiple track playback.
2. MP3 CD/USB Music/iPod/My Music Command
Command
Operation
052APlayPlays a selected file.
Maintains the current settings during playback.
052APausePauses a file that is playing.
Maintains current settings while paused during playback.
052AShufflePlays tracks or files randomly.
Maintains current settings during shuffled playback.
052AShuffle OffCancels Shuffle and plays tracks sequentially.
Maintains current settings during sequential playback.
052ARepeatPlays the current track or file repeatedly.
Maintains the current settings during repeat playback.
052ARepeat OffCancels Repeat and plays multiple tracks or files.
Maintains current settings during multiple track playback.
3. Pandora Radio command
Command
Operation
052ASkipMoves to the next track.
052AThumbs upIf you like the genre of the music currently playing, say
“Thumbs up” so that more similar music will play.
052AThumbs downIf you don’t like the music currently playing, say “Thumbs
down” to minimize the number of playbacks of similar
genre music.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 49 of 92
46
0039
4. Bluetooth Audio/AUX Command
Bluetooth Audio supports different functions according to connected devices, therefore some commands are unavailable, including Play, Stop, Previous
Song, and Next Song.
For external devices (AUX) and some commands are unavailable, including Play, Stop, Previous, and Next.
UVO eServices Commands List
Command Operation
052CRoadside AssistConnect with a Roadside Assist agent.
052CVehicle
DiagnosticsInforms you if diagnostic issue are found in your vehicle
052CMy POIsDisplays Points of Interest list which were downloaded
from Google Maps and MyUVO
052CeService Guide Provides guidance on how to use UVO eServices
Other Commands List
(Commands used in List/Help)
Command
Operation
052CHelpMoves to the voice recognition help screen.
All available commands can then be identified and used.
052ALine 1~5
(One~Five)When you cannot select a certain name, such as in Call
History, you can select it using numbers.
Simple numbers can be recognized, such as “One” or
“Two”.
052AYes/No
When voice recognition is activated, this command is
used when an answer is requested for a confirmation
question.
052APrevious Page/
Next PageWhen five or more searched items are listed, you can
move to the previous or next page using a voice com-
mand.
052AManual InputWhen Dial or POI Name search results are displayed,
this command is used to search manually, rather than to
search with a voice command.
Voice recognition stops after this command is used.
052AGo Back
Moves to the previous screen.
052CExitEnds the voice recognition.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
