KIA SEDONA 2019 User Guide

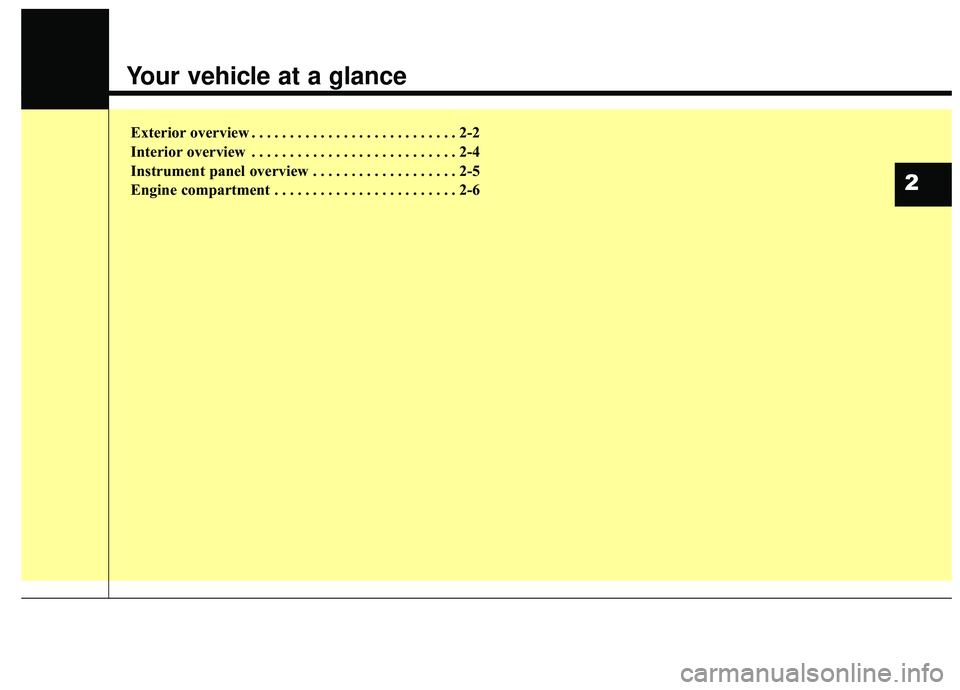

Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Your vehicle at a glance
2

Your vehicle at a glance
22

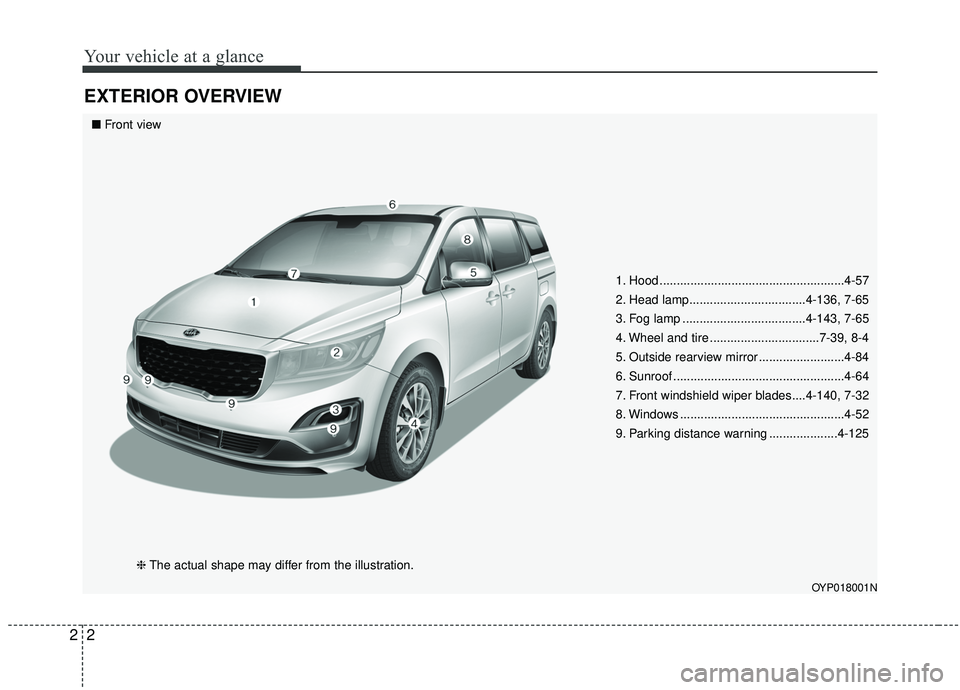

EXTERIOR OVERVIEW
1. Hood ......................................................4-57
2. Head lamp..................................4-136, 7-65
3. Fog lamp ....................................4-143, 7-65
4. Wheel and tire ................................7-39, 8-4
5. Outside rearview mirror .........................4-84
6. Sunroof ..................................................4-64
7. Front windshield wiper blades....4-140, 7-32
8. Windows ................................................4-52
9. Parking distance warning ....................4-125
OYP018001N
■Front view
❈The actual shape may differ from the illustration.

23

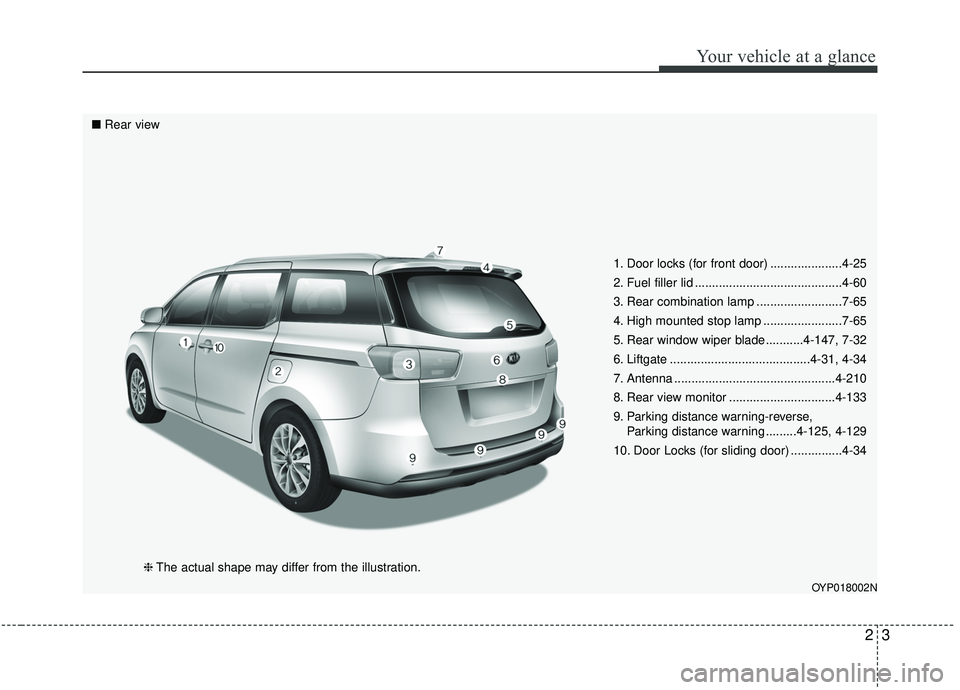

Your vehicle at a glance
1. Door locks (for front door) .....................4-25
2. Fuel filler lid ...........................................4-60
3. Rear combination lamp .........................7-65
4. High mounted stop lamp .......................7-65
5. Rear window wiper blade ...........4-147, 7-32
6. Liftgate .........................................4-31, 4-34
7. Antenna ...............................................4-210
8. Rear view monitor ...............................4-133
9. Parking distance warning-reverse, Parking distance warning .........4-125, 4-129
10. Door Locks (for sliding door) ...............4-34
OYP018002N
■ Rear view
❈The actual shape may differ from the illustration.

Your vehicle at a glance
42

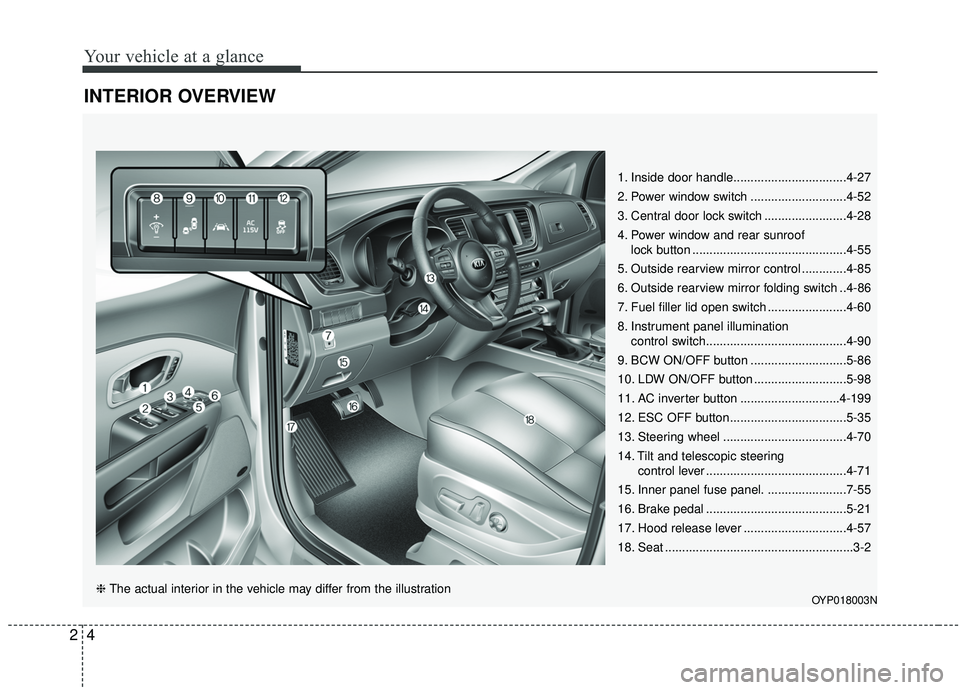

INTERIOR OVERVIEW
1. Inside door handle.................................4-27
2. Power window switch ............................4-52
3. Central door lock switch ........................4-28
4. Power window and rear sunrooflock button .............................................4-55
5. Outside rearview mirror control .............4-85
6. Outside rearview mirror folding switch ..4-86
7. Fuel filler lid open switch .......................4-60
8. Instrument panel illumination control switch.........................................4-90
9. BCW ON/OFF button ............................5-86
10. LDW ON/OFF button ...........................5-98
11. AC inverter button .............................4-199
12. ESC OFF button..................................5-35
13. Steering wheel ....................................4-70
14. Tilt and telescopic steering control lever .........................................4-71
15. Inner panel fuse panel. .......................7-55
16. Brake pedal .........................................5-21
17. Hood release lever ..............................4-57
18. Seat .......................................................3-2
OYP018003N❈ The actual interior in the vehicle may differ from the illustration

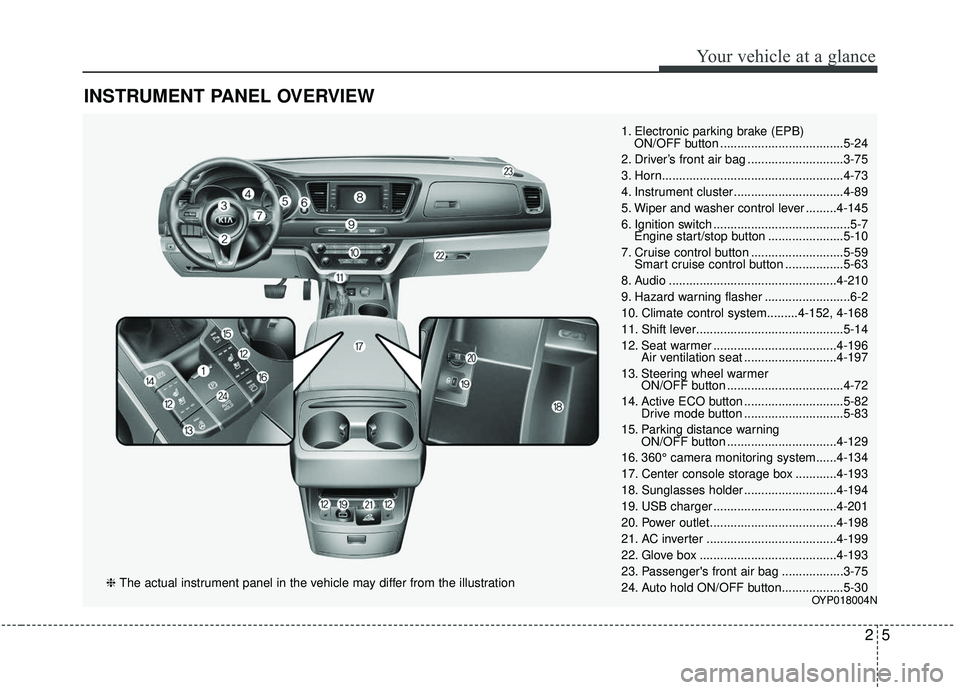

INSTRUMENT PANEL OVERVIEW
25
Your vehicle at a glance
1. Electronic parking brake (EPB) ON/OFF button ....................................5-24
2. Driver’s front air bag ............................3-75
3. Horn.....................................................4-73
4. Instrument cluster ................................4-89
5. Wiper and washer control lever .........4-145
6. Ignition switch ........................................5-7 Engine start/stop button ......................5-10
7. Cruise control button ...........................5-59 Smart cruise control button .................5-63
8. Audio .................................................4-210
9. Hazard warning flasher .........................6-2
10. Climate control system.........4-152, 4-168
11. Shift lever...........................................5-14
12. Seat warmer ....................................4-196 Air ventilation seat ...........................4-197
13. Steering wheel warmer ON/OFF button ..................................4-72
14. Active ECO button .............................5-82 Drive mode button .............................5-83
15. Parking distance warning ON/OFF button ................................4-129
16. 360° camera monitoring system......4-134
17. Center console storage box ............4-193
18. Sunglasses holder ...........................4-194
19. USB charger ....................................4-201
20. Power outlet.....................................4-198
21. AC inverter ......................................4-199
22. Glove box ........................................4-193
23. Passenger's front air bag ..................3-75
24. Auto hold ON/OFF button..................5-30
OYP018004N
❈ The actual instrument panel in the vehicle may differ from the illustration

Your vehicle at a glance
62

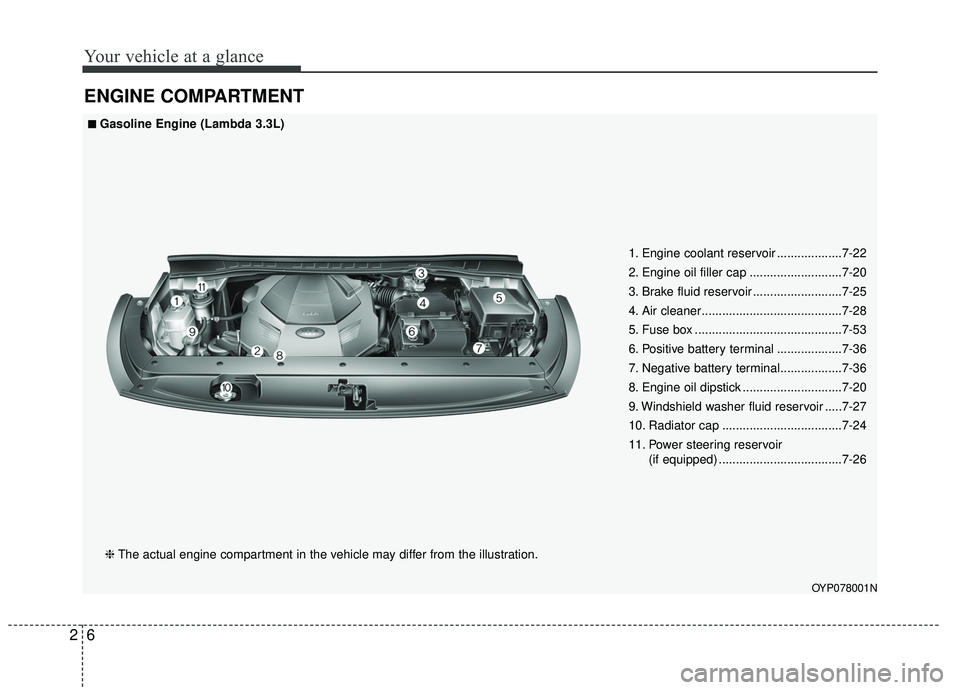

ENGINE COMPARTMENT
OYP078001N
❈The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................7-22
2. Engine oil filler cap ...........................7-20
3. Brake fluid reservoir ..........................7-25
4. Air cleaner.........................................7-28
5. Fuse box ...........................................7-53
6. Positive battery terminal ...................7-36
7. Negative battery terminal..................7-36
8. Engine oil dipstick .............................7-20
9. Windshield washer fluid reservoir .....7-27
10. Radiator cap ...................................7-24
11. Power steering reservoir
(if equipped) ....................................7-26
■ ■Gasoline Engine (Lambda 3.3L)

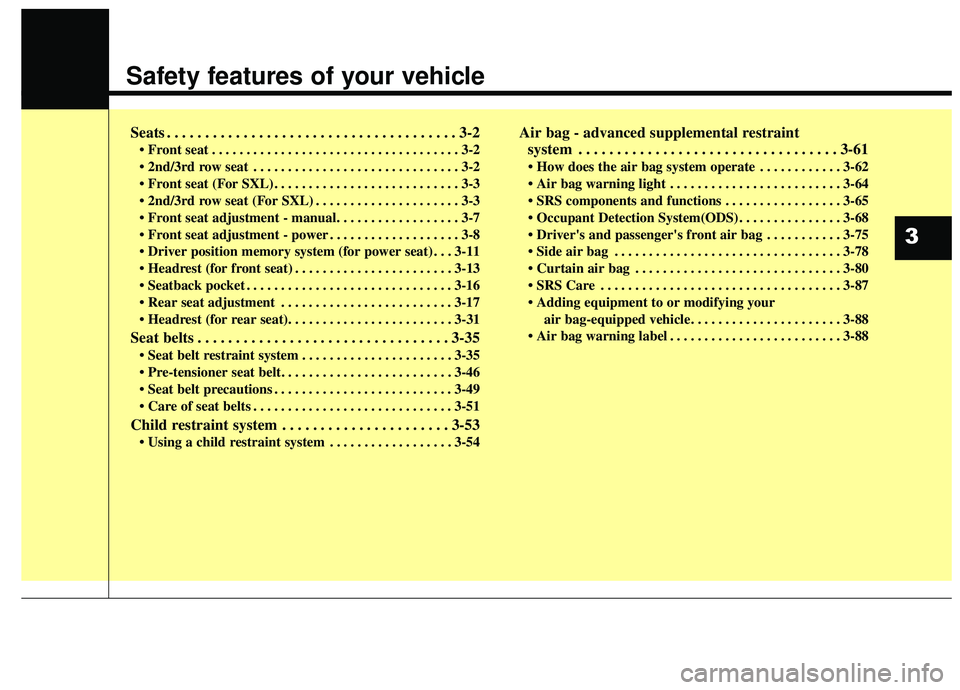

Safety features of your vehicle
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 3-2
• Front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
. . . . . . . . . . . . . . . . . . . . . 3-3

. . . . . . . . . . . . . . . . . . . 3-8
. . . 3-11
. . . . . . . . . . . . . . . . . . . . . . . 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
. . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
. . . . . . . . . . . . . . . . . . . . . . 3-35

. . . . . . . . . . . . . . . . . . . . . . . . . . 3-49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-51
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-53
. . . . . . . . . . . . . . . . . . 3-54
Air bag - advanced supplemental restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-61\
. . . . . . . . . . . . 3-62
. . . . . . . . . . . . . . . . . . . . . . . . . 3-64
. . . . . . . . . . . . . . . . . 3-65
. . . . . . . . . . . . . . . 3-68
. . . . . . . . . . . 3-75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
87

air bag-equipped vehicle. . . . . . . . . . . . . . . . . . . . . . 3-88
. . . . . . . . . . . . . . . . . . . . . . . . . 3-88
3

Safety features of your vehicle
23
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height
(4) Lumbar support (Driver’s seat)
(5) Driver position memory
(6) Headrest
(7) Walk-in switch
2nd / 3rd row seat
(8) Forward and backward
(9) Seatback angle and folding
(10) Walk-in
(11) Headrest
(12) Armrest
(13) Seatback angle and folding
(14) Seat sinking
(15) Headrest

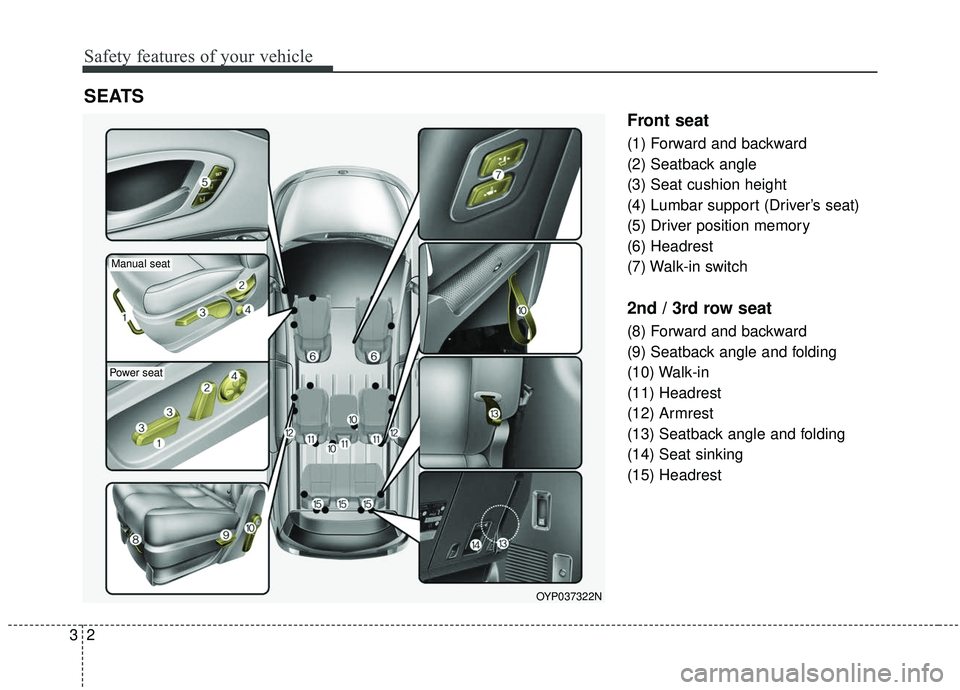

SEATS
OYP037322N
Manual seat
Power seat

33
Safety features of your vehicle

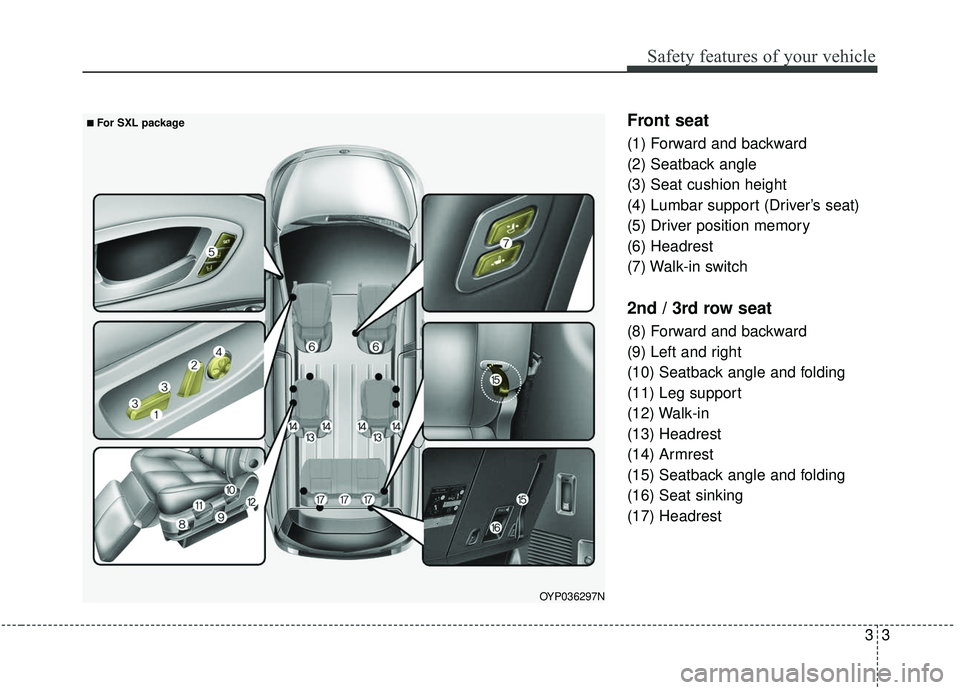

Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height
(4) Lumbar support (Driver’s seat)
(5) Driver position memory
(6) Headrest
(7) Walk-in switch
2nd / 3rd row seat
(8) Forward and backward
(9) Left and right
(10) Seatback angle and folding
(11) Leg support
(12) Walk-in
(13) Headrest
(14) Armrest
(15) Seatback angle and folding
(16) Seat sinking
(17) Headrest
OYP036297N
■For SXL package

Safety features of your vehicle
43

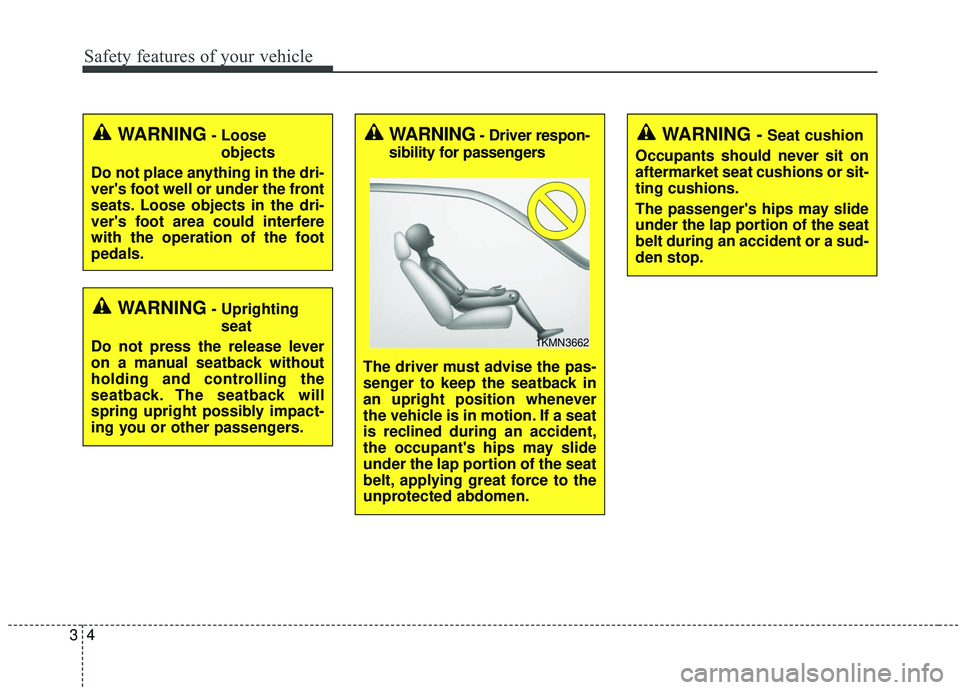

WARNING- Uprightingseat
Do not press the release lever
on a manual seatback without
holding and controlling the
seatback. The seatback will
spring upright possibly impact-
ing you or other passengers.
WARNING- Loose objects
Do not place anything in the dri-
ver's foot well or under the front
seats. Loose objects in the dri-
ver's foot area could interfere
with the operation of the foot
pedals.WARNING- Driver respon-
sibility for passengers
The driver must advise the pas-
senger to keep the seatback in
an upright position whenever
the vehicle is in motion. If a seat
is reclined during an accident,
the occupant's hips may slide
under the lap portion of the seat
belt, applying great force to the
unprotected abdomen.
1KMN3662
WARNING - Seat cushion
Occupants should never sit on
aftermarket seat cushions or sit-
ting cushions.
The passenger's hips may slide
under the lap portion of the seat
belt during an accident or a sud-
den stop.
