KIA SEDONA 2019 Rear Seat Entertainment System
Manufacturer: KIA, Model Year: 2019, Model line: SEDONA, Model: KIA SEDONA 2019Pages: 5, PDF Size: 2.21 MB
Page 1 of 5

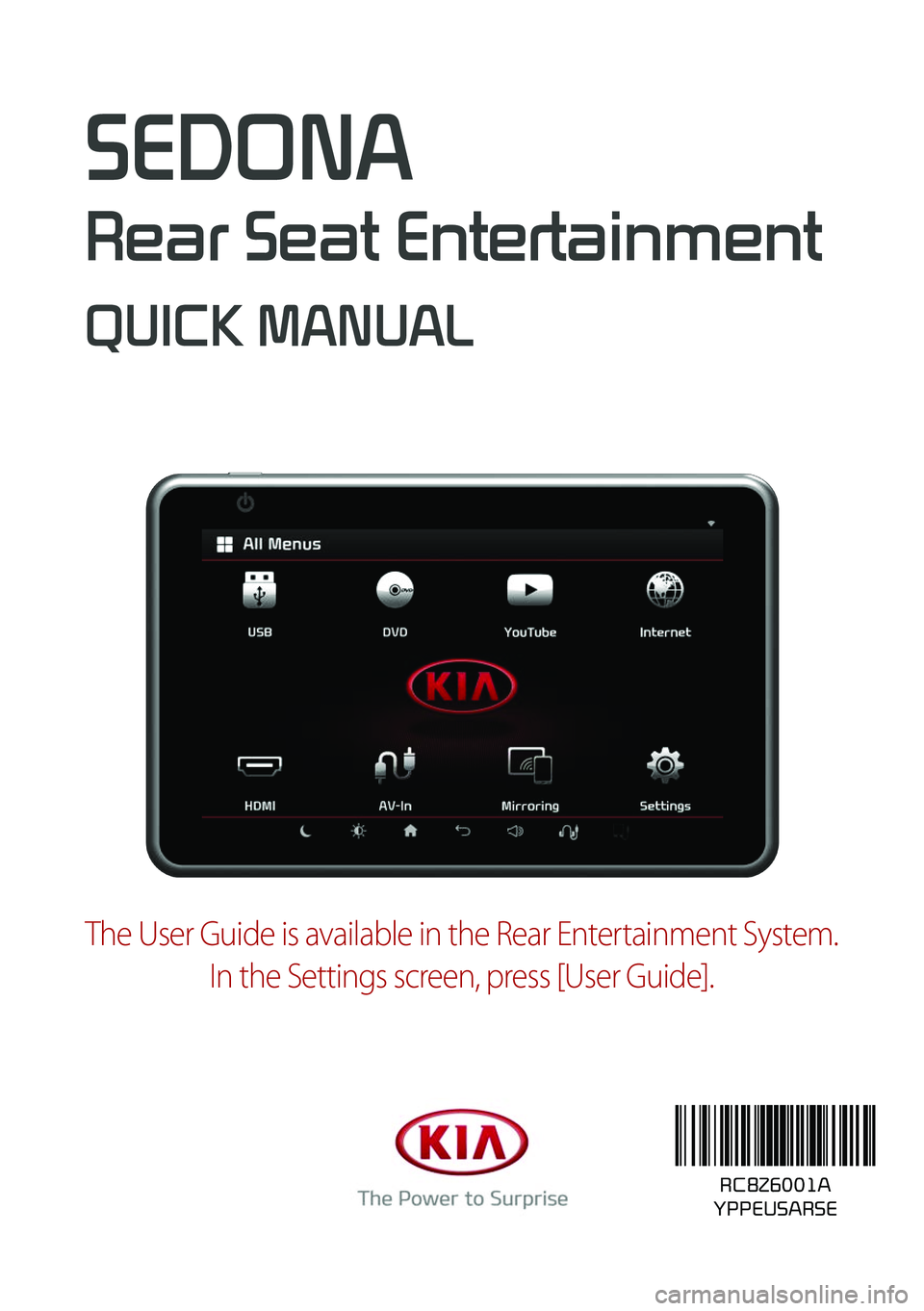

SEDONA
Rear Seat Entertainment
QUICK MANUAL
RC8Z6001ARC8Z6001A
YPPEUSARSE
The User Guide is available in the Rear Entertainment System.In the Settings screen, press [User Guide].
Page 2 of 5
Front
Display MonitorsLeft Side
Power Key
Press to turn
the unit on/off.Power Indicator LED
Disc Insert Slot
Ejecting Hole
Eject Key
Power Key
Battery Compartment
Slide the cover on the left headphone
from right to left to open the battery
compartment. Then replace the batteries.
* Battery charging through the Charging Port
is possible with the provided rechargeable
batteries. Reset
USB Port
Headphone Jack
AV IN
HDMI
LCD Touch Screen
DVD Deck
Wireless Headphones(Optional) Left
Power Button
Press and hold
(over 3 seconds)
to turn the
headphone on.
Charging Port
Connect Mini-USB
plug to charging port.

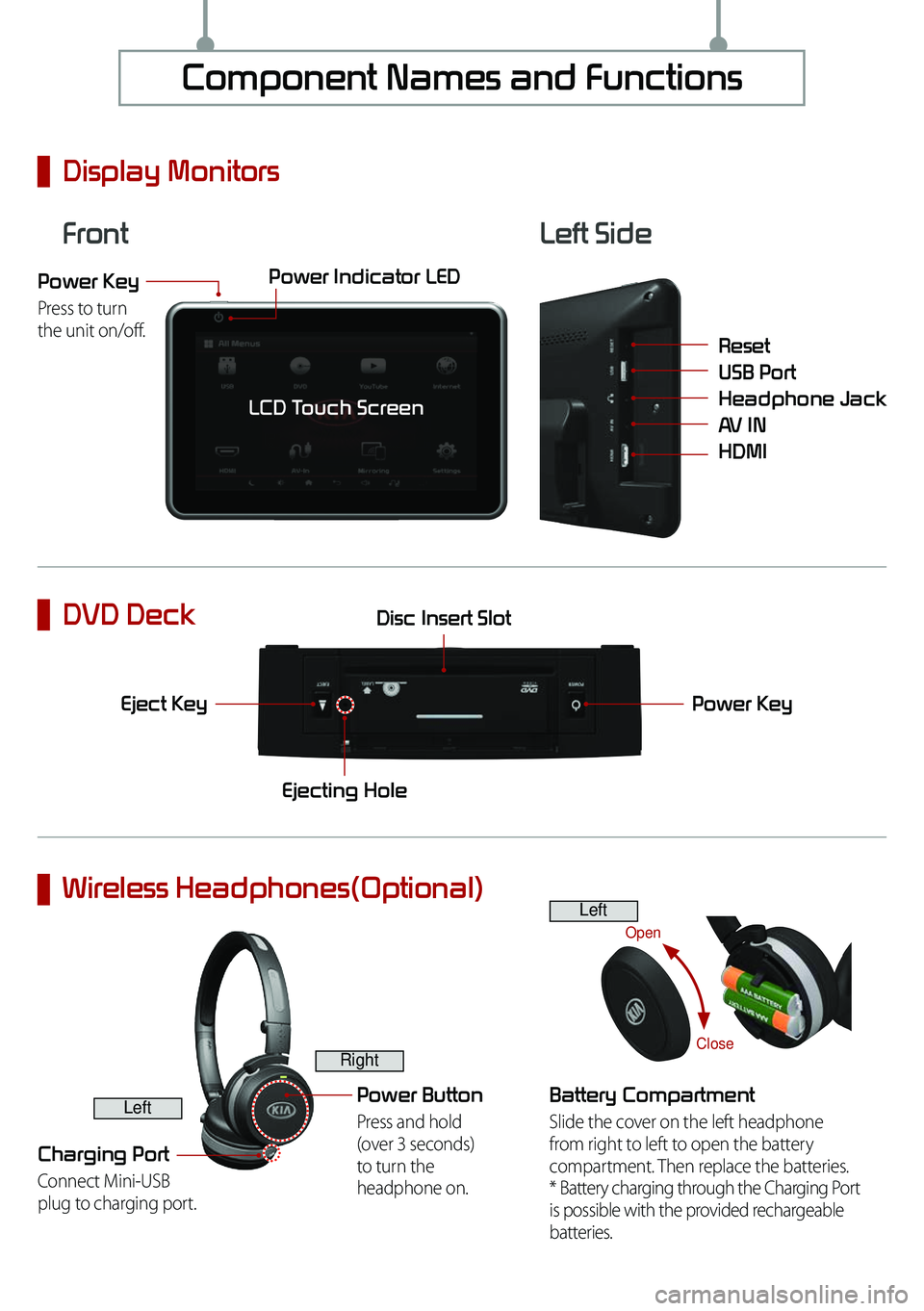

Component Names and Functions
Left
Right
Open
Close
Page 3 of 5

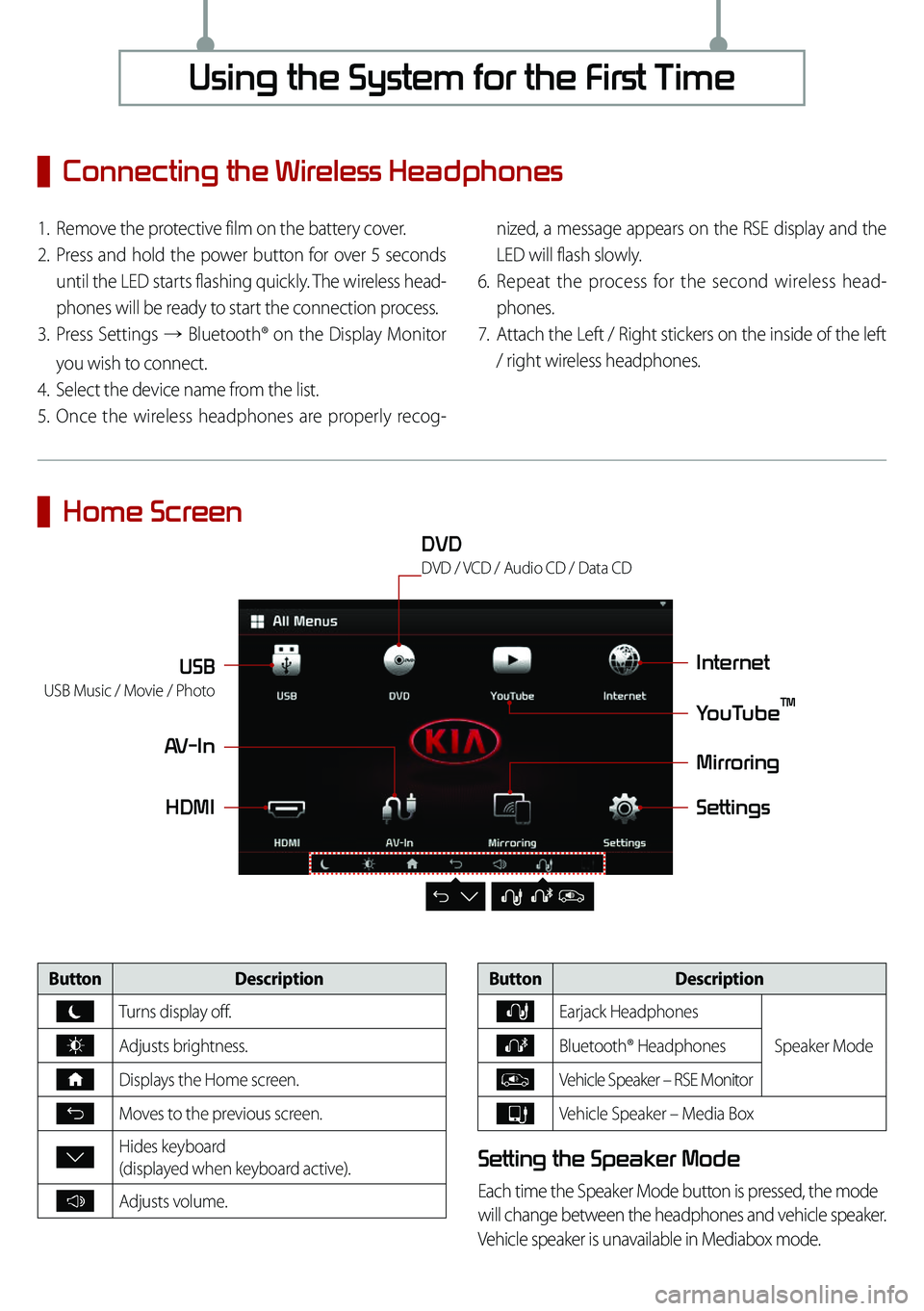

Connecting the Wireless Headphones
1. Remove the protective film on the battery cover.
2. Press and hold the power button for over 5 seconds
until the LED starts flashing quickly. The wireless head-
phones will be ready to start the connection process.
3. Press Settings → Bluetooth® on the Display Monitor
you wish to connect.
4. Select the device name from the list.
5. Once the wireless headphones are properly recog -nized, a message appears on the RSE display and the
LED will flash slowly.
6. Repeat the process for the second wireless head
-
phones.
7. Attach the Left / Right stickers on the inside of the left
/ right wireless headphones.
Home Screen
Button Description
Turns display off.
Adjusts brightness.
Displays the Home screen.
Moves to the previous screen.
Hides keyboard (displayed when keyboard active).
Adjusts volume.
ButtonDescription
Earjack Headphones
Speaker Mode
Bluetooth® Headphones
Vehicle Speaker – RSE Monitor
Vehicle Speaker – Media Box
Setting the Speaker Mode
Each time the Speaker Mode button is pressed, the mode
will change between the headphones and vehicle speaker.
Vehicle speaker is unavailable in Mediabox mode.
Using the System for the First Time
USB
USB Music / Movie / Photo
HDMI Internet
YouTube
TM
DVD
DVD / VCD / Audio CD / Data CD
Settings
AV-In
Mirroring
Page 4 of 5
Media
Connectivity

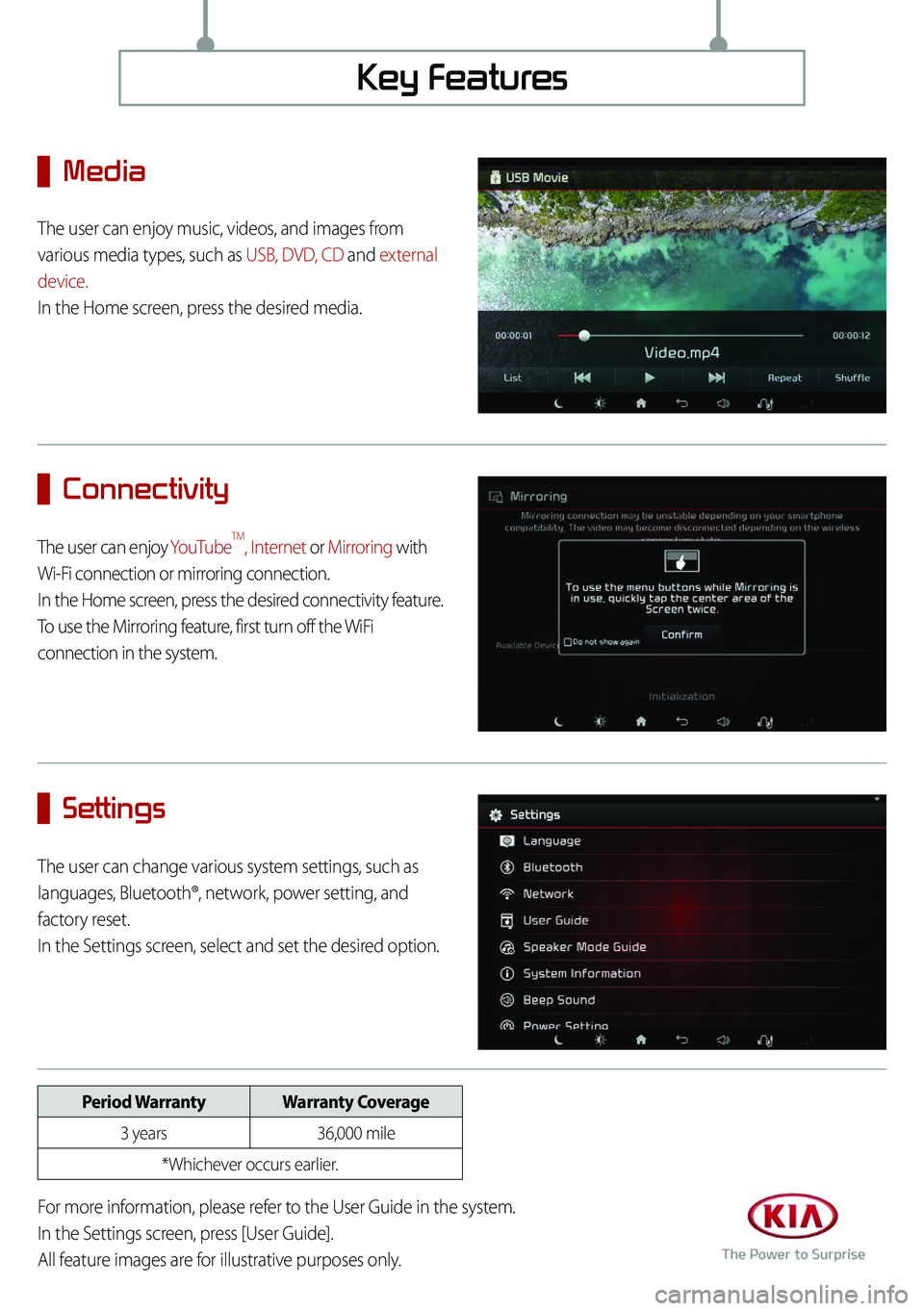

Key Features
The user can enjoy music, videos, and images from
various media types, such as USB, DVD, CD and external
device.
In the Home screen, press the desired media.
The user can enjoy YouTube
TM, Internet or Mirroring with
Wi-Fi connection or mirroring connection.
In the Home screen, press the desired connectivity feature.
To use the Mirroring feature, first turn off the WiFi
connection in the system.
Settings
The user can change various system settings, such as
languages, Bluetooth®, network, power setting, and
factory reset.
In the Settings screen, select and set the desired option.
For more information, please refer to the User Guide in the system.
In the Settings screen, press [User Guide].
All feature images are for illustrative purposes only.
Period Warranty Warranty Coverage
3 years 36,000 mile
*Whichever occurs earlier.
Page 5 of 5
Bluetooth® Wireless Technology: The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth® SIG Inc., and any use of such marks by Kia is pursuant to license. A Bluetooth® enabled cell phone is
required to use Bluetooth® wireless technology Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury
and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe
operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
YouTube
TM is a trademark of Google Inc.
Trademarks and Disclaimers
