Page 41 of 62
CENTER PANEL
CENTER PANEL
39 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Your Manual Climate Control system may differ from those in the illustrations . See section 4 in the Owner ’s Manual for more information .
01
2
3
4
Fan speed control knob
Air conditioning ON/OFF but ton*Rear window defroster but ton
Temperature control knobAir flow mode knob

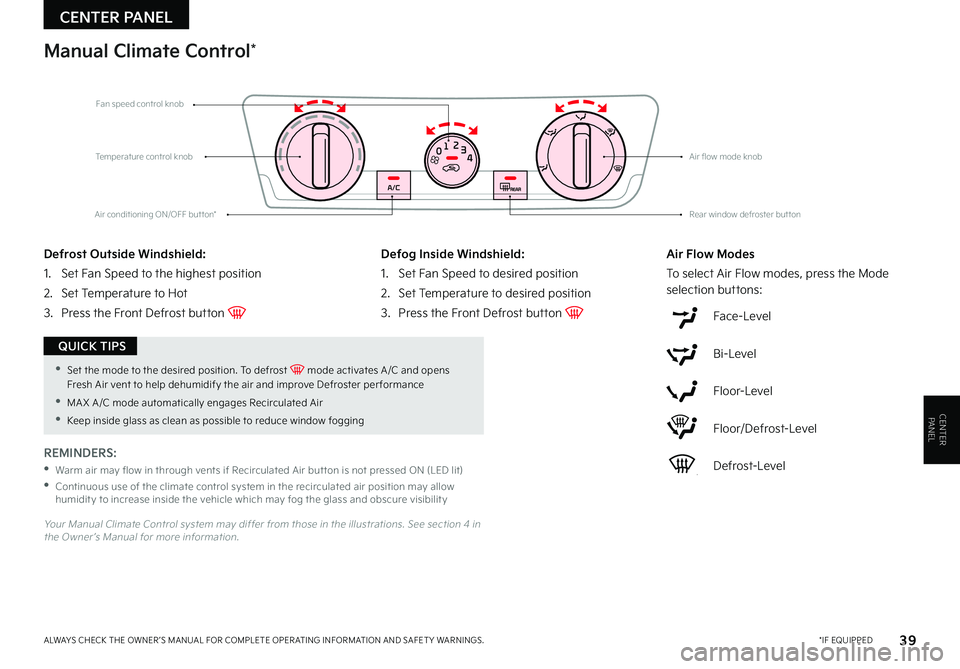

Manual Climate Control*
Defrost Outside Windshield:
1 . Set Fan Speed to the highest position
2 .
Set Temperature to Hot
3 .
Press the Front Defrost button
Defog Inside Windshield:
1 . Set Fan Speed to desired position
2 .
Set Temperature to desired position
3 .
Press the Front Defrost button
Air Flow Modes
To select Air Flow modes, press the Mode selection buttons:
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Defrost-Level
•Set the mode to the desired position . To defrost mode activates A /C and opens Fresh Air vent to help dehumidify the air and improve Defroster per formance
•MA X A /C mode automatically engages Recirculated Air
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
REMINDERS:
•
Warm air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
Page 42 of 62
See section 5 in the Owner ’s Manual for more information .CENTER PANEL
CENTER PANEL
40 *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
Idle, Stop & Go (ISG) System
The ISG system is designed to help reduce fuel consumption by automatically shutting down the engine when the vehicle is at a standstill .
When the ISG system is ON and the vehicle is at a standstill, the engine will stop, and the green AUTO STOP indicator A on the instrument cluster will illuminate green .
The engine will restart when the brake pedal is released or the shift lever is moved from D (Drive) to the R (Reverse) position or to Manual Shift mode . When engine restarts, the green AUTO STOP indicator on the instrument cluster will turn off .
To deactivate the ISG System, press the ISG OFF button B . If you press again, the system will be activated .
(Cluster B shown)
(But tons located on left of Steering Wheel)
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Idle, Stop & Go (ISG)Video
QR CODE
•The ISG system will not activate when:
– A seat belt is unfastened
– The hood or a door is opened
– Bat ter y condition is not adequate
– The front or rear defroster is turned on
– Engine coolant temperature is low
– The outside ambient temperature is too low/high
– Emission control devices activate
– The vehicle is on a steep slope
QUICK TIPSREMINDERS:
•
When the ISG system is on and the vehicle is at a standstill, the engine may not stop and the AUTO STOP indicator on the instrument cluster will illuminate YELLOW . This indicates the system is functional but not all enabling criteria have been met .
•
ISG is active by default at vehicle star tup . When ignition is cycled, ISG will turn ON again
•
Under cer tain conditions, the engine will restar t automatically even if the brake pedal is still depressed
•
If the AUTO STOP indicator is continuously blinking yellow and the ISG but ton LED is on, please contact an authorized Kia dealer
A
B
Page 43 of 62
CENTER PANEL
CENTER PANEL
41†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
P
R
N
D
+
•
-
Automatic Gear Shift with Sportmatic® Shifting†2 0
P: Park
R: Reverse
N: Neutral
D: Drive
Manual Mode:
To enter Manual mode, move shift lever from D to left gate A
To shift while in Manual mode, move shift lever up [+] to upshift or down [–] to downshift A
[+]: Manual Mode Upshift
[–] : Manual Mode Downshift
See section 5 in the Owner ’s Manual for more information .
Dual Clutch Transmission (DCT)*
Some Kia vehicles are equipped with Dual Clutch Transmission (DCT) for automatic transmissions . The following are unique driving tips for the Dual Clutch Transmission:
•To hold the vehicle stationary on an incline, the service brake or parking brake MUST be used or the gear shift MUST be in the (P) Park position . If the vehicle is held stationary by applying the accelerator pedal on a slope, the clutch/transmission may overheat, resulting in damage
•Avoid aggressive launches on steep grades as this may result in an overheated clutch and transmission
•A slight time lag may be experienced at takeoff from standstill during aggressive acceleration maneuvers
If the clutch is overheating, an amber warning light* will be displayed in the instrument cluster . Should this condition occur, pull over and place the vehicle in Park and idle the engine.
Refer to section 5 in the Owner ’s Manual for additional information on DCT operation or call Kia Consumer Affairs for additional information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Sportmatic® Shifting Video
Dual Clutch Transmission (DCT) Driving Experience Video
QR CODE
A •Press brake pedal and depress release but ton to move gear shift from N to P, N to R or from P to any gear
•Manual mode downshifts are made automatically when the vehicle slows down . When the vehicle stops, 1st gear is automatically selected
•If going through a car wash, remind the at tendant to keep the vehicle in Neutral (N) and keep the engine running . Also, disable the power liftgate lid control, turn off the auto rain sensing wipers and fold in the mirrors
QUICK TIPS
Page 44 of 62
CENTER PANEL
CENTER PANEL
42 *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
•When leaving your keys with parking lot at tendants or valet, make sure to inform them how to operate the EPB
•Pull up and hold EPB switch a second time to increase brake pressure if parked on a decline or incline
•If parked on a steep incline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
QUICK TIPS
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
The Electronic Parking Brake (EPB) system utilizes an electric motor to engage the parking brake .
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch A . Ensure that the indicator light is illuminated on the instrument cluster .
If parked on a steep incline/decline, pull up the EPB switch for more than 3 seconds for a firmer EPB application .
Releasing the Parking Brake
The EPB will automatically release when the shifter is placed in Reverse or Drive . To release EPB manually, depress the brake
pedal, then press the EPB switch A, with the ignition switch in the ON position . Ensure that the indicator light is OFF .
(Type B shown . Located below gear shift)
Electronic Parking Brake (EPB)*
AUTO
HOLD
Auto Hold*
See section 5 in the Owner ’s Manual for more information .
Auto Hold temporarily maintains the vehicle at a standstill even though the brake pedal is not depressed after the driver brings the vehicle to a complete stop by depressing the brake pedal . Auto Hold can be turned On/Off using the AUTO HOLD button B on the center panel below the gear shift . Before Auto Hold will operate, the driver ’s door, engine hood and liftgate must be closed, and the driver ’s seat belt must be fastened .
The Auto Hold indicator on the Instrument Cluster has four states:
White: Standby – With vehicle at a standstill and AUTO HOLD button B pressed On, the indicator will illuminate
white . While driving the vehicle (vehicle is not at a standstill), the Auto Hold indicator will remain white .
Green: Engaged – When coming to a complete stop by depressing the brake pedal, the Auto Hold indicator changes from white to green .
Off (not illuminated) – The indicator will turn off when the AUTO HOLD button B is manually pressed off or when the EPB is manually turned on .
Yellow: Malfunction - When the indicator is illuminated yellow, there may be a system malfunction . Take your vehicle to a local Kia dealer .
REMINDERS:
•
Auto Hold only operates when vehicle is in Drive or Neutral
•
To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle
•
Do not solely rely on the Auto Hold system to keep the vehicle stopped . Always pay at tention to traf fic and road conditions, and be prepared to depress the brakes
Refer to page 4 for location of Instrument Cluster indicators .
See section 5 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Electric Parking Brake Video
QR CODE
AB
Page 45 of 62
CENTER PANEL
CENTER PANEL
43†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
•When on, DBC will turn OFF when but ton is pressed again or vehicle speed is over 38 mph
•If the red indicator illuminates, the DBC system may have malfunctioned . Take your vehicle to an authorized Kia dealer and have the system checked
QUICK TIPS
REMINDER: DBC defaults to OFF when ignition is cycled .

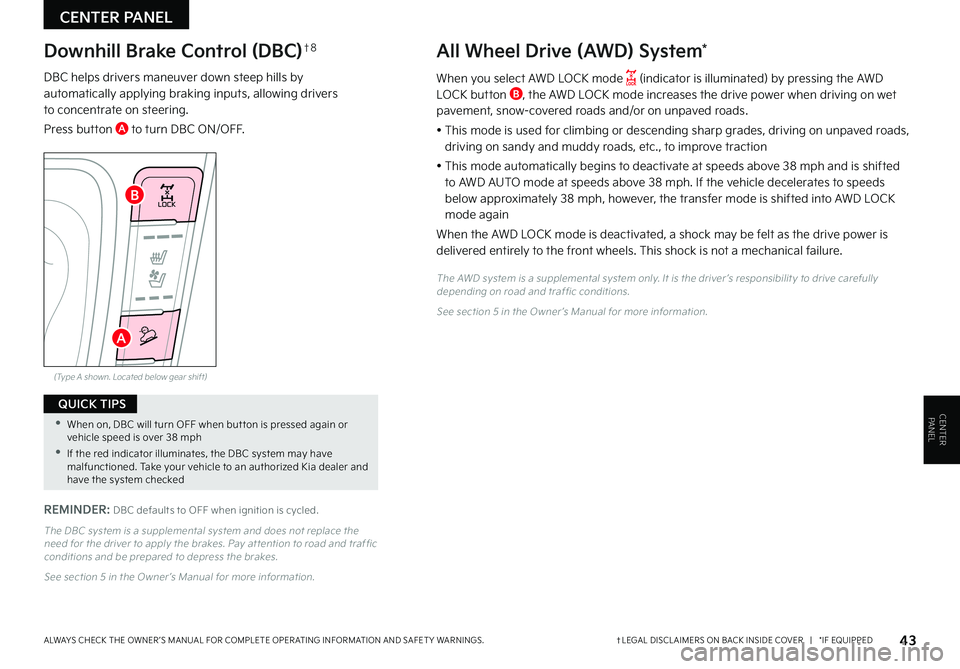

Downhill Brake Control (DBC)†8All Wheel Drive (AWD) System*
DBC helps drivers maneuver down steep hills by automatically applying braking inputs, allowing drivers to concentrate on steering .
Press button A to turn DBC ON/OFF .
When you select AWD LOCK mode (indicator is illuminated) by pressing the AWD LOCK button B, the AWD LOCK mode increases the drive power when driving on wet pavement, snow-covered roads and/or on unpaved roads .
• This mode is used for climbing or descending sharp grades, driving on unpaved roads, driving on sandy and muddy roads, etc ., to improve traction
• This mode automatically begins to deactivate at speeds above 38 mph and is shifted to AWD AUTO mode at speeds above 38 mph . If the vehicle decelerates to speeds below approximately 38 mph, however, the transfer mode is shifted into AWD LOCK mode again
When the AWD LOCK mode is deactivated, a shock may be felt as the drive power is delivered entirely to the front wheels . This shock is not a mechanical failure .
The AWD system is a supplemental system only . It is the driver ’s responsibilit y to drive carefully depending on road and traf fic conditions .
See section 5 in the Owner ’s Manual for more information .
LOCK
(Type A shown . Located below gear shift)
The DBC system is a supplemental system and does not replace the need for the driver to apply the brakes . Pay at tention to road and traf fic conditions and be prepared to depress the brakes .
See section 5 in the Owner ’s Manual for more information .
A
B
Page 46 of 62
CENTER PANEL
CENTER PANEL
•System is OFF by default . To turn system ON, press the seat warmer switch
•With the seat warmer switch in the ON position, the heating system in the seat turns off or on automatically depending on the seat temperature
•When the Climate Control System’s temperature is turned up to high heat, the Seat Warmers turn on automatically
QUICK TIPS
REMINDERS:
•
Use extreme caution when using the seat warmers to avoid burns . Refer to the Owner ’s Manual for more information
•
If the Auto Climate Control is on, the seat warmers or ventilated seats may turn on automatically based on the set temperature and ambient temperature
LOCK
(But tons located on center panel . Passenger side shown .)See section 4 in the Owner ’s Manual for more information .
44†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Heated and Ventilated Seats Video

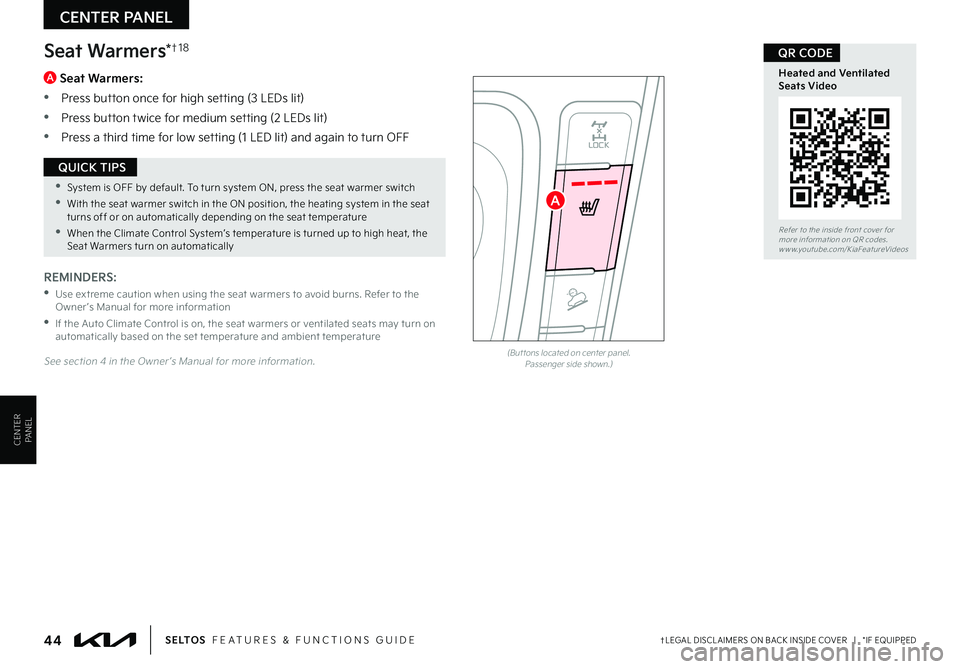

QR CODESeat Warmers*†1 8
A Seat Warmers:
•Press button once for high setting (3 LEDs lit)
•Press button twice for medium setting (2 LEDs lit)
•
Press a third time for low setting (1 LED lit) and again to turn OFF
A
Page 47 of 62
When adjusting seat for ward or backward, ensure seat clicks or locks into place before driving vehicle .
QUICK TIP
SEATING
SEATING

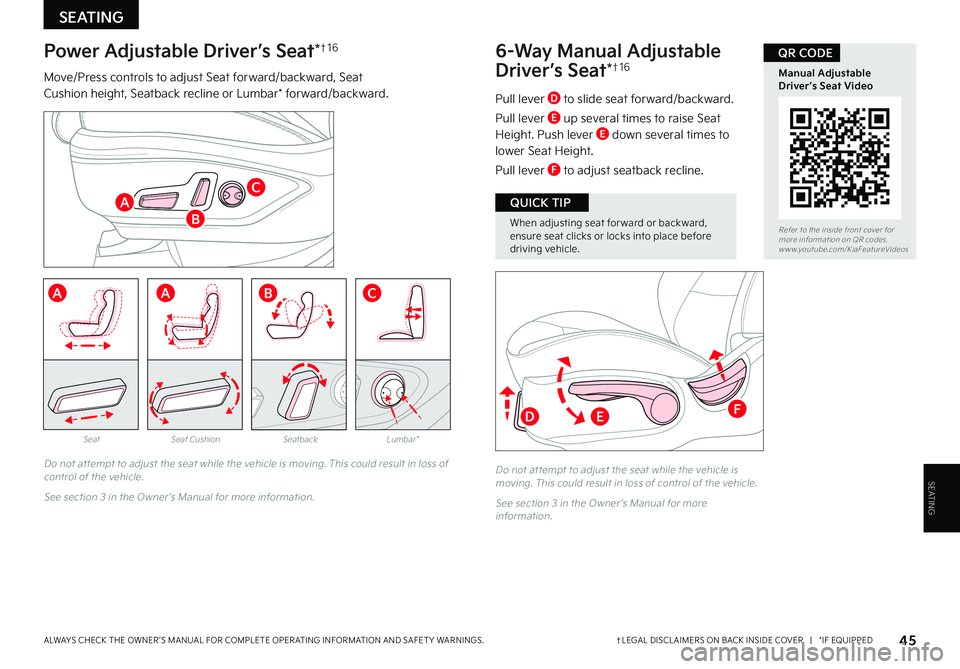

6-Way Manual Adjustable
Driver’s Seat*†1 6
Pull lever D to slide seat forward/backward .
Pull lever E up several times to raise Seat Height . Push lever E down several times to lower Seat Height .
Pull lever F to adjust seatback recline .
.
% P O P U B U U F N Q U U P B E K V T U U I F T F B U X I J M F U I F W F I J D M F J T N P W J O H 5 I J T D P V M E S F T V M U J O M P T T P G D P O U S P M P G U I F W F I J D M F
4 F F T F D U J P O J O U I F 0 X O F S s T . B O V B M G P S N P S F J O G P S N B U J P O
% P O P U B U U F N Q U U P B E K V T U U I F T F B U X I J M F U I F W F I J D M F J T N P W J O H 5 I J T D P V M E S F T V M U J O M P T T P G D P O U S P M P G U I F W F I J D M F
4 F F T F D U J P O J O U I F 0 X O F S s T . B O V B M G P S N P S F J O G P S N B U J P O
4 F B U C B D L - V N C B S 4 F B U 4 F B U $ V T I J P O
45†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Manual Adjustable Driver’s Seat Video
QR CODEPower Adjustable Driver’s Seat*†1 6
Move/Press controls to adjust Seat forward/backward, Seat Cushion height, Seatback recline or Lumbar* forward/backward .
DEF
A
A
AB
B
C
C
Page 48 of 62
REMINDER: Always be sure to check the passenger areas before leaving the vehicle .
SEATING
SEATING
Check rear seats
: Alarm OffOK

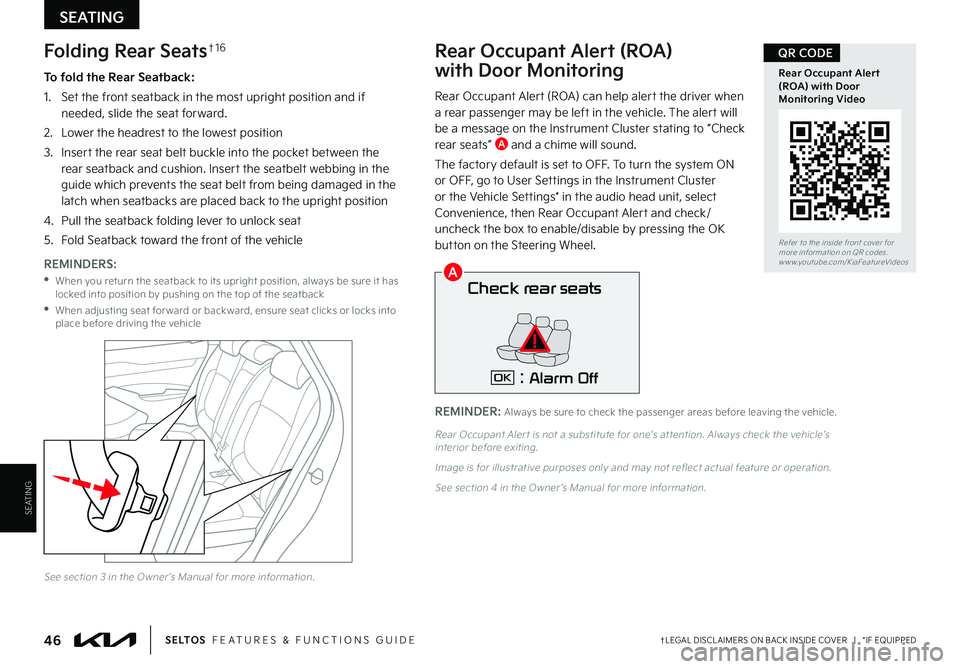

Rear Occupant Alert (ROA)
with Door Monitoring
Rear Occupant Alert (ROA) can help alert the driver when a rear passenger may be left in the vehicle
. The alert will be a message on the Instrument Cluster stating to “Check rear seats” A and a chime will sound .
The factory default is set to OFF . To turn the system ON or OFF, go to User Settings in the Instrument Cluster or the Vehicle Settings* in the audio head unit, select Convenience, then Rear Occupant Alert and check/uncheck the box to enable/disable by pressing the OK button on the Steering Wheel .
Rear Occupant Aler t is not a substitute for one’s at tention . Always check the vehicle’s interior before exiting .
Image is for illustrative purposes only and may not reflect actual feature or operation .
See section 4 in the Owner ’s Manual for more information .
See section 3 in the Owner ’s Manual for more information .
46†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Rear Occupant Alert (ROA) with Door Monitoring Video
QR CODEFolding Rear Seats†1 6
To fold the Rear Seatback:
1 .
Set the front seatback in the most upright position and if needed, slide the seat forward .
2 .
Lower the headrest to the lowest position
3 .
Insert the rear seat belt buckle into the pocket between the rear seatback and cushion . Insert the seatbelt webbing in the guide which prevents the seat belt from being damaged in the latch when seatbacks are placed back to the upright position
4 . Pull the seatback folding lever to unlock seat
5 . Fold Seatback toward the front of the vehicle
REMINDERS:
•
When you return the seatback to its upright position, always be sure it has locked into position by pushing on the top of the seatback
•
When adjusting seat for ward or backward, ensure seat clicks or locks into place before driving the vehicle
A
Page 49 of 62
SEATING
For easy adjustments, hold a headrest post with one hand while using the other hand to pull the headrest from underneath .
QUICK TIP
REMINDERS:
•
The headrest only moves up and down as described above . It does not adjust for ward or backward
•
Do not operate the vehicle with the headrests removed . Headrests can provide critical neck and head suppor t in an accident
•But ton may be hard to see if headrest is in its lowest position
A
SEATING

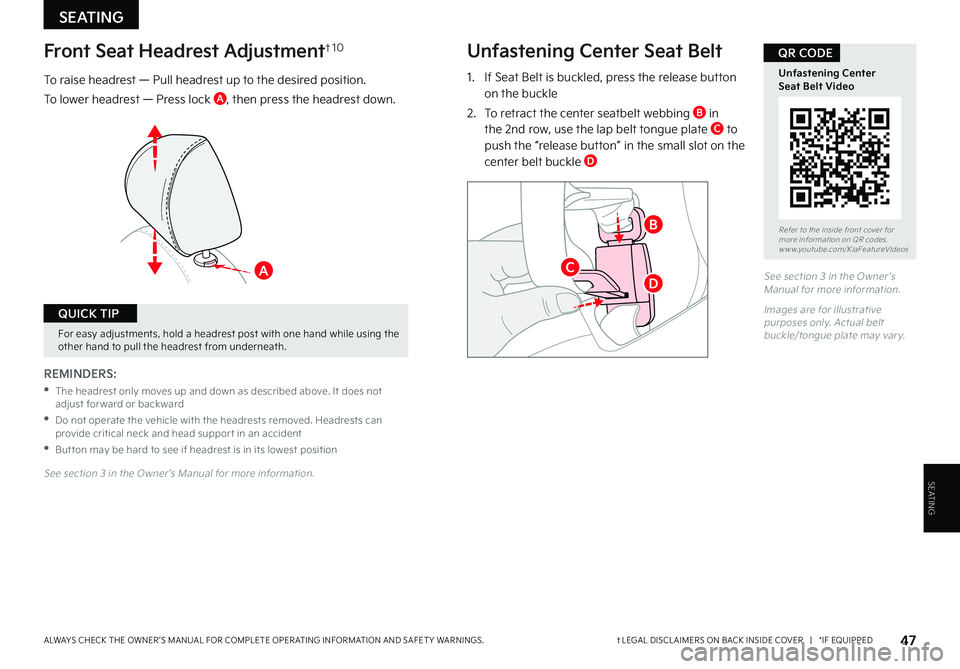

Front Seat Headrest Adjustment†1 0Unfastening Center Seat Belt
To raise headrest — Pull headrest up to the desired position .
To lower headrest — Press lock A, then press the headrest down .
1 . If Seat Belt is buckled, press the release button on the buckle
2 . To retract the center seatbelt webbing B in the 2nd row, use the lap belt tongue plate C to push the “release button” in the small slot on the center belt buckle D
See section 3 in the Owner ’s Manual for more information .
Images are for illustrative purposes only . Actual belt buckle/tongue plate may var y .
See section 3 in the Owner ’s Manual for more information .
47†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Unfastening Center Seat Belt Video
QR CODE
B
C
D
Page 50 of 62
Remote but ton configuration may var y depending on vehicle options . For more information on the Mechanical Key, please refer to section 4 in the Owner ’s Manual .
Mechanical Key F:
1 . Use to unlock/lock driver ’s door
2 . Pull out door handle
Remove door handle keyhole cover with Mechanical Key by pressing up into slot as shown H
3 . Insert Mechanical Key I and turn right to unlock Driver ’s Door . Turn twice within 4 seconds to unlock all doors
4 . Insert Mechanical Key and turn left to lock Driver ’s Door
5 . Return keyhole cover to its original position
Use to turn Child-Protector Rear Door Lock .
Driver’s Door Lock/Unlock button G:
•Press button once to unlock Driver ’s Door
•Press again within 4 seconds to unlock all Doors
•Press again to lock all Doors
Smart Key*
A Press to lock All Doors (all doors must be closed to lock)
B Press to unlock Driver ’s Door . Press twice in 4 seconds to unlock All Doors and Liftgate
C
Remote Start*: Press for more than two (2) seconds within four (4) seconds after locking doors to start the vehicle . Press once to turn off .
D Press and hold for more than a half-second for Panic Alarm . To turn off Alarm, press any button
E Press to release Mechanical Key
Unlock
Lock
Remote but ton configuration may var y depending on vehicle options .
HOLD
48 *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Remote Start - Smart Key Video
Kia Smart & FoldingKey Fobs Video
QR CODE
•If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the Engine Star t/Stop but ton (Lock but ton side closest) and press to star t engine
•The Smar t Key ’s signal can be blocked by the normal operation of a cell or smar tphone . To help prevent this, store each device separately
•When reinser ting the mechanical key into the fob, make sure it is pushed all the way in until there is a click sound
QUICK TIPS
A
BC
D
E
F
G
HI
OTHER KEY FEATURES
OTHER KEY FEATURES
