VEHICLE SETTINGS
9 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
VEHICLESETTINGS
User Settings Modes:
Driving Assistance*• Driving Assist• Warning Timing• Warning Volume*• Driver At tention Warning (DAW)*• For ward Safet y• Lane Safet y*• Blind-Spot Safet y• Parking Safet y
Door/Liftgate• Automatically Lock• Automatically Unlock
Lights• One-Touch Turn Signal• Headlight Delay• High Beam Assist
Convenience• Welcome Mirror• Wireless Charging System• Wiper/Lights Display• Auto Rear Wiper (in R)• Gear Position Pop-up• Ice Road Warning
Service Interval• Enable Ser vice Inter val• Adjust Inter val• Reset
Other Features• Fuel Economy Auto Reset• Speedometer Unit• Fuel Economy Unit• Temperature Unit• Torque Unit• Tire Pressure Unit
Reset• All menus in the User Set tings mode are reset back to factor y set tings, except language and service interval
Language*• Choose the language
User Settings* - Instrument Cluster
To enter the User Settings in the Instrument Cluster LCD,
ensure that the vehicle is at a stand still, shift lever is in
Park, and have the Engine Start/Stop button or Key in the
ON position Then press the Mode button A and select
User Settings by pressing the Move/Reset (OK) button B up/down Select the item by pressing the OK button B
RES
SET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISECRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
(Type A; Controls located on right side of Steering Wheel)
Vehicle Settings* - Infotainment System
(Vehicles with navigation system)
To enter the Vehicle Settings mode in the audio head unit screen, press the SETUP key on the audio head unit or the SETUP icon on the Infotainment System screen Then press the VEHICLE icon, which will take you to the Vehicle Settings screen Use the touchscreen to navigate through the menus
Driver Assistance: Driving Assist, Warning Time, Warning Volume, Driver Attention Warning, Forward Safety, Blind-Spot Safety, Parking Safety
Climate: Recirculate Air, Automatic Ventilation, Defog/ Defrost Options
Lights: One Touch Turn Signal, Headlight Display, High Beam Assist
Door: Auto Lock, Auto Unlock, Two-Press Unlock
Cluster: Energy Consumption Reset, Content Selection, Cluster Voice Guidance Volume, Welcome Sound
Convenience: Rear Occupant Alert, Wireless Charging System, Auto Rear Wiper (in R)
Reset: Reset Vehicle Settings to Factory DefaultsRefer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Theme, Mood Lighting Video
QR CODE
REMINDER: Some set tings appear in User Set tings in the Instrument Cluster Check section 4 in the Owner ’s Manual or the Car Infotainment System Quick Star t Guide for more information REMINDER: Some set tings appear in Vehicle Set tings* in the infotainment system Check your Car Infotainment System Quick Star t Guide for more information or section 4 in the Owner ’s Manual
B
A
MY23 Seltos FFG Inside March 2022.indd 9MY23 Seltos FFG Inside March 2022.indd 94/15/22 3:39 AM4/15/22 3:39 AM
Page 13 of 62

11†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADAS
RES
SET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISECRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
FCA is designed to detect and monitor a vehicle ahead or detect a pedestrian in the roadway through front view camera recognition and front radar signals to warn the driver that a collision is imminent, and if necessary, temporarily apply emergency braking If FCA detects a potential collision, FCA emits an audible warning and visual alert on the instrument cluster A
If the system detects that the collision risk has increased, Forward Collision-Avoidance Assist (FCA) automatically applies the brakes to reduce your speed, potentially helping to reduce the effects of a possible collision
FCA Settings:
•FCA is on by default in most Kia models FCA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button B on the Steering
Wheel to toggle to User Settings Press the OK (C) up/down to toggle to Driver Assistance
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings
•FCA Modes – Select one of the following:
- Active Assist: Vehicle will provide a warning (audible & visual) and apply the brakes if needed
- Warning Only: Vehicle will provide a warning only (audible & visual)
- Off: System is off, no warnings or braking provided
•FCA Warning Timing – When in Driver Assistance menu, select Warning Timing and select one of the following:
- Normal: This setting allows for a nominal amount of distance between the vehicles before the initial warning occurs
- Late: Reduces the amount of distance between the vehicles before the initial warning occurs
FCA will become active when the:
•Ignition is on or the Engine Start/Stop button* is ON
•Vehicle is traveling faster than 5 mph
•Electronic Stability Control (ESC) is ON
Forward Collision-Avoidance Assist (FCA)†5
When engaged, For ward Collision-Avoidance Assist (FCA) is not a substitute for safe driving and may not detect all objects in front of the vehicle Always drive safely and use caution
Actual User/ Vehicle Set tings steps may var y by model Refer to section 5 in the Owner ’s Manual for more information For illustrative purposes only Your actual display, but tons and/or features may var y
(Type A; Controls located on right side of Steering Wheel)
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Forward Collision- Avoidance Assist (FCA)Video
QR CODE
FCA Warning Volume* can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the Infotainment System Go to Driver Assistance, then Warning Volume
QUICK TIP
REMINDERS:
•
The default set tings for Warning Timing is set to Normal If the Warning Timing is changed, the warning time of other Driver Assistance systems may also change
•
FCA will be activated by default when the ignition is cycled ON, even when previous set ting was OFF
•
If FCA is operating and the ESC (Electronic Stabilit y Control) is turned off, FCA system is automatically turned off
•
When the FCA system is off, the FCA warning indicator is on in the Instrument Cluster
0mph
0 KMH
020 4060
202 m100 kWh/ 100m96%Lv 1READY66°F
2 72m
CHG
PWR
Collision Warning
0mph
0 KMH
020 4060
202 m100 kWh/ 100m96%Lv 1READY66°F
2 72m
CHG
PWR
Emergency Braking
0mph
0 KMH
020 4060
202 m100 kWh/ 100m96%Lv 1READY66°F
2 72m
CHG
PWR
Collision Warning
0mph
0 KMH
020 4060
202 m100 kWh/ 100m96%Lv 1READY66°F
2 72m
CHG
PWR
Emergency BrakingA
B
C
MY23 Seltos FFG Inside March 2022.indd 11MY23 Seltos FFG Inside March 2022.indd 114/15/22 3:39 AM4/15/22 3:39 AM
Page 14 of 62

12†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
OFF
(But tons located on left of Steering Wheel)
RESSET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISECRUISECRUISE
OK
RESSET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RESSET+
–OKRES
SET+
–OK
MODE
(Type A; Controls located on right side of Steering Wheel)
The LK A Warning Volume* can be adjusted in the User Set tings* in the Instrument Cluster or the Vehicle Set tings* on the audio head unit
QUICK TIP
REMINDERS:
•
LK A will not issue a warning if the turn signals or hazard lights are activated
•
When the ignition is cycled, LK A will return to the previously set state
For illustrative purposes only Your actual display, but tons and/or features may var y
When engaged, Lane Keeping Assist is not a substitute for safe driving and may not always aler t the driver if the vehicle is driven outside of its lane Always drive safely and use caution Actual User Set tings steps may var y by model Refer to section 5 in the Owner ’s Manual for more information
ADAS
Lane Keeping Assist (LK A) is designed to detect the lane markers on the road with a front view camera on the windshield, and may assist the driver ’s steering to potentially help keep the vehicle in the lane When turned on, the instrument cluster indicator will initially illuminate white when turned on It will remain white when the vehicle is traveling slower than 40 mph or when the system does not detect the lane markers When the system detects the lane markers and can assist the steering, the LK A icon will illuminate green
If the LK A detects that you are moving outside of your lane, the system may give an audible warning and display Lane Departure Warning on the instrument cluster If the vehicle continues to move outside of the lane, LK A may provide steering inputs, trying to prevent the vehicle from moving outside its lane
LK A is the operating mode by default when the Lane Safety button* A is depressed to ON
LKA Settings:
•Press and hold the Lane Safety button A to turn LK A on or off, when it is first enabled in the User Settings* in the Instrument Cluster or Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* in the on position
•To access User Settings* in the Instrument Cluster - Press the Mode button B on the Steering Wheel to toggle to User Settings Press the OK C up/down to toggle to Driver Assistance and then Lane Safety
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance and then Lane Safety
•LKA Modes – Select one of the following:
Lane Keeping Assist: Guides driver to keep vehicle within lanes and provides steering inputs when vehicle is about to deviate from the lane
Lane Departure Warning: Alerts driver when the system detects the vehicle leaving the lane In this mode the system will not provide steering inputs
Off: LK A will turn off The indicator light C will turn off on the instrument cluster
Lane Keeping Assist (LKA)*†5
When the front-view camera does not detect the lane traveling in, the lanes are not illuminated
When the front-view camera detects the lane traveling in, both lanes are illuminated
Lane Keeping Assist
When the front-view camera detects the vehicle moving outside of the lane traveling in, a vehicle crossing lane indicator will blink, either on the left or right lane (as shown in both images above)
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Lane Keeping Assist (LKA) Video
QR CODE
B
C
A
Lane Keeping AssistLane Keeping AssistLane Keeping Assist
MY23 Seltos FFG Inside March 2022.indd 12MY23 Seltos FFG Inside March 2022.indd 124/15/22 3:39 AM4/15/22 3:39 AM
Page 15 of 62

13†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Blind-Spot Collision-Avoidance Assist (BCA)†5
BCA uses rear corner radar sensors in the rear bumper to monitor and warn the driver in certain
situations if it detects an approaching vehicle in the driver ’s blind spot area and before changing lanes
Initially, BCA provides Blind-Spot Collision Warning (BCW) when it detects a potential collision with
a vehicle, emitting an audible warning and visual alert on the outside rearview mirrors If the system
detects that the collision risk has increased, Blind-Spot Collision-Avoidance Assist (BCA) automatically
applies the opposite side front brake to try and mitigate a potential collision
1st-stage warning: When another vehicle is detected within BCW warning boundary A, an indicator will
illuminate on the outside rearview mirrors B
2nd-stage warning: When 1st stage warning is on and the driver activates a turn signal, a flashing yellow
indicator will illuminate on the outside rearview mirrors and the system will sound a warning
3rd-stage: When 1st stage warning is on and the 2nd stage warning has already occurred, and the collision
risk has increased, braking is applied to the opposite side front wheel and a visual warning occurs
BCA Settings:
•BCA can be turned on/off by going to the User Settings* in the Instrument
Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park
and the ignition is on or the Engine Start/Stop button* in the on position
•To access User Settings* in the Instrument Cluster - Press the Mode
button C on the Steering Wheel to toggle to User Settings Press the
OK D up/down to toggle to Driver Assistance, then Blind-Spot Safety and
select a BCA mode
•To access Vehicle Settings* in the Infotainment System – Press the SETUP
key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings
Select Driver Assistance, then Blind-Spot Safety and select a BCA mode
•BCA Modes – Select one of the following:
- Active Assist: BCA will provide a warning (audible & visual) and may activate
Electronic Stability Control (ESC) and temporarily apply braking power
- Warning Only: Vehicle will provide a warning only (audible & visual)
- Off: System is off, no warnings provided
•BCA Warning Timing – When in the Driver Assistance menu, select Warning Timing and one of the following:
- Normal: Maximizes the amount of distance between the vehicles before the initial warning occurs
- Later: Reduces the amount of distance between the vehicles before the initial warning occurs
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Blind-Spot Collision- Avoidance Assist Video
QR CODE
•BCA Warning Volume* can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit Go to Driver Assistance, then Warning Volume
•BCW will activate when:
– The system is turned on
– Other vehicles are detected on the rear sides of the vehicle
– Vehicle speed is above approximately 20 mph
QUICK TIPS
(But tons located on right side of steering wheel)
RES
SET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISE CRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
C
D
A
B
REMINDERS:
•
BCA may sound when making a left turn Maintain a proper distance from oncoming vehicles
•
BCA will not issue a warning if the vehicle speed is 6 mph or more above the surrounding vehicles
•
When BCA is ON and the ignition is cycled, BCA returns to its previous state
When engaged, BCA is a supplemental system Do not solely rely on this system Always pay at tention to the road and drive safely When engaged, BCA is not a substitute for safe and proper driving Always drive safely and use caution
The images on this page are for illustrative purposes only and may not reflect actual feature or operation Refer to section 5 in the Owner ’s Manual for more information
ADAS
MY23 Seltos FFG Inside March 2022.indd 13MY23 Seltos FFG Inside March 2022.indd 134/15/22 3:39 AM4/15/22 3:39 AM
Page 22 of 62

20†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
(Rear View Camera)
(Rear View Camera Display)P
R
N
DSHIFTL OCK
RELEASE
Rear View Monitor (RVM)†5
Rear View Monitor is a supplemental system that displays the view behind the vehicle through the infotainment system screen while the vehicle is in R (Reverse)
Rear View Monitor activates when the:
1 Engine Start/Stop* button is in the ON (Red light) position
2
Gear Shift Lever is in the R (Reverse) position
When engaged, Rear View Monitor is not a substitute for proper and safe backing-up procedures Always drive safely and use caution when backing up The Rear View Monitor may not display ever y object behind the vehicle
The screen image above is for illustrative purposes only The actual image or graphics may differ in your vehicle
Refer to section 4 in the Owner ’s Manual for more information
REMINDERS:
•
Through normal use and after inclement weather or washing, the rear camera may become dir t y Use a clean, microfiber cloth to remove any dir t, debris or spots that may have accumulated on the lens
•While Rear View Monitor is active the volume will be lowered on all audio modes
ADAS
MY23 Seltos FFG Inside March 2022.indd 20MY23 Seltos FFG Inside March 2022.indd 204/15/22 3:39 AM4/15/22 3:39 AM
Page 23 of 62

21
Rear Cross-Traffic Collision Avoidance Assist (RCCA)*†5
Rear Cross-Traffic Collision-Avoidance Assist (RCCA), under certain conditions, is designed to warn the driver and may activate the Electronic Stability Control (ESC) and temporarily apply braking if it detects cross traffic approaching the vehicle, when vehicle is in reverse
When the RCCA rear-corner radar sensors detect approaching vehicles from the rear left or rear right side of the vehicle A, RCCA will sound a warning, the warning indicators on the outside rearview mirror will illuminate and a message will appear on the Instrument Cluster LCD B If RCCA detects that the collision risk has increased, RCCA automatically applies the brakes to reduce your speed, potentially helping to minimize the effects of a possible collision
RCCA is designed to operate under the following conditions:
•
When the gear shift is in Reverse
•When the vehicle is moving slower than 6 mph
RCCA Settings:
•RCCA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button C on the Steering Wheel to toggle to User Settings Press the OK button D up/down to toggle to Driver Assistance, then Parking Safety Select Rear Cross Traffic Safety and press the OK button D
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance, then Parking Safety and select Rear Cross Traffic Safety
•RCCA Warning Timing – When in the Driver Assistance menu, select Warning Timing and one of the following:
- Normal: Maximizes the amount of distance between the vehicles before the initial warning occurs
– Later: Reduces the amount of distance between the vehicles before the initial warning occurs
Refer to section 5 in the Owner ’s Manual for more information
RES
SET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISECRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
(Type A; Controls located on right side of Steering Wheel)
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Rear Cross-Traffic Collision Avoidance Assist (RCCA) Video
QR CODE
REMINDERS:
•
When vehicle power is cycled, RCCA will remain in the previous state
•
When a vehicle is approaching within the sensing range, and traveling faster than 3 mph, RCCA will show a warning
•
RCCA is a supplemental system Do not solely rely on this system and always pay at tention to the road and its conditions
•
Prolonged use of the audio control unit in ACC mode may drain the vehicle’s bat ter y
RCCA Warning Volume* can be adjusted in the User Set tings* in the Instrument Cluster or the Vehicle Set tings* on the infotainment system Go to Driver Assistance, then Warning Volume
QUICK TIP
C
D
A
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
B
MY23 Seltos FFG Inside March 2022.indd 21MY23 Seltos FFG Inside March 2022.indd 214/15/22 3:39 AM4/15/22 3:39 AM
Page 30 of 62

RESSET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISE CRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
A

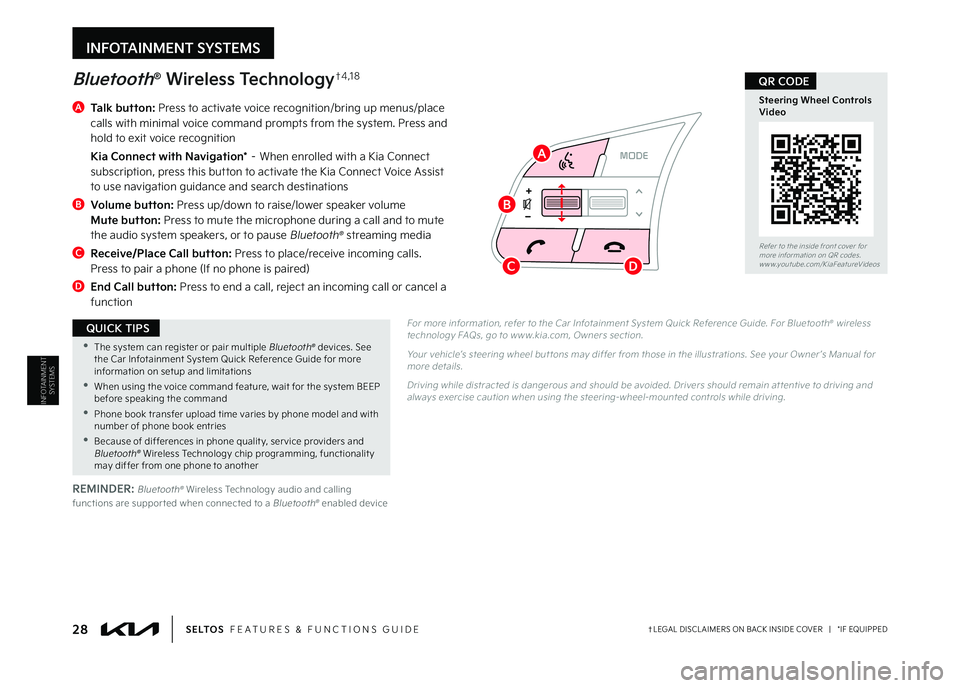

Talk button: Press to activate voice recognition/bring up menus/place calls with minimal voice command prompts from the system Press and hold to exit voice recognition
Kia Connect with Navigation* – When enrolled with a Kia Connect subscription, press this button to activate the Kia Connect Voice Assist to use navigation guidance and search destinations
B
Volume button: Press up/down to raise/lower speaker volume Mute button: Press to mute the microphone during a call and to mute the audio system speakers, or to pause Bluetooth® streaming media
C
Receive/Place Call button: Press to place/receive incoming calls Press to pair a phone (If no phone is paired)
D End Call button: Press to end a call, reject an incoming call or cancel a function
Bluetooth® Wireless Technology†4 , 1 8
For more information, refer to the Car Infotainment System Quick Reference Guide For Bluetooth® wireless technology FAQs, go to w w w kia com, Owners section
Your vehicle’s steering wheel but tons may differ from those in the illustrations See your Owner ’s Manual for more details
Driving while distracted is dangerous and should be avoided Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving
28†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Steering Wheel Controls Video
QR CODE
•The system can register or pair multiple Bluetooth® devices See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
•When using the voice command feature, wait for the system BEEP before speaking the command
•Phone book transfer upload time varies by phone model and with number of phone book entries
•Because of differences in phone qualit y, ser vice providers and Bluetooth® Wireless Technology chip programming, functionalit y may differ from one phone to another
QUICK TIPS
REMINDER: Bluetooth® Wireless Technology audio and calling functions are suppor ted when connected to a Bluetooth® enabled device
A
B
CD
INFOTAINMENT SYSTEMS
INFOTAINMENT
SYSTEMS
MY23 Seltos FFG Inside March 2022.indd 28MY23 Seltos FFG Inside March 2022.indd 284/15/22 3:39 AM4/15/22 3:39 AM
Page 31 of 62

Voice Recognition and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon names Improve the per formance by making a few simple changes to your phone contacts, listed below To help optimize the Bluetooth® Wireless Technology Voice Recognition system, see other tips and reminders under Quick Tips:
•Use full names (first and last names) vs short or single-syllable names (“John Smith” vs “Dad," “Smith Residence” vs “Home”)
•Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc )
•Avoid using acronyms (“In Case of Emergency” vs “ICE”) or words with all capital letters
•Spell words completely, no abbreviations (“Doctor Smith” vs “Dr Smith”)
Bluetooth® Wireless Technology†4 , 1 8 (continued)
Pairing a Phone
For instructions on how to pair a phone, refer to the Car Infotainment System’s Quick Reference Guide or your vehicle’s Quick Start Guide
How to Place a Call
When using the voice command feature, wait for the system BEEP before speaking the command
There are two options for placing a call using the Steering Wheel controls:
•Option 1: Press the Receive/Place Call button C (system displays the call history with the most recent calls)
•Option 2*: Press the Talk button A (system will BEEP to indicate it is ready for call placement) Then say the command “Call {name}” or “Dial {number}”
29†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Voice Recognition Tips Video
QR CODE
•Bluetooth® Music Streaming: If the Bluetooth® music is inaudible or too low, turn up the volume on the connected phone
•When placing a call, speak in a natural, moderate tone, with clear pronunciation The system may have trouble recognizing commands if you speak too softly or too loudly
•Always wait for the beep before speaking any commands
•Close windows and sunroof and turn off A /C The noise from an A /C fan operating at higher speeds or wind noise from open windows or sunroof can inter fere with Voice Recognition
•Press the talk but ton and say “Help” to get a list of available commands
QUICK TIPS
During the pairing process, be sure to accept the connection requests on the phone for phone book download and to allow acceptance of all future Bluetooth® connection requests
QUICK TIP
INFOTAINMENT SYSTEMS
INFOTAINMENT
SYSTEMS
MY23 Seltos FFG Inside March 2022.indd 29MY23 Seltos FFG Inside March 2022.indd 294/15/22 3:39 AM4/15/22 3:39 AM
Page 32 of 62

INFOTAINMENT SYSTEMS
INFOTAINMENT
SYSTEMS
RESSET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISE CRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISEMODE
OK
RESSET+
–OKRESSET+
–OK
MODE
Audio Controls†1 8
A
Audio Mode button: Press to cycle through FM/AM/SiriusXM®*/ Media modes Press to turn power on; Press and hold to go to Button Setting / Steering Wheel mode (Kia Connect with Navigation)
B
Seek/Preset button Radio Mode (FM/AM/SiriusXM®*): Press to advance through Preset Stations Press and hold to Auto Seek Media Modes: Press to move Track Forward/Back Press & hold to Fast Forward/Rewind (except for Bluetooth® Audio)
C
Volume button: Press up/down to raise/lower volume Mute button: Press to mute all audio (Media pauses in some Media modes when pressed)
Your vehicle’s steering wheel but tons may differ from those in the illustrations For fur ther audio system operation, refer to pages 28-35 For more information, refer to the Car Infotainment System Quick Reference Guide
Driving while distracted is dangerous and should be avoided Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving
To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park
30†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
•MODE but ton Initial set ting is in radio mode
•In the SETUP menu on the audio head unit screen, select which Media Modes to include in the MODE but ton menu rotation Press and hold the MODE but ton to enter this set ting menu
QUICK TIPS
A
BC
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Steering Wheel Controls Video
Star, Favorite & Radio Presets Buttons Video
QR CODE
MY23 Seltos FFG Inside March 2022.indd 30MY23 Seltos FFG Inside March 2022.indd 304/15/22 3:39 AM4/15/22 3:39 AM
Page 34 of 62

INFOTAINMENT SYSTEMS
INFOTAINMENT
SYSTEMS
POWERPUSHVOLTUNE
FILE ENTER
RADIO
< SEEK
TRACK > SETUP
MEDIA
Press briefly to do the following:•
FM/AM mode: Play the previous/next frequency• MEDIA mode: Change the track, file or titlePress and hold to do the following (over 0 8 seconds):• FM/AM mode: Move quickly through all of the frequencies When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to Power ON/OFF Rotate to adjust Volume
Press to display Setup/Set tings mode
Press to go to Custom (Set) Menu
In Radio/Media modes, rotate knob to search for stations/channels/tracks/songs/files Press the knob to receive the selected channel/track/song/file
Standard Audio System* – FM/AM/Media (USB, Bluetooth®†4 , 1 8 Audio)*
Radio Presets: You can listen to FM and AM radio and save frequently used stations To Save a Preset, press star icon next to station This saves the current station in the selected slot
Custom Key H – To program the Custom Key, press the SETUP button, then press the Custom Key H 4 F M F D U P O F P G U I F B W B J M B C M F G F B U V S F T Z P V X P V M E M J L F U I F $ V T U P N , F Z U P P Q F O
Software updates - To keep your software up to date, free of charge, visit the official Kia update webpage at https://update kia com Note, visiting a dealer for software update may include an additional charge
To adjust the Standard Audio Systems sound settings, press the SETUP key on the audio control unit or the onscreen MENU button, when in MEDIA mode Select the onscreen SOUND button, then select the menu item (Position,
Volume, Tone, Priority, Advanced) Using the touchscreen, press arrows to adjust the settings
Press to select FM/AM modes
Press to go to MEDIA mode
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injur y and death The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, any handheld devices, other equipment or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle
REMINDERS:
•
To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park
•
It is recommended to always update your phone to the latest operating system release
•
Prolonged use of the audio control unit in ACC mode may drain the vehicle’s bat ter y
32†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Standard Audio System Videos
Standard Audio System Updates Video
QR CODE
•The system can register or pair multiple Bluetooth® devices See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
•
Volume level bet ween different audio modes:
– When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc ), the audio system saves the previous volume level you were listening to For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
– When using Bluetooth® Audio, the overall volume is dependent on your device’s volume If the volume is turned down low on your device it will remain low even if the system volume is turned up
•
This system suppor ts Android Auto™ (USB & wireless connection) and Apple CarPlay® (wireless connection only)
•
When connected to Android Auto™ or Apple CarPlay® on your smar tphone, the smar tphone’s navigation system may also be available
•
A warning screen may appear periodically to remind users that the audio system should be operated when the engine is running to prevent bat ter y discharge
QUICK TIPS
For more information, refer to the Car Infotainment System Quick Reference Guide
Your vehicle’s audio system may differ from that in the illustration For fur ther audio system operation, refer to pages 28-35
MY23 Seltos FFG Inside March 2022.indd 32MY23 Seltos FFG Inside March 2022.indd 324/15/22 3:39 AM4/15/22 3:39 AM
