headrest KIA Sephia 2009 2.G Owner's Manual

Knowing your vehicle16
3
1
2
3
4
5
6
7
8
9
Driver’s seat(1) Seat adjustment, forward / back-
ward
(2) Seatback recliner
(3) Seat adjustment, height
(4) Headrest adjustmentFront passenger seat(5) Seat adjustment, forward / back- ward
(6) Seatback recliner
(7) Headrest adjustment Rear seat(8) Split folding rear seat*
(9) Headrest adjustment
* : if equipped
SEAT
1LDN2026

Knowing your vehicle20
3
1
2
3
4
5
6
7
8
9
Headrest adjustmentAdjusting the height up and down
The headrest not only provides com-
fort for the driver and passengers,
but also helps to protect the head
and neck in the event of a collision.
To raise the headrest, pull it up to the
desired position (
1). To lower the
headrest, push and hold the release
button ( 2) on the headrest support
and lower the headrest to the desired
position ( 3). For best protection,
adjust the headrest so its center is as
high as your ears. Removal
To remove the headrest, raise it as
far as it can go then press the
release button (
1) while pulling
upward ( 2). Active headrest (if equipped)
The active headrest is designed to
move forward and upward during a
rear impact. This helps to prevent the
driver's and front passenger’s head
from moving backward and thus
helps prevent neck injuries.
1LDA2033
1LDA2034
WARNING
To reduce the risk of head and
neck injuries, do not drive the
vehicle with the headrest
removed or improperly posi-
tioned.
Do not adjust the driver’s head-
rest while driving.
HNF2041-1

Knowing your vehicle22
3
1
2
3
4
5
6
7
8
9
Headrest adjustmentAdjusting the height up and down
The headrest not only provides com-
fort for the driver and passengers,
but also helps to protect the head
and neck in the event of a collision.
To raise the headrest, pull it up to the
desired position (
1). To lower the
headrest, push and hold the release
button ( 2) on the headrest support
and lower the headrest to the desired
position ( 3). For best protection,
adjust the headrest so its center is as
high as your ears. Removal
To remove the headrest, raise it as
far as it can go then press the
release button (
1) while pulling
upward ( 2).
WARNING
- Driver
responsibility for front seat
passenger
Driving or riding in a vehicle
with a front seatback reclined
could lead to serious or fatal
injury in an accident. If a front
seat is reclined, the occupant’s
hips may slide under the lap
portion of the safety belt apply-
ing great force to the unprotect-
ed abdomen. Serious or fatal
internal injuries could result.
Keep the seatbacks in a com-
fortably upright position when-
ever the vehicle is in motion.
1LDA2033A
1LDA2034A
WARNING
To reduce the risk of head and
neck injuries, do not drive the
vehicle with the headrest
removed or improperly posi-
tioned.

323
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Active headrest (if equipped)
The active headrest is designed to
move forward and upward during a
rear impact. This helps to prevent the
driver's and front passenger’s head
from moving backward and thus
helps prevent neck injuries.
Rear seatSplit folding rear seat (if equipped)The rear seatbacks fold forward to
provide additional cargo space and
to provide access to the cargo area.
To fold the rear seatback(s) down, pull the lock release lever, then fold
the seatback forward and down.
To raise the seatback, lift and push it firmly until it clicks into place.
When you return the seatback to its upright position, reposition the
rear safety belts so that they can
be used by rear seat passengers.
4 Door (if equipped)
1. Pull the lock release lever.
2. Move the rear three-point seatbelts to the outside (1) so that they
don’t interfere with the seatback
when lowering.
3. Fold the seatback forward and down firmly (2).
1LDN20381LDN3025
HNF2041-1

Knowing your vehicle24
3
1
2
3
4
5
6
7
8
9
5 Door (if equipped)
1. Lift the front of seat cushion (1) up.
2. Lift the rear of seat cushion up (
2). 3 Move the seat cushion firmly until it
clicks ( 3).
4. Remove the headrest and put the headrest poles into the holes on
the rear of the seat cushion (4). 5. Pull the lock release lever (5).
6. Fold the seatback forward and
down firmly (6).
1LDA22431LDA2244
1LDA22411LDA2242
1LDA22391LDA2240

Knowing your vehicle26
3
1
2
3
4
5
6
7
8
9
Headrest adjustment Adjusting the height up and down
The headrest not only provides com-
fort for the driver and passengers,
but also helps to protect the head
and neck in the event of a collision.
To raise the headrest, pull it up to the
desired position (
1). To lower the
headrest, push and hold the release
button ( 2) on the headrest support
and lower the headrest to the desired
position ( 3). For best protection,
adjust the headrest so its center is as
high as your ears. Removal
To remove the headrest, raise it as
far as it can go then press the
release button (
1) while pulling
upward ( 2).
1LDA2042
WARNING
To reduce the risk of head and
neck injuries, do not drive the
vehicle with the headrest
removed or improperly posi-
tioned.
1LDA2043
CAUTION -
Loading pro-
cedure
Make sure the engine is off, the
transaxle is in P and the parkingbrake is applied whenever load-ing or unloading cargo. Vehiclemay move if shift lever is inad-vertently moved to anotherposition.

347
1
2
3
4
5
6
7
8
9
Knowing your vehicle

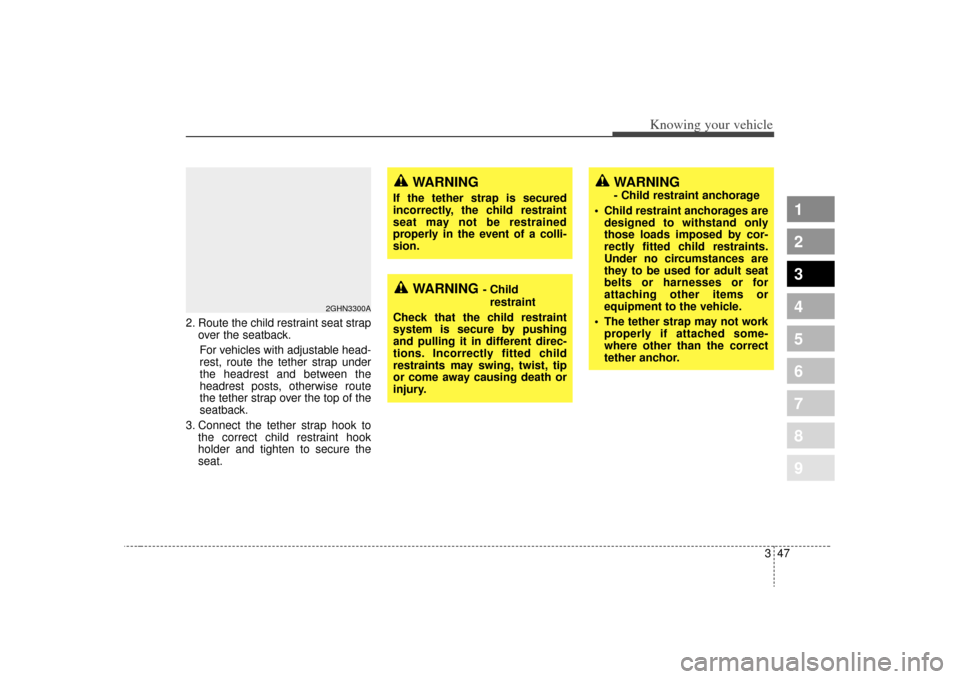

2. Route the child restraint seat strapover the seatback.
For vehicles with adjustable head-
rest, route the tether strap under
the headrest and between the
headrest posts, otherwise route
the tether strap over the top of the
seatback.
3. Connect the tether strap hook to the correct child restraint hook
holder and tighten to secure the
seat.
2GHN3300A
WARNING
If the tether strap is secured
incorrectly, the child restraint
seat may not be restrained
properly in the event of a colli-
sion.
WARNING
- Child
restraint
Check that the child restraint
system is secure by pushing
and pulling it in different direc-
tions. Incorrectly fitted child
restraints may swing, twist, tip
or come away causing death or
injury.
WARNING - Child restraint anchorage
Child restraint anchorages are designed to withstand only
those loads imposed by cor-
rectly fitted child restraints.
Under no circumstances are
they to be used for adult seat
belts or harnesses or for
attaching other items or
equipment to the vehicle.
The tether strap may not work properly if attached some-
where other than the correct
tether anchor.
