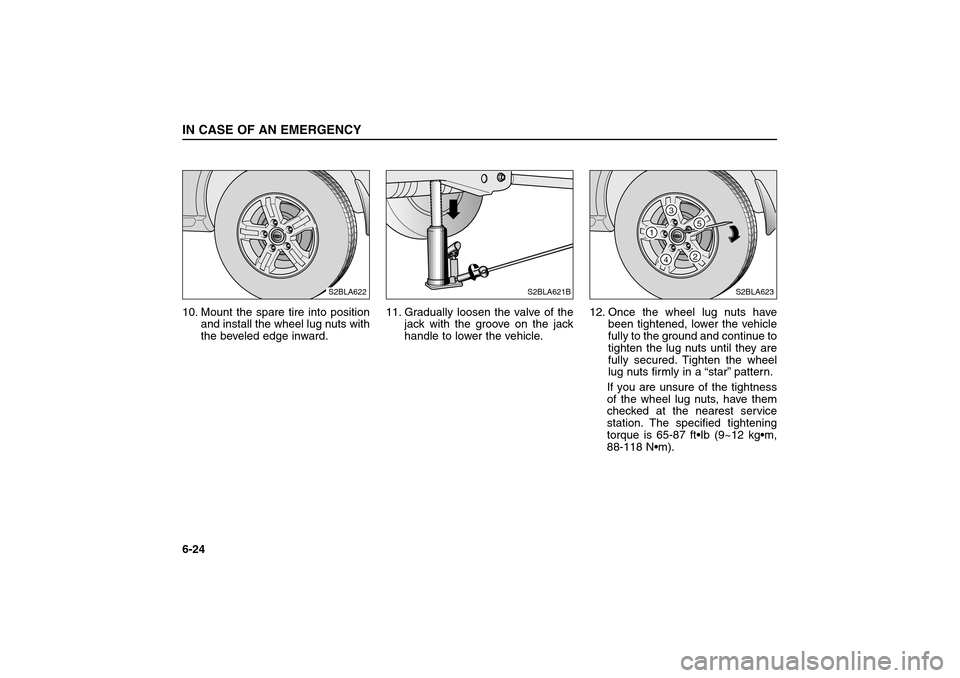

10. Mount the spare tire into position
and install the wheel lug nuts with
the beveled edge inward.11. Gradually loosen the valve of the
jack with the groove on the jack
handle to lower the vehicle.12. Once the wheel lug nuts have
been tightened, lower the vehicle
fully to the ground and continue to
tighten the lug nuts until they are
fully secured. Tighten the wheel
lug nuts firmly in a “star”pattern.
If you are unsure of the tightness
of the wheel lug nuts, have them
checked at the nearest service
station. The specified tightening
torque is 65-87 ftIb (9~12 kgm,
88-118 Nm).IN CASE OF AN EMERGENCY6-24
S2BLA622
S2BLA621B
1
34
25
S2BLA623
