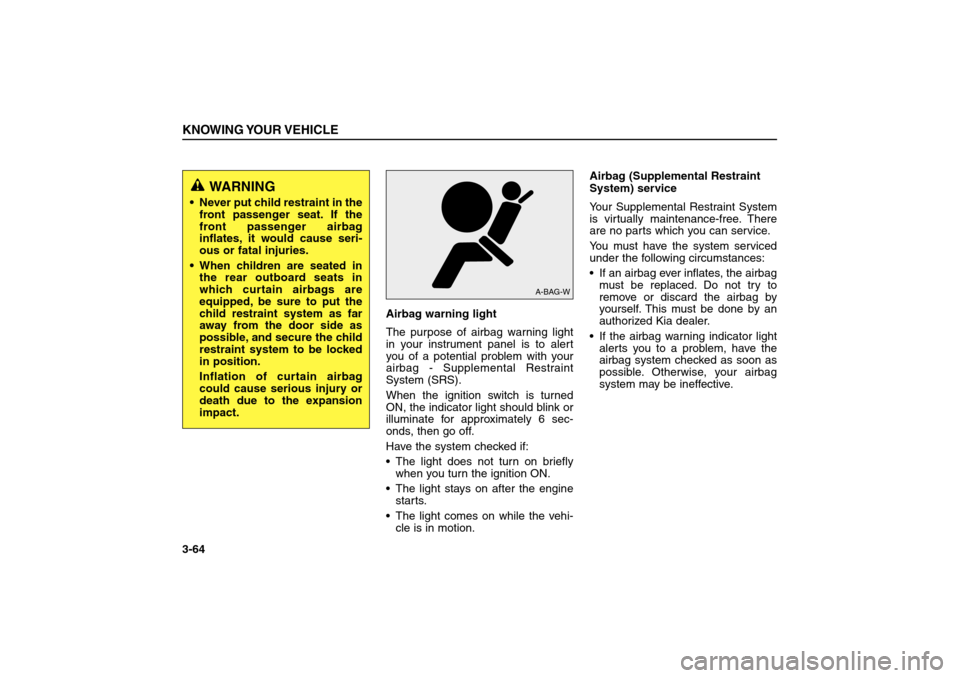

Airbag warning light
The purpose of airbag warning light
in your instrument panel is to alert
you of a potential problem with your
airbag - Supplemental Restraint
System (SRS).
When the ignition switch is turned
ON, the indicator light should blink or
illuminate for approximately 6 sec-
onds, then go off.
Have the system checked if:
The light does not turn on briefly
when you turn the ignition ON.
The light stays on after the engine
starts.
The light comes on while the vehi-
cle is in motion.Airbag (Supplemental Restraint
System) service
Your Supplemental Restraint System
is virtually maintenance-free. There
are no parts which you can service.
You must have the system serviced
under the following circumstances:
If an airbag ever inflates, the airbag
must be replaced. Do not try to
remove or discard the airbag by
yourself. This must be done by an
authorized Kia dealer.
If the airbag warning indicator light
alerts you to a problem, have the
airbag system checked as soon as
possible. Otherwise, your airbag
system may be ineffective.
KNOWING YOUR VEHICLE3-64
A-BAG-W
WARNING
Never put child restraint in the
front passenger seat. If the
front passenger airbag
inflates, it would cause seri-
ous or fatal injuries.
When children are seated in
the rear outboard seats in
which curtain airbags are
equipped, be sure to put the
child restraint system as far
away from the door side as
possible, and secure the child
restraint system to be locked
in position.
Inflation of curtain airbag
could cause serious injury or
death due to the expansion
impact.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 64
Page 79 of 312
Closing the Hood:
Check the area under the hood to
make certain all filler caps are in
place and that all loose items have
been removed.
Lower the hood then push down to
properly lock in place.
Check to make sure the hood is
closed.
FUEL FILLER LID1. Pull the fuel filler lid out to open.
2. To remove the cap, turn it counter-
clockwise.
3. Hold the cap on the hook to avoid
damage on the surface of the vehi-
cle.
4. Refuel the fuel tank.
5. To install the cap, place it on the
fuel filler neck and turn it clockwise
until it “CLICKS”. This indicates
that the cap is securely tightened.
KNOWING YOUR VEHICLE3-70
WARNING -
Refueling
If pressurized fuel sprays out,
it can cause serious injuries.
Always remove the fuel cap
carefully and slowly. If the cap
is venting fuel or if you hear a
hissing sound, wait until the
condition stops before com-
pletely removing the cap.
Because your vehicle uses an
ORVR (On-board Refuelling
Vapor Recovery) system,“To p
OFF”the vehicle very careful-
ly to prevent fuel splash-back.
S2BLC318A
OPEN
CLOSE
WARNING
Before closing the hood,
make sure that all engine
parts and tools have been
removed from the engine area
and that no one’s hands are
near the hood opening.
Do not leave gloves, rags or
any other combustible materi-
al in the engine compartment.
Doing so may cause a heat-
induced fire.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 70
Page 80 of 312
KNOWING YOUR VEHICLE
3-71

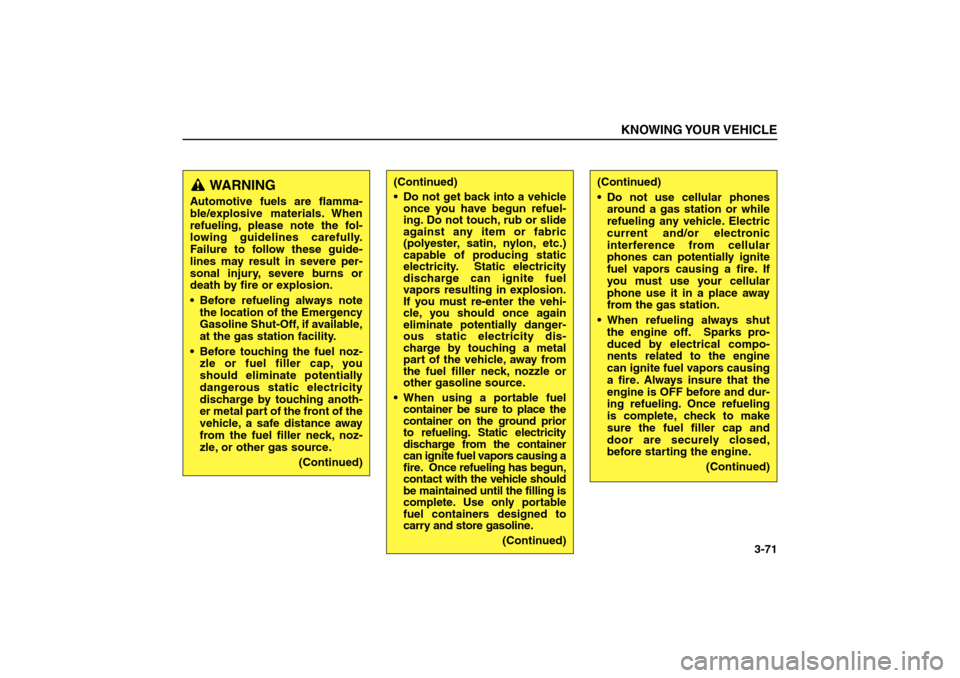

WARNING
Automotive fuels are flamma-
ble/explosive materials. When
refueling, please note the fol-
lowing guidelines carefully.
Failure to follow these guide-
lines may result in severe per-
sonal injury, severe burns or
death by fire or explosion.
Before refueling always note
the location of the Emergency
Gasoline Shut-Off, if available,
at the gas station facility.
Before touching the fuel noz-
zle or fuel filler cap, you
should eliminate potentially
dangerous static electricity
discharge by touching anoth-
er metal part of the front of the
vehicle, a safe distance away
from the fuel filler neck, noz-
zle, or other gas source.
(Continued)
(Continued)
Do not get back into a vehicle
once you have begun refuel-
ing. Do not touch, rub or slide
against any item or fabric
(polyester, satin, nylon, etc.)
capable of producing static
electricity. Static electricity
discharge can ignite fuel
vapors resulting in explosion.
If you must re-enter the vehi-
cle, you should once again
eliminate potentially danger-
ous static electricity dis-
charge by touching a metal
part of the vehicle, away from
the fuel filler neck, nozzle or
other gasoline source.
When using a portable fuel
container be sure to place the
container on the ground prior
to refueling. Static electricity
discharge from the container
can ignite fuel vapors causing a
fire. Once refueling has begun,
contact with the vehicle should
be maintained until the filling is
complete. Use only portable
fuel containers designed to
carry and store gasoline.
(Continued)
(Continued)
Do not use cellular phones
around a gas station or while
refueling any vehicle. Electric
current and/or electronic
interference from cellular
phones can potentially ignite
fuel vapors causing a fire. If
you must use your cellular
phone use it in a place away
from the gas station.
When refueling always shut
the engine off. Sparks pro-
duced by electrical compo-
nents related to the engine
can ignite fuel vapors causing
a fire. Always insure that the
engine is OFF before and dur-
ing refueling. Once refueling
is complete, check to make
sure the fuel filler cap and
door are securely closed,
before starting the engine.
(Continued)
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 71
Page 81 of 312

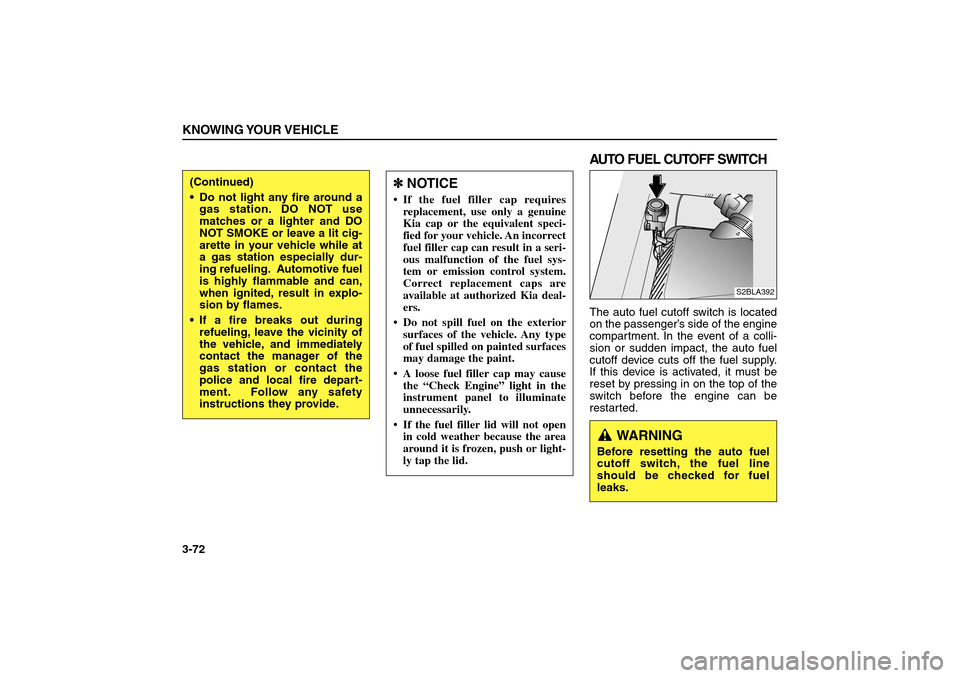

AUTO FUEL CUTOFF SWITCHThe auto fuel cutoff switch is located
on the passenger’s side of the engine
compartment. In the event of a colli-
sion or sudden impact, the auto fuel
cutoff device cuts off the fuel supply.
If this device is activated, it must be
reset by pressing in on the top of the
switch before the engine can be
restarted.
KNOWING YOUR VEHICLE3-72
S2BLA392
WARNING
Before resetting the auto fuel
cutoff switch, the fuel line
should be checked for fuel
leaks.
✽ ✽
NOTICE If the fuel filler cap requires
replacement, use only a genuine
Kia cap or the equivalent speci-
fied for your vehicle. An incorrect
fuel filler cap can result in a seri-
ous malfunction of the fuel sys-
tem or emission control system.
Correct replacement caps are
available at authorized Kia deal-
ers.
Do not spill fuel on the exterior
surfaces of the vehicle. Any type
of fuel spilled on painted surfaces
may damage the paint.
A loose fuel filler cap may cause
the “Check Engine” light in the
instrument panel to illuminate
unnecessarily.
If the fuel filler lid will not open
in cold weather because the area
around it is frozen, push or light-
ly tap the lid.
(Continued)
Do not light any fire around a
gas station. DO NOT use
matches or a lighter and DO
NOT SMOKE or leave a lit cig-
arette in your vehicle while at
a gas station especially dur-
ing refueling. Automotive fuel
is highly flammable and can,
when ignited, result in explo-
sion by flames.
If a fire breaks out during
refueling, leave the vicinity of
the vehicle, and immediately
contact the manager of the
gas station or contact the
police and local fire depart-
ment. Follow any safety
instructions they provide.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 72
Page 100 of 312

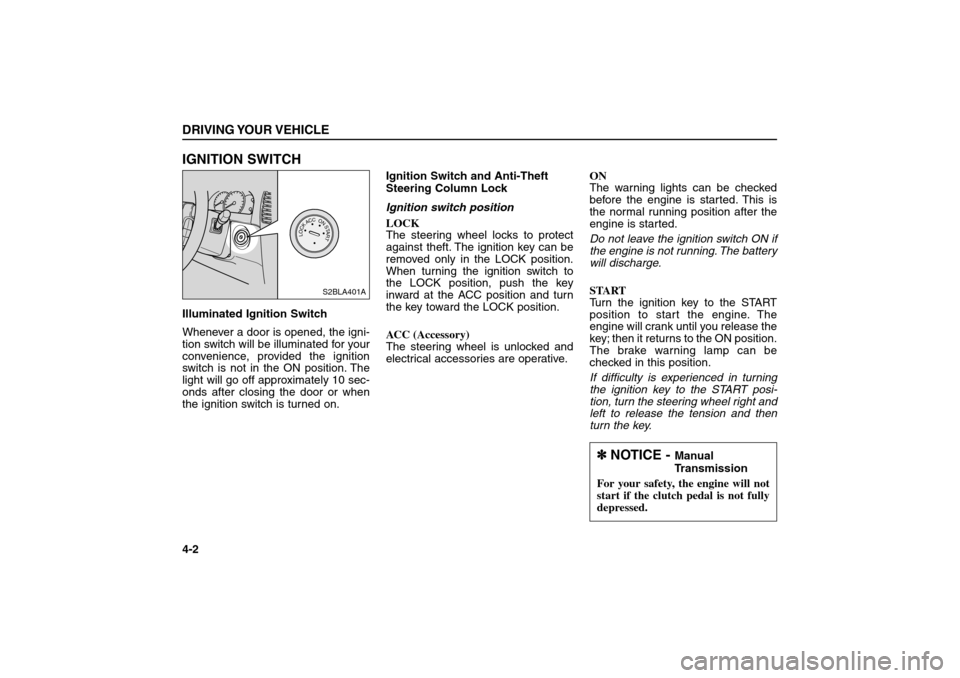

IGNITION SWITCHIlluminated Ignition Switch
Whenever a door is opened, the igni-
tion switch will be illuminated for your
convenience, provided the ignition
switch is not in the ON position. The
light will go off approximately 10 sec-
onds after closing the door or when
the ignition switch is turned on.Ignition Switch and Anti-Theft
Steering Column Lock
Ignition switch position
LOCK
The steering wheel locks to protect
against theft. The ignition key can be
removed only in the LOCK position.
When turning the ignition switch to
the LOCK position, push the key
inward at the ACC position and turn
the key toward the LOCK position.
ACC (Accessory)
The steering wheel is unlocked and
electrical accessories are operative.ON
The warning lights can be checked
before the engine is started. This is
the normal running position after the
engine is started.
Do not leave the ignition switch ON if
the engine is not running. The battery
will discharge.
START
Turn the ignition key to the START
position to start the engine. The
engine will crank until you release the
key; then it returns to the ON position.
The brake warning lamp can be
checked in this position.
If difficulty is experienced in turning
the ignition key to the START posi-
tion, turn the steering wheel right and
left to release the tension and then
turn the key.DRIVING YOUR VEHICLE4-2
PUSH
LOCKACCONSTARTS2BLA401A
✽ ✽
NOTICE -
Manual
Transmission
For your safety, the engine will not
start if the clutch pedal is not fully
depressed.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 2
Page 108 of 312

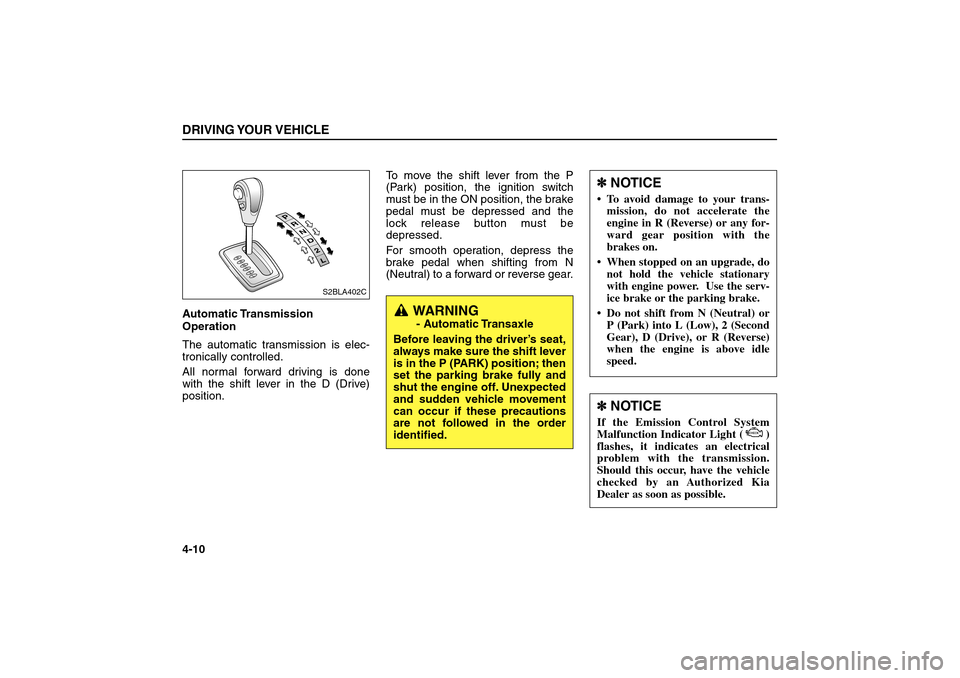

Automatic Transmission
Operation
The automatic transmission is elec-
tronically controlled.
All normal forward driving is done
with the shift lever in the D (Drive)
position.To move the shift lever from the P
(Park) position, the ignition switch
must be in the ON position, the brake
pedal must be depressed and the
lock release button must be
depressed.
For smooth operation, depress the
brake pedal when shifting from N
(Neutral) to a forward or reverse gear.DRIVING YOUR VEHICLE4-10
PR
N
D
2
LO/D OFF
PRND2LS2BLA402C
WARNING- Automatic Transaxle
Before leaving the driver’s seat,
always make sure the shift lever
is in the P (PARK) position; then
set the parking brake fully and
shut the engine off. Unexpected
and sudden vehicle movement
can occur if these precautions
are not followed in the order
identified.
✽ ✽
NOTICE To avoid damage to your trans-
mission, do not accelerate the
engine in R (Reverse) or any for-
ward gear position with the
brakes on.
When stopped on an upgrade, do
not hold the vehicle stationary
with engine power. Use the serv-
ice brake or the parking brake.
Do not shift from N (Neutral) or
P (Park) into L (Low), 2 (Second
Gear), D (Drive), or R (Reverse)
when the engine is above idle
speed.✽ ✽
NOTICEIf the Emission Control System
Malfunction Indicator Light ( )
flashes, it indicates an electrical
problem with the transmission.
Should this occur, have the vehicle
checked by an Authorized Kia
Dealer as soon as possible.
CHECK
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 10
Page 110 of 312
When driving down a sloping road
with the transaxle in O/D (5th), you
can decrease the vehicle speed with-
out using the brakes by pressing the
O/D OFF button.
When the ignition is switched OFF,
O/D OFF mode is automatically can-
celled.
O/D OFF indicator
This indicator light illuminates in the
instrument panel when the O/D mode
is cancelled.P (Park)
This position locks the transmission
and prevents the front wheels from
rotating. Always come to a complete
stop before shifting into this position.DRIVING YOUR VEHICLE4-12✽ ✽
NOTICEIf the O/D OFF indicator flashes, it
indicates an electrical problem with
the transaxle. Should this occur,
have the vehicle checked by an
Authorized Kia Dealer as soon as
possible.
WARNING
Shifting into P (Park) while the
vehicle is in motion will cause
the drive wheels to lock which
will cause you to lose control
of the vehicle.
Do not use the P (Park) posi-
tion in place of the parking
brake. Always make sure the
shift lever is latched in the P
(Park) position so that it can-
not be moved unless the lock
release button is pushed in,
AND set the parking brake
fully.
(Continued)
(Continued)
Before leaving the driver’s
seat, always make sure the
shift lever is in the P (PARK)
position. Set the parking
brake fully, shut the engine off
and take the key with you.
Unexpected and sudden vehi-
cle movement can occur if
you do not follow these pre-
cautions in the order speci-
fied.
Never leave a child unattend-
ed in a vehicle.
CAUTION
The transmission may be dam-
aged if you shift into P (Park)
while the vehicle is in motion.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 12
Page 119 of 312

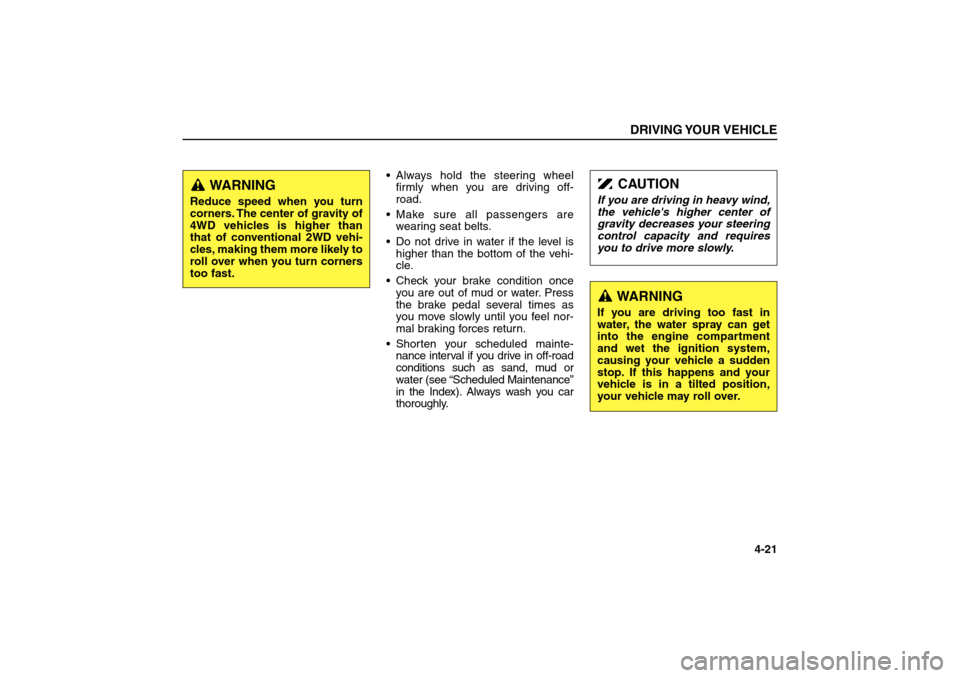

Always hold the steering wheel
firmly when you are driving off-
road.
Make sure all passengers are
wearing seat belts.
Do not drive in water if the level is
higher than the bottom of the vehi-
cle.
Check your brake condition once
you are out of mud or water. Press
the brake pedal several times as
you move slowly until you feel nor-
mal braking forces return.
Shorten your scheduled mainte-
nance interval if you drive in off-road
conditions such as sand, mud or
water (see “Scheduled Maintenance”
in the Index). Always wash you car
thoroughly.
DRIVING YOUR VEHICLE
4-21
WARNING
Reduce speed when you turn
corners. The center of gravity of
4WD vehicles is higher than
that of conventional 2WD vehi-
cles, making them more likely to
roll over when you turn corners
too fast.
CAUTION
If you are driving in heavy wind,
the vehicle's higher center of
gravity decreases your steering
control capacity and requires
you to drive more slowly.
WARNING
If you are driving too fast in
water, the water spray can get
into the engine compartment
and wet the ignition system,
causing your vehicle a sudden
stop. If this happens and your
vehicle is in a tilted position,
your vehicle may roll over.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 21
Page 126 of 312
Do not drive in water if the level is
higher than the bottom of the wheel
hubs.
Check your brake condition once
you are out of mud or water. Press
the brake pedal several times as
you move slowly until you feel nor-
mal braking forces return.
Shorten your scheduled mainte-
nance interval if you drive off-road in
conditions such as sand, mud or
water (see “Scheduled Maintenance’’
in the Index). Always wash your car
thoroughly.

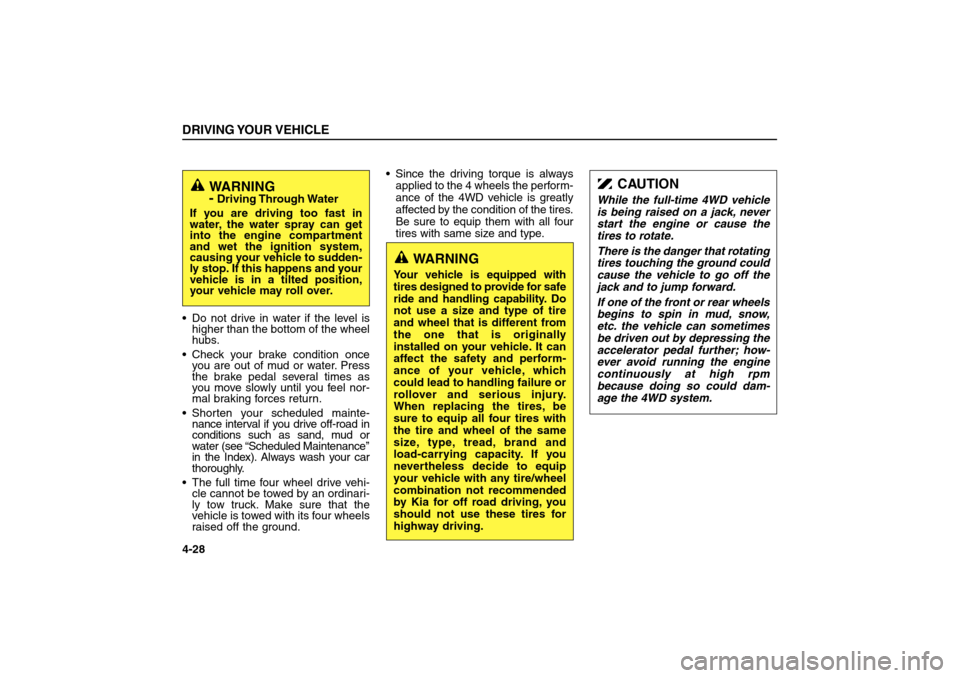

The full time four wheel drive vehi-
cle cannot be towed by an ordinari-
ly tow truck. Make sure that the
vehicle is towed with its four wheels
raised off the ground.Since the driving torque is always
applied to the 4 wheels the perform-
ance of the 4WD vehicle is greatly
affected by the condition of the tires.
Be sure to equip them with all four
tires with same size and type.DRIVING YOUR VEHICLE4-28
CAUTION
While the full-time 4WD vehicle
is being raised on a jack, never
start the engine or cause the
tires to rotate.
There is the danger that rotating
tires touching the ground could
cause the vehicle to go off the
jack and to jump forward.
If one of the front or rear wheels
begins to spin in mud, snow,
etc. the vehicle can sometimes
be driven out by depressing the
accelerator pedal further; how-
ever avoid running the engine
continuously at high rpm
because doing so could dam-
age the 4WD system.
WARNING
-Driving Through Water
If you are driving too fast in
water, the water spray can get
into the engine compartment
and wet the ignition system,
causing your vehicle to sudden-
ly stop. If this happens and your
vehicle is in a tilted position,
your vehicle may roll over.
WARNING
Your vehicle is equipped with
tires designed to provide for safe
ride and handling capability. Do
not use a size and type of tire
and wheel that is different from
the one that is originally
installed on your vehicle. It can
affect the safety and perform-
ance of your vehicle, which
could lead to handling failure or
rollover and serious injury.
When replacing the tires, be
sure to equip all four tires with
the tire and wheel of the same
size, type, tread, brand and
load-carrying capacity. If you
nevertheless decide to equip
your vehicle with any tire/wheel
combination not recommended
by Kia for off road driving, you
should not use these tires for
highway driving.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 28
Page 131 of 312
To release the parking brake, pull the
handle up slightly and push the
release button. Then lower the handle
to the released position while holding
the button in.Check the brake warning light each
time you start the engine. This warn-
ing will be illuminated when the
engine is running and the parking
brake is set.
Before driving, be sure the parking
brake is fully released and the brake
warning light is off.
DRIVING YOUR VEHICLE
4-33
S2BLC302C
WARNING
To prevent unintentional move-
ment when stopped and leaving
the vehicle, do not use the
gearshift lever in place of the
parking brake. Set the parking
brake AND make sure the
gearshift lever is securely posi-
tioned in 1st (First) gear or R
(Reverse) for manual transmis-
sion equipped vehicles and in P
(Park) for automatic transmis-
sion equipped vehicles.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 33
