Page 253 of 327

KIA Sorento 2009 2.G Owners Guide 67
In case of an emergency
ELECTRICAL CIRCUIT PROTECTION Fuses  A vehicle’s electrical system is protected
from electrical overload damage by
fuses.This vehicle has two fuse panels, one
located in t

Page 254 of 327

KIA Sorento 2009 2.G Owners Guide In case of an emergency86Driver’s side panel1. Turn the ignition switch and all otherswitches off.
2. Pull the suspected fuse straight out. Use the removal tool provided on the
main fuse box in the

Page 255 of 327

KIA Sorento 2009 2.G Owners Guide 69
In case of an emergency
Main fuseIf the MAIN fuse is blown, it must be
removed as follows:
1. Disconnect the negative battery cable.
2. Remove the nuts shown in the pictureabove.
3. Replace the fus

Page 278 of 327

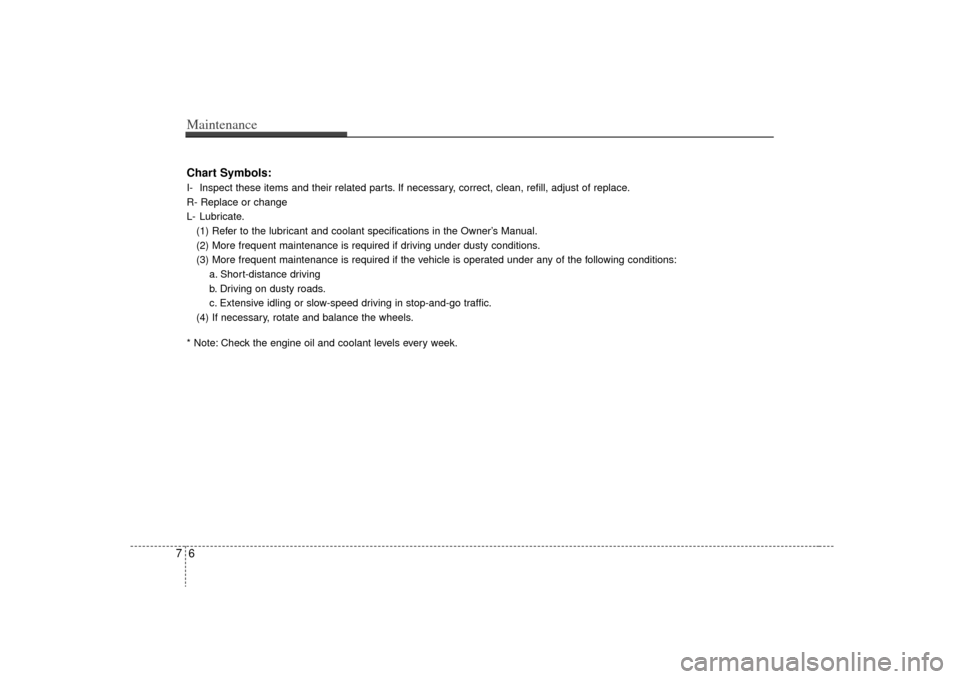

KIA Sorento 2009 2.G Owners Guide Maintenance67Chart Symbols:I- Inspect these items and their related parts. If necessary, correct, clean, refill, adjust of replace.
R- Replace or change
L- Lubricate.(1) Refer to the lubricant and coo

Page 279 of 327

KIA Sorento 2009 2.G Owners Guide 77
Maintenance

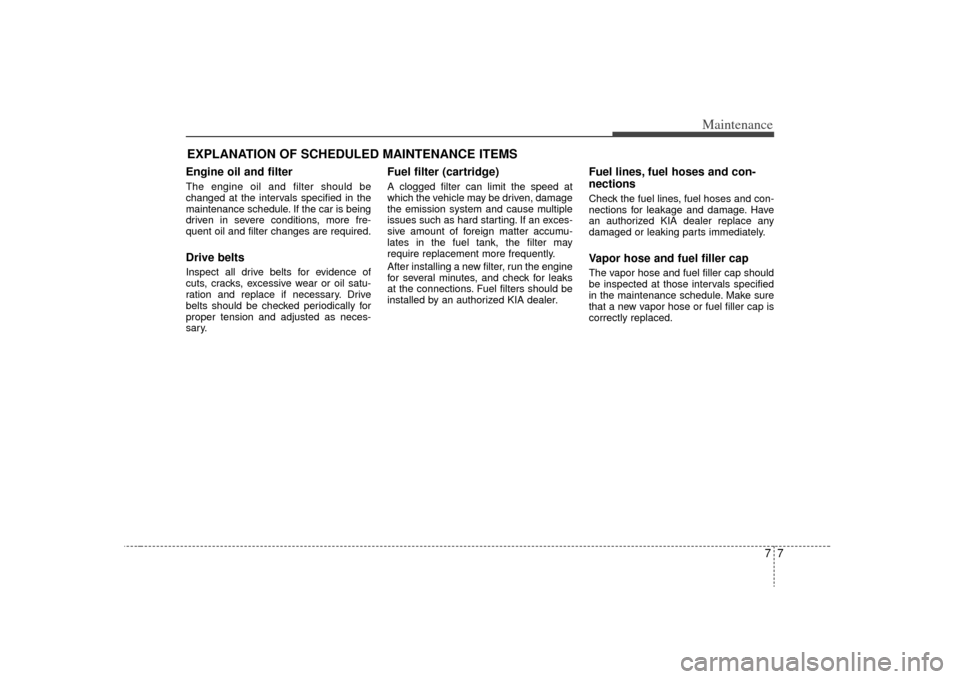

EXPLANATION OF SCHEDULED MAINTENANCE ITEMSEngine oil and filterThe engine oil and filter should be
changed at the intervals specified in the
maintenance schedule. If the car is being
dr

Page 280 of 327

KIA Sorento 2009 2.G Owners Guide Maintenance87Vacuum crankcase ventilation
hoses Inspect the surface of hoses for evidence
of heat and/or mechanical damage. Hard
and brittle rubber, cracking, tears, cuts,
abrasions, and excessive swe

Page 281 of 327

KIA Sorento 2009 2.G Owners Guide 79
Maintenance

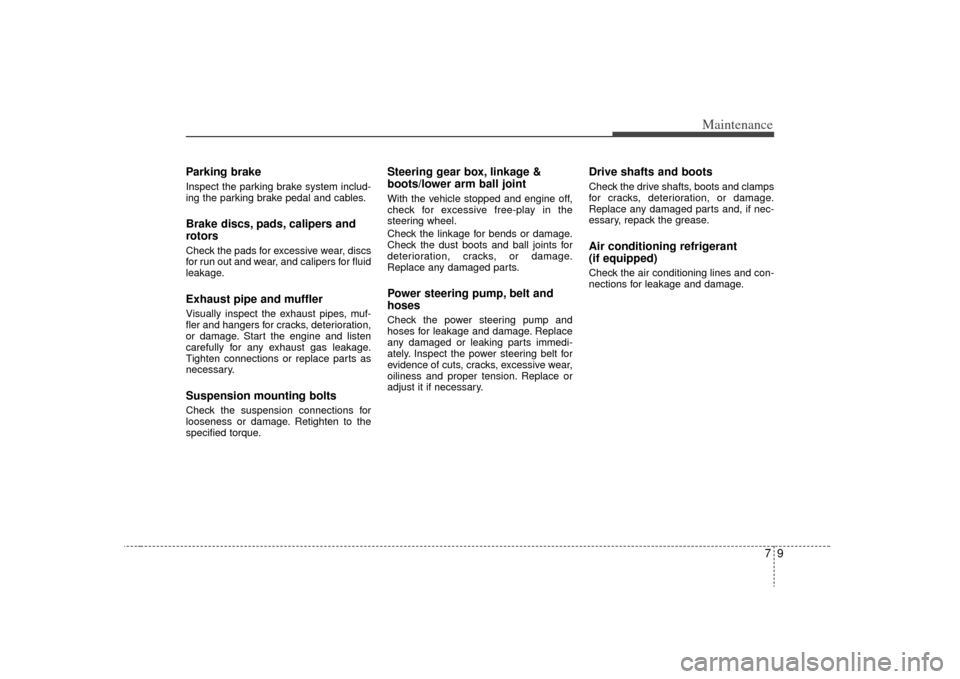

Parking brakeInspect the parking brake system includ-
ing the parking brake pedal and cables.Brake discs, pads, calipers and
rotorsCheck the pads for excessive wear, discs
for run out a

Page 282 of 327

KIA Sorento 2009 2.G Owners Guide Maintenance10
7OWNER MAINTENANCE Owner maintenance schedule The following lists are vehicle checks and
inspections that should be performed by
the owner or an Authorized Kia Dealer at
the frequencies

Page 286 of 327

KIA Sorento 2009 2.G Owners Guide Maintenance14

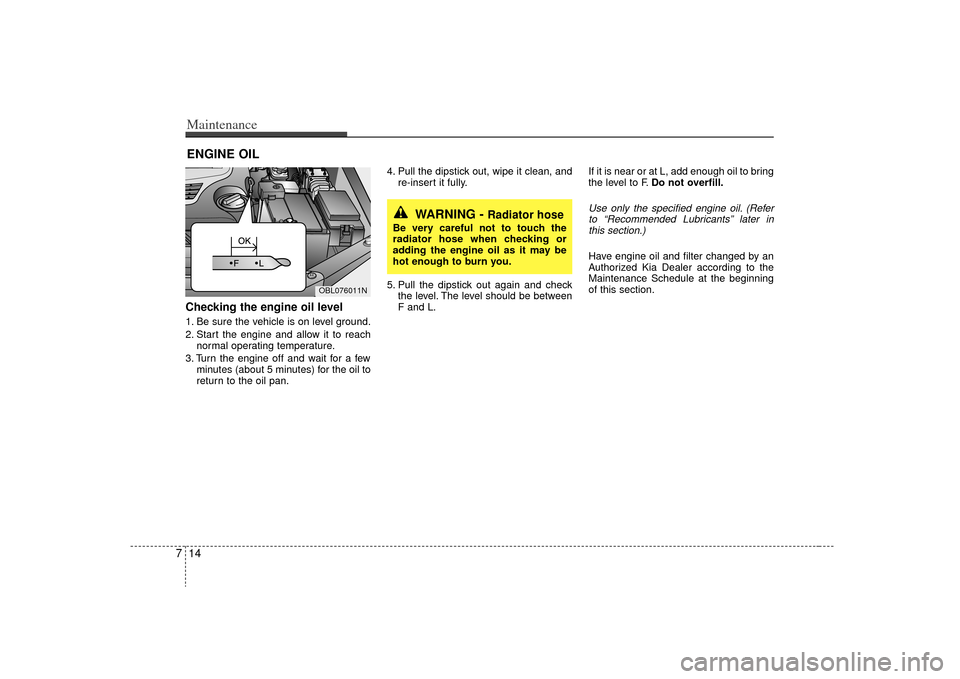

7ENGINE OILChecking the engine oil level  1. Be sure the vehicle is on level ground.
2. Start the engine and allow it to reach
normal operating temperature.
3. Turn the engine off and wa

Page 287 of 327

KIA Sorento 2009 2.G Owners Guide 715
Maintenance

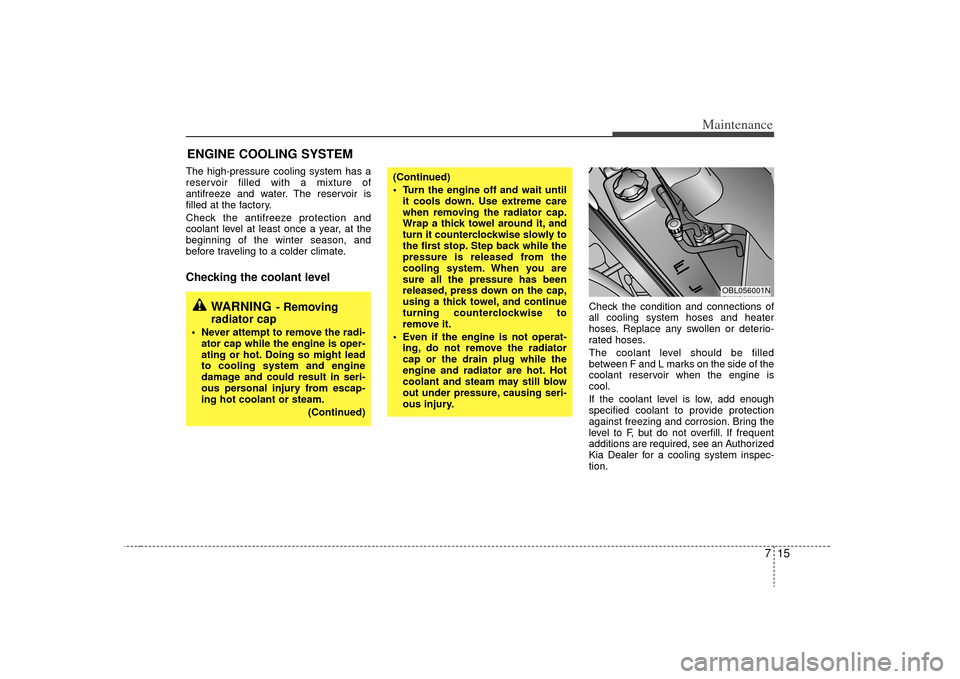

ENGINE COOLING SYSTEMThe high-pressure cooling system has a
reservoir filled with a mixture of
antifreeze and water. The reservoir is
filled at the factory.
Check the antifreeze protec
