lug pattern KIA Sorento 2009 2.G Owner's Manual

625
In case of an emergency

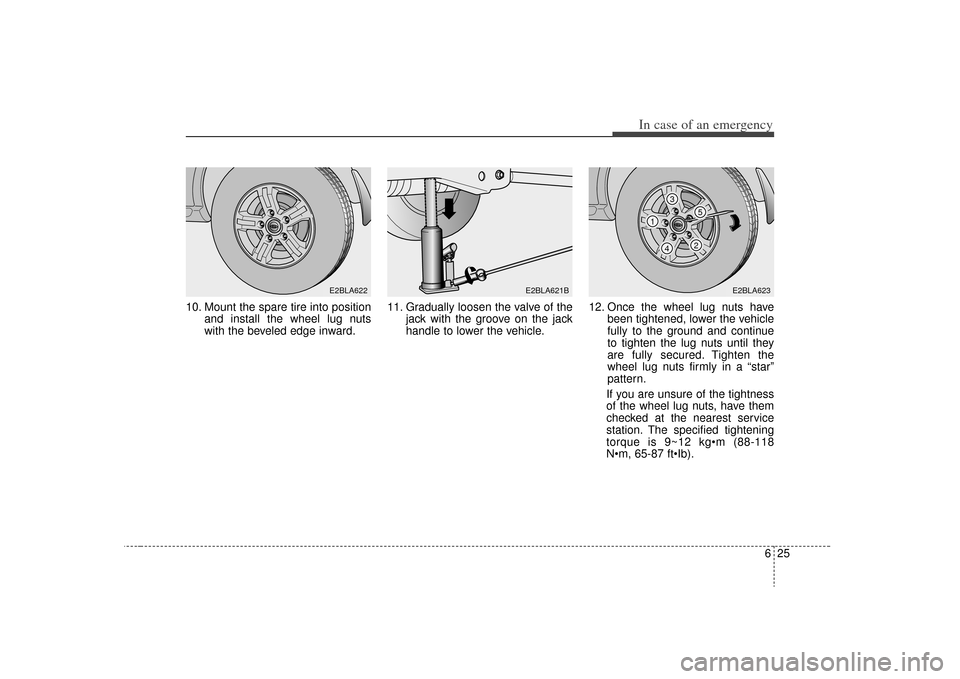

10. Mount the spare tire into positionand install the wheel lug nuts
with the beveled edge inward. 11. Gradually loosen the valve of the
jack with the groove on the jack
handle to lower the vehicle. 12. Once the wheel lug nuts have
been tightened, lower the vehicle
fully to the ground and continue
to tighten the lug nuts until they
are fully secured. Tighten the
wheel lug nuts firmly in a “star”
pattern.
If you are unsure of the tightness
of the wheel lug nuts, have them
checked at the nearest service
station. The specified tightening
torque is 9~12 kg
N
E2BLA622
E2BLA621B
1
34
25
E2BLA623
