Features of your vehicle20

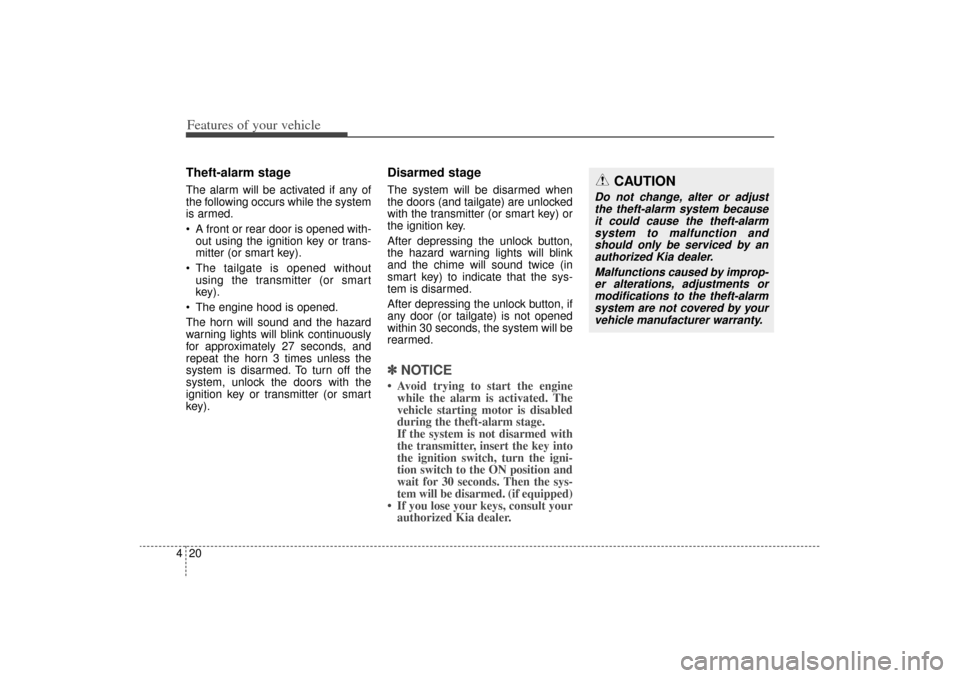

4Theft-alarm stageThe alarm will be activated if any of
the following occurs while the system
is armed.
 A front or rear door is opened with-
out using the ignition key or trans-
mitter (or smart key).
 The tailgate is opened without using the transmitter (or smart
key).
 The engine hood is opened.
The horn will sound and the hazard
warning lights will blink continuously
for approximately 27 seconds, and
repeat the horn 3 times unless the
system is disarmed. To turn off the
system, unlock the doors with the
ignition key or transmitter (or smart
key).
Disarmed stageThe system will be disarmed when
the doors (and tailgate) are unlocked
with the transmitter (or smart key) or
the ignition key.
After depressing the unlock button,
the hazard warning lights will blink
and the chime will sound twice (in
smart key) to indicate that the sys-
tem is disarmed.
After depressing the unlock button, if
any door (or tailgate) is not opened
within 30 seconds, the system will be
rearmed.✽ ✽ NOTICE• Avoid trying to start the engine
while the alarm is activated. The
vehicle starting motor is disabled
during the theft-alarm stage.
If the system is not disarmed with
the transmitter, insert the key into
the ignition switch, turn the igni-
tion switch to the ON position and
wait for 30 seconds. Then the sys-
tem will be disarmed. (if equipped)
• If you lose your keys, consult your authorized Kia dealer.
CAUTION
Do not change, alter or adjust
the theft-alarm system becauseit could cause the theft-alarmsystem to malfunction andshould only be serviced by anauthorized Kia dealer.
Malfunctions caused by improp-er alterations, adjustments ormodifications to the theft-alarmsystem are not covered by yourvehicle manufacturer warranty.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:46 PM Page 20

421
Features of your vehicle

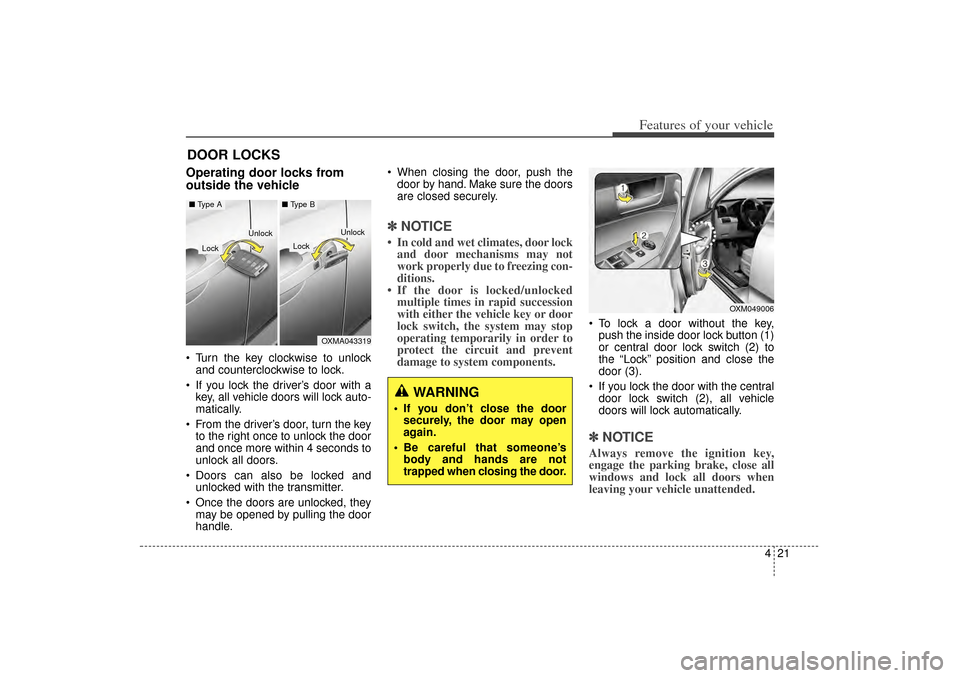

DOOR LOCKS Operating door locks from
outside the vehicle  Turn the key clockwise to unlockand counterclockwise to lock.
 If you lock the driver’s door with a key, all vehicle doors will lock auto-
matically.
 From the driver’s door, turn the key to the right once to unlock the door
and once more within 4 seconds to
unlock all doors.
 Doors can also be locked and unlocked with the transmitter.
 Once the doors are unlocked, they may be opened by pulling the door
handle.  When closing the door, push the
door by hand. Make sure the doors
are closed securely.
✽ ✽ NOTICE• In cold and wet climates, door lock
and door mechanisms may not
work properly due to freezing con-
ditions.
• If the door is locked/unlocked multiple times in rapid succession
with either the vehicle key or door
lock switch, the system may stop
operating temporarily in order to
protect the circuit and prevent
damage to system components.
 To lock a door without the key,
push the inside door lock button (1)
or central door lock switch (2) to
the “Lock” position and close the
door (3).
 If you lock the door with the central door lock switch (2), all vehicle
doors will lock automatically.✽ ✽ NOTICEAlways remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
OXMA043319
Lock
Lock
Unlock
■ Type A
■ Type B
Unlock
OXM049006
WARNING
 If you don’t close the door
securely, the door may open
again.
 Be careful that someone’s body and hands are not
trapped when closing the door.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:46 PM Page 21

Features of your vehicle22

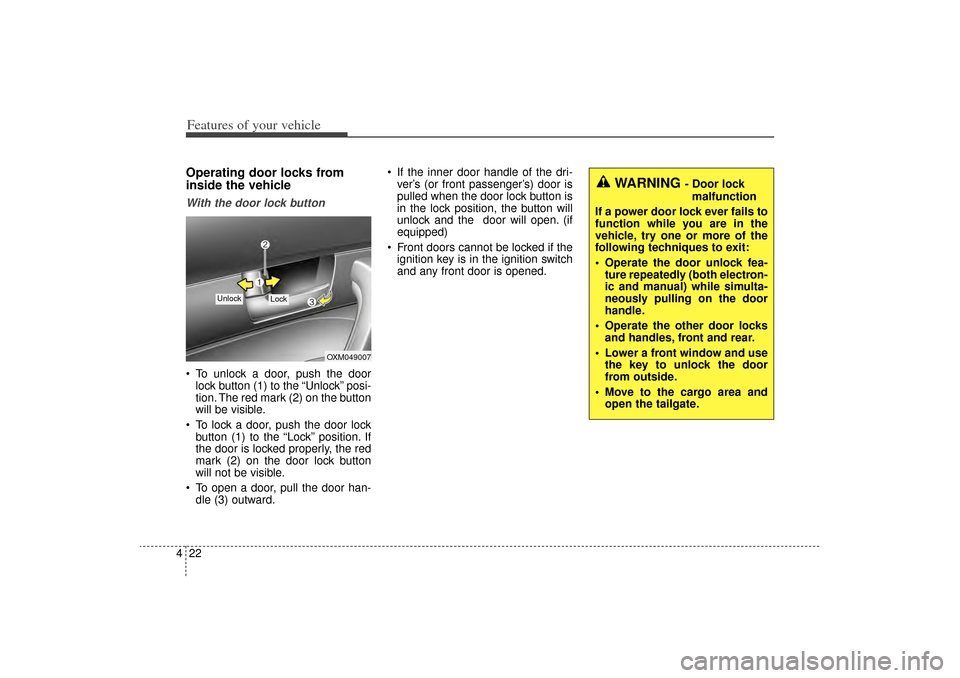

4Operating door locks from
inside the vehicleWith the door lock button To unlock a door, push the door
lock button (1) to the “Unlock” posi-
tion. The red mark (2) on the button
will be visible.
 To lock a door, push the door lock button (1) to the “Lock” position. If
the door is locked properly, the red
mark (2) on the door lock button
will not be visible.
 To open a door, pull the door han- dle (3) outward.  If the inner door handle of the dri-
ver’s (or front passenger’s) door is
pulled when the door lock button is
in the lock position, the button will
unlock and the door will open. (if
equipped)
 Front doors cannot be locked if the ignition key is in the ignition switch
and any front door is opened.
WARNING
- Door lock
malfunction
If a power door lock ever fails to
function while you are in the
vehicle, try one or more of the
following techniques to exit:
 Operate the door unlock fea- ture repeatedly (both electron-
ic and manual) while simulta-
neously pulling on the door
handle.
 Operate the other door locks and handles, front and rear.
 Lower a front window and use the key to unlock the door
from outside.
 Move to the cargo area and open the tailgate.
OXM049007
Lock
Unlock
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:46 PM Page 22

423
Features of your vehicle

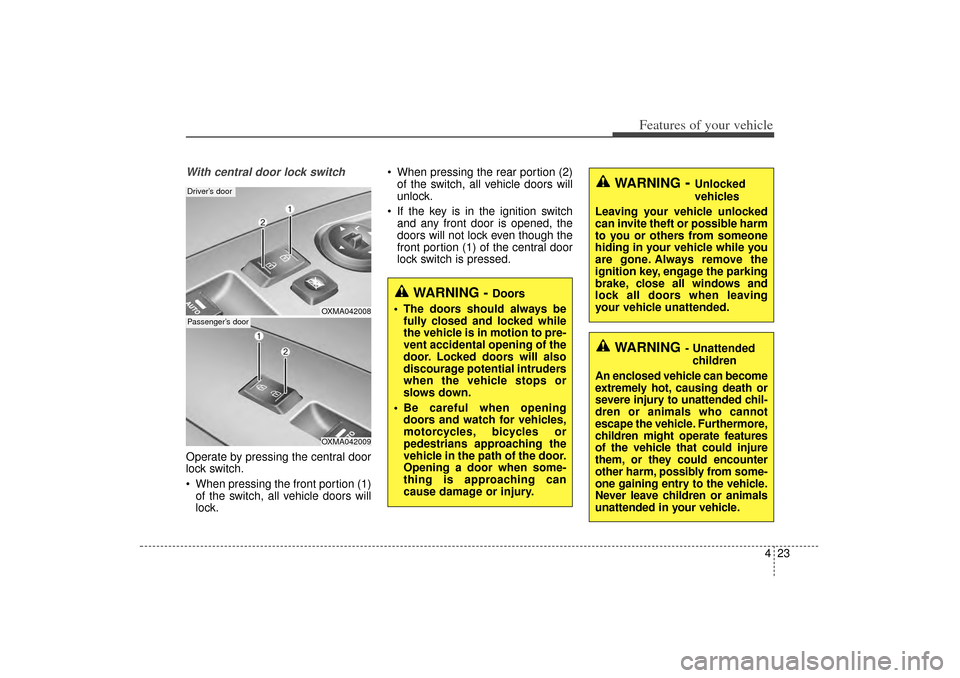

With central door lock switchOperate by pressing the central door
lock switch.
 When pressing the front portion (1)of the switch, all vehicle doors will
lock.  When pressing the rear portion (2)
of the switch, all vehicle doors will
unlock.
 If the key is in the ignition switch and any front door is opened, the
doors will not lock even though the
front portion (1) of the central door
lock switch is pressed.
WARNING
- Unlocked
vehicles
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving
your vehicle unattended.
WARNING
- Unattended children
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-
dren or animals who cannot
escape the vehicle. Furthermore,
children might operate features
of the vehicle that could injure
them, or they could encounter
other harm, possibly from some-
one gaining entry to the vehicle.
Never leave children or animals
unattended in your vehicle.
WARNING -
Doors
 The doors should always be fully closed and locked while
the vehicle is in motion to pre-
vent accidental opening of the
door. Locked doors will also
discourage potential intruders
when the vehicle stops or
slows down.
 Be careful when opening doors and watch for vehicles,
motorcycles, bicycles or
pedestrians approaching the
vehicle in the path of the door.
Opening a door when some-
thing is approaching can
cause damage or injury.
OXMA042008
Driver’s door
OXMA042009
Passenger’s door
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:46 PM Page 23

Features of your vehicle24

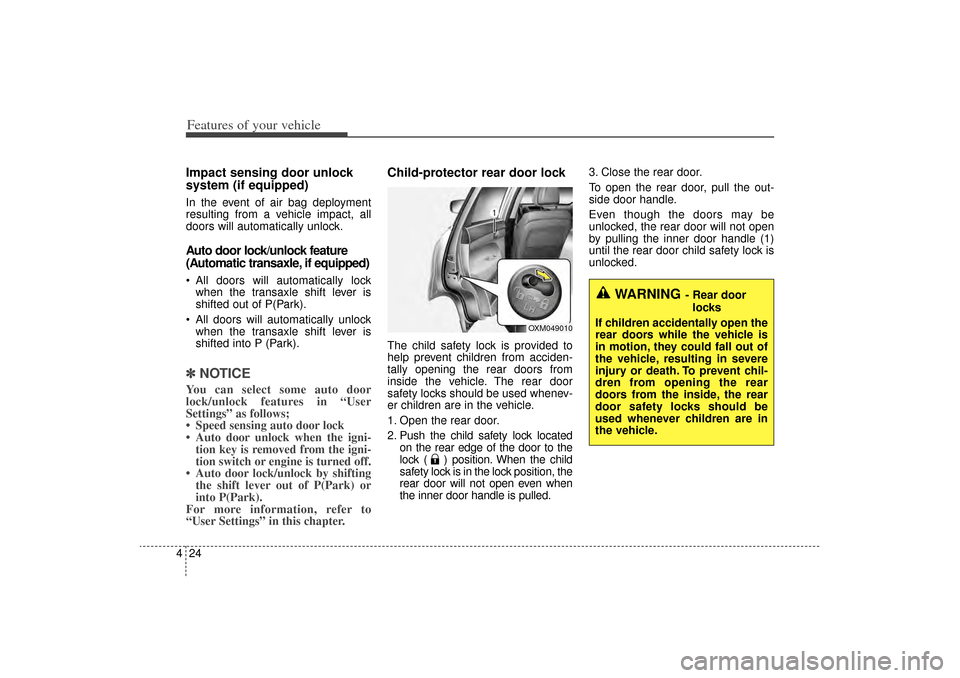

4Impact sensing door unlock
system (if equipped)In the event of air bag deployment
resulting from a vehicle impact, all
doors will automatically unlock.Auto door lock/unlock feature
(Automatic transaxle, if equipped) All doors will automatically lock
when the transaxle shift lever is
shifted out of P(Park).
 All doors will automatically unlock when the transaxle shift lever is
shifted into P (Park).✽ ✽ NOTICEYou can select some auto door
lock/unlock features in “User
Settings” as follows;
• Speed sensing auto door lock
• Auto door unlock when the igni-
tion key is removed from the igni-
tion switch or engine is turned off.
• Auto door lock/unlock by shifting the shift lever out of P(Park) or
into P(Park).
For more information, refer to
“User Settings” in this chapter.
Child-protector rear door lockThe child safety lock is provided to
help prevent children from acciden-
tally opening the rear doors from
inside the vehicle. The rear door
safety locks should be used whenev-
er children are in the vehicle.
1. Open the rear door.
2. Push the child safety lock located
on the rear edge of the door to the
lock ( ) position. When the child
safety lock is in the lock position, the
rear door will not open even when
the inner door handle is pulled. 3. Close the rear door.
To open the rear door, pull the out-
side door handle.
Even though the doors may be
unlocked, the rear door will not open
by pulling the inner door handle (1)
until the rear door child safety lock is
unlocked.
OXM049010
WARNING
- Rear door
locks
If children accidentally open the
rear doors while the vehicle is
in motion, they could fall out of
the vehicle, resulting in severe
injury or death. To prevent chil-
dren from opening the rear
doors from the inside, the rear
door safety locks should be
used whenever children are in
the vehicle.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:46 PM Page 24

425
Features of your vehicle

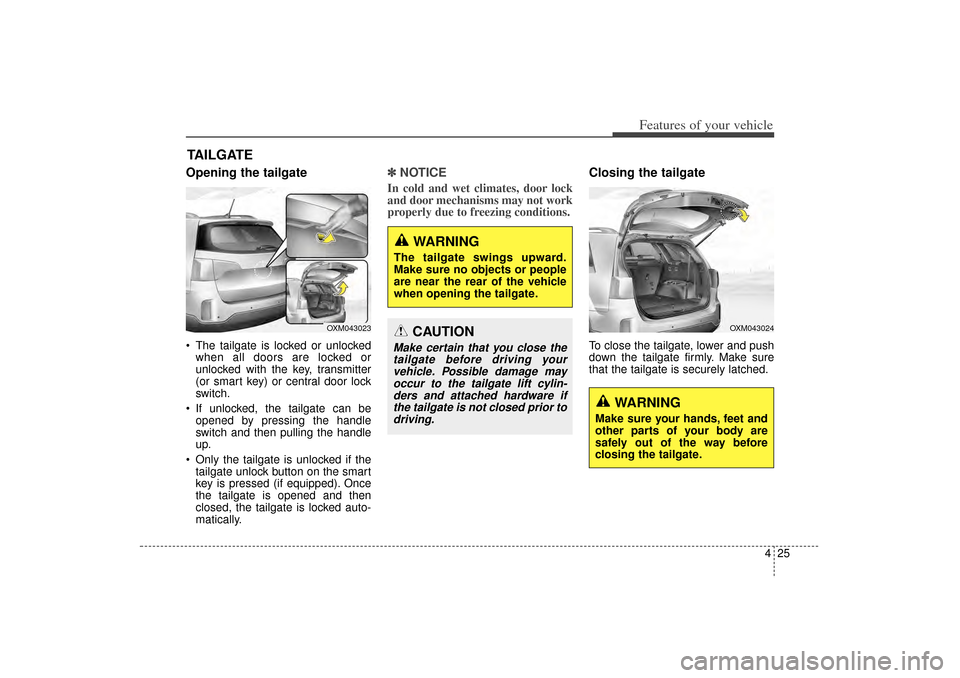

Opening the tailgate The tailgate is locked or unlockedwhen all doors are locked or
unlocked with the key, transmitter
(or smart key) or central door lock
switch.
 If unlocked, the tailgate can be opened by pressing the handle
switch and then pulling the handle
up.
 Only the tailgate is unlocked if the tailgate unlock button on the smart
key is pressed (if equipped). Once
the tailgate is opened and then
closed, the tailgate is locked auto-
matically.
✽ ✽ NOTICEIn cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
Closing the tailgateTo close the tailgate, lower and push
down the tailgate firmly. Make sure
that the tailgate is securely latched.
TAILGATE
WARNING
The tailgate swings upward.
Make sure no objects or people
are near the rear of the vehicle
when opening the tailgate.
CAUTION
Make certain that you close the
tailgate before driving yourvehicle. Possible damage mayoccur to the tailgate lift cylin-ders and attached hardware ifthe tailgate is not closed prior todriving.
OXM043023
OXM043024
WARNING
Make sure your hands, feet and
other parts of your body are
safely out of the way before
closing the tailgate.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:46 PM Page 25

Features of your vehicle26
4
Power tailgate (if equipped)
(1) Power tailgate open/close button
(2) Power tailgate off button
(3) Power tailgate handle switch
(4) Power tailgate close button✽ ✽
NOTICEThe power tailgate operates when:
• Automatic shift lever is in P (Park).
• Manual shift lever is in neutral.
WARNING
- Rear cargo
area
Occupants should never ride in
the rear cargo area where no
restraints are available. To avoid
injury in the event of an acci-
dent or sudden stops, occu-
pants should always be proper-
ly restrained.
WARNING
- Exhaust
fumes
If you drive with the tailgate
open, you may draw dangerous
exhaust fumes into your vehicle
which can cause serious injury
or death to vehicle occupants.
If you must drive with the tail-
gate opened, keep the air vents
and all windows open so that
additional outside air comes
into the vehicle.
OXMA043008OXMA043023OXMA043325
WARNING
Never leave children or animals
unattended in your vehicle.
Unattended children or animals
could activate the power tailgate
which may result in injury to
themselves or others, or damage
to the vehicle.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:47 PM Page 26

427
Features of your vehicle

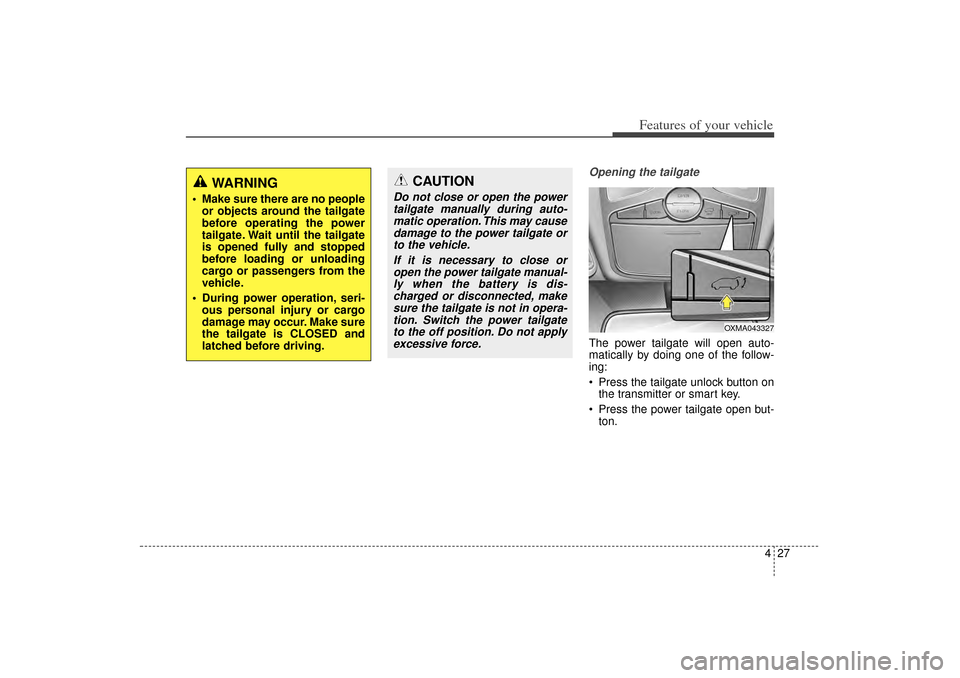

Opening the tailgateThe power tailgate will open auto-
matically by doing one of the follow-
ing:
 Press the tailgate unlock button onthe transmitter or smart key.
 Press the power tailgate open but- ton.
WARNING
 Make sure there are no peopleor objects around the tailgate
before operating the power
tailgate. Wait until the tailgate
is opened fully and stopped
before loading or unloading
cargo or passengers from the
vehicle.
 During power operation, seri- ous personal injury or cargo
damage may occur. Make sure
the tailgate is CLOSED and
latched before driving.
CAUTION
Do not close or open the powertailgate manually during auto-matic operation. This may causedamage to the power tailgate orto the vehicle.
If it is necessary to close oropen the power tailgate manual-ly when the battery is dis-charged or disconnected, makesure the tailgate is not in opera-tion. Switch the power tailgateto the off position. Do not applyexcessive force.
OXMA043327
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:47 PM Page 27

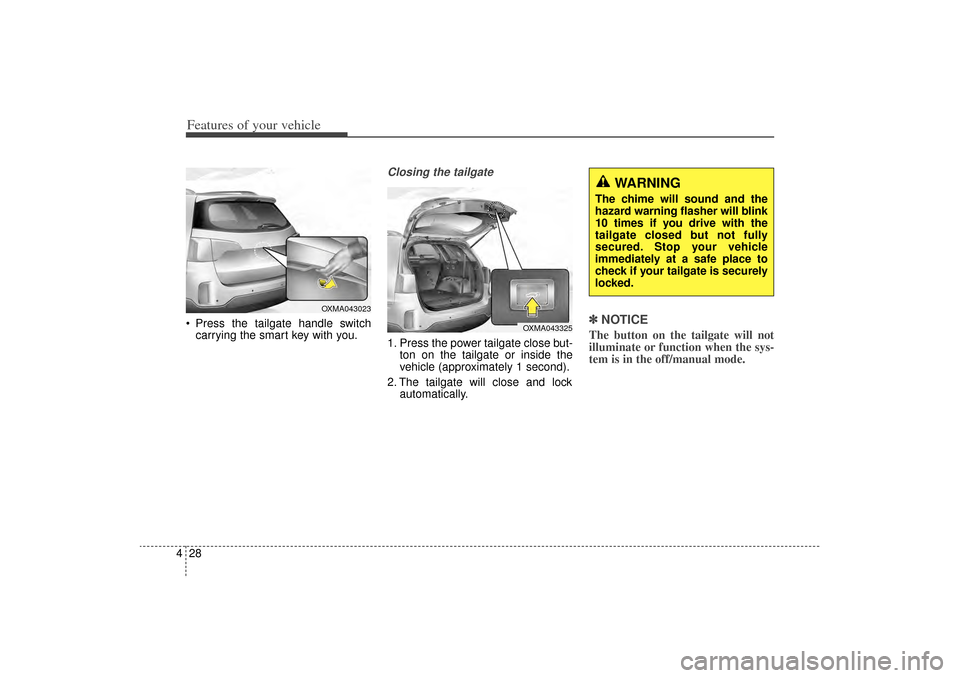

Features of your vehicle28
4 Press the tailgate handle switch
carrying the smart key with you.
Closing the tailgate1. Press the power tailgate close but- ton on the tailgate or inside the
vehicle (approximately 1 second).
2. The tailgate will close and lock automatically.
✽ ✽NOTICEThe button on the tailgate will not
illuminate or function when the sys-
tem is in the off/manual mode.
OXMA043023
OXMA043325
WARNING
The chime will sound and the
hazard warning flasher will blink
10 times if you drive with the
tailgate closed but not fully
secured. Stop your vehicle
immediately at a safe place to
check if your tailgate is securely
locked.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:47 PM Page 28

429
Features of your vehicle
Power tailgate non-opening con-ditions The power tailgate will not open or close automatically, when the vehicle
is moving more than 3km/h (2mph).
 If you press the power tailgate off button (1), the power tailgate will
not open or close automatically.
✽ ✽ NOTICE• The power tailgate can be operat-
ed when the engine is not running.
However the power tailgate opera-
tion consumes large amounts of
vehicle electric power. To prevent
the battery from being discharged,
do not operate it excessively e.g.:
more than approximately 10 times
repeatedly.
• To prevent the battery from being discharged, do not leave the power
tailgate in the open position for a
long time.
• Do not modify or repair any part of the power tailgate by yourself.
This must be done by an author-
ized Kia dealer.
• When jacking up the vehicle to change a tire or repair the vehicle,
do not operate the power tailgate.
This could cause the power tail-
gate to operate improperly. (Continued)
OXMA043326
WARNING
The chime will sound continu-
ously if you drive over 3km/h
(2mph) with the tailgate opened.
Stop your vehicle at a safe place
as soon as possible to check if
your tailgate is opened.
WARNING
The chime will sound and the
hazard warning flasher will blink
10 times if you drive with the tail-
gate closed but not fully secured.
Stop your vehicle immediately at
a safe place to check if your tail-
gate is securely locked.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:47 PM Page 29
