KIA Sorento 2014 3.G Owner's Manual

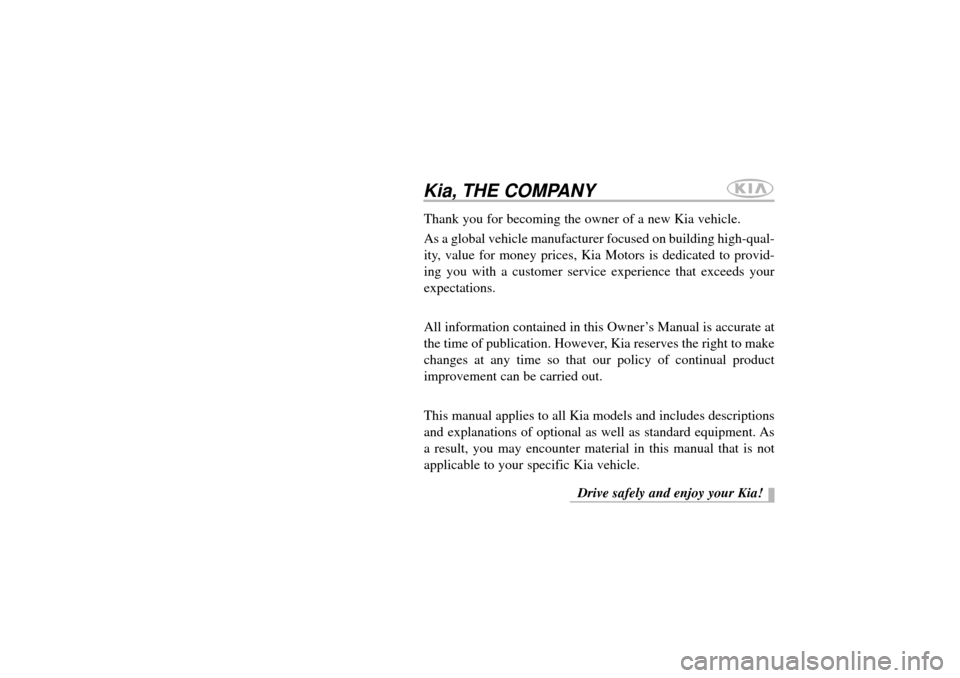

Kia, THE COMPANYThank you for becoming the owner of a new Kia vehicle.
As a global vehicle manufacturer focused on building high-qual-
ity, value for money prices, Kia Motors is dedicated to provid-
ing you with a customer service experience that exceeds your
expectations.
All information contained in this Owner’s Manual is accurate at
the time of publication. However, Kia reserves the right to make
changes at any time so that our policy of continual product
improvement can be carried out.
This manual applies to all Kia models and includes descriptions
and explanations of optional as well as standard equipment. As
a result, you may encounter material in this manual that is not
applicable to your specific Kia vehicle.Drive safely and enjoy your Kia!
XM(FL) CAN(ENG) FOREWORD.QXP 1/23/2013 3:19 PM Page 1

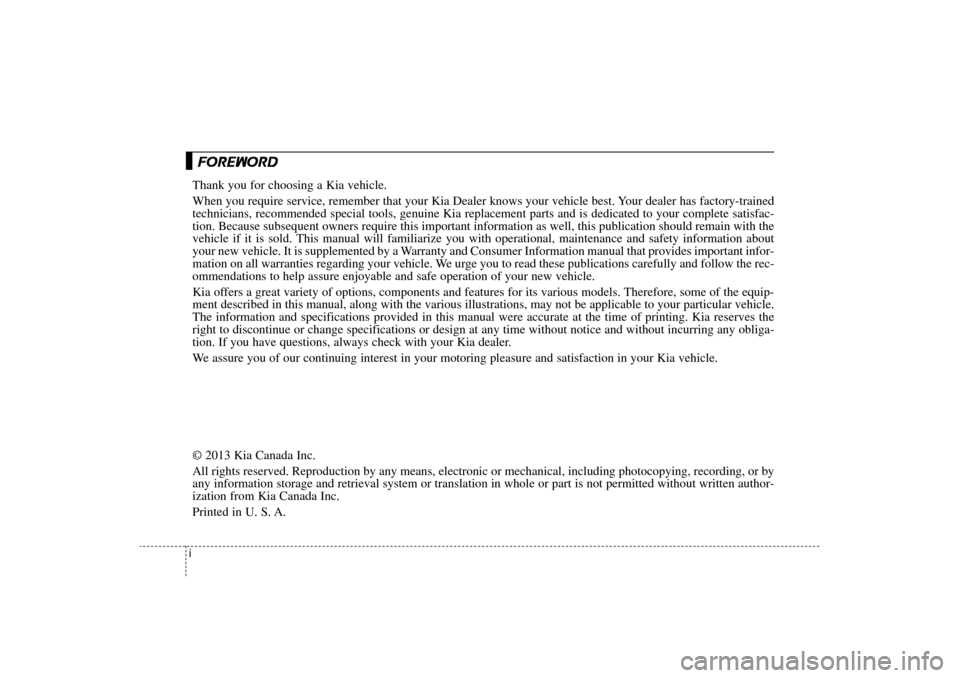

iThank you for choosing a Kia vehicle.
When you require service, remember that your Kia Dealer knows your vehic\
le best. Your dealer has factory-trained
technicians, recommended special tools, genuine Kia replacement parts an\
d is dedicated to your complete satisfac-
tion. Because subsequent owners require this important information as we\
ll, this publication should remain with the
vehicle if it is sold. This manual will familiarize you with operational, maintenance and safet\
y information about
your new vehicle. It is supplemented by a Warranty and Consumer Information manual that provides important infor-
mation on all warranties regarding your vehicle. We urge you to read these publications carefully and follow the rec-
ommendations to help assure enjoyable and safe operation of your new veh\
icle.
Kia offers a great variety of options, components and features for its various\
models. Therefore, some of the equip-
ment described in this manual, along with the various illustrations, may\
not be applicable to your particular vehicle.
The information and specifications provided in this manual were accurate\
at the time of printing. Kia reserves the
right to discontinue or change specifications or design at any time with\
out notice and without incurring any obliga-
tion. If you have questions, always check with your Kia dealer.
We assure you of our continuing interest in your motoring pleasure and sa\
tisfaction in your Kia vehicle.
© 2013 Kia Canada Inc.
All rights reserved. Reproduction by any means, electronic or mechanical\
, including photocopying, recording, or by
any information storage and retrieval system or translation in whole or \
part is not permitted without written author-
ization from Kia Canada Inc.
Printed in U. S. A.F Fo
o r
re
ew
w o
or
rd
d
XM(FL) CAN(ENG) FOREWORD.QXP 1/23/2013 3:19 PM Page 2

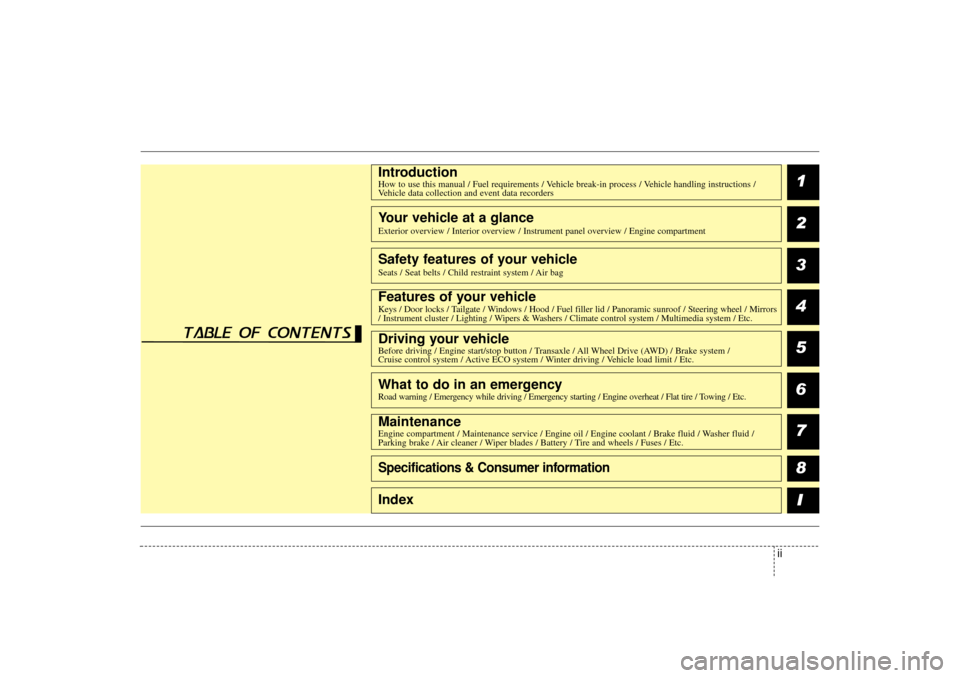

ii
1
2
3
4
5
6
78I
IntroductionHow to use this manual / Fuel requirements / Vehicle break-in process / Vehicle handling instructions /Vehicle data collection and event data recorders Your vehicle at a glanceExterior overview / Interior overview / Instrument panel overview / Engi\
ne compartment Safety features of your vehicleSeats / Seat belts / Child restraint system / Air bagFeatures of your vehicleKeys / Door locks / Tailgate / Windows / Hood / Fuel filler lid / Panoramic sunroof / Steering wheel / Mirrors
/ Instrument cluster / Lighting / Wipers & Washers / Climate control system / Multimedia system / Etc.Driving your vehicleBefore driving / Engine start/stop button / Transaxle / All Wheel Drive (AWD) / Brake system /
Cruise control system / Active ECO system / Winter driving / Vehicle load limit / Etc.What to do in an emergencyRoad warning / Emergency while driving / Emergency starting / Engine overheat / Flat tire / Towing / Etc. MaintenanceEngine compartment / Maintenance service / Engine oil / Engine coolant /\
Brake fluid / Washer fluid /
Parking brake / Air cleaner / Wiper blades / Battery / Tire and wheels / Fuses / Etc. Specifications & Consumer informationIndex
table of contents
XM(FL) CAN(ENG) FOREWORD.QXP 1/23/2013 3:19 PM Page 3

1
IntroductionHow to use this manual . . . . . . . . . . . . . . . . . . . . . . 1-2
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3• Gasoline containing alcohol and methanol . . . . . . . . . 1-3
• Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
• Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
• Operation in foreign countries . . . . . . . . . . . . . . . . . . . 1-4Vehicle handling instructions . . . . . . . . . . . . . . . . . 1-5
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . 1-5
XM(FL) CAN(ENG) 1.QXP 3/21/2013 3:25 PM Page 1

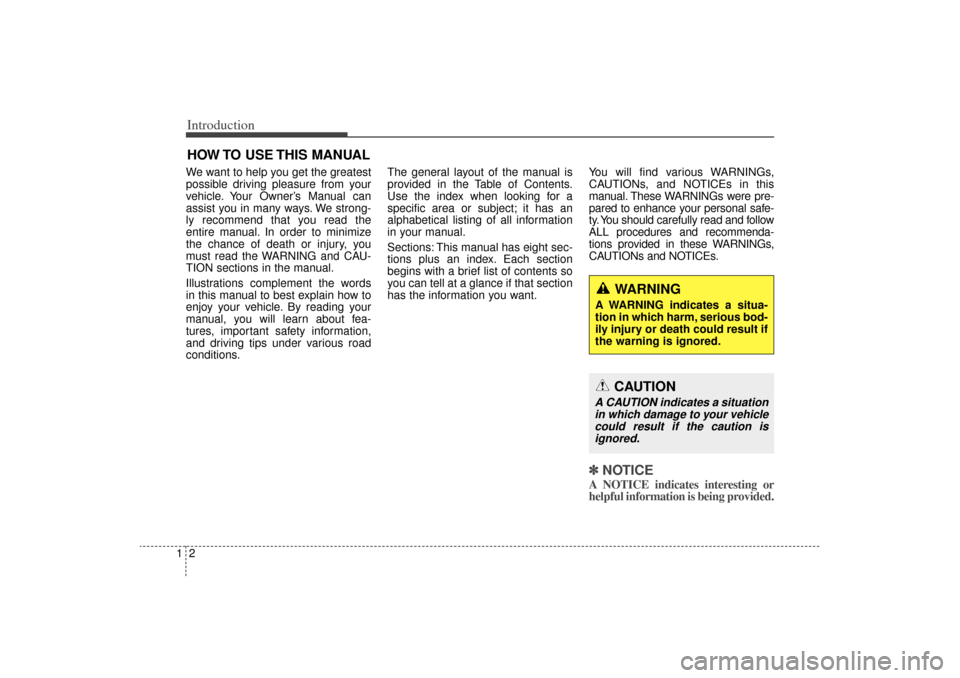

Introduction21HOW TO USE THIS MANUALWe want to help you get the greatest
possible driving pleasure from your
vehicle. Your Owner’s Manual can
assist you in many ways. We strong-
ly recommend that you read the
entire manual. In order to minimize
the chance of death or injury, you
must read the WARNING and CAU-
TION sections in the manual.
Illustrations complement the words
in this manual to best explain how to
enjoy your vehicle. By reading your
manual, you will learn about fea-
tures, important safety information,
and driving tips under various road
conditions.The general layout of the manual is
provided in the Table of Contents.
Use the index when looking for a
specific area or subject; it has an
alphabetical listing of all information
in your manual.
Sections: This manual has eight sec-
tions plus an index. Each section
begins with a brief list of contents so
you can tell at a glance if that section
has the information you want.
You will find various WARNINGs,
CAUTIONs, and NOTICEs in this
manual. These WARNINGs were pre-
pared to enhance your personal safe-
ty. You should carefully read and follow
ALL procedures and recommenda-
tions provided in these WARNINGs,
CAUTIONs and NOTICEs.
✽ ✽


NOTICEA NOTICE indicates interesting or
helpful information is being provided.
WARNING
A WARNING indicates a situa-
tion in which harm, serious bod-
ily injury or death could result if
the warning is ignored.
CAUTION
A CAUTION indicates a situation
in which damage to your vehiclecould result if the caution isignored.
XM(FL) CAN(ENG) 1.QXP 3/21/2013 3:25 PM Page 2

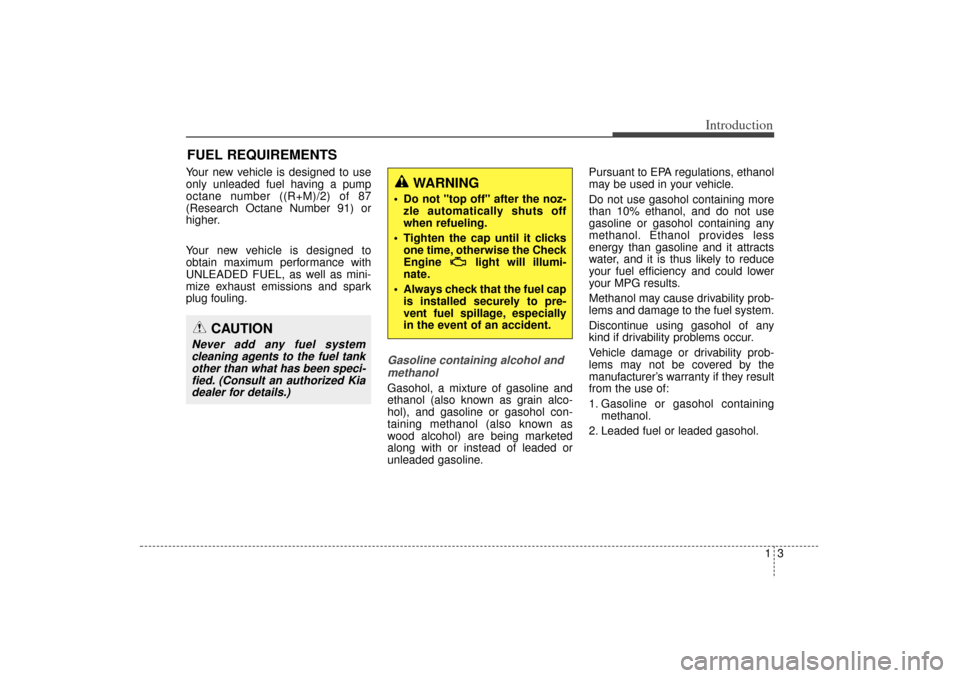

13
Introduction
Your new vehicle is designed to use
only unleaded fuel having a pump
octane number ((R+M)/2) of 87
(Research Octane Number 91) or
higher.
Your new vehicle is designed to
obtain maximum performance with
UNLEADED FUEL, as well as mini-
mize exhaust emissions and spark
plug fouling.
Gasoline containing alcohol andmethanolGasohol, a mixture of gasoline and
ethanol (also known as grain alco-
hol), and gasoline or gasohol con-
taining methanol (also known as
wood alcohol) are being marketed
along with or instead of leaded or
unleaded gasoline. Pursuant to EPA regulations, ethanol
may be used in your vehicle.
Do not use gasohol containing more
than 10% ethanol, and do not use
gasoline or gasohol containing any
methanol. Ethanol provides less
energy than gasoline and it attracts
water, and it is thus likely to reduce
your fuel efficiency and could lower
your MPG results.
Methanol may cause drivability prob-
lems and damage to the fuel system.
Discontinue using gasohol of any
kind if drivability problems occur.
Vehicle damage or drivability prob-
lems may not be covered by the
manufacturer’s warranty if they result
from the use of:
1. Gasoline or gasohol containing
methanol.
2. Leaded fuel or leaded gasohol.
FUEL REQUIREMENTS
CAUTION
Never add any fuel system cleaning agents to the fuel tankother than what has been speci-fied. (Consult an authorized Kiadealer for details.)
WARNING
• Do not "top off" after the noz- zle automatically shuts off
when refueling.
 Tighten the cap until it clicks one time, otherwise the Check
Engine light will illumi-
nate.
 Always check that the fuel cap is installed securely to pre-
vent fuel spillage, especially
in the event of an accident.
XM(FL) CAN(ENG) 1.QXP 3/21/2013 3:25 PM Page 3

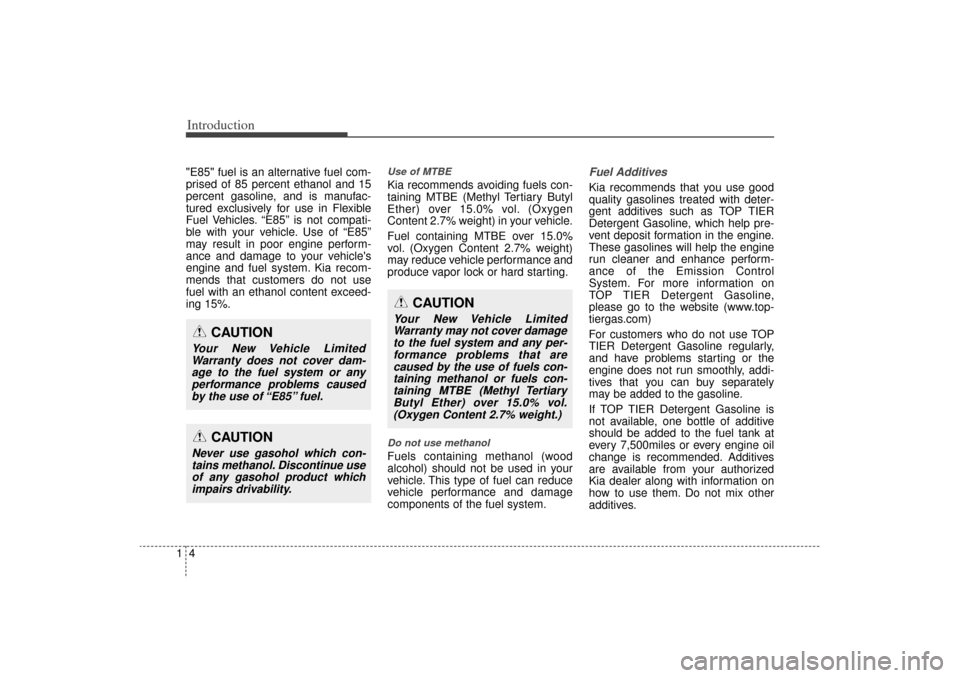

Introduction41"E85" fuel is an alternative fuel com-
prised of 85 percent ethanol and 15
percent gasoline, and is manufac-
tured exclusively for use in Flexible
Fuel Vehicles. “E85” is not compati-
ble with your vehicle. Use of “E85”
may result in poor engine perform-
ance and damage to your vehicle's
engine and fuel system. Kia recom-
mends that customers do not use
fuel with an ethanol content exceed-
ing 15%.
Use of MTBEKia recommends avoiding fuels con-
taining MTBE (Methyl Tertiary Butyl
Ether) over 15.0% vol. (Oxygen
Content 2.7% weight) in your vehicle.
Fuel containing MTBE over 15.0%
vol. (Oxygen Content 2.7% weight)
may reduce vehicle performance and
produce vapor lock or hard starting.Do not use methanolFuels containing methanol (wood
alcohol) should not be used in your
vehicle. This type of fuel can reduce
vehicle performance and damage
components of the fuel system.
Fuel AdditivesKia recommends that you use good
quality gasolines treated with deter-
gent additives such as TOP TIER
Detergent Gasoline, which help pre-
vent deposit formation in the engine.
These gasolines will help the engine
run cleaner and enhance perform-
ance of the Emission Control
System. For more information on
TOP TIER Detergent Gasoline,
please go to the website (www.top-
tiergas.com)
For customers who do not use TOP
TIER Detergent Gasoline regularly,
and have problems starting or the
engine does not run smoothly, addi-
tives that you can buy separately
may be added to the gasoline.
If TOP TIER Detergent Gasoline is
not available, one bottle of additive
should be added to the fuel tank at
every 7,500miles or every engine oil
change is recommended. Additives
are available from your authorized
Kia dealer along with information on
how to use them. Do not mix other
additives.
CAUTION
Never use gasohol which con-tains methanol. Discontinue useof any gasohol product whichimpairs drivability.
CAUTION
Your New Vehicle LimitedWarranty does not cover dam-age to the fuel system or anyperformance problems causedby the use of “E85” fuel.
CAUTION
Your New Vehicle LimitedWarranty may not cover damageto the fuel system and any per-formance problems that arecaused by the use of fuels con-taining methanol or fuels con-taining MTBE (Methyl TertiaryButyl Ether) over 15.0% vol.(Oxygen Content 2.7% weight.)
XM(FL) CAN(ENG) 1.QXP 3/21/2013 3:25 PM Page 4

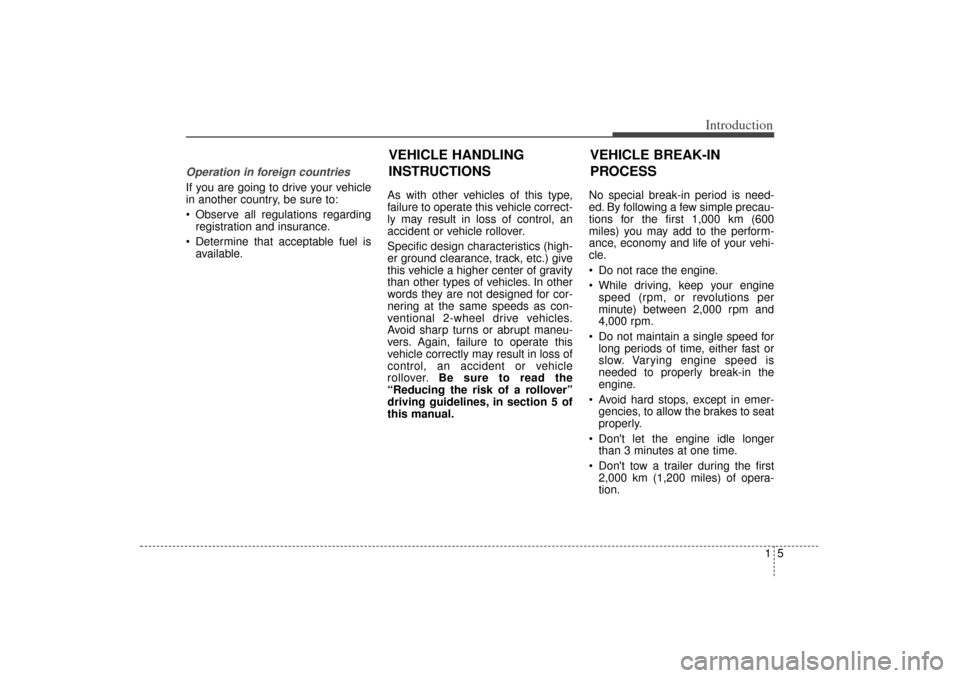

15
Introduction
Operation in foreign countriesIf you are going to drive your vehicle
in another country, be sure to:
 Observe all regulations regardingregistration and insurance.
 Determine that acceptable fuel is available. As with other vehicles of this type,
failure to operate this vehicle correct-
ly may result in loss of control, an
accident or vehicle rollover.
Specific design characteristics (high-
er ground clearance, track, etc.) give
this vehicle a higher center of gravity
than other types of vehicles. In other
words they are not designed for cor-
nering at the same speeds as con-
ventional 2-wheel drive vehicles.
Avoid sharp turns or abrupt maneu-
vers. Again, failure to operate this
vehicle correctly may result in loss of
control, an accident or vehicle
rollover.
Be sure to read the
“Reducing the risk of a rollover”
driving guidelines, in section 5 of
this manual. No special break-in period is need-
ed. By following a few simple precau-
tions for the first 1,000 km (600
miles) you may add to the perform-
ance, economy and life of your vehi-
cle.
 Do not race the engine.
 While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
 Do not maintain a single speed for long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
 Avoid hard stops, except in emer- gencies, to allow the brakes to seat
properly.
 Don't let the engine idle longer than 3 minutes at one time.
 Don't tow a trailer during the first 2,000 km (1,200 miles) of opera-
tion.
VEHICLE BREAK-IN
PROCESS
VEHICLE HANDLING
INSTRUCTIONS
XM(FL) CAN(ENG) 1.QXP 3/21/2013 3:25 PM Page 5

Exterior overview I . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Exterior overview II. . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2
Your vehicle at a glanceExterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2
XM(FL) CAN(ENG) 2.QXP 1/23/2013 3:21 PM Page 1

Your vehicle at a glance22EXTERIOR OVERVIEW
1. Hood ......................................................4-38
2. Head lamp ...........................................4-108
3. Fog lamp .............................................4-112
4. Wheel and tire .......................................7-50
5. Outside rearview mirror .........................4-64
6. Panorama sunroof .................................4-44
7. Front windshield wiper blades ...............7-44
8. Windows ................................................4-33
OXMA013001
■Front view
❈The actual shape may differ from the illustration.
XM(FL) CAN(ENG) 2.QXP 1/23/2013 3:21 PM Page 2
