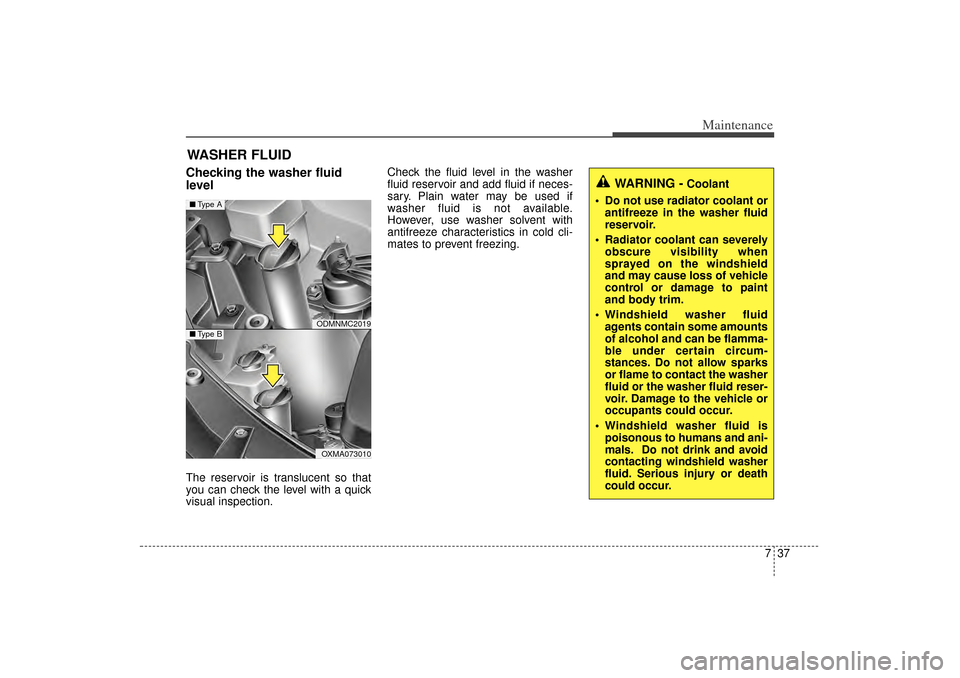

WASHER FLUIDChecking the washer fluid
levelThe reservoir is translucent so that
you can check the level with a quick
visual inspection.Check the fluid level in the washer
fluid reservoir and add fluid if neces-
sary. Plain water may be used if
washer fluid is not available.
However, use washer solvent with
antifreeze characteristics in cold cli-
mates to prevent freezing.
WARNING -
Coolant
 Do not use radiator coolant or antifreeze in the washer fluid
reservoir.
 Radiator coolant can severely obscure visibility when
sprayed on the windshield
and may cause loss of vehicle
control or damage to paint
and body trim.
 Windshield washer fluid agents contain some amounts
of alcohol and can be flamma-
ble under certain circum-
stances. Do not allow sparks
or flame to contact the washer
fluid or the washer fluid reser-
voir. Damage to the vehicle or
occupants could occur.
 Windshield washer fluid is poisonous to humans and ani-
mals. Do not drink and avoid
contacting windshield washer
fluid. Serious injury or death
could occur.
ODMNMC2019OXMA073010
■ Type A■Type B
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:36 PM Page 37

Maintenance38

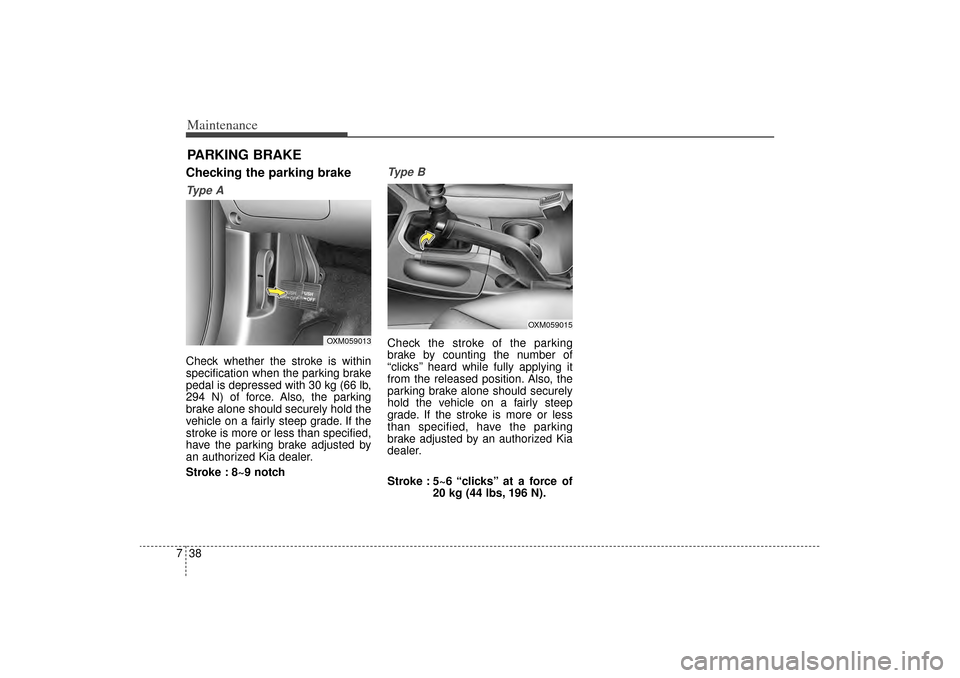

7PARKING BRAKE Checking the parking brakeTy p e ACheck whether the stroke is within
specification when the parking brake
pedal is depressed with 30 kg (66 lb,
294 N) of force. Also, the parking
brake alone should securely hold the
vehicle on a fairly steep grade. If the
stroke is more or less than specified,
have the parking brake adjusted by
an authorized Kia dealer.
Stroke : 8~9 notch
Type BCheck the stroke of the parking
brake by counting the number of
“clicks’’ heard while fully applying it
from the released position. Also, the
parking brake alone should securely
hold the vehicle on a fairly steep
grade. If the stroke is more or less
than specified, have the parking
brake adjusted by an authorized Kia
dealer.
Stroke : 5~6 “clicks’’ at a force of
20 kg (44 lbs, 196 N).
OXM059015
OXM059013
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:36 PM Page 38

739
Maintenance
Filter replacement It must be replaced when necessary,
and should not be washed.
You can clean the filter when inspect-
ing the air cleaner element.
Clean the filter by using compressed

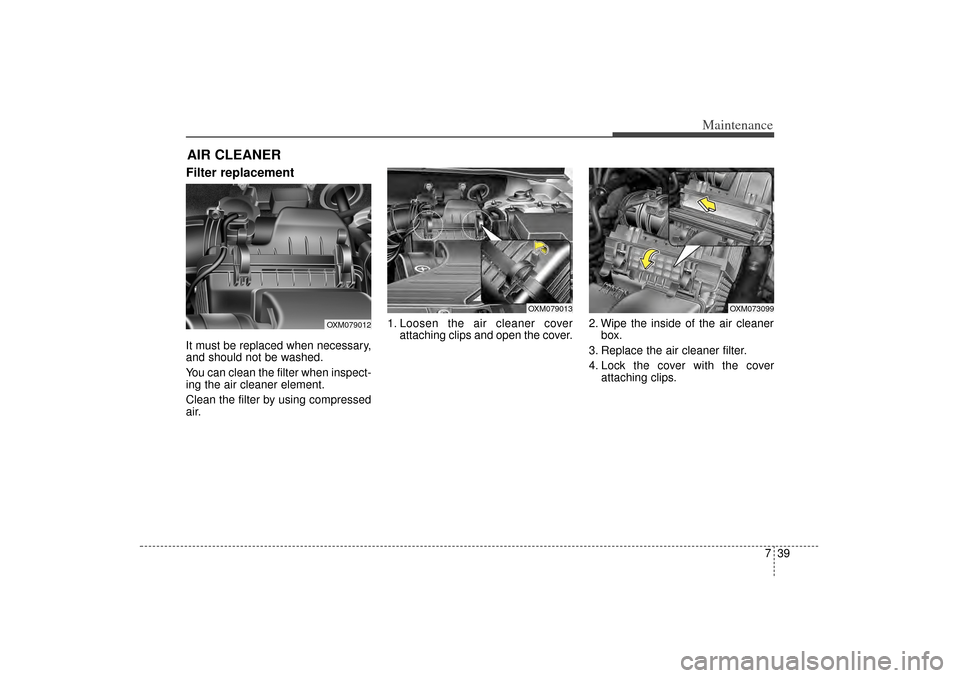

air.1. Loosen the air cleaner cover
attaching clips and open the cover. 2. Wipe the inside of the air cleaner
box.
3. Replace the air cleaner filter.
4. Lock the cover with the cover attaching clips.AIR CLEANER
OXM079012
OXM079013
OXM073099
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:36 PM Page 39

Maintenance40
7Replace the filter according to the
Maintenance Schedule.If the vehicle is operated in extreme-
ly dusty or sandy areas, replace theelement more often than the usualrecommended intervals. (Refer to“Maintenance under severe usageconditions” in this section.)
CAUTION
 Do not drive with the air clean- er removed; this will result inexcessive engine wear.
 When removing the air cleaner filter, be careful that dust ordirt does not enter the airintake, or damage may result.
 Use a Kia genuine part. Use of non-genuine parts could dam-age the air flow sensor.
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:36 PM Page 40

741
Maintenance

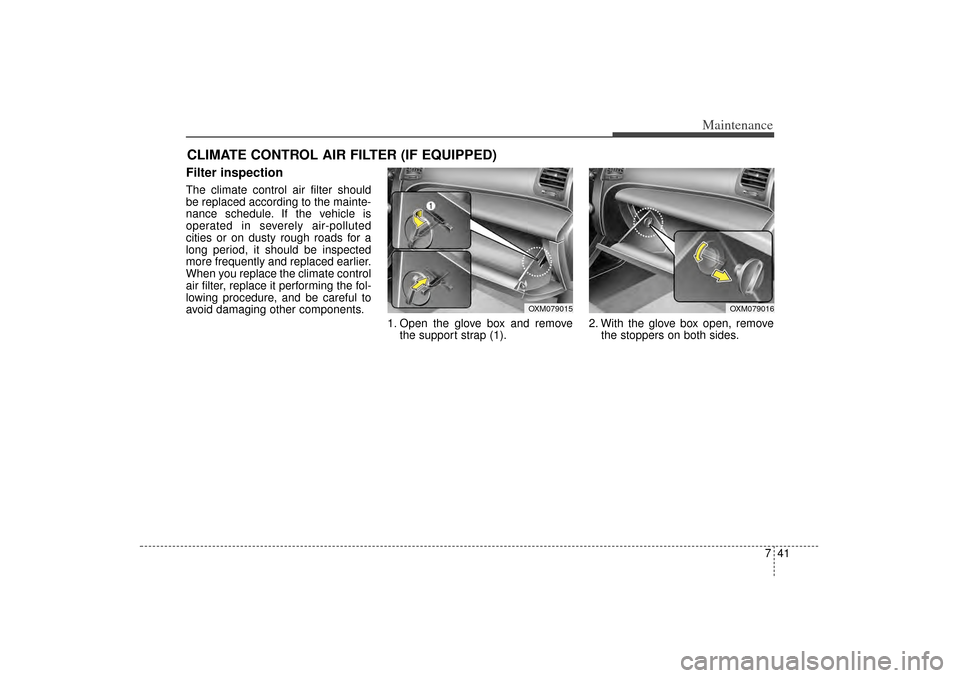

CLIMATE CONTROL AIR FILTER (IF EQUIPPED)Filter inspectionThe climate control air filter should
be replaced according to the mainte-
nance schedule. If the vehicle is
operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.1. Open the glove box and removethe support strap (1). 2. With the glove box open, remove
the stoppers on both sides.
OXM079016
OXM079015
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:36 PM Page 41

Maintenance42

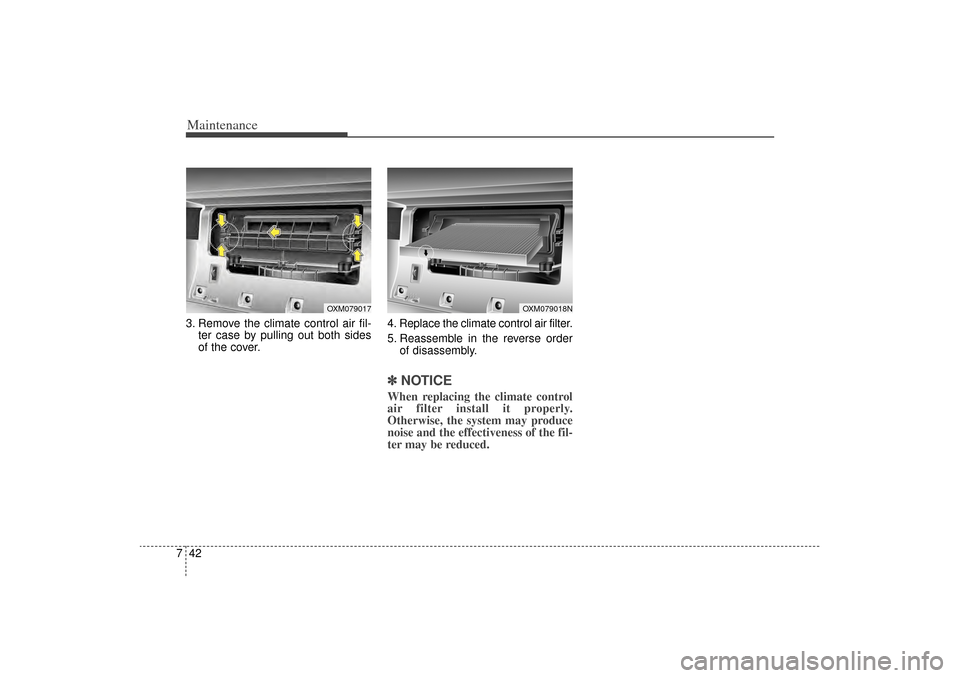

73. Remove the climate control air fil-
ter case by pulling out both sides
of the cover. 4. Replace the climate control air filter.
5. Reassemble in the reverse order
of disassembly.
✽ ✽NOTICEWhen replacing the climate control
air filter install it properly.
Otherwise, the system may produce
noise and the effectiveness of the fil-
ter may be reduced.
OXM079017
OXM079018N
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:36 PM Page 42

743
Maintenance

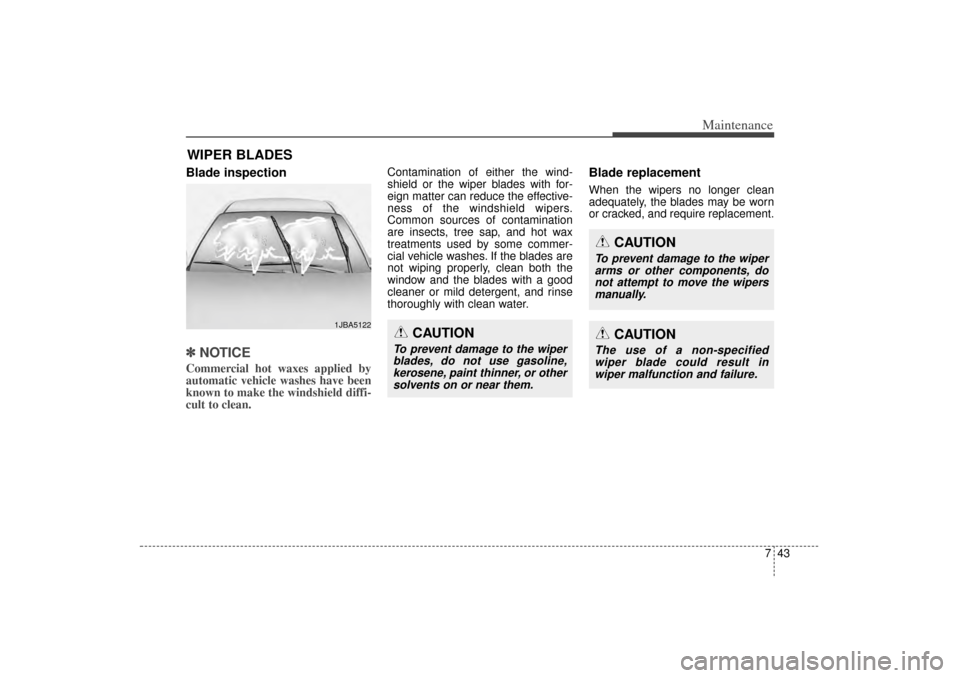

WIPER BLADES Blade inspection✽
✽NOTICECommercial hot waxes applied by
automatic vehicle washes have been
known to make the windshield diffi-
cult to clean.
Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wipers.
Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commer-
cial vehicle washes. If the blades are
not wiping properly, clean both the
window and the blades with a good
cleaner or mild detergent, and rinse
thoroughly with clean water.
Blade replacement When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.
1JBA5122
CAUTION
To prevent damage to the wiper
blades, do not use gasoline,kerosene, paint thinner, or othersolvents on or near them.
CAUTION
To prevent damage to the wiperarms or other components, donot attempt to move the wipersmanually.
CAUTION
The use of a non-specifiedwiper blade could result inwiper malfunction and failure.
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:36 PM Page 43

Maintenance44

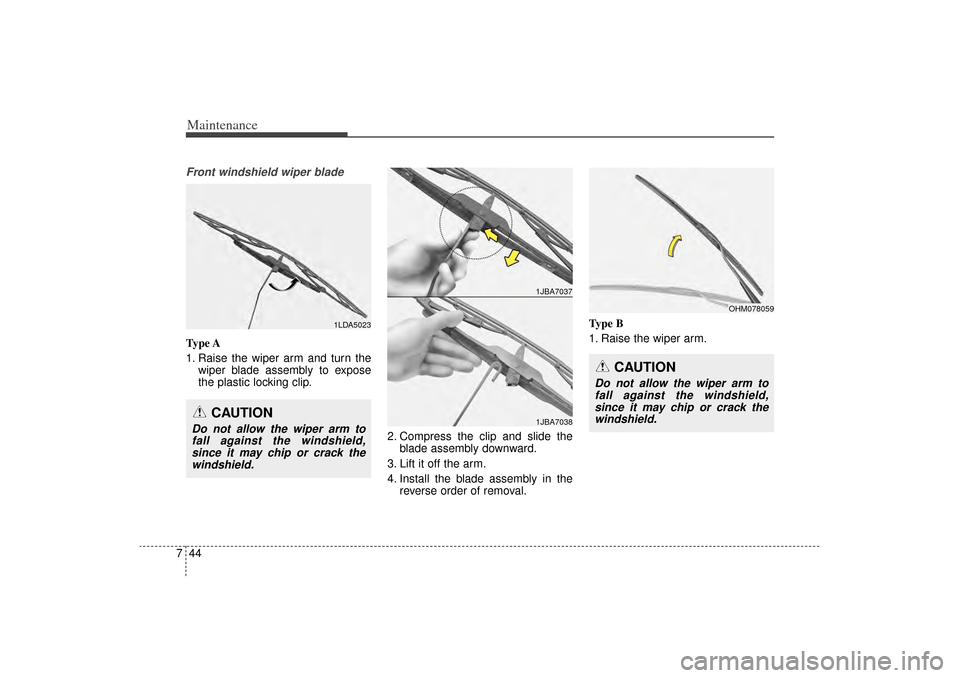

7Front windshield wiper bladeType A
1. Raise the wiper arm and turn the
wiper blade assembly to expose
the plastic locking clip.
2. Compress the clip and slide theblade assembly downward.
3. Lift it off the arm.
4. Install the blade assembly in the reverse order of removal. Type B
1. Raise the wiper arm.
1LDA5023
CAUTION
Do not allow the wiper arm to
fall against the windshield,since it may chip or crack thewindshield.
1JBA70371JBA7038
OHM078059
CAUTION
Do not allow the wiper arm tofall against the windshield,since it may chip or crack thewindshield.
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:36 PM Page 44

745
Maintenance

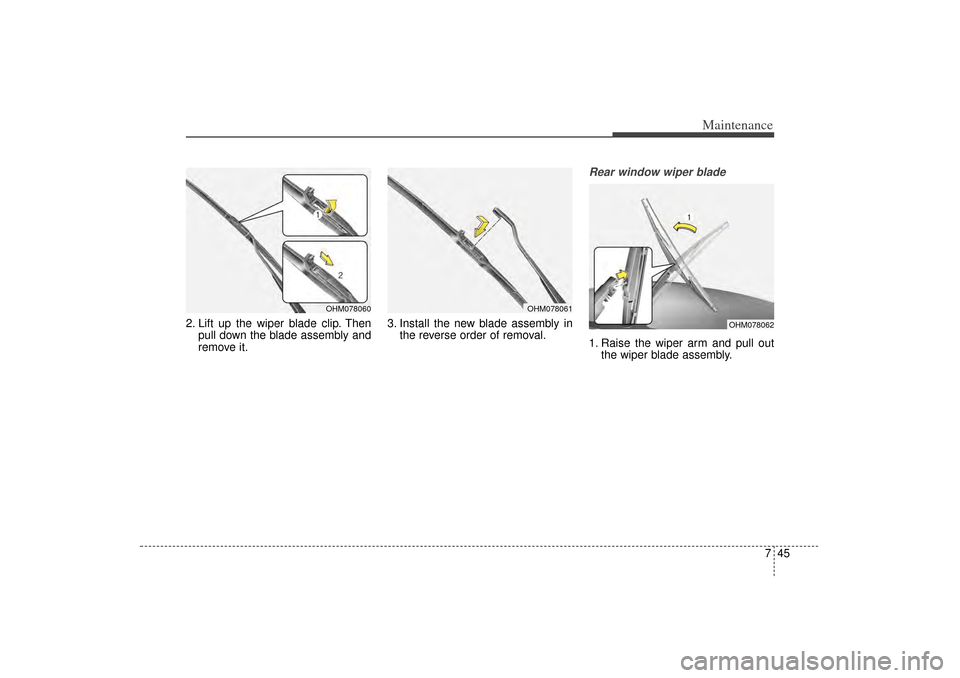

2. Lift up the wiper blade clip. Thenpull down the blade assembly and
remove it. 3. Install the new blade assembly in
the reverse order of removal.
Rear window wiper blade 1. Raise the wiper arm and pull outthe wiper blade assembly.
OHM078060
OHM078062
OHM078061
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 45

Maintenance46

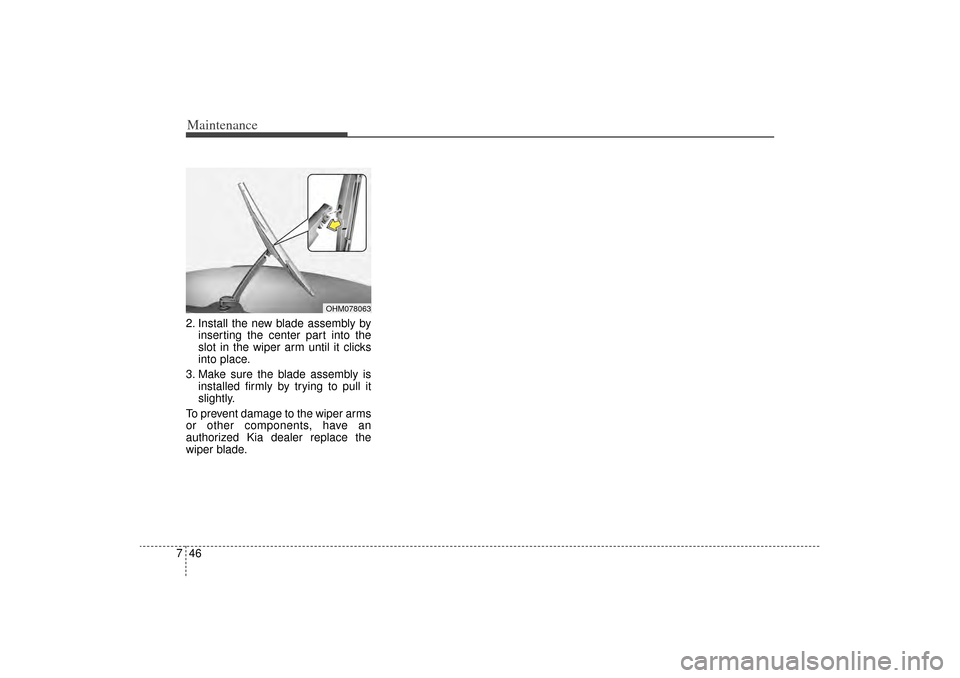

72. Install the new blade assembly by
inserting the center part into the
slot in the wiper arm until it clicks
into place.
3. Make sure the blade assembly is installed firmly by trying to pull it
slightly.
To prevent damage to the wiper arms
or other components, have an
