Page 166 of 508
475
Features of your vehicle

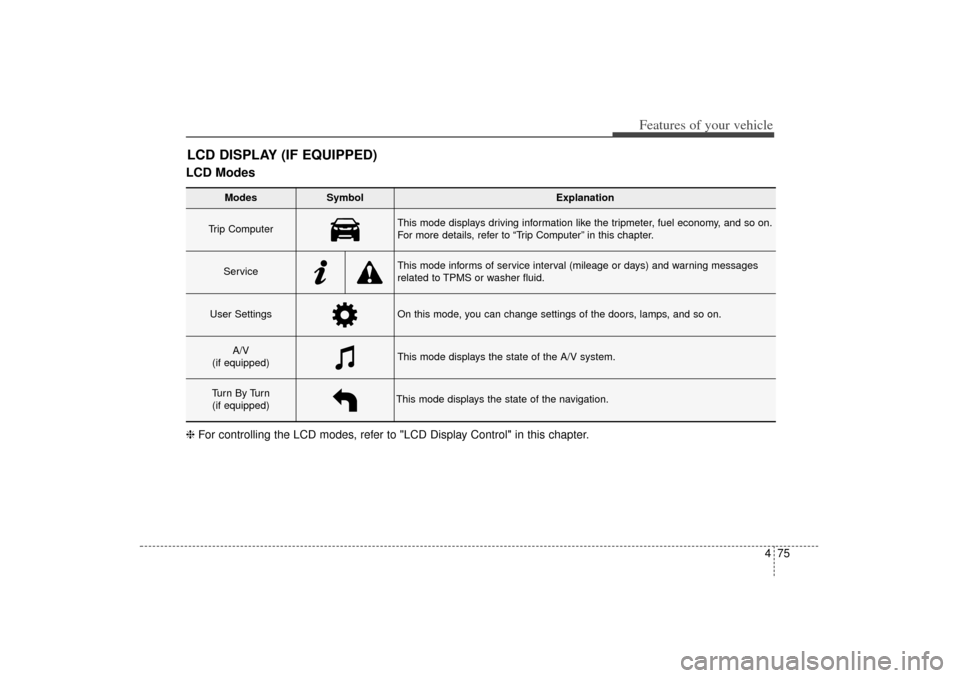

LCD ModesLCD DISPLAY (IF EQUIPPED)
Modes
Symbol
Explanation
Trip Computer
This mode displays driving information like the tripmeter, fuel economy, and so on.
For more details, refer to “Trip Computer” in this chapter.
Service
This mode informs of service interval (mileage or days) and warning messages
related to TPMS or washer fluid.
User Settings
On this mode, you can change settings of the doors, lamps, and so on.
A/V
(if equipped)
This mode displays the state of the A/V system.
Tu r n B y Tu r n (if equipped)
This mode displays the state of the navigation.
❈ For controlling the LCD modes, refer to "LCD Display Control" in this chapter.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:49 PM Page 75
Page 168 of 508
477
Features of your vehicle

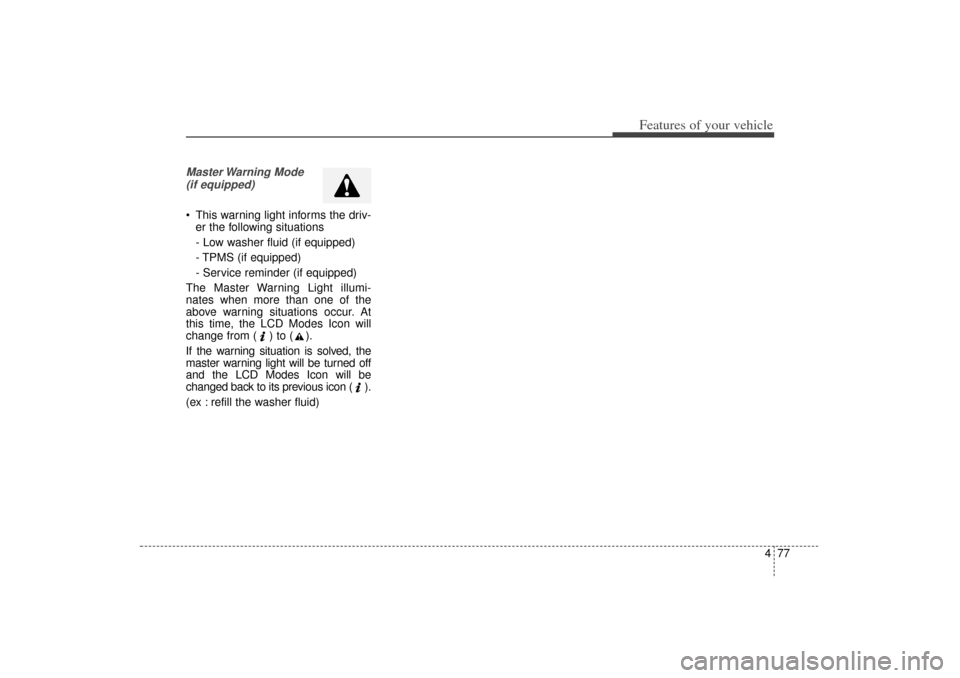

Master Warning Mode (if equipped) This warning light informs the driv- er the following situations
- Low washer fluid (if equipped)
- TPMS (if equipped)
- Service reminder (if equipped)
The Master Warning Light illumi-
nates when more than one of the
above warning situations occur. At
this time, the LCD Modes Icon will
change from ( ) to ( ).
If the warning situation is solved, the
master warning light will be turned off
and the LCD Modes Icon will be
changed back to its previous icon ( ).
(ex : refill the washer fluid)
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:49 PM Page 77
Page 474 of 508
Maintenance70
7
Description Fuse rating Protected component
P/WDW LH 25ADriver Power Window Relay, Power Window Main Switch, Rear Power Window Switch LH, Driver Safety
Power Window Module
P/WDW RH 25APassenger Power Window Relay, Power Window Main Switch
Passenger Power Window Switch, Rear Power Window Switch RH
DR LOCK 20ADoor Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay), Driver/Passenger Door Lock Actuator,
Rear Door Lock Actuator LH/RH, ICM Relay Box (T/GATE LATCH Relay)
SMART KEY 4 10A PDM, Start Stop Button Switch, FOB Holder
S/HTR FRT 20A FRT_DRV_SEAT_EXT, FRT_PASS_SEAT_EXT
P/SEAT DRV 30A Driver Power Seat Switch, Driver Lumbar Support Switch
P/SEAT PASS 20A Passenger Power Seat Switch
HTD STRG 15A Steering wheel heater
F/LID 15A Fuel Filler Door Switch
MODULE4 10AO/S Mirror Switch, Power Window Switch, E/R Fuse & Relay Box(POWER OUTLET RLY), Digital Clock,
MTS, Audio, A/V & Navigation Head Unit
HTD MIRR 10A Driver/Passenger Power Outside Mirror, Front A/C Control Module
SMART_KEY_1 25A SMART KEY/SMK_UNIT
SMART_KEY_2
7.5A
Smart Key Control Module
SMART_KEY_3
7.5A
Smart Key Control Module
S/HEATER RR
15A
ICM Relay Box (RR SEAT WARMER LH RLY), ICM Relay Box (RR SEAT WARMER RH RLY)
INTERIOR LAMP
10A
DR_SCUFF_LP_DRV, DR_SCUFF_LP_PASS, DR_WARNG_SW, S_VISOR_LP_LH/RH, OHC_LAMP,
ROOM_LP, RL/RR_PERSONAL_LAMP, CARGO_LAMP
MULTIMEDIA
15A
Audio, A/V & Navigation Head Unit, MTS
MEMORY
10A
OBD_II, Front A/C Control Module, TPMS, Digital Clock, INSIDE_MIRR, S_WARMER_SW_LH/RH,
AIR_VENT_SEAT_SW_LH/RH, CLUSTER, O_S_MIRR_SW, P_WDW_MAIN_SW,
FRT_DRV_SEAT_EXT, P_WDW_PASS_SW
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 70
Page 476 of 508
Maintenance72
7Engine compartment fuse panel
Description Fuse rating Protected component
MULTI
FUSE I/P B+2 60A
IPM (Fuse - S/HTR FRT, P/Seat SUN ROOF-1 25A, IPS1 (FOG LH/RH, TAIL LAMP LH), ARISU LH
(HEAD LAMP LOW LH, HEAD LAMP HI LH, TURN SIG RL, TURN SIG FL)
BLOWER 40A Blower Relay
RR HTD 40A Rear Defogger Relay
ABS 1 40A ESC Control Module, Multipurpose Check Connector
ABS 2 40A ESC Control Module, Multipurpose Check Connector
I/P B+3 60ASMART_KEY-1 25A, SMART_KEY-4 10A, MODULE-1 7.5A, SUNROOF-2 25A, (FUSE SW RLY,
INTERIOR LAMP 10A : DR_SCUFF_LP_DRV, DR_SCUFF_LP_PASS, DR_WARNG_SW,
S_VISOR_LP_LH/RH, OHC_LAMP, ROOM_LP, RL/RR_PERSONAL_LAMP, CARGO_LAMP, MULTI-
MEDIA 15A : Audio, A/V & Navigation Head Unit, MTS, MEMORY 10A : OBD_II, Front A/C Control
Module, TPMS, Digital Clock, INSIDE_MIRR, S_WARMER_SW_LH/RH, AIR_VENT_SEAT_SW_LH/
RH, CLUSTER, O_S_MIRR_SW, P_WDW_MAIN_SW, FRT_DRV_SEAT_EXT, P_WDW_PASS_SW)
I/P B+1 50A AMP 30A, P/WDW LH 25A, P/WDW RH 25A, S/HEATER_RR 15A
MDPS
80A
MDPS_ECU
C/FAN
60A
E/R Fuse & Relay Box (C/FAN RLY)
FUSE IGN 2 40A Start Relay, W/O Smart Key - Ignition Switch, With Smart Key - E/R Fuse & Relay Box (IGN2 Relay)
TRAILER 30A Trailer Power Outlet
IGN 1 40A W/O Smart Key - Ignition Switch, With Smart Key - E/R Fuse & Relay Box (IGN1 Relay, ACC Relay )
HORN 15A Horn Relay
DEICER 15A Front Wiper Deicer Relay
I/P B+4 50A
IPM (DR LOCK 20A, BLOWER RR 20A, FUEL LID 15A, IPS3 (TAIL LAMP RH, TAIL INT LAMP),
ARISU RH (HEAD LAMP LOW RH, HEAD LAMP HI RH, TURN SIG RR, TURN SIG FR)
ABS 7.5A ESC Control Module, Multipurpose Check Connector
B/UP LP 7.5A Back-Up Lamp Relay (A/T), Back-Up Lamp Switch (M/T)
4WD 20A 4WD_ECU
