fuse box KIA Sorento 2014 3.G Owner's Manual

Your vehicle at a glance62ENGINE COMPARTMENT
ODMEMC2001/ONCEIN2007
■
■Gasoline Engine (Theta II 2.4L) - GDI❈The actual engine compartment in the vehicle may differ from the illustration.■
■Gasoline Engine (Lambda II 3.3L) - GDI
1. Engine coolant reservoir ...................7-34
2. Engine oil filler cap ...........................7-31
3. Brake/clutch fluid reservoir ...............7-36
4. Air cleaner.........................................7-39
5. Fuse box ...........................................7-64
6. Negative battery terminal..................7-47
7. Positive battery terminal ...................7-47
8. Radiator cap .....................................7-35
9. Engine oil dipstick .............................7-31
10. Windshield washer fluid reservoir ...7-37
XM(FL) CAN(ENG) 2.QXP 1/23/2013 3:21 PM Page 6

Features of your vehicle86

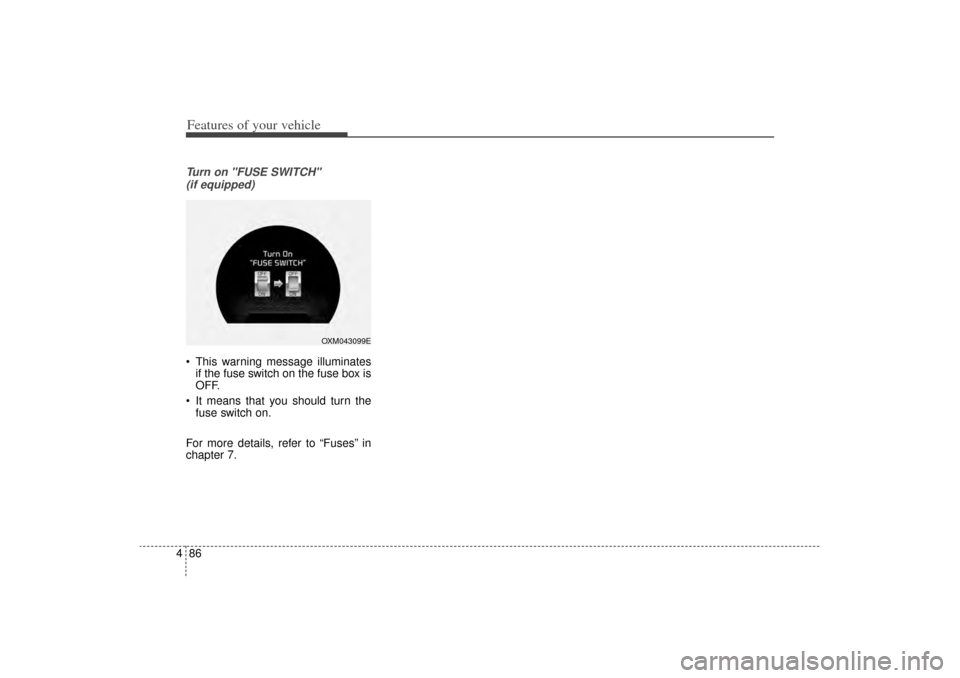

4Turn on "FUSE SWITCH"
(if equipped) This warning message illuminates if the fuse switch on the fuse box is
OFF.
 It means that you should turn the fuse switch on.
For more details, refer to “Fuses” in
chapter 7.
OXM043099E
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 86

73
Maintenance

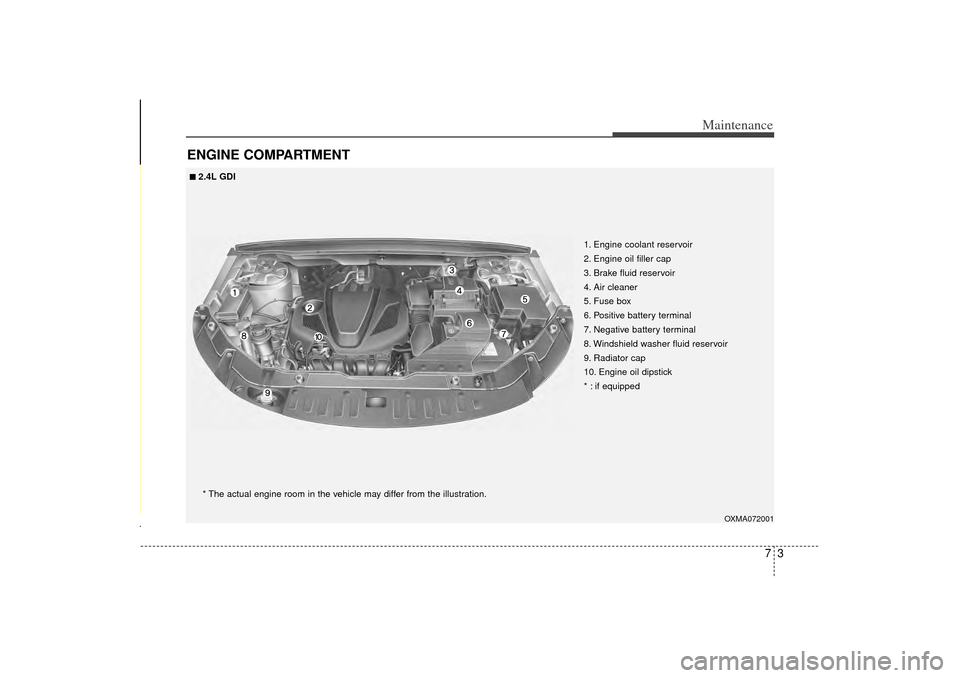

ENGINE COMPARTMENT
OXMA072001
* The actual engine room in the vehicle may differ from the illustration.1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Windshield washer fluid reservoir
9. Radiator cap
10. Engine oil dipstick
* : if equipped
■
■2.4L GDI
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:35 PM Page 3

Maintenance47
OXMA073001
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir
* if equipped

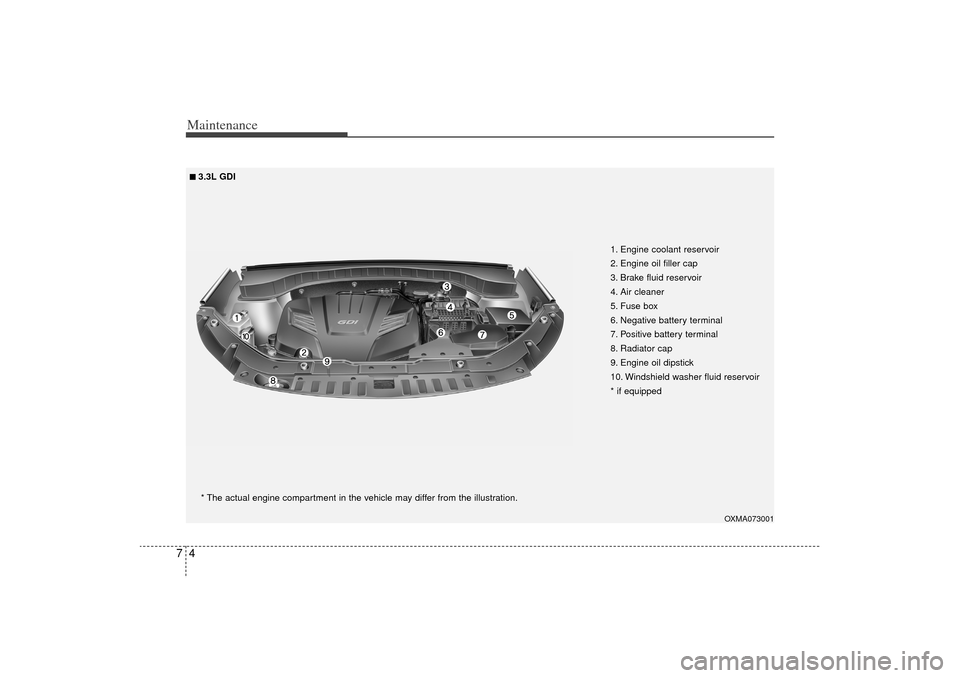

■ ■3.3L GDI* The actual engine compartment in the vehicle may differ from the illustration.
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:35 PM Page 4

769
Maintenance
Inner fuse panel
Description Fuse ratingProtected component
MODULE 2 10AInstrument Cluster (IND./MICOM), Steering Angle Sensor, Alternator, Smart Key Control Module, A/V &
Navigation Head Unit, STOP_SW, SI_ECU, HLLD LH/RH
MODULE 1 7.5A SPORTS MODE SW/KEY_SOL, SPORT_MODE_SW
A/BAG IND 10A Instrument Cluster (IND.), Digital Clock
A/BAG 15A SRS Control Module, PODS Module
START 7.5A E/R Fuse & Relay Box (Relay - Start, Sub Start, Burglar Alarm), PDM
WIPER RR 15A ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor, Multifunction Switch (Wiper)
WIPER FRT 25A E/R Fuse & Relay Box (Wiper (Low) Relay), Front Wiper Motor, Multifunction Switch (Wiper)
MODULE 3 10AESC Off Switch, Front A/C Control Module, Instrument Cluster, Audio, MTS, A/V & Navigation Head Unit,
Tire Pressure Monitoring Module, Power Window Main Switch, 4WD ECU, P_WDW_PASS_SW_IMS,
Rear Parking Assist SNSR, FRT_DRV_SEAT_EXT, FRT_PASS_SEAT_EXT, CONSOLE_EXTN , IPM
(BCM IG1)
A/CON 7.5AFront A/C Control Module, Active Incar Sensor, Cluster Ionize, ICM Relay Box (Rear A/C Relay) E/R
Fuse & Relay Box (Blower Relay)
AMP 30A AMP
P/OUTLET 1 15A -
P/OUTLET 2 20A LUGGAGE_POWER_OUTLET, FRT_POWER_OUTLET_DRV
BLOWER RR 20A ICM Relay Box (Rear A/C Relay)
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 69

Maintenance70
7
Description Fuse rating Protected component
P/WDW LH 25ADriver Power Window Relay, Power Window Main Switch, Rear Power Window Switch LH, Driver Safety
Power Window Module
P/WDW RH 25APassenger Power Window Relay, Power Window Main Switch
Passenger Power Window Switch, Rear Power Window Switch RH
DR LOCK 20ADoor Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay), Driver/Passenger Door Lock Actuator,
Rear Door Lock Actuator LH/RH, ICM Relay Box (T/GATE LATCH Relay)
SMART KEY 4 10A PDM, Start Stop Button Switch, FOB Holder
S/HTR FRT 20A FRT_DRV_SEAT_EXT, FRT_PASS_SEAT_EXT
P/SEAT DRV 30A Driver Power Seat Switch, Driver Lumbar Support Switch
P/SEAT PASS 20A Passenger Power Seat Switch
HTD STRG 15A Steering wheel heater
F/LID 15A Fuel Filler Door Switch
MODULE4 10AO/S Mirror Switch, Power Window Switch, E/R Fuse & Relay Box(POWER OUTLET RLY), Digital Clock,
MTS, Audio, A/V & Navigation Head Unit
HTD MIRR 10A Driver/Passenger Power Outside Mirror, Front A/C Control Module
SMART_KEY_1 25A SMART KEY/SMK_UNIT
SMART_KEY_2
7.5A
Smart Key Control Module
SMART_KEY_3
7.5A
Smart Key Control Module
S/HEATER RR
15A
ICM Relay Box (RR SEAT WARMER LH RLY), ICM Relay Box (RR SEAT WARMER RH RLY)
INTERIOR LAMP
10A
DR_SCUFF_LP_DRV, DR_SCUFF_LP_PASS, DR_WARNG_SW, S_VISOR_LP_LH/RH, OHC_LAMP,
ROOM_LP, RL/RR_PERSONAL_LAMP, CARGO_LAMP
MULTIMEDIA
15A
Audio, A/V & Navigation Head Unit, MTS
MEMORY
10A
OBD_II, Front A/C Control Module, TPMS, Digital Clock, INSIDE_MIRR, S_WARMER_SW_LH/RH,
AIR_VENT_SEAT_SW_LH/RH, CLUSTER, O_S_MIRR_SW, P_WDW_MAIN_SW,
FRT_DRV_SEAT_EXT, P_WDW_PASS_SW
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 70

Maintenance72
7Engine compartment fuse panel
Description Fuse rating Protected component
MULTI
FUSE I/P B+2 60A
IPM (Fuse - S/HTR FRT, P/Seat SUN ROOF-1 25A, IPS1 (FOG LH/RH, TAIL LAMP LH), ARISU LH
(HEAD LAMP LOW LH, HEAD LAMP HI LH, TURN SIG RL, TURN SIG FL)
BLOWER 40A Blower Relay
RR HTD 40A Rear Defogger Relay
ABS 1 40A ESC Control Module, Multipurpose Check Connector
ABS 2 40A ESC Control Module, Multipurpose Check Connector
I/P B+3 60ASMART_KEY-1 25A, SMART_KEY-4 10A, MODULE-1 7.5A, SUNROOF-2 25A, (FUSE SW RLY,
INTERIOR LAMP 10A : DR_SCUFF_LP_DRV, DR_SCUFF_LP_PASS, DR_WARNG_SW,
S_VISOR_LP_LH/RH, OHC_LAMP, ROOM_LP, RL/RR_PERSONAL_LAMP, CARGO_LAMP, MULTI-
MEDIA 15A : Audio, A/V & Navigation Head Unit, MTS, MEMORY 10A : OBD_II, Front A/C Control
Module, TPMS, Digital Clock, INSIDE_MIRR, S_WARMER_SW_LH/RH, AIR_VENT_SEAT_SW_LH/
RH, CLUSTER, O_S_MIRR_SW, P_WDW_MAIN_SW, FRT_DRV_SEAT_EXT, P_WDW_PASS_SW)
I/P B+1 50A AMP 30A, P/WDW LH 25A, P/WDW RH 25A, S/HEATER_RR 15A
MDPS
80A
MDPS_ECU
C/FAN
60A
E/R Fuse & Relay Box (C/FAN RLY)
FUSE IGN 2 40A Start Relay, W/O Smart Key - Ignition Switch, With Smart Key - E/R Fuse & Relay Box (IGN2 Relay)
TRAILER 30A Trailer Power Outlet
IGN 1 40A W/O Smart Key - Ignition Switch, With Smart Key - E/R Fuse & Relay Box (IGN1 Relay, ACC Relay )
HORN 15A Horn Relay
DEICER 15A Front Wiper Deicer Relay
I/P B+4 50A
IPM (DR LOCK 20A, BLOWER RR 20A, FUEL LID 15A, IPS3 (TAIL LAMP RH, TAIL INT LAMP),
ARISU RH (HEAD LAMP LOW RH, HEAD LAMP HI RH, TURN SIG RR, TURN SIG FR)
ABS 7.5A ESC Control Module, Multipurpose Check Connector
B/UP LP 7.5A Back-Up Lamp Relay (A/T), Back-Up Lamp Switch (M/T)
4WD 20A 4WD_ECU
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 72

773
Maintenance
Description Fuse ratingProtected component
FUSE
B/A HORN
15A
B/A RLY
SENSOR 5
7.5A
PCM
TCU
15A
Transaxle Range Switch, PCM
EMS BOX A/CON 10A E/R Fuse & Relay Box(BLOWER RLY, Front A/C Control Module)
AC INVERTER 30A AC_INVERTER_UNIT
POWER OUTLET 25A E/R Fuse & Relay Box (POWER OUTLET RLY), RR_P_OUTLET, FRT_POWER_OUTLET_PASS
P/TAILGATE 30A PTGM
H/LAMP RH 10A E/R Fuse & Relay Box(H/LAMP RH RLY), H_LP_RH
AMS
10A
E/R Fuse & Relay WIPER LO RLY), PCM
EMS
40A
EMS BOX(MAIN RLY(IGN_COIL 20A, ECU_1 20A, SNSR_1 10A, SNSR_2 10A, ECU_2 10A,
INJECTOR_1 10A), F/PUMP 15A, ECU_4 15A
SENSOR 1
10A
Theta : Purge Control Solenoid Valve, Oil Control Valve #1/2, Variable Intake Manifold Valve,
Crankshaft Position Sensor, Oxygen Sensor Up/Down
Lambda : PCM, Oxygen Sensor #1/2/3/4
SENSOR 2 10A Theta : C/FAN RLY, Canister Close Valve
Lambda : C/FAN RLY, PCM, Canister Close Valve, Oil Control Valve #1/2 (Exhaust), Oil Control Valve
#1/2 (Intake), Purge Control Solenoid Valve, Variable Intake Manifold Valve #1/2,
Immobilizer Module
ECU 1 20A PCM
F/PUMP 15A Fuel Pump Relay
IGN_COIL 20A Theta : IG_COIL_CAPACITOR, IG_COIL_1/2/3/4,
Lambda : CONDENSOR1/2,IGN_COIL_HARN_LAG, GN_COIL_2/4/6
INJECTOR_1
10A
Theta : Immobilizer Module, F/PUMP RLY,
Lambda : PCM, F/PUMP RLY
ECU 4
15A
Theta : PCM, Lambda : PCM, IDB
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 73

I5
Index
Flat tire ........................................................................\
....6-8Jack and tools ..............................................................6-8
Removing and storing the spare tire ..........................6-9
Changing tires ..........................................................6-11
Compact spare tire ....................................................6-15
Floor mat anchor(s) ....................................................4-155
Fluid ........................................................................\
......7-36 Brakes/clutch fluid ....................................................7-36
Washer fluid ..............................................................7-37
Fog light (front) ..........................................................4-112
Front seat adjustment - Manual ......................................3-5
Front seat adjustment - power ........................................3-6
Fuel Economy ................................................................4-89
Fuel filler lid ..................................................................4-40
Fuel Gauge ....................................................................4-72\
Fuel requirements ............................................................1-3
Fuse switch ....................................................................7-66\
Fuses ........................................................................\
......7-64 Instrument panel fuse ................................................7-65
Fuse switch ................................................................7-66
Multi fuse ..................................................................7-67
Fuse/relay panel description......................................7-68 Gauges ........................................................................\
..4-71
Glove box ....................................................................4-14\
6
Gross vehicle weight ......................................................8-5
Hazard warning flasher................................................4-107
Hazardous driving conditions ........................................5-57
Headlamp escort function ............................................4-108
Headlamp welcome ....................................................4-108
Headlamp welcome function ......................................4-108
Headrest(front) ..............................................................3-10
Headrest(rear) ................................................................3-22
Heated steering wheel....................................................4-51
Heater ........................................................................\
..4-131
Automatic climate control system ..........................4-131
High - beam operation ................................................4-111
Hight adjustment............................................................3-28
Highway driving ............................................................5-61
Hill-start assist control (HAC) ......................................5-41
Hood ........................................................................\
......4-38
Horn ........................................................................\
......4-51
How to use this manual ..................................................1-2F
GH
XM(FL) CAN(ENG) Index.qxp 1/23/2013 3:41 PM Page 5
