hood release KIA SORENTO 2014 Features and Functions Guide

Active ECO System* 05
Air Conditioning / Climate Control 22
Audio System - Standard* 16
Audio System - Navigation System* 20
Audio System - UVO System* 19
AUX/USB/iPod® Port & Power Outlets 21
Bluetooth® Wireless Technology 12
Cruise Control* 14
Digital Clock 21
Folding 2nd & 3rd Row Seats* 27
Front Active Headrests 28
PASSENGER AIR BAG OFF Indicator 35
Smart Key* 29
Tire Pressure Monitoring System (TPMS) 05
Windshield/Rear Wipers & Washers* 11
VIDEOS & QR CODES 02INSTRUMENT CLUSTERInstrument Cluster Overview / Indicators & Warning Lights 03Trip Computer / Tripmeter* 04Fuel Efficiency 04Tire Pressure Monitoring System (TPMS) 05Active ECO System* 05DRIVER’S PANELElectronic Stability Control (ESC) 06Blind Spot Detection (BSD) System* 06Hill-Start Assist Control (HAC) 06Hood Release Lever and Latch 06Instrument Panel Dimmer* 07All Wheel Drive (AWD) Transfer Mode* 07Heated Steering Wheel Button* 07Power Windows, Window Lock & Central Door Lock 08Electric/Folding Mirrors* 08Power/Heated Outside Mirrors* 08Engine Start/Stop Button* 08STEERING WHEEL CONTROLSTilt/Telescopic Steering Wheel 09LCD Display Control 09Headlights & High Beams 10Turn Signals & Fog Lights* 10Windshield/Rear Wipers & Washers* 11Bluetooth® Wireless Technology 12Audio Controls 14Cruise Control 14FlexSteer™ Steering Wheel Mode* 15AUDIO SYSTEMStandard Audio System Overview* 16Standard Audio System Operation* 17UVO System* 19Navigation System* 20
CENTER PANELDigital Clock 21AUX/USB/iPod® Port & Power Outlets 21Automatic Climate Control* 22Manual Climate Control* 233rd Row Air Conditioning Control* 23Automatic Gear Shift with Sportmatic® Shifting 24S E AT I N GSeat Warmers/Ventilated Seats* 25Driver Position Memory System* 25Power Adjustable Driver’s Seat* 266-Way Manual Adjustable Driver’s Seat* 26Folding 2nd & 3rd Row Seats* 27Front Active Headrests* 28Front Seat Headrest Adjustment 28OTHER KEY FEATURESRemote Keyless Entry (Folding Key)* 29Double-Turn Lock/Unlock All* 29Smart Key* 29HomeLink® with Auto-Dimming Rearview Mirror* 30Power Tailgate 31Fuel Cap / Malfunction Indicator (Check Engine Light) 31Manual Rear Hatch Release Button 31Map/Room/Dome Lamps 32Sunvisor 32Sunroof Operation* 33Roof Rack* 33 Rear-Camera Display* 34Backup Warning System* 34SAFETYOccupant Detection System (ODS) / PASSENGER AIR BAG OFF Indicator 35Child Safety Locks 35Safety Belts 36LEGAL DISCLAIMERS (See Back Inside Cover Page) MAINTENANCE (See Back Cover)
ESSENTIAL FEATURES
SORENTO FEATURES & FUNCTIONS GUIDE*IF EQUIPPED
Driving while drowsy or distracted is dangerous and should be avoided. Drivers should remain attentive to driving and exercise caution when using vehicle systems while driving.

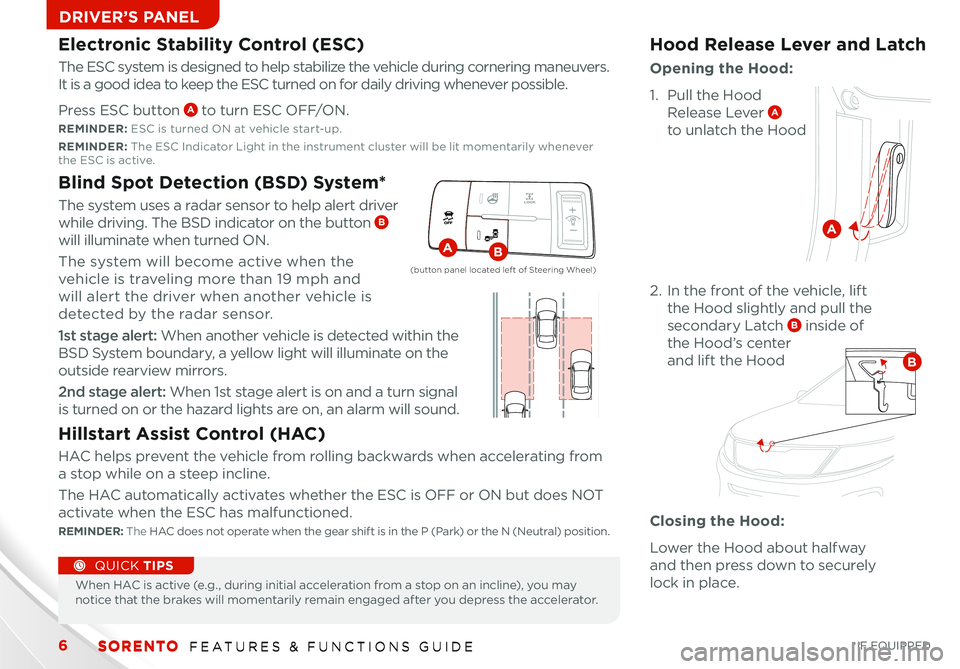

SORENTO FEATURES & FUNCTIONS GUIDE6*IF EQUIPPED SORENTO FEATURES & FUNCTIONS GUIDE6
DRIVER’S PANELDRIVER’S PANELDRIVER’S PANEL
Hood Release Lever and LatchElectronic Stability Control (ESC)
The ESC system is designed to help stabilize the vehicle during cornering maneuvers
It is a good idea to keep the ESC turned on for daily driving whenever possible
Press ESC button A to turn ESC OFF/ON
REMINDER: ESC is turned ON at vehicle start-up
REMINDER: The ESC Indicator Light in the instrument cluster will be lit momentarily whenever the ESC is active
Opening the Hood:
1 Pull the Hood
Release Lever A
to unlatch the Hood







2 In the front of the vehicle, lift
the Hood slightly and pull the
secondary Latch B inside of
the Hood’s center
and lift the Hood







Closing the Hood:
Lower the Hood about halfway
and then press down to securely
lock in place When HAC is active (e g , during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator
QUICK TIPS
Blind Spot Detection (BSD) System*
The system uses a radar sensor to help alert driver
while driving The BSD indicator on the button B
will illuminate when turned ON
The system will become active when the
vehicle is traveling more than 19 mph and
will alert the driver when another vehicle is
detected by the radar sensor
1st stage alert: When another vehicle is detected within the
BSD System boundary, a yellow light will illuminate on the
outside rearview mirrors
2nd stage alert: When 1st stage alert is on and a turn signal
is turned on or the hazard lights are on, an alarm will sound
Hillstart Assist Control (HAC)
HAC helps prevent the vehicle from rolling backwards when accelerating from
a stop while on a steep incline
The HAC automatically activates whether the ESC is OFF or ON but does NOT
activate when the ESC has malfunctioned
REMINDER: The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position
A
B
X
X
X
AB
(button panel located lef t of Steering Wheel)
