87

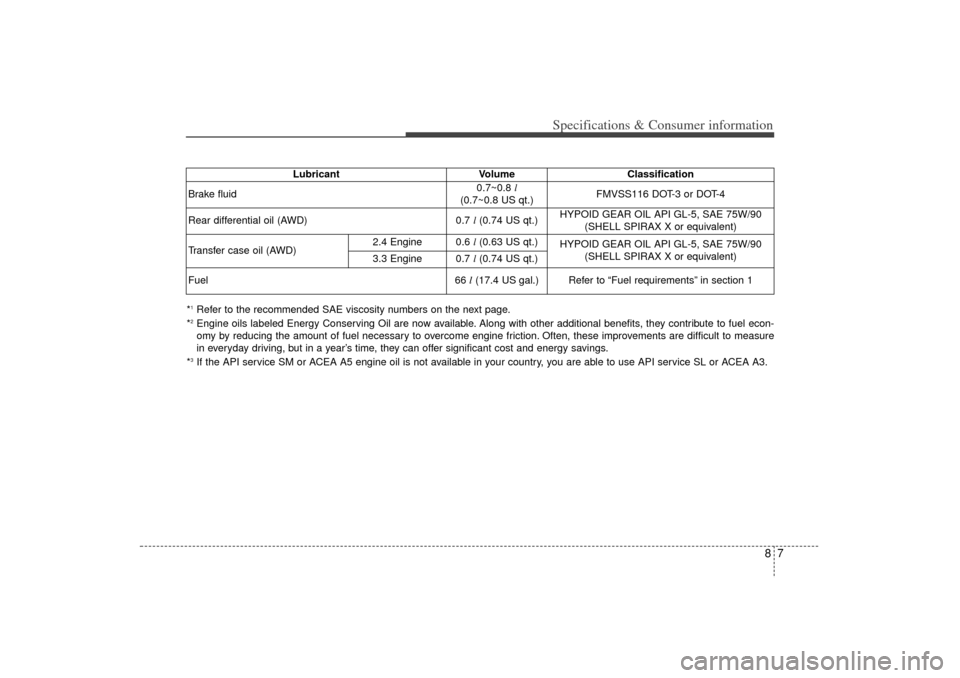

Specifications & Consumer information
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*3If the API service SM or ACEA A5 engine oil is not available in your country, you are able to use API service SL or ACEA A3. Lubricant Volume Classification
Brake fluid 0.7~0.8
l
(0.7~0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Rear differential oil (AWD) 0.7
l(0.74 US qt.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (AWD) 2.4 Engine
0.6
l(0.63 US qt.)
HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
3.3 Engine 0.7
l(0.74 US qt.)
Fuel 66
l(17.4 US gal.)
Refer to “Fuel requirements” in section 1
