Your vehicle at a glance
22

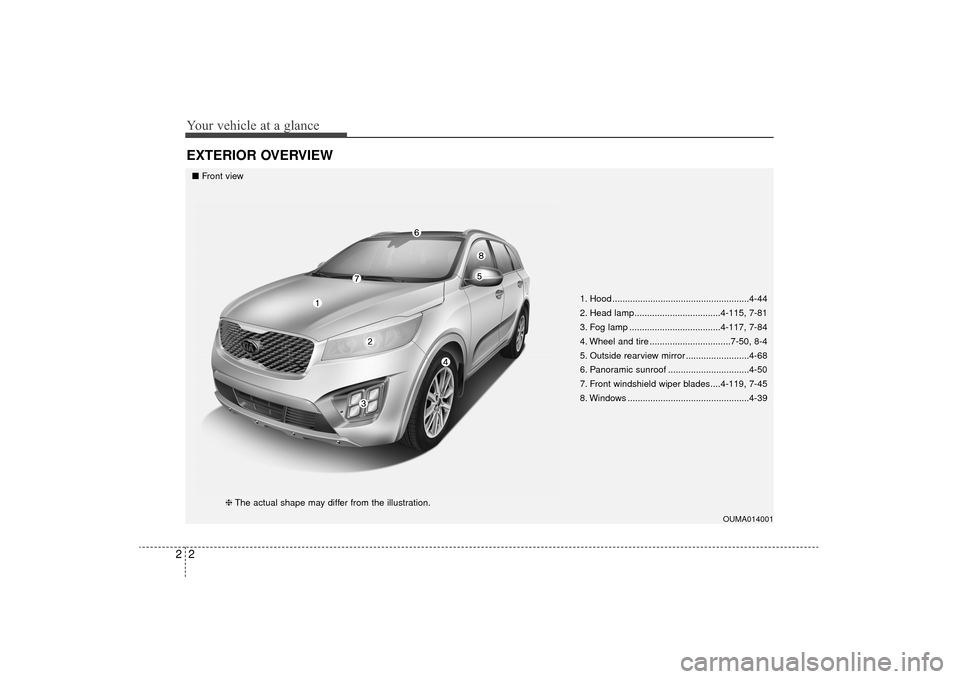

EXTERIOR OVERVIEW
1. Hood ......................................................4-44
2. Head lamp..................................4-115, 7-81
3. Fog lamp ....................................4-117, 7-84
4. Wheel and tire ................................7-50, 8-4
5. Outside rearview mirror .........................4-68
6. Panoramic sunroof ................................4-50
7. Front windshield wiper blades....4-119, 7-45
8. Windows ................................................4-39
OUMA014001
■Front view
❈The actual shape may differ from the illustration.
UM CAN (ENG) 2.qxp 12/1/2014 11:50 AM Page 2
Page 12 of 565
23
Your vehicle at a glance

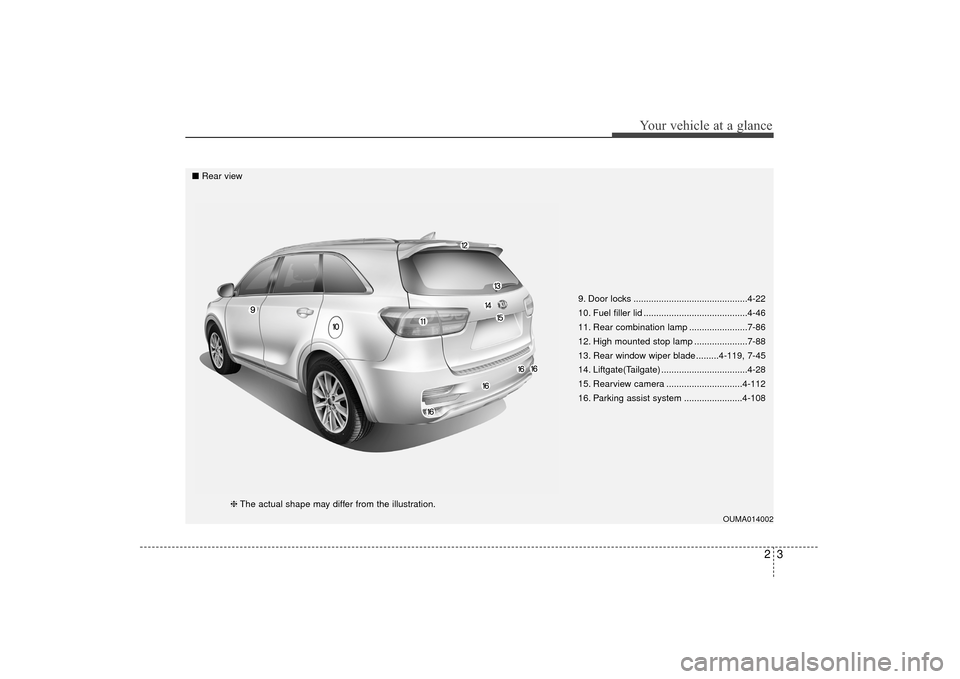

9. Door locks .............................................4-22
10. Fuel filler lid .........................................4-46
11. Rear combination lamp .......................7-86
12. High mounted stop lamp .....................7-88
13. Rear window wiper blade .........4-119, 7-45
14. Liftgate(Tailgate) ..................................4-28
15. Rearview camera ..............................4-112
16. Parking assist system .......................4-108
OUMA014002
■Rear view
❈The actual shape may differ from the illustration.
UM CAN (ENG) 2.qxp 12/1/2014 11:50 AM Page 3
Page 13 of 565
Your vehicle at a glance
42

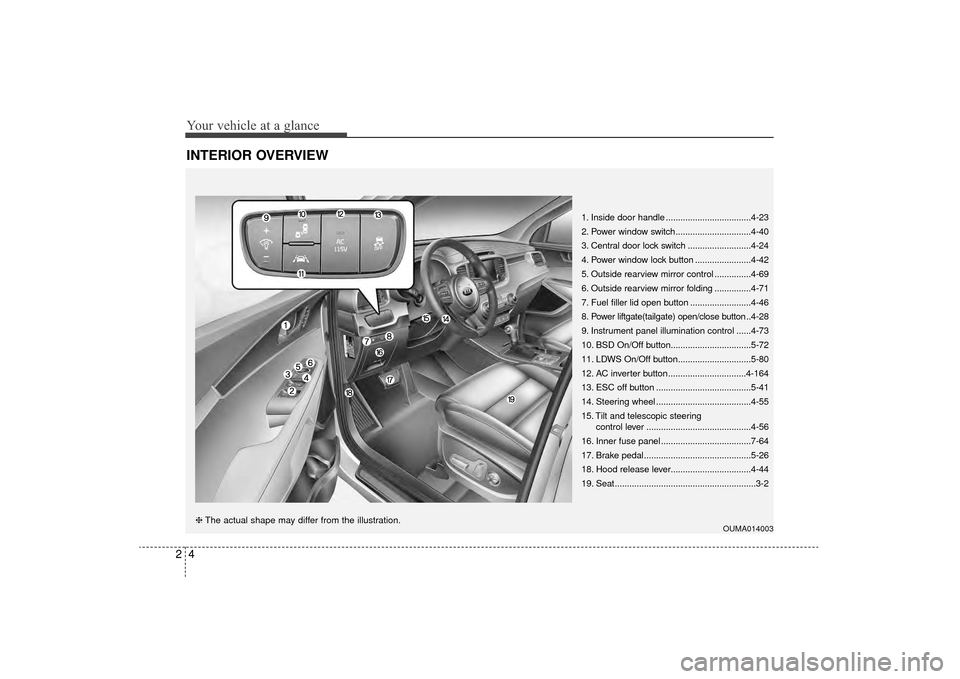

INTERIOR OVERVIEW
1. Inside door handle ...................................4-23
2. Power window switch...............................4-40
3. Central door lock switch ..........................4-24
4. Power window lock button .......................4-42
5. Outside rearview mirror control ...............4-69
6. Outside rearview mirror folding ...............4-71
7. Fuel filler lid open button .........................4-46
8. Power liftgate(tailgate) open/close button ..4-28
9. Instrument panel illumination control ......4-73
10. BSD On/Off button.................................5-72
11. LDWS On/Off button..............................5-80
12. AC inverter button ................................4-164
13. ESC off button .......................................5-41
14. Steering wheel .......................................4-55
15. Tilt and telescopic steering control lever ...........................................4-56
16. Inner fuse panel .....................................7-64
17. Brake pedal............................................5-26
18. Hood release lever.................................4-44
19. Seat..........................................................3-2
OUMA014003❈ The actual shape may differ from the illustration.
UM CAN (ENG) 2.qxp 12/1/2014 11:50 AM Page 4
Page 14 of 565
25
Your vehicle at a glance

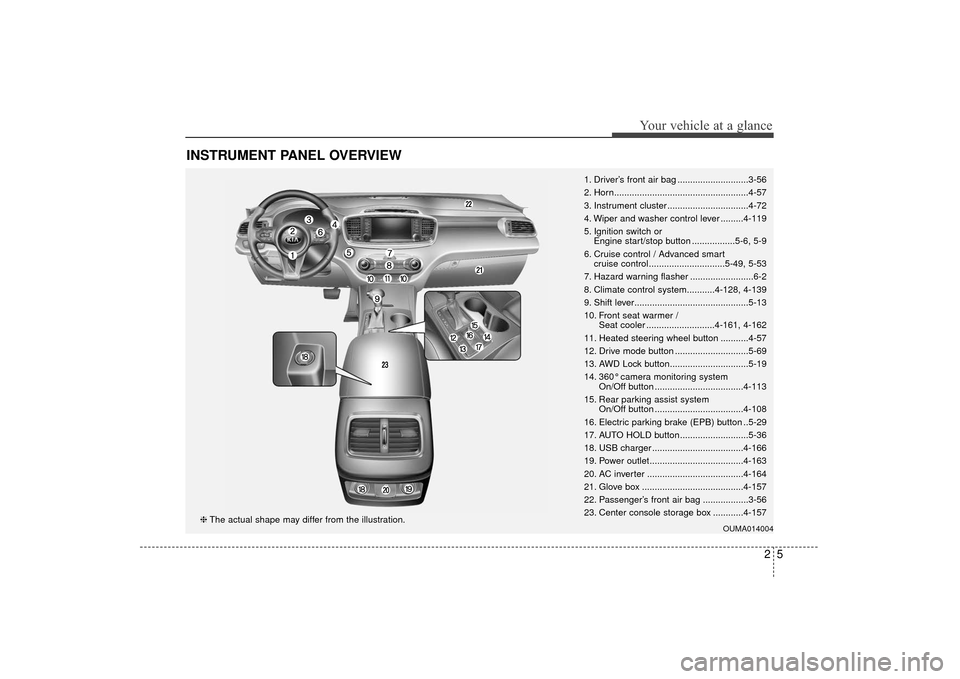

INSTRUMENT PANEL OVERVIEW
1. Driver’s front air bag ............................3-56
2. Horn.....................................................4-57
3. Instrument cluster ................................4-72
4. Wiper and washer control lever .........4-119
5. Ignition switch or Engine start/stop button .................5-6, 5-9
6. Cruise control / Advanced smart cruise control..............................5-49, 5-53
7. Hazard warning flasher .........................6-2
8. Climate control system...........4-128, 4-139
9. Shift lever.............................................5-13
10. Front seat warmer / Seat cooler ...........................4-161, 4-162
11. Heated steering wheel button ...........4-57
12. Drive mode button .............................5-69
13. AWD Lock button...............................5-19
14. 360° camera monitoring system On/Off button ...................................4-113
15. Rear parking assist system On/Off button ...................................4-108
16. Electric parking brake (EPB) button ..5-29
17. AUTO HOLD button...........................5-36
18. USB charger ....................................4-166
19. Power outlet.....................................4-163
20. AC inverter ......................................4-164
21. Glove box ........................................4-157
22. Passenger’s front air bag ..................3-56
23. Center console storage box ............4-157
OUMA014004❈ The actual shape may differ from the illustration.
UM CAN (ENG) 2.qxp 12/1/2014 11:50 AM Page 5
Page 15 of 565
Your vehicle at a glance
62

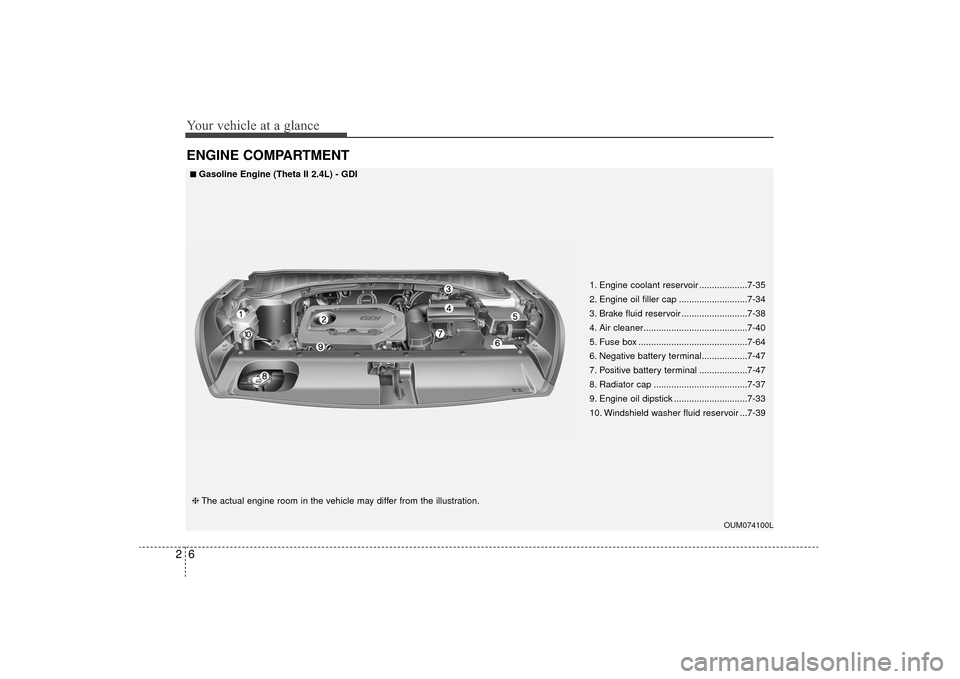

ENGINE COMPARTMENT
OUM074100L
■
■Gasoline Engine (Theta II 2.4L) - GDI
❈ The actual engine room in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................7-35
2. Engine oil filler cap ...........................7-34
3. Brake fluid reservoir ..........................7-38
4. Air cleaner.........................................7-40
5. Fuse box ...........................................7-64
6. Negative battery terminal..................7-47
7. Positive battery terminal ...................7-47
8. Radiator cap .....................................7-37
9. Engine oil dipstick .............................7-33
10. Windshield washer fluid reservoir ...7-39
UM CAN (ENG) 2.qxp 12/1/2014 11:51 AM Page 6
Page 16 of 565
27
Your vehicle at a glance
OUM074115L
■

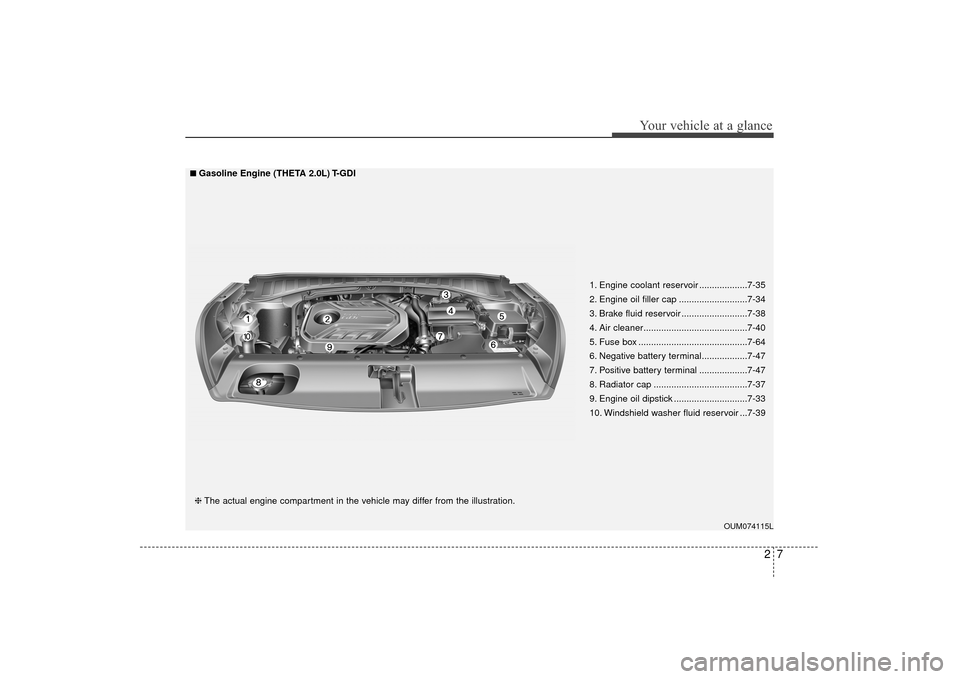

■Gasoline Engine (THETA 2.0L) T-GDI
❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................7-35
2. Engine oil filler cap ...........................7-34
3. Brake fluid reservoir ..........................7-38
4. Air cleaner.........................................7-40
5. Fuse box ...........................................7-64
6. Negative battery terminal..................7-47
7. Positive battery terminal ...................7-47
8. Radiator cap .....................................7-37
9. Engine oil dipstick .............................7-33
10. Windshield washer fluid reservoir ...7-39
UM CAN (ENG) 2.qxp 12/1/2014 11:51 AM Page 7
Page 17 of 565
Your vehicle at a glance
82
OUMA074001
■

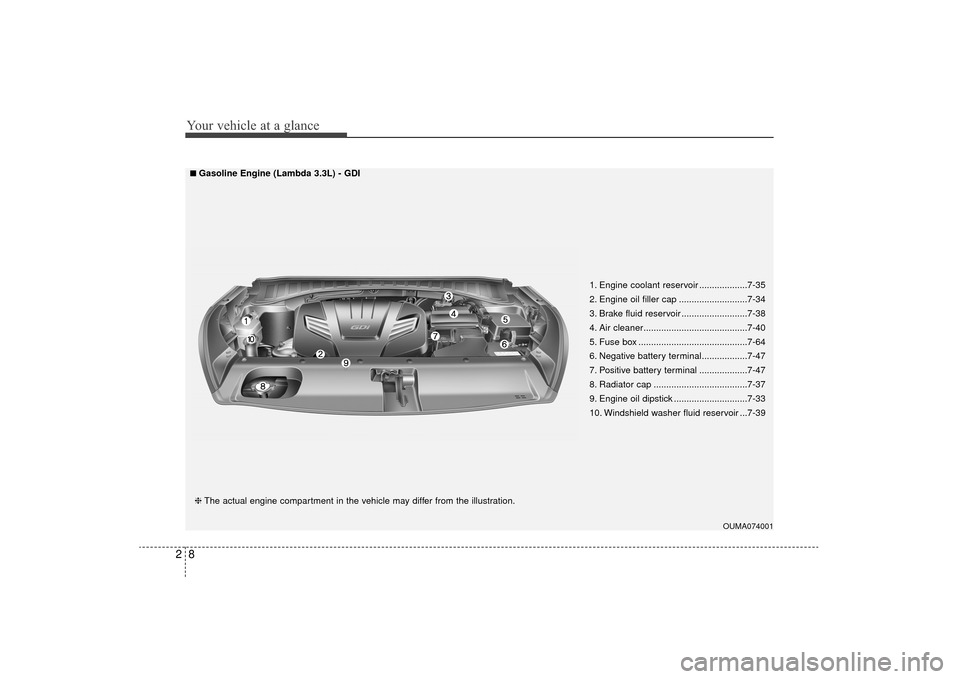

■Gasoline Engine (Lambda 3.3L) - GDI
❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................7-35
2. Engine oil filler cap ...........................7-34
3. Brake fluid reservoir ..........................7-38
4. Air cleaner.........................................7-40
5. Fuse box ...........................................7-64
6. Negative battery terminal..................7-47
7. Positive battery terminal ...................7-47
8. Radiator cap .....................................7-37
9. Engine oil dipstick .............................7-33
10. Windshield washer fluid reservoir ...7-39
UM CAN (ENG) 2.qxp 12/1/2014 11:51 AM Page 8
Page 18 of 565

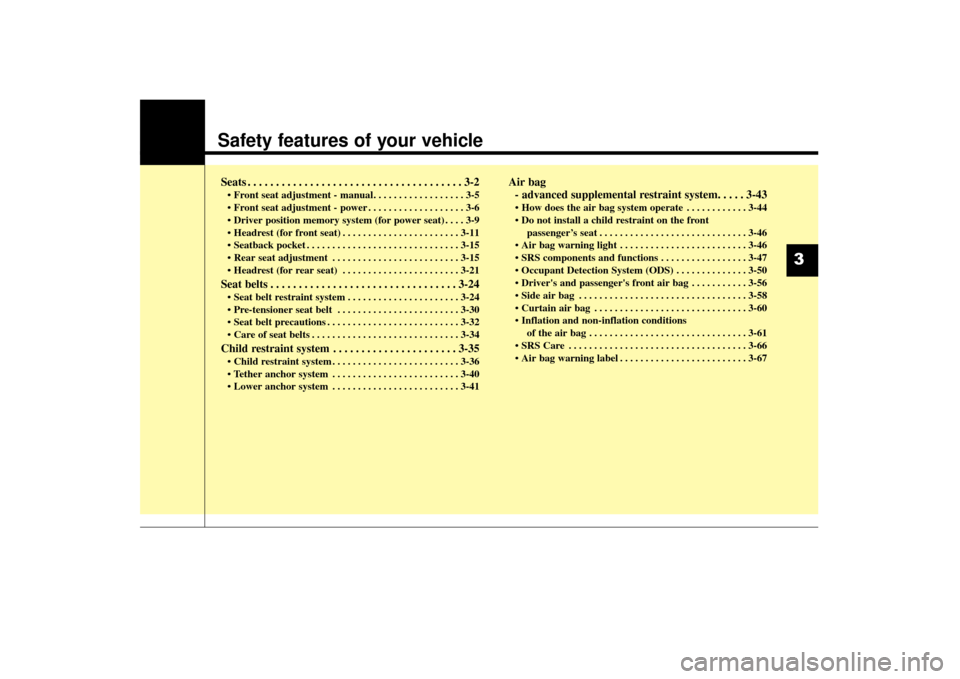

Safety features of your vehicle
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 3-2
• Front seat adjustment - manual. . . . . . . . . . . . . . . . . . 3-5
. . . . . . . . . . . . . . . . . . . 3-6
. . . . 3-9
. . . . . . . . . . . . . . . . . . . . . . . 3-11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
. . . . . . . . . . . . . . . . . . . . . . . . . 3-15
. . . . . . . . . . . . . . . . . . . . . . . 3-21
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
. . . . . . . . . . . . . . . . . . . . . . 3-24
. . . . . . . . . . . . . . . . . . . . . . . . 3-30
. . . . . . . . . . . . . . . . . . . . . . . . . . 3-32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-35
. . . . . . . . . . . . . . . . . . . . . . . . . 3-36
. . . . . . . . . . . . . . . . . . . . . . . . . 3-40
. . . . . . . . . . . . . . . . . . . . . . . . . 3-41
Air bag - advanced supplemental restraint system. . . . . 3-43
. . . . . . . . . . . . 3-44
passenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-46
. . . . . . . . . . . . . . . . . . . . . . . . . 3-46
. . . . . . . . . . . . . . . . . 3-47
. . . . . . . . . . . . . . 3-50
. . . . . . . . . . . 3-56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-60
of the air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
66
. . . . . . . . . . . . . . . . . . . . . . . . . 3-67
3
UM CAN (ENG) 3.QXP 12/1/2014 11:56 AM Page 1
Page 19 of 565
Safety features of your vehicle
23
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height
(4) Lumbar support (Driver’s seat)*
(5) Cushion extension (Driver's seat)*
(6) Driver position memory system
(7) Headrest
2nd row seat
(8) Forward and backward
(9) Seatback angle and folding
(10) Walk-in seat lever*
(11) Headrest
(12) Armrest
(13) Remote folding*
3rd row seat*
(14) Seatback folding
(15) Headrest
* : if equipped

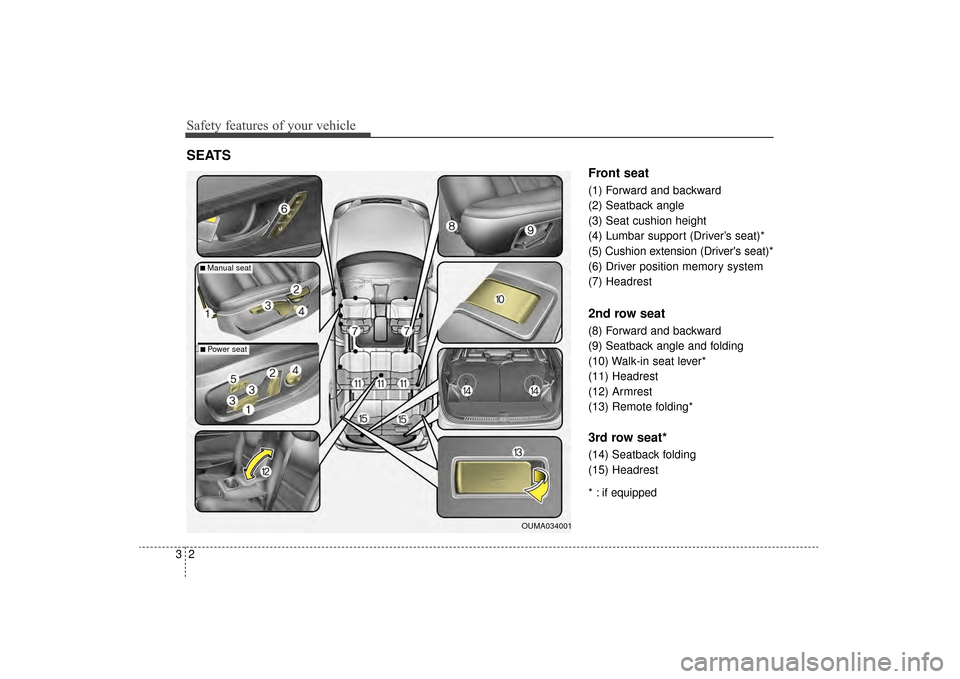

SEATS
OUMA034001
■Manual seat
■Power seat
UM CAN (ENG) 3.QXP 12/1/2014 11:56 AM Page 2
Page 20 of 565
33
Safety features of your vehicle
WARNING- Uprightingseat
Do not press the release lever
on a manual seatback without
holding and controlling the
seatback. The seatback will
spring upright possibly impact-
ing you or other passengers.
WARNING- Loose objects
Do not place anything in the dri-
ver's foot well or under the front
seats. Loose objects in the dri-
ver's foot area could interfere
with the operation of the foot
pedals.WARNING- Seat cushion
Occupants should never sit on
supplemental seat cushions.
The passenger's hips may slide
under the lap portion of the seat
belt during an accident or a
sudden stop.WARNING- Driver respon-
sibility for passengers
The driver must advise the pas-
senger to keep the seatback in
an upright position whenever
the vehicle is in motion. If a seat
is reclined during an accident,
the occupant's hips may slide
under the lap portion of the seat
belt, applying great force to the
unprotected abdomen.
1KMN3662
UM CAN (ENG) 3.QXP 12/1/2014 11:56 AM Page 3
