KIA SORENTO 2019 Features and Functions Guide

9ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
The ESC system is designed to help stabilize the vehicle during certain
cornering maneuvers . It is a good idea to keep the ESC turned on for
daily driving whenever possible .
Press ESC OFF button A to turn Traction Control OFF/ON .
To turn OFF both the Traction Control and Stability Control, press and
hold for more than 3 seconds . Press again to turn ON .
HAC helps prevent the vehicle from rolling backwards when
accelerating from a stop while on a steep incline . The HAC automatically
activates whether the ESC is OFF or ON but does NOT activate when the
ESC has malfunctioned .
REMINDERS:
•
ESC is active by default at vehicle start-up . When ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in operation
For more information on Electronic Stability Control (ESC) and its specific features and operations, please refer to your Owner’s Manual.
Electronic Stability Control (ESC)†7
Hill-Start Assist Control (HAC)†7
REMINDERS:
•
The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position .
•In the event of HAC system malfunction, see Authorized Kia Dealer for service .
•HAC does not replace the need to apply brakes while the vehicle is stopped on an incline .
(Button panel located left of Steering Wheel)
BCA
Instrument Cluster Control
With parking lights/headlights ON, press button B (+) or (-) to
adjust the brightness of the instrument panel illumination .
REMINDER: The Instrument Cluster Control does not adjust brightness on the audio head unit screens . Use the display settings in the Setup menu to adjust the brightness on the screen .
•
•When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation . •HAC provides a 2-second delay before the vehicle may start rolling backwards
QUICK TIPS
(Outlet located on back of Center Console*)
AC Inverter*
The AC Inverter supplies 115V/150W electrical
power to operate accessories or equipment .
Press AC Inverter button C to activate . Press
again to deactivate .AC115V
MAX150W
DRIVER'S PANEL

SORENTO FEATURES & FUNCTIONS GUIDE10*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Blind-Spot Collision Warning (BCW)*†6
The BCW system uses radar sensors to help alert the driver if it detects an
approaching vehicle in the driver’s blind spot area before changing lanes in
certain situations . The light on the BCW button A will illuminate when turned
ON . The outside rearview mirror warning lights will also illuminate for 3 seconds .
The system will become active when the vehicle is traveling more than 18 mph
and will alert the driver if another vehicle is detected by the radar sensor and will
alert the driver if another vehicle is detected by the radar sensor .
1st-stage alert: When another vehicle is detected within the BCW System
boundary B, or when a vehicle detected with the LCA boundary C
approaches at a high speed, a yellow indicator will illuminate on the
outside rearview mirrors .
2nd-stage alert: When 1st-stage alert is on and the driver activates a turn
signal, a flashing yellow indicator will illuminate on the outside rearview mirrors
and the system will sound an alert .
Rear Cross-Traffic Collision Warning (RCCW)*
If the RCCW system sensors detect approaching vehicles from the left or right
side D, the system will sound an audible alert, the warning indicators on the
outside rearview mirror will illuminate and a message will appear on the LCD
screen, when these conditions are met:
•The gear shift is in Reverse
•The vehicle is moving less than 6 mph
•The vehicle moves in reverse from a parked position
REMINDERS:
•The RCCW can be set to on/off in User Settings from the LCD Instrument Cluster modes
•When the BCW is ON and the vehicle power is cycled to OFF then ON again, the BSD system returns to ON
•When vehicle power is cycled, the RCCW will remain in the previous state
•
The RCCW system will show a warning if the approaching vehicle speed is between 2 .5 - 22 mph within sensing range . See owner’s manual for other conditions .
•The BCW and RCCW systems are supplemental systems . Do not solely rely on these systems and always pay attention to drive safely .
For more information on the above systems, please refer to the Owner’s Manual.
Blind-Spot Collision Warning w/RCCW Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
A
E
B
C
D
(Button panel located left of Steering Wheel)
QR CODE
DRIVER'S PANEL

11ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Lane Keeping Assist (LKA)*†6Forward Collision-Avoidance
Assist-Pedestrian (FCA-Ped)*† 9 /
Forward Collision Warning (FCW)*†6With the Engine Start /Stop button in the ON position, press the LK A
button E to turn system ON . The instrument cluster indicator will
initially illuminate white . It will remain white when vehicle is traveling
less than 40 mph and the system does not detect the lane markers .
When the LK A system detects the lane markers and can assist the
steering, the LK A icon will illuminate green .
If the LK A detects that you are veering outside of your lane, the system
may issue a warning on the LCD screen and an alert may sound, while
applying a slight adjustment to the steering, trying to prevent the vehicle
from moving outside its lane .
Standard LK A is the operating mode by default when the LK A button is
depressed to ON . To switch between modes (Standard LK A, Active LK A
and Lane Departure), go to User Settings in the Instrument Cluster .
All systems will operate under the following conditions:
• The vehicle exceeds approximately 40 mph
• The LK A system recognizes the lane the vehicle is traveling in .
• The vehicle is between the lane markers
REMINDERS:
•LK A will not issue a warning if the turn signals or hazard lights are activated .
•When ignition is cycled, the LK A will return to the previuosly set state
REMINDERS:
•
The FCA-Ped will be activated by default when vehicle power is cycled on, even when previously set to off
•
The FCA-Ped will not operate when the vehicle is traveling more than approximately 50 mph
•
If the FCA-Ped is operating and the ESC (Electronic Stability Control) is turned off, the FCA-Ped system is automatically turned off .
•
When FCA-Ped system is off, the FCA-Ped warning indicator is on in the Instrument Cluster .
The Forward Collision-Avoidance Assist-Pedestrian (FCA-Ped) / Forward Collision Warning (FCW)* are not substitutes for safe and proper driving. Always drive safely and use caution. FCA-Ped / FCW may not always alert the driver when the vehicle is approaching another vehicle.
The Lane Keeping Assist (LKA) is not a substitute for safe and proper driving. Always drive safely and use caution. LKA may not always alert the driver if the vehicle is driven outside of its lane.
When the LK A sensor detects the lane traveling in, the lane is illuminated
When the LK A sensor does not detect the lane traveling in the lanes is not illuminated
When the LK A sensor detects the vehicle veering outside of the lane traveling in, the lane the vehicle’s crossing will blink (shown in both images above)
Lane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping AssistLane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping Assist Video
To view a video on your mobile device, snap this QR Code or visit the listed website . Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
The FCA-Ped is designed to help alert the driver,
and under certain conditions if necessary, apply
emergency braking, when rapidly approaching a
vehicle that is slowing down, braking or stopped .
Initially, the FCA-Ped provides Forward Collision
Warning (FCW) when it detects a potential collision
with a vehicle in front emitting an audible warning
and visual alert on the instrument cluster . Adjust
the alert settings (Early, Normal, Late) in the User
Settings . To turn the FCA-Ped/FCW off, go to User
Settings again and turn off .
If the system detects that the collision risk
increases, the Forward Collision-Avoidance Assist-
Pedestrian (FCA-Ped) automatically applies the brakes to reduce your speed,
helping to minimize the effects of a possible collision . FCA-Ped can be turned ON in
the User Settings menu on the Instrument Cluster display .
The FCA-Ped/FCW will become active when the:
• Engine Start /Stop button is ON
• Vehicle is traveling more than 5 mph
• Electronic Stability Control (ESC) is ON
DRIVER'S PANEL

SORENTO FEATURES & FUNCTIONS GUIDE12*IF EQUIPPED
Power Windows, Window Lock & Central Door Lock
A Pull/Press to operate Front Windows Auto Up/Down*
B Press to Unlock /Lock All Doors
C Press to disable Rear Passenger Windows
REMINDER: When pressed C, window controls for the Rear Passenger Windows are disabled .
Power/Heated Outside Mirrors*
Mirror heaters are activated when Rear Defroster is turned on .
Automatic Door Lock/Unlock
Auto Door Lock /Unlock will engage when the gear shift is moved in to
or out of the P (Park) position . Refer to the User Settings in the LCD
Instrument Cluster modes on how to turn Auto Door Lock /Unlock ON/OFF .
Fuel Filler Lid Release Button
Press the Fuel Filler Lid Release button G
to release the fuel door .
Power Folding Outside Mirrors*
D Press the L or R buttons to select the mirror to adjust .
E Press button arrows left /right or up/down to adjust mirror position .
F Toggle button left /right to unfold/fold the outside rearview mirrors .
F Toggle button to center to automatically fold/unfold mirrors when:
•The Smart Key* Lock /Unlock buttons are pressed
•The door outside handle button* is pressed
(Button/switch panel located on Driver's Door )
AUTO
AUTO
AUTO
L
RMIRROR
A
B
C
D
E
F

The mirrors will automatically unfold when the Smart Key* is within close proximity to the vehicle .
QUICK TIP
Press button again to stop Auto Up/Down function .
QUICK TIP
G
(Buttons located on Driver's Panel to the left of the Steering Wheel)
REMINDERS:
•
When mirror button F is in the center, press the Lock button on the Smart Key to automatically fold the mirrors
•To lock position of mirrors, toggle switch to the neutral (center) position
DRIVER'S PANEL

13ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
AUTOL
R
MIRROR
Reverse Parking Aid Function*Engine Start/Stop Button*†8
When the gear shift lever is moved into R (Reverse)
and while the vehicle is moving backward, the outside
rearview mirrors A will rotate downward to aid in
reverse parking .
When the left or right mirror buttons B are depressed,
the Reverse Parking Aid Function will operate (LED lit) .
To turn OFF the function, press the switches again.
The outside rearview mirrors will automatically return to
their original positions when:
•The Engine Start /Stop Button is in the OFF position
•The gear shift lever is moved to any position except R
(Reverse)
•
Outside rearview mirror switches are not depressed
REMINDER: When one of the outside rearview mirror switches are not depressed (LED lit), the Reverse Parking Aid Function will not operate and the outside rearview mirrors will not rotate downward .
(Button/switch panel located on Driver's Door)
A
B
To start the engine:
1 . Depress the brake pedal
2 .
Press the Engine Start /Stop
button while gear shift is in
P (Park) or N (Neutral) .
To turn the engine OFF: Press the
Engine Start /Stop button .
To use the Engine Start /Stop button, you must have the
Smart Key fob inside the vehicle .
REMINDERS:
•
In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the Engine Start /Stop button for more than 2 seconds or 3 times successively within 3 seconds
•
If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the Engine Start /Stop button (Lock button side closest) and press to start engine
To use electrical accessories:
ACC position •When in the OFF position and without depressing the brake pedal, press the Engine Start /Stop button once (amber light)
ON position •When already in the ACC position (amber light) and without depressing the brake pedal, press the Engine Start /Stop button again (red light) •
When in the OFF position and without depressing the brake pedal, press the Engine Start /Stop button twice (red light)
Keeping the vehicle in ACC or the ON position for extended periods of time without turning engine on may discharge the vehicle’s battery .
QUICK TIPS
Engine Start/Stop Button & Smart Key Video
To view a video on your mobile device, snap this QR Code or visit the listed website . Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
DRIVER'S PANEL

SORENTO FEATURES & FUNCTIONS GUIDE14*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Tilt/Telescoping
Steering Wheel†2 5
To adjust the Steering Wheel, press the
Lock-Release Lever A down and adjust
the desired angle B and distance C .
When finished, pull the Lock-Release
Lever A up to lock Steering Wheel in place .
A
C
B
Headlights & High Beams
To o p e r a t e :
•Rotate switch to change the Headlight function
•Push lever to turn High Beams ON
•Pull lever to flash Headlights/High Beams
Daytime Running Lights (DRL)* — DRL may help others to see the
front of your vehicle during the day . The lights will be on automatically
when the ignition or Engine Start /Stop button is ON and the headlight
switch is in the AUTO position, unless one of the following occurs:
•Headlights are on
•Parking brake is applied
•Engine is turned off
•Switch is in the DRL OFF position
AUTO Light position* — When the light switch is in the AUTO
Light position, the tail lights and headlights will turn ON/OFF
automatically depending on the amount of light outside the vehicle .
Low Beam Assist-Dynamic (LBA-D)* — The LBA-D is designed to
help improve visibility during nighttime driving by aiming the low beam
headlights toward the direction the vehicle is moving . LBA-D controls the
aiming direction based on steering angle and speed . When the light switch
is in the AUTO Light position, the LBA-D will activate .
High Beam Assist (HBA)* — High Beam Assist is designed to
automatically adjust the headlight range by switching between high
and low beams based on light detected from other vehicles and road
conditions . To enable HBA, toggle the light switch to the AUTO Light
position and turn on the high beams by pushing the lever away from you .
The High Beam Assist indicator will illuminate .
DRL
OFF
DRLOFF
Headlight position
Parking light position
AUTOAuto Light / HBA* / LBA-D*
DRL OFFOFF position
It may be helpful to pull/push bottom of Steering Wheel towards/away from you to adjust desired distance prior to adjusting the angle .
QUICK TIP
Low Beam Assist-Dynamic (LBA-D) Video
To view a video on your mobile device, snap this QR Code or visit the listed website . Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
REMINDERS:
•
DRL only operates during the daytime
•
When the LBA-D indicator illuminates on the instrument cluster, the LBA-D is not working properly . See an authorized Kia dealer for service .
•
HBA will operate when vehicle speed exceeds 25 mph
•
If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously . If the lever is pulled toward you while HBA is operational, HBA will turn off
•
If the light switch is switched to the headlight position, HBA will turn off low beams will be on continuously
STEERING WHEEL CONTROLS

15ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
DRL
OFF
DRLOFF
Turn Signals & Fog Lights*
To o p e r a t e :
•Turn Signals - Move lever Up/Down for Right /
Left Turn Signal
•Fog Lights - Press toggle switch A to turn
Fog Lights ON/OFF
REMINDER: Headlights must be ON for Fog Light operation .
For more information on the User Settings Mode, please refer to your Owner’s Manual.
One-Touch Lane Change Signal is activated by
moving the Turn Signal Lever up/down slightly for
less than 1 second and then releasing . The lane
change signal will blink 3 times .
To change how many times (3/5/7) the Lane Change
Signal blinks, go to User Settings Mode in the LCD
Instrument Cluster modes .
To o p e r a t e :
•Move lever Up/Down to
change Wiper modes
•Push switch B to adjust
Intermittent Wipe
•Pull lever to spray
and wipe
Auto Control (Rain Sensing)*
The rain sensor located on the upper end of the windshield glass senses the amount of
rainfall and controls the wiping cycle for the proper interval . The more it rains, the faster
the wiper operates . When the rain stops, the wiper stops .
To adjust the Auto Rain Sensing speed setting, move the speed control switch B up/down .
Windshield Wipers & Washers
M I S T: Single wipe
OFF: Wiper off
INT/AUTO*: Intermittent Wipe/ Rain Sensing*
LO: Slow wipe
HI: Fast wipe
FRONTMIST
HIPUSH
REARLO
OFF
OFF INT
INT
LO HI
PULL
FRONTMIST
HIPUSH
REARLO
OFF
OFF INT
INT
LO HI
PULL
FRONTMIST
HIPUSHREARLO
OFF
OFF INT
INT
LO HI
PULL
FRONTMIST
HIPUSHREARLO
OFF
OFF INT
INT
LO HI
PULL
B
A
HI: Fast wipe
LO: Slow wipe
OFF: Wiper off
On Rear Wipers, intermittent wipe function is not adjustable . LO and HI sets wiper speed .
QUICK TIP
Rear Wiper & Washer*
To operate:
•Rotate Rear Wiper switch to change
Wiper modes
•Push to spray and wipe

•Moving switch B up increases intermittent wipe frequency and wipe speed . Moving switch down decreases frequency of wipes
•Set the wiper to OFF position when the wiper is not in use
QUICK TIPS
STEERING WHEEL CONTROLS

SORENTO FEATURES & FUNCTIONS GUIDE16*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Bluetooth® Wireless Technology†5,23
For more information, if equipped, refer to the Car Multimedia System User's Manual or the Owner’s Manual. For Bluetooth® Wireless Technology FAQs, go to www.kia.com, or call Consumer Information for Bluetooth® Technology at (800) 333-4KIA. Refer to your Owner’s Manual for more specific Bluetooth® Wireless Technology phone pairing and operation instructions.
A Talk button: Press to activate voice recognition (UVO eServices* /
UVO eServices with Premium Navigation* only)
B Volume button: Press up/down to raise/lower speaker volume
Mute button: Press to mute the microphone during a call
C Receive/Place Call button: Press to receive/place/answer calls .
In vehicles with navigation, if no phone is paired, press button to
pair a phone
D End Call button: Press to end a call or cancel a functionYour vehicle’s steering wheel buttons may differ from those in the illustrations.
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.
MODE
RESOKSET
CRUISE
CANCEL
B
CD
A

•When using the voice command feature*, wait for the system BEEP before speaking the command
•
Phonebook transfer upload time varies by phone model and with number of phonebook entries
•Because of differences in phone quality, service providers and Bluetooth® Wireless Technology chip programming, functionality may differ from one phone to another
QUICK TIPS
( Type B Steering Wheel shown)
STEERING WHEEL CONTROLS

17ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Voice Recognition* and Phone Contact Tips
To help optimize the Bluetooth® Wireless
Technology Voice Recognition system, below
are some tips and reminders . Improve the
performance by making a few simple changes
to your phone contacts:
•Use full names (first and last names) vs .
short or single-syllable names (“John Smith”
vs . “Dad,” “Smith Residence” vs . “Home”)
•Avoid using special characters, emoji’s or
hyphenated names (@, &, #, /, -, *, +, etc . )
•Avoid using acronyms (“In Case of
Emergency” vs . “ICE”) or words with all
capital letters
•Spell words completely, no abbreviations
(“Doctor Smith” vs . “Dr . Smith”)
The system may have difficulty understanding
some accents or uncommon names . Below are other
tips to optimize using the voice recognition .
Bluetooth® Wireless Technology†5,23 (continued)
Pairing a Phone
For instructions on how to pair a phone, refer to the
Car Multimedia System User’s Manual or your vehicle’s
Quick Start Guide .
How to Place a Call
When using the voice command feature*, wait for the
system BEEP before speaking the command .
There are two options for placing a call:
•Option 1: Press the Receive/Place Call button C
(displays the phone screen with call history)
•Option 2: Press the Talk button* A . Then say the
command “Call {name}” or “Dial {number}”, followed
by contact name or number
Voice Recognition Tips Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
During the pairing process, be sure to accept the connection requests on the phone for phonebook download and to allow acceptance of all future Bluetooth® connection requests
QUICK TIP

•When placing a call, speak in a natural, moderate tone, with clear pronunciation . The system may have trouble recognizing commands if you speak too soft or too loud
•Always wait for the beep before speaking any commands
•Close windows and sunroof and turn off A /C - Open windows, sunroof, weather (wind/rain), or an A /C fan operating at higher speeds can interfere with Voice Recognition
•Press the talk button and say “Help” to get a list of available commands
QUICK TIPS
STEERING WHEEL CONTROLS

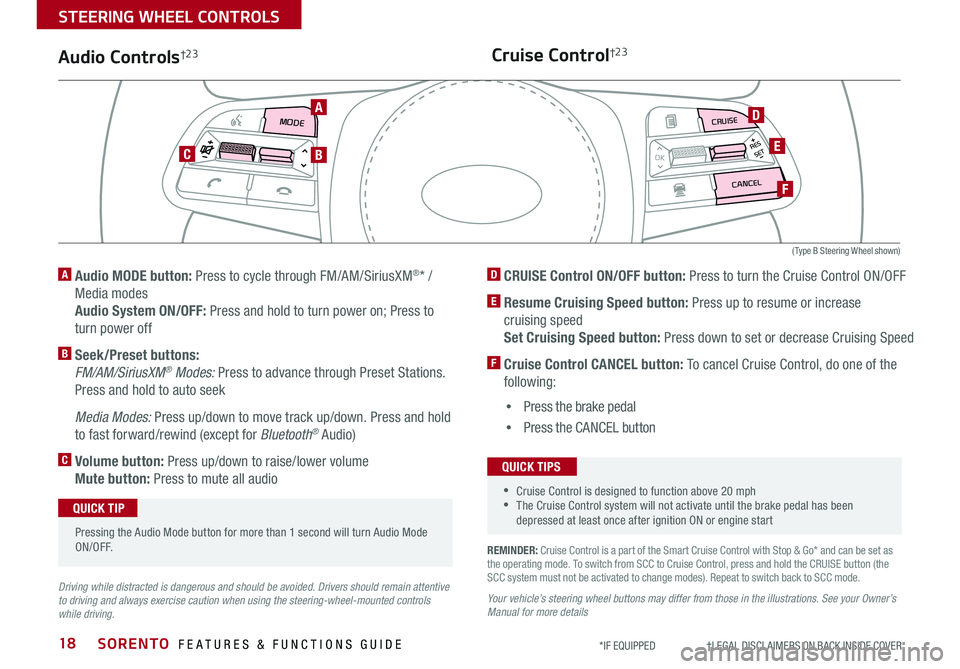

SORENTO FEATURES & FUNCTIONS GUIDE18*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
MODE
RESOKSET
CRUISE
CANCEL
REMINDER: Cruise Control is a part of the Smart Cruise Control with Stop & Go* and can be set as the operating mode . To switch from SCC to Cruise Control, press and hold the CRUISE button (the SCC system must not be activated to change modes) . Repeat to switch back to SCC mode .
Your vehicle’s steering wheel buttons may differ from those in the illustrations. See your Owner’s Manual for more details
Audio Controls†2 3Cruise Control†2 3
D CRUISE Control ON/OFF button: Press to turn the Cruise Control ON/OFF
E Resume Cruising Speed button: Press up to resume or increase
cruising speed
Set Cruising Speed button: Press down to set or decrease Cruising Speed
F Cruise Control CANCEL button: To cancel Cruise Control, do one of the
following:
•Press the brake pedal
•Press the CANCEL button
A Audio MODE button: Press to cycle through FM/AM/SiriusXM®* /
Media modes
Audio System ON/OFF: Press and hold to turn power on; Press to
turn power off
B Seek/Preset buttons:
FM/AM/SiriusXM® Modes: Press to advance through Preset Stations .
Press and hold to auto seek
Media Modes: Press up/down to move track up/down . Press and hold
to fast forward/rewind (except for Bluetooth® Audio)
C Volume button: Press up/down to raise/lower volume
Mute button: Press to mute all audio
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.
A
CB
D
E
F
Pressing the Audio Mode button for more than 1 second will turn Audio Mode ON/OFF .
QUICK TIP

•Cruise Control is designed to function above 20 mph •The Cruise Control system will not activate until the brake pedal has been depressed at least once after ignition ON or engine start
QUICK TIPS
( Type B Steering Wheel shown)
STEERING WHEEL CONTROLS
