Front Seat Headrest Adjustment†1 0
Type A*
•To raise the headrest, pull headrest up to the desired position
•To lower the headrest, press the button, then press the headrest down
Type B/C*
•To raise the headrest, pull the headrest up to the desired position
•To lower the headrest, press and hold the release button A and lower
the headrest to the desired position
Driver Position Memory System*†1 8
The integrated system stores into memory the position of the Driver’s
Seat and the Outside Rearview Mirrors.
To store positions into memory, first place the Gear Shift into P (Park)
while the Engine Start /Stop button is in the ON position. Then:
1. Adjust the Driver’s Seat and the Outside Mirrors
2. Press the SET button B on the control panel. System will beep once
3. Press one of the memory buttons C within 5 seconds. The system
will beep twice when memory has been stored
SET
1
2
(Buttons located on Driver's Door Panel) ( Type A )( Type B)
B
C
REMINDER: Do not attempt to operate the driver position memory system while the vehicle is moving. This could result in loss of control of the vehicle.
For easy adjustments, hold a headrest post with one hand while using the other hand to pull the headrest from underneath.
QUICK TIP
REMINDERS:
•
The headrest only moves up and down as described above. It does not adjust forward or backward
•
Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head support in an accident
AA
SEATING

37
SEATING
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER

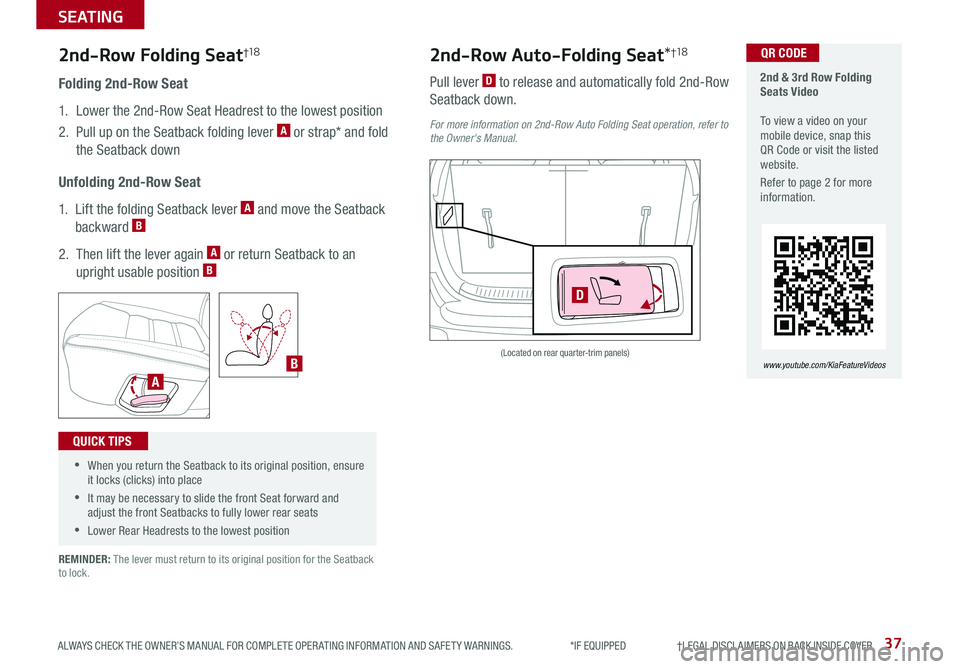

Folding 2nd-Row Seat
1. Lower the 2nd-Row Seat Headrest to the lowest position
2. Pull up on the Seatback folding lever A or strap* and fold
the Seatback down
Unfolding 2nd-Row Seat
1. Lift the folding Seatback lever A and move the Seatback
backward B
2. Then lift the lever again A or return Seatback to an
upright usable position B
2nd-Row Folding Seat†1 8
B
A

•When you return the Seatback to its original position, ensure it locks (clicks) into place
•It may be necessary to slide the front Seat forward and adjust the front Seatbacks to fully lower rear seats
•Lower Rear Headrests to the lowest position
QUICK TIPS
D
(Located on rear quarter-trim panels)
2nd & 3rd Row Folding Seats Video To view a video on your mobile device, snap this QR Code or visit the listed website.
Refer to page 2 for more information.
QR CODE
www.youtube.com/KiaFeatureVideos
Pull lever D to release and automatically fold 2nd-Row
Seatback down.
2nd-Row Auto-Folding Seat*†1 8
For more information on 2nd-Row Auto Folding Seat operation, refer to the Owner's Manual.
REMINDER: The lever must return to its original position for the Seatback to lock.

SORENTO FEATURES & FUNCTIONS GUIDE
SEATING
*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER38

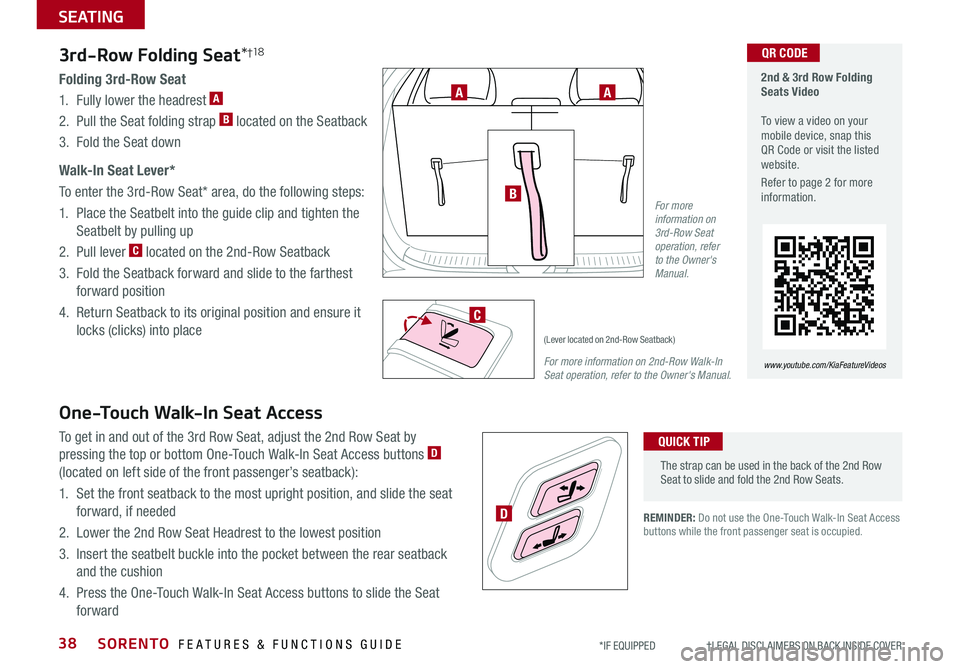

3rd-Row Folding Seat*†1 8
One-Touch Walk-In Seat Access
Folding 3rd-Row Seat
1. Fully lower the headrest A
2. Pull the Seat folding strap B located on the Seatback
3. Fold the Seat down
Walk-In Seat Lever*
To enter the 3rd-Row Seat* area, do the following steps:
1. Place the Seatbelt into the guide clip and tighten the
Seatbelt by pulling up
2. Pull lever C located on the 2nd-Row Seatback
3. Fold the Seatback forward and slide to the farthest
forward position
4. Return Seatback to its original position and ensure it
locks (clicks) into place
To get in and out of the 3rd Row Seat, adjust the 2nd Row Seat by
pressing the top or bottom One-Touch Walk-In Seat Access buttons D
(located on left side of the front passenger’s seatback):
1. Set the front seatback to the most upright position, and slide the seat
forward, if needed
2. Lower the 2nd Row Seat Headrest to the lowest position
3. Insert the seatbelt buckle into the pocket between the rear seatback
and the cushion
4. Press the One-Touch Walk-In Seat Access buttons to slide the Seat
forward
B
AA
For more information on 3rd-Row Seat operation, refer to the Owner's Manual.
2nd & 3rd Row Folding Seats Video To view a video on your mobile device, snap this QR Code or visit the listed website.
Refer to page 2 for more information.
QR CODE
www.youtube.com/KiaFeatureVideosFor more information on 2nd-Row Walk-In Seat operation, refer to the Owner's Manual.
(Lever located on 2nd-Row Seatback)
C
D
The strap can be used in the back of the 2nd Row Seat to slide and fold the 2nd Row Seats.
QUICK TIP
REMINDER: Do not use the One-Touch Walk-In Seat Access buttons while the front passenger seat is occupied.
