KIA SORENTO 2021 Features and Functions Guide

ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED59
Fuel Cap / Malfunction Indicator
(Check Engine Light)
Tighten for ONE CLICK to prevent the Malfunction
Indicator from illuminating.
REMINDERS:
• The Fuel Filler Door Release button is located on the driver’s button panel, left of the Steering Wheel
• Ensure the engine is OFF, the driver’s door is unlocked, and push the fuel door at the 3 o’clock position C
• It is normal operation when tightening to hear one click, and then when Fuel Cap is released, it clicks back
Hood Release Lever and Latch
(Lever located near floor below Driver’s Panel) (Latch located inside hood)
AB
Closing the Hood:
Lower the Hood about halfway and then press down to securely
lock in place.
Opening the Hood:
1. Pull the Hood Release Lever A to unlatch the Hood
2. In the front of the vehicle, lift the Hood slightly, push the secondary
Latch B to the left inside of the Hood’s center and lift the Hood
3. It will open by itself after it has been raised about half way
REMINDER: Open the Hood only after turning the engine off, on a flat surface, with the gear shift in P (Park) position and setting the parking brake.
OTHER KEY FEATURES
OTHER KEY FEATURES
C
Images are for illustrative purposes only and may not reflect actual feature or operation.
See section 4 in the Owner’s Manual for more information.
See section 4 in the Owner’s Manual for more information.
Images are for illustrative purposes only and may not reflect actual feature or operation.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
One-Click Fuel Cap Video

*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER60SORENTO FEATURES & FUNCTIONS GUIDE
Seat Belt Retractor Locks
Retractor locks allow lap/shoulder
safety belts to remain unlocked
during normal vehicle operation
for freedom of movement and
increased comfort.
During a STRONG STOP,
SUDDEN TURN OR CERTAIN
COLLISIONS, seatbelt retractors
will automatically lock the belts to
reduce the risk of injury.
ODS is designed to detect the presence
and position of the front passenger and
adjusts or turns off airbag deployment
accordingly.
Depending on the situation and type of
accident, the system may:
•Deploy airbag (Adult)
•Not deploy the airbag (Unoccupied)
If the system determines that the
airbag should not be deployed, the
“PASSENGER AIR BAG OFF” light will illuminate.
Occupant Detection System (ODS)†15 /
Passenger Airbag†2 Off Indicator
PASSENGERAIR BAGOFFPASSENGERAIR BAGOFF
PASSENGERAIR BAGOFF
REMINDER: For maximum protection, always wear your seat belt.
Seat Belts†19
To properly fasten your seat belts:
1.
Insert the belt tongue plate A into the buckle B
until it clicks
2.
Position the lap portion of the belt across your
lap as LOW ON THE HIPS as possible C. Adjust
the belt to a SNUG FIT by pulling up on the
shoulder portion D
PRESS
The seat belt warning chime operates for the driver’s seat only.
QUICK TIP
REMINDER: Do not allow an adult passenger to ride in the front seat when the Passenger Airbag Indicator is illuminated OFF because the airbag will not deploy in the event of a crash. The driver must instruct the passenger to reposition her/himself in the seat.
See section 3 in the Owner’s Manual for more information.
A
B
C
D
Child-Protector Rear Door Locks
Located on the rear edge of the rear
passenger doors, turn the Child-
Protector Rear Door Lock to the lock
position to disable the inner door
handles from opening the rear doors.
REMINDER: Child-Protector Rear Door Locks are located on the rear passenger’s door jamb.(Lock located on rear passenger inside door jamb)
(ODS light is located on map/room lamp ceiling console)
PASSENGER
AIR BAGOFFPASSENGERAIR BAGOFF
PASSENGERAIR BAGOFF
Images are for illustrative purposes only and may not reflect actual feature or operation.
See section 3 in the Owner’s Manual for more information.
See section 3 in the Owner’s Manual for more information.
SAFETYFEATURES
SAFETY FEATURES

A . See the Owner’s Manual for complete maintenance schedule. These are approximate estimated intervals. Refer to vehicle mileage for maintenance item schedule. B. And, if necessary, adjust, correct, clean or replace.C. If TOP TIER detergent gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additives.D. Both the fuel filter & fuel tank air filter are generally considered to be maintenance free, depending on fuel quality being used. However, periodic inspection is recommended. If your vehicle is having issues like fuel flow restriction, power surging, loss of power, difficulty starting, etc., replace the fuel filter immediately and consult an authorized Kia dealer for service.
E. Transfer case oil and rear differential oil should be changed anytime they have been submerged in water.F. Inspect for excessive tappet noise and/or engine vibration and adjust if necessary.G. The drive belt should be replaced when cracks occur or tension is reduced excessively.See your Owner’s Manual for more details and complete maintenance information, including severe maintenance schedule. Warranty may be voided if maintenance schedule is not followed.
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO link account by logging into your Kia Access with UVO link App or your account on https://owners.Kia.com ( Vehicles equipped with UVO link only – See page 32 for setup information)
QUICK TIP
‡ If equipped.61
De livery FirstThe priority that delivers more SORENTO NORMAL MAINTENANCE SCHEDULE TURBO P=Perform • R=Replace • I=InspectB
(up to 60,000 miles)A MAINTENANCE INTERVALS (MILES)
MAINTENANCE ITEMS6,00012,00018,00024,00030,00036,00042,00048,00054,00060,000
Add fuel additiveCPPPPPPPPPP
Rotate tiresPPPPPPPPPP
Engine Oil & Oil FilterRRRRRRRRRR
Battery conditionIIIIIIIIII
Brake lines, hoses and connectionsIIIIIIIIII
Brake discs and padsIIIIIIIIII
Vacuum hoseIIIIIIIIII
Steering gear rack, linkage & bootsIIIIIIIIII
Driveshaft and bootsIIIIIIIIII
Suspension mounting jointsIIIIIIIIII
Air conditioner compressor/refrigerantIIIIIIIIII
Exhaust systemIIIIIIIIII
Intercooler, in/out hose, air intake hose (Every 4,800 miles)IIIIIIIIII
Air cleaner filterIIIRIIIRII
Brake fluidIIIIIIIIII
Climate control air filterRRRRR
Propeller Shaft (AWD)IIIII
Parking brakeIIIII
Fuel tank air filter/fuel tank, vapor hose and cap ‡ DIIIII
Cooling SystemIIIIIII
Fuel lines, hoses and connectionsII
Dual clutch transmission fluidI
Rear Differential / Transfer case oil (AWD) (Every 36,000 miles)EI
Spark Plugs (Every 42,000 miles)R
Valve clearanceFI
Drive belts (First 60,000 miles, then every 15,000 miles)GI

62SORENTO FEATURES & FUNCTIONS GUIDE
NOTES

ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 63

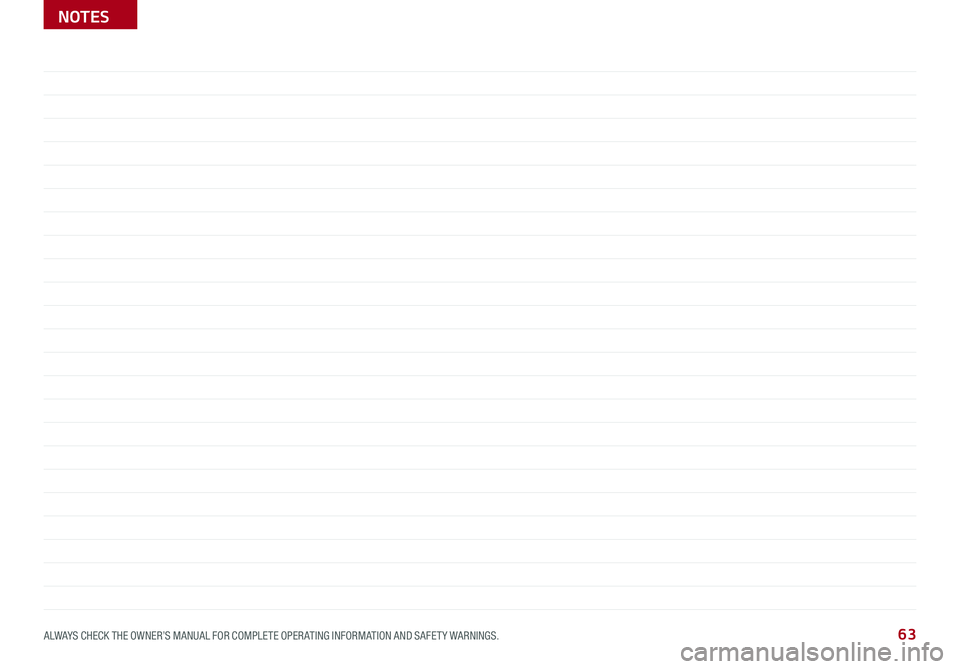

NOTES

64SORENTO FEATURES & FUNCTIONS GUIDE

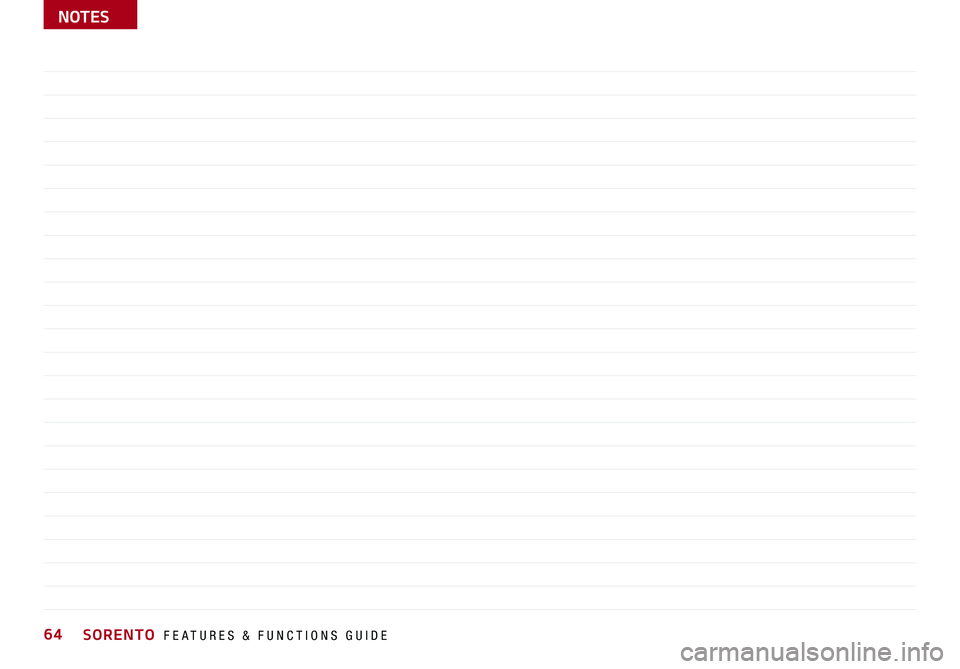

NOTES

Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\
ving.Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.1. UVO link: Purchase/lease of certain 2019 and newer Kia vehicles with UVO link includes a complimentary 1-year subscription starting from new vehicle retail sale/lease date as recorded by the dealer. After your complimentary 1-year UVO link subscription expires, continued access to the full suite of UVO link available on your Kia will require a paid subscription at the then current subscription rate or your use of certain UVO link features may immediately terminate. Use of UVO is subject to agreement to the UVO Privacy Policy (available at https://owners.kia.com/us/en/privacy-policy.html ) and Terms of Service (available at https://owners.kia.com/us/en/terms-of-service.html ). UVO link is transferable to subsequent owner during the original UVO link service term. Only use UVO link when safe to do so. Kia Access with UVO link App is available from the Apple® App Store® or Google Play™. Kia Motors America, Inc. reserves the right to change or discontinue UVO link at any time without prior notification or incurring any future obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. UVO link features may vary by model, model year, and trim level. Features, specifications, and fees are subject to change. For more on details and limitations, visit https://owners.kia.com or your authorized Kia dealer. Apple and App Store are registered trademarks of Apple Inc. Google and logos are trademarks of Google, LLC.
LEGAL DISCLAIMERS
2. Airbags: For maximum protection, always wear your seat belt.3. Android Auto™: Android Auto is a trademark of Google, Inc. Android™ is a registered trademark of Google, Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.4. Apple CarPlay®: Apple® and Apple CarPlay® are trademarks of Apple, Inc., registered in the U.S. and other countries. Apple CarPlay® runs on your smartphone cellular data service. Normal data rates will apply.5. Bluetooth® Wireless Technology: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG Inc., and any use of such marks by Kia is pursuant to license. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.6. Driver Assist Features – Driver Assist Features – Blind-Spot Collision-Avoidance Assist (BCA), Rear Cross-Traffic Collision-Avoidance Assist (RCCA), Lane Keeping Assist (LKA), Safe Exit Assist (SEA), Lane Following Assist (LFA), Forward Collision-Avoidance Assist (FCA), Leading Vehicle Departure Alert (LVDA), Highway Driving Assist (HDA), Manual Speed Limit Assist (MSLA), Intelligent Speed Limit Assist (ISLA), Rear View Monitor (RVM), Forward/Reverse Parking Distance Warning (PDW), Reverse Parking Collision-Avoidance Assist (PCA), Rear View Monitor (RVM), Blind-Spot View Monitor (BVM), Smart Cruise Control (SCC) with Stop & Go: These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.7. Driver Attention Warning (DAW): Driver Attention Warning is not a substitute for safe driving and may not detect all instances of inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.8. Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill Start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.9. Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds o\
r 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the s\
hift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more difficult to control.10. Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.11. Google Play™ Store is a trademark of Google, Inc. ©2019 Google Inc. All rights reserved. Google and the Google Logo are registered trademarks of Google Inc.12. HomeLink®: Homelink® is a registered trademark of Gentex Corporation.13. iPhone®: iPhone is a registered trademark of Apple Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.14. Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
15. Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.16. Power Liftgate / Smart Power Liftgate: Driving with the liftgate open may be unlawful and can draw dangerous exhaust fumes into your vehicle; if you choose to do so, keep air vents and all windows open for proper ventilation.17. Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.18. Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.19. Seat belts: For maximum protection, always wear your seatbelt.20. Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.21. SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current r\
ates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported\
securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2020 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.22. Sportmatic® is a registered trademark of Kia Motors America.23. Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls wh\
ile driving.24. Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.25. Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.26. Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.

KEY FEATURE WALKTHROUGHDURING DELIVERY Multimedia USB Ports, Power Outlets* Blind-Spot Collision Avoidance-Assist (BCA)* Clock Setup Engine Start/Stop Button HomeLink
® with Auto-Dimming Rearview Mirror
Lane Keeping Assist (LK A)* Passenger Airbag Off Indicator
Panoramic Sunroof Operation* Rear View Monitor (RVM) Seat Warmers / Ventilated Seats* Smart Key Sunvisor Tire Pressure Monitoring System (TPMS)
*if equipped
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff and explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up Smart Cruise Control with

Stop & Go*

Demonstrate operation
MODE
MODE MODE
MODE
MODE
OK
CRUISE
Smart Cruise Control
OK
Cruise Control
OK
CRUISE
Bluetooth Eco
OK
CRUISE
L FA
OK
CRUISE
User Settings
Trip Modes
Fuel Econ
OK
CRUISE
HDA
MODE
OK
CRUISE
Audio LV DA MSLA - ISLA
MODE
OK
MODE
CRUISECRUISE
MODE
MODE MODE
MODE
MODE
OK
CRUISE
Smart Cruise Control
OK
Cruise Control
OK
CRUISE
BluetoothEco
OK
CRUISE
L FA
OK
CRUISE
User Settings
Trip Modes
Fuel Econ
OK
CRUISE
HDA
MODE
OK
CRUISE
Audio LV DA MSLA - ISLA
MODE
OK
MODE
CRUISECRUISE
Bluetooth
® Wireless Technology

Demonstrate operation
Sales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
Standard Audio System* Standard Audio System - Value

with UVO link* For furthur operational information, refer

to the Car Infotainment System Quick

Reference Guide.
UVO link with Navigation* For furthur operational information, refer

to the Car Infotainment System Quick

Reference Guide. Kia Access with UVO link App Download Kia Access with UVO link App Features Guide
Android Auto
™ / Apple CarPlay
®
Setup* UVO link Activation /

UVO Assistance*

For further UVO operations, refer to the

Car Infotainment System Quick Reference Guide.
SORENTO
CUSTOMER DELIVERY CHECKLIST
MEDIARADIO
TRACK
>SETUP< SEEK
POWERPUSH
VOL ENTER
TUNE
FILE
SETUP
N AV
MAP
MEDIA SEEK
RADIO
TRACK
POWERPUSH
VOL ENTER
TUNE
FILE

MISTOFF
AUTO
LO
HI
HI
REAR
LO
OFF
MIST OFF
AUTO
LO
HI
HI
REAR
LO
OFF
Air Conditioning / Climate Control

Demonstrate Air Flow Modes, Defog and Defrosting Windshield Fan Speed
Windshield/Rear Wipers & Washers
*IF EQUIPPED
Front Seat Headrest

Adjustment

Automatic*
Manual*
SORENTO
CUSTOMER DELIVERY CHECKLIST
Owner

(up to 60,000 miles)*MAINTENANCE INTERVALS (MILES)
MAINTENANCE ITEMS7, 5 0 015,00022,50030,0003 7, 5 0 045,00052,50060,000
Rotate tiresPPPPPPPPAdd fuel additive1PPPPPPPP
Engine Oil & FilterRRRRRRRR
Air cleaner filterIIIRIIIR
Battery conditionIIIIIIII
Brake lines, hoses and connectionsIIIIIIII
Brake discs and padsIIIIIIII
Vacuum hoseIIIIIIII
Steering gear rack, linkage & bootsIIIIIIII
Suspension ball jointsIIIIIIII
Air conditioner compressor/refrigerantIIIIIIII
Exhaust systemIIIIIIII
Brake fluidIIIIIIII
Climate control air filterRRRR
Drive shafts and bootsIIII
Propeller shaft (AWD)IIII
Fuel tank air filter ‡ 2IIII
Parking brake (foot type)IIII
Vapor hose and fuel filler capIIII
Cooling SystemIII
Fuel lines, fuel hoses and connectionsII
Rear differential oil (AWD)II
Transfer case oil (AWD)3II
Drive belts (First 60,000 miles, then every 15,000 miles)5I
Delivery FirstThe priority that delivers more SORENTO NORMAL MAINTENANCE SCHEDULE NON-TURBO P=Perform • R=Replace • I=InspectB
* See the Owner’s Manual for complete maintenance schedule† And, if necessary, adjust, correct, clean or replace‡ If equipped1. If TOP TIER detergent gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additives2. Both the fuel filter & fuel tank air filter are generally considered to be maintenance free, depending on fuel
quality being used. However, periodic inspection is recommended. If your vehicle is having issues like fuel flow restriction, power surging, loss of power, difficulty starting, etc., replace the fuel filter immediately and consult an authorized Kia dealer for service.3. Transfer case oil and rear axle oil should be changed anytime they have been submerged in water4. Inspect for excessive tappet noise and/or engine vibration and adjust if necessary5. The drive belt should be replaced when cracks occur or tension is reduced excessively
See your Owner’s Manual for more details and complete maintenance information, including severe maintenance schedule. Warranty may be voided if maintenance schedule is not followed.
© 2020 Kia Motors America, Inc. All rights reserved.Consumer - Roadside Assistance†17: 1-800-333-4KIA (4542)
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO link account by logging into your Kia Access with UVO App or your account on https://owners.kia.com/ ( Vehicles equipped with UVO only)
QUICK TIP
Part Number: MQ210-PS-004
