instrument cluster KIA SORENTO HYBRID 2022 Features and Functions Guide

As you get to know your new Kia, you can explore this booklet to better understand
how to operate its many features and systems. You can find the complete Table of
Contents on the next two pages, but first, be sure to review the following to better
understand some of your Kia’s most used features:
1 Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
2 Power Adjustable Driver’s Seat* / Front Seat Headrest Adjustment . . . . . 55-56
3 Seat Warmers/Ventilated Seats* . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
4 Folding Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56-58
5 Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6 Smart Cruise Control (SCC) with Stop & Go* . . . . . . . . . . . . . . . . . . . . . 24
7 Normal Maintenance Schedules . . . . . . . . . . . . . . . . . . . . . . Back Cover
8 User Settings – Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . 09
9 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
10 UVO link Activation* / UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . 43
11 Standard Audio System - Value with UVO link* . . . . . . . . . . . . . . . . . . . 45
12 UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
13 Kia Access with UVO link App Download . . . . . . . . . . . . . . . . . . . . . . 44
14 Kia Access with UVO link App Features Guide . . . . . . . . . . . . . . . . . . . 44
15 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . . . . . . . . . . . . . . 42
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
www .kia .com Consumer Affairs – Roadside Assistance†1 3: 1-800-333-4KIA (800-333-4542)
Always check the Owner ’s Manual for complete operating information and safet y warnings .
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
GETTING STARTED
1

2 *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES . . Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . . . . . 03Hybrid / Plug-In Hybrid Indicators at Star tup . . . . . 04Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . . . . 05Tire Pressure Monitoring System (TPMS) . . . . . . . . . 06Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06Drive Mode Integrated Control System* . . . . . . . . . . 07
VEHICLE SETTINGSTrip Modes / Trip Computer . . . . . . . . . . . . . . . . . . . . . .08LCD Instrument Cluster Modes . . . . . . . . . . . . . . . . . .08User Set tings – Instrument Cluster . . . . . . . . . . . . . . .09Vehicle Set tings* – Audio Head Unit . . . . . . . . . . . . . .09Vehicle Auto-Shut Off System* . . . . . . . . . . . . . . . . . . . 10Service Interval Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
H Y B R I D / P LU G - I N H Y B R I D S YS T E MPlug-In Hybrid Display* . . . . . . . . . . . . . . . . . . . . . . . . . . 11Charging the Plug-In Hybrid Vehicle . . . . . . . . . . . . . 12Energy Flow - Instrument Cluster LCD . . . . . . . . . . . . 14Charging Connector Auto/Lock Mode . . . . . . . . . . . . 16Scheduled Charging* (Plug-In Hybrid only) . . . . . . . 16Plug-In Hybrid Modes (Plug-In Hybrid only) . . . . . . 17
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA) . . . . . . . . 18Blind-Spot Collision-Avoidance Assist (BCA)* . . . . . 19Lane Keeping Assist (LK A) . . . . . . . . . . . . . . . . . . . . . . .20Intelligent Speed Limit Assist (ISL A) . . . . . . . . . . . . . . 21Driver At tention Warning (DAW)* . . . . . . . . . . . . . . . . . 22Leading Vehicle Depar ture Aler t (LVDA) . . . . . . . . . . 23Safe Exit Assist (SEA)* . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Smar t Cruise Control (SCC) with Stop and Go* . . . . 24Cruise Control (CC)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Lane Following Assist (LFA) . . . . . . . . . . . . . . . . . . . . . . 26Highway Driving Assist (HDA)* . . . . . . . . . . . . . . . . . . . 27Rear View Monitor (RVM) . . . . . . . . . . . . . . . . . . . . . . . . 28Blind-Spot View Monitor (BVM)* . . . . . . . . . . . . . . . . . . 28Surround View Monitor (SVM)* . . . . . . . . . . . . . . . . . . . 29
Rear Cross-Traffic Collision-Avoidance Assist* . . .30Rear Occupant Aler t with Ultrasonic Sensors . . . . . 31Reverse Parking Collision-Avoidance Assist* . . . . . . 32Forward/Reverse Parking Distance Warning* . . . . . 32
DRIVER’S PANELInstrument Cluster Illumination Control . . . . . . . . . . . 33Electronic Stability Control (ESC) . . . . . . . . . . . . . . . . . 33Hill-Star t Assist Control (HAC) . . . . . . . . . . . . . . . . . . . . 33Reverse Parking Aid Function* . . . . . . . . . . . . . . . . . . . 34Engine Star t/Stop But ton* . . . . . . . . . . . . . . . . . . . . . . . 34Power Windows, Window Lock & Central Door Lock / Auto Door Lock/Unlock . . . . . . . . . . . . 35Electronic Child Safety Lock System . . . . . . . . . . . . . . 35Power/Heated Outside Mirrors* . . . . . . . . . . . . . . . . . . 36Manual Folding Mirrors* . . . . . . . . . . . . . . . . . . . . . . . . . 36Power Folding Outside Mirrors* . . . . . . . . . . . . . . . . . .36
STEERING WHEEL CONTROLSTilt/Telescoping Steering Wheel . . . . . . . . . . . . . . . . . . 37Headlights & High Beams . . . . . . . . . . . . . . . . . . . . . . . . 38High Beam Assist / Daytime Running Lights* . . . . . 38Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . . . . . . . 39Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . 39Rear Wiper & Washer* . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
AUDIO SYSTEMSBluetooth® Wireless Technology . . . . . . . . . . . . . . . . . 40 Audio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . 42UVO link Activation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43Kia Access with UVO link App Download . . . . . . . . .44Kia Access with UVO link App Features Guide . . . .44Standard Audio System - Value with UVO link* . . . .45UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . . 46
CENTER PANELDigital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47Multimedia USB Por t, Power Outlets & USB Charger Por t . . . . . . . . . . . . . . . . . . . . . . . . . . .47Automatic Climate Control . . . . . . . . . . . . . . . . . . . . . . . 48
Wireless Smar tphone Charging System* . . . . . . . . . .50Rotary Dial Shifter Knob – Shift-by-Wire . . . . . . . . . . 51Paddle Shifters* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51AWD (All-Wheel Drive) Lock* . . . . . . . . . . . . . . . . . . . . . 52Idle, Stop & Go (ISG) System* . . . . . . . . . . . . . . . . . . . . . 52Electronic Parking Brake (EPB)* / Auto Hold . . . . . .53Heated Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . .54Seat Warmers/ Ventilated Seats* . . . . . . . . . . . . . . . . .54
SEATINGFront Seat Headrest Adjustment . . . . . . . . . . . . . . . . .55Driver Position Memory System* . . . . . . . . . . . . . . . . .55Power Adjustable Driver ’s Seat / Power Lumbar . .562nd-Row Folding Seat . . . . . . . . . . . . . . . . . . . . . . . . . . .562nd-Row Auto-Folding Seat . . . . . . . . . . . . . . . . . . . . . . 57Unfastening Center Seatbelt . . . . . . . . . . . . . . . . . . . . . 57One-Touch Slide & Fold 2nd-Row Seats . . . . . . . . . . .583rd-Row Folding Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
OTHER KEY FEATURESSunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . . . . . . 59Smar t Key* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60Power Liftgate* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61Smar t Liftgate with Auto Open* . . . . . . . . . . . . . . . . . . 62Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63Panoramic Sunroof with Power Sunshade* . . . . . . .63HomeLink® with Auto-Dimming Rearview Mirror . . 64Hood Release Lever and Latch . . . . . . . . . . . . . . . . . . .65Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . . . . .65Fuel Filler Lid Release . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . . . . . .66Child-Protector Rear Door Locks* . . . . . . . . . . . . . . . .66Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
MAINTENANCE CHART . . . . . . . . . .Back Cover
LEGAL DISCLAIMERS . . Inside Back Cover

3 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
A Speedometer
B Power Gauge
C Hybrid Battery SOC (State of Charge) gauge
D Indicators & Warning Lights
E LCD Display (including Trip Computer)
F
Fuel Gauge
Arrow direction indicates the side of the vehicle the fuel door is located
Instrument Cluster Overview
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in the illustration . On the vehicle, they may appear in the LCD .
Yo u r vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . Refer to Section 4 in the Owner ’s Manual for more information .
Full LCD cluster (Type B)
EPB
AUTO
06
CH
１ 5
2
D
4
3x１
000 rpm
E F
MPH
km/h0 １60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
E F LH
１60
20
１40
40
１20
60
１00
80
MPH
526mi15000mi50F°25 .7MPG
CHARGEPOWER
ECO
AB
C
D
EF
INSTRUMENT CLUSTERINSTRUMENTCLUSTER

4†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Conventional Cluster (Type A)
EPB
EVOFF
AUTO
CH
D
EF
06
１
5
2
MPH
km/h0
１60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
E F
１60
20
１40
40
１20
60
１00
80
MPH
526mi50F°
CHARGE
ECO
POWER
Hybrid / Plug-In Hybrid Indicators at Startup
REMINDER: Avoid star ting or driving the vehicle when the fuel tank is empt y . As the engine will be incapable of charging the high-voltage Hybrid bat ter y, the bat ter y will lose its charge and may be damaged .
Yo u r vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . For more information on the instrument cluster, please refer to section 1 in the Owner ’s Manual .
These illustrations are for demonstration purposes only . Some indicators and warning lights may not appear in illustration . On the vehicle, they may appear in the LCD .
A Power Gauge - Indicates how economically the vehicle is being driven .
• CHARGE B – Indicates that the energy made by the vehicle is being converted to electrical energy (regenerated energy)
• ECO C – Indicates that the vehicle is being driven in an ECO-friendly manner
• POWER D – Indicates that the vehicle is exceeding the ECO-friendly range
E EV Mode - Illuminates when only the electric motor is powering the vehicle
F
Ready - Illuminates when the Hybrid system is operational . Even if the engine is off, the vehicle can be driven (Plug-In Hybrid indicator location may vary from image shown)
G Service Indicator – Illuminates when a malfunction occurs in the vehicle’s Hybrid system . Have an authorized Kia dealer address the concern as soon as possible
AB
C
D
EF
G
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER

Indicators & Warning Lights
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . Refer to Section 4 in the Owner ’s Manual for more information .
READY Indicator
EVEV Mode Indicator
Hybrid System Warning Light*
Engine Oil Pressure Warning Light
Malfunction Indicator Light
EPBElectric Parking Brake (EPB) Warning Light*
Seat Belt Warning Light
Light ON Indicator Light
High Beam Indicator Light
Low Beam Indicator Light
Front Fog Light Indicator Light*
High Beam Assist Indicator Light
Parking Brake & Brake Fluid Warning Light
For ward Safet y Warning Light*
All-Wheel Drive (AWD) Warning Light*
All-Wheel Drive (AWD) Lock Indicator Light*
Electronic Power Steering (EPS) Warning Light
Charging System Warning Light*
Airbag Warning Light
Low Fuel Level Warning Light
Immobilizer Indicator Light*
Engine Coolant Temperature Warning Light*
Icy Road Warning Indicator Light*

Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator Light
Anti-Lock Braking System (ABS) Warning Light
Electronic Stabilit y Control (ESC) OFF Indicator Light
Electronic Stabilit y Control (ESC) Indicator Light
AUTO HOLD Indicator*
Cruise Control Indicator Light*
/Cruise Control ON/SET Indicator Light*
EPB
EVOFF
AUTO
L H
D
EAUTO
HEVF
MPH
km/h0 １60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
E F
１60
20
１40
40
１20
60
１00
80
MPH
526mi50F°
CHARGE
ECO
POWER
Washer Fluid Warning Light*
Master Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light (t wo separate indicators on Instrument Cluster lit at same time)
Lane Safet y Indicator Light
LED Headlamp Warning Indicator*
Downhill Brake Assist (DBC) Indicator*
SPORT Mode Indicator Light
ECO Mode Indicator Light
SMART Mode Indicator Light
Charging Cable Connection Indicator (Plug-In Hybrid)*
Regenerative Brake Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
Conventional cluster (Type A)
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in the illustration . On the vehicle, they may appear in the LCD .
5†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
INSTRUMENT CLUSTERINSTRUMENTCLUSTER

Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Tire Pressure Monitoring System Video
Fuel Economy Video
QR CODE
6†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
REMINDERS:
•
Check the recommended tire pressure label located on the left side of the driver ’s door jamb, visible when the door is opened .
•
Consult your dealer for ser vice if the Low Tire Pressure Light remains illuminated after inflating your tire(s) .
•
Personal electronic devices (such as laptops, wireless chargers, remote star t systems, etc .) may inter fere with the TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate .For more information on Fuel Economy, you can snap the QR Code above to view a video or refer to section 6 in the Owner ’s Manual .
25
35 35
35
psi
Low Tire Pressure
The TPMS indicator functions as both the Low Tire Pressure Light and the TPMS Malfunction Indicator .
The TPMS indicator is designed to illuminate if it detects one or more tires is significantly underinflated, the vehicle has a spare tire installed without TPMS or the outside temperature becomes significantly lower .
The Low Tire Pressure Position Indicator A is displayed on the LCD screen in the Instrument Cluster when the tire(s) is underinflated . Inflate the tire(s) to specifications using an accurate tire pressure gauge to turn
off the Low Tire Pressure Indicator . See the front driver ’s door jamb for PSI specifications .
When there is a problem with the TPMS, the TPMS Malfunction Indicator will blink for approximately one minute and then illuminate . See the dealer for service .
Tire Pressure Monitoring System (TPMS)†2 1
Fuel Economy
Several factors contribute to your vehicle’s fuel economy, such as maintenance of your vehicle, driving style, environmental conditions, vehicle weight and vehicle aerodynamics . Below are some tips on how to help improve fuel economy:
For illustrative purposes only . Your actual display, but tons and/or features may var y .
•Keep your vehicle in good condition with regular maintenance
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicles
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
A
•Even with TPMS, tire pressure should be checked manually at least once a month . Only adjust tire pressure on “cold tires” that have been sit ting for 3 hours or more, and tires that are not hot in temperature from direct sunlight or heat
•For proper maintenance and optimal fuel economy, maintain the recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
•In winter or cold weather, the TPMS light may illuminate if the tire pressure was adjusted to the recommended tire inflation pressure during warm weather
QUICK TIPS
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER

The drive modes may be changed according to the driver ’s preferences or road conditions . To cycle through the drive modes A or deactivate a drive mode, rotate the Drive Mode knob B .
When a drive mode is selected, the drive mode indicator will illuminate in the Instrument Cluster and illuminate next to the Drive Mode knob . The system’s default mode is ECO mode and when selected, the indicator will not be illuminated .
•SPORT Mode
•ECO Mode
•SMART Mode* – When the SMART mode is activated, the system automatically selects the drive mode best suited to the current driving style (economic, average, spirited) . The color of the SMART mode indicator (green, white, red) depends on the current driving style .
•SNOW Mode* (All Wheel Drive)
Drive Mode Integrated Control System*
REMINDERS:
•
When ECO mode is selected, the following may occur to help improve fuel economy:
-
Acceleration may be slightly reduced even when the accelerator is fully depressed
-
Air conditioner per formance may be limited
-
Shift pat tern of the automatic transmission may change
-
Engine noise may increase
-
System’s power will be limited when driving uphill
•
When SPORT mode is selected, fuel economy may decrease
•
The system defaults to ECO mode when ignition is in the ON position
•
Steering effor t may be slightly increased in SPORT mode
(Appears on LCD in Instrument Cluster)
&$0
41035
4 . "35 4/08
7†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
A
P
R
N D
SHIFT
LOCK
RELEASE
OFF
•
•
•
•
+
•
–
P
R
N D •
•
•
•
+
•
–
OFF
SPORT
SMART
LOCK
ECO
SNOW
See section 6 in the Owner ’s Manual for more information .
B
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Drive Mode Integrated Control Video
QR CODE
When vehicle is shut down while in SPORT Mode, the system will default to NORMAL mode when the engine is turned off . SPORT mode would need to be selected again once the vehicle is restar ted .
QUICK TIP
INSTRUMENT CLUSTERINSTRUMENTCLUSTER

8†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
OK
MODE
OK
MODEMODE
OKOK
OKOK
OKOK
OK
MODE
MODEMODE
MODEMODE
MODEMODE
OK
MODEMODE
Trip Modes / Trip Computer
The Trip Computer is a driver information system that displays information related to driving on the display when the Engine Start/Stop button is in the ON position .
To cycle through the LCD Instrument Cluster modes A, press the Mode button B .
To select and enter the Trip Computer mode , press the Move button C up/down and then press Set/Reset (OK) C to enter . To cycle through and select the different screens (Fuel Economy, Trip A , Trip B), press the Move button C up/down again and then press the OK button C . When displaying the TRIP A or TRIP B screens, press and hold the OK button C to reset the Tripmeter to zero .
Press the OK button C to go back to the previous mode/item .
REMINDERS:
•
Appearance of the Trip Computer display may differ as equipped
•
All stored driving information (except Odometer and Range) is reset if the bat ter y is disconnected
LCD Instrument
Cluster Modes
Press the Mode button B to cycle through the different LCD Instrument Cluster Modes:
User Settings Mode: Change settings of the Driver Assistance, doors, lights, sound, ECO vehicle, convenience and other features
Driving Assist Mode: Displays information on Cruise Control/Smart Cruise Control*, Lane Keeping Assist*, Lane Following Assist, Highway Driving Assist*, Driver Attention Warning, Intelligent Speed Limit Assist*, TPMS, Driving Force Distribution* . In AWD AUTO MODE, the cluster displays the traction force distribution status of the front and rear wheels . In AWD LOCK MODE, the cluster doesn’t display the status
Master Warning Mode: Displays warning messages related to the vehicle when one or more systems is not operating normally
Your vehicle’s steering wheel but tons may differ from those in the illustrations .
ENERGY FLOW
AFTER REFUEL
DRIVE INFO
• Tr ipme t e r• Fuel Economy• Timer
ACCUMULATED INFO
• Tr ipme t e r• Fuel Economy• Timer
ACCUMULATED INFO
• Tr ipme t e r• Fuel Economy• Timer
(Type A; Controls located on Steering Wheel)
A
C
B
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Instrument Cluster’s LCD Display Video
QR CODE
Trip Computer Mode: Displays driving information for range, energy flow, drive info, after refuel, accumulated info, digital speedometert
Turn-by-Turn Mode*: Displays the route guidance and destination information
Driving while distracted is dangerous and should be avoided . Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving .
Refer to section 4 in the Owner ’s Manual for more information .
VEHICLE SETTINGS
VEHICLESETTINGS

9†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
To enter the User Settings mode in the LCD Instrument Cluster Modes, press the Mode button A when the vehicle is at a standstill, shift lever in Park, and with the Engine/Start Stop button in the ON position, select User Settings by pressing the Move (OK) button B up/down .
You can navigate the selections on the display by pressing the Move (OK) button B up/down, and then selecting the item by pressing the OK button B .
Press the OK button B up/down to go back to the previous mode/item .
User Settings mode:
User Settings - Instrument Cluster
Driving while distracted is dangerous and should be avoided . Do not at tempt to change vehicle system set tings while driving .
See section 4 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
QR CODE
Driver Assistance •Driver at tention warning •Speed limit warning •Warning timing •Warning volume •Haptic Warning •For ward safet y •Lane safet y •Blind-spot safet y •Parking safet y
Door* •Automatically lock •Automatically unlock •Two-press unlock •Power liftgate •Power liftgate speed •Power liftgate opening height •Smart liftgate*
Lights* •Illumination •One-touch turn signal •Ambient light brightness •Ambient light color •Headlamp delay •High-beam assist
Sound* •Welcome sound*
Convenience* •Seat easy access •Rear occupant aler t •Welcome mirror/light •Wireless charging system •Auto rear wiper (in R) •Vehicle auto-shut off •Icy road warning
Service Interval •Enable ser vice inter val •Adjust interval •Reset
Other Features •Speedometer unit •Fuel economy unit •Temperature unit •Tire pressure unit
ECO Vehicle* •Coasting guide •Star t coasting
Reset •Reset the menus in the User Set tings mode
OK
MODE
OK
MODEMODE
OKOK
OKOK
OKOK
OK
MODE
MODEMODE
MODEMODE
MODEMODE
OK
MODEMODEA
B
Vehicle Settings* -
Audio Head Unit
To enter the Vehicle Settings mode in the audio head unit C, press the SETUP key on the audio head unit . Then press Vehicle , which will take you to Vehicle Settings . Use the touchscreen to navigate through the menus .
Vehicle Settings:
Driver Assistance: Driving Convenience*, Warning Time*, Warning Volume*, Driver Attention
Warning*, Forward Safety*, Lane Safety*, Blind-Spot Safety*, Parking Safety*
Drive Mode: Drive Mode Alert*
Climate*: Recirculate Air*, Automatic Ventilation*, Defog/Defrost Options*, Climate Features*
Lights*: Ambient Light*, One Touch Turn Signal*, Headlight Display*, High Beam Assist*
Door*: Auto Lock*, Auto Unlock*, Walk-Away Lock*, Two-Press Unlock*, Smart Trunk*
Cluster*: Service Interval*, Energy Consumption Reset*, Content Selection*, Cluster
Voice Guidance Volume*, Welcome Sound*, Theme Selection*
Convenience*: Rear Occupant Alert*, Welcome Mirror Light*, Wireless Charging System*, Vehicle Auto-Shut Off*
Seat*: Seat Position Change Alert*, Smart Posture Care*, Heated/ Ventilated Features*, Seat East Access*, Rear Seat Heating Control*
Reset: Reset Vehicle Settings to Factory Defaults
12:00 AM Jan. 1MenuVehicle SettingsDriving Convenience
Drive Mode
Climate
LightsDriver
AssistanceWarning TimingLateWarning VolumeOffDriver Attention Warning
VEHICLE SETTINGS
VEHICLESETTINGS
C

10†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
VEHICLE SETTINGS
VEHICLESETTINGS

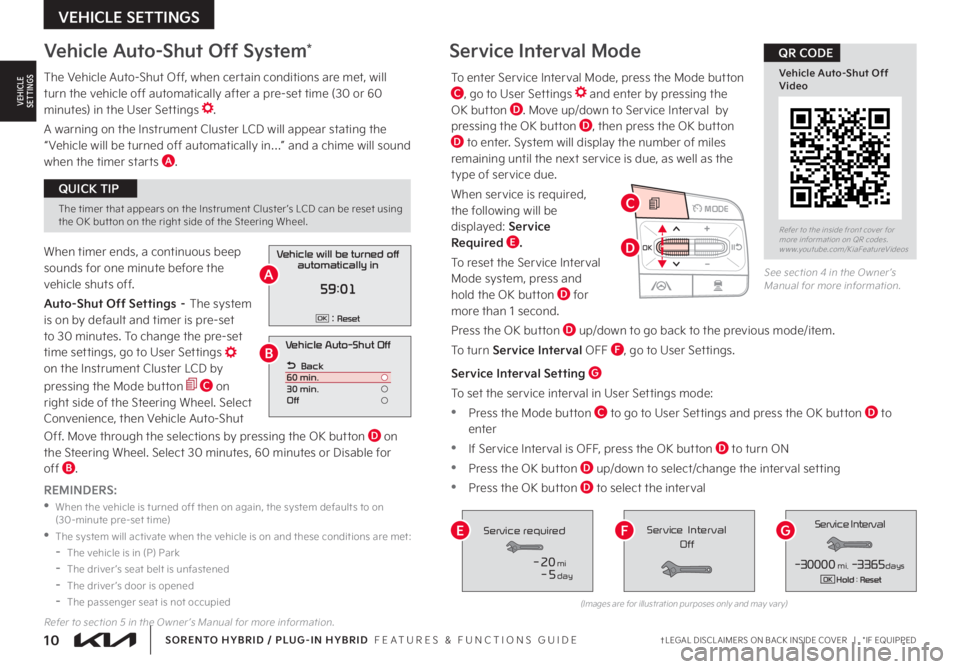

Vehicle Auto-Shut Off
Back
60 min.
30 min.
Off
Vehicle will be turned off automatically in
59:01
: ResetOK
A
B
Refer to the inside front cover for more information on QR codes
.www .youtube .com/KiaFeatureVideos
Vehicle Auto-Shut Off Video
QR CODE
The timer that appears on the Instrument Cluster ’s LCD can be reset using the OK but ton on the right side of the Steering Wheel .
QUICK TIP
The Vehicle Auto-Shut Off, when certain conditions are met, will turn the vehicle off automatically after a pre-set time (30 or 60 minutes) in the User Settings .
A warning on the Instrument Cluster LCD will appear stating the “ Vehicle will be turned off automatically in…” and a chime will sound when the timer starts A .
When timer ends, a continuous beep sounds for one minute before the vehicle shuts off .
Auto-Shut Off Settings – The system is on by default and timer is pre-set to 30 minutes . To change the pre-set time settings, go to User Settings on the Instrument Cluster LCD by
pressing the Mode button C on right side of the Steering Wheel . Select Convenience, then Vehicle Auto-Shut
Off . Move through the selections by pressing the OK button D on the Steering Wheel . Select 30 minutes, 60 minutes or Disable for off B .
Vehicle Auto-Shut Off System*
REMINDERS:
•
When the vehicle is turned off then on again, the system defaults to on (30-minute pre-set time)
•The system will activate when the vehicle is on and these conditions are met:
-The vehicle is in (P) Park
-The driver ’s seat belt is unfastened
-The driver ’s door is opened
-The passenger seat is not occupied
To enter Service Interval Mode, press the Mode button C, go to User Settings and enter by pressing the OK button D . Move up/down to Service Interval by pressing the OK button D, then press the OK button D to enter . System will display the number of miles remaining until the next service is due, as well as the type of service due .
When service is required, the following will be displayed: Service Required E.
To reset the Service Interval Mode system, press and hold the OK button D for more than 1 second .
Press the OK button D up/down to go back to the previous mode/item .
To turn Service Interval OFF F, go to User Settings .
Service Interval Setting G
To set the service interval in User Settings mode:
•Press the Mode button C to go to User Settings and press the OK button D to enter
•If Service Interval is OFF, press the OK button D to turn ON
•Press the OK button D up/down to select/change the interval setting
•Press the OK button D to select the interval
Service Interval Mode
(Images are for illustration purposes only and may var y)
Servic e Interval
- 3 0 00 0mi.-3 3 65daysH old : R e se tOK
Service r equired
-20mi-5day
S e rv ic e Interval
Of fServic e Interval
- 3 0 00 0mi.-3 3 65daysH old : R e se tOK
Service r equired
-20mi-5day
S e rv ic e Interval
Of fServic e Interval
- 3 0 00 0mi.-3 3 65daysH old : R e se tOK
Service r equired
-20mi-5day
S e rv ic e Interval
Of f
4FF
TFDUJPO

JO
UIF
0XOFS sT
.BOVBM
GPS
NPSF
JOGPSNBUJPO

3FGFS
UP
TFDUJPO

JO
UIF
0XOFS sT
.BOVBM
GPS
NPSF
JOGPSNBUJPO

OK
MODE
OK
MODEMODE
OKOK
OKOK
OKOK
OK
MODE
MODEMODE
MODEMODE
MODEMODE
OK
MODEMODEC
D
EFG
