KIA SORENTO PHEV 2023 Navigation System Quick Reference Guide

3-9
Changing the radio channel (Type1)
Perform any of the following methods:
On the Radio screen, press the desired channel from the presets list.

A
You can also change the channel by using the Move lever/button on the steering
wheel.
On the control panel, press the [
SEEK] or [TRACK ] button. You can move to the
previous or next channel with good reception.
 When you know an accurate frequency, turn the Search knob on the control panel to
change the frequency.
You can listen to the changed radio broadcast.
Changing the channel by using voice commands
You can change the radio channel by using voice commands.
1 On the Radio screen, press .
2 When a guiding beep is heard, say the desired radio station channel.
Using the scan function
You can listen to each broadcast briefly and select a desired one.
1 On the Radio screen, press SCAN.
Only the channels with good reception can be listened for 5 seconds in turn.
2 When you find the desired broadcast, press SCAN.
You can continue listening to the scanned channel.

3-10
Changing the radio channel (Type2)
Perform any of the following methods:
On the Radio screen, press the desired channel from the presets list.

A
You can also change the channel by using the Move lever/button on the steering
wheel.
On the control panel, press the [
SEEK] or [TRACK ] button. You can move to the
previous or next channel with good reception (if equipped).
You can listen to the changed radio broadcast.
A
If any Search knob on the control panel, you can also change the frequency by using the
knob.
Changing the channel by using voice commands
You can change the radio channel by using voice commands.
1 On the Radio screen, press .
2 When a guiding beep is heard, say the desired radio station channel.
Using the scan function
You can listen to each broadcast briefly and select a desired one.
1 On the Radio screen, press >
Scan FM/ Scan AM.
Only the channels with good reception can be listened for 5 seconds in turn.
2 When you find the desired broadcast, press the radio screen.
You can continue listening to the scanned channel.

3-11
Changing the radio channel (Type3)
Perform any of the following methods:
On the Radio screen, press the desired channel from the presets list.

A
You can also change the channel by using the Move lever/button on the steering
wheel.
On the control panel, press the [
SEEK] or [TRACK ] button. You can move to the
previous or next channel with good reception (if equipped).
You can listen to the changed radio broadcast.
A
If any Search knob on the control panel, you can also change the frequency by using the
knob.
Changing the channel by using voice commands
You can change the radio channel by using voice commands.
1 On the Radio screen, press .
2 When a guiding beep is heard, say the desired radio station channel.
Using the scan function
You can listen to each broadcast briefly and select a desired one.
1 On the Radio screen, press >
Scan FM/ Scan AM.
Only the channels with good reception can be listened for 5 seconds in turn.
2 When you find the desired broadcast, press the radio screen.
You can continue listening to the scanned channel.

3-12

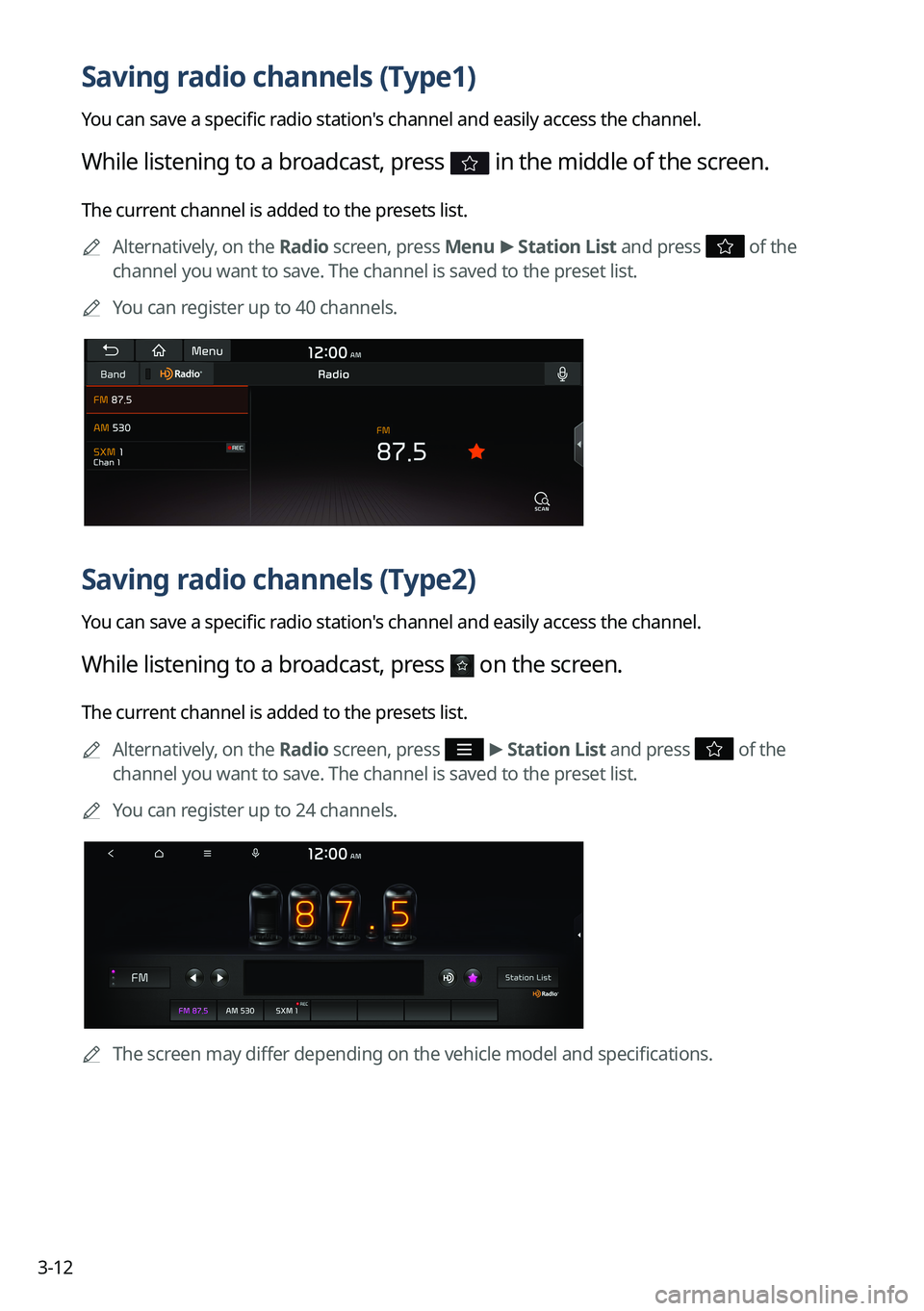

Saving radio channels (Type1)
You can save a specific radio station's channel and easily access the channel.
While listening to a broadcast, press in the middle of the screen.
The current channel is added to the presets list.
A
Alternatively, on the Radio screen, press Menu >
Station List and press
of the
channel you want to save. The channel is saved to the preset list.

A
You can register up to 40 channels.
Saving radio channels (Type2)
You can save a specific radio station's channel and easily access the channel.
While listening to a broadcast, press on the screen.
The current channel is added to the presets list.

A
Alternatively, on the Radio screen, press
>
Station List and press of the
channel you want to save. The channel is saved to the preset list.

A
You can register up to 24 channels.

A
The screen may differ depending on the vehicle model and specifications.

3-13

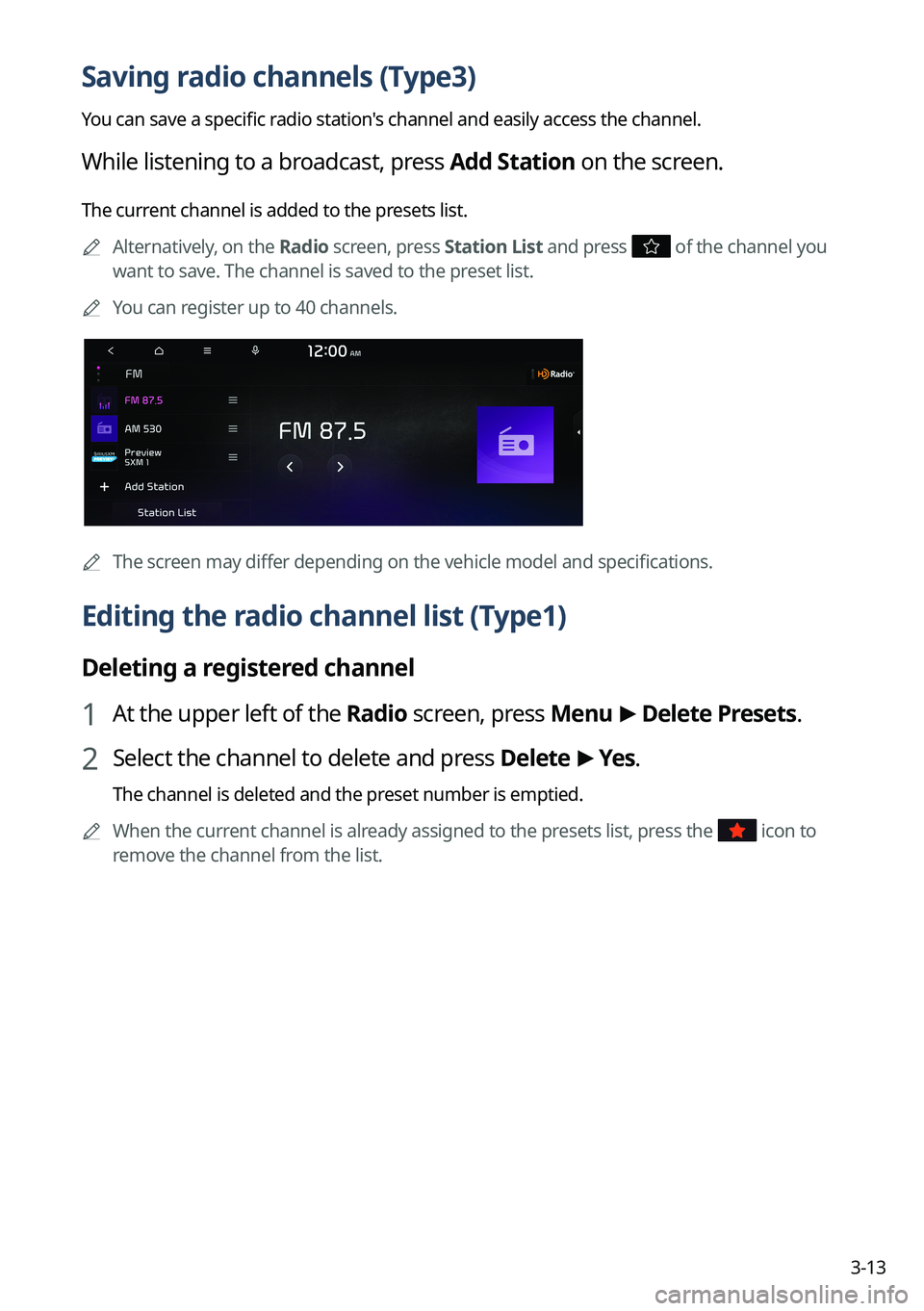

Saving radio channels (Type3)
You can save a specific radio station's channel and easily access the channel.
While listening to a broadcast, press Add Station on the screen.
The current channel is added to the presets list.
A
Alternatively, on the Radio screen, press Station List and press
of the channel you
want to save. The channel is saved to the preset list.

A
You can register up to 40 channels.

A
The screen may differ depending on the vehicle model and specifications.
Editing the radio channel list (Type1)
Deleting a registered channel
1 At the upper left of the Radio screen, press Menu >
Delete Presets.
2 Select the channel to delete and press Delete >
Yes .
The channel is deleted and the preset number is emptied.

A
When the current channel is already assigned to the presets list, press the
icon to
remove the channel from the list.

3-14

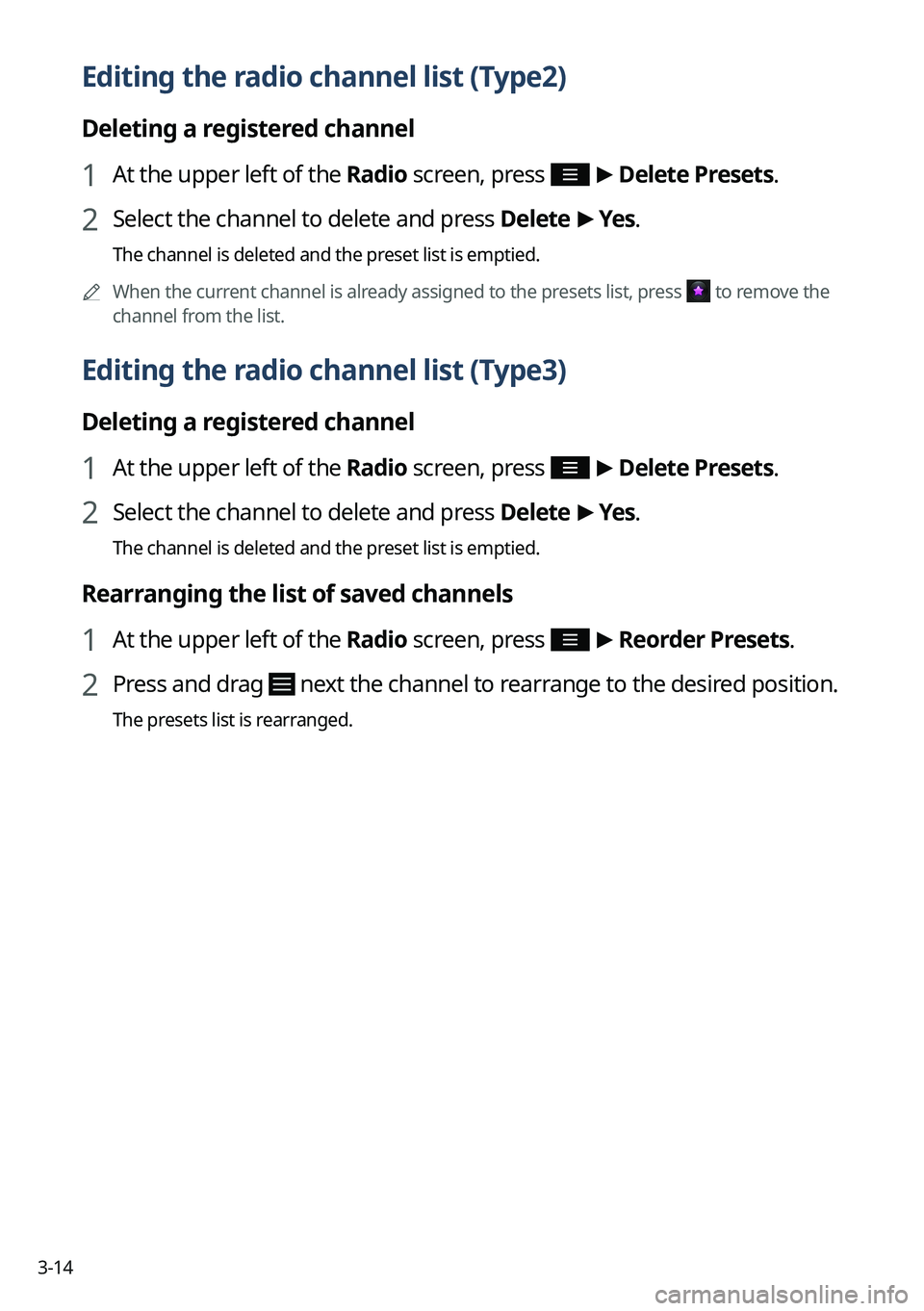

Editing the radio channel list (Type2)
Deleting a registered channel
1 At the upper left of the Radio screen, press >
Delete Presets.
2 Select the channel to delete and press Delete >
Yes .
The channel is deleted and the preset list is emptied.

A
When the current channel is already assigned to the presets list, press
to remove the
channel from the list.
Editing the radio channel list (Type3)
Deleting a registered channel
1 At the upper left of the Radio screen, press >
Delete Presets.
2 Select the channel to delete and press Delete >
Yes .
The channel is deleted and the preset list is emptied.
Rearranging the list of saved channels
1 At the upper left of the Radio screen, press >
Reorder Presets.
2 Press and drag next the channel to rearrange to the desired position.
The presets list is rearranged.

3-15
Listening to HD Radio™
You can listen to radio from HD Radio stations when they are available.
Perform any of the following methods:
Type1: On the Radio screen, press .
Type2: On the Radio screen, press .
Type3: On the Radio screen, press .
When HD Radio signals are received, the radio switches from the analog mode to the HD
mode.
Type1
Type2
Type3

A
The screen may differ depending on the vehicle model and specifications.

A
In HD mode, the buttons for HD Radio stations appear at the top of the r\
adio screen.
Press a button to select any available HD Radio station.

A
HD Radio is available only in metropolitan areas.

3-16

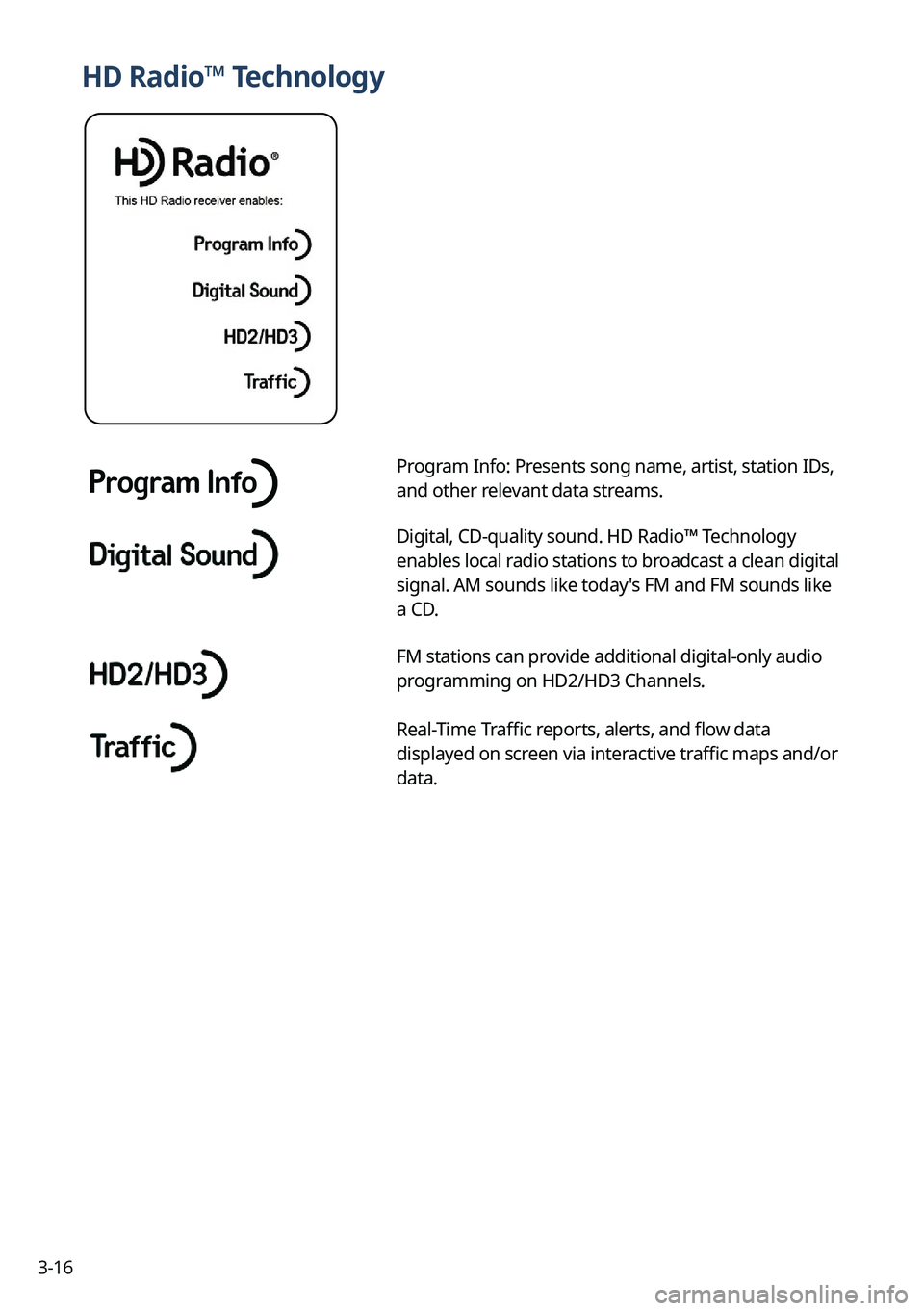

HD Radio™ Technology
Program Info: Presents song name, artist, station IDs,
and other relevant data streams.
Digital, CD-quality sound. HD Radio™ Technology
enables local radio stations to broadcast a clean digital
signal. AM sounds like today's FM and FM sounds like
a CD.
FM stations can provide additional digital-only audio
programming on HD2/HD3 Channels.
Real-Time Traffic reports, alerts, and flow data
displayed on screen via interactive traffic maps and/or
data.

3-17
Listening to SiriusXM™ radio
You can listen to radio channels provided by SiriusXM, a satellite radio service.
Changing to SiriusXM mode (Type1)
On the Radio screen, press Band >
SiriusXM.
SiriusXM mode screen
d
h
a
bc
fg
i
j
ke
l
a a Returns to the previous step.
b b Can change the radio mode.
c c Can enter channel number to select the channel directly.
d d You can change radio channels by using voice commands. > See " Changing the channel by
using voice commands."
e e Weak reception indicator.
f f Moves to the previous segment. Press and hold to rewind the broadcast.
g g Pauses or restarts the broadcast.
h h Moves to the next segment. Press and hold to fast-forward the broadcast.
i i Scans through all available SiriusXM radio channels.
j j Switches to live broadcast mode. This button is activated when you have moved to the
previous segment while listening to a live broadcast.

3-18

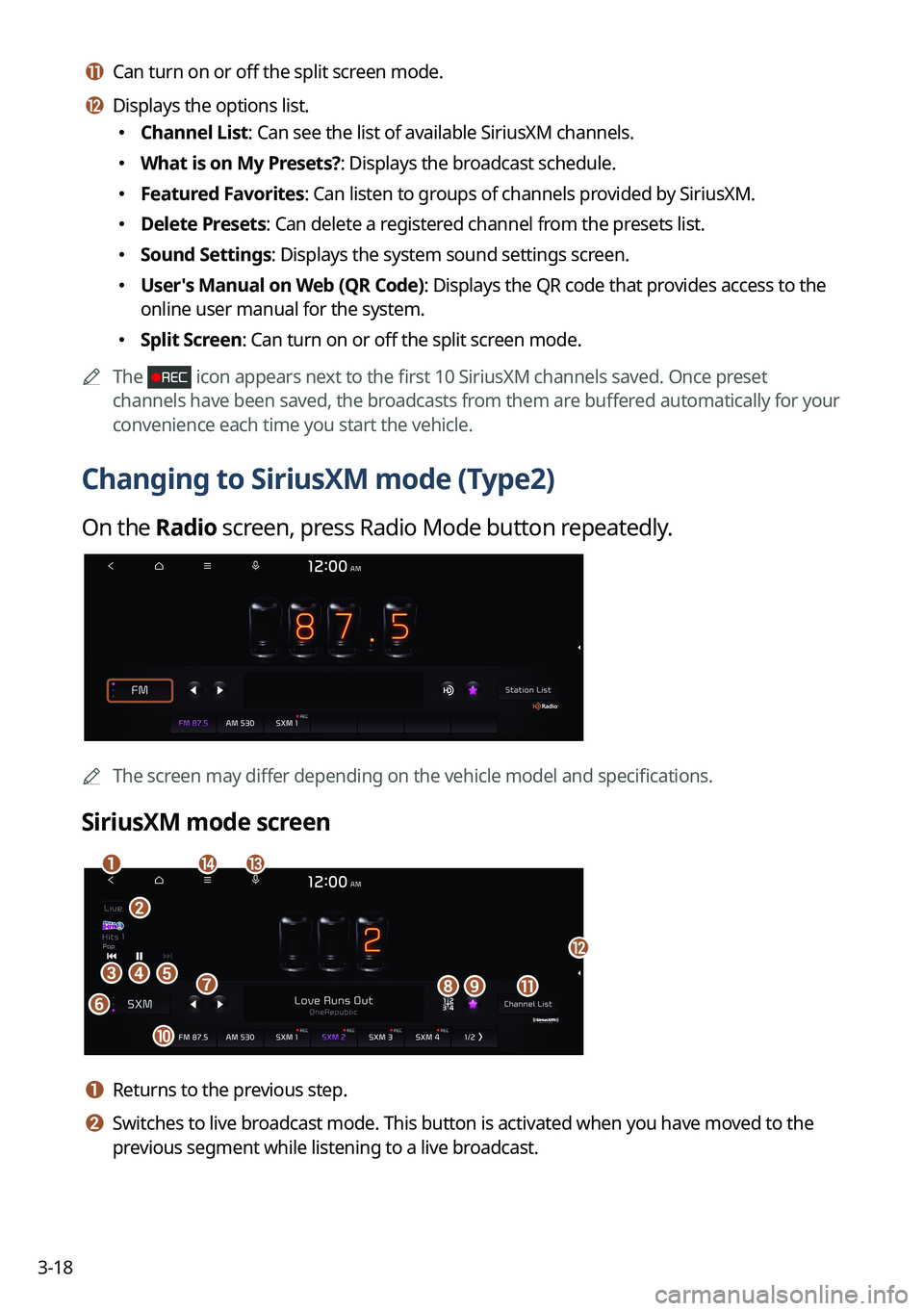

k k Can turn on or off the split screen mode.
l l Displays the options list.
Channel List: Can see the list of available SiriusXM channels.
What is on My Presets?: Displays the broadcast schedule.
Featured Favorites: Can listen to groups of channels provided by SiriusXM.
Delete Presets: Can delete a registered channel from the presets list.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The
icon appears next to the first 10 SiriusXM channels saved. Once preset
channels have been saved, the broadcasts from them are buffered automatically for your
convenience each time you start the vehicle.
Changing to SiriusXM mode (Type2)
On the Radio screen, press Radio Mode button repeatedly.
AThe screen may differ depending on the vehicle model and specifications.
SiriusXM mode screen
eh
a
cd
fgi
j
b
nm
k
l
a a Returns to the previous step.
b b Switches to live broadcast mode. This button is activated when you have moved to the
previous segment while listening to a live broadcast.
