KIA SORENTO PHEV 2023 Navigation System Quick Reference Guide

2-21
Using the sound mood lamp (if equipped)
You can set to implement various lighting effects by synchronizing with the playing music.
1 On the All Menus screen, press Sound Mood Lamp.
2 Select and then change the settings.
c
d
e
f
b
ag
a a Returns to the previous step.
b b Can turn on or off the sound mood lamp.
c c Can select various color themes. Based on the selected color theme, the \
interior
lighting changes its colors in various patterns.
d d Can select the color of the light. The selected lighting color changes into a soft glow
effect.
e e Can synchronize the light with the playing music.
A
After checking Music+, music is not played back or the light does not illuminate
when muted.
f f Can adjust the brightness of the light.
g g The list of menu items appears.
Display Off
: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
 Reset: Can reset all the settings of the sound mood lamp.
User's Manual on Web (QR Code): Displays the QR code that provides access to
the online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
You cannot manipulate the sound mood lamp while driving.

A
When a door is opened, the light automatically turns off.

A
The screen may differ depending on the vehicle model and specifications.

2-22

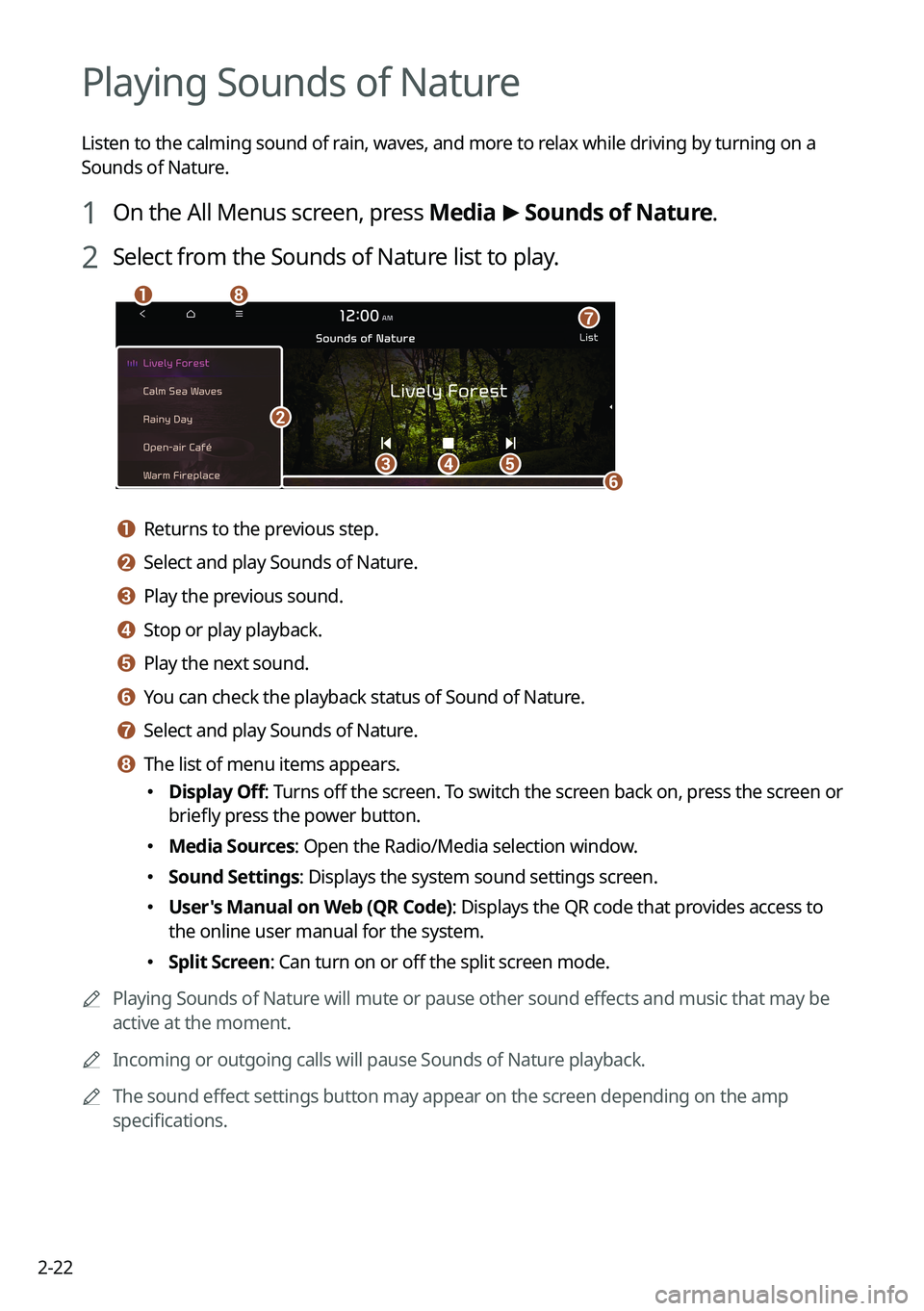

Playing Sounds of Nature
Listen to the calming sound of rain, waves, and more to relax while driving by turning on a
Sounds of Nature.
1 On the All Menus screen, press Media >
Sounds of Nature.
2 Select from the Sounds of Nature list to play.
cde
ha
b
f
g
a a Returns to the previous step.
b b Select and play Sounds of Nature.
c c Play the previous sound.
d d Stop or play playback.
e e Play the next sound.
f f You can check the playback status of Sound of Nature.
g g Select and play Sounds of Nature.
h h The list of menu items appears.
 Display Off
: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
 Media Sources: Open the Radio/Media selection window.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to
the online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
Playing Sounds of Nature will mute or pause other sound effects and music that may be
active at the moment.

A
Incoming or outgoing calls will pause Sounds of Nature playback.

A
The sound effect settings button may appear on the screen depending on the amp
specifications.

2-23

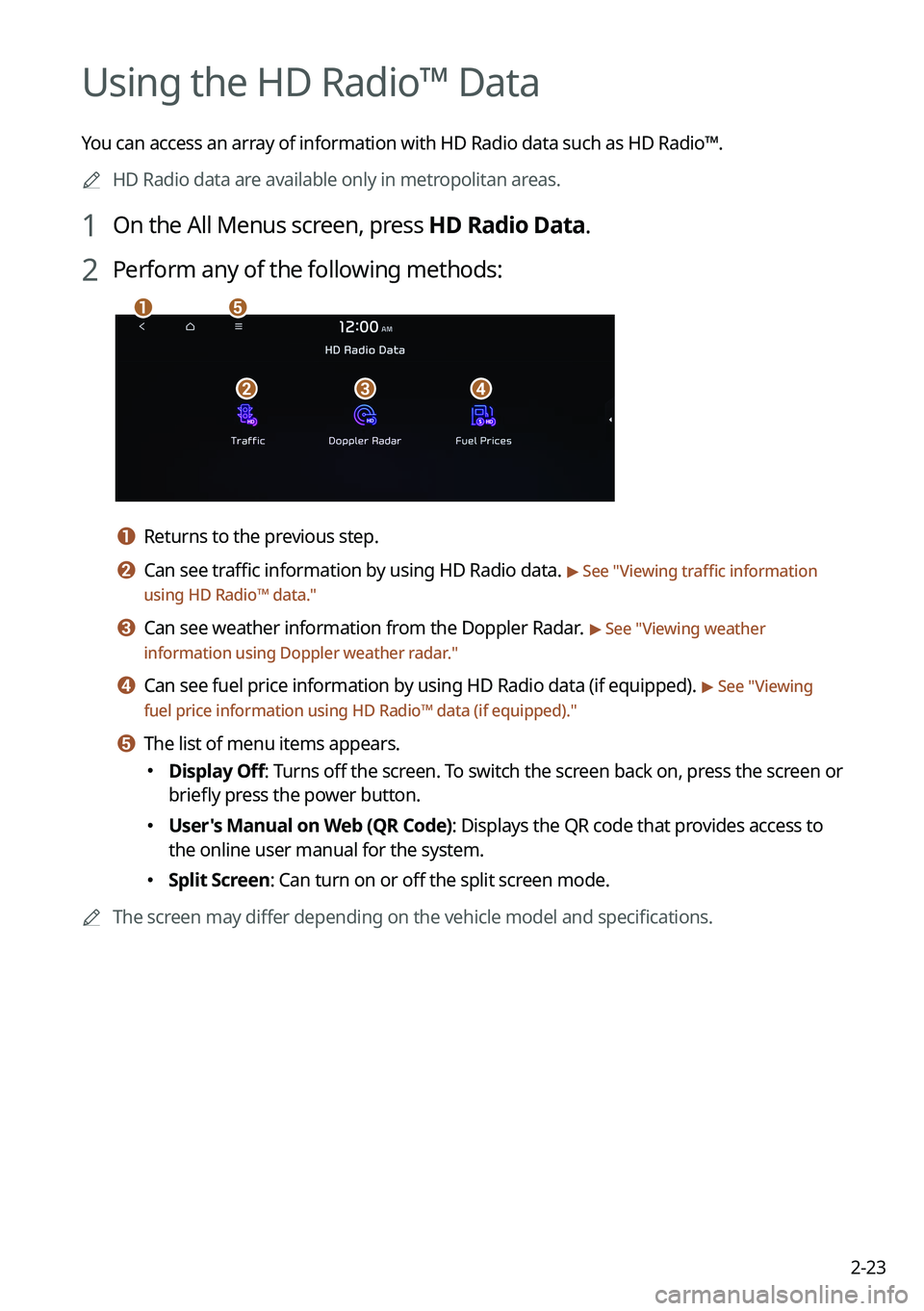

Using the HD Radio™ Data
You can access an array of information with HD Radio data such as HD Radio™.
A
HD Radio data are available only in metropolitan areas.
1 On the All Menus screen, press HD Radio Data.
2 Perform any of the following methods:
a
bcd
e
a a Returns to the previous step.
b b Can see traffic information by using HD Radio data. > See "Viewing traffic information
using HD Radio™ data."
c c Can see weather information from the Doppler Radar. > See "Viewing weather
information using Doppler weather radar ."
d d Can see fuel price information by using HD Radio data (if equipped). > See "Viewing
fuel price information using HD Radio™ data (if equipped) ."
e e The list of menu items appears.
Display Off
: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
 User's Manual on Web (QR Code): Displays the QR code that provides access to
the online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The screen may differ depending on the vehicle model and specifications.

2-24

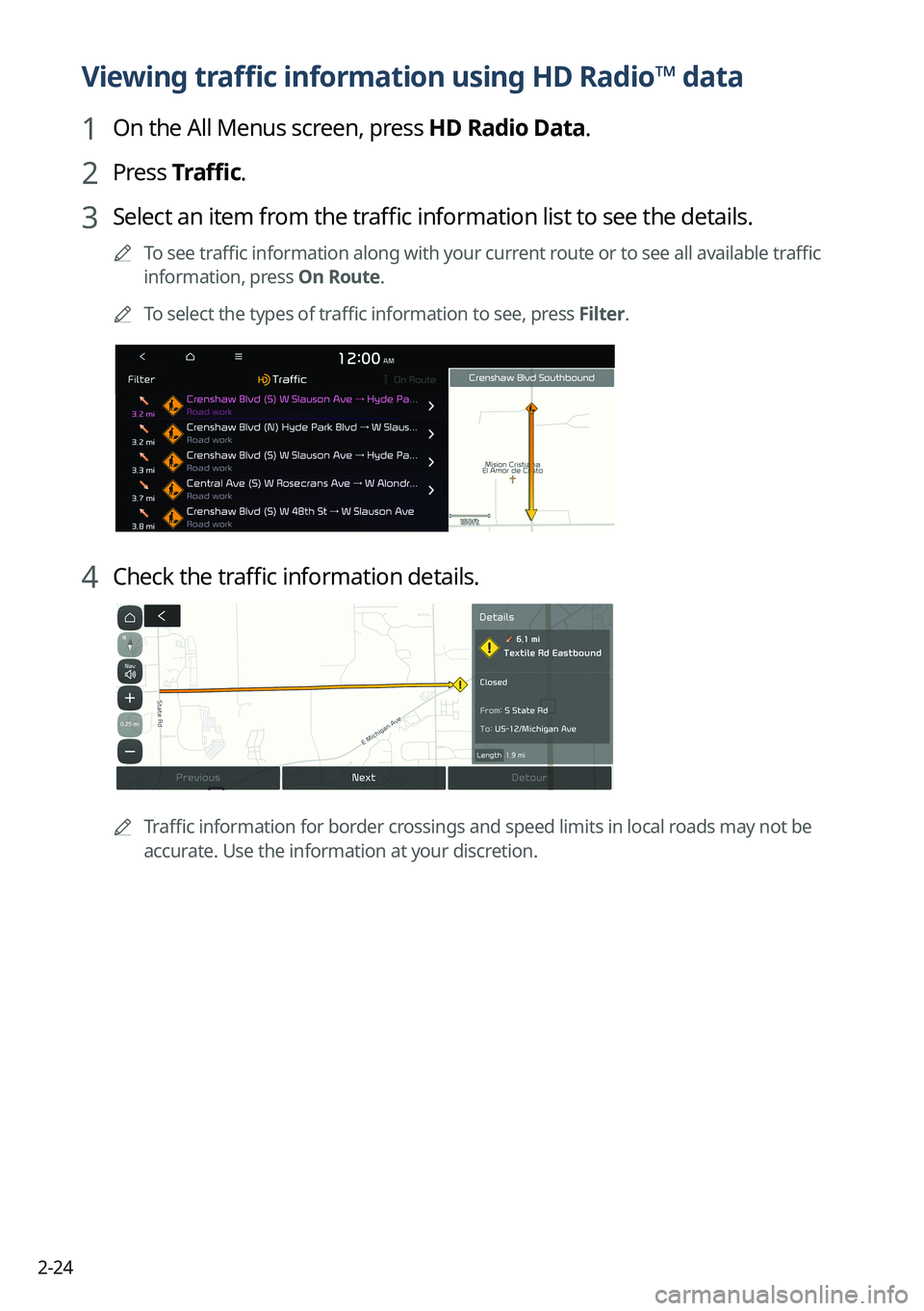

Viewing traffic information using HD Radio™ data
1 On the All Menus screen, press HD Radio Data.
2 Press Traffic.
3 Select an item from the traffic information list to see the details.

A
To see traffic information along with your current route or to see all available traffic
information, press On Route.

A
To select the types of traffic information to see, press Filter.
4 Check the traffic information details.

A
Traffic information for border crossings and speed limits in local roads may not be
accurate. Use the information at your discretion.

2-25

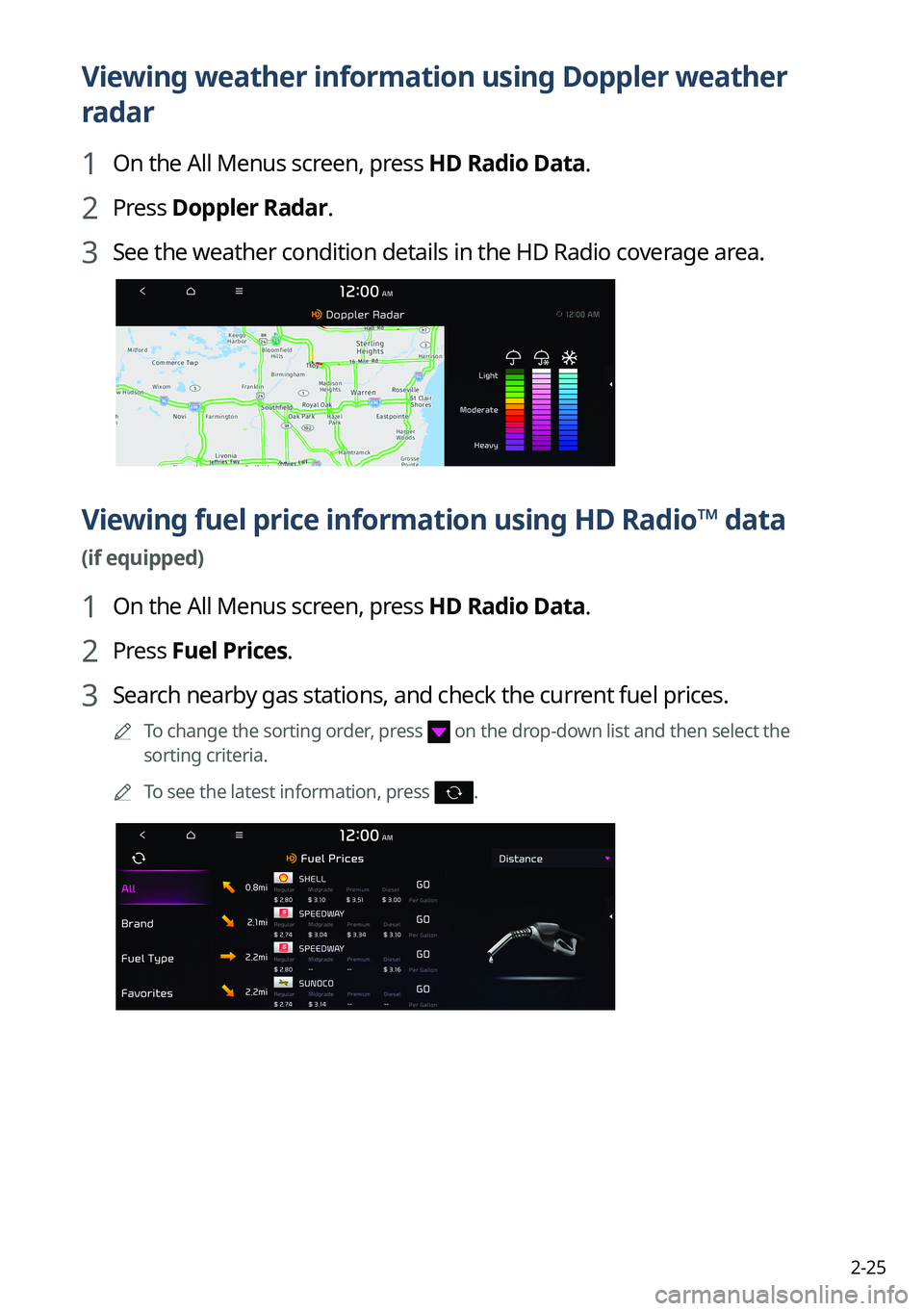

Viewing weather information using Doppler weather
radar
1 On the All Menus screen, press HD Radio Data.
2 Press Doppler Radar.
3 See the weather condition details in the HD Radio coverage area.
Viewing fuel price information using HD Radio™ data
(if equipped)
1 On the All Menus screen, press HD Radio Data.
2 Press Fuel Prices.
3 Search nearby gas stations, and check the current fuel prices.

A
To change the sorting order, press on the drop-down list and then select the
sorting criteria.

A
To see the latest information, press
.

2-26

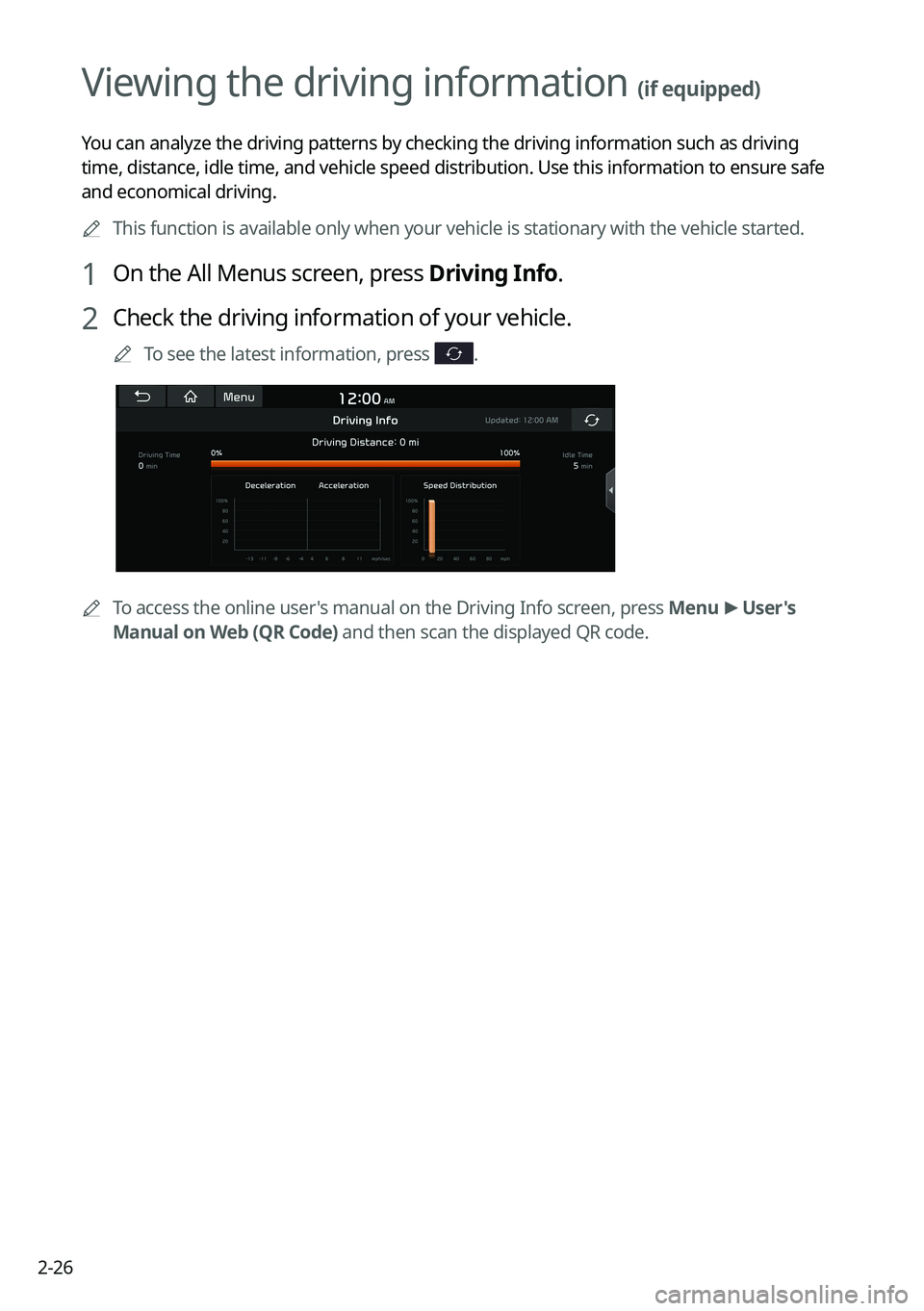

Viewing the driving information (if equipped)
You can analyze the driving patterns by checking the driving information such as driving
time, distance, idle time, and vehicle speed distribution. Use this info\
rmation to ensure safe
and economical driving.
A
This function is available only when your vehicle is stationary with the vehicle started.
1 On the All Menus screen, press Driving Info.
2 Check the driving information of your vehicle.

A
To see the latest information, press .

A
To access the online user's manual on the Driving Info screen, press Menu >
User's
Manual on Web (QR Code) and then scan the displayed QR code.

2-27

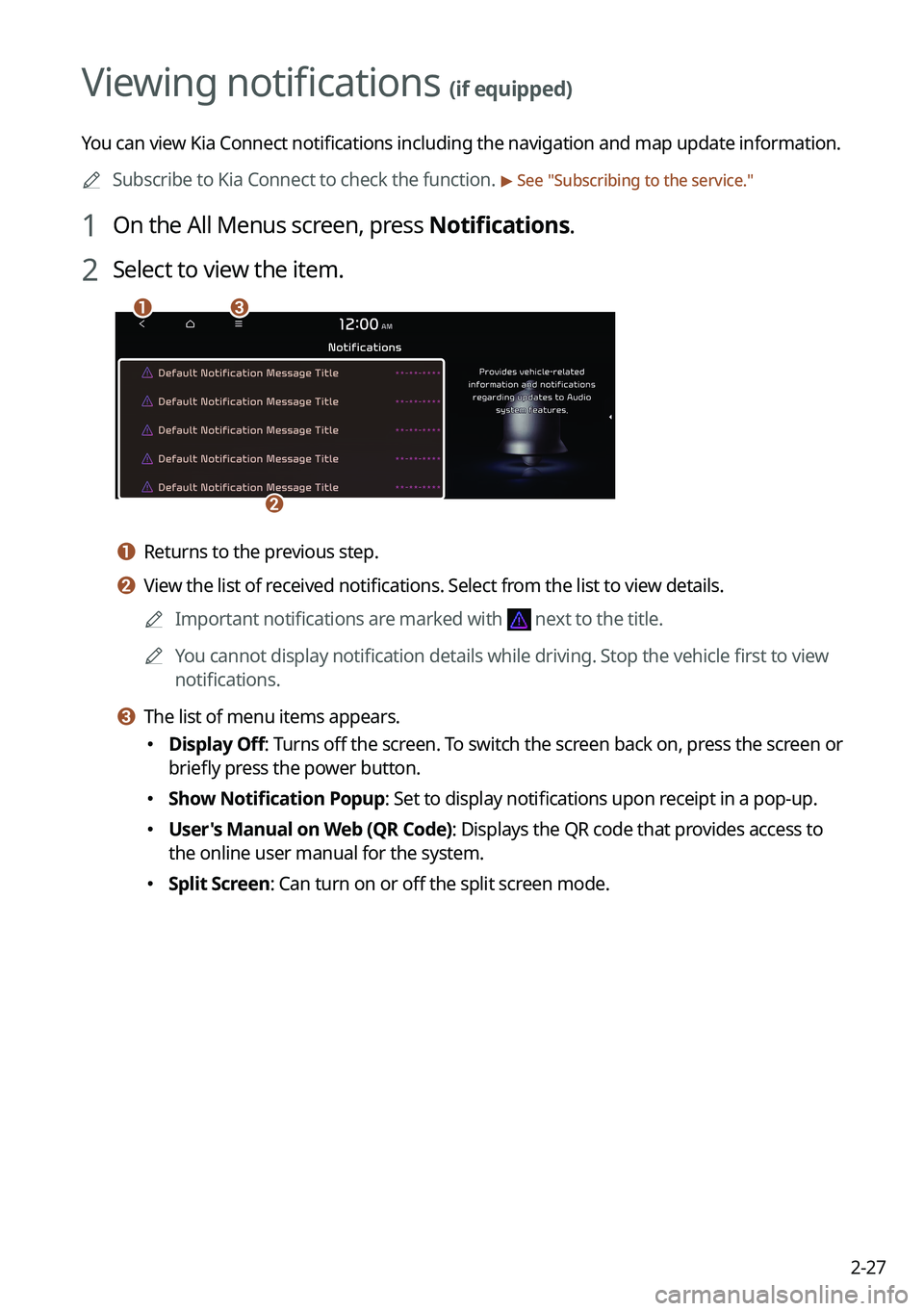

Viewing notifications (if equipped)
You can view Kia Connect notifications including the navigation and map update information.
A
Subscribe to Kia Connect to check the function.
> See "Subscribing to the service."
1 On the All Menus screen, press Notifications.
2 Select to view the item.
ca
b
a a Returns to the previous step.
b b View the list of received notifications. Select from the list to view details.

A
Important notifications are marked with
next to the title.

A
You cannot display notification details while driving. Stop the vehicle first to view
notifications.
c c The list of menu items appears.
Display Off
: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
 Show Notification Popup: Set to display notifications upon receipt in a pop-up.
User's Manual on Web (QR Code): Displays the QR code that provides access to
the online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

2-28
Using the Valet mode (if equipped)
Use the Valet mode to protect your personal information and view the vehicle information.
Valet mode protects your personal information by disabling control using the screen or
buttons. Vehicle information created during valet mode can be viewed from the Kia Connect
App.
The following vehicle-related data can be viewed from the Kia Connect App.
Valet mode start time
Engine off time
Driving distance/hours and maximum vehicle speed after valet mode activation

A
To use Valet mode, make sure you install the Kia Connect App on your smartphone and
sign up for the Kia Connect Service. Use either Google Play Store or App Store (depending
on your smartphone model) to download and install the Kia Connect App and sign up for
the Kia Connect Service.
> See "Subscribing to the service."
1 On the All Menus screen, press Valet Mode.

A
To access the online user's manual on the Valet Mode screen, press >
User's
Manual on Web (QR Code) and then scan the displayed QR code.
2 Enter a password to turn on the valet mode.
Your personal information is protected, as control using the screen or buttons is disabled.

A
To turn off valet mode, enter the password you set when turning on the mode.

A
It is not possible to turn off Valet mode if you enter your password incorrectly five
times in succession. If this occurs and you want to turn off Valet mode, use the
Kia Connect App to reset your Valet mode password. Alternatively, contact the Kia
Connect Center (844-886-9411) for assistance.

2-29
Using the Plug-in Hybrid menu (PHEV only)
You can see the driving and energy information, schedule charging, or search for charging
stations.
On the All Menus screen, press PHEV.
Plug-in Hybrid screen (PHEV only)
The Plug-in Hybrid screen provides the following features and information:
ag
c
def
b
a a Returns to the previous step.
b b Can see the drivable range under the remaining battery amount and search for nearby
charging stations.
> See "Viewing the drivable range with remaining battery level (PHEV only) ."
c c Can check information such as drivable distance and battery status. > See "Viewing the
energy information (PHEV only)."
d d Can schedule a charging or set the related options. > See " Using the charging management
features (PHEV only)."
e e Can check the eco-driving information. > See " Viewing the eco-driving information (PHEV
only)."
f f Can see the energy flows for each component while driving. > See " Viewing the energy flow
(PHEV only)."
g g The list of menu items appears.
 Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
Depending on vehicle model or specifications, the screen layout and available options
may differ.
Plug-in Hybrid

2-30
Viewing the drivable range with remaining battery level
(PHEV only)
You can check the drivable range under the remaining battery amount. You can also find the
routes to nearby charging stations if necessary.
1 On the Plug-in Hybrid screen, press EV Range.
2 On the EV Range screen, check the drivable distance and nearby
charging stations.
The drivable range is distinguished by a blue circle. Using the icons within the drivable
range, you can check the locations and availabilities of charging stations.
b
g
ah
d
e
f
c
a a Returns to the previous step.
b b See the list of nearby charging stations.
c c Set a filter to view specific types of charging stations on the map.
d d Used to change the map display mode.
 (2D Heading Up): Rotates the map depending on the travel direction.
 (2D North Up): Displays the map with the north fixed at the top.
e e Zooms in the map.
f f Zooms out the map.
g g Can see the status icons for charging stations.
A
Subscribe to Kia Connect to check the function.
> See "Subscribing to the service."
