What to do in an emergency
Distributing the sealant
11. Immediately drive approximately7~10km (4~6miles or, about
10min) to evenly distribute the
sealant in the tire.
Do not exceed a speed of 80 km/h
(50 mph). If possible, do not fall
below a speed of 20 km/h (12 mph).
While driving, if you experience any
unusual vibration, ride disturbance or
noise, reduce your speed and drive
with caution until you can safely pull
off of the side of the road.
Call for road side service or towing.
When you use the Tire Mobility Kit,
the tire pressure sensors and wheel
may be damaged by sealant, remove
the sealant stained with tire pressure
sensors and wheel and inspect in
authorized dealer. Checking the tire inflation pres-
sure
1.After driving approximately
7~10km (4 ~ 6miles or about
10min), stop at a safety location.
2.Connect connection hose (9) of the compressor directly to the tire
valve.
3.Plug the compressor power cord into the vehicle power outlet.
4.Adjust the tire inflation pressure to the recomended tire inflation.
With the ignition swithched on, pro-
ceed as follows.
- To increase the inflation pres-sure : Switch on the compressor,
position I. To check the current
inflation pressure setting, briefly
switch off the compressor.
✽ ✽ NOTICE
The pressure gauge may show high-
er than actual reading when the
compressor is running. To get an
accurate tire pressure, the compres-
sor needs to be turned off.
- To reduce the inflation pres-
sure: Loosen the screw cap (8)
on the compressor hose.

What to do in an emergency
26
6
Technical Data
System voltage: DC 12 V
Working voltage: DC 10 - 15 V
Amperage rating: max. 15 A
Suitable for use at temperatures:
-30 ~ +70°C (-22 ~ +158°F)
Max. working pressure: 6 bar (87 psi)
Size
Compressor: 168 x 150 x 68 mm (6.6 x 5.9 x 2.7 in.)
Sealant bottle: 104 x ø 85 mm (4.1 x ø 3.3 in.)
Compressor weight: 1.05 kg (2.31 lbs)
Sealant volume: 300 ml (18.3 cu. in.)CAUTION - Tire pressuresensor
When you use the Tire MobilityKit including sealant notapproved by Kia, the tire pres-sure sensors may be damagedby sealant. The sealant on thetire pressure sensor and wheelshould be removed when youreplace the tire with a new oneand inspect the tire pressuresensors in authorized dealer.

Maintenance
34
7
AIR CLEANER
Filter replacement
It must be replaced when necessary,
and should not be washed.
You can clean the filter when inspect-
ing the air cleaner element.
Clean the filter by using compressed
air. Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extreme-
ly dusty or sandy areas, replace the
element more often than the usual
recommended intervals. (Refer to
“Maintenance under severe usage
conditions” in this section.)
OAM079043
CAUTION - Air filter
maintenance
Do not drive with the air clean-
er removed; this will result inexcessive engine wear.
When removing the air cleaner filter, be careful that dust ordirt does not enter the airintake, or damage may result.
Use a Kia genuine part. Use of non-genuine parts could dam-age the air flow sensor.

759
Maintenance
Description Fuse ratingProtected component
P/WDW LH 25A Power Window Main Switch, Rear Power Window Switch LH
P/WDW RH 25A Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH
PDM 2 10A PDM,Start/Stop Button Switch, Fob Holder
HAZARD 15A Hazard Relay, Hazard Switch, One Touch Flasher Unit
TAIL LP LH 10A Rear Combination Lamp LH, Head Lamp LH, License Lamp
TAIL LP RH 10ARear Combination Lamp RH, Head Lamp RH, Audio, Passenger Power Window Switch, Rheostat,
Power Window Main Switch, Hazard Switch, Instrument Cluster, Mood Lamp Switch,
AUX & USB Jack, ESC Switch, A/C Control Module, Multifunction Switch,
Driver/Passenger Seat Warmer Switch, ATM Shift Lever Indicator, Glove Box Lamp,
A/V & Navigation Head Unit, Telltale Lamp, ISG Switch, Active ECO Switch,
/V & Navigation Touch, AUX Jack
IG 2 10A BCM, Sunroof Motor
WIPER RR 15A Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch (Wiper)
WIPER FRT 25A E/R Fuse & Relay Box (Wiper Relay), Front Wiper Motor, Multifunction Switch (Wiper)
AMP 25A AMP, ISG Low DC - DC Converter (AMP)
SUNROOF 20A Sunroof Motor
(FOG LP FRT) 15A Front Fog Lamp Relay
T/GATE OPEN 15A Tail Gate Relay, Data Link Connector, DRL Relay
(FOG LP RR) 10A -
A/CON 10AA/C Control Module, E/R Fuse & Relay Box (H/LP HI Relay, Blower Relay), Active Incar Sensor,
A/V & Navigation Touch
PDM 1 10A PDM
ACC 10AAudio, Mood Lamp Module, Power Outside Mirror Switch, Smart Key Control Module, PDM,
ATM Key Lock Control Module, A/V & Navigation Head Unit, BCM, AMP, A/V & Navigation Touch,
ISG Low DC - DC Converter (Audio/AMP)
C/LIGHTER 20A Cigarette Lighter, Rear Power Outlet

Maintenance
60
7
Description Fuse rating Protected component
HTD MIRR 10A ECM/PCM, Driver/Passenger Power Outside Mirror, A/C Control Module, A/V & Navigation Touch
DR LOCK 20A Door Lock Relay, Door Unlock Relay, 2 Turn Lock Relay
STOP LP 15AStop Lamp Switch, Multipurpose Check Connector, HAC Relay, Stop Lamp Relay,
Sport Mode Switch, Key Solenoid
TCU 10AVehicle Speed Sensor (M/T), ATM Shift Lever Indicator, ATM Key Lock Control Module,
Transaxle Range Switch
ABS 10A ESC Module, ESC Switch, E/R Fuse & Relay Box (Multipurpose Check Connector)
IG 1 10ATire Pressure Monitoring Module, ISG Low DC - DC Converter (Audio/AMP),
Driver/Passenger Seat Warmer Switch, Driver/Passenger Seat Warmer, ISG Switch,
Electro Chromic Mirror, Oil Pump Invertor, Stop Lamp Switch, HAC Relay
P/OUTLET FRT 15A Front Power Outlet
A/BAG 15A SRS Control Module, Weight Classification Module, Telltale Lamp
IGN COIL 15A G4FD : Condenser, Ignition Coil #1 ~ #4
T/SIG 10A Hazard Switch, Multifunction Switch (Light)
CLUSTER 10A BCM, Instrument Cluster (IND.), A/C Control Module, Smart Key Control Module, PDM
ECU 10A ECM, PCM
START 10AE/R Fuse & Relay Box (Start Relay), PDM, Transaxle Range Switch, Ignition Lock Switch,
PCM/ECM
B/UP LP 10A Back-up Lamp Switch (M/T)
A/BAG IND 10A Instrument Cluster (Air Bag IND.)
POWER
CONNECTOR MODULE 15A
Audio, RF Receiver, A/V & Navigation Touch, ISG Low DC - DC Converter (Audio),
A/V & Navigation Head Unit
ROOM LP 10A BCM, Instrument Cluster (IND.), A/C Control Module, Tire Pressure Monitoring Module,
Center Room Lamp, Luggage Lamp,
Overhead Console Assembly (Map Lamp), Ignition Key ILL. & Door Warning Switch,
Vanity Lamp LH/RH

763
Maintenance
DescriptionFuse rating Protected component
FUSE DEDICATE DRL 10A BCM
BLOWER 2
10A A/C Control Module (Auto)
SENSOR 1 10A -
SENSOR 2 10AC/Fan HI/Low Relay, PCM/ECM, Purge Control Solenoid Valve, Variable Intake Solenoid Valve,
Canister Close Valve, Immobilizer Module, A/Con Relay
IGN COIL 15A -
ECU 3 20A -
SENSOR 3 15A Oxygen Sensor (Up/Down), F/Pump Relay, Oil Control Valve #1/#2, PCM/ECM
H/LP LH 10A Head Lamp LH
H/LP RH 10A Head Lamp RH
HTD STRG 15A -
WIPER 10A PCM
B/UP LP (AP) 10AElectro Chromic Mirror, Rear Combination Lamp LH/RH, Instrument Cluster,
A/V & Navigation Head Unit, Audio
MDPS 2 10A EPS Control Module
A/CON 10A A/Con Relay

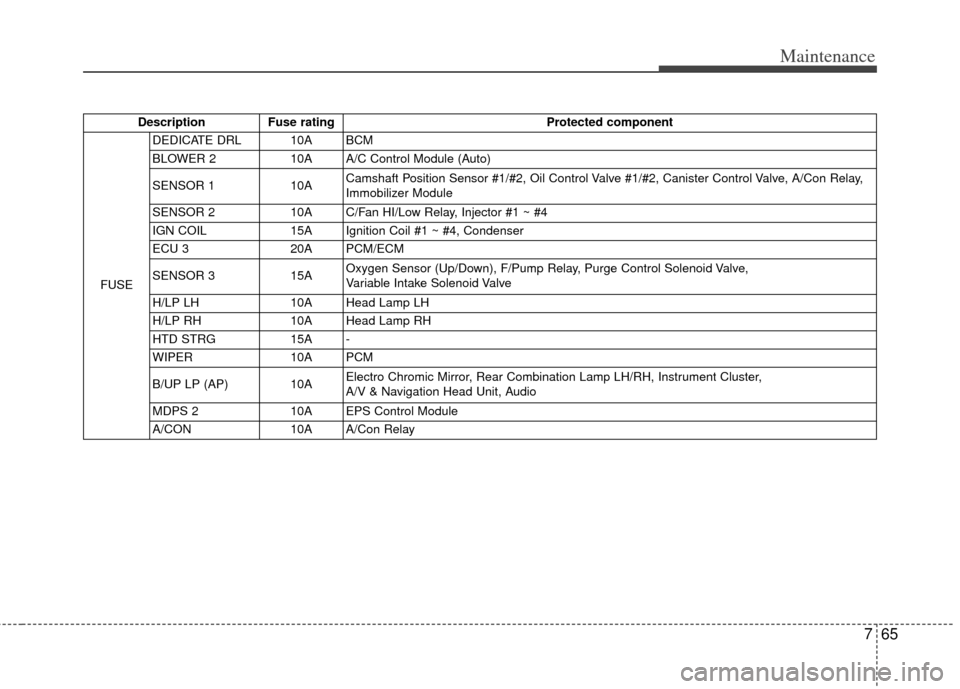

765
Maintenance
DescriptionFuse rating Protected component
FUSE DEDICATE DRL 10A BCM
BLOWER 2
10A A/C Control Module (Auto)
SENSOR 1 10ACamshaft Position Sensor #1/#2, Oil Control Valve #1/#2, Canister Control Valve, A/Con Relay,
Immobilizer Module
SENSOR 2 10A C/Fan HI/Low Relay, Injector #1 ~ #4
IGN COIL 15A Ignition Coil #1 ~ #4, Condenser
ECU 3 20A PCM/ECM
SENSOR 3 15AOxygen Sensor (Up/Down), F/Pump Relay, Purge Control Solenoid Valve,
Variable Intake Solenoid Valve
H/LP LH 10A Head Lamp LH
H/LP RH 10A Head Lamp RH
HTD STRG 15A -
WIPER 10A PCM
B/UP LP (AP) 10AElectro Chromic Mirror, Rear Combination Lamp LH/RH, Instrument Cluster,
A/V & Navigation Head Unit, Audio
MDPS 2 10A EPS Control Module
A/CON 10A A/Con Relay
