odometer KIA SOUL 2015 Features and Functions Guide

3
KEY
OUT SPORT
NORMAL
COMFORTx1000 rpm8
7
6
5
4
3
2
1
0
E F
C
H
140 120
100
80
60
40
200MPH
0
40
60
80
100
120
140
160
180
200
220km/h
TRIP RANGE/TAVG.
L/100km/hMPG
MPH
A Tachometer
B Speedometer
C Turn Signal Indicators
D Gear Shift Position
E Odometer
F Tr ipme t e r
G Engine Temperature
H Fuel Gauge
I Exterior Temperature
(Type A cluster)

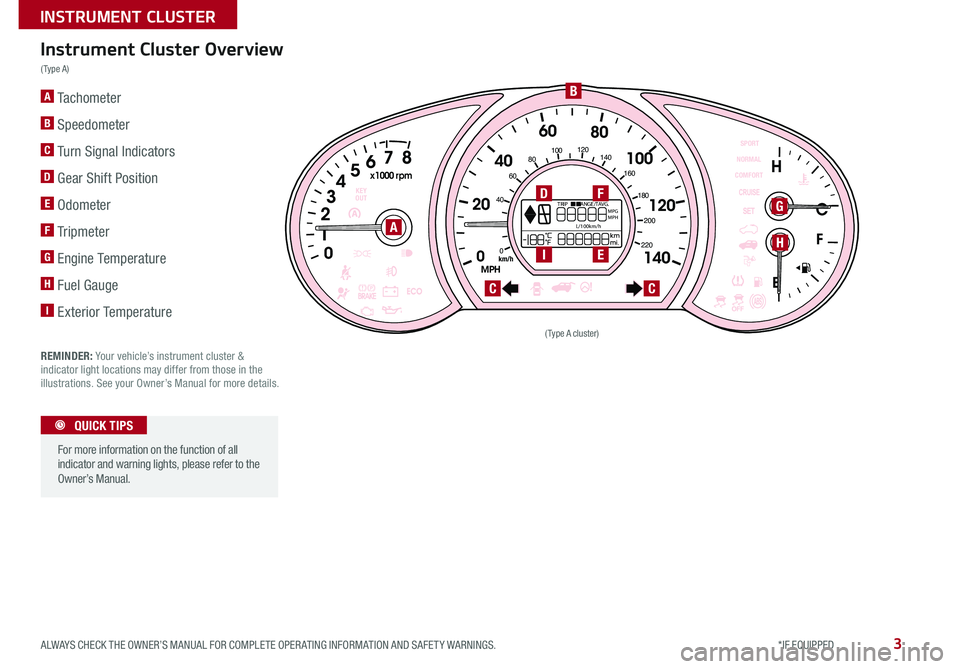

Instrument Cluster Overview
( Type A )
REMINDER: Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations See your Owner’s Manual for more details
A
B
D
I
CC
G
HE
F
For more information on the function of all indicator and warning lights, please refer to the Owner’s Manual
QUICK TIPS
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
INSTRUMENT CLUSTER

6
Trip Computer* / Tripmeter
The Trip Computer is a driver information
system that displays information related to
driving — such as Odometer, Tripmeter,
Range, Average Fuel Consumption and
Driving Time — on the display when the
ignition switch is in the ON position
To cycle through the LCD Display modes,
press the Mode/Select button A
When in the Trip Computer mode , press
the Move/Reset button B to cycle through
the screens When displaying Trip A or Trip
B screens, press and hold the Move/Reset
button B to reset the Tripmeter to zero
REMINDERS:
• Appearance of Tripmeter display may differ as equipped
• All stored driving information (except Odometer and Range) is reset if the battery is disconnected
LCD Instrument Cluster Modes*
(Type B cluster only)
To cycle through the LCD Instrument Cluster modes, press
the Mode/Select button A
(LCD Instrument Cluster mode buttons located on Steering Wheel)
Trip Computer Mode: Displays driving information for tripmeter, fuel economy, etc
Turn-by-Turn Mode*: Displays the state of the Navigation system
Master Warning / Service Modes: Informs on upcoming service intervals, and warning messages related to TPMS and others
User Settings Mode: Change settings of the doors, lamps and other features
A/V Mode*: Displays the state of the A / V System
SETCRUISERESCANCELMODEVOL
VOL
A
PRange256mi.
30
20
10Avg.027.4MPG
SET
(Buttons located on Steering Wheel)
A
B
(Type B Cluster)
FUEL ECONOMY
• R ANGE • Average MPG • Instant MPG
TRIP A
• Tripmeter A • Average MPH • Elapsed Time (E / T )
TRIP B
• Tripmeter B • Average MPH • Elapsed Time (E / T )
