Page 181 of 556

KIA Soul 2016 2.G Owners Manual 4101
Features of your vehicle

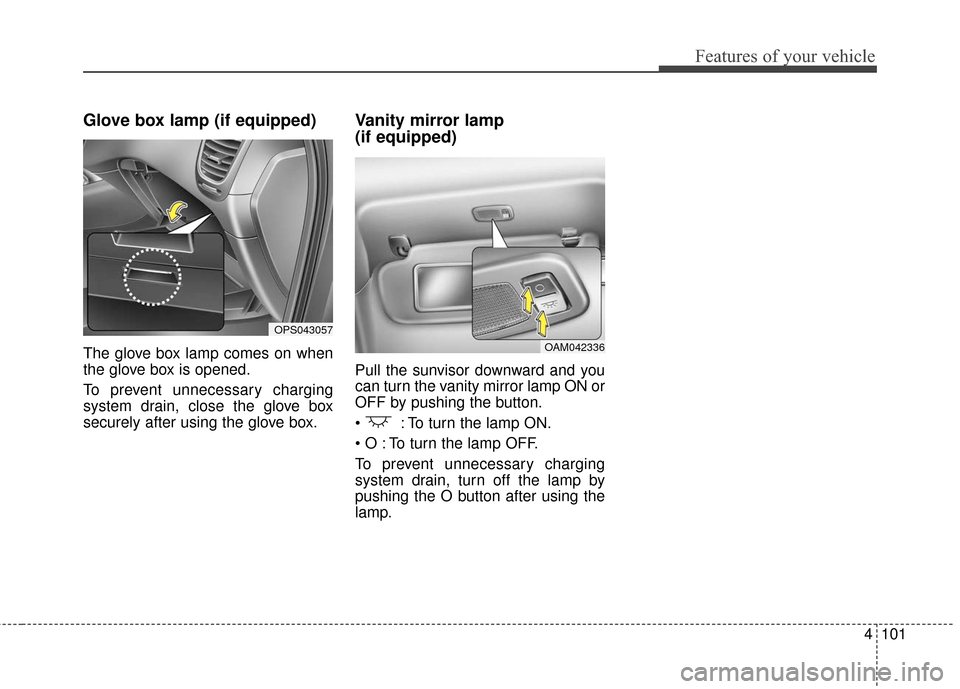

Glove box lamp (if equipped)
The glove box lamp comes on when
the glove box is opened.
To prevent unnecessary charging
system drain, close the glove box
securely after us

Page 182 of 556

KIA Soul 2016 2.G Owners Manual Features of your vehicle
102
4
✽
✽

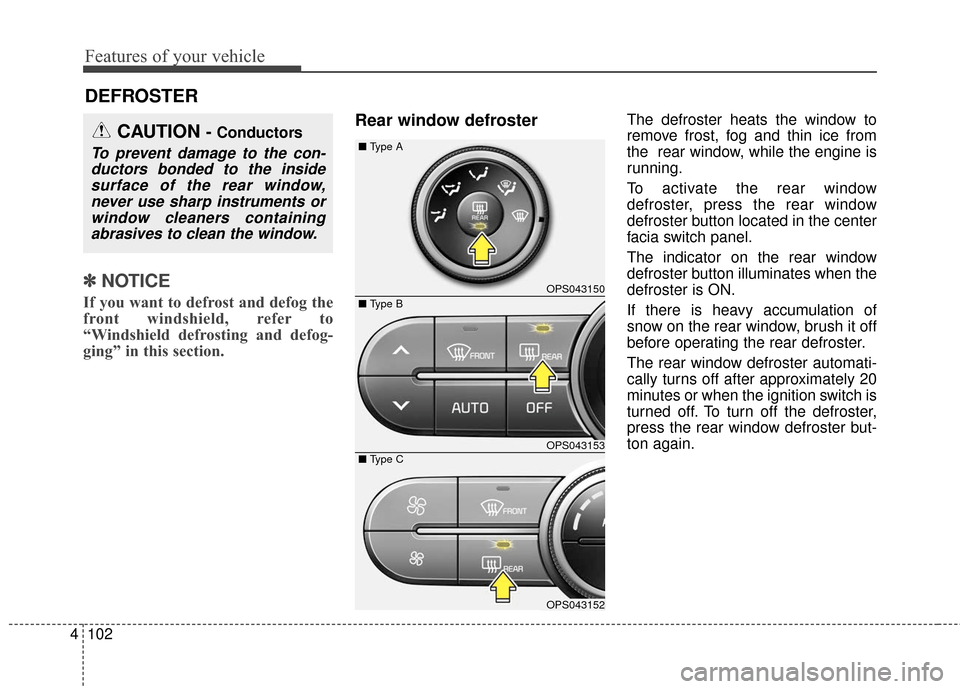

NOTICE
If you want to defrost and defog the
front windshield, refer to
“Windshield defrosting and defog-
ging” in this section.
Rear window defrosterThe defr

Page 183 of 556

KIA Soul 2016 2.G Owners Manual 4103
Features of your vehicle

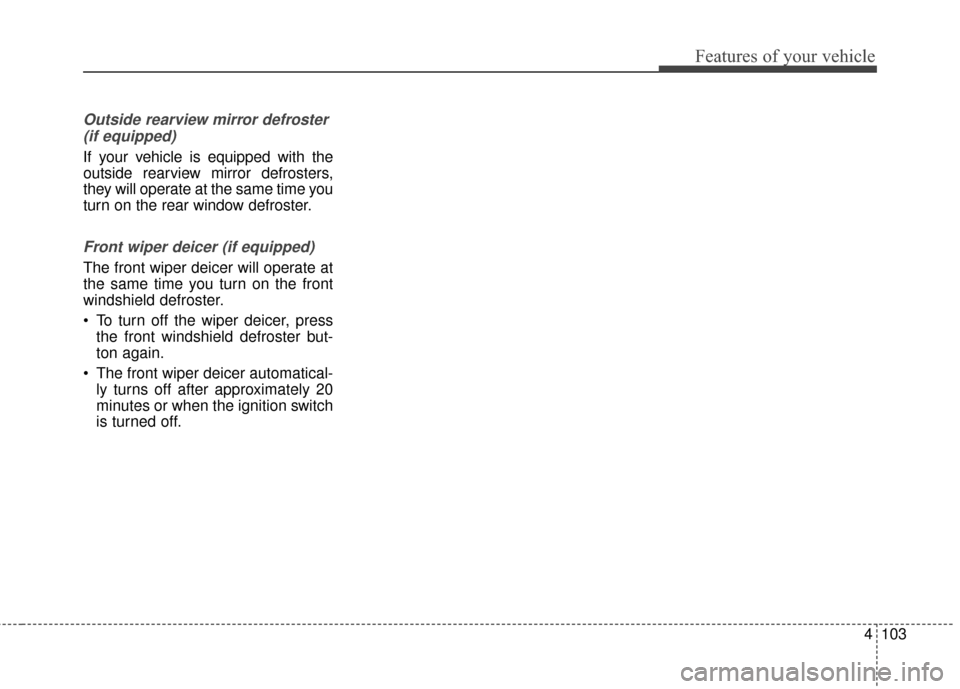

Outside rearview mirror defroster (if equipped)
If your vehicle is equipped with the
outside rearview mirror defrosters,
they will operate at the same time you
turn on th

Page 184 of 556

KIA Soul 2016 2.G Owners Manual Features of your vehicle
104
4
MANUAL CLIMATE CONTROL SYSTEM
OPS043154
1. Fan speed control knob
2. Air intake control button  3. Mode selection knob
4. Rear window defroster button5. Temperature con

Page 185 of 556

KIA Soul 2016 2.G Owners Manual 4105
Features of your vehicle

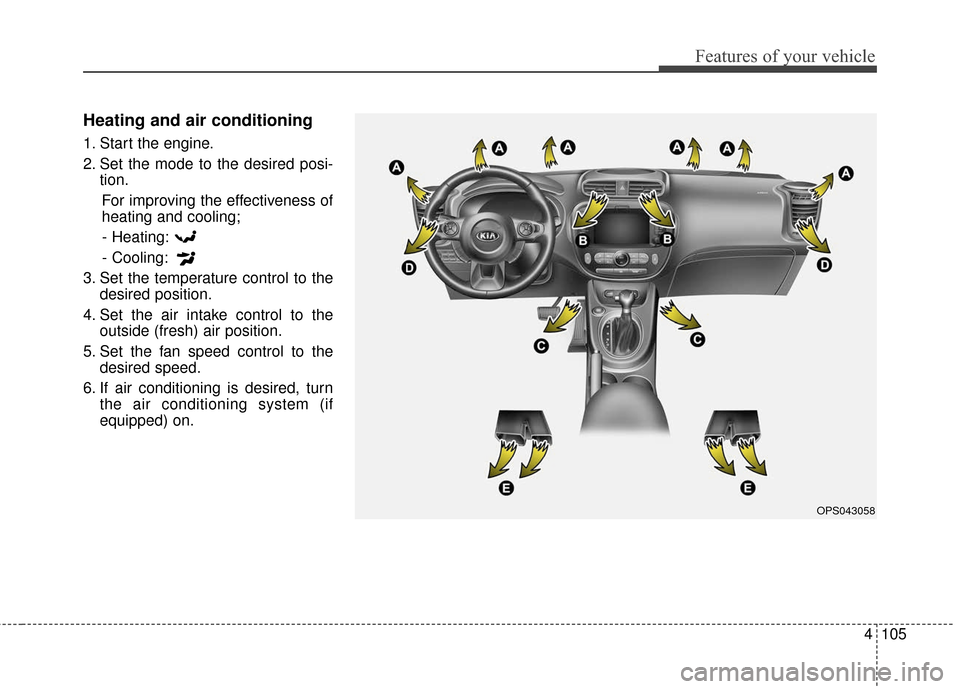

Heating and air conditioning
1. Start the engine.
2. Set the mode to the desired posi-tion.
For improving the effectiveness of
heating and cooling;- Heating:
- Cooling:
3

Page 186 of 556

KIA Soul 2016 2.G Owners Manual Features of your vehicle
106
4

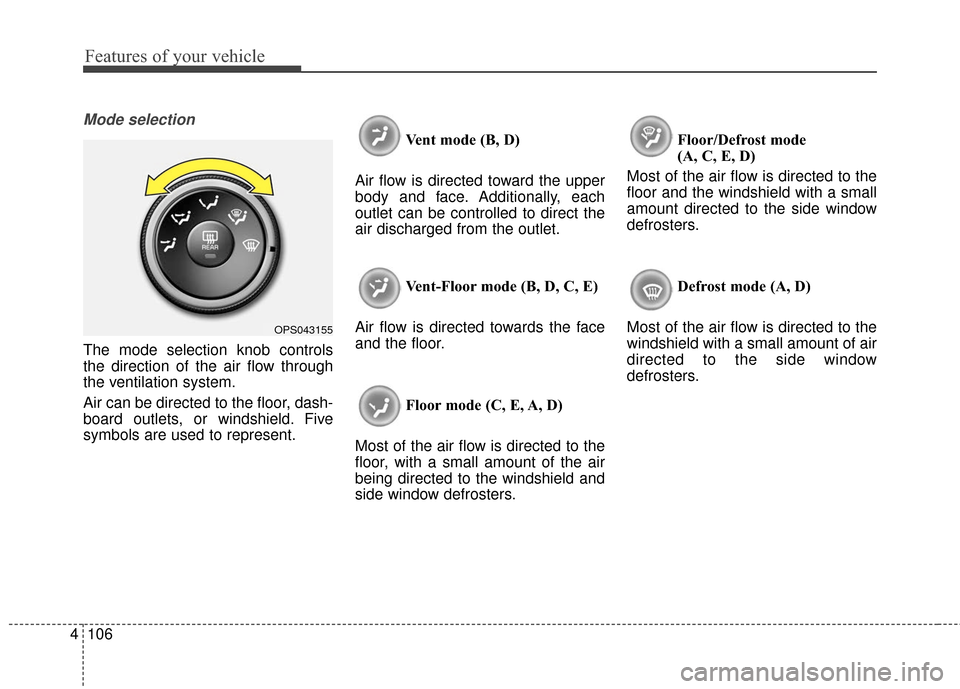

Mode selection
The mode selection knob controls
the direction of the air flow through
the ventilation system.
Air can be directed to the floor, dash-
board outlets, or w

Page 187 of 556

KIA Soul 2016 2.G Owners Manual 4107
Features of your vehicle

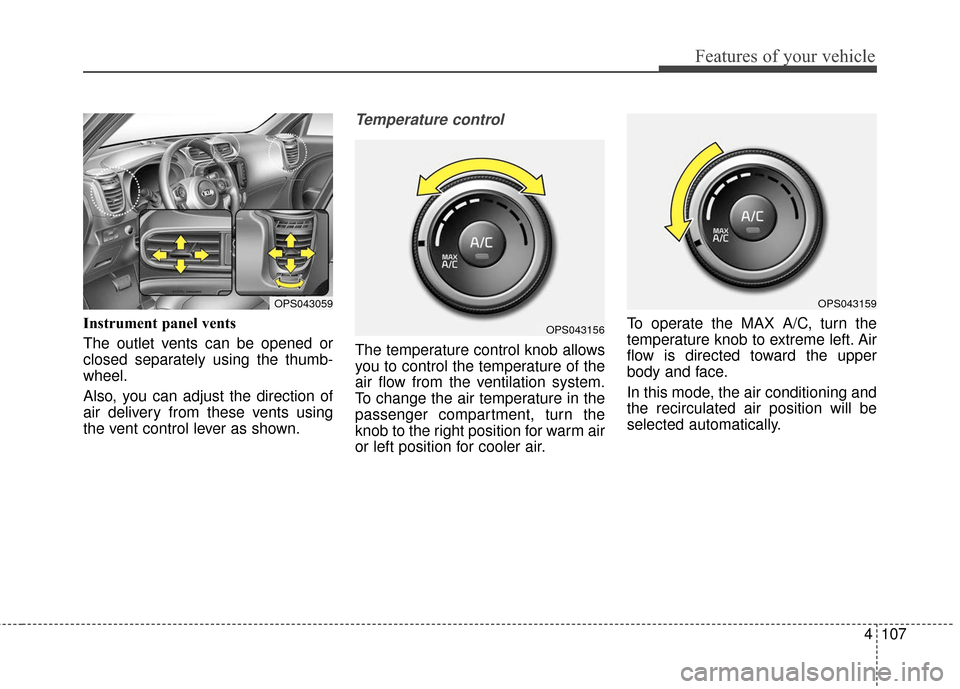

Instrument panel vents
The outlet vents can be opened or
closed separately using the thumb-
wheel.
Also, you can adjust the direction of
air delivery from these vents usi

Page 188 of 556

KIA Soul 2016 2.G Owners Manual Features of your vehicle
108
4

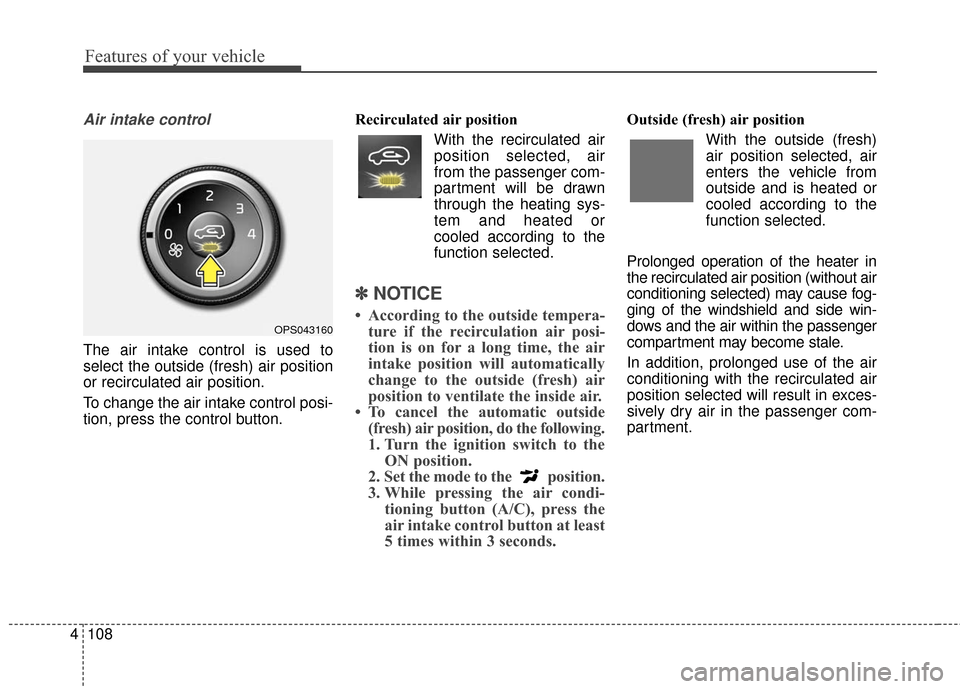

Air intake control
The air intake control is used to
select the outside (fresh) air position
or recirculated air position.
To change the air intake control posi-
tion,

Page 189 of 556

KIA Soul 2016 2.G Owners Manual 4109
Features of your vehicle

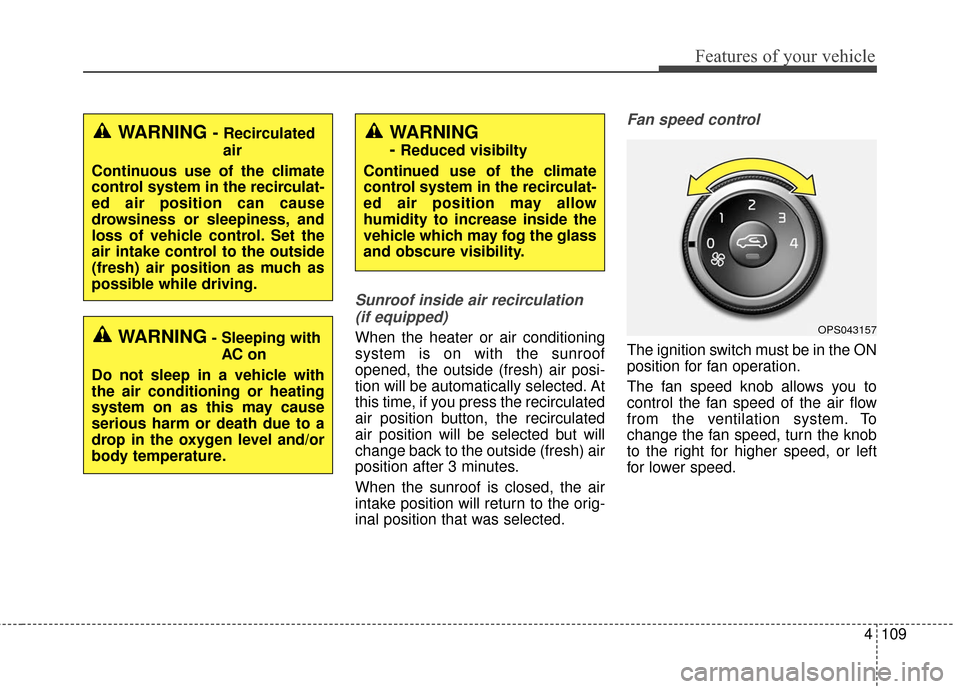

Sunroof inside air recirculation(if equipped)
When the heater or air conditioning
system is on with the sunroof
opened, the outside (fresh) air posi-
tion will be automat

Page 190 of 556

KIA Soul 2016 2.G Owners Manual Features of your vehicle
110
4

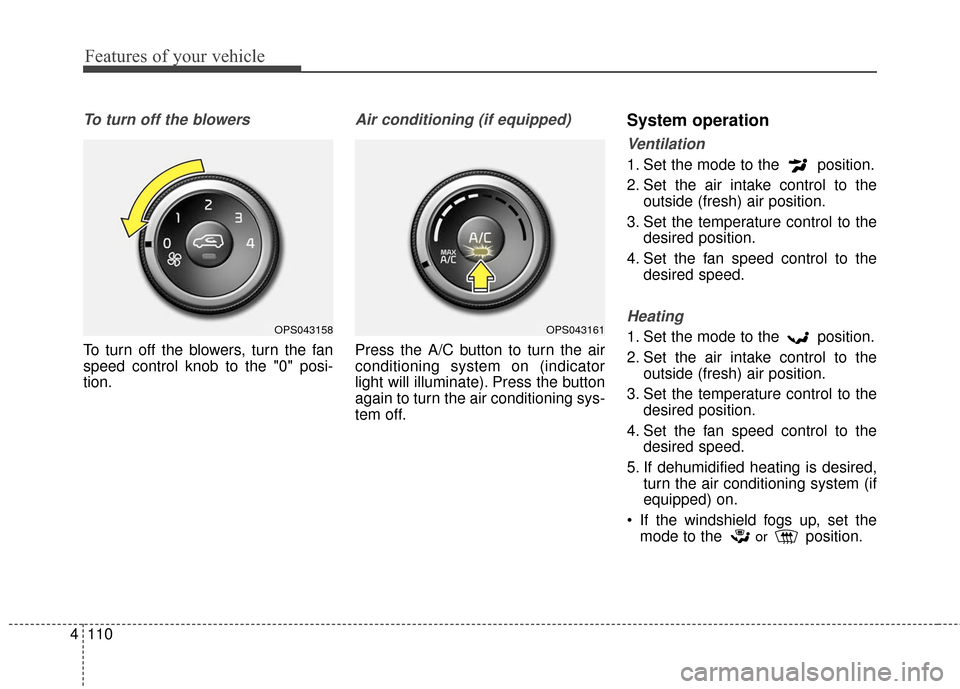

To turn off the blowers
To turn off the blowers, turn the fan
speed control knob to the "0" posi-
tion.
Air conditioning (if equipped)
Press the A/C button to turn the a
