KIA Soul 2016 2.G User Guide
Manufacturer: KIA, Model Year: 2016, Model line: Soul, Model: KIA Soul 2016 2.GPages: 556, PDF Size: 21.35 MB
Page 11 of 556

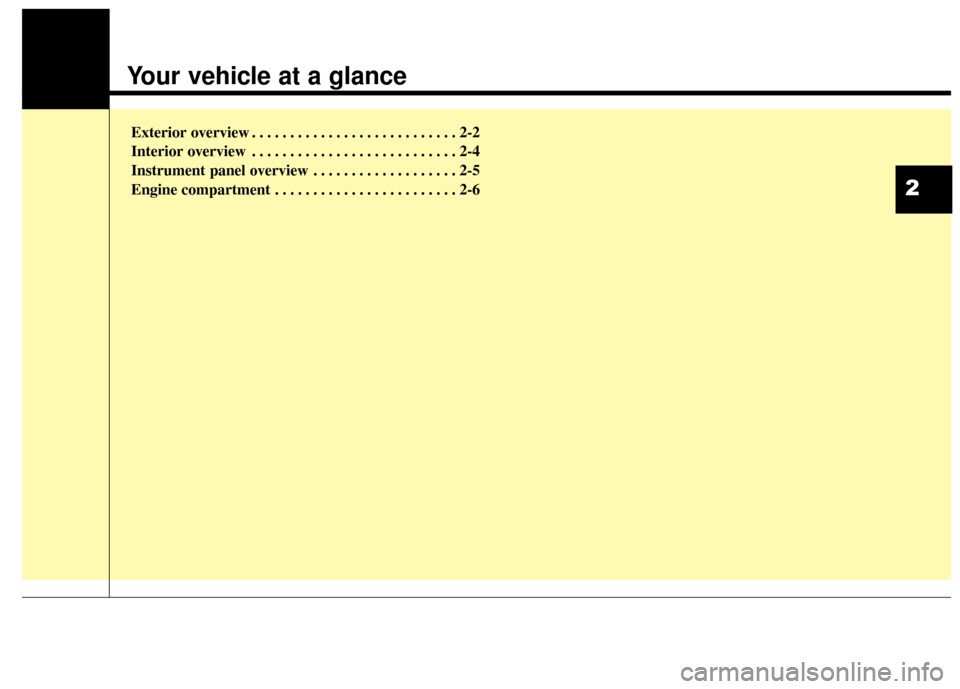

Your vehicle at a glance
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2
Page 12 of 556
Your vehicle at a glance
22

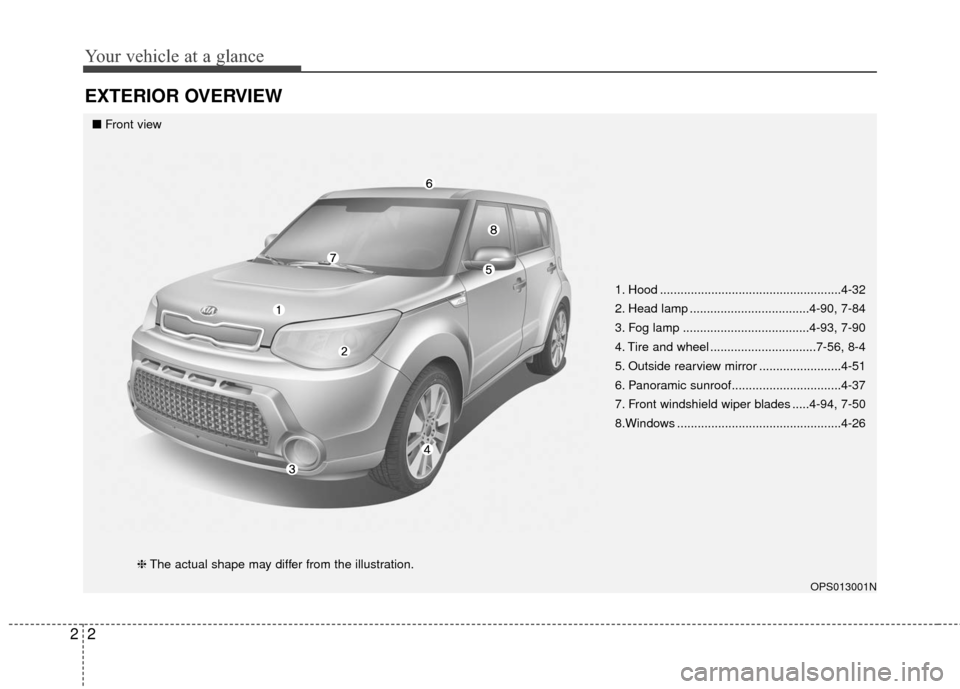

EXTERIOR OVERVIEW
1. Hood .....................................................4-32
2. Head lamp ...................................4-90, 7-84
3. Fog lamp .....................................4-93, 7-90
4. Tire and wheel ...............................7-56, 8-4
5. Outside rearview mirror ........................4-51
6. Panoramic sunroof................................4-37
7. Front windshield wiper blades .....4-94, 7-50
8.Windows ................................................4-26
OPS013001N
■Front view
❈The actual shape may differ from the illustration.
Page 13 of 556
23
Your vehicle at a glance

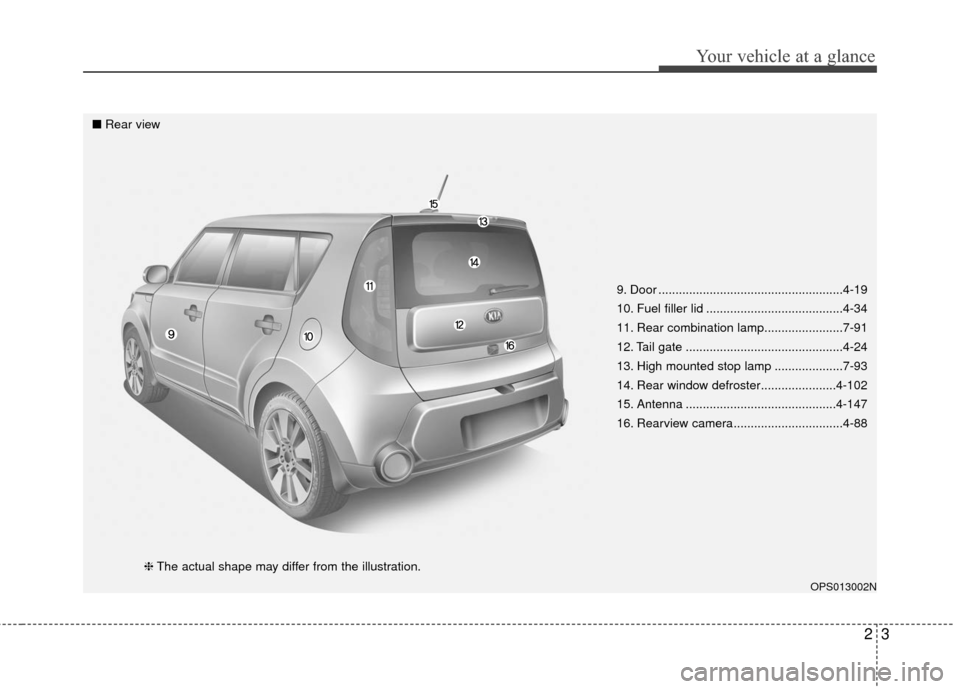

9. Door ......................................................4-19
10. Fuel filler lid ........................................4-34
11. Rear combination lamp.......................7-91
12. Tail gate ..............................................4-24
13. High mounted stop lamp ....................7-93
14. Rear window defroster......................4-102
15. Antenna ............................................4-147
16. Rearview camera................................4-88
OPS013002N
■Rear view
❈The actual shape may differ from the illustration.
Page 14 of 556
Your vehicle at a glance
42
INTERIOR OVERVIEW
1. Inside door handle ................................4-19
2. Power window switch ............................4-27
3. Power window lock button .....................4-30
4. Central door lock switch ........................4-21
5. Outside rearview mirror control.............4-51
6. Outside rearview mirror folding .............4-52
7. Fuel filler lid open lever .........................4-34
8. Instrument panel illumination controlswitch ...................................................4-55
9. LDWS On/Off button .............................5-48
10. Idle Stop and Go (ISG) OFF button ....5-44
11. Steering wheel heater On/Off button ..4-45
12. ESC Off button ....................................5-29
13. Advanced Lighting Speaker ..............4-150
14. Steering wheel ....................................4-43
15. Tilt and telescopic steering control lever.....................................................4-44
16. Inner fuse panel ..................................7-73
17. Hood release lever ..............................4-32
18. Seat .......................................................3-2
19. Transaxle shift lever ...................5-14, 5-17
OPS015004N❈ The actual shape may differ from the illustration.
Page 15 of 556
25
Your vehicle at a glance

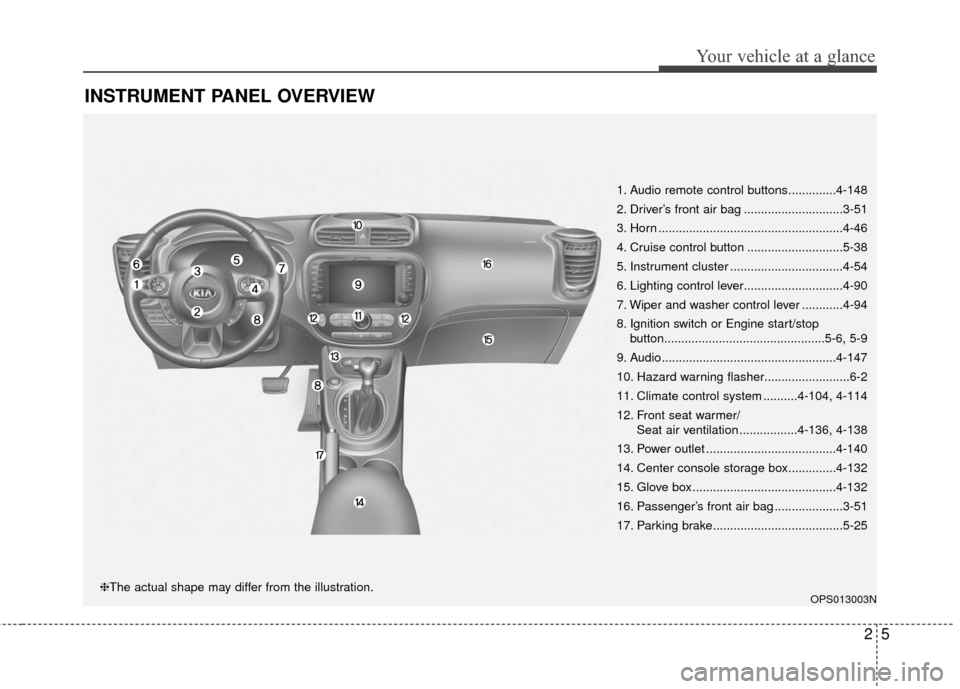

INSTRUMENT PANEL OVERVIEW
1. Audio remote control buttons..............4-148
2. Driver’s front air bag .............................3-51
3. Horn ......................................................4-46
4. Cruise control button ............................5-38
5. Instrument cluster .................................4-54
6. Lighting control lever.............................4-90
7. Wiper and washer control lever ............4-94
8. Ignition switch or Engine start/stopbutton...............................................5-6, 5-9
9. Audio...................................................4-147
10. Hazard warning flasher.........................6-2
11. Climate control system ..........4-104, 4-114
12. Front seat warmer/ Seat air ventilation .................4-136, 4-138
13. Power outlet ......................................4-140
14. Center console storage box..............4-132
15. Glove box ..........................................4-132
16. Passenger’s front air bag ....................3-51
17. Parking brake......................................5-25
OPS013003N❈The actual shape may differ from the illustration.
Page 16 of 556
Your vehicle at a glance
62

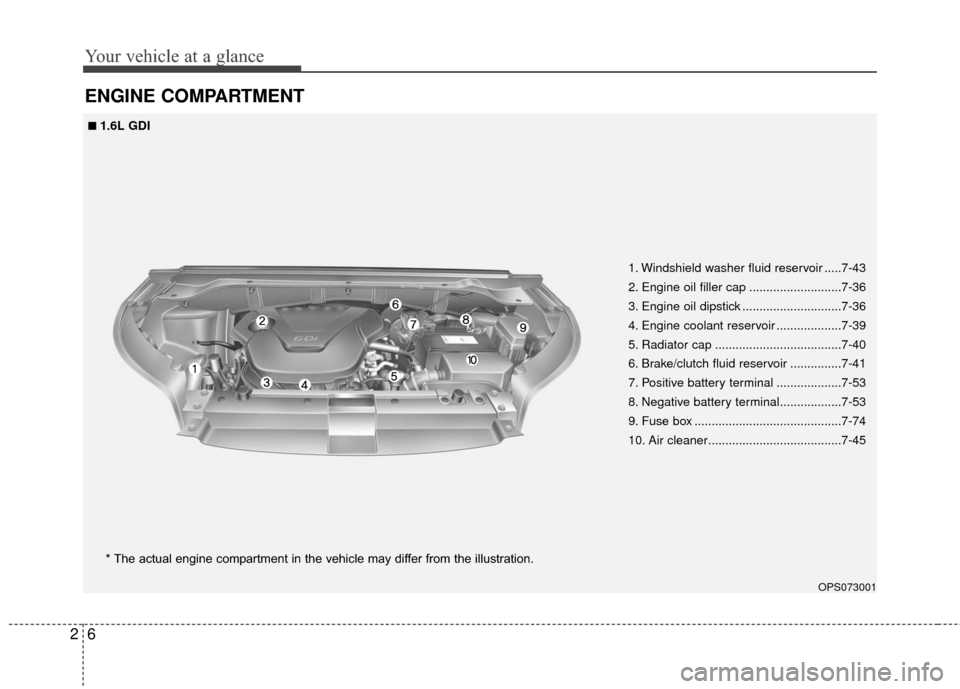

ENGINE COMPARTMENT
OPS073001
1. Windshield washer fluid reservoir .....7-43
2. Engine oil filler cap ...........................7-36
3. Engine oil dipstick .............................7-36
4. Engine coolant reservoir ...................7-39
5. Radiator cap .....................................7-40
6. Brake/clutch fluid reservoir ...............7-41
7. Positive battery terminal ...................7-53
8. Negative battery terminal..................7-53
9. Fuse box ...........................................7-74
10. Air cleaner.......................................7-45
* The actual engine compartment in the vehicle may differ from the illustration.
■ ■1.6L GDI
Page 17 of 556
27

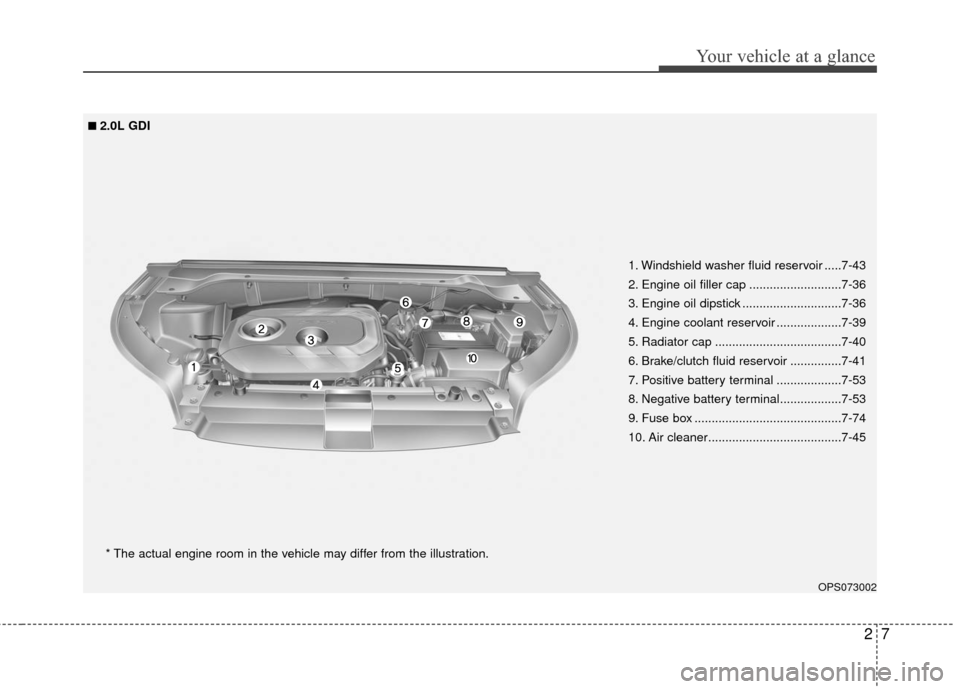

Your vehicle at a glance
OPS073002
* The actual engine room in the vehicle may differ from the illustration.1. Windshield washer fluid reservoir .....7-43
2. Engine oil filler cap ...........................7-36
3. Engine oil dipstick .............................7-36
4. Engine coolant reservoir ...................7-39
5. Radiator cap .....................................7-40
6. Brake/clutch fluid reservoir ...............7-41
7. Positive battery terminal ...................7-53
8. Negative battery terminal..................7-53
9. Fuse box ...........................................7-74
10. Air cleaner.......................................7-45
■
■2.0L GDI
Page 18 of 556

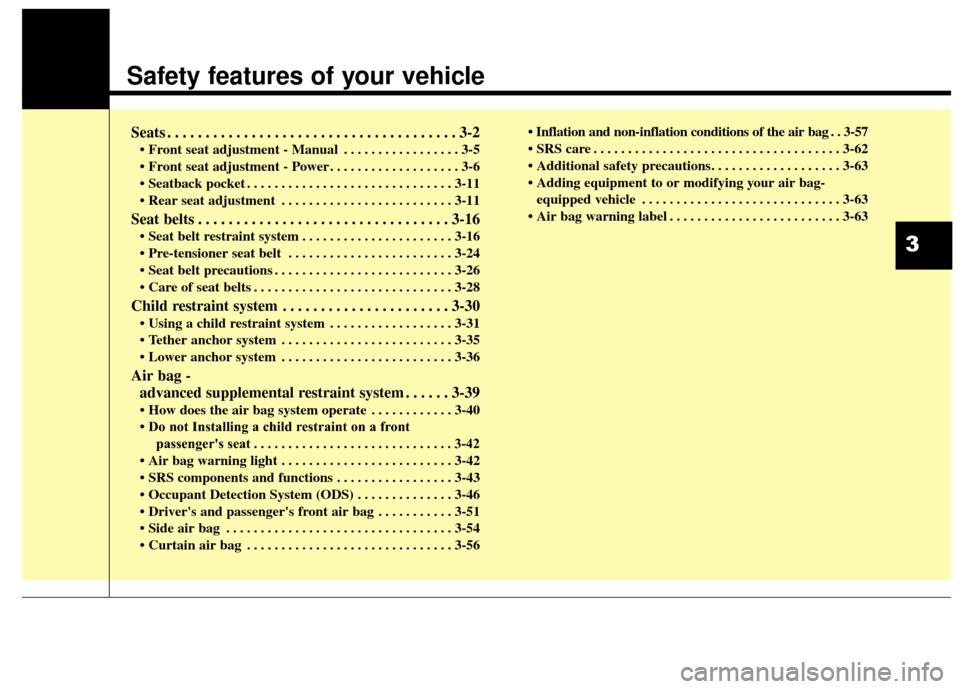

Safety features of your vehicle
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 3-2
• Front seat adjustment - Manual . . . . . . . . . . . . . . . . . 3-5
• Front seat adjustment - Power . . . . . . . . . . . . . . . . . . . 3-6
• Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-16
• Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . . 3-24
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-30
• Using a child restraint system . . . . . . . . . . . . . . . . . . 3-31
• Tether anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
• Lower anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
Air bag -
advanced supplemental restraint system . . . . . . 3-39
• How does the air bag system operate . . . . . . . . . . . . 3-40
• Do not Installing a child restraint on a front passenger's seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-42
• Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-42
• SRS components and functions . . . . . . . . . . . . . . . . . 3-43
• Occupant Detection System (ODS) . . . . . . . . . . . . . . 3-46
• Driver's and passenger's front air bag . . . . . . . . . . . 3-51
• Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-54
• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-56 •
Inflation and non-inflation conditions of the air bag . . 3-57
• SRS care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-62
• Additional safety precautions. . . . . . . . . . . . . . . . . . . 3-63
• Adding equipment to or modifying your air bag-
equipped vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-63
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-63
3
Page 19 of 556
Safety features of your vehicle
23
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)
(4) Lumbar support (Driver’s seat)
(5) Headrest
Rear seats
(6) Seatback folding
(7) Headrest
SEATS
OPS033001N
Manual seat
Power seat
Page 20 of 556
33
Safety features of your vehicle

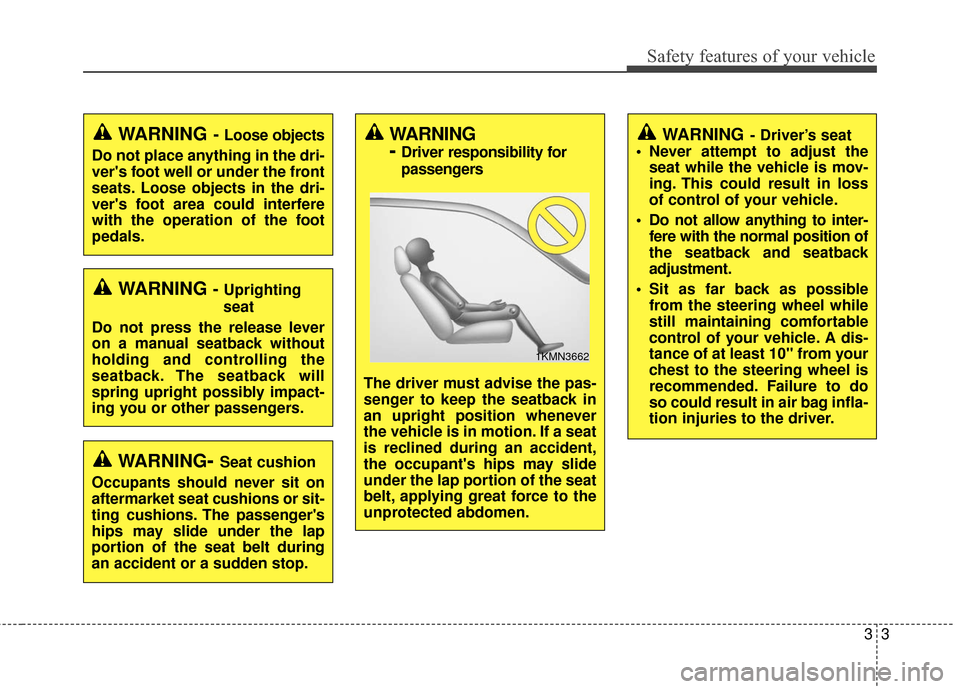

WARNING - Uprighting
seat
Do not press the release lever
on a manual seatback without
holding and controlling the
seatback. The seatback will
spring upright possibly impact-
ing you or other passengers.
WARNING- Loose objects
Do not place anything in the dri-
ver's foot well or under the front
seats. Loose objects in the dri-
ver's foot area could interfere
with the operation of the foot
pedals.WARNING
- Driver responsibility for
passengers
The driver must advise the pas-
senger to keep the seatback in
an upright position whenever
the vehicle is in motion. If a seat
is reclined during an accident,
the occupant's hips may slide
under the lap portion of the seat
belt, applying great force to the
unprotected abdomen.
1KMN3662
WARNING- Seat cushion
Occupants should never sit on
aftermarket seat cushions or sit-
ting cushions. The passenger's
hips may slide under the lap
portion of the seat belt during
an accident or a sudden stop.
WARNING- Driver’s seat
Never attempt to adjust the seat while the vehicle is mov-
ing. This could result in loss
of control of your vehicle.
Do not allow anything to inter- fere with the normal position of
the seatback and seatback
adjustment.
Sit as far back as possible from the steering wheel while
still maintaining comfortable
control of your vehicle. A dis-
tance of at least 10" from your
chest to the steering wheel is
recommended. Failure to do
so could result in air bag infla-
tion injuries to the driver.
