KIA SOUL EV 2015 Navigation System Quick Reference Guide

38
Navigation Commands
* Check the following before you use navigation commands :
1. Search for and find addresses located in the state or province your car is currently in.
If you want to search in another state, say the name of state/province and then look it up.
Find Address is classified by states/provinces to provide you with faster service.
2. Some commands such as “Cancel Route” are available only when the des- tination is fixed.
Command Operation
"J Find Address in

!Ÿ
Finds the address in and sets it as the destination.
e.g.) Find Address in California
!Ÿ
To find an address, you should say “House Number →

Street →
City” (in order, excluding the state).
e.g.) 300 (Three Zero Zero) Main Street, Almond
"J Find Address Finds the address and sets it as the destination.
"J Find the Nearest
POI
Find the nearest points of interest from your current location.
After this command, you can find the name of a location step-by-step.
"JFind the Nearest
Immediately finds nearest to your current location.
For details of , see “Find the Nearest
list”.
e.g.) Find the Nearest “Parking”
"J POIs Near
Destination Finds POIs near the destination.
A

fter this command, you can find the name of a location step-by-step.
"J
Near Destination Finds nea r the destination.
For details of , see “Find the Nearest
y> list”.
e.g.) “Banks” Near Destination
"J Map
Moves to the current position on the navigation map
"J Previous Points Displays a list combining Previous Destinations, Previous
Searches, and Previous Starting Points all together.
You can then set a destination by saying the list number.
"J Previous
Destinations Displays a list of recent destinations that you can return to
by saying the number in the list.
"J Previous
Searches Displays a list of recent searches, where you can set a desti-
nation by saying the number in the list.
"J Previous
Starting Points Displays a list of recent starting points that you can return to by
saying the number in the list.
"J Traffic
Information Moves to the Traffic Information menu screen.
"J Go Home Set the destination to your home.
Your home must first be set in the navigation system.
"J Go to Office Set the destination to your office/work.
Your office/work must first be set in the navigation system.
0039

39

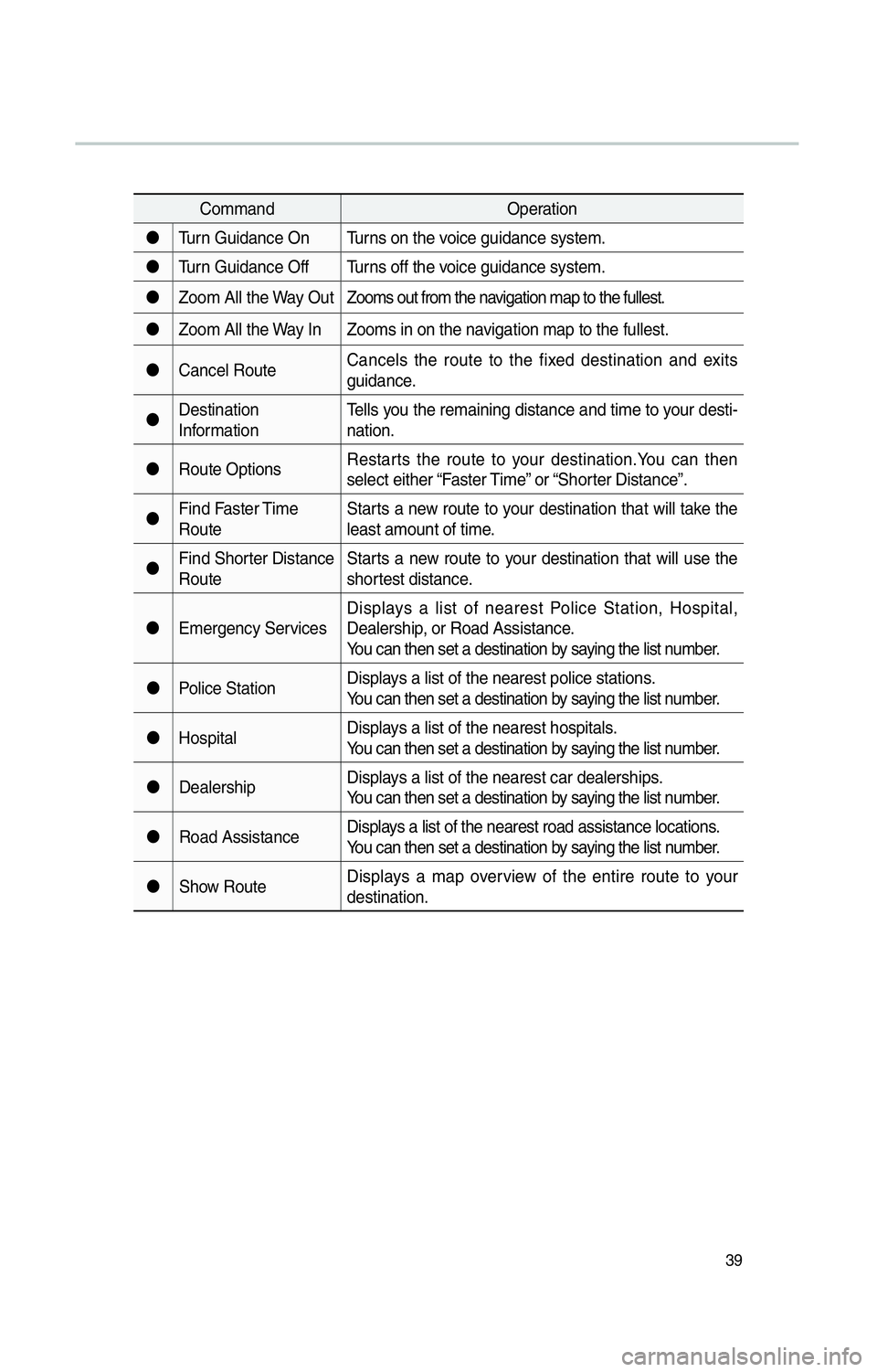

CommandOperation
"J Turn Guidance On Turns on the voice guidance system.
"J Turn Guidance Off Turns off the voice guidance system.
"J Zoom All the Way Out Zooms out from the navigation map to the fullest.
"J Zoom All the Way In Zooms in on the navigation map to the fullest.
"J Cancel Route Cancels the route to the fixed destination and exits
guidance.
"J Destination
Information Tells you the remaining distance and time to your desti-
nation.
"J Route Options Restarts the route to your destination.You can then
select either “Faster Time” or “Shorter Distance”.
"J Find Faster Time
Route Starts a new route to your destination that will take the
least amount of time.
"J Find Shorter Distance
Route Starts a new route to your destination that will use the
shortest distance.
"J Emergency Services Displays a list of nearest Police Station, Hospital,
Dealership, or Road Assistance.
You can then set a destination by saying the list number.
"J Police Station Displays a list of the nearest police stations.
You can then set a destination by saying the list number.
"J Hospital Displays a list of the nearest hospitals.
You can then set a destination by saying the list number.
"J Dealership Displays a list of the nearest car dealerships.
You can then set a destination by saying the list number.
"J Road Assistance Displays a list of the nearest road assistance locations.
You can then set a destination by saying the list number.
"J Show Route Displays a map overview of the entire route to your
destination.

40
CommandOperation
"J Radio
Plays the most recent radio channels from FM, AM, and SiriusXM™.
"JFM Plays FM radio.
"J FM
<87.5~107.9> Tunes to FM according to what you say.
e.g.) FM 87.5: FM eighty seven point five
"J SiriusXM Plays SiriusXM™ radio.
"J SiriusXM
Channel
<0~999> Tunes to SiriusXM™ Channel according
to what you say.
e.g.) SiriusXM Channel 23: SiriusXM Channel twenty three
"J AM Plays AM radio.
"J AM <530~1710> Tunes to AM according to what you say.
e.g.) AM 530: AM five thirty
!¹ Preset <1~18> Tunes to your preset stations (1 to 18).
!¹ Channel
<0~999> In SiriusXM™ Radio mode, turns on the
that you say.
Radio Commands
Media Commands
* Check the following before you use media commands.
1. If no media is connected or if no playable files exist at the time when you use these
commands, a voice message will tell you that this is not available at present.
2. If you say the name of the media that is currently playing again, then that media will continue playing. e.g.) Saying “USB” while USB content is playing.
Command Operation
"J Music Continues the last media you played.
This command does not include images.
"J iPod
Plays the iPod currently connected. This will work the same when an iPhone is
connected. If a USB is connected, then it will be played instead of the iPod.
"JUSB Plays the music on the USB currently connected.
If an iPod is connected, then the iPod will be played instead of the USB.
"J Bluetooth
Audio Plays the music on the Bluetooth phone currently connected.
This may not be supported depending on the Bluetooth connection status.
"J
AUX Plays external devices that are currently connected.
"J My Music Plays My Music files stored in the system.
"J Pandora
Radio Plays Pandora Radio that is currently connected.Pandora Radio
operates according to the iPod currently connected.
0039

41
1. MP3 CD / USB Music / iPod / My Music Command
CommandOperation
!¹ Play Plays a selected file.
Maintains the current settings during playback.
!¹ Pause Pauses a file that is playing.
Maintains current settings while paused during playback.
!¹ Shuffle Plays tracks or files randomly.
Maintains current settings during shuffled playback.
!¹ Shuffle Off Cancels Shuffle and plays tracks sequentially.
Maintains current settings during sequential playback.
!¹ Repeat Plays the current track or file repeatedly.
Maintains the current settings during repeat playback.
!¹ Repeat Off Cancels Repeat and plays multiple tracks or files.
Maintains current settings during multiple track playback.
2. Pandora Radio command
Command
Operation
!¹ Skip Moves to the next track.
!¹ Thumbs up If you like the genre of the music currently playing, say
“Thumbs up” so that more similar music will play.
!¹ Thumbs down If you don’t like the music currently playing, say “Thumbs
down” to minimize the number of playbacks of similar
genre music.
3. Bluetooth Audio / AUX Command

!Ÿ
Bluetooth Audio supports different functions according to connected devices,
therefore some commands are unavailable, including Play, Pause, Repeat
and Shuffle

.

!Ÿ
F
or external devices (AUX) and some commands are unavailable, including
Play, Pause, Repeat and Shuffle.

42
Other Commands List
(Commands used in List / Help)
CommandOperation
"J Help Moves to the voice recognition help screen.
All available commands can then be identified and used.
!¹ Line 1~5
(One~Five) When you cannot select a certain name, such as in Call
History, you can select it using numbers.
Simple numbers can be recognized, such as “One” or
“Two."
!¹ Yes / No When voice recognition is activated, this command is
used when an answer is requested for a confirmation
question.
!¹ Previous Page /
Next Page When five or more searched items are listed, you can
move to the previous or next page using a voice com-
mand.
!¹ Manual Input When Dial or POI Name search results are displayed,
this command is used to search manually, rather than to
search with a voice command.
Voice recognition stops after this command is used.
!¹ Go Back Moves to the previous screen.
"J Exit Ends the voice recognition.
0039
UVO EV Services Commands List (Optional)
Command Operation
"J Roadside Assist Connect with Roadside Assist agent.
"J EV Services
Guide Provide guidance on how to use UVO EV Services

43
0036004C0055004C00030028005C0048005600030029005500480048

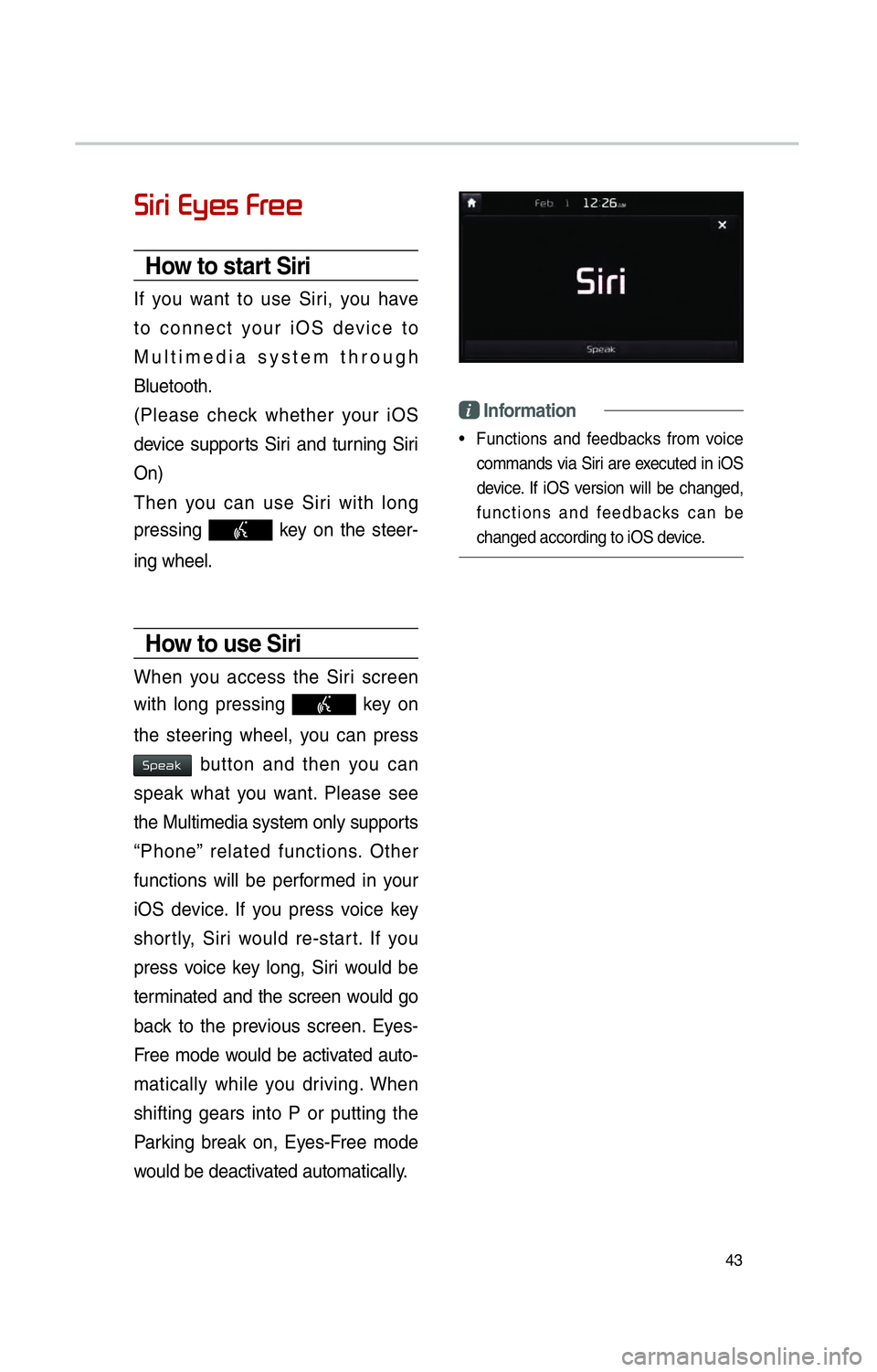

How to start Siri
If you want to use Siri, you have
to connect your iOS device to
Multimedia system through
Bluetooth.
(Please check whether your iOS
device supports Siri and turning Siri
On)
Then you can use Siri with long
pressing
key on the steer-
ing wheel.
How to use Siri
When you access the Siri screen
with long pressing
key on
the steering wheel, you can press
0036005300480044004E button and then you can
speak what you want. Please see
the Multimedia system only supports
“Phone” related functions. Other
functions will be performed in your
iOS device. If you press voice key
shortly, Siri would re-start. If you
press voice key long, Siri would be
terminated and the screen would go
back to the previous screen. Eyes-
Free mode would be activated auto-
matically while you driving. When
shifting gears into P or putting the
Parking break on, Eyes-Free mode
would be deactivated automatically.
i Information
• Functions and feedbacks from voice commands via Siri are executed in iOS
device. If iOS version will be changed,
functions and feedbacks can be
changed according to iOS device.

44
About Pairing Mobile Phones
0034I cannot pair my mobile phone, what is the cause?
0024
Check to see that the mobile phone supports Bluetooth® function. Verify
if Bluetooth on the cell phone is set to OFF. If so, set it to ON. If the cell
phone still can’t be registered, try again after turning Bluetooth off and on,
or delete the device registration on the AVN and cell phone and then regis-
ter the cell phone again.
0034
What is the difference between pairing a mobile phone and connecting a mobile phone?
0024
Pairing occurs through authenticating the head unit and mobile phone. Mobile phones paired to the head unit can be connected and disconnected \
until the paired mobile phone is deleted from the system. Bluetooth
®
Handsfree features, such as making/answering calls or managing
Contacts, are supported only in mobile phones connected with the head
unit.
0034
What is a Passkey?
0024
A passkey is the password used to authenticate the connection between the head unit and mobile phone. The passkey only needs to be entered
once when pairing the mobile phone for the first time.
The initial passkey is 0000. The passkey can be changed by pressing
00360028003700380033 Ü
0033004B005200510048 Ü
0025004F005800480057005200520057004B00030036005C00560057004800500003002C0051004900520003 Ü
0033004400560056004E0048005C menu.
00290024

45
About Making/Answering Phone Calls
0034
How can I answer a call?
0024
When there is an incoming call, a notification pop-up will become displa\
yed. To answer the incoming call, press the
002400460046004800530057 button using the center
controller or the
key on the steering remote controller. To reject the
call, press the
00350048004D004800460057 button on the screen or press and hold (over 0.8
seconds) the
key on the steering wheel control.
0034
What should I do if I am talking on the Handsfree but want to switch the call to the mobile phone?
0024
While on a call, press the key on the steering remote controller or
press the
0003003800560048000300330055004C0059004400570048 button at the bottom of the Phone screen to switch
the call to your mobile phone.
About Bluetooth® Wireless Technology/
Head Unit Use Environment
0034
What is the range of my wireless connection?
00240003The wireless connection can be used within 15 yards.
0034
How many mobile phones can be paired?
00240003It is possible to pair up to five mobile phones.
0034
Why is call quality sometimes poor?
0024
Check the reception sensitivity of the mobile phone when call quality
becomes worsened. The call quality may deteriorate when the signal
strength is low. Call quality may also worsen if metal objects, such as bev-
erage cans, are placed near the mobile phone. Check to see if there are
metal objects in the vicinity of the mobile phone. The call sound and quality
may differ depending on the type of mobile phone.

46
003100440059004C004A00440057004C00520051
002500440056004C0046000300290048004400570058005500480056
Operating Navigation
Screen
Basic features on the map screen.

Name Description
Go to the Home
screen.
Change the map
view mode.
Voice Guidance
On/Off.
Zoom in the map.
Set the zoom
level automatically
according to the
guidance.
Zoom out the map.
MenuQuick and easy
selection of a desti-
nation and options.
Touch to scroll the
map.
0036004800570003004400560027004800560057004C005100440057004C00520051
Quick and easy
selection of a des-
tination from the
map screen.
AddWaypointSet a waypoint to
the current route.
Add toAddress Book
Save frequently
used address to
address book.
POI
Find a POI(Point
Of Interest) around
the current position.
View the vehicle’s
current position on
the map screen.

47
Changing Map View
Touch the compass arrow icon to
toggle between a map oriented to
the North, or oriented parallel to the
vehicle’s heading.
Voice Guidance
Volum e O n /O f f
Press the NAVI sound button to turn
the volume on and off.
Zoom In /Zoom Out
Zoom the map view screen in and
out.
Zoom In and Zoom Out
Press 000E0003 or 00100003 button to set the
zoom level
Map Scale
Sets the zoom level automatically
according to the road class
Name Description

Scale Fix Manually adjust
the map scale

Auto Scale Change the map
scale automatically
depending on the
road class
