KIA Soul EV 2016 2.G Owner's Manual

Specifications & Consumer information
28
DIMENSIONS
POWER ELECTRIC SPECIFICATIONS
Itemmm (in)
Overall length
4,140 (162.9)
Overall width
1,800 (70.9)
Overall height
1,600 (62.9)
Front tread
205/60R161,576 (62.1)
Rear tread
205/60R161,585 (62.4)
Wheelbase
2,570 (101.2)
MOTOR Max. Output (KW) 81.4
Max. Torque (Nm) 285
EPCU INVERTER
Input Voltage 240~413
LDC Max. Output (KW) 1.7
CHARGER (OBC)Max. Output (KW)6.6

83
Specifications & Consumer information

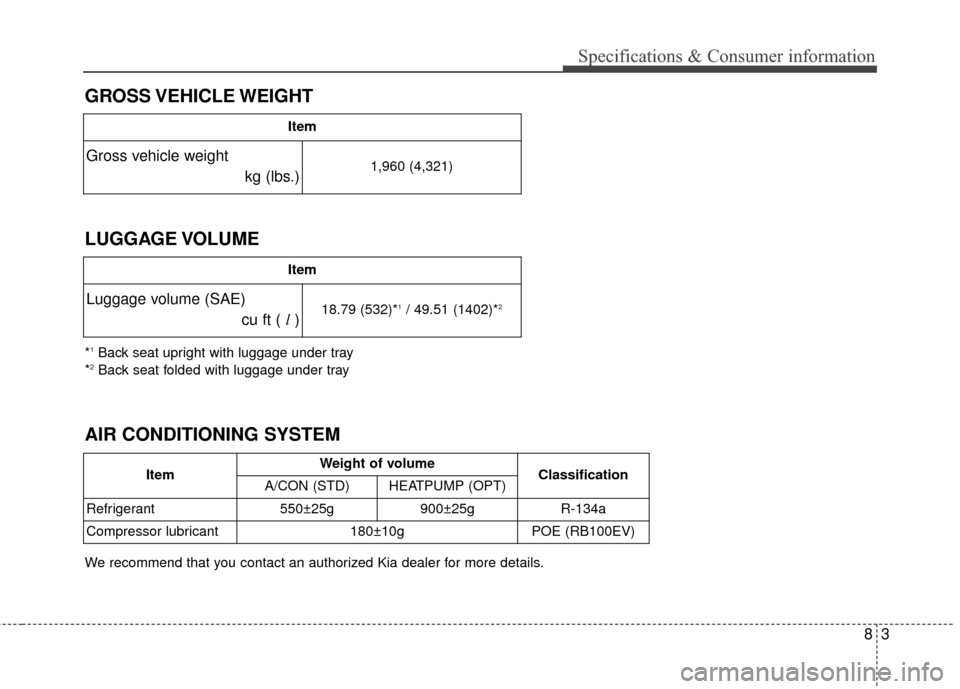

GROSS VEHICLE WEIGHT
LUGGAGE VOLUME
Item
Gross vehicle weight kg (lbs.)1,960 (4,321)
Item
Luggage volume (SAE)cu ft ( l)18.79 (532)*1/ 49.51 (1402)*2
AIR CONDITIONING SYSTEM
ItemWeight of volumeClassification A/CON (STD)HEATPUMP (OPT)
Refrigerant
550±25g 900±25gR-134a
Compressor lubricant
180±10gPOE (RB100EV)
We recommend that you contact an authorized Kia dealer for more details. *
1Back seat upright with luggage under tray
*2Back seat folded with luggage under tray

Specifications & Consumer information
48

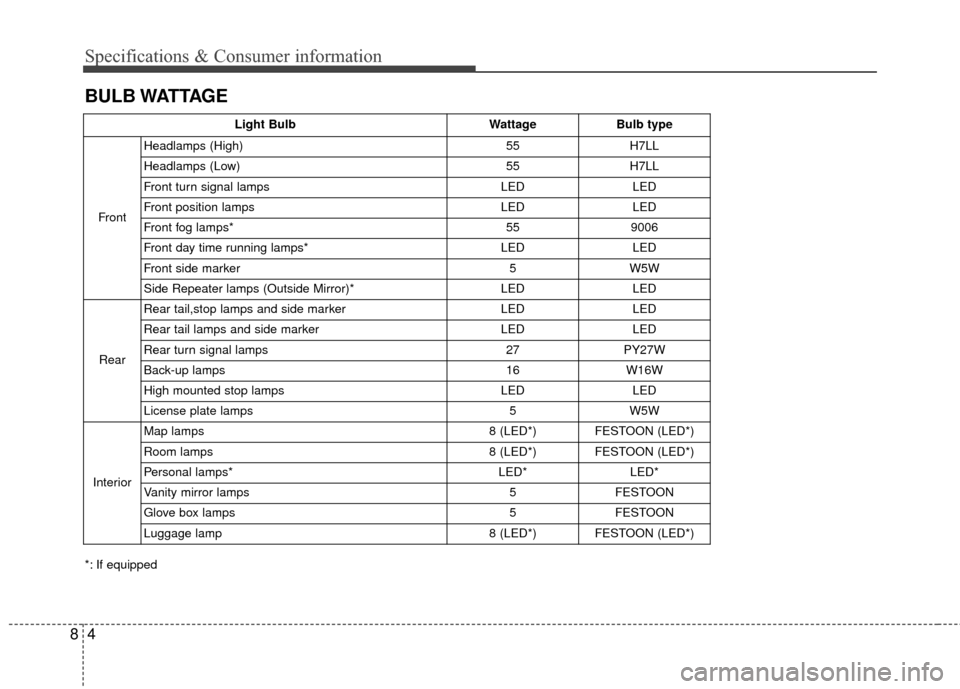

BULB WATTAGE
Light BulbWattageBulb type
Front Headlamps (High)
55H7LL
Headlamps (Low) 55H7LL
Front turn signal lamps LEDLED
Front position lamps LEDLED
Front fog lamps* 559006
Front day time running lamps*LEDLED
Front side marker 5W5W
Side Repeater lamps (Outside Mirror)* LED LED
Rear Rear tail,stop lamps and side marker LED LED
Rear tail lamps and side marker LED LED
Rear turn signal lamps 27 PY27W
Back-up lamps 16 W16W
High mounted stop lamps LED LED
License plate lamps 5 W5W
Interior Map lamps 8 (LED*) FESTOON (LED*)
Room lamps 8 (LED*) FESTOON (LED*)
Personal lamps* LED* LED*
Vanity mirror lamps 5 FESTOON
Glove box lamps 5 FESTOON
Luggage lamp 8 (LED*) FESTOON (LED*)
*: If equipped

85
Specifications & Consumer information
TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
ItemTire sizeWheel sizeLoad CapacitySpeed capacityInflation pressure kPa (psi)Wheel lug nut torque
kgf•m (lbf N
Normal loadMaximum load
LI *1KgSS *2Km/hFrontRear FrontRear
Full size tire205/60R166.5J×1692630H210230 (33)9~11
(65~79, 88~107)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
✽ ✽ NOTICE
We recommend that when replacing tires, use the same originally supplied with the vehicles.
If not, that affects driving performance.

Specifications & Consumer information
68
LubricantVolume Classification
Reduction gear oil 1.3±0.1
l
(1.4±0.1 US qt.) 75W/85, GL-4
Coolant 5.1
l
(5.39 US qt.) Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluid FMVSS116 DOT-3 or DOT-4

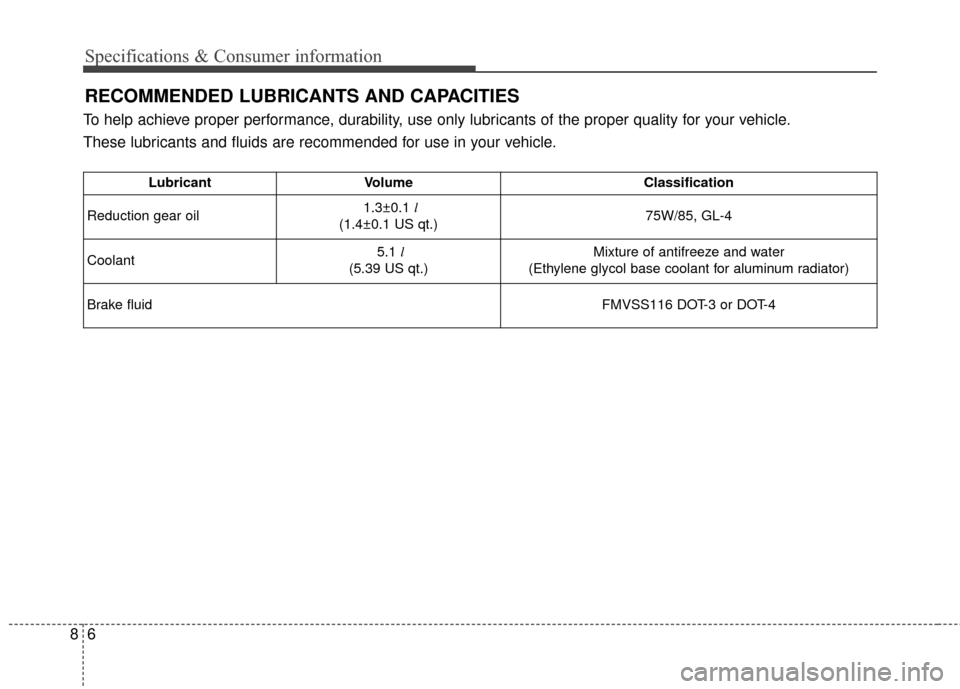

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper performance, durability, use only lubricants of the proper quality for your vehicle.
These lubricants and fluids are recommended for use in your vehicle.

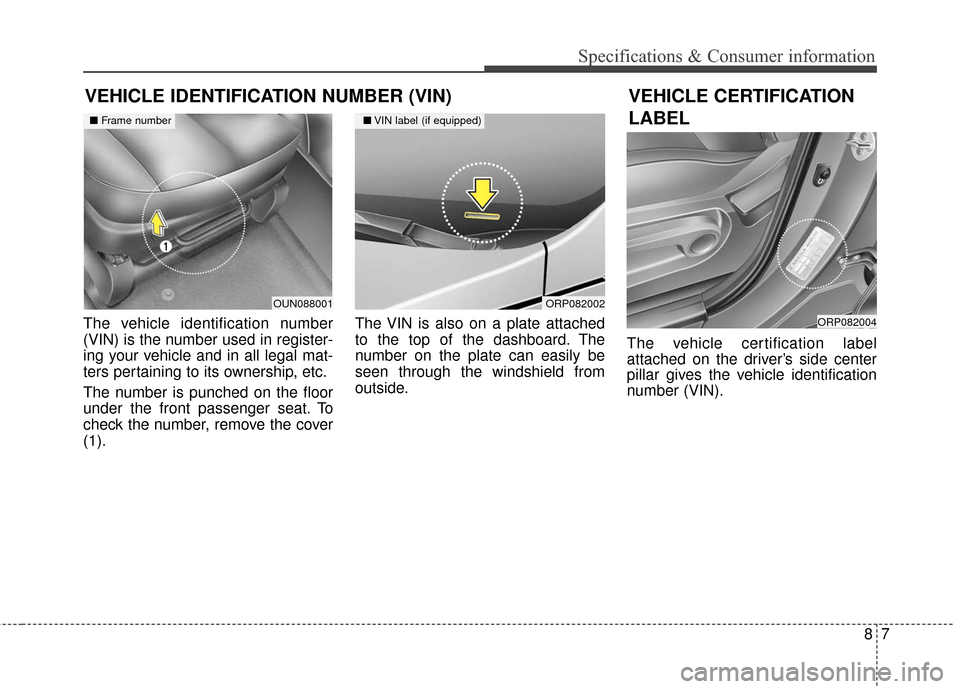

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the front passenger seat. To
check the number, remove the cover
(1).The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OUN088001
■
Frame number
VEHICLE CERTIFICATION
LABEL
ORP082002
■VIN label (if equipped)
ORP082004
87
Specifications & Consumer information

Specifications & Consumer information
88

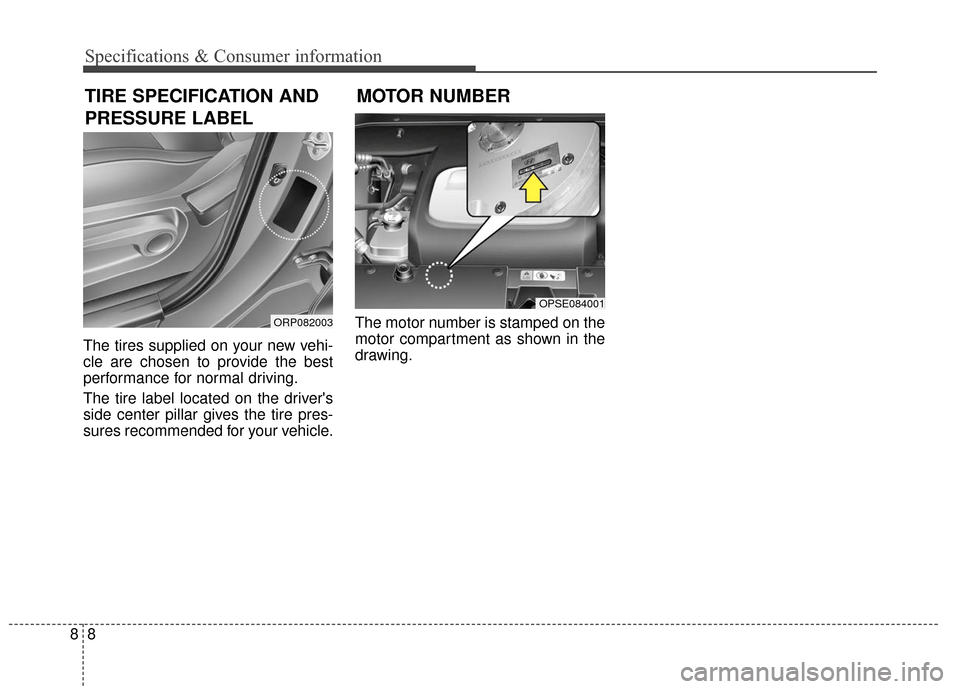

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The motor number is stamped on the
motor compartment as shown in the
drawing.
TIRE SPECIFICATION AND
PRESSURE LABEL
ORP082003
OPSE084001
MOTOR NUMBER
