KIA SOUL EV 2017 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: SOUL EV, Model: KIA SOUL EV 2017Pages: 92, PDF Size: 2.41 MB
Page 21 of 92
18

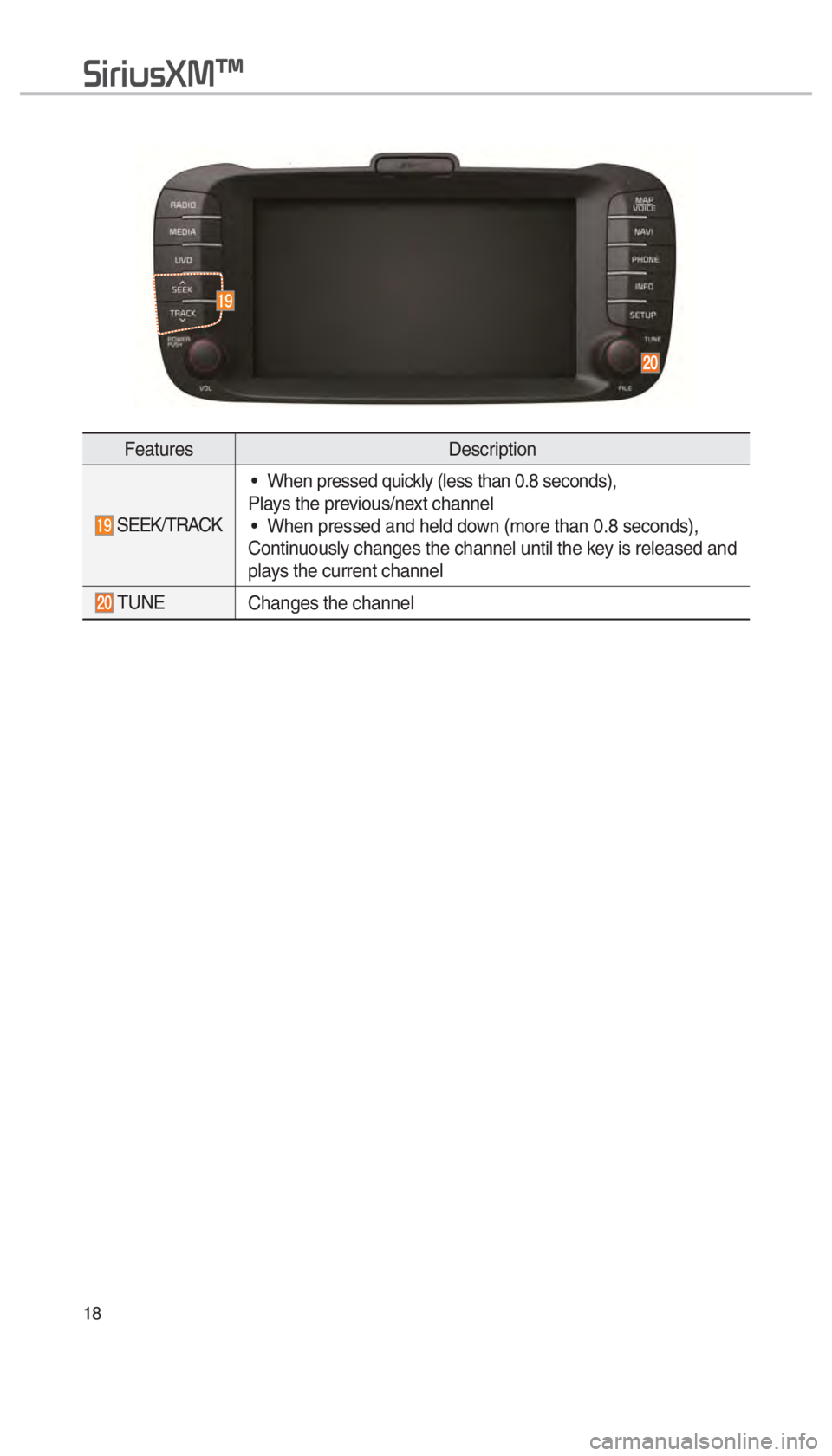

FeaturesDescription
SEEK/TRACK• When pressed quickly (less than 0.8 seconds),
Plays the previous/next channel • When pressed and held down (more than 0.8 seconds),
Continuously changes the channel until the key is released and
plays the current channel
TUNE Changes the channel
0036004C0055004C00580056003B00300430
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 22 of 92
19
003800360025

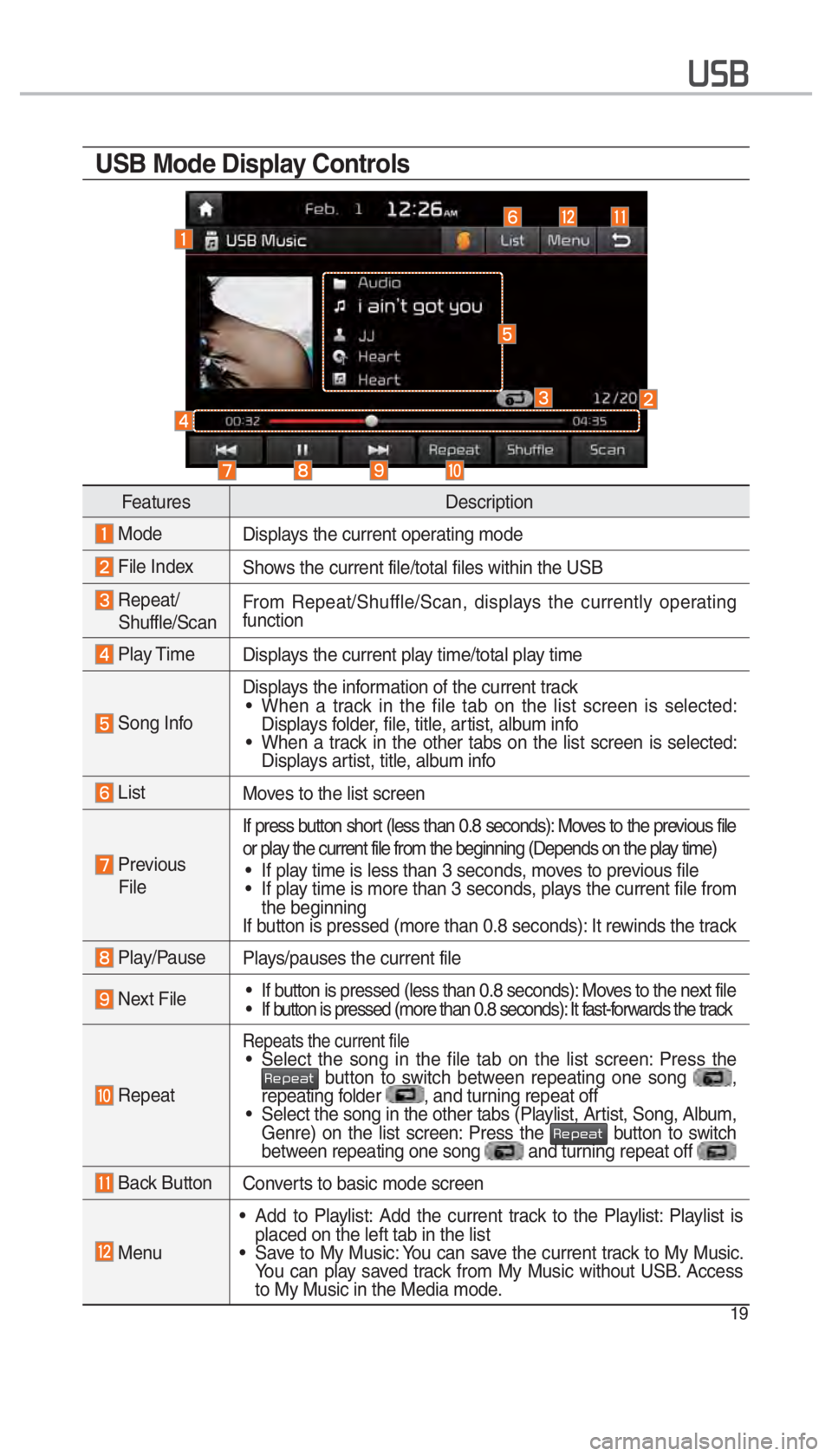

USB Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track
• When a track in the file tab on the list screen is selected: Displays folder, file, title, artist, album info
• When a track in the other tabs on the list screen is selected: Displays artist, title, album info
List Moves to the list screen
Previous
File If press button short (less than 0.8 seconds): Moves to the previous file
or play the current file from the beginning (Depends on the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is more than 3 seconds, plays the current file from the beginning
If button is pressed (more than 0.8 seconds): It rewinds the track
Play/Pause Plays/pauses the current file
Next File • If button is pressed (less than 0.8 seconds): Moves to the next file
• If button is pressed (more than 0.8 seconds): It fast-forwards the track
Repeat
Repeats the current file• Select the song in the file tab on the list screen: Press the 003500480053004800440057 button to switch between repeating one song ,
repeating folder , and turning repeat off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
003500480053004800440057 button to switch
between repeating one song and turning repeat off
Back Button Converts to basic mode screen
Menu • Add to Playlist: Add the current track to the Playlist: Playlist is
placed on the left tab in the list
• Save to My Music: You can save the current track to My Music. You can play saved track from My Music without USB. Access
to My Music in the Media mode.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 23 of 92
20

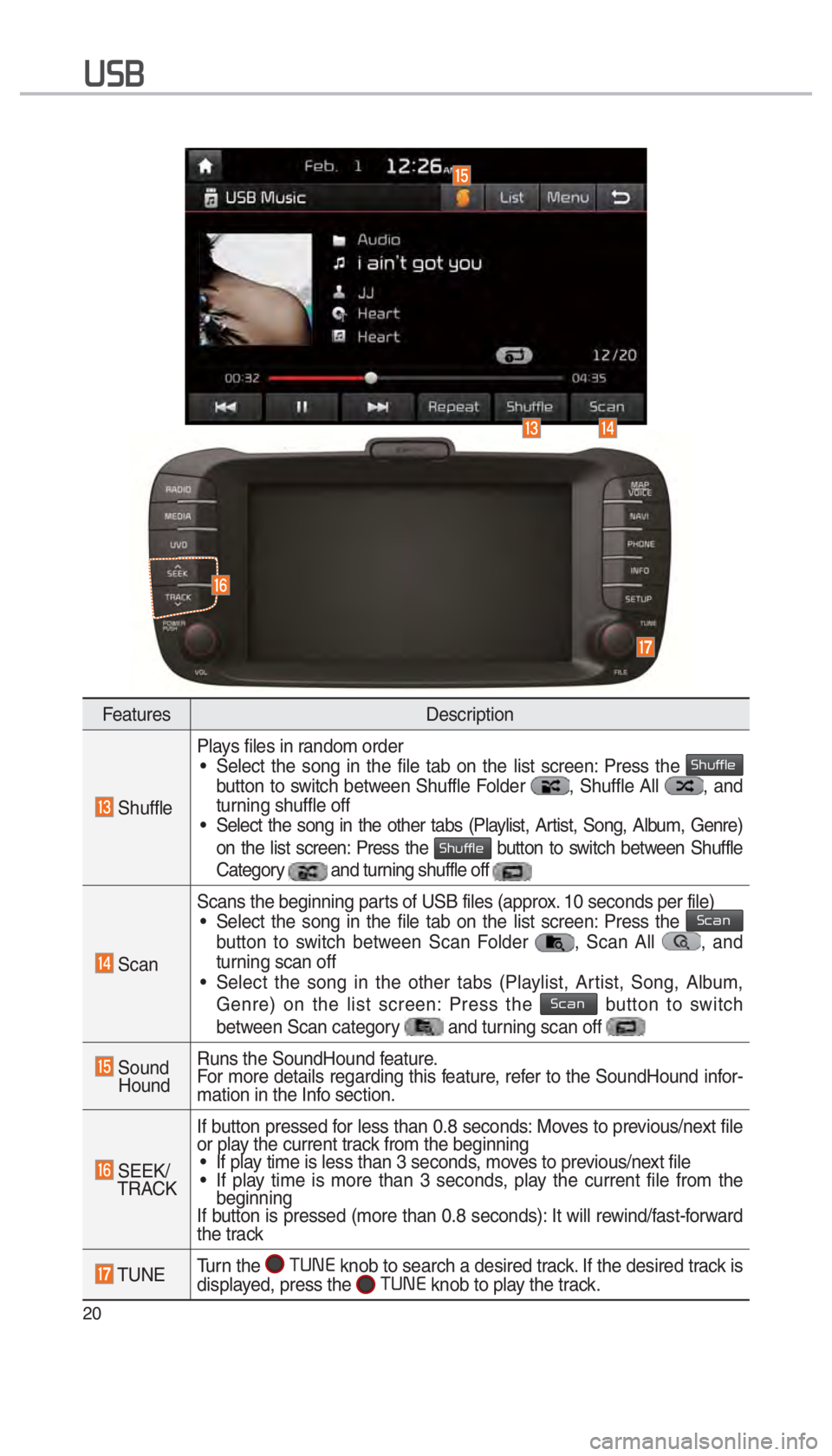

FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen: Press the
0036004B005800490049004F0048
button to switch between Shuffle Folder , Shuffle All , and
turning shuffle off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre)
on the list screen: Press the
0036004B005800490049004F0048 button to switch between Shuffle
Category
and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
• Select the song in the file tab on the list screen: Press the
0036004600440051
button to switch between Scan Folder , Scan All , and
turning scan off
• Select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen: Press the
0036004600440051 button to switch
between Scan category and turning scan off
Sound Hound Runs the SoundHound feature.
For more details regarding this feature, refer to the SoundHound infor-
mation in the Info section.
SEEK/
TRACK If button pressed for less than 0.8 seconds: Moves to previous/next file
or play the current track from the beginning
• If play time is less than 3 seconds, moves to previous/next file
• If play time is more than 3 seconds, play the current file from the beginning
If button is pressed (more than 0.8 seconds): It will rewind/fast-forward
the track
TUNE Turn the 0003
0037003800310028
knob to search a desired track. If the desired track is
displayed, press the 0003 0037003800310028
knob to play the track.
003800360025
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 24 of 92
21
USB Image
FeaturesDescription
Mode
Displays the current operating mode
Folder/
File Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow Images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
InfoShows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next Image Swipe image left or right to see previous/next image
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 25 of 92
22

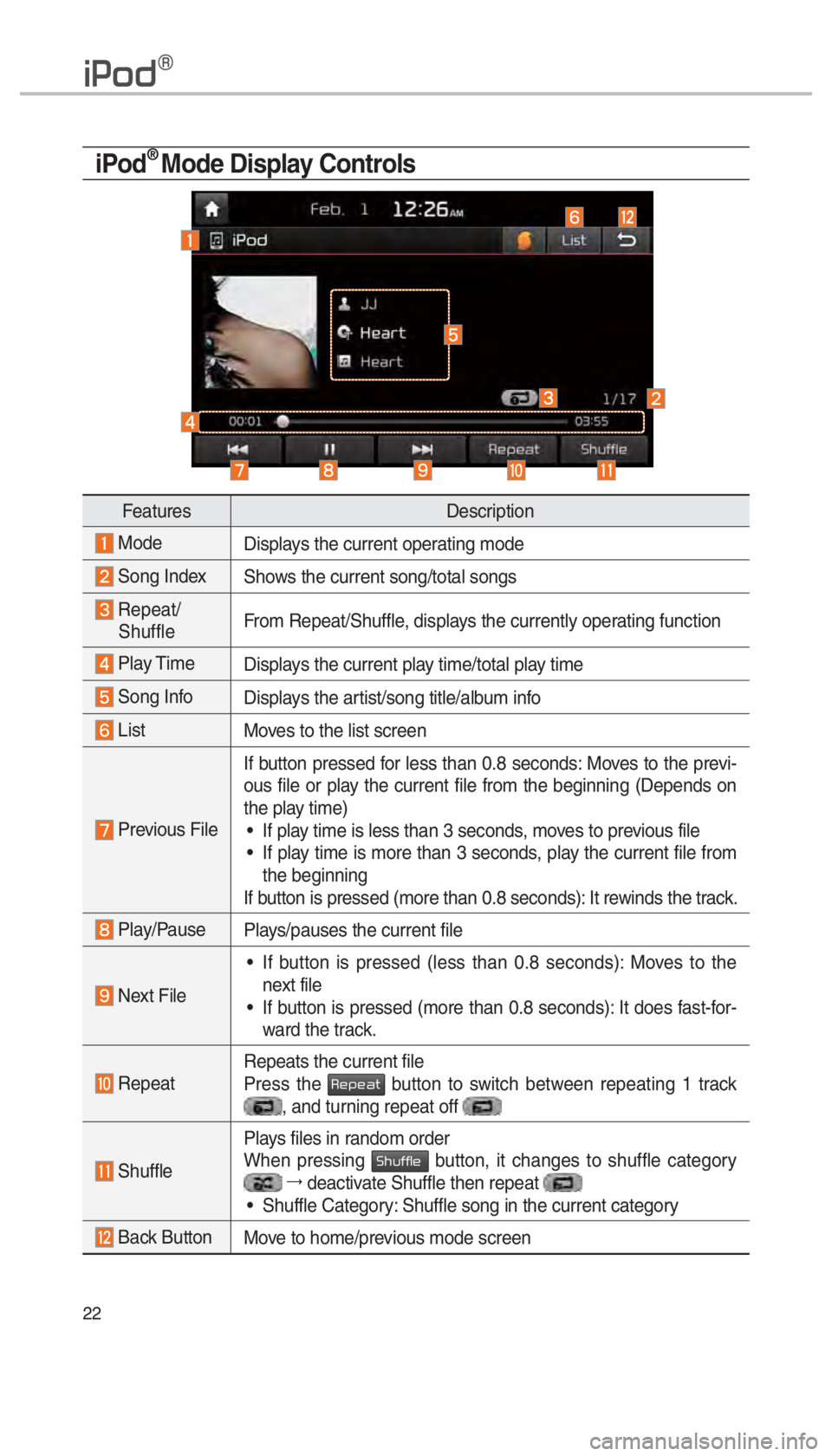

iPod® Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
Song IndexShows the current song/total songs
Repeat/
Shuffle From Repeat/Shuffle, displays the currently operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the artist/song title/album info
ListMoves to the list screen
Previous File If button pressed for less than 0.8 seconds: Moves to the previ-
ous file or play the current file from the beginning (Depends on
the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is more than 3 seconds, play the current file from the beginning
If button is pressed (more than 0.8 seconds): It rewinds the track.
Play/Pause Plays/pauses the current file
Next File • If button is pressed (less than 0.8 seconds): Moves to the
next file
• If button is pressed (more than 0.8 seconds): It does fast-for- ward the track.
Repeat Repeats the current file
Press the 003500480053004800440057 button to switch between repeating 1 track , and turning repeat off
ShufflePlays files in random order
When pressing 0036004B005800490049004F0048 button, it changes to shuffle category
044F
deactivate Shuffle then repeat • Shuffle Category: Shuffle song in the current category
Back Button Move to home/previous mode screen
004C0033005200470071
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 26 of 92
23

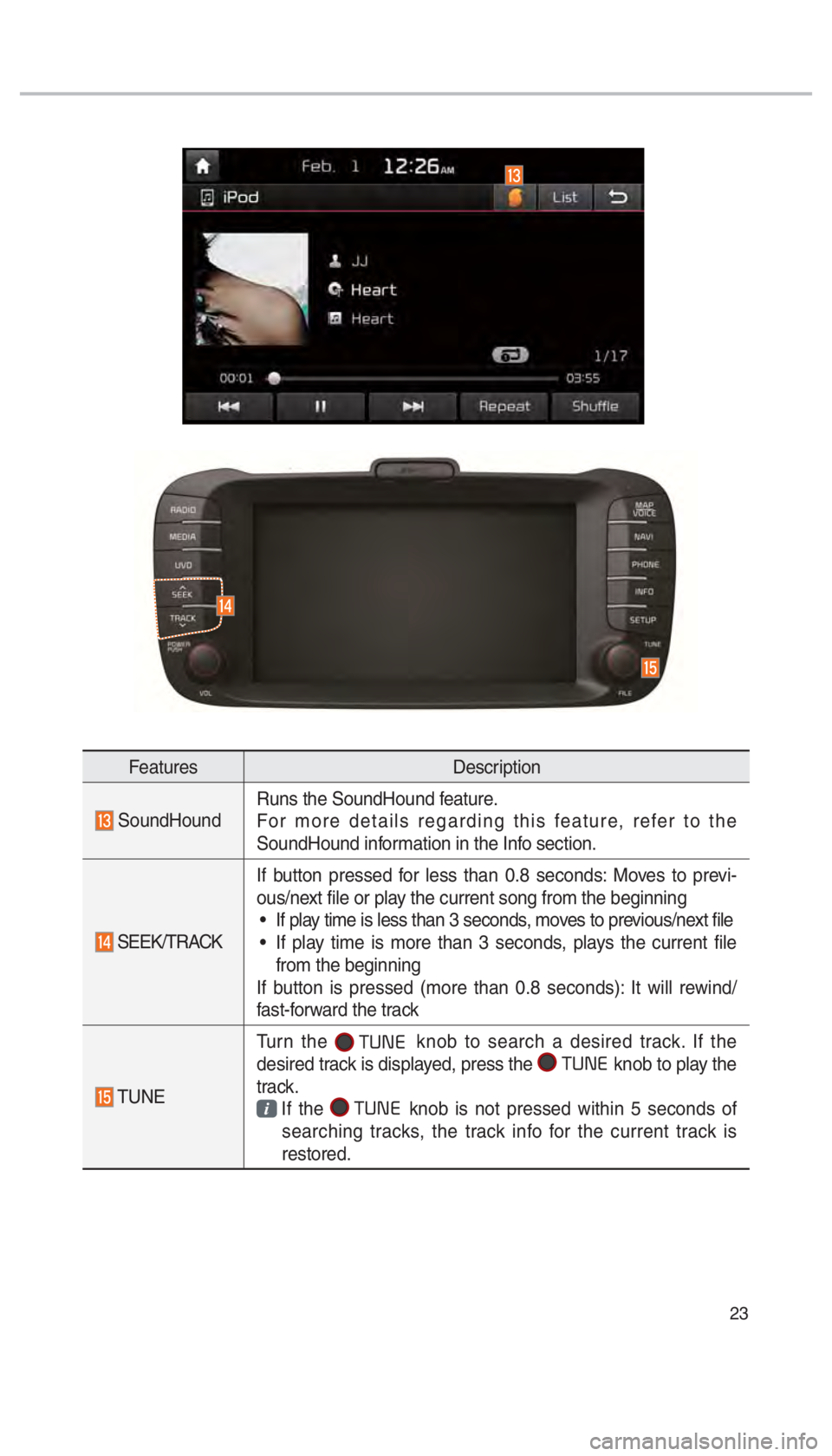

FeaturesDescription
SoundHoundRuns the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
SEEK/TRACKIf button pressed for less than 0.8 seconds: Moves to previ-
ous/next file or play the current song from the beginning
• If play time is less than 3 seconds, moves to previous/next file
• If play time is more than 3 seconds, plays the current file from the beginning
If button is pressed (more than 0.8 seconds): It will rewind/
fast-forward the track
TUNE Turn the
00030037003800310028
knob to search a desired track. If the
desired track is displayed, press the 00030037003800310028
knob to play the
track.
If the 000300370038003100280003
knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 27 of 92
24
Features Description
Sound
Hound Runs the SoundHound
feature.
For more details regard-
ing this feature, refer
to the SoundHound
information in the Info
section.
Back
Button Move to home/previous
mode screen
i
Information
• key, 0037003800310028
is
not supported.
NOTICE
• If only cable connected to the AUX
without an exter
nal device, the mode
changed to AUX, but noise may occur.
When an external device is not being
used, remove the connector jack.
• When the external device power is
connected to the po w
er jack, playing
the external device may output noise.
In such cases, disconnect the power
connection before use.
0424 The actual feature in the vehicle
may differ from the illustration.
00240038003B
Connecting an
External Device
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will
be restored. • AUX mode can be used only when an external audio player (cam-
corder, car VCR, etc.) has been
connected.
• The AUX volume can also be controlled separately through the
connected device.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 28 of 92
25
Bluetooth® Audio Mode Display Controls
i Information
• Artist info and Title may not be supported by mobile phone.
0025004F005800480057005200520057004B00710003002400580047004C0052
Features Description
Mode Displays the current operating mode
Phone Name Displays name of connected phone
Artist Info Name of current artist
TitleName of current song
Previous File • If play time is less than 3 seconds, moves to the previous file
• If play time is more than 3 seconds, plays the current file
from the beginning
This function may differ depending on the model of mobile
phone.
Play/Pause Plays/Pauses Bluetooth Audio
Next FileMoves to the next file
RepeatRepeats the current file This function may differ depending on the model of mobile
phone.
Shuffle Plays files in random order This function may differ depending on the model of mobile
phone.
SoundHound Runs the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
Connections
Moves to the Bluetooth Settings screen. You can pair a new
device or change/delete paired device(s)
SEEK/TRACK Plays the previous/next file
TUNE
00030037003800310028 is not supported.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 29 of 92
26
0030005C0003003000580056004C0046

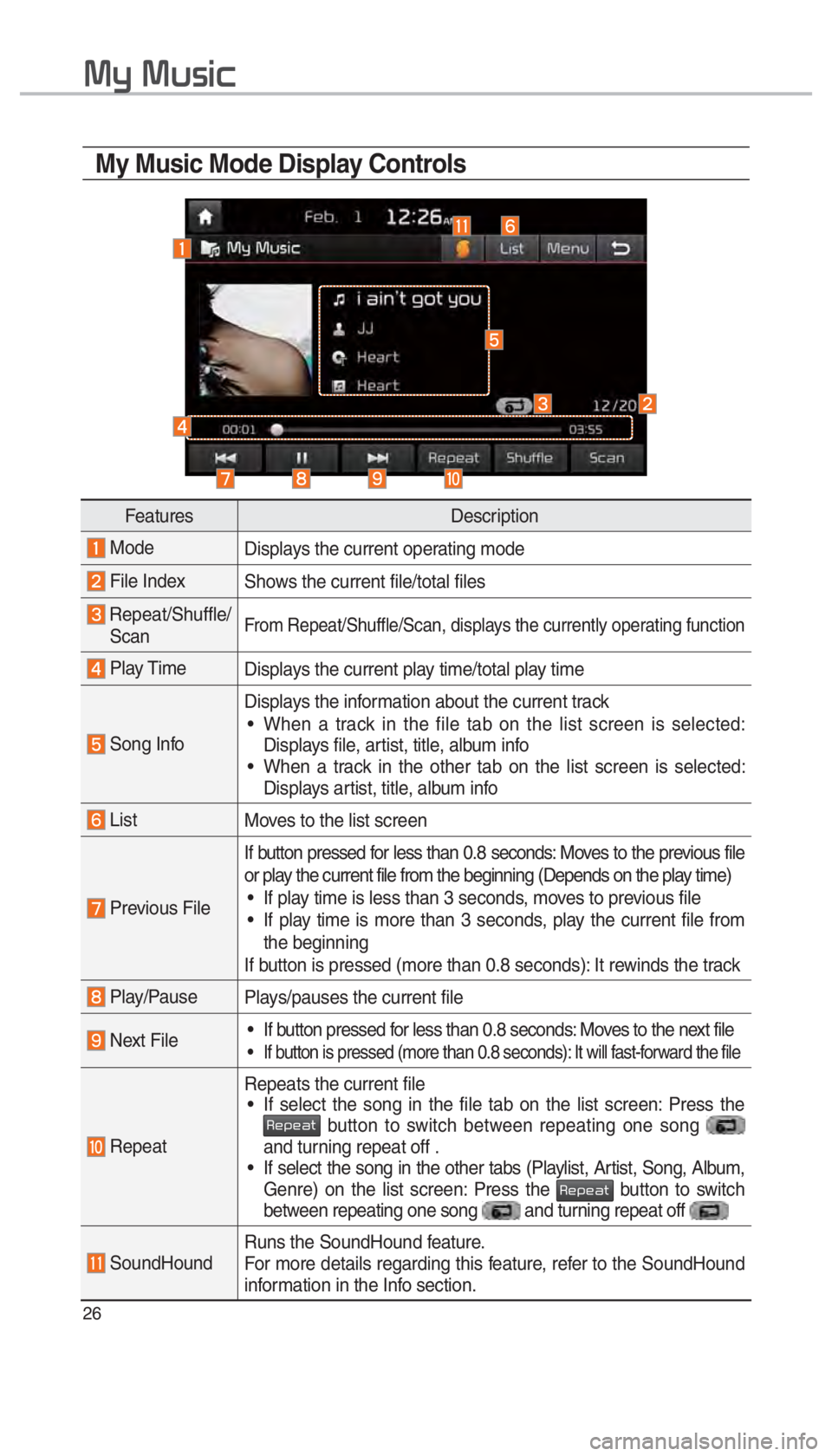

My Music Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files
Repeat/Shuffle/
ScanFrom Repeat/Shuffle/Scan, displays the currently operating function
Play Time Displays the current play time/total play time
Song InfoDisplays the information about the current track
• When a track in the file tab on the list screen is selected: Displays file, artist, title, album info
• When a track in the other tab on the list screen is selected: Displays artist, title, album info
List Moves to the list screen
Previous FileIf button pressed for less than 0.8 seconds: Moves to the previous file
or play the current file from the beginning (Depends on the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is more than 3 seconds, play the current file from the beginning
If button is pressed (more than 0.8 seconds): It rewinds the track
Play/Pause Plays/pauses the current file
Next File • If button pressed for less than 0.8 seconds: Moves to the next file • If button is pressed (more than 0.8 seconds): It will fast-forward the file
RepeatRepeats the current file
• If select the song in the file tab on the list screen: Press the
003500480053004800440057 button to switch between repeating one song
and turning repeat off .
• If select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
003500480053004800440057 button to switch
between repeating one song and turning repeat off
SoundHound Runs the SoundHound feature.
For more details regarding this feature, refer to the SoundHound
information in the Info section.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 30 of 92
27

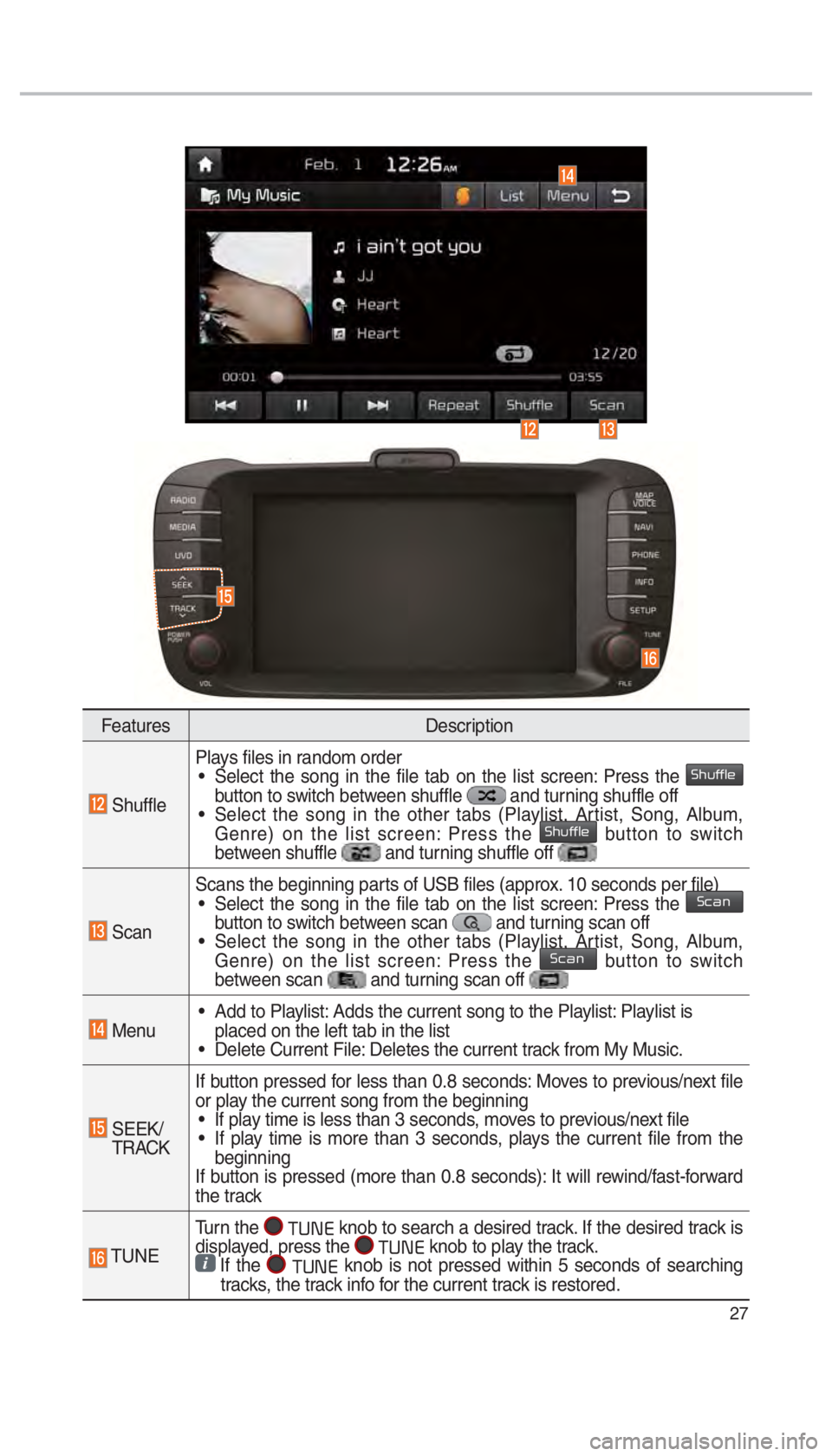

FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen: Press the
0036004B005800490049004F0048
button to switch between shuffle and turning shuffle off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
0036004B005800490049004F0048 button to switch
between shuffle and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
• Select the song in the file tab on the list screen: Press the
0036004600440051
button to switch between scan and turning scan off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
0036004600440051 button to switch
between scan and turning scan off
Menu • Add to Playlist: Adds the current song to the Playlist: Playlist is
placed on the left tab in the list
• Delete Current File: Deletes the current track from My Music.
SEEK/
TRACK If button pressed for less than 0.8 seconds: Moves to previous/next file
or play the current song from the beginning
• If play time is less than 3 seconds, moves to previous/next file
• If play time is more than 3 seconds, plays the current file from the beginning
If button is pressed (more than 0.8 seconds): It will rewind/fast-forward
the track
TUNE Turn the
0037003800310028 knob to search a desired track. If the desired track is
displayed, press the 0037003800310028 knob to play the track.
If the 0037003800310028 knob is not pressed within 5 seconds of searching
tracks, the track info for the current track is restored.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
