Thank you for purchasing this multimedia system.
This user’s manual explains how to use the Kia Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
• The screens shown in this manual may differ with the actual screens of the product.
• The design and specification of this product may change without prior notification for
product improvement.
• When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
• Driving while distracted can result in a loss of vehicle control, that may lead to an acci-
dent, severe personal injury, and death. The driver’s primary responsibility is in the safe
and legal operation of a vehicle, and use of any handheld devices, other equipment, or
vehicle systems which take the driver’s eyes, attention and focus away from the safe
operation of a vehicle or which are not permissible by law should never be used during
operation of the vehicle.
• Do not operate the multimedia system while driving.
• Do not disassemble, assemble, or modify the multimedia system.
• Do not watch the screen for prolonged periods of time while driving.
• Set the volume to a level which allows the driver to be aware of external conditions.
• Do not operate the multimedia system for prolonged periods of time with the vehicle igni-
tion in ACC. Such operations may lead to battery discharge.
• Be cautious not to spill water or introduce foreign objects into the device.
• Do not cause severe shock to the device. Direct pressure onto the front side of the moni-
tor may cause damage to the LCD or touch panel.
• In case of product malfunction, please contact your place of purchase or service center.
• When cleaning the touch screen, make sure to turn off the device and use a dry and
smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia,
benzene, thinners, etc.) as such materials may damage the device panel or cause color
and quality deterioration.
• SiriusXM service requires a subscription, sold separately, after 3-month trial
included with vehicle purchase. If you decide to continue your SiriusXM service at
the end of your trial subscription, the plan you choose will automatically renew and
bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See
our Customer Agreement for complete terms at www.siriusxm.com. Programming
subject to change. Sirius satellite service is available only to those at least 18 and
older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic
information not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
WARNING
• Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
• Infinity is a trademark of Harman International Industries, Inc.
• App Store is a service mark of Apple Inc. No charge for the UVO eServices app. App
runs on your smartphone cellular data service. Normal data rates will apply.
• HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital
Corporation.
• 24-hour Roadside Assistance is a service plan provided by Kia Motors America,
Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and
Consumer Information Manual. For access to Enhanced Roadside Assistance, a con-
nected mobile phone via Bluetooth within the cellular service coverage area is required.
• Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature
checks powertrain, chassis, and airbag systems only. For factory-recommended mainte-
nance schedule, see the Maintenance Feature of UVO eServices or the Owner’s Manual.
• 911 Connect activates after an airbag deployment. Feature requires a connected mobile
phone via Bluetooth. Dependant on cellular service coverage.
• The rear-camera display is not a substitute for proper and safe backing-up procedures. The
rear-camera display may not display every object behind the vehicle. Always drive safely and
use caution when backing up.All Map Database cannot be copied without permission.
Important Notice: This is protected by U.S. copyright laws. All rights
not expressly granted are reserved.
You may not otherwise reproduce, modify, and distribute the content
without Hyundai M&Soft, Inc's prior written consent.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( $ 0 7 & 3 J O E E , @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( $ 0 7 & 3 J O E E
Page 3 of 92
Thank you for purchasing this multimedia system.
This user’s manual explains how to use the Kia Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
• The screens shown in this manual may differ with the actual screens of the product.
• The design and specification of this product may change without prior notification for
product improvement.
• When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
• Driving while distracted can result in a loss of vehicle control, that may lead to an acci-
dent, severe personal injury, and death. The driver’s primary responsibility is in the safe
and legal operation of a vehicle, and use of any handheld devices, other equipment, or
vehicle systems which take the driver’s eyes, attention and focus away from the safe
operation of a vehicle or which are not permissible by law should never be used during
operation of the vehicle.
• Do not operate the multimedia system while driving.
• Do not disassemble, assemble, or modify the multimedia system.
• Do not watch the screen for prolonged periods of time while driving.
• Set the volume to a level which allows the driver to be aware of external conditions.
• Do not operate the multimedia system for prolonged periods of time with the vehicle igni-
tion in ACC. Such operations may lead to battery discharge.
• Be cautious not to spill water or introduce foreign objects into the device.
• Do not cause severe shock to the device. Direct pressure onto the front side of the moni-
tor may cause damage to the LCD or touch panel.
• In case of product malfunction, please contact your place of purchase or service center.
• When cleaning the touch screen, make sure to turn off the device and use a dry and
smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia,
benzene, thinners, etc.) as such materials may damage the device panel or cause color
and quality deterioration.
• SiriusXM service requires a subscription, sold separately, after 3-month trial
included with vehicle purchase. If you decide to continue your SiriusXM service at
the end of your trial subscription, the plan you choose will automatically renew and
bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See
our Customer Agreement for complete terms at www.siriusxm.com. Programming
subject to change. Sirius satellite service is available only to those at least 18 and
older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic
information not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
WARNING
• Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
• Infinity is a trademark of Harman International Industries, Inc.
• App Store is a service mark of Apple Inc. No charge for the UVO eServices app. App
runs on your smartphone cellular data service. Normal data rates will apply.
• HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital
Corporation.
• 24-hour Roadside Assistance is a service plan provided by Kia Motors America,
Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and
Consumer Information Manual. For access to Enhanced Roadside Assistance, a con-
nected mobile phone via Bluetooth within the cellular service coverage area is required.
• Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature
checks powertrain, chassis, and airbag systems only. For factory-recommended mainte-
nance schedule, see the Maintenance Feature of UVO eServices or the Owner’s Manual.
• 911 Connect activates after an airbag deployment. Feature requires a connected mobile
phone via Bluetooth. Dependant on cellular service coverage.
• The rear-camera display is not a substitute for proper and safe backing-up procedures. The
rear-camera display may not display every object behind the vehicle. Always drive safely and
use caution when backing up.All Map Database cannot be copied without permission.
Important Notice: This is protected by U.S. copyright laws. All rights
not expressly granted are reserved.
You may not otherwise reproduce, modify, and distribute the content
without Hyundai M&Soft, Inc's prior written consent.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( $ 0 7 & 3 J O E E , @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( $ 0 7 & 3 J O E E
Page 4 of 92
1
0037

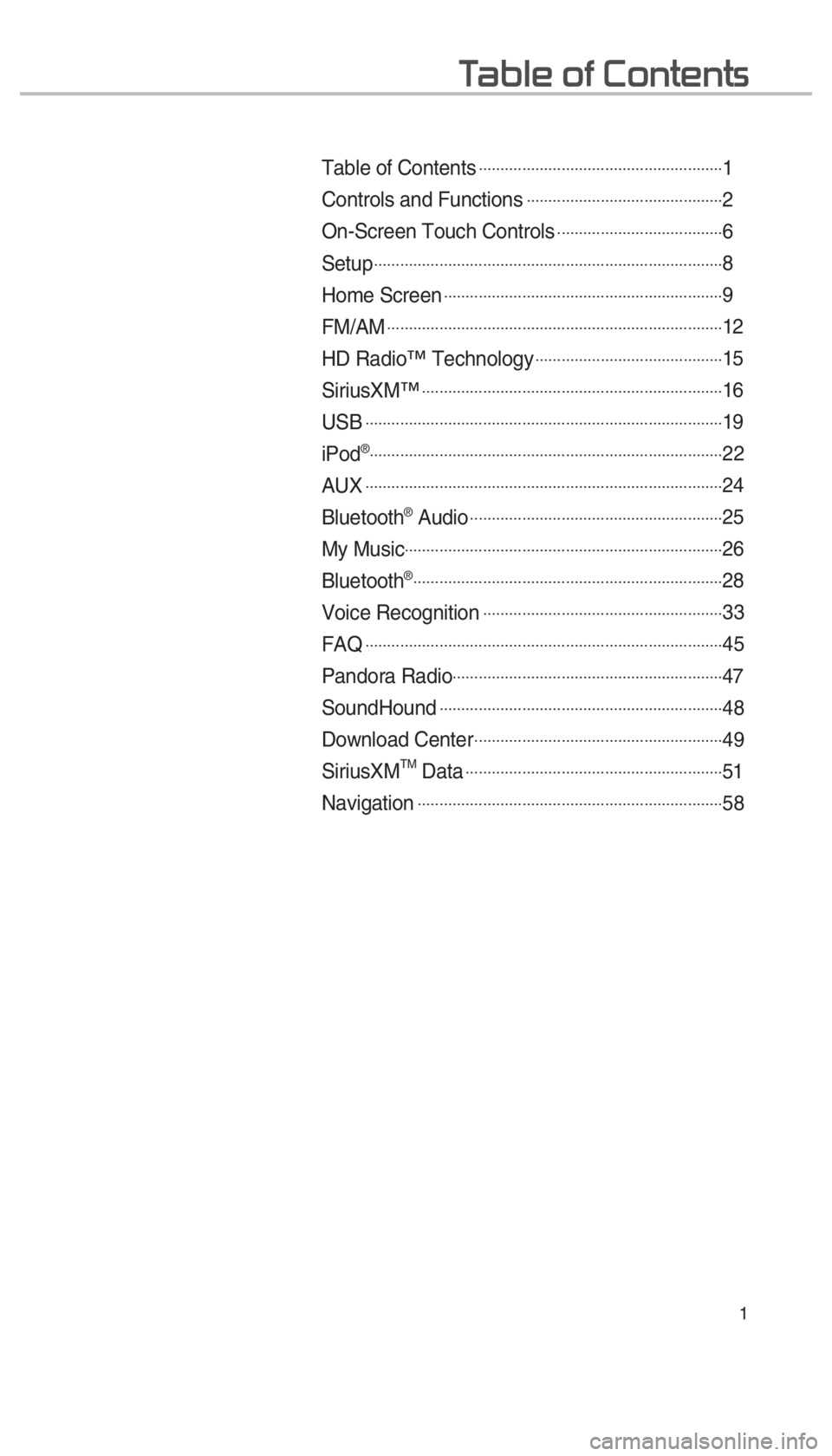

Table of Contents ........................................................1
Controls and Functions .............................................2
On-Screen Touch Controls ......................................6
Setup .......................................................................\
.........8
Home Screen ................................................................9
FM/AM .......................................................................\
......12
HD Radio™ Technology ...........................................15
SiriusXM™ .....................................................................16
USB .......................................................................\
...........19
iPod® ........................................................................\
.........22
AUX .......................................................................\
...........24
Bluetooth® Audio ..........................................................25
My Music........................................................................\
.26
Bluetooth® .......................................................................28
Voice Recognition .......................................................33
FAQ .......................................................................\
...........45
Pandora Radio..............................................................47
SoundHound .................................................................48
Download Center .........................................................49
SiriusXMTM Data ...........................................................51
Navigation ......................................................................58
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 5 of 92
2
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
Head Unit
NameDescription
003500240027002C0032Converts to FM/AM/SiriusXM™ mode
• Each time the key is pressed, the mode is changed in order of FM 0003044F0003
AM 0003044F0003
SiriusXM™ 0003044F0003
FM.
003000280027002C0024Converts to MEDIA mode
• If the media is not connected MEDIA mode will not be activated.
003800390032Displays the UVO mode
When key is pressed quickly. (under 0.8 seconds)• FM/AM mode: plays previous/next frequency
• SiriusXM™ mode: plays the previous/next channel
• MEDIA (USB/iPod/My Music) mode: changes the file or title (except USB Image and AUX)
When key is pressed and held. (over 0.8 seconds) • FM/AM mode: continuously changes the frequency until the key is released
• SiriusXM™ mode: continuously changes the channel until the key is released and plays the current channel
• MEDIA (USB/iPod/My Music) mode: rewinds or fastforwards the track or file (except USB Image, Bluetooth Audio and AUX)
003000240033
00390032002C00260028Displays the map for the current position
00310024Takes you to the menu screen where you can find your destination
and set the route.
04240003 The actual feature in the vehicle may differ from the illustration.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 6 of 92
3
NameDescription
0033002B003200310028Takes user to phone screen
002C003100290032Displays the information mode
00360028003700380033Displays the Setup mode
00330032003A0028003500120003
000300390032002F • When power is off, press to turn power on
• When power is on, press and hold (over 0.8 seconds) to turn
power off
• When power is on, press quickly (under 0.8 seconds) to turn Audio off
• Turn left/right to control volume
0037003800310028 • FM/AM mode: changes the frequency
• SiriusXM™ mode: changes the channel
• MEDIA (USB/iPod/My Music) mode: changes the file or title
(except USB Image, Bluetooth Audio and AUX)
00350028003600280037 Resets the system settings. (Preset radio channels and other
data will not be deleted.)
SD Card insert slot
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 7 of 92
4
Steering Wheel Control
NameDescription
00390032002F
000E
0010
00390032002FControls the volume
0030003200270028
• Each time this key is pressed, mode is changed in order FM 044F
AM 044F
SiriusXM™ 044F
USB Music or iPod 044F
AUX 044F
Bluetooth
Audio 044F
My Music
• If the media is not connected, the corresponding modes will be disabled
• Press and hold the key (over 0.8 seconds) to turn the Audio system on/off
• When power is off, press the key to turn power back on
0003
0003
When keys are pressed quickly. (less than 0.8 seconds) • FM/AM mode: searches broadcast frequencies saved to Presets
• SiriusXM™ mode: searches broadcast channels saved to Presets
• MEDIA mode: changes the track, file or title (except USB Image and AUX)
When keys are pressed and held. (more than 0.8 seconds) • FM/AM Mode: automatically searches broadcast frequencies
• SiriusXM™ mode: automatically searches broadcast channels
• MEDIA(USB/iPod/My Music) mode: quickly looks up songs (excluding USB images, AUX, and Bluetooth audio files)
When pressed quickly. (less than 0.8 seconds)• Activates voice recognition
When pressed and held. (more than 0.8 seconds) • Ends voice recognition
• Activates Siri Eyes Free
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 8 of 92
5
NameDescription
When pressed quickly. (less than 1.2 seconds)
• When pressed in the dial screen, makes a call
• When pressed in the incoming call screen, answers the call
• When pressed during call waiting, switches to waiting call (Call Waiting)
When pressed and held. (more than 1.2 seconds) • When pressed in the Bluetooth
® Handsfree, redials the last call
• When pressed during a Bluetooth® Handsfree call, switches call
back to mobile phone (Private)
• When pressed while calling on the mobile phone, switches call back to Bluetooth
® Handsfree (Operates only when Bluetooth®
Handsfree is connected)
• When pressed during a call, ends the phone call
• When pressed in the incoming call screen, rejects the call
0424 The actual feature in the vehicle may differ from the illustration.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 9 of 92
6
Learn how to touch the screen to
operate the system.
Select
Tap lightly on a menu or an item to
select it.
NOTICE
• The system will not recognize your
touch if you w
ear a glove or other non-
conductive material. Touch the screen
using your finger, an electrostatic
touch-screen glove, or a stylus pen.
Drag & Drop
Select a menu or item you want,
then drag and drop it to where you
want to place it.
Drag or touch the slider along the
play bar in the music screens to
jump to the point that you want to
play from.
Drag the frequency bar to the left or
right to move to the frequency that
you want.
From the Edit My Menu screen, drag
and drop icons to add, delete, or
move to from My Menu.
Flick (Quick Scrolling)
Quickly moves up and down in the
list.
NOTICE
• Moving the list when there are many
items will display a handler on the r
ight
of the display. You can easily move
many items at a time with the handler.
00320051001000360046005500480048005100030037
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 10 of 92
7
You can view the previous or next
image by flicking left/right on an
image on the USB Image screen.
Flick left/right on the frequency bar
in the radio player to look up the pre-
vious/next frequency available.
Press and Hold
Pressing the and
buttons in the music player will fast
forward/rewind the music.
, @ 1 4 & 7 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
