Driving your vehicle
Trunk lid open
warningThis warning light activates when the
trunk is not closed securely.Low fuel level
warningThis warning light indicates the fuel
tank is nearly empty. The warning
light will come on when the fuel level
has dropped to about 8.5 liters.
Refuel as soon as possible.Door ajar warningThis warning light illuminates when a
door is not closed securely with the
ignition in any position.
Headlight high beam
indicator This indicator illuminates when the
headlights are on and in the high
beam position or when the turn sig-
nal lever is pulled into the Flash-to-
Pass position.Front fog light indica-
tor (if equipped) This light comes on when the front
fog lights are ON.
Malfunction indicator
(if equipped)This indicator light is part of the
Engine Control System which moni-
tors various emission control system
components. If this light illuminates
while driving, it indicates that a
potential problem has been detected
somewhere in the emission control
system.
Generally, your vehicle will continue
to be drivable and will not need tow-
ing, but have the system checked by
an Authorized Kia Dealer as soon as
possible.✽ ✽
NOTICEA loose fuel filler cap may cause the
On Board Diagnostic System
Malfunction Indicator Light ( ) in
the instrument panel to illuminate
unnecessarily. Always make sure
that the fuel filler cap is tight.
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 37

Driving your vehicle38
4
1
2
3
4
5
6
7
8
9
Air bag warning
(if equipped) This warning light will blink or illumi-
nate for approximately 6 seconds
each time you turn the ignition switch
to the ON position.
If this indicator does not go out, or if
it illuminates while the vehicle is
being driven, see an Authorized Kia
Dealer for immediate service.
Auto cruise indicator
(if equipped)CRUISE indicator
The indicator light illuminates when
the cruise control system is enabled.
SET indicator
The indicator light illuminates when
the cruise function switch
(SET/COAST or RES/ACC) is ON.
CAUTION
 Prolonged driving with the
Emission Control System
Malfunction Indicator Light
( ) illuminated may cause
damage to the emission con-
trol systems which could
effect drivability and/or fuel
economy.
If the
Emission
Control System
Malfunction Indicator Light
( ) begins to flash ON and
OFF, potential catalytic con-
verter damage is possible
which could result in loss of
engine power. Have the Engine
Control System inspected as
soon as possible by an
Authorized Kia Dealer.
CRUISESET
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 38

439
1
2
3
4
5
6
7
8
9
Driving your vehicle
TCS indicator
(Traction Control
System) (if equipped) The TCS indicator will illuminate
when the ignition switch is turned
ON, but should go off after approxi-
mately 3 seconds. When the TCS is
on, it monitors the driving conditions
and under normal driving conditions,
the TCS light will remain off. When a
slippery or low traction condition is
encountered, the TCS will operate,
and the TCS indicator will blink to
indicate the TCS is operating.TCS OFF indicator
(if equipped)The TCS OFF indicator will illuminate
when the ignition switch is turned ON,
but should go off after approximately
3 seconds. To switch to TCS OFF
mode, press the TCS button. The TCS
OFF indicator will illuminate indicating
the TCS is deactivated. If this indica-
tor stays on in the TCS ON mode, the
TCS may have a malfunction. Take
your car to the authorized Kia dealer
and have the system checked.
Safety belt warning chime Type A
If the driver's seat belt is not fastened
when the ignition key is turned “ON”
or if it is disconnected after the key is
ON, the safety belt warning chime
will sound for approximately 6 sec-
onds.
Type B
If the driver's seat belt is not fastened
when the ignition key is turned “ON”
or if it is disconnected after the key is
turn ON, the safety belt warning
chime will sound for approximately 6
seconds.
If the driver’ s lap/shoulder belt is not
fastened within 30 seconds after the
engine is started, the safety belt
warning chime will sound for 6 sec-
onds. This cycle will repeat 11 times
with an interval of 24 seconds
between cycles.
Door ajar warning chime
(if equipped)If a door is opened with the ignition
switch ON, the warning chime will
sound.Key reminder warning chimeIf the driver’ s door is opened and the
ignition key is left in with the ignition
switch in the LOCK or ACC position,
the key reminder warning chime will
sound. This is to prevent you from
locking your keys in the vehicle.
TCSTCS
OFF
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 39

441
1
2
3
4
5
6
7
8
9
Driving your vehicle
Headlight position ( )
When the light switch is in the head-
light position (2nd position) the head,
tail, position, license and instrument
panel lights are ON.
High - beam operation To turn on the high beam headlights,
push the lever away from you. Pull it
back for low beams.
The high-beam indicator will light
when the headlight high beams are
switched on.
To prevent the battery from being
discharged, do not leave the lights
on for a prolonged time while the
engine is not running.Flashing headlights
To flash the headlights, pull the lever
towards you. It will return to the nor-
mal (low-beam) position when
released. The headlight switch does
not need to be on to use this flashing
feature.
1LDC2103
1LDC2105
1LDC2106
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 41

443
1
2
3
4
5
6
7
8
9
Driving your vehicle
✽ ✽

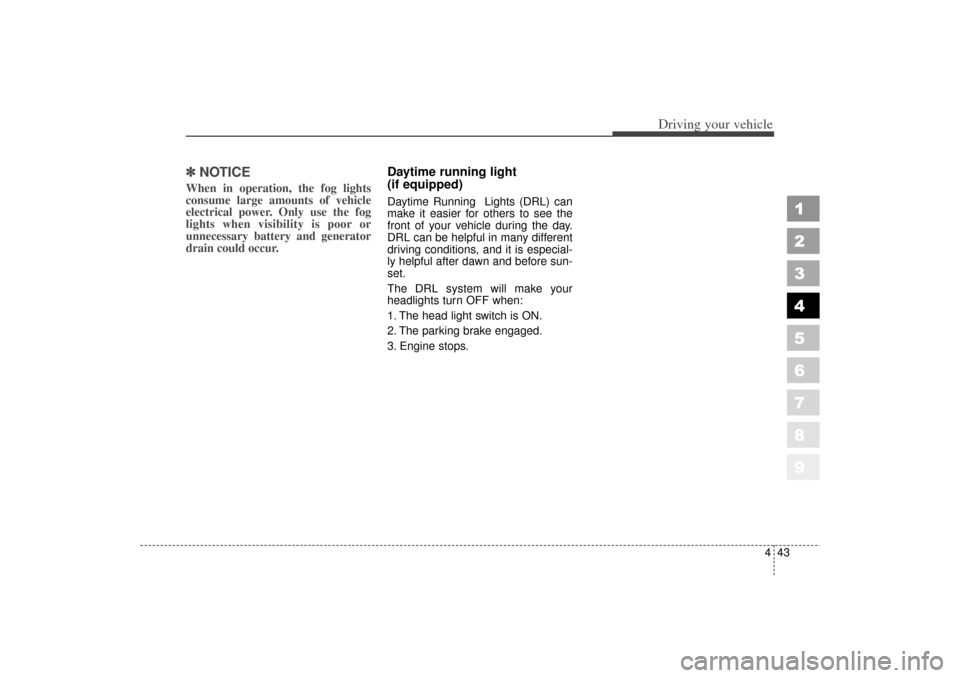

NOTICEWhen in operation, the fog lights
consume large amounts of vehicle
electrical power. Only use the fog
lights when visibility is poor or
unnecessary battery and generator
drain could occur.
Daytime running light
(if equipped)Daytime Running Lights (DRL) can
make it easier for others to see the
front of your vehicle during the day.
DRL can be helpful in many different
driving conditions, and it is especial-
ly helpful after dawn and before sun-
set.
The DRL system will make your
headlights turn OFF when:
1. The head light switch is ON.
2. The parking brake engaged.
3. Engine stops.
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 43

Driving your vehicle46
4
1
2
3
4
5
6
7
8
9
Windshield washers In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 2-3 cycles.
Use this function when the wind-
shield is dirty.
The spray and wiper operation will
continue until you release the lever. If the washer does not work, check
the washer fluid level. If the fluid level
is not sufficient, you will need to add
appropriate non-abrasive windshield
washer fluid to the washer reservoir.
The reservoir filler neck is located in
the front of the engine compartment
on the passenger side.
✽ ✽
NOTICETo prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
1LDA2110
WARNING
Do not use the washer in freez-
ing temperatures without 1st
warming the windshield with the
defrosters; the washer solution
could freeze on contact with the
windshield and obscure your
vision.
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 46

447
1
2
3
4
5
6
7
8
9
Driving your vehicle
The defroster heats the window to
remove frost, fog and thin ice from
the interior and exterior of the rear
window, while engine is running.
✽ ✽NOTICE To prevent damage to the conduc-
tors bonded to the inside surface
of the rear window, never use
sharp instruments or window
cleaners containing abrasives to
clean the window.
 To prevent the battery from being discharged, operate the defroster
only while the engine is running.
 If you want to defrost and defog on the front windshield, refer to
“Windshield Defrosting and
Defogging” in this section.
To activate the rear window
defroster, press the rear window
defroster button located in the center
console switch panel. The indicator
in the instrument cluster illuminates
when the defroster is ON.
If your vehicle is equipped with the
outside mirror defroster, it will be
operating at the same time when you
operate the rear window defroster.
If there is heavy accumulation of
snow on the rear window, brush it off
before operating the rear defroster.
The rear window defroster automati-
cally turns off after 20 minutes or
when the ignition switch is turned off.
To turn off the defroster, press the
rear window defroster button again.
DEFROSTER
1LDN2116A1LDN2116
4 Door5 Door
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 47

455
1
2
3
4
5
6
7
8
9
Driving your vehicle
System operationVentilation
1. Set the mode to the position.
2. Set the air intake control to theoutside (fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed. Heating
1. Set the mode to the position.
2. Set the air intake control to the
outside (fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
5. If dehumidified heating is desired, turn the air conditioning system (if
equipped) on.
 If cool air is desired at face level for
bi-level operation, set the mode to
the position.
 If the windshield fogs up, set the
mode to the
,position. Air conditioning (if equipped)
All Kia Air Conditioning Systems are
filled with environmentally friendly R-
134a refrigerant which is not damag-
ing to the ozone layer.
1. Start the engine. Push the air con-
ditioning button.
2. Set the mode to the position.
3. Set the air intake control to the outside air or recirculated air posi-
tion.
4. Set the temperature control knob to the desired position.
5. Set the fan speed control to the desired speed.
6. Adjust the fan speed control and temperature control to maintain
maximum comfort.
 If warmer air is desired at floor
level for bi-level operation, set the
mode to the position and
adjust the temperature control to
maintain maximum comfort.
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 55

Driving your vehicle56
4
1
2
3
4
5
6
7
8
9
 When maximum cooling is desired,
set the temperature control to the
extreme left position and set the air
intake control to the recirculated air
position, then set the fan speed
control to the highest speed.✽ ✽
NOTICE When using the air conditioning
system, monitor the temperature
gauge closely while driving up
hills or in heavy traffic when out-
side temperatures are high. Air
conditioning system operation
may cause engine overheating.
Continue to use the blower fan but
turn the air conditioning system
off if the temperature gauge indi-
cates engine overheating.
 When opening the windows in humid weather air conditioning
may create water droplets inside
the vehicle. Since excessive water
droplets may cause damage to
electrical equipment, air condi-
tioning should only be run with
the windows closed.
Air conditioning system oper-
ation tips  If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
 To help reduce moisture inside of
windows on rainy humid days,
decrease the humidity inside the
vehicle by operating the air condi-
tioning system.
 During air conditioning system
operation, you may occasionally
notice a slight change in engine
speed at idle as the air condition-
ing compressor cycles on. This is
a normal system operation charac-
teristics.
 Use the air conditioning system
every month if only for a few min-
utes to ensure maximum system
performance.
 When using the air conditioning
system, you may notice clear water
dripping (or even pudding) on the
ground under the passenger side
of the vehicle. This is a normal sys-
tem operation characteristics.
The air conditioning system
includes a function that automati-
cally turns the air conditioning
compressor off if engine coolant
temperature approaches an over
heating level. The air conditioning
compressor operation will resume
once engine coolant temperature
returns to the normal range. Also,
the air conditioning compressor is
automatically turned off for a few
seconds when the accelerator is
fully depressed (wide open throt-
tle).
 When operating the air condition-
ing system use the outside (fresh)
air position.
 Operating the air conditioning sys-
tem in the recirculated air position
does provide maximum cooling,
however, continual operation in this
mode may cause the air inside the
vehicle to become stale.
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 56

Driving your vehicle60
4
1
2
3
4
5
6
7
8
9
Armed stageThe Theft-Alarm system is armed
as follows:
 After all doors, engine hood, and
trunk are locked, press the “LOCK”
button on the transmitter once.
The hazard flasher lights will flash
once when the button is pressed,
then twice when the button is
released. (At this time, the alarm
does not sound.)
Alarm stageThe alarm will be activated when:
 Any door is opened without using
the key or the transmitter.
 The trunk lid is opened without
using the key or the transmitter.
 The engine hood is opened.
The alarm will sound ON for 30 sec-
onds, then OFF for 10 seconds. This
ON/OFF cycle will be repeated three
times. During this time, the engine
will not start.
Withheld alarmWhen the alarm is armed, the alarm
will not sound if the trunk lid is
opened with either the key or the
transmitter.
However, if the trunk lid is not
opened completely within two sec-
onds after unlocking with the key or
transmitter, the alarm will sound.
Also, if any of the doors or hood is
opened while the trunk lid is open
and the alarm armed, the alarm will
sound.
THEFT-ALARM SYSTEM (IF EQUIPPED)
HMR.082
LD CAN (ENG) 4.qxd 7/29/05 10:17 AM Page 60
